Winy technology SX5 FHD User manual

Ver.6.0

Contents
Product Safety Precautions
Package
Product Parts
How to install
How to record
Playback – PC
Playback - TV / Car Navigation
LED Operation Guide
Voice Guide
How to install original viewer program

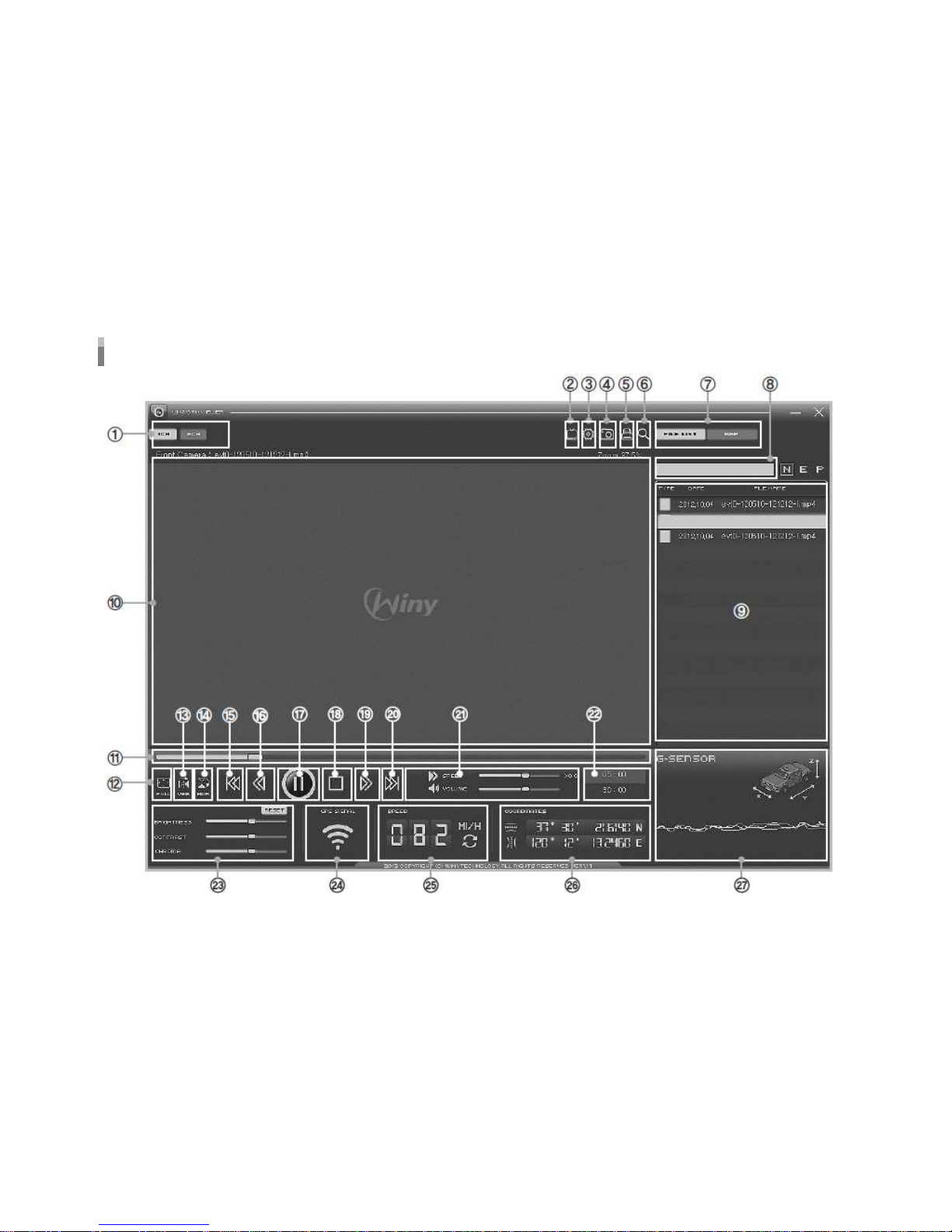

Original Viewer – Screen Configuration

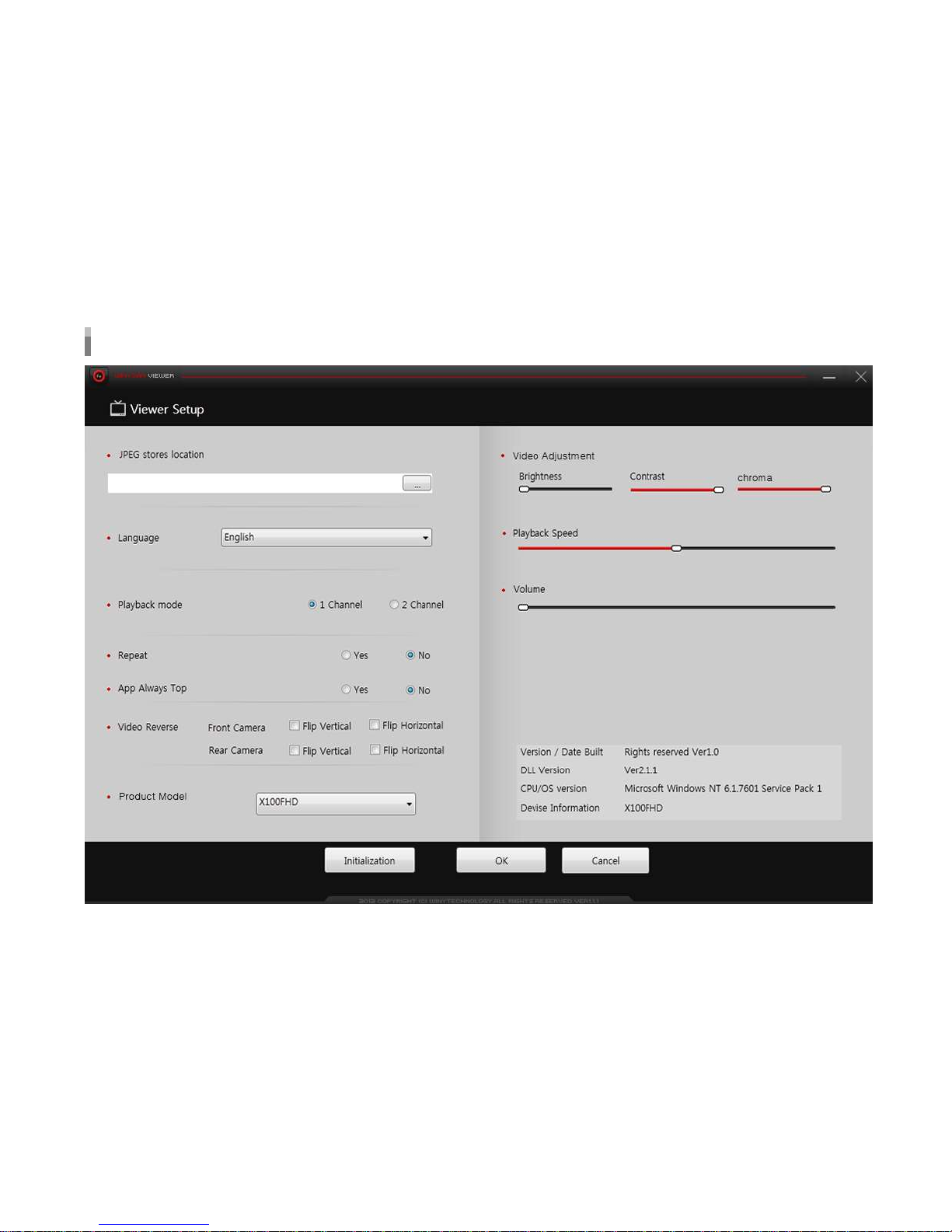

Original Viewer – Viewer Configuration
Original Viewer – Basic Configuration
Original Viewer – Sensitivity Configuration
Configuration Default Setting
Firmware Update
SD Card Format
Specification
Recordable Time
Warranty

Product Safety Precautions
•Please do not operate the product during driving. It may cause accidents.
•Do not disassemble or convert the product intentionally. It may lead to product failure and the responsibility for the
damage to the product resulting from this shall be borne by the user.
•Since this product is a device that records a driving video by using the camera, the image quality may drop when
entering the tunnel, in shading contrast, backlight and photometric conditions, and the middle of the night.
•The thermal environment at below -20℃ or over 60℃ may cause a malfunction or failure of the product. If the product
temperature became higher in parking mode, REC will stop to protect a product SD Card. (When not using the product,
please be careful about storage temperature)
•Do not use the product in a place at high temperature or much moisture.
•Do not press excessive force to the products (especially buttons and bracket). It may cause a malfunction of the
products.
•Before using the product, make sure to operate it for 3 to 5 minutes and verify that the image saved properly and then
use it.
•If the product is in prolonged exposure to sunlight or high temperatures during the summer, normal operation can be
difficult.
•When firmware upgrade is in progress, if SD card is removed or a power is disconnected, failure of the product may
occur, so should be careful.
•Do not leave the cigarette lighter cable or the product near heating equipment.
•Do not bend or pull the cigarette lighter cable forcefully or avoid placing heavy objects on the cigarette lighter cable.
(A damaged power cord may cause fire or electric shock)
•Do not disassemble, crimp, destroy.
•When camera direction changed during recording, a black recording image will be shown around 2 seconds.
Operation & Storage Precautions
# This product is assistant device for recoding driving video. Please use this product for your reference for checking driving video,
not as special CCTV because the image might not be record depend on environment.
# This product might change without any notice for performance improvement.
# This user manual indicate only basic user manual, please check furthermore detail information from http://winycam-eng.com

Operation & Storage Precautions
Product Safety Precautions
FCC Approval
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
This device should be installed and operated with minimum 20 cm between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter
unless authorized to do so by the FCC.

•In order to confirm normal operation of the product, please check the image of a SD card and format it on a regular basis.
(PC format needed one to two times per month)
•Because an SD card is consumables, if it is used for a long time, you may lose the data or may not record due to an error,
so please check it periodically.
•When the product is in recording or the power is on, do not eject the SD card forcibly. It may cause a failure of the SD card
and data loss.
•Due to excessive temperature rise inside the car, the data may not be saved or get damaged, so please park the car in a
cool place in the summer.
•When identify the car's accident or damage, please keep the SD card separately. Due to overwrite, important data may be
deleted..
•When turn off the power of the body and remove the SD card before LED is turned off, the last recording file may not be
saved, so please be careful.
•In general, the SD card is a consumable product in life, so if it is not used for a long time, you may not be able to save the
data. In this case, buy a new SD card and use it, and please always check that the recorded images and a SD card have no
problems with data storage.
•When driving a car, do not remove the SD card. Make sure to remove it safely when a car is in parking or stop.
•After turning on the power, make sure that it is in normal operation.
•Please note that the warranty period of an SD card is six months, and replace it at the time of more than six months.
•Please purchase and use SD Card that manufacture recommended specification.
•The SD card randomly purchased other than the one we provide, shall be excluded from the warranty, and we shall not take
any responsibility for loss and damage of the data recorded in the SD card in any case.
•In case purchased SD Card from others, please format as 64KB for assigned unit, if selected not 64KB, SD Card will format as
64KB automatically. Please backup SD Card data before formatting.
SD Card Precautions
Product Safety Precautions

Product Feature
High Quality Lens and High Image Quality / Resolution support
•2 Mega Pixel image sensor mounting.
•130 degrees (based on lens) wide mega lens
•FULL HD(1920×1080)의 High Image Quality Resolution and 30fps
Various Recording Function and Video Data Acknowledgement
•Constant, Manual, Event, Motion and auto change to Parking recording mode
•Driving records can be stored with GPS data. (optional)
•G sensor built-in Automatic parking recording mode change and event recording mode.
•External video output. (real-time video image can be checked)
•Record resolution is selectable (FHD/HD)
•PC viewer software are provided to change various setting values and map data can be checked when using GPS.
(In the general video player (e.g. Windows media player), recorded video can be played)
•SD card can be formatted as the product itself, without connecting to a PC.
•Each capacity of constant / event/ motion folder can be set in PC Viewer.
High Quality Voice Record and Voice Guidance
•Operating instructions service by voice guidance
•Voice recording On/Off function and speaker output On/Off function.
•High performance microphone built-in
Back-up battery and Car constant power discharge protection function
•Car constant power discharge protection function
(Selectable ON/OFF on viewer, Not required another equipment for this function)
•Consume less than 2mA when power shutdown (Based on 12V)
•When using car constant power discharge protection functions, If user car voltage is 12V and the voltage of less than 11.8V is
maintained for more than 30 seconds the product power will be shuts-off
(Note: Shutdown time depend on the Type of Car and car condition.)
Other
•Soft look and emotional design. (easy removable body)
•Security LED light are mounted on front body (LED Lighting function On/Off can be set in PC viewer)

Body & Bracket
(GPS : Option)
Video Out Cable
(Option)

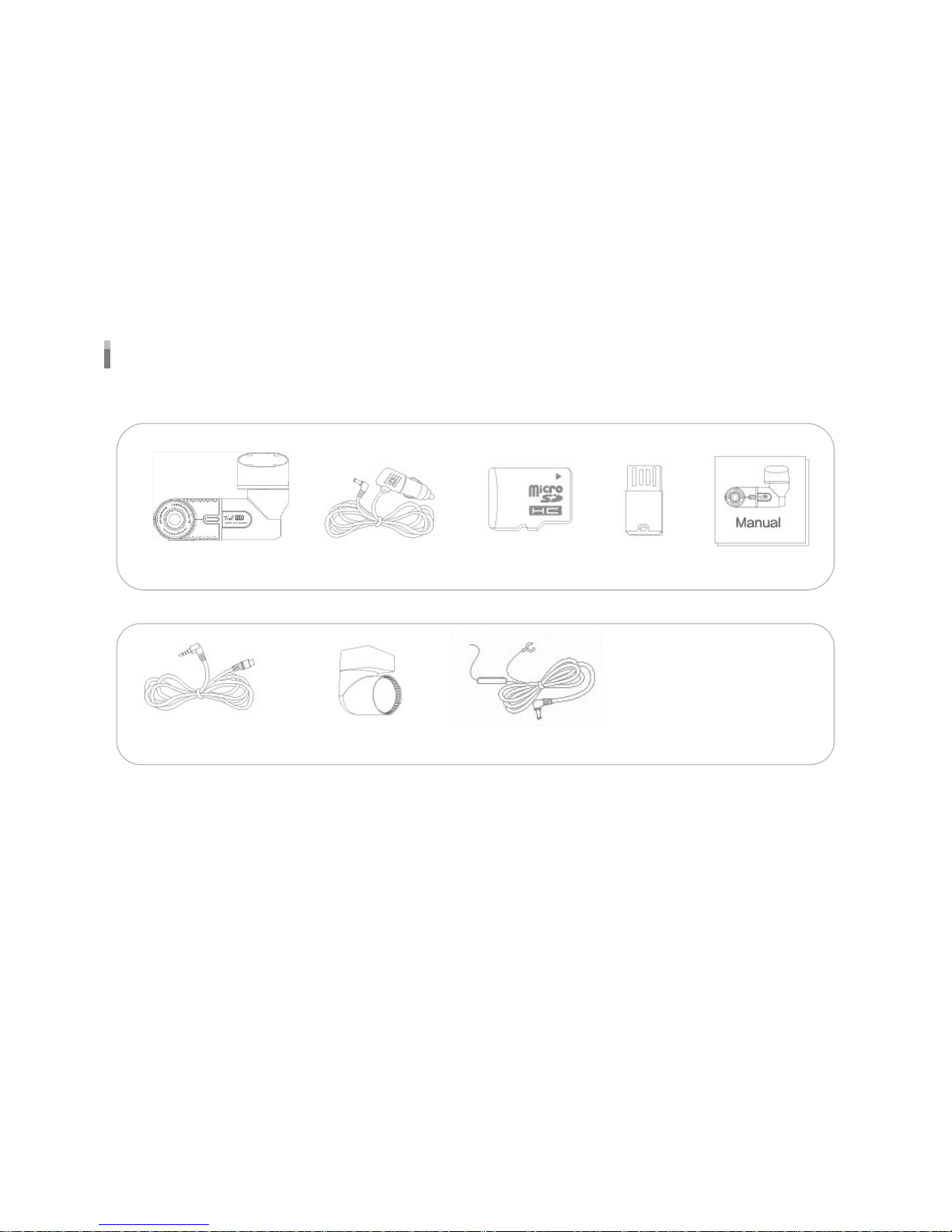

Package
Standard Package
Optional Accessories
•The viewer program is stored in Micro SD card.
•Please use after saving the program in advance in the computer, etc. so that the program can’t be deleted.
(If it is deleted, you can download it from our website.)
•The packaged product picture of the user manual may differ from the actual product.
•Video cable is used for connection to the TV / car navigation, and can monitor real-time. But please note that depend on monitors,
Video input type is different and check the user manual of monitor.
Car Cigar Lighter Micro SD card USB Card Reader User Manual
GPS Bracket (Option) Null Cable (Option)

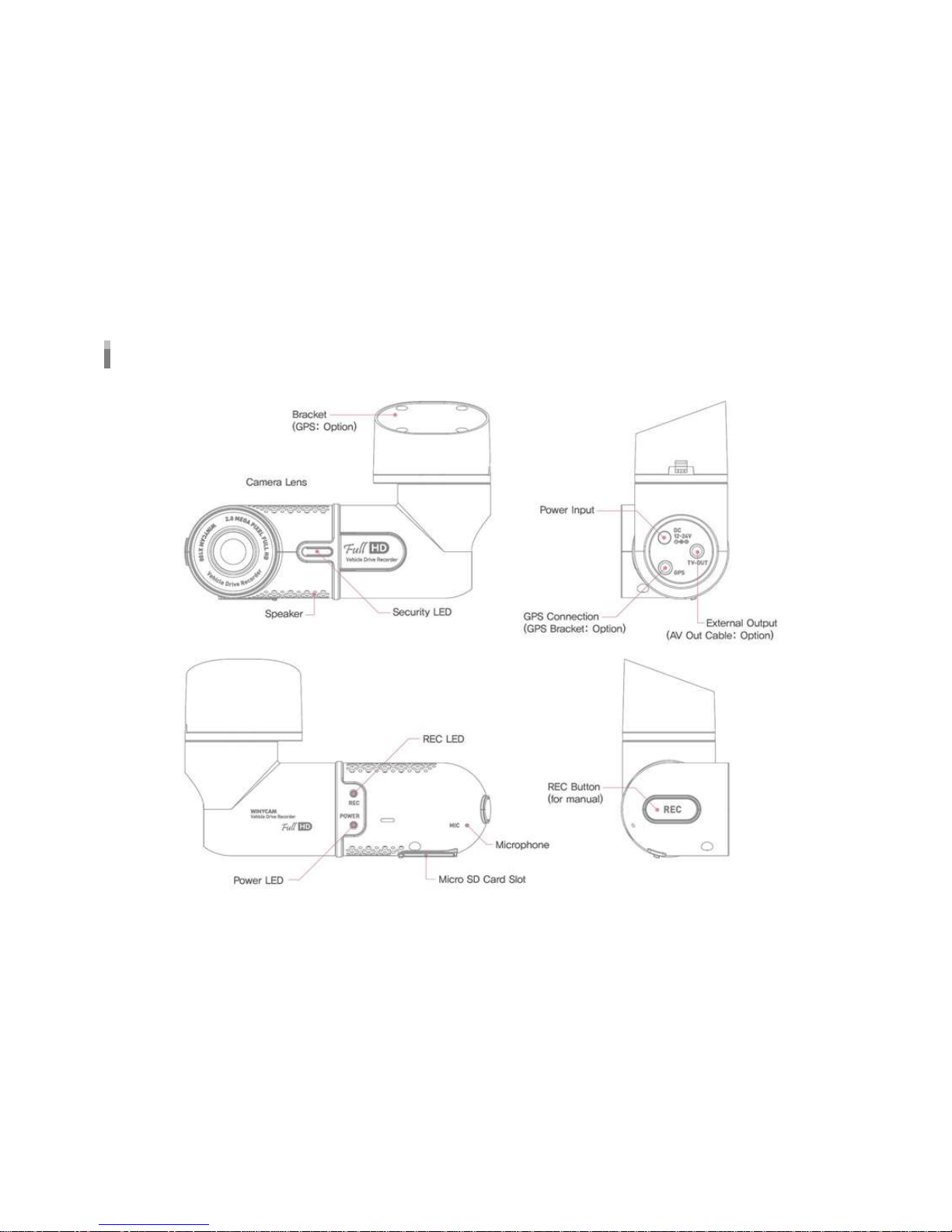

Product Parts

How to install
Recommend to attach in just
behind the rearview mirror.
Recommend to attach in just
behind the rearview mirror.
Remove the protect sticker and
clean foreign substance in place to
attach the product.
Remove the protect sticker and
clean foreign substance in place to
attach the product.
Connect the power cable to the
product power socket.
Connect the power cable to the
product power socket.
Connect the Cigar lighter to Cigar
socket.
Connect the Cigar lighter to Cigar
socket.
Insert the Micro SD Card to the
product after initial setting.
(Check insertion direction)
Insert the Micro SD Card to the
product after initial setting.
(Check insertion direction)
1. 2. 3.
4. 5. 6.
Installation completed.Installation completed.

Recording
Mode
Recording
Method Auto Recording Mode
Manual
Recording
Method
(Button Control)
Recording Time Recording
Folder
Driving
Mode
Constant
Record
Initial recording mode in
power connection -Set on configuration 30 / 60 / 120 sec Movie
Event Record In G-sensor detect shock One short press
button
Each 15 second
recording before
and after event or
motion occurrence
Event
Parking(M
otion)
Mode
Motion
Record
In G-Sensor is not detected
for more than 10 minutes
Automatic motion recording
mode change
3 seconds long
press button Motion
Event Record In G-sensor detect shock One short press
button Event
How to record
1. Record : SX5 is automatically booted at power on, and recording starts in basic normal recording mode.
2. Recording Mode : it is classified into driving recording mode and parking (motion) recording mode
3. Recording Method: it is classified into constant recording, event recording, motion recording.
※ For automatic recording and manual recording methods, please refer the below table.
※ After change to parking recording mode by manual, if you want to change normal recording mode again, please
press “REC” button for 3 seconds (during event recording, mode cannot be changed.)

LED Operation Guide
*When no GPS signal depend on the location, Power LED display only lightning (Green or Orange).
When GPS signal received, Power LED is flashing.
Situation Front LED Operation
Rear LED
REC LED
Power LED
Normal
(no GPS module)
GPS module
GPS Signal
Received
GPS Signal
Non-received
Booting Off Red lighting Red lighting for 10 sec
-> Red flashing
Firmware Update Off Orange flashing
(Green/Red)
Orange flashing
(Green/Red)
Power LED
Flashing for 0.8sec interval
Green flashing
Green
lighting
Green
flashing
Orange
flashing
(Green/Red)
Event recording
mode standby Green lighting
Event recording
mode start Flashing for 0.4sec interval Red flashing
Motion/Event
recording mode st
art
Flashing for 1.6sec interval
Orange flashing
(Green/Red)
Motion/Event
recording mode
standby
Orange
lighting
No Se Card (Error) Off Off Orange flashing (Green/Red)
->

Situation Voice Guide
Event / Motion Occur (Alarm Tone) “Ding-Dong”
Remove SD card / SD card Error “Please check your SD card..”
Firmware Update Start “The firmware update is starting.”
Firmware Update Completed “The firmware update has been completed.”
Constant (Normal) Recording Start
(In booting) “Constant Recording will start.”
Event Recording Start (In booting) “Event Recording will start.”
Parking Recording start “Parking Recording will start.”
Recording end “The Recording will end.”
Update changed Date / Time in
configuration “The Setting has been changed.
Automatically change to
Constant (Normal) Recording “The SD Card is full. Constant Recording will start.”
SD card Format stat/completed “Will you format your SD card?”/
“SD Card is formatted.”
Voice Guide
* Only when event recording mode is set in the configuration, the voice guiding "event recording
will start" will announce

1. System Requirements
- Windows XP(32bit), Windows Vista(32bit), Window7(32/64)
- Pentium4 2.8GHz & RAM over 1GB.
- Display monitor resolution: 1024 * 768
- DirectX Support (WPF)
2. Install
- Playback program is in packaged SD card.
- Insert this SD card into the USB card reader and connect to the
computer.
- An executable file is in the SD card as below figure.
If you run “setup.exe”, Winy BB Viewer will be installed. And then,
installation will be continued according to the installation sequence of
setup dialog box.
How to Install Original Viewer Program
Installation may tale long depend on PC Usage environment.
If viewer program is lost accidentally, please visit our website winycam-eng and download to the SD card.

Original Viewer – Screen Configuration

Original Viewer - Screen Configuration
NO. Item NO. Item
1[1Ch], [2Ch] Select channel and it will playback. 15 File Skip Back
2Viewer Configuration 16 Fast-forward
3System Configuration 17 Playback or Pause
4Screen Capture 18 Stop
5Print 19 Fast-Rewind
6Zoom 20 File Skip
7Play list/Map Button 21 Control playback speed/ Control Volume
8Find File Location 22 Total File Time/Playback Time
9Playback list/Map Display Change 23 Brightness/Contrast/Chroma
10 Playback Display 24 GPS signal condition
11 Playback Control 25 Driving speed
12 Full Screen 26 Latitude/Longitude
13 Flip Horizontal 27 G-sensor information
14 Flip Vertical

Screen Configuration

Item Description
JPEG stores location Set location for captured JPEG image.
Language Select language.
Playback mode Select display channel.
Repeat Select repeated playback.
App Location Select App is always the top of another window.
Video Reverse Select video reverse.
Device Select Select the model. (Select SX5)
Video Adjustment Control Brightness/Contrast/Chroma.
Playback Speed Control playback speed.
Volume Control recording volume level.
Screen Configuration

1. Basic Configuration
Item Description
Mode Setup Select the recording mode
Driving Mode Frame Rate Select the frame rate for constant recording per second.
Time Setting Set your current time in PC
Resolution Select recording resolution
Parking Recording Frame Rate Select the frame rate for parking(motion) recording per second.
Set Time? Apply set time in PC to your product
Recording Time Select recording time for each file
Parking(Motion Recording) Mode Change Select to use parking mode change function
LED Lightning Setting Select front security LED lightning function
Video Quality Select video quality
Voice Guide Volume Level Select voice guide volume level
Time Zone Select your location time zone
Summer Time Select to apply summer time
Recording Volume Level Select Recording volume level
Overwrite Function Select to apply overwrite function
Car Constant Power Discharge Protection Function Select to apply car constant power discharge protection function
Speed Unit Display Select speed display kilo or mile
Video Format Select video output format
Camera Sensor Select Brightness, Contrast, Chroma. Back to default value after click sensor initialization
SD Card Folder Capacity Adjustment Select the capacity of each recording mode in SD card
Operating Protection by TEMP In “Parking REC Mode”, a recording will stop at high temperature.
(Function to protect a product and SD card).
※ Before setting a configuration, please find SD card location. (refer page 22)

Viewer Configuration

Power Manage Function
