Read the complete manual before using the product.

Bam! Thanks for purchasing Wiral LITE and welcome to the community of
creators.
Adding Wiral LITE to your filming gear is a great step towards making super
engaging videos that showcase your point of view. So whether you’re an adventurer
and traveler, adrenaline lover, or an aspiring filmmaker, you’ll tell better stories with
Wiral LITE.
Never before has a cable camera, a long-time staple in the filmmaking industry,
been this compact, light, easy to use, and packed with features that let your
creativity flow free. Bring your Wiral LITE with you everywhere you go and you’ll find
yourself making professional looking videos that bring you joy and make everyone
stop and ask: “Wow, how did you make that?”
Go out, be curious and creative - and capture the world with your Wiral LITE.
Use #WorldOfWiral hashtag when you post online to make sure we see your
videos!
WELCOME TO THE COMMUNITY!
Are you like us more of a video person?
Check out online tutorials here:
www.wiralcam.com/how-to-use
To download this user manual in a dierent language,
visit wiralcam.com/support.
Wenn Sie dieses Benutzerhandbuch in einer anderen Sprache
herunterladen möchten, besuchen Sie wiralcam.com/support.
Pour télécharger ce manuel de l’utilisateur dans une autre
langue, rendez-vous sur wiralcam.com/support.
Para descargar este manual de usuario en otro idioma,
visite wiralcam.com/support.
Per scaricare questo manuale utente in un’altra lingua,
visita wiralcam.com/support.
Para baixar este manual do usuário em outro idioma,
acesse wiralcam.com/support.
For å laste ned denne brukerhåndboken på et annet språk,
besøk wiralcam.com/support.
För att ladda ner den här bruksanvisningen på ett annat språk,
besök wiralcam.com/support.
Hvis du vil downloade denne brugervejledning på et andet
sprog, besøg wiralcam.com/support.
このユーザーマニュアルの他言語版をダウンロードするに
は、 wiralcam.com/support にアクセスしてください。
如需下载本用户手册的其他语言版本，请访问
wiralcam.com/support。
Чтобы загрузить это руководство пользователя на другом языке,
посетите страницу wiralcam.com/support.
EN
IT
DE
DE
PT
JA
FR
NO
ZH
ES
SE
RU

1. Read the complete manual before using
the product.
2. The user holding the remote control
is legally the operator of the unit. The
operator is responsible for safe usage
and consequences of unsafe usage of the
unit and the line. Wiral Technologies AS is
not responsible for any injury, damage of
property or harm caused by usage of Wiral
LITE and accessories.
3. The appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision
or instruction concerning the use of the
appliance by a person responsible for their
safety.
4. Do not breach the bounds of privacy. Ask
for permission before using Wiral LITE on
private property.
5. Do not use the Wiral LITE while under the
influence of drugs or alcohol.
DISCLAIMERS
To avoid injuries and damages to property:
1. Keep control of the immediate
environment and keep Wiral LITE in line of
sight at all times when operating the unit.
Wiral LITE requires a certain line length for
braking and stopping (See page 11). Lack of
attention can result in crashing it into the
end anchor points or other obstacles.
2. To keep the Quick Reel™, tightening
strap, or rope from breaking, and prevent
the resulting injuries/damages to property,
follow these instructions:
• Always make sure the Quick Reel™ is
securely locked when tightening the
rope.
• Do not set up the line in locations where
it might interfere with, or block trac or
anything that might crash into the line
(e.g. trails, roads).
• Do not set up the line and use Wiral LITE
above people and large crowds.
• Do not set up the line near heat sources,
sharp objects or in another way that
lead to the line being cut (e.g. open
flame, concert lights, sharp rocks)
• Do not set up the line on weak or
unstable anchors or anchor points that
do not have a fixed distance
• Never overtighten the Quick Reel™.
Tighten by hand only, and do not tighten
above 390N (40kg/90lbs). (Replace
strap if safety seam is breached).
• Do not pull or apply pressure on a line
that is fully tightened.
• Release the control wheel and stop the
Wiral LITE immediately if it derails or if
an obstacle keeps it from moving freely.
• Never exceed maximum payload of
1.5kg (3.3 lbs)
• Do not leave the line mounted
unsupervised.
• The breaking strength of the rope is 353
kg, and may decrease over time due to
UV light exposure and wear.
3. Warning! Do not throw, pierce, attempt to
fix, or in other ways tamper the integrity of
the battery. Do not charge the battery with
a non-Wiral charger. Misuse of battery could
lead to risk of fire and burns.
4. Always make sure that the Wiral LITE and
the remote control are powered on and the
line is tightened before mounting Wiral LITE
on the line. Do not loosen or tighten the line
while the unit is mounted.
5. Do not touch the motor when the product
is in use or immediately aer use.
6. Do not expose Wiral LITE to water. It is
not waterproof and cannot be used under
water. [do not use in snowstorm, sandstorm,
or other extreme weather]
7. Do not use in temperatures below -15°C
and above 50°C
8. Do not use Wiral LITE in wind conditions
exceeding 10 m/s (22 mph), or in other
severe weather conditions.
9. Do not use in areas with high levels of
interference (e.g. radio transmission towers).
10. Store the kit in room temperature, in a
dry environment and shielded from sunlight.
Maximum line strength may decrease over
time.
11. Always keep Wiral LITE, all accessories
and packaging out of reach of children and
infants.
12. Never use 3rd party accessories including
3rd party rope as a replacement for the
original parts. Only use genuine certified
Wiral replacement parts.
CAUTION

7
6
WHAT’S IN THE BOX
Wiral® LITE REMOTE CONTROL QUICK REEL™ TIGHTENING STRAP
11.1 V LI-POLY
BATTERY
UNIVERSAL
CHARGER
BALL JOINT
MOUNT
END STOP
CLIPS (2X)
PULL
QUICK SETUP
UPDATE FIRMWARE
OVERVIEW
2
34
TIGHTENATTACH
Control Wiral® LITE with the remote
control in three dierent speed modes
or with the Wiral® LITE App on your
phone. See how to control Wiral® LITE
on page 16-21.
Tighten the rope with the tightening
strap. See more on how to set up
the line on page 10-13.
Find a suitable anchor point and
attach the line.
Mount Wiral® LITE on the line and
attach your camera. See more on
page 4-15.
MOUNT GO!
END STOP CLIP
TIGHTENING STRAP
QUICK REEL™
REMOTE CONTROL
We are continously working on improving the performance and
functions of Wiral LITE. To be sure your Wiral LITE has the latest
features integrated, you should scan the QR code or follow the
link below to download the latest update:
www.wiralcam.com/firmware
1

9
8
CHARGE
Contact us if you have any
questions about the battery:
wiralcam.com/contact
09 Never charge the battery
unattended.
10 Immediately stop using
the battery if you see signs of
inflation/battery swells up.
11 Do not expose for
mechanincal damage.
12 Only use Wiral charger
to charge the battery and
do not use Wiral charger for
other batteries.
13 Dispose of the battery
accordance to local
regulations.
14 Do not replace the battery
in Wiral LITE with a third
party battery.
01 Read this entire document
(Wiral LITE User Manual)
before charging and using
the battery.
02 Never puncture, deform,
disassemble, shock or short
circuit the battery.
03 Stop using or charging
the battery if it swells up,
the temperature exceeds
60°C, if it leaks or if anything
abnormal happens.
04 Keep battery out of reach
of children.
05 Never use a wet battery.
06 Keep the battery away
from heat and flammable
materials.
07 Only use the original Wiral
LITE charger.
08 The user takes the full
responsibility of using this
battery.
SAFETY AND DISCLAIMERS
01 SELECT AND MOUNT PLUG
03 WAIT FOR GREEN LIGHT02 CONNECT BATTERY
The charger comes with four dierent interchangeable plugs. Select the correct one
for your area, and insert it into the charger.
When the battery is fully charged, the
LED indicator will change from red
to green. The battery is now ready to
use.
Connect the battery to the
charger, and plug the charger into a
power outlet.
ULSAAUK CE
1
4. CONTROL3. MOUNT 5. TROUBLESHOOT1. CHARGE 2. SET UP

11
10
ROPE GUIDE
B
CARABINER ATTACHMENT POINT
A
ROPE
D
HANDLE
F
ROTATY KNOB
G
ROPE CARABINER
E
ROPE REEL
C
LARGE STRAP CARABINER
H
TIGHTENING STRAP
I
TIGHTENING BUCKLE
K
SMALL STRAP CARABINER
J
01 UNLOCK QUICK REEL™ 02 ATTACH CARABINER
SET UP THE LINE
2
Press rope guide to unlock Quick
Reel™ and unwind the rope.
Place the rope around the first
attachment point, and attach the
carabiner to the rope. Do not attach to
weak or unstable anchor points.
07 TIGHTEN STRAP
PULL
Tighten the system by pulling the
end of the strap as tight as possible
using one hand. Minimum force: 5 kg /
49 N, Maximum force: 40 kg / 390 N
08 SAFETY FEATURE
To ensure that the rope is not too
tight, the tightening strap has a safety
feature. If the seam is breached, too
much force is applied to the line.
03 UNWIND ROPE
Pull out the rope and let the reel rotate
freely to unwind the rope.
04 LOCK QUICK REEL™
PUSH
PUSH
Lock the Quick Reel™ when you are
close to the second attachment point.
05 FASTEN STRAP
Place the tightening strap around the
second attachment point, and
attach the large strap carabiner.
06 ATTACH
PULL
Connect the small strap carabiner to
the Quick Reel™ rope guide.
4. CONTROL3. MOUNT 5. TROUBLESHOOT2. SET UP2. SET UP1. CHARGE

13
12
BRAKING
DISTANCE
END
STOP
CLIP
SAFETY
ZONE
Recommended Safety Zone
Maximum incline
Warning!
Braking Distance
Weight of
Camera
0 - 500 g
(0 - 1.1 lb)
500 - 1000 g
(1.1 - 2.2 lb)
1000 - 1500 g
(2.2 - 3.3 lb)
Horizontal 4 m / 13  5.5 m / 18  7 m / 23 
Max. Incline 2 m / 6.5  2 m / 6.5  2 m / 6.5 
Max. Decline 5 m / 16.5  7 m / 23  9 m / 29.5 
*The values are estimates, and may vary with environmental conditions.
Weight of
Camera
0 - 500 g
(0 - 1.1 lb)
500 - 1000 g
(1.1 - 2.2 lb)
1000 - 1500 g
(2.2 - 3.3 lb)
Horizontal 3 m / 10  4 m / 13  5 m / 16.5 
Max. Incline 1.5 m / 5  1.5 m / 5  1.5 m / 5 
Max. Decline 5 m / 16.5  7 m / 23  9 m / 29.5 
Weight of
Camera
0 - 500 g
(0 - 1.1 lb)
500 - 1000 g
(1.1 - 2.2 lb)
1000 - 1500 g
(2.2 - 3.3 lb)
Max. Incline 30° 25° 10°
*The values are estimates, and may vary with environmental conditions.
BRAKING
DISTANCE
END
STOP
CLIP
SAFETY
ZONE
BRAKING
DISTANCE
END
STOP
CLIP
SAFETY
ZONE
09 MOUNT END STOPS
10 INCLINE
Mount the end stops on to the rope at a safe distance from each attachment point.
The end stops will prevent Wiral LITE from crashing into the attachment points. When
the end stops are mounted, the unit will either derail or stop before it reaches the
anchor point. The safety zone and braking distance will depend on the weight of the
camera. See the tables below for recommended distances.
The maximum incline of Wiral
LITE varies with the weight
of the camera attached to it.
See the table below to check
how steep your setup can
move. Warning! If you exceed
this limit at your own risk, the
unit will overheat and shut
down to avoid permanent
damage.
Do not set up the line and use Wiral LITE
above people, in locations where it might
interfere with trac or where objects
might crash into the line (e.g. trails, roads).
Do not set up the line near heat sources,
sharp objects or in any other way that
might lead to the line being cut (e.g.
open flame, concert lights, sharp rocks).
Keep control of the immediate environment
and keep Wiral LITE in line of sight at all times
when operating the unit. Lack of attention
can result in crashing it into obstacles.
Use the line with care. Rough use can
lead to damage to the rope. Do not
crash into end stops in high speed or
brake hard with high loads attached.
MAX: 30°
4. CONTROL1. CHARGE 2. SET UP 3. MOUNT 5. TROUBLESHOOT

15
14

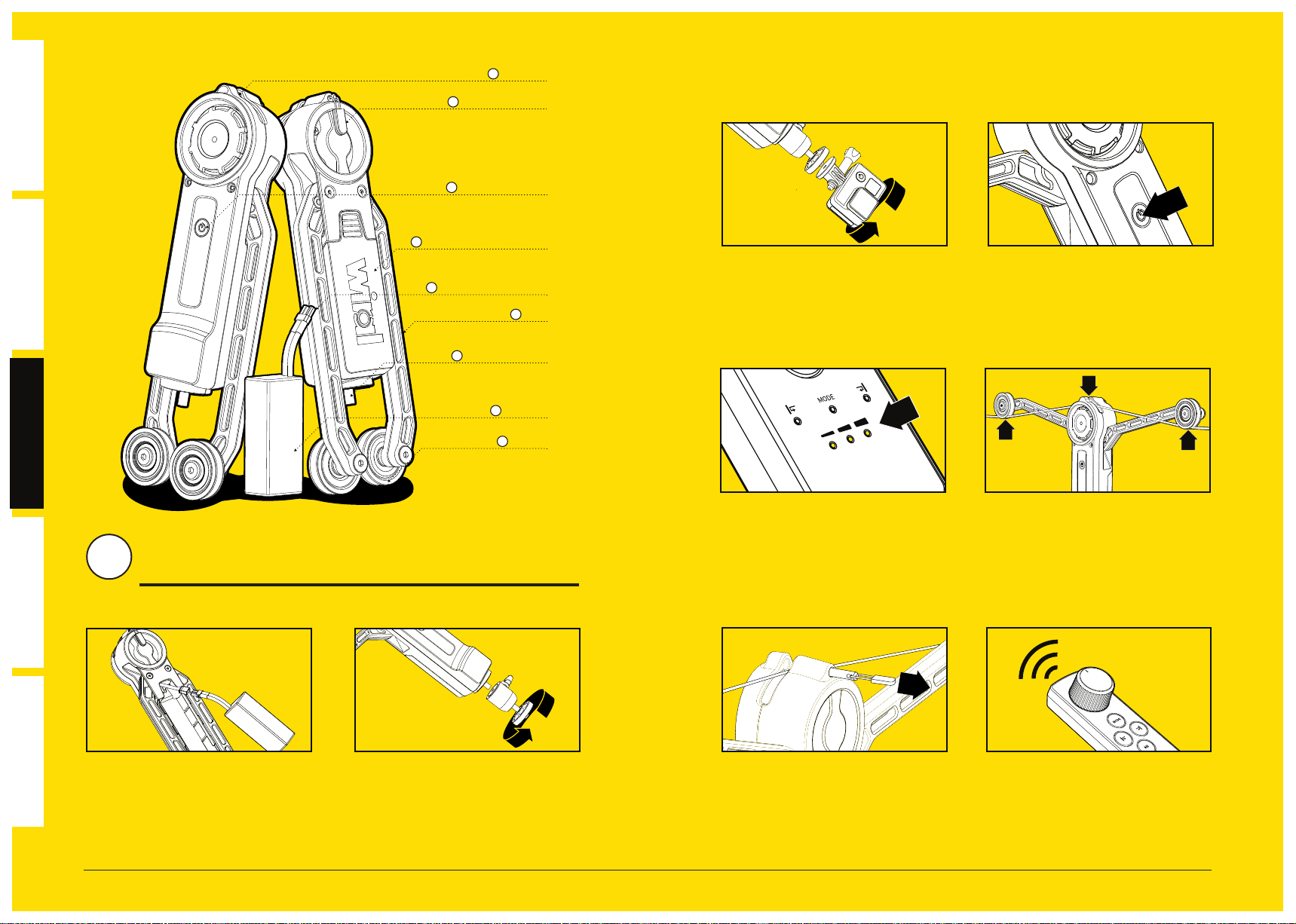

LOCK PIN
A
ON / OFF BUTTON
C
BATTERY COMPARTMENT
D
LOCK PIN PULLER
B
BATTERY
H
PULLEY
I
CAMERA MOUNT
G
ARM
F
BATTERY CONNECTOR
E
03 MOUNT CAMERA
01 INSERT BATTERY 07 SECURE THE UNIT 08 TURN ON THE REMOTE
02 MOUNT BALL JOINT
06 MOUNT ON LINE05 CHECK BATTERY LEVEL
04 TURN ON
1. CHARGE 2. SET UP 3. MOUNT 4. CONTROL 5. TROUBLESHOOT
MOUNT THE UNIT
3
Mount your camera on the universal
camera screw. Tighten the screw on
the ball joint to keep the camera screw
from spinning. spinning when attach-
ing your camera.
Insert battery and connect it to the
power plug. Keep battery unplugged
when the unit is not in use to avoid
gradual discharge.
Secure the unit by opening the lock pin,
let the line pop into place. Make sure
that the line is placed in the drive wheel
groove to avoid damage on the rope.
Press the mode button to turn the remote
on. The remote will connect to the main
unit and tha main unit will turn white. For
troubleshooting connection issues, read
more on page 22.
Mount the ball joint to be able to point
your camera in any angle.
Mount the unit on the line by placing
the line under the two pulleys and over
the drive wheel.
To check the battery status of the main
unit, hold the play / pause button for 2
seconds. The status will be displayed on
the LED below.
Press the button on the front to
turn Wiral LITE on. Always power on
before mounting the unit on the line.

17
16

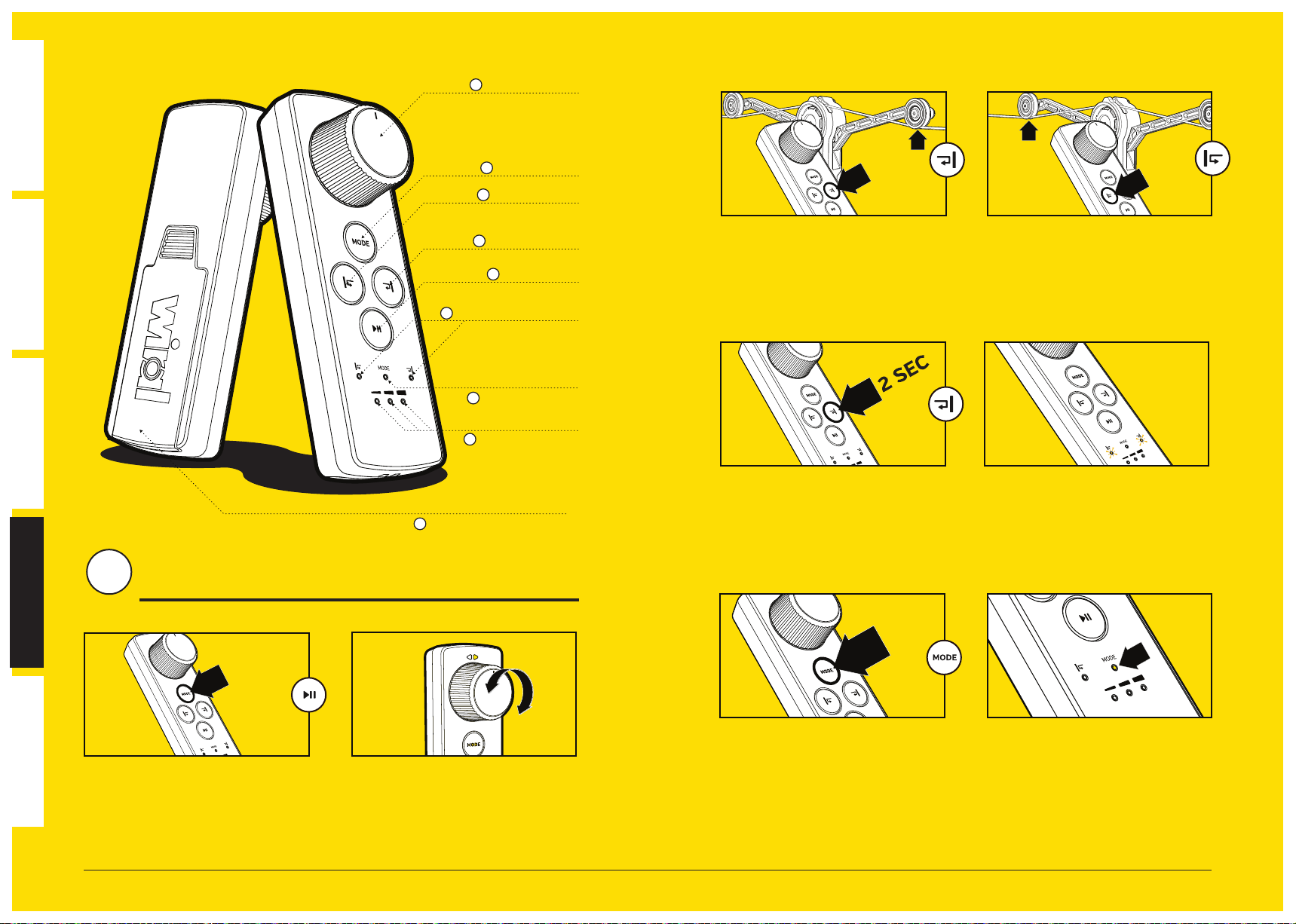

CONTROL WHEEL
MODE BUTTON
SET END STOP 1
SET END STOP 2
PLAY / PAUSE
MODE INDICATOR
END STOP INDICATORS
BATTERY COMPARTMENT
SPEED & BATTERY
INDICATOR
A
B
C
D
E
F
G
H
I
01 POWER ON
03 SET DIGITAL END STOP
02 CONTROL MOVEMENT
04 RESET END STOPS
06 END STOPS NOT SET
05 REMOVE END STOP
07 CHANGE MODE 08 MODE INDICATION
CONTROL THE UNIT
4
Press the Mode Button to turn on the
remote control. The Mode LED will
turn on. Hold the same button for 2
seconds to turn o.
Set digital end stops by moving the
unit to the point you want it to auto-
matically stop and press the end stop
button.
Rotate the Speed Wheel to move
the main unit. Rotating towards the
yellow arrow, will move the main unit
in direction of the arm marked with a
yellow stipe.
Be aware that the end stops might dri.
They should be reset aer emergen-
cy stops. Use end stop clips for extra
safety.
Setting digital end stops is highly
recommended. In time lapse mode the
indicators will blink if the end stops
are not set.
Remove end stop by holding the end
stop button for 2 seconds. To replace
an end stop, just click the end stop
button when you want to place it.
The remote is automatically set to
normal mode when turned on. Change
modes by pressing the mode button.
Normal Mode: Mode indicator LED is
blinking slowly.
Sport Mode: Mode indicator LED is
blinking fast.
Time Lapse Mode: Mode indicator LED
is continously lit.
1. CHARGE 2. SET UP 3. MOUNT 4. CONTROL 5. TROUBLESHOOT

19
18

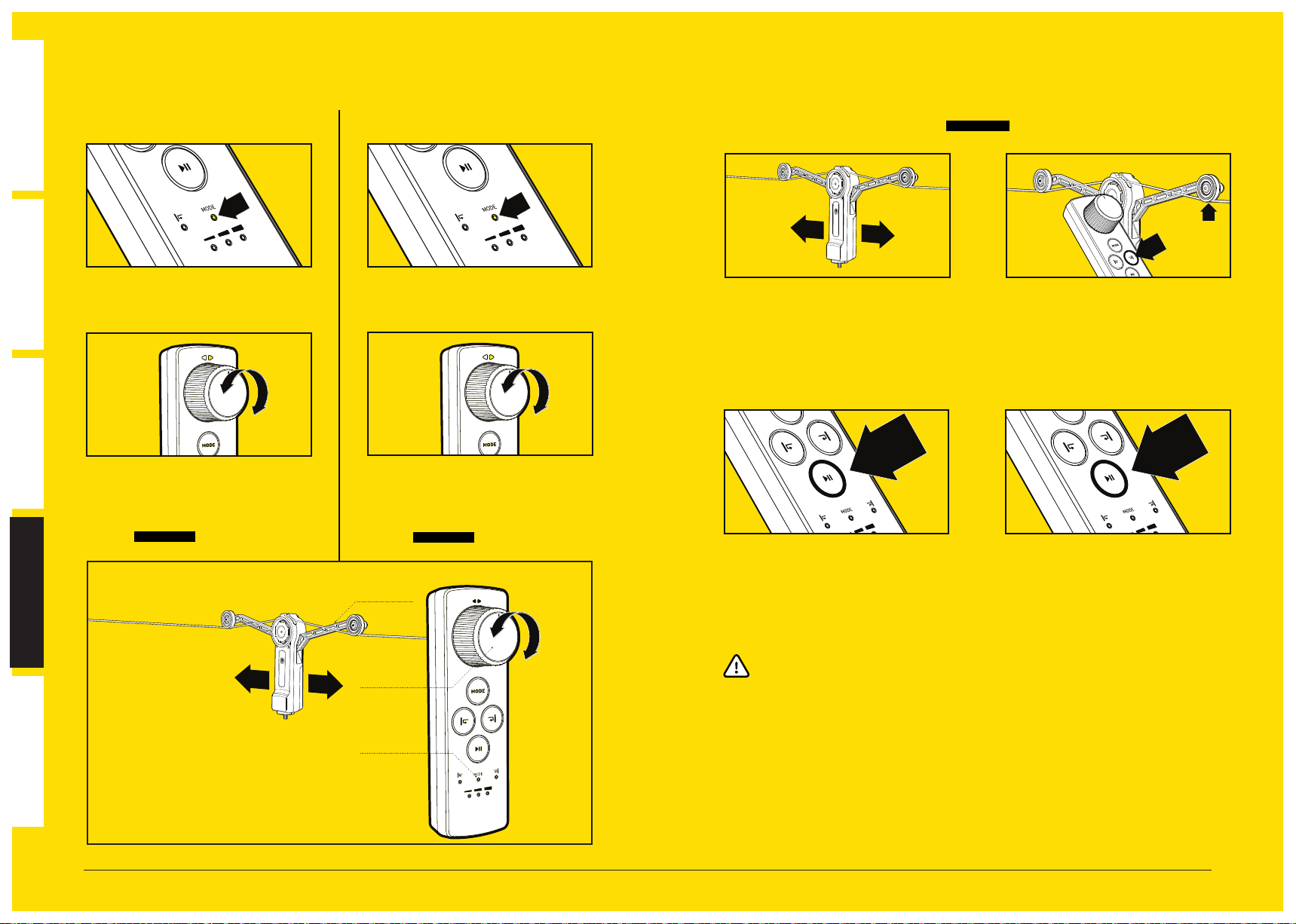

Sport ModeNormal mode Ping-Pong Motion
NEW IN FW 1.1
NEW IN FW 1.1
NEW IN FW 1.3
01 MODE INDICATION 01 AUTOMATIC MOVEMENT 02 SET END STOPS
04 STOP
01 MODE INDICATION
03 SET SPEED
03 DIRECTION
02 CONTROL THE SPEED 02 CONTROL THE SPEED
When in Normal Mode, the mode
indicator will fade slowly in and out. When in Normal mode, Wiral LITE can
be set to ping pong (move automatical-
ly) back and forth at a speed of 0 to 5
km/h ( 0 - 3 mph ).
Make sure digital end stops are set on
both sides. The feature will not work if
the end stops are not set
Press the Play/Pause button once
more to stop the Ping-Pong motion.
The speed is not saved and needs to
be reset if you want to keep the unit
moving automatically.
When in Sport Mode, the mode
indicator will fade quickly in and out.
Control the speed with the speed
wheel as usual. When you reach the
deisred speed, press the Play/Pause
button to start Ping-Pong Motion
between the digital end stops.
Moving the speed wheel clockwise
(towards the yellow arrow) will make the
main unit move towards the side with
yellow direction mark.
Control the speed from 0 to 5 km/h
( 0 - 3 mph ) directly by turning the
speed wheel. Let go of the speed
wheel to stop the unit.
Control the speed from 0 to 35 km/h
( 0 - 22 mph ) directly by turning the
speed wheel. Let go of the speed
wheel to stop the unit.
YELLOW MARKS
ON THE ARM
SPEED WHEEL
MODE INDICATOR
Digital End Stops might dri. We recommend that you reset the end stops when
using Ping-Pong Motion over longer periods of time.
We recommend using Ping-Pong Motion with little to no incline. If you use it with
incline, make sure you have enough space on either end of your digital end stops.
Immediately release the control wheel and stop the unit if it is spinning to avoid
damage on the rope.
Remember to follow the recommendations for braking distance, safety zones and
incline, especially in high speeds.
Warning!
1. CHARGE 2. SET UP 3. MOUNT 4. CONTROL 5. TROUBLESHOOT

21
20
Timelapse Mode
SPEED LEVEL 1
SPEED LEVEL 4
SPEED LEVEL 2
SPEED LEVEL 5
SPEED LEVEL 3
SPEED LEVEL 6
6.6 m / 21.4  per hour
25.8 m / 84.4  per hour
12.4 m / 40.8  per hour
32.8 m / 107.4  per hour
20.0 m / 65.6  per hour
40.0 m / 131.2  per hour
NEW IN FW 1.1
01 MODE INDICATION
Wiral LITE App
Capture Modes
Explore and Learn
Download
05 RESET SPEED
03 RELEASE SPEED WHEEL
02 SET SPEED
04 PAUSE TIMELAPSE
When in Timelapse Mode, the mode
indicator is continously lit.
Download the app to control Wiral® LITE with
your phone, it is availble both for IOS and
android phones.
Watch tutorials and tips on how to create amazing videos with
your new Wiral® LITE.
Control Wiral® LITE with precision in the Wiral® LITE App.
Repeat runs, set the unit to loop between the end stops and
shoot timelapses with full control of every detail. With features
like delayed start it easier than ever to film yourself with Wiral®
LITE.
To set the speed to zero, click
the play/pause button twice.
Warning!
Time lapse mode should only be
used with horizontal line. Incline
on the line can lead to the unit
overheating.
When releasing the wheel, the unit will
continue in the same speed.
Control the acceleration by turning the
speed wheel. Moving the speed wheel
clockwise (towards the yellow arrow) will
accelerate the unit towards the side with
yellow direction marks.
Pause the timelapse by pressing the move
/pause button on the remote. The unit
restarts when the play/pause button is
pressed for the second time.
1. CHARGE 2. SET UP 3. MOUNT 4. CONTROL 5. TROUBLESHOOT

23
22
Pairing
Wiral® LITE is by default not paired to a specific remote. This
means that one unit can be controlled by several remote
controls at the same time. Follow the steps below to pair your
Wiral® LITE to one remorte only:
01 Turn on both the remote control and main unit.
02 Hold down both end stop buttons and the play/pause
button at the same time, while moving the remote control
within a few centimeters of the main unit.
03 When close enough, Wiral LITE will make a sound and the
units are paired.
Unpairing
To unpair the remote control:
01 Hold down both end stop buttons and the play/pause
button at the same time, while turning on the remote control.
To unpair the main unit:
01 Press and hold the power button for 5 seconds, until
button light is continuously yellow.
02 Remove battery to confirm unpairing.
Factory Reset
If you are experiencing connection or control errors while
using Wiral LITE, a solution could be to do a factory reset to
recalibrate the unit. The reset is a quick and simple process:
01 Press and hold the on / o button on the main unit while
connecting the battery.
02 If done correctly, the motor should start running slowly to
calibrate the unit.
03 When the motor stops, the unit is ready to use.
Wiral® LITE is blinking orange
The remote and the main unit are not connected. Please
check the battery level of the unit (see page 15). If the battery
level is sucient, try pairing the unit and the remote (see
next page).
Wiral® LITE is continuous orange
The unit is in update/unpairing mode. Remove the battery of
the main unit to exit the mode.
Wiral® LITE is blinking white
The unit has entered overheat mode. To avoid permanent
damage on the unit it will move slowly until it cools down.
Wiral® LITE is not responding
If the unit blinked orange and turned o it is out of battery.
Recharge or change the battery to get back to filming.
I can’t use Timelapse or Ping-Pong Motion
This might occur when the battery of the remote is running
low. Try changing the remote batteries.
The remote turns o
This might occur when the battery of the remote is running
low. Try changing the batteries.
Wiral® LITE is not moving in timelapse mode
This might occur when the battery of the remote is running
low. Try changing the batteries.
Wiral® LITE is moving slowly
The unit has entered overheat mode. To avoid permanent
damage on the unit it will move slowly until it cools down.
I can’t access Ping-Pong Motion
Make sure the end stops are set, Ping-Pong Motion will not be
available if the end stops are not detected. Additionally, make
sure you have updated the unit to the latest firmware.
Wiral® LITE is blinking white and yellow
When colliding into an obstacle, the collision sensor is
activated to prevent any damage on the rope. The main unit
will stop for 5 sec while the light is blinking with alternating
colors. NEW IN FW 1.1
Troubleshooting Pairing and Factory Reset
1. CHARGE 2. SET UP 3. MOUNT 5. TROUBLESHOOT4. CONTROL

www.wiralcam.com
© Wiral Technologies AS. All rights reserved.
This content is subject to change.
Download the latest version at
www.wiralcam.com/support
