XTBM Talk Back Mic User Guide
PTT
Microphone
Loudspeaker
Status Light
Volume Down
Volume Up
Power On/Off
Emergency
Power Off/On: Hold for about 2
seconds to turn on or off. The Power
Mic will sound escalating or de-
escalating tones to advise status.
The device does a self check and
the status light then glows. (see
Control)
Emergency: Pressing the Orange
emergency button triggers the
host radio’s emergency input
and causes the status light to
glow Red. Additionally, it will glow
Red while any of the connected
X10DR Handset users presses their
Emergency button.
Status light: Glows Green when
set to transmit to X10DR handsets
or Blue when transmitting over the
host mobile radio (see Control).
Changes to Red when Emergency
is being activated.
Microphone: Talk in a normal
strength voice about 1 to 3cm
(<1”) from the microphone port.
PTT: Press to talk, release to listen.
Default assignment is to talk to
wireless X10DR handsets. (see Control)
Volume Up/Down: Adjusts the
speaker audio louder/softer and
sounds a beep when pressed.
Control: Can be congured*:
*See over for re-conguration instructions
Control
XDIA XIC-0.15 Mounting bracket
XDIA
adaptor
XIC-0.15 0.15m
interface cable
Basic installation

To add a XTBM Talkback Mic to your
X10DR system you MUST rst set the
microphone output level to match the
host mobile radio’s wired microphone.
Microphone transmit level adjustment:
(Using a portable radio to monitor)
To match the XTBM’s transmit audio
level to the host radio’s microphone:
Hold the Volume Up button while
powering on XTBM. After activation
tone sounds, release button.
While listening on a portable
radio, transmit on the host radio’s
microphone and then transmit on the
Talkback Mic. Use the Volume Up/
Down buttons to adjust XTBM transmit
audio level so the XTBM matches the
radio’s wired microphone.
To lock the audio level, press top grey
button.
If you want the radio’s receive audio
to also be heard through the XTBM
loudspeaker, you must also set receive
input level.
Radio Receive input level adjustment:
(Default level is off)
To match the wireless X10DR’s and the
host radio’s received audio level:
Hold the Volume Down button
while powering on the XTBM. When
activation tone sounds, release
button.
Speak into a portable radio so that you
can monitor the host mobile’s receive
audio level. Now transmit on the
wireless X10DR handset and use the
XTBM’s Volume Up/Down buttons to
adjust the volume so that the wireless
X10DR handset audio matches the
portable radio’s audio level.
To lock the audio level, press top grey
button .

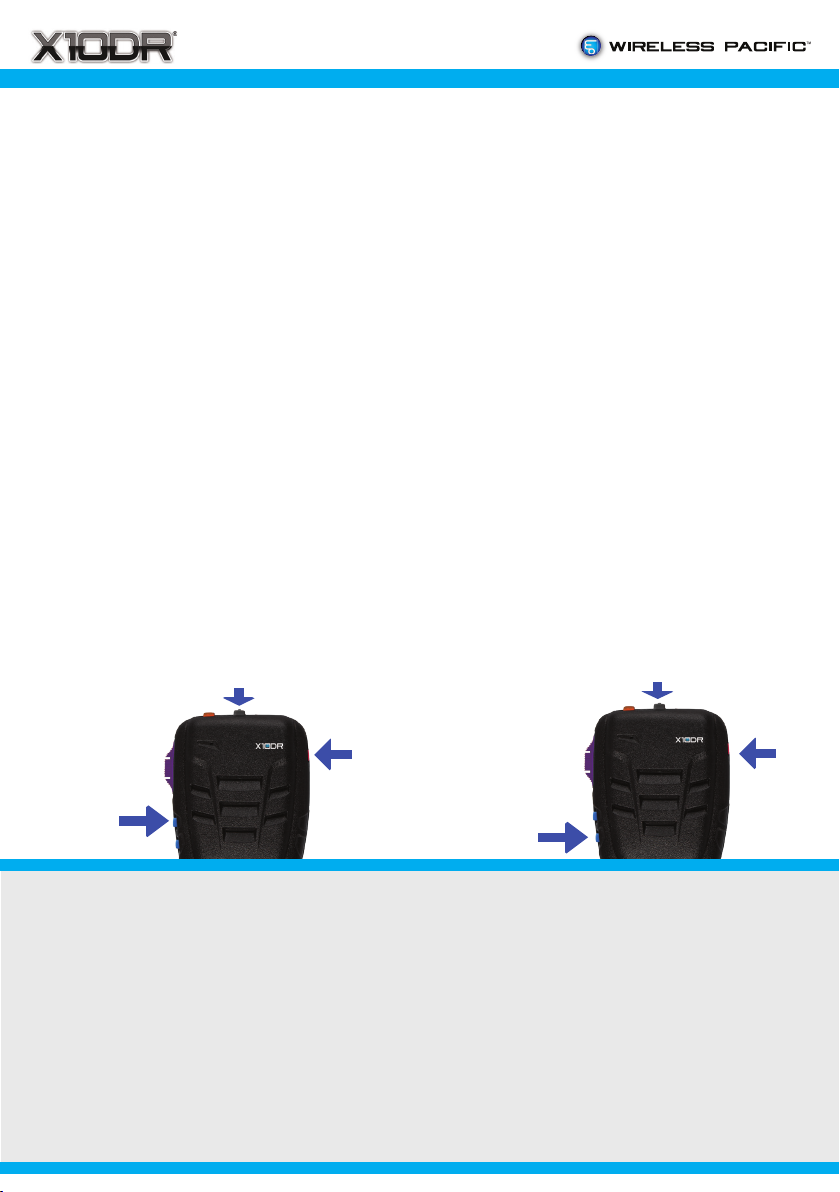

Lock setting Lock setting
Power
ON
Power
ON
Activate
set up
Initial set-up
Activate
set up
A/ Control (grey) button toggles Side PTT
assignment between Talkaround PTT and
Radio PTT.
Talkaround PTT assigned = Green LED
Radio PTT assigned = Blue LED
To re-select:
- Power up with orange button pressed.
Alternative PTT/Control button congurations
B/ Side PTT button will be Radio PTT and top
Control will be Talkaround PTT.
To select:
- Power up with Control (grey) button pressed.
C/ Side PTT button will be Talkaround PTT and
top Control will be Radio PTT.
To select:
- Power up with side PTT pressed.
Default side PTT/Control button conguration
