Wirepath Surveillance WPS-750-BUL-AH-GR User manual

CAMERA
BULLET
INSTALLATION MANUAL
Review manual thoroughly before installation.
Retain for future reference.
WPS-750-BUL-AH-GR
WPS-750-BUL-AH-WH

2
WPS-750-BUL-AH Installation Manual
CONTENTS
Safety Instructions...............................................................................3
Features............................................................................................... 4
Package Contents............................................................................. 5
Installation Instructions....................................................................... 7
Set-Up...................................................................................................10
1. Operating The OSD Menu..................................................... 10
2. OSD Menu Structure...............................................................10
3. OSD Menu Settings................................................................. 14
3.1 Camera Name Setting.................................................14
3.2 Lens.................................................................................14
3.3 Exposure.........................................................................15
3.4 Day/Night...................................................................... 16
3.5 WDR/BLC/ECLPS............................................................17
3.6 White Balance...............................................................18
3.7 3D-DNR........................................................................... 19
3.8 Effects.............................................................................20
3.9 Special............................................................................21
3.10 Exit.................................................................................24
RS485 System Diagram.......................................................................25
Troubleshooting.................................................................................. 26
Specications......................................................................................28
Dimensions...........................................................................................29
Warranty.............................................................................................. 30

3
WPS-750-BUL-AH Installation Manual
© 2013 Wirepath Surveillance
SAFETY INSTRUCTIONS
This information is provided to ensure your safety and to prevent
physicalornancialloss.Pleasereadthisdocumentcarefullybefore
installing and operating the camera.
1. Handle with care.
Use caution when handling to avoid damage to sensitive internal
components.
2. Do not install camera under extreme temperatures.
This camera only operates under temperature conditions between
-40˚F~140˚F.
3. Do not mount the camera directly facing bright light sources.
Exposing the camera to strong light over long periods of time will
damage the camera’s sensor.
4. Do not supply voltage other than 12~30V DC or 24V AC.
This camera regulates power within this range. Higher voltages will
damage the camera’s electronic components.
5. Do not install camera in environments with extreme humidity.
Installing camera in environments with extreme humidity may cause
moisture to condense on the surface of the lens or dome cover,
which can affect picture quality.

4
WPS-750-BUL-AH Installation Manual
FEATURES
• 1/3” Sony Super-HAD II CCD
The Sony Super HAD II CCD is ideal for low lux illumination, resulting in a
clear and crisp image.
• Varifocal Auto-Iris Lens
This camera features a varifocal lens with a focal length of 3.7-12 mm.
The auto-iris function intuitively manages the amount of light passing
through the lens for consistent image brightness.
• SWDR (Super Wide Dynamic Range)
SWDR is ideal for high contrast environments, improving the contrast
between very dark and very bright areas in a scene and producing a
more balanced image.
• 3D Digital Noise Reduction
Digital noise reduction produces clear images in low light conditions.
Not only does it help to reduce image noise, but it also minimizes
objects from becoming blurred when in motion, producing extremely
clear picture quality even under low-light conditions.
• RS-485 Connection and OSD
This camera features an OSD (on-screen display) for initial setup and
settings adjustment. Remote control is possible using a compatible
DVR or PTZ controller connected to the camera’s RS485 wire leads.
• Weatherproof Housing
The IP66-rated weatherproof housing makes this camera ideal for
outdoor surveillance.
• External Zoom and Focus Adjustments
Adjust the camera without the need to remove the lens cap for quick
adjustments.
• Video Test Port
Adjust angle, zoom, and focus at the camera for fast and easy
installation.
• Low Temperature Operation
A heater is included that automatically turns on and off to ensure the
camera operates within an optimum temperature range, and helps to
minimize condensation inside the housing at low temperatures.

5
WPS-750-BUL-AH Installation Manual
© 2013 Wirepath Surveillance
PACKAGE CONTENTS
(1) WPS-750-BUL-AH
(1) AC/DC Plug
(1) OSD Joystick / BNC Test Adapter
(3) Screws
(3) Wall Fasteners
NOTE: A POWER SUPPLY IS NOT INCLUDED WITH THIS CAMERA.
The PS-12DC-1A or WPS-PS multiple output power supplies are recommended.
OPTIONAL ACCESSORIES
Wirepath Surveillance offers a wide range of accessories that provide
power to the cameras, allow for various mounting options, and make
connection to the head end quick and easy.
MOUNTS
•WPS-MNT-FLUSH-BUL
 Usewhenthecameraneedstobeattachedtoaushmountjunctionbox.
POWER SUPPLIES
Local Power Supplies
•PS-12DC-1A
12 Volt 1 Amp Power Supply for Cameras & IR Systems.
Remote Power Supplies
Use these remote power supplies to power all the cameras in the system
from a remote location.
•WPS-PS9-12VDC-10A
9 Output Power Supply - 12V DC, 10A - PTC Fuses
•WPS-PS9-24VAC-12A
9 Output Power Supply - 24V AC, 12A - PTC Fuses
•WPS-PS18-12VDC-18A
18 Output Power Supply - 12V DC, 18A - PTC Fuses
(1) 3mm Allen key
(1) Foam gasket
(1) Installation Manual
(1) Spare Silica
Pack in Vacuum sealed bag

6
WPS-750-BUL-AH Installation Manual
WIRING ACCESSORIES
In addition to mounts and power supplies, Wirepath offers a full line of
accessories to easily send power, audio, and video over 2 conductors of Cat5
wiring back to the head end.
Visit www.snapav.com for a complete listing of accessories.
•WPS-BAL-V-PIGTAIL
Mini Passive Video Balun with Pigtail
and Screw Terminals
•WPS-BAL-V-MINI
Mini Passive Video Balun with Pigtail
and Screw Terminals
•WPS-BAL-V-COMBO
Mini Passive Video Balun with Screw
Terminals Combo Pack
Contains: 1 WPS-BAL-V-PIGTAIL and 1
WPS-BAL-V-MINI
•WPS-BAL-VP
Passive Video and Power Balun
with RJ45
•WPS-BAL-VPA
Passive Video, Power, Audio Balun
with RJ45
•WPS-BAL-VPD
Passive Video, Power, PTZ Balun with
RJ45
•WPS-ACC-PWR-F & WPS-ACC-PWR-M
DC Power Plug with Screw Terminals
Available in Male and Female
version 10packs.
•WPS-ACC-PWR-1X2
DC Power Splitter Cable - 1 Female
to 2 Male Connectors
•WPS-ACC-PWR-1X4
DC Power Splitter Cable - 1 Female
to 4 Male Connectors
•WPS-ACC-MIC
 MiniMicrophone12VDCAmplied
•WPS-ACC-GND-ISO
Ground Loop Isolator Male to
Female BNCs

7
WPS-750-BUL-AH Installation Manual
© 2013 Wirepath Surveillance

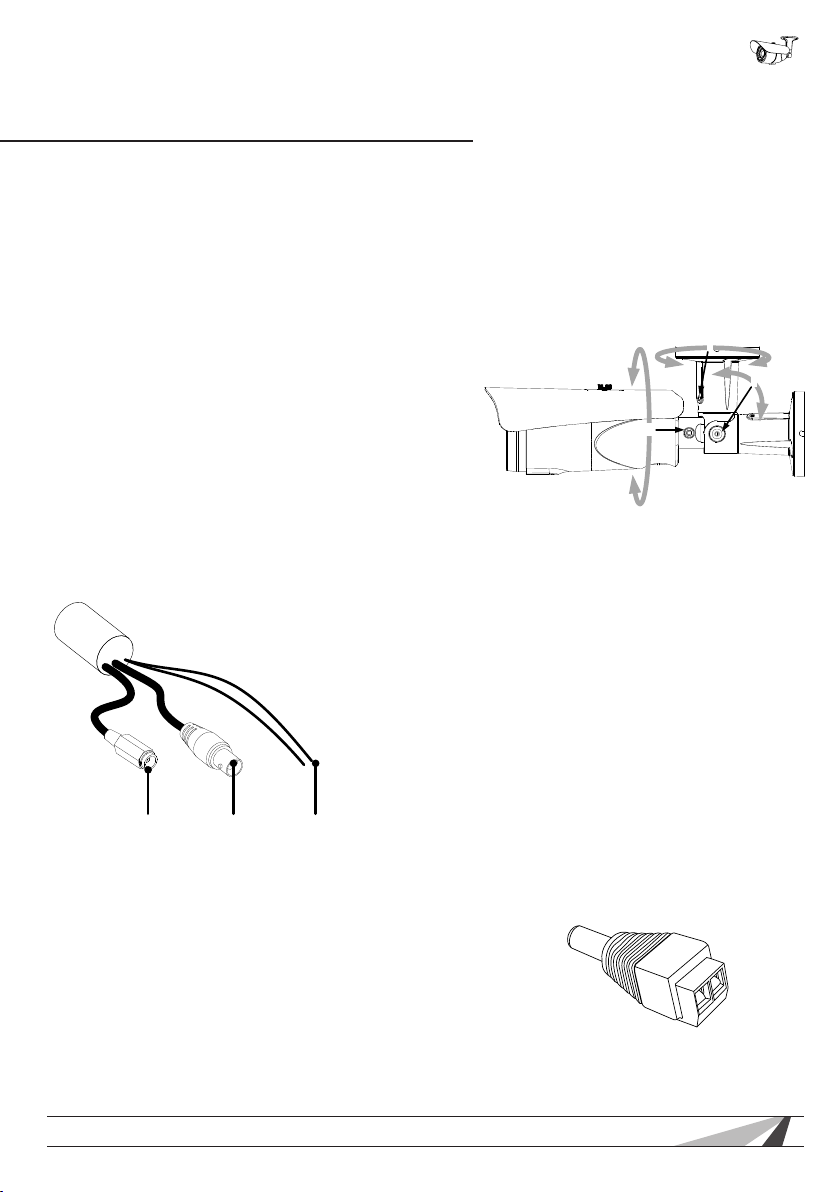

1. Prepare Camera for Mounting
Prior to mounting to the Camera, we recommend that the position and
anglesbepresetinordertospeedinstallation.Thesesettingscanbene-
tuned once the Camera is mounted.
A. Adjust Camera Rotation
B. Adjust Swivel of Camera
C. Adjust Camera Angle
2. Connect the Camera to the System
Recommended Cabling:
- Video RG59 or RG6
- RS485 OSD Control Cat5e/6
- Power 18/2 or Cat5e/6
Important Note! Be sure to use the correct power supply
and power wire for the length of run to the camera to
ensure reliable operation. Too small a power supply or
wire will cause too much voltage drop, which will cause
the camera to operate incorrectly or not power up at all.
A
B
C
12V DC
Power In
BNC
Video Out RS485 Leads
A. Connect the BNC video output to
the video in of a DVR or monitor.
B. Connect the DC Power In to a
12V DC-24V AC 1A power supply
using the included WPS-ACC-PWR
power adapter. The power supply
can be located at the head end
of system using a WPS-PS multiple
output power supply and prewiring a
power wire.
INSTALLATION INSTRUCTIONS

8
WPS-750-BUL-AH Installation Manual

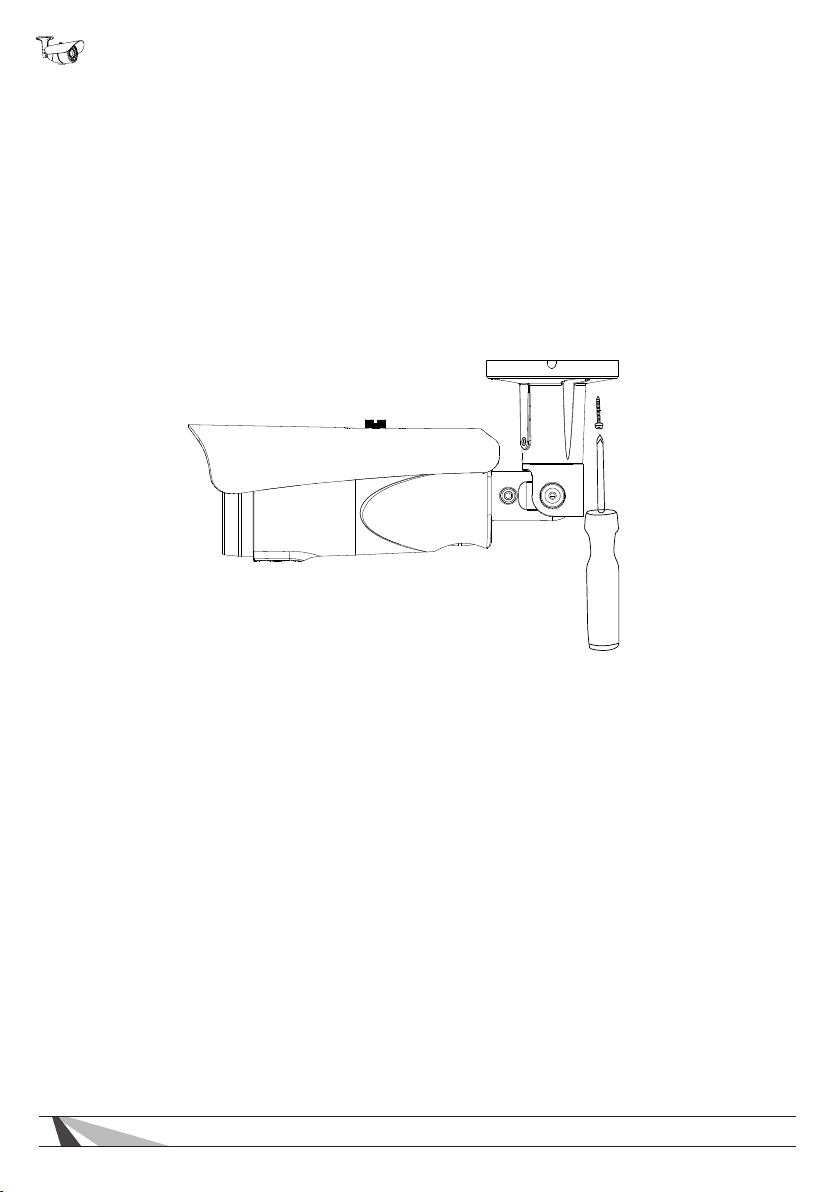

3. Mount the Camera
A. Mounting directly to a wall or eve:
A.1 - Use the Camera base as a template to mark the screw locations.
A.2 - Predrill holes in the marked locations.
A.3 - Connect the wires from the wall to the Cameras Pigtail and insert
them into wall.
A.4 - Position the Camera base over the marked holes from step 3-A.1.
A.5 - Secure the Camera with the provided screws.
B. Mounting to a Single gang Junction Box
We recommend the use of the WPS-MNT-FLUSH-BUL Flush Mount plate
when mounting to a single gang junction box. This plate is available in
gray or white to match the color of the Camera being used. Follow the
instructions in the WPS-MNT-FLUSH-BUL manual for using this mounting
method and then proceed to step 4.

9
WPS-750-BUL-AH Installation Manual
© 2013 Wirepath Surveillance

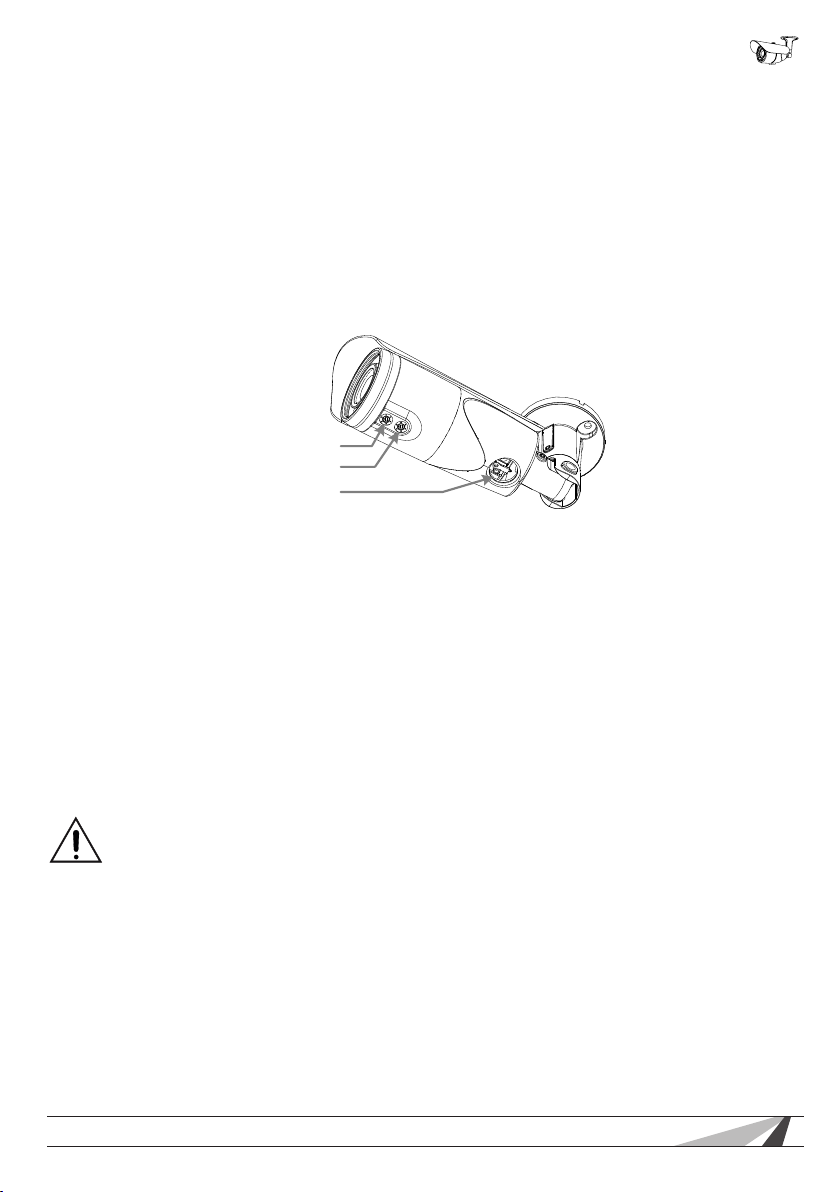

4. Fine-Tuning Camera Adjustments
The Camera is equipped with a BNC Test Port that allows for local Analog Video
output and power to the Camera for adjusting positioning, zoom, and focus.
The camera is supplied with an OSD Joystick / BNC Test Adapter that allows
for viewing the output of the camera on a monitor or the WPS-CCTV-TESTER
(not included). Use this connection to adjust the camera directly from the
installed location.
Adjust Zoom
Adjust Focus
BNC Test Adapter
Connection
A. Remove the plate located at the rear of the Cameras just before
the Cameras base to access the OSD Joystick / BNC Test Adapter
connection.
B. Connect the OSD Joystick / BNC Test Adapter to the Camera.
C. Connect the BNC on the adapter to a monitor or WPS-CCTV-TESTER
video in.
D. Connect a 12 V DC Power Supply to the Power connection on the OSD
Joystick / BNC Test Adapter if no other power connection is active.
Warning!! The Test Port adapter power connection for this camera only uses a 12 V DC
power supply. Using a 24 V AC or other voltage power supply with the Test Port Adapter
will result in damage to the camera, and possibly the power supply.
 E. AdjusttheCamerasRotation,Swivel,andAngleasdenedinstep1and
secure the set screws using the supplied 3mm Allen key.
F. Adjust the Cameras Zoom (furthest to the lens) using the supplied 3mm
Allen key.
G. Adjust the Cameras Focus (closest from the lens) using the supplied 3mm
Allen key.

10
WPS-750-BUL-AH Installation Manual
CAM NAME
LENS
EXPOSURE
OFF, ON
DC IRIS
MANUAL
AGC
SHUTTER
SENSE-UP
INITIAL SET
PREVIOUS
BRIGHTNESS 0-100 (50)
OFF, LOW, MIDDLE, HIGH
Auto,X2~X512(Auto X8)
AUTO, OFF, A. FLK, 1/160, 1/250, 1/500, 1/700, 1/1000,
1/1600/ 1/2500, 1/5000, 1/7000, 1/10000, 1/30000,
1/50000, 1/90000, X2, X3, X4, X5, X6, X8, X10, X12, X14,
X16, X24, X32, X64, X128, X256, X512
SET-UP

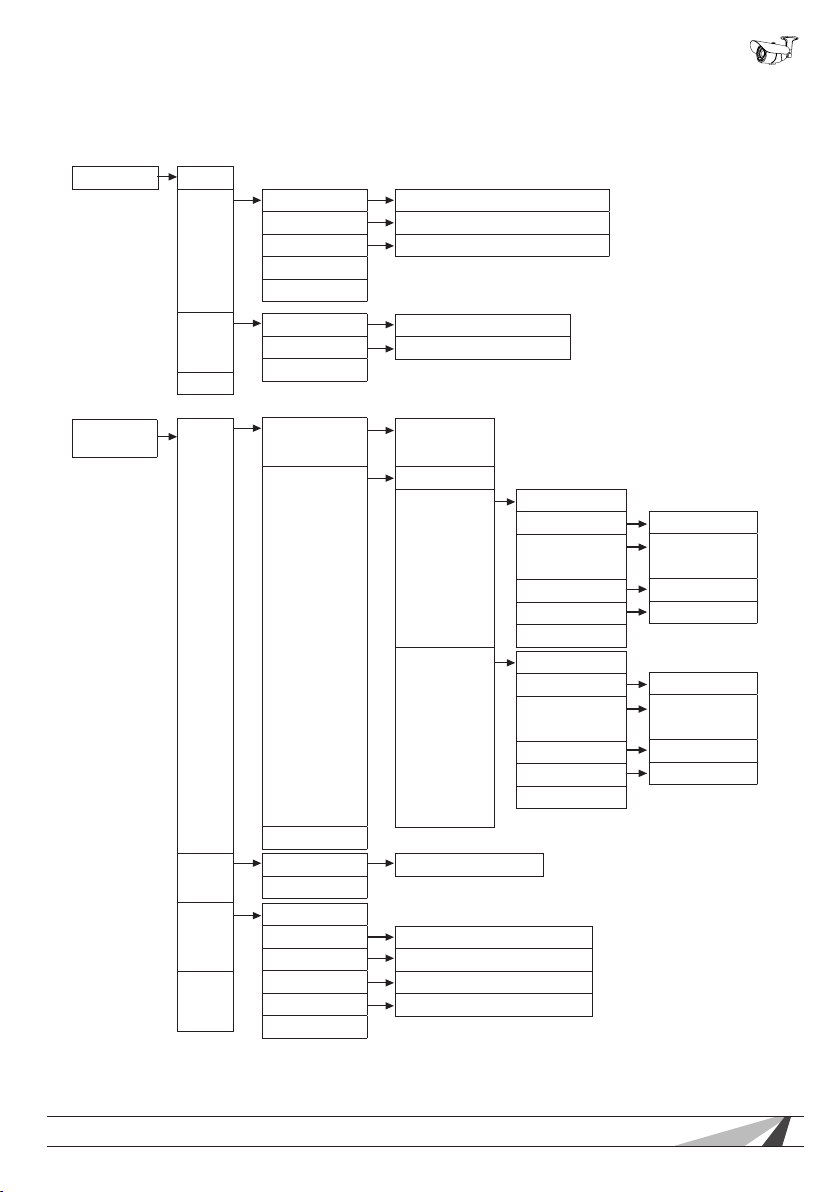

OSD Menu Structure
Settingshavebeenpreconguredforoptimalperformanceinmost
applications. If adjusting the settings produces a poor picture,
factory reset the camera to restore the original settings (see p.21)
Bold indicates factory preset
Operating the OSD Menu
•ToviewtheOSD,theOSDJoystick/BNCTestAdaptermustbe
connected to a display monitor or WPS-CCTV-TESTER (not included).
•Thebuttonfoundonthepigtailprovidesveseparateactions:UP,
DOWN, EXIT, ENTER and MENU.
•PressthebuttontoenterintotheOSDMENUpage.
•PressUP,DOWN,EXIT(Left)orENTER(Right)toselectitemsonthe
menuandbeginconguration.

11
WPS-750-BUL-AH Installation Manual
© 2013 Wirepath Surveillance
OSD Menu Structure cont. (bold indicates factory preset)
DAY/NIGHT
WDR/BLC/
ECLPS
DAY
AUTO
EXT
NIGHT
WDR
BLC
ECLPS
OFF
D/N LEVEL
FILTER DLY
NIGHT BURST
INITIAL SET
PREVIOUS
WDR LEVEL
NIGHT ECLIPSE
PREVIOUS
HIGH, MIDDLE, LOW
1, 3, 5, 10, 15, 30 and 60SEC
ON, OFF
ON, OFF
1~100(32)
SUPER, HIGH,
MIDDLE, LOW
OFF
ON DARK
ON IR
IR MODE
IR DEST
PREVIOUS
AREA SETTING
ALL AREA SET
MASK COLOR
ECLPS LEVEL
GAIN CONTROL
PREVIOUS
ON, OFF
GRAY,
D GRAY,BLACK
1-5
ON, OFF
ON, OFF
GRAY,
D GRAY,BLACK
1-5
ON, OFF
AREA SETTING
ALL AREA SET
MASK COLOR
ECLPS LEVEL
GAIN CONTROL
PREVIOUS
AREA SETTING
ALL AREA SET
MASK COLOR
ECLPS LEVEL
GAIN CONTROL
PREVIOUS
HIGH, MIDDLE, LOW
ON, OFF
GRAY, BLACK, D. GRAY
1~5(1)
ON, OFF
BLC LEVEL
PREVIOUS

12
WPS-750-BUL-AH Installation Manual
OSD Menu Structure cont. (bold indicates factory preset)
EFFECTS DZOOM
MODE
IMAGE FREEZE
D-EFFECT
CONTRAST
SHARPNESS
COLOR
ADJUST
INITIAL SET
PREVIOUS
ZOOM
PAN
TILT
PREVIOUS
OFF, MIRROR, V-FLIP, ROTATE
0~100(50)
0~100(50)
COLOR
COLOR LEVEL
COLOR HUE
RED GAIN
BLUE GAIN
PREVIOUS
ON, OFF
─100─200(100)
─100─100(0)
─100─100(0)
─100─100(0)
ON, OFF
ON, OFF X1~X6.13
-100~100
-100~100
WHITE BAL
3D-DNR
ATW
COL-ROLL
PUSH
MANUAL
ON, OFF DNR LEVEL
DESTINATION
GLOBAL
MOVEMENT
PREVIOUS
COLOR TEMP
BLUE
RED
INITIAL SET
PREVIOUS
1~100(24)
0-63 (47)
ON, OFF
INDOOR, OUTDOOR
-100~100(0)
-100~100(0)

13
WPS-750-BUL-AH Installation Manual
© 2013 Wirepath Surveillance
SPECIAL ITS MODE
MOTION DET
PRIVACY MASK
ZONE NUMBER
ZONE STATE
WIDTH
HEIGHT
MOVE X
MOVE Y
SENSITIVITY
INITIAL SET
PREVIOUS
MASK NUMBER
MASK STATE
MASK COLOR
WIDTH
HEIGHT
MOVE X
MOVE Y
INITIAL SET
PREVIOUS
ZONE 1-8
ON, OFF
0~100
0~100
0~100
0~100
0~100
MASK 1-8
ON, OFF
GRAY / BLACK / YELLOW / BLUE /
GREEN / RED/ WHITE
0~100(30)
0~100(30)
0~100(30)
0~100(25)
ON
OFF
ON
OFF
ON
OFF
DAY
NIGHT
SHUTTER
AGC
LICENSE PLATE
PREVIOUS
SHUTTER
AGC
LICENSE PLATE
PREVIOUS
CONTRAST
OUTPUT LEVEL
TONE
PREVIOUS
CONTRAST
OUTPUT LEVEL
TONE
PREVIOUS
0~100(50)
64~64(0)
1~64(0)
0~100(50)
64~64(0)
1~64(0)
1/1600, 1/2500, 1/5000, 1/7000, 1/10,000, 1/30,000, 1/50,000,
1/90,000, OFF, A.FLK, 1/160, 1/250, 1/500, 1/700, 1/1000
1/1600, 1/2500, 1/5000, 1/7000, 1/10,000, 1/30,000, 1/50,000,
1/90,000, OFF, A.FLK, 1/160, 1/250, 1/500, 1/700, 1/1000
OFF, LOW, MIDDLE, HIGH
OFF, LOW, MIDDLE, HIGH
EXIT
LANGUAGE
STABILIZER
L/L SYNC
MONITOR TYPE
FACTORY
RESET
COMM SET
PREVIOUS
English / Korean / Spanish / French / Russian
ON, OFF
INT
CRT, LCR
PROTOCOL
CAMERA ID
BAUD RATE
SAVE /
REBOOT
PREVIOUS
PELCO-D
0~255
DISPLAY ID
ID POSITION
PREVIOUS
4800 / 9600 / 19200 /
38400 / 57600

14
WPS-750-BUL-AH Installation Manual
OSD MENU SETTINGS
The camera menu allows for
the adjustment of settings to
obtain optimal image clarity
and color realism.
Note : If there is a “ ” symbol
after the option, enter into the
subdirectory to adjust more settings.
CAMERA NAME SETTING
The CAM NAME provides the ability to
set a camera title to appear on-screen.
•Todisplaythecameraname
on-screen, set the CAM NAME
to ON.
•Selectacameranamebyselectingoneletter/numberatatime
using the menu at the bottom of the screen. Consider assigning
a camera name that highlights the location of the camera such
as Lobby, Main Hall, Entrance 1, etc.
•SelectCLRtoclearallletters.SelectPOStochoosetheposition
of CAM NAME on the screen. Select END to exit the menu.
LENS
•SelectDCIRIS(Auto-IRIS),
or MANUAL mode.
•InDCmode,thecameraadjuststhe
aperture of the lens automatically
based on the lighting conditions of
the environment. DC mode is the
recommended setting, especially for outdoor locations and
environments with varying lighting conditions. Reaction Speed
determines the speed of the Auto Iris feature.
•InMANUAL mode, the aperture is set fully open.
This setting is only recommended for an environment with consistent
lighting conditions.
<CAMERA NAME>
A B C D E F G H I J K L M
N O P Q R S T U V W X Y Z
a b c d e f g h I j k l m
n o p q r s t v u w x y z
-- • 0 1 2 3 4 5 6 7 8 9
← → CLR POS END
---------------------------------------
<MAIN MENU>
1. CAM NAME OFF
2. LENS DC IRIS
3. EXPOSURE
4. DAY/NIGHT DAY
5. WDR/BLC/ECLPS WDR
6. WHITE BAL ATW
7. 3D-DNR ON
8. EFFECTS
9. SPECIAL
0. EXIT RET
<LENS>
BRIGHTNESS 50--------|----------
REACTION SPEED 8---------------|
PREVIOUS

15
WPS-750-BUL-AH Installation Manual
© 2013 Wirepath Surveillance
EXPOSURE
AGC (Auto Gain Control) Setup
 AGCmodeautomaticallyampliesthe
video signal during low light conditions.
•Adjust the AGC by selecting OFF, LOW,
MIDDLE, or HIGH. Please note that signal
noise is slightly higher when AGC is enabled.
SHUTTER Setup
Shutter setup allows for control of the electronic shutter speed. Select
a shutter speed to match the lighting condition of the environment
and the goal of the camera location.
 •ChoosefromAUTO,OFF,A.FLK,1/160,1/250,1/500,1/700,1/1000,
1/1600/ 1/2500, 1/5000, 1/7000, 1/10000, 1/30000, 1/50000, 1/90000,
X2, X3, X4, X5, X6, X8, X10, X12, X14, X16, X24, X32, X64, X128, X256, X512.
 •Forenvironmentswithunstablelightingconditions,theAUTOsetting
is recommended.
 •Fordarkerenvironmentswithxedlightingconditions,selecta 
slower shutter speed.
 •Forbrighterenvironmentswithxedlightingconditions,or
scenarios in which fast-moving objects must be captured,
select a faster shutter speed, such as 1/1000 seconds.
 •A.FLKcontrolstheickeringeffectonthescreenresultingfromdifferent
video refresh rates, e.g. NTSC (50 Hz, 60 Hz). In such cases, set the shutter
to A. FLK(1/100) to accommodate the different refresh rates.
SENSE-UP Setting
The SENSE-UP feature enhances the sensitivity of the camera and
allows the camera to display bright images even under extremely
dark conditions. SENSE-UP slows the shutter speed while increasing
the brightness for superior low-lux performance.
• OFF: Deactivates the SENSE-UP function.
• AUTO: Activates the SENSE-UP function. Select the SENSE-UP level
from X2 to X512.
Note : The SENSE-UP function is only available when SHUTTER
is set to AUTO.
INITIAL SET
Returns the exposure settings to factory default.
<EXPOSURE>
AGC HIGH
SHUTTER AUTO
SENSE-UP AUTO X8
INITIAL SET
PREVIOUS

16
WPS-750-BUL-AH Installation Manual
DAY/NIGHT
 •SettheDAY/NIGHTvaluetoAUTO,
DAY, NIGHT, or EXT based on the
installation application.
• DAY: The camera remains in color
mode all of the time.
• NIGHT: The camera remains in black and white (B/W) all of the time.
• EXT: This mode uses the external sensor in the camera to switch
to color or B/W. This is the recommended setting.
• AUTO: The camera uses the lens to determine color or B/W. When in
AUTO mode, the camera automatically switches to B/W when lighting
levels are low, and back to color when they increase.
Note: AGC must be enabled for AUTO mode to be an option in the
DAY/NIGHT menu.
AUTO Setting
When setting the DAY/NIGHT mode to
AUTO, the camera uses the lens to detect
the Lux rating of the picture and switches
to color or B/W automatically. Press the
MENU button to set the switching time
and speed for AUTO mode.
• D/N LEVEL: Select the sensitivity of switching between color and B/W.
Set the value to “LOW”, “MIDDLE” or “HIGH” mode based on the
environment of where the camera is installed. The “HIGH” level
switches the camera to color or B/W with less change in the lighting
level than the LOW mode.
• FILTER DLY: Select the delay time before the camera switches
   betweencolorandB/Wmodebychangingthelterdelay.Thedelay
time can be set to 1SEC, 3SEC, 5SEC, 10SEC, 15SEC, 30SEC and 60SEC.
• NIGHT BURST
- ON: The B/W image is actually a gray image and contains the
color signal.
- OFF: This is a true B/W image containing no color signal.
• INITIAL SET: Returns the Day/Night Auto settings to factory default
settings.
• PREVIOUS: Return to the previous page.
<MAIN MENU>
1. CAM NAME OFF
2. LENS DC IRIS
3. EXPOSURE
4. DAY/NIGHT DAY
5. WDR/BLC/ECLPS WDR
6. WHITE BAL ATW
7. 3D-DNR ON
8. EFFECTS
9.SPECIAL
0. EXIT RET
<D/NIGHT AUTO MENU>
D/N LEVEL MIDDLE
FILTER DLY 10SEC
NIGHT BURST OFF
INITIAL SET
PREVIOUS

17
WPS-750-BUL-AH Installation Manual
© 2013 Wirepath Surveillance
EXT Setting
By selecting the EXT value in the Day/Night
Mode and pressing MENU, you can enter into
a subdirectory to adjust the IR WDR LEVEL
and IR WDR DEST.
• IR MODE: The IR level can be switched
to ON or OFF.
• IR DEST: IR Destination is used to spread the IR light to
 evenlyllthescenewiththesameIRintensity.
• PREVIOUS: Return to previous page.
WDR/BLC/ECLPS
Select one of three mode options:
Wide Dynamic Range, Back Light
Compensation or Eclipse.
WDR (Wide Dynamic Range) Setting
When there are both bright and
dark areas in the scene at the same
time, this setting balances the contrast
between the two areas. This makes
the picture distinctive and clear so
the object has optimum detail and color.
• WDR LEVEL: Choose SUPER, HIGH,
MIDDLE or LOW based on the environment.
• NIGHT ECLIPSE: Choose ON DARK for low lux
environments when IR is not used. Choose
ON IR for use at night when IR LEDs are on.
Refer to ECLIPSE setting on page 16 for more information
• PREVIOUS: Return to previous page.
BLC (Back Light Compensation) Setting
This function corrects the exposure of
subjects in front of a bright light source.
• BLC LEVEL: Set the BLC LEVEL by
selecting LOW, MIDDLE, or HIGH.
• PREVIOUS: Return to previous page.
<D/N EXT MENU>
IR MODE OFF
IR DEST 32 -------|--------
PREVIOUS
<WDR MENU>
WDR LEVEL HIGH
NIGHT ECLIPSE
PREVIOUS
<BLC MENU>
BLC LEVEL HIGH
PREVIOUS
<MAIN MENU>
1. CAM NAME OFF
2. LENS DC IRIS
3. EXPOSURE
4. DAY/NIGHT DAY
5. WDR/BLC/ECLPS WDR
6. WHITE BAL ATW
7. 3D-DNR ON
8. EFFECTS
9.SPECIAL
0. EXIT RET

18
WPS-750-BUL-AH Installation Manual
ECLIPSE Setting
The ECLIPSE function is used to cut off
exceptionally bright light, such as headlights
of a vehicle. Zones and sensitivity can be
adjusted based on the scene.
• AREA SETTING: Up to 16 programmable
areas can be set. Press ENTER and
EXIT to select areas. Press UP or
DOWN to turn the areas ON or OFF.
Press MENU to return to previous page.
• ALL AREA SET: Select ON to select the entire screen to cut off
bright light. Select OFF to cancel all areas.
• MASK COLOR: Change the mask color to GRAY, Dark
GRAY or BLACK.
• ECLPS LEVEL: Adjust the ECLIPSE level from 1 to 5. The larger the
value, the more sensitive the camera to the light.
• GAIN CONTROL: Turns the gain ON or OFF
• PREVIOUS: Return to previous page.
WHITE BALANCE
White Balance is the process of balancing
the color of an image so that the picture is
as accurate as possible. White balance
adjusts the image color according to the
lighting conditions of the scene. Select
one of following white balance modes:
 •ATW (Auto Tracking White Balance):
ATW analyzes the color temperature of the scene and automatically
compensates to provide accurate white balance.
 •COL-ROLL: Thisfeatureisusedwhenthesceneincludesuorescent
lighting and the camera has a moiré of colors in the image near
the lights.
<MAIN MENU>
1. CAM NAME OFF
2. LENS DC IRIS
3. EXPOSURE
4. DAY/NIGHT DAY
5. WDR/BLC/ECLPS WDR
6. WHITE BAL ATW
7. 3D-DNR ON
8. EFFECTS
9.SPECIAL
0. EXIT RET
< ECLIPSE MENU>
AREA SETTING
ALL AREA SET OFF
MASK COLOR GRAY
ECLPS LEVEL 1 |---------------
GAIN CONTROL OFF
PREVIOUS

19
WPS-750-BUL-AH Installation Manual
© 2013 Wirepath Surveillance
• PUSH: This function is ideal for an environment with the predominance
of a single color. For example, when used in a casino and the
camera is pointed to a green table, the color would be inaccurate
and the overall tone of the picture would be too red. This mode
compensates the white balance and offers a more accurate color.
To set the PUSH function, select PUSH and zoom the camera to a
sheet of white paper located in the scene. Press the “MENU” button.
The camera will automatically set the white balance value. Reorient
the camera to the desired scene, and remove the white paper.
• MANUAL: Adjusts the value of blue and red colors to a user-preferred
white balance image.
MANUAL Setting
• COLOR TEMP: Select INDOOR or
OUTDOOR based on the installation.
• RED and BLUE: Adjust the value of
the red and blue colors to a user-
preferred white balance image.
• INITIAL SET: Return the White Balance to
the factory default setting.
• PREVIOUS: Return to previous page.
3D-DNR
Digital noise reduction produces extremely
clear images even in low light conditions for
24/7 surveillance. Not only does it help to
reduce image noise, but it also minimizes
blurring of moving objects.
Note: The 3D-DNR function is only available
when Auto Gain Control (AGC) is enabled
in the EXPOSURE sub menu.
 •Setthe3D-DNRtoONtoactivatetheDNRfunction.
When 3D-DNR is ON, enter into the subdirectory to adjust:
<MAIN MENU>
1. CAM NAME OFF
2. LENS DC IRIS
3. EXPOSURE
4. DAY/NIGHT DAY
5. WDR/BLC/ECLPS WDR
6. WHITE BAL ATW
7. 3D-DNR ON
8. EFFECTS
9.SPECIAL
0. EXIT RET
<WB MANUAL MENU>
COLOR TEMP INDOOR
RED 0 -------|-------
BLUE 0 -------|-------
INITIAL SET
PREVIOUS

20
WPS-750-BUL-AH Installation Manual
• DNR LEVEL: User-selectable from 1 to 100.
The higher the value, the more obvious
DNR performance.
• DESTINATION: User-selectable from 0 to 63.
The higher the value, the brighter the image.
• GLOBAL MOVEMENT: This function reduces the object-blurred
phenomenon when an object is in motion.
• PREVIOUS: Return to previous page.
EFFECTS
DZOOM Mode
The Digital Zoom feature allows the user
to set a zoom up to X10.22
• ZOOM: Select a digital zoom of
X1.0 to X10.22
• PAN: Adjust the zoom picture to
move horizontally.
• TILT: Adjust the zoom picture to
move vertically.
IMAGE FREEZE
 •SelectONforastillpicture,OFFforamovingpicture.
D-EFFECT
Typically used in vehicles, the image can be mirrored by enabling
the Mirror Image View. There are 3 modes available: MIRROR,
V-FLIP(Vertical Flip), and ROTATE (Rotate 180 degrees).
CONTRAST
When increasing the contrast value, dark colors become darker
and light colors become lighter. The value ranges from 0 to 100.
SHARPNESS
When increasing the sharpness value, the picture outline becomes
stronger and clearer. The value ranges from 0 to 100.
<3D-DNR MENU>
DNR LEVEL 24 -----|-----------
DESTINATION 47 -----------|-----
GLOBAL MOVEMENT OFF
PREVIOUS
<EFFECTS MENU>
DZOOM MODE OFF
IMAGE FREEZE OFF
D-EFFECT OFF
CONTRAST 50 -------|------
SHARPNESS 50 -------|------
COLOR ADJUST
INITIAL SET
PREVIOUS
<DIGITAL ZOOM MENU>
ZOOM X1.00 |-----------
DZOOM PAN 0 ------|------
DZOOM TILT 0 ------|------
PREVIOUS
