WIS WIS-EAP500-WALL User manual

Model: WIS-EAP500-WALL
WIS-EAP510-WALL
WIS-EAP520-WALL
www.wisnetworks.in
Quick Installation Guide
Wall AP

Only Suitable for safe use in
non-tropical climatic conditions.
Suitable for safe use in areas
below 2000 meters above sea level
2000m≤
Front Back
WAN
System boots up successfully
Explanation
SYSTEM LED Green
LED Indicator Designation Normal status
Port Explanation
LED indicator definition
01 / Product introduction
Ports Definition
Operation environment
Connect to internet through ADSL modem or FTTH broadband. Under AP and repeater mode, WAN port
will be changed to LAN port
WAN

02 / Device installation
Step 1: Remove AP top cover with screw driver
Open top cover from here AP main body AP top cover

AP main body AP cover
①.Open wall socket cover
②.Insert LAN cable into RJ45
port at backside of the AP
③.Put AP into the wall socket
④.Fix the AP with screws
⑤.Install the cover onto AP,
finish installation
Steps
AP main bodyConnect to POE switch
Step 2: Install AP

Bypass mode topology：
POE Switch
AC
Laptop Mobile Monitor
Router
Cloud Server
INTERNET
AP1 AP2 AP3
03 / Device connection

AC Gateway mode topology：
Tips: If the AP supports 24V POE, pls use 24V PoE switch or POE adapter; if the AP is a standard
48V POE device, please use a standard IEEE802.3at POE switch or POE adapter. When deploy a large
wireless network, there are many APs in this network, it is recommended to use a wireless AC controller
in the network to centrallized-manage all APs in the network.
Laptop Mobile Monitor
Cloud Server
INTERNET
AC(AC gateway all in one)
POE Switch
AP1 AP2 AP3

Set PC wireless network card IP
04 / Device management
Connect PC by wireless
1.To connect an AP wirelessly, you need set the IP address of the TCP/IP properties of the
wireless network card to 192.168.2.2 (X is number range of 2-252) first, so that the AP
and PC in the same IP segment, and set the subnet mask to 255.255.255.0, as shown in
the following picture:
Management from WEB UI
4.1
2.2

2.After setting the IP address of PC, connect PC with AP in wireless,
double-click "Wireless network Connection", in the pop-up wireless SSID list,
select "Wireless 2.4G", click "Connect", then enter the password in the pop-up
password dialogue box, the default password is "66666666", click "OK" to
connect.
View wireless connection
NETWORK
WIS 2.4

Connect PC by wired port
Using the wired connection, set the IP address of the TCP/IP properties of the wired network card
to 192.168.188.X (X is number range of 2---252), and the PC will be the same IP segment as AP.
2.2

1.Use Internet Explorer to visit http://192.168.2.2, pop up the login dialogue box shown
in the following picture, input the default login password: admin, then press “Login” to
enter the wireless AP’s management user interface page.
Input password
Login
Information
Settings
2.By default it is in Fit AP mode, users need click the button at the right corner
to change it to FAT AP mode if needed.
Apply Reset Reboot
IP Address
Subnet
Mac Address
Gateway
AC Address
192.168.2.2
255.255.255.0
44:D1:FA:75:BF:3F
192.168.2.2
172.16.0.1
IP Mode DHCP
Fit AP
Information
Settings

4.Setup Wizard page,choose AP mode as the current working mode.
In this mode the AP wireless interface and cable interfac
are bridging together.Without NAT,firewall and all network
related functions.
Gateway Repeater Mode WISP Mode
Current Mode
AP Mode
Home
Wizard
WIFI
Network
Manage
3.In FAT AP mode user interace home page is as shown below:
Operation Mode AP Mode Fat AP
Uptime 01:05:39
Click Settings
CPU Usage 1%
Memory Usage 20%
0
Device Information WIFI Information Device Description LAN Information
IP Mode
Lan IP
Subnet
AC Address
MAC Address
Get IP From AC
192.168.2.2
255.255.255.0
172.16.0.1
44:D1:FA:75:BF:3F
Status
SSID
Channel
Encrypt
MAC Address
ON
Wireless-2.4G
11
Open
44:D1:FA:75:BF:41
Home
Wizard
WIFI
Network
Manage
Flow(2G Wifi)bps

5.Enter AP Mode setup page,choose “Get IP from AC” in connection type, click Next.
6.Enter Wifi setup page,set up SSID, Channel, Encryption parameters as shown below:
√
12
LAN Settings
IP Mode Get IP From AC
Next
Get IP From AC
Static IP
Get IP From Gateway
AP Mode
12√
2G WIFI Setting
AP Mode
Wifi Status
Hide your SSID?
SSID Wireless2.4G
Channel
Encrypt Open
Timing 1 Day
20M Auto
NextBack

7. Click Next and setup completed
Reboot Modify Password Upgrade Time LogConfigure
Configure
Backup
Restore
Reset Default
Save the configuration file to your computer
Restore the factory default settings ,please press this button
Select
Home
Wizard
WIFI
Network
Manage
Users can backup,reboot and reset to factory default settings through device
management menu options. Also you can modify the WEB login password,
upgrade firmware, time synchronization and system log statistics and other
functional settings as shown in picture below.。
Device Management
4.3
12√
AP模式
AP Mode
Have completed your configuration！

Wireless testing
4.4
1.Use Laptop or mobile phone to test whether the wireless network can surf the Internet:
click wireless network , select the wireless SSID, enter the password to connect the
wireless AP, test whether you can surf the Internet.
2.Check the status of the wireless network connection: signal quality, speed, Bytes sent and
received. Click on Details, check if the IP address and DNS server address etc. obtained
correctly, confirm that the device is working properly.
2.2

Other mode
4.5
Gateway Repeater Mode WISP Mode
Current Mode
AP Mode
Gateway Mode
Realize router function, WAN port connect with modem (ADSL or Fiber) , or WAN port
connect internet by dynamic or static IP type.
Repeater mode
Realize wireless bridge and forwarding without compatibility matching with the upper
device.
WISP Mode
Wireless ISP clients connect to the wireless base station by wireless, to realize local LAN
internet connection sharing.
AP mode
Under AP mode, NAT, DHCP, firewall, and all WAN related functions are turned off, all
wireless and wired interfaces are bridged together, no distinguishing between LAN and
WAN.
Based on the Quick Setup Wizard for each mode shown in the above picture, Set the
parameters and options that user needs, and click Next step until the settings for each
operation mode are completed .
Operation mode setup

Mobile phone login web page of AP (default password is admin)
05/ Use mobile phone to login
Set static IP for mobile phone after connecting to AP：
Open the phone click "settings", choose "WLAN" , find and long press the SSID of the AP,
pop-up menu select "Static IP", set a static IP 192.168.2.2 (X can not be 253 or 252) (the
static IP should be same IP segment as AP) for mobile phone, then input the right Gateway
IP, network mask and DNS.
How to set static IP for Android system mobile phone
①.
How to set static IP for IOS system mobile phone
Click "settings", choose "Wi-Fi", click exclamation mark after connect wireless signal
successfully, setup the static IP 192.168.2.2(X can not be 253 or 252), then input gateway IP,
subnet mask and DNS, please note: the static IP should be in the same IP segment as AP.
②.

2.2
2.2
2.2
2.2
2.2
X . X . X

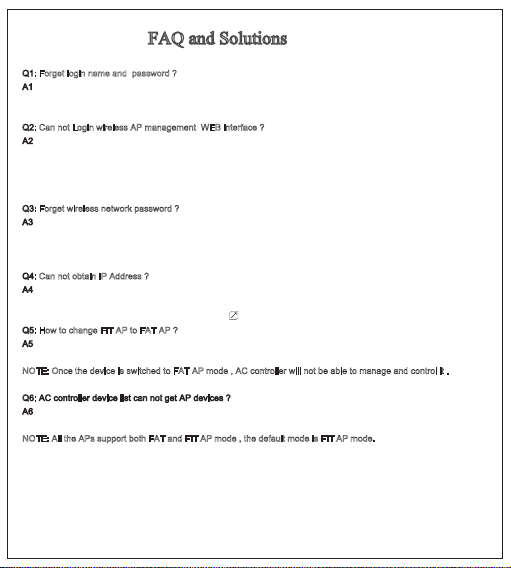

FAQ and Solutions
Q1: Forget login name and password ?
A1: Reset to factory default settings: press the reset button for above 10 seconds and release it , the device will
reboot and reset to factory default settings automatically.
Q2: Can not Login wireless AP management WEB interface ?
A2: 1.Check if PC with static IP and if this IP is in the same IP segment of AP, make sure it is not set to other IP range.
2.Reset AP to factory default settings and re-connect to AP.
3.Make sure wireless AP IP address is 192.168.188.253 and not occupied by other devices .
4.Check if there is something wrong with PC and Ethernet cable ,recommend to use CAT 5e or above UTP cable .
Q3: Forget wireless network password ?
A3: 1.Connect AP by wired ,login WEB management interface ,click wireless settings---> basic settings--->Encryption
--->Password, and set a new password for wireless network.
2.Reset AP to factory default settings, the default password is 66666666.
Q4: Can not obtain IP Address ?
A4: 1.In gateway or WISP mode, check if DHCP server is enabled
2.In repeater or AP mode, check if upper network connection is normal ,or if LAN network DHCP server works well
Q5: How to change FIT AP to FAT AP ?
A5: Switch FAT and FIT mode by clicking the button at right corner ,then device will reboot .After rebooting,
please clear history buffer files in IE and then login .
NOTE: Once the device is switched to FAT AP mode , AC controller will not be able to manage and control it .
Q6: AC controller device list can not get AP devices ?
A6: The mode for AC controller and AP are different, AC controller with model prefixed AC is used to control FAT AP,
the model prefixed in FAC or BW is used to control FIT AP .
NOTE: All the APs support both FAT and FIT AP mode , the default mode is FIT AP mode.
*This manual is only used for instructions and provides an accurate information as we can ,
but we can not make sure all the information in this manual is correct.This manual may be
updated because of the products upgrade,we have the right to revise the manual without
any notice.
