Quick Installation Guide
OUTDOOR AP
WIS-EAP510-OUTDOOR WIS-EAP520-OUTDOOR
www.wisnetworks.in

(1)、Make sure the device is power off
(2)、Follow Figure 1 ,insert clamp hoop into the hole on backside of the enclosure
(3)、Fasten the AP to the pole(diameter 40-60mm) with clamp hoop,after confirming
the angle and direction ,use screwdriver to fix the clamp hoop tightly.
Device installation
(1)、AP connects to the POE port of POE adapter through LAN cable(make sure the
impedence of the LAN cable wires should be less than 6 Ω)
(2)、PC connects to the LAN port of POE adpter through LAN cable
(3)、Power on the POE adapter, POWER LED on the AP should light up normally
(4)、Check networking connection status on PC to verify whether PC is connected
correctly with the AP, see Figure 2.
Hardware connection
(1)、The straight distance should be within the range of AP signal
(2)、Deploy the LAN cable from indoor to outdoor location of AP installation.
The LAN cable should follow 568B standard, and use the network cable tester to test.
(3)、The height of mounting pole should be 1.5M above the roof , the antenna of AP
should face to the base station and in good alignment to make sure signal strength
is the best.
Installation Range

Figure 1
Figure 2
Figure 3

(2)、After setting the IP address of PC, connect PC with AP in wireless, double-click
"Wireless network Connection", in the pop-up wireless SSID list, select "Wireless
2.4G", click "Connect", then enter the password in the pop-up password dialogue
box, the default password is "66666666", click "OK" to connect.
(1)、To connect an AP wirelessly, you need set the IP address of the TCP/IP
properties of the wireless network card to 192.168.2.2.X (X is number range of
2-252) first, so that the AP and PC in the same IP segment, and set the subnet mask
to 255.255.255.0, as shown in the following picture:
Connect PC by wireless
2.1
2
WIS 2.4

Using the wired connection, set the IP address of the TCP/IP properties of the
wired network card to 192.168.2.2.X (X is number range of 2-252), and the PC
will be the same IP segment as AP.
Connect PC by wired port
2.2
2

2.By default it is in Fit AP mode, users need click the button at the right corner
to change it to FAT AP mode if needed.
WEB Login from PC
3.1
Input password
Login
Apply Reset Reboot
Information
Settings
IP Address
Subnet
Mac Address
Gateway
AC Address
192.168.2.2
255.255.255.0
44:D1:FA:75:BF:3F
192.168.2.1
172.16.0.1
IP Mode DHCP
Fit AP

4.Setup Wizard page,choose AP mode as the current working mode.
3.In FAT AP mode user interace home page is as shown below:
Operation Mode AP Mode Fat AP
Uptime 01:05:39
Click Settings
CPU Usage 1%
Memory Usage 20%
0
Device Information WIFI Information Device Description LAN Information
IP Mode
Lan IP
Subnet
AC Address
MAC Address
Get IP From AC
192.168.2.2
255.255.255.0
172.16.0.1
44:D1:FA:75:BF:3F
Status
SSID
Channel
Encrypt
MAC Address
ON
Wireless-2.4G
11
Open
44:D1:FA:75:BF:41
Home
Wizard
WIFI
Network
Manage
Flow(2G Wifi)bps
In this mode the AP wireless interface and cable interfac
are bridging together.Without NAT,firewall and all network
related functions.
Gateway Repeater Mode WISP Mode
Current Mode
AP Mode
Home
Wizard
WIFI
Network
Manage

5. Enter AP Mode setup page,choose “Get IP from AC” in connection type, click Next.
6. Enter Wifi setup page,set up SSID, Channel, Encryption parameters as below:
√
12
LAN Settings
IP Mode Get IP From AC
Next
Get IP From AC
Static IP
Get IP From Gateway
AP Mode
12√
2G WIFI Setting
AP Mode
Wifi Status
Hide your SSID?
SSID Wireless2.4G
Channel
Encrypt Open
Timing 1 Day
20M Auto
NextBack

7.Click Next and setup completed
12 3 √
5G WIFI Setting
AP Mode
WifiStatus
Hide your SSID?
SSID Wireless5.8G
Channel
Encrypt Encruption
Password 66666666
Timing 1 Day
40M 9
NextBack
12√
AP模式
AP Mode
Have completed your configuration！

8.Wireless testing
Check the status of the wireless network connection: signal quality, speed, Bytes sent
and received. Click on Details, check if the IP address and DNS server address etc.
obtained correctly, confirm that the device is working properly.
Use Laptop or mobile phone to test whether the wireless network can surf the
Internet: click wireless network , select the wireless SSID, enter the
password to connect the wireless AP, test whether you can surf the Internet.
192.168.2.2
192.168.2.2

Other mode
3.2
Gateway Mode
Realize router function, WAN port connect with modem (ADSL or Fiber) , or
WAN port connect internet by dynamic or static IP type.
Repeater mode
Realize wireless bridge and forwarding without compatibility matching with
the upper device.
WISP Mode
Wireless ISP clients connect to the wireless base station by wireless, to
realize local LAN internet connection sharing.
AP mode
Under AP mode, NAT, DHCP, firewall, and all WAN related functions are
turned off, all wireless and wired interfaces are bridged together, no
distinguishing between LAN and WAN.
Based on the Quick Setup Wizard for each mode shown in the above picture,
Set the parameters and options that user needs, and click Next step until the
settings for each operation mode are completed .
Operation mode setup
Gateway Repeater Mode WISP Mode
Current Mode
AP Mode

Users can backup,reboot and reset to factory default settings through device
management menu options. Also you can modify the WEB login password,
upgrade firmware, time synchronization and system log statistics and other
functional settings as shown in picture below.
Device Management
3.3
Reboot Modify Password Upgrade Time LogConfigure
Configure
Backup
Restore
Reset Default
Save the configuration file to your computer
Restore the factory default settings ,please press this button
Select
Home
Wizard
WIFI
Network
Manage

Mobile phone login web page of AP (default password is admin)
Use mobile phone to login
3.4

Android system setup steps
When mobile phone connect to AP through wireless, need to configure static IP according to below steps
Open the phone click "settings", choose "WLAN" , find and long press the SSID of the AP,
pop-up menu select "Static IP", set a static IP 192.168.2.X (X can not be 253 or 252) (the static IP
should be same IP segment as AP) for mobile phone, then input the right Gateway IP, network mask
and DNS.
How to set static IP for Android system mobile phone
2.2
2.2

ISO system setup steps
Click "settings", choose "Wi-Fi", click exclamation mark after connect wireless signal
successfully, setup the static IP 192.168.188.X(X can not be 253 or 252), then input gateway IP,
subnet mask and DNS, please note: the static IP should be in the same IP segment as AP.
How to set static IP for IOS system mobile phone

*This manual is only used for instructions and provides an accurate information as we can ,
but we can not make sure all the information in this manual is correct.This manual may be
updated because of the products upgrade,we have the right to revise the manual without any notice.

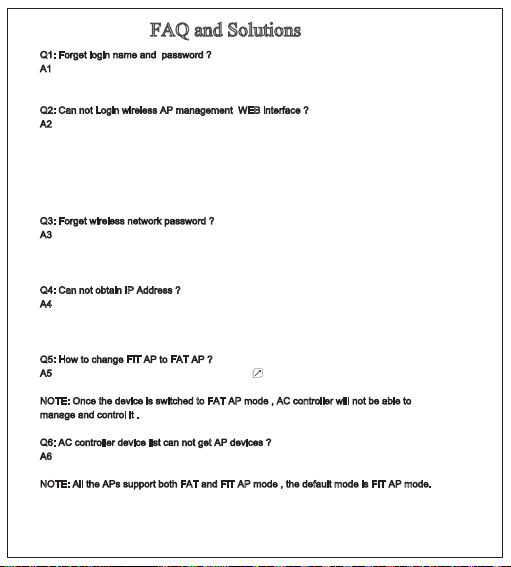

FAQ and Solutions
Q1: Forget login name and password ?
A1: Reset to factory default settings: press the reset button for above 10 seconds and release it , the
device will reboot and reset to factory default settings automatically.
Q2: Can not Login wireless AP management WEB interface ?
A2: 1.Check if PC with static IP and if this IP is in the same IP segment of AP, make sure it is
not set to other IP range.
2.Reset AP to factory default settings and re-connect to AP.
3.Make sure wireless AP IP address is 192.168.188.253 and not occupied by other devices .
4.Check if there is something wrong with PC and Ethernet cable ,recommend to use
CAT 5e or above UTP cable .
Q3: Forget wireless network password ?
A3: 1.Connect AP by wired ,login WEB management interface ,click wireless settings---> basic
settings--->Encryption--->Password, and set a new password for wireless network.
2.Reset AP to factory default settings, the default password is 66666666.
Q4: Can not obtain IP Address ?
A4: 1.In gateway or WISP mode, check if DHCP server is enabled
2.In repeater or AP mode, check if upper network connection is normal ,or if LAN
network DHCP server is working well .
Q5: How to change FIT AP to FAT AP ?
A5: Switch FAT and FIT mode by clicking the button at right corner ,then device will
reboot .After rebooting,please clear history buffer files in IE and then login .
NOTE: Once the device is switched to FAT AP mode , AC controller will not be able to
manage and control it .
Q6: AC controller device list can not get AP devices ?
A6: The mode for AC controller and AP are different, AC controller with model prefixed
AC is used to control FAT AP, the model prefixed in FAC or BW is used to control FIT AP .
NOTE: All the APs support both FAT and FIT AP mode , the default mode is FIT AP mode.
