Wisenet TNO-L4030T User manual

TNO-4030T/TNO-4040T/TNO-4041T
TNO-4050T/TNO-4051T
TNO-4030TR/TNO-4040TR/TNO-4041TR
TNO-L4030T/TNO-L4030TR
THERMAL
NETWORK CAMERA
Quick Guide

2
COMPONENT
As for each sales country, accessories are not the same.
~TNO-4030T/4040T/4050T/4030TR/4040TR/L4030T/L4030TR
CAUTION: Be ware of th e
RatedVol tage and Po larity
ofthe pow er connec tion.
CONDUIT
~Not Included : SD CARD

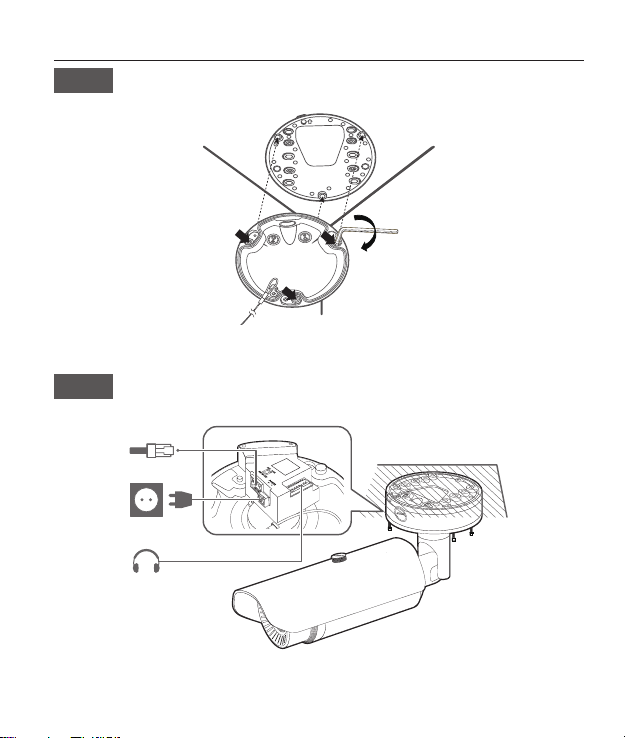

12345678
1:LINE IN
2:GND
3:AUDIO OUT R
4:AUDIO OUT L
5:GND
6:ALARM IN
7:ALARM OUT
8:ALARM OUT2

INSTALLATION
3

INSTALLATION
4
1
2
CONDUIT

INSTALLATION
5
3
4
CONDUIT
12345678
1:LINE IN
2:GND
3:AUDIO OUT R
4:AUDIO OUT L
5:GND
6:ALARM IN
7:ALARM OUT
8:ALARM OUT2

INSTALLATION
6
6
Installation
5
~Not Included : WiFi dongle, OTG adapter
micro USB
OR

INSTALLATION
7
7

INSTALLATION
8
8

INSTALLATION
9
9
15

10
COMPONENT
As for each sales country, accessories are not the same.
~TNO-4041T/4051T/4041TR
CAUTION: Be ware of th e
RatedVol tage and Po larity
ofthe pow er connec tion.
~Not Included : SD CARD

INSTALLATION
11

INSTALLATION
12
1
2

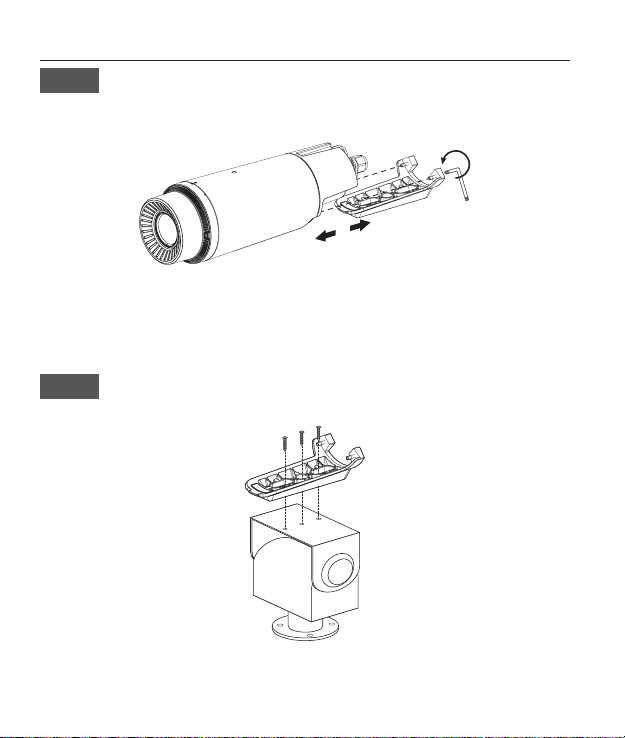

~Not Included : PT Driver

INSTALLATION
13
3
4

INSTALLATION
14
5
6
15

15

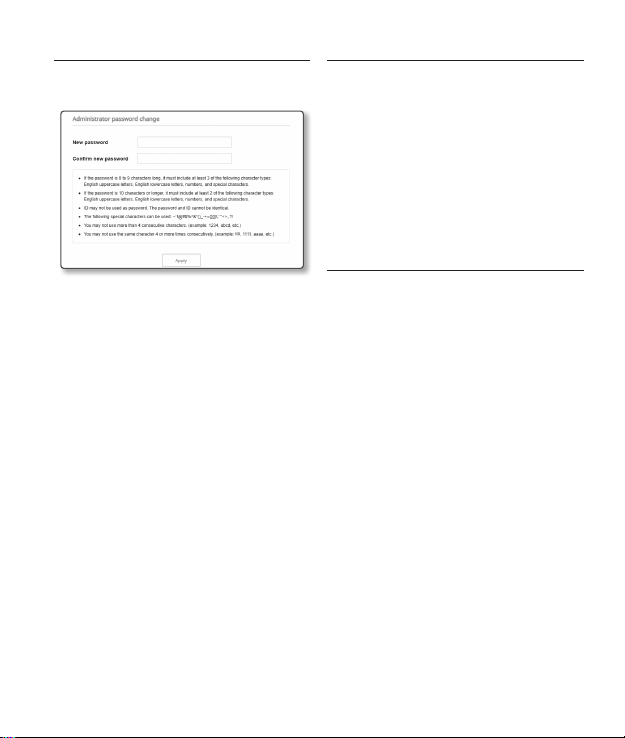

PASSWORD SETTING
When you access the product for the first time, you
must register the login password.
J
`For a new password with 8 to 9 digits, you
must use at least 3 of the following: uppercase/
lowercase letters, numbers and special
characters. For a password with 10 to 15
digits, you must use at least 2 types of those
mentioned.
-Special characters that are allowed. :
~`!@#$%^&*( )_-+={ }[ ]|\;:‘“<>.,?/
`Space is not allowed for password.
`For higher security, you are not recommended
to repeat the same characters or consecutive
keyboard inputs for your passwords.
`If you lost your password, you can press the
[RESET] button to initialize the product. So,
don’t lose your password by using a memo pad
or memorizing it.
LOGIN
Whenever you access the camera, the login
window appears.
Enter the User ID and password to access the
camera.
aEnter “admin” in the <User Name> input
box.
bEnter the password in the <Password>
input field.
cClick [OK].
CONNECTING TO WiFi
Camera setting
aConnect OTG adapter (5-pin) and WiFi
dongle to the micro USB terminal.
Smartphone setting
aInstall the Wisenet Installation application.
bSelect the camera SSID after turning on
the WiFi.
cRun the Wisenet Installation application.
dWhen you log in to the camera, the video
will be connected.
`The video will be played without being logged in
during the initial connection.
eYou can adjust angle of view while
watching the video through smartphone.

Correct disposal of batteries in this product
(Applicable in the European Union and other European countries with separate battery return systems.)
This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other
household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains
mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these
substances can cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them
through your local, free battery return system.
Hanwha Techwin cares for the environment at all product manufacturing stages, and is taking measures to
provide customers with more environmentally friendly products.
The Eco mark represents Hanwha Techwin’s devotion to creating environmentally friendly products, and
indicates that the product satisfies the EU RoHS Directive.
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories
(e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of
their working life. To prevent possible harm to the environment or human health from uncontrolled waste
disposal, please separate these items from other types of waste and recycle them responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local
government office, for details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
