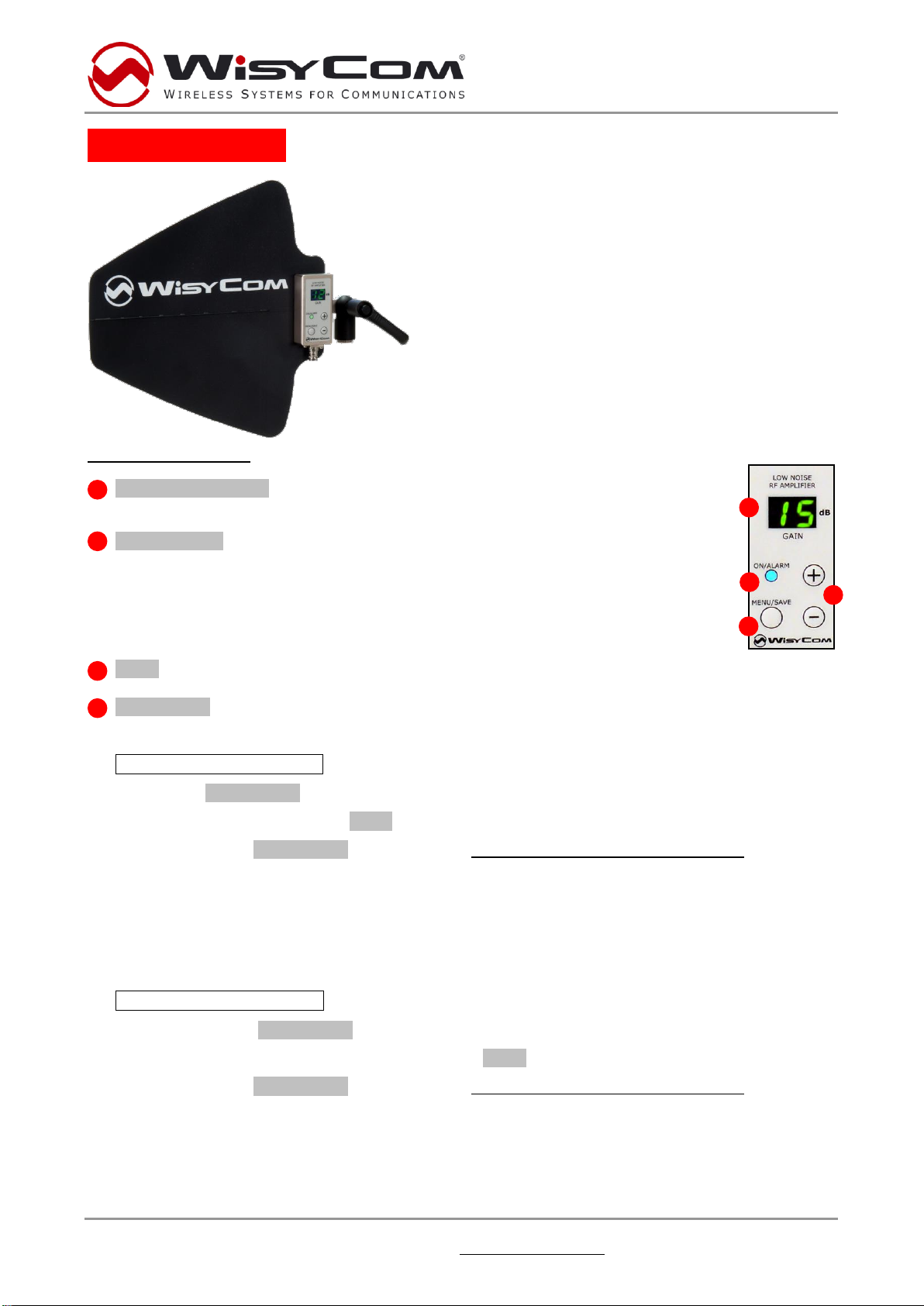

LBNA-LNNA UHF WIDEBAND ANTENNA (470÷870 MHz)
LBNA/LNNA is a wideband UHF antenna LPDA
(LOG PERIODIC DIPOLE Array).
It enhances reception providing approx 6 dB
gain with typical beam-width of 90 degrees.
It embodies a signal amplifier with digital
control adjustable gain. Weather resistant, it
grants perfect working even in outside
locations.
Booster Module
2 digits LED display with booster gain indication [dB].
Brightness can be adjusted through the user menu.
Signaling LED, multicolor:
white : when turning-on indicates the booster start up
yellow : booster bypassed, antenna becomes passive
green : active booster with gain between 1 ÷ 8 dB
blue : active booster with gain between 9 ÷ 15 dB
red : fast blinking, powering insufficient (lower than ≈9,5Vdc)
+ / - , adjusting buttons
MENU/SAVE, selection button allows to edit the following parameters (after 5 second
gain indication is restored by default).
BOOSTER GAIN SETUP , from normal indication:
 Push MENU/SAVE to enter gain edit mode,
 Then edit the gain with + / - ,
 Push again MENU/SAVE for confirm or wait 5 sec to return without saving.
It is possible to setup the gain between 1 ÷ 15 dB in steps of 1dB. Decreasing gain
to the lowest value, “bP” is displayed: booster is bypassed and antenna operates in
a passive way. Confirm the new setup value within 5“ by pressing one more time
on the MENU/SAVE button. Without any confirmation within 5” the modification is
cancelled.
DISPLAY BRIGHTNESS (first digit “d”, second digit value from 0 to 8)
Push twice MENU/SAVE to enter brightness edit mode,
 Then setup your desired brightness with + / - ,
 Push again MENU/SAVE for confirm or wait 5 sec to return without saving.
1
4
2
3
1
2
3
4

Page 2 of 2
W I S Y C O M S . r . l -Via Spin, 156 - I-36060 Romano d’Ezzelino (VI) -Italy
Tel. (Ph.). [phone] - Fax [phone] - http:// www.wisycom.com - e-mail: [e-mail]
C a p . S o c . (Auth. Cap.) € : 5 1.0 0 0 i . v – P . I V A ( V A T ) : I T 0 2 7 6 5 6 4 0 2 4 4 - R e g . I m p . e C . F . : 0 2 7 6 5 6 4 0 2 4 4
Mechanical specifications
Dimension (LxHxD): 319 mm x 284 mm x 64 mm
Material : Epoxy fiberglass (copper –clad)
Finishing : black mat
Mounting : 5/8” Whitworth or 3/8” with adapter
Weight : 500g
Booster specifications
Frequency : UHF (470 870 MHz).
Impedance : 50 ohm (SWR = < 1:1.5; tip. = 1:1.4)
Connectors : BNC type for LBNA / N type for LNNA
Gain (max) : 015 dB (typical), selectable in steps of 1 dB (+/- button)
OIP3 : +43 dBm (output 3° order Intercept Point) typical
Gain flatness : 1 dB, in the whole working window
Powering : +12 Vdc / 100mA
Typical attenuation of most used coax.cables (for length = 100 m):
Cable type
Diameter (mm)
Attenuation @ 400 MHz
Attenuation @ 900 MHz
RG 58 C/U
4.95
32 dB
52 dB
RG 213 /U
10.3
13 dB
22 dB
RG 218 /U
22.1
7 dB
14 dB
Cellflex - ¼” foam dielectric
8.8
8.4 dB
12.8 dB
MENU/SAVE
GAIN
dB
LOW NOISE
RF AMPLIFIER
ON/ALARM
Subject to change without notice
