WisyCom MCR54 Series User manual

Multi-band
Quad/Dual True Diversity
Camera Receiver
rev.12 (reference FW 2.3.0)
Date: 28 June 2023
MCR54 / MCR54-DUAL
User Manual

MCR54 / MCR54-DUAL User Manual
1

MCR54 / MCR54-DUAL User Manual
2
SAFETY INSTRUCTION
•Read this safety instruction and the manual first
•Follow all instructions and information.
•Do not lose this manual.
•Do not use this apparatus under the rain or near the water.
•Do not install the apparatus near heaters or in hot environments, do not use outside the
operating temperature range.
•Do not open the apparatus, only qualified service technicians are authorized to operate on it.
The apparatus needs servicing when it is not properly working or is damaged by liquids,
moisture or other objects are fallen in the apparatus.
•Use only accessories or replacement parts authorized or specified by the manufacturer.
•Clean the apparatus only with dry cloths, do not use liquids.
•Report the serial number and the purchasing date in front of the manual. It is needed to have
proper replacement parts or accessories from the manufacturer.
•When replacement parts are needed, use only replacement parts authorized from the
manufacturer. Substitution with not authorized parts could result in electric shock, hazards or
fire.
•Keep attention on all the labels with warnings or hazards on the apparatus.
WARNING: The apparatus is intended for professional use; the manufacturer alerts the user that
the headphone output power of the apparatus could exceed the level of 85 dB(A) of sound
pressure level and this could be dangerous for the hearings. Do not use the headphone with high
power level or for long time. Reduce the power or suspend the hearing in case of any kind of
hearing problem.

MCR54 / MCR54-DUAL User Manual
3
MAIN FEATURES
MCR54 is a camera mount quad true diversity wireless-microphone receiver system in a modular
stand-alone or slot-in configuration (compatible with most camera’s slot):
•Wideband just isn’t enough anymore! Upgrade to a Multi-Band system with up 790 MHz
tuning range to find your frequency, anywhere in the World.
•With the combination of Narrowband Modulation (High Density) and Linear transmitters,
set your channels every 200kHz without intermodulation distortion and get an extra 3dB
sensitivity.
•With eight internal receiver boards, the MCR54 boasts an unprecedented capacity for
range and reliability.
•DSP delivers ENC and ENR algorithms for perfect audio in any application with less than
1ms delay –Create and shape presets for the desired sound. This enables the use of third-
party transmitters with Wisycom receivers
•Modular configurations for stand-alone or slot-in formats in many Cameras or Audio
Devices
•Monitor & control through USB C or Bluetooth 5 (long range) on Wisycom Manager 2.2
(computer SW)
•High contrast OLED display and 4 buttons enable quick manual setup
•DSP Analog & Digital Audio Output (AES3)
•Extreme low noise VCO with ultrafast spectrum scan for optimal quick & easy setup
•Wisycom exclusive digital sub-carrier telemetry technology enables:
oremote TX battery monitoring
oadvanced tone-squelch operating
oPush-to-talk function (via optional back-panel module):
Simply pushing this button (PTT), the presenter causes the remote switching of the
receiver’s output-line, from the “main line” to the additional “intercom line”, in order to
be able to talk “off-air” directly with the technical team. Then all PTT’s MICs can be
connected in pre-fading allowing a clever intercom setup.
•Rear antenna connectors and micro audio and power adapter
•40 groups of 60 channels fully user programmable (2400 frequencies)
TECHNICAL DESCRIPTION
The MCR54 is a professional quad true diversity receiver for wireless microphones reception
designed for broadcast television production, live performances, theatres and many other
professional applications.
The winning features:
▪High immunity on strong RF environment
▪Massive switching bandwidth
▪Dynamic audio performances and flexibility with analog or digital processors
▪Unprecedented reliability and durability

MCR54 / MCR54-DUAL User Manual
4
One of the milestones in the design of the MCR54 is unprecedented reliability: most of the circuitry
of the receiver is independent one from each other. Above a schematic with an overview of main
receiver functions.
RF layout:
For each antenna the RF signal is split in 4 to receiver 1,2,3 and 4 (antenna A and antenna B) with a
wide band splitter. Then 3 banks of filters are selected according to the frequency of the 4 receivers:
MCR54-B1 (UK)
MCR54-B2 (USA/EU)
MCR54-B3 (JP)
FILTER BANK 1:
470-800MHz Tuneable filter with 32MHz of bandwidth
FILTER BANK 2:
961-1000 MHz
823-832 MHz
806-810 MHz
FILTER BANK 3:
1045-1075 MHz
940-960 MHz
1240-1260 MHz
NOTE: the tuning frequencies of all the 4 receivers has to be in the same bank of filter!
All the 4 receivers are true diversity receivers: each one is made of two receivers tuned on the same
frequency. Subsequently the selection of the band filter between 100 kHz or 200kHz allows to work
with Narrowband (High Density) or Wideband transmitters respectively.
Each receiver has its own demodulated signal and its own RSSI signal (Receiver Signal Strength
Indication); RF squelch used measurement of RSSI level for antenna diversity and for audio enabling.
In addition to the RSSI level, each receiver measures the Channel Quality. It is a more powerful tool
than RF squelch because it actually looks at the quality of the signal from the TX relative to the noise
floor on the channel which can vary over time. With the noise squelch set to on you can set the RF
squelch to a much lower level.
A DSP selects or combines signals from section A & B to have the best audio.

MCR54 / MCR54-DUAL User Manual
5
Audio Layout
As shown on the above schematic, MCR54 provides the following audio signals:
•HP [HEADPHONE]: an analog monitor audio output to headphone 3.5mm jack socket.
Thanks to the “Setup>Headphone” menu the user can select which of the 4 receivers he
wants to listen to and can adjust the volume from 0 to -24 step 1dB.
•BOT [MAIN]: 4 audio signal streams come out in the connector on the bottom and
depending on the plugged slot-in can be configured according to the following table:
SLK54 - IKSS/SX
BPA54
CH1
CH2
CH1
CH2
CH3
CH4
A1
A2
A1
A2
A3
A4
D1, D2
D3, D4
D1, D2
D3, D4
A3
A4
•TOP [AUX]: 2 audio signal streams come out in the TA5 top feed connector and can be
configured in digital (enabling AES3 on AUX outputs) or in analog:
TOP
CH1
CH2
A1
A2
A3
A4
D1, D2
D3, D4

MCR54 / MCR54-DUAL User Manual
6

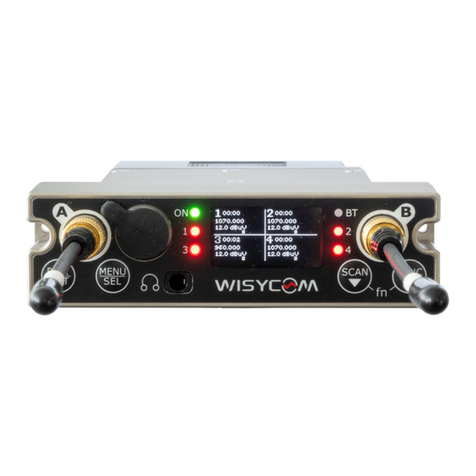

Product overview
❶
SMA antenna connectors
❷
Mini XLR 5-pin connector
2 channels analog audio outputs electronically balanced or
4 channels digital audio outputs (AES3)
1GND
2CHANNEL1+
3CHANNEL1-
4CHANNEL2+
5CHANNEL2-
❸
LED power supply
GREEN The receiver is on with an external power supply
PALE GREEN The receiver is on with battery
GREEN BLINKING The external power is low
PALE GREEN BLINKING The power of the battery is low
RED BLINKING Relative transmitter battery is low:
- slowly blinking if 25% lifetime
- quickly blinking if 12% lifetime
❹
Led Bleutooth BLUE
❺
DISPLAY 128 x 96 pixels
❻
LED receiver status
OFF Relative receiver is not active
RED RF level below squelch and/or Noise squelch on both diversity receivers
RED BLINK frequency is out of filter (32MHz) see NOTE page 3
BLUE RF level above squelch and/or Noise squelch and receiver A is active (ANTENNA A)
GREEN RF level above squelch and/or Noise squelch and receiver B is active (ANTENNA B)
❼
Headphone output (jack 3.5 mm)
❽
“PWR/EXIT” BUTTON
Push and keep this button to power on/off the receiver. The on/off status is permanently
memorized into the non-volatile memory, this way the system can be setup to automatically
turn on the receiver when power up.
During menu navigation push this button to exit from current menu (escape function).
❾
“MENU/SEL” BUTTON
Push this button to navigate function menu’s and to confirm the chosen setup.
❿
“Arrow down/SCAN” BUTTON
Push and keep this button to start the automatic scan.
During menu navigation push this button to move-down and select the previous item.
⓫
“Arrow up/SYNC” BUTTON
Push and keep this button to start a synchronization with a Wisycom transmitter (follow
instructions on display). Before starting synchronization IRDA must be enabled on Wisycom
transmitter.
During menu navigation push this button to move -up and select the previous item.
❷
❹
❸
❶
❼
❺
❶
❻
❻
❾
❽
⓫
❿

MCR54 / MCR54-DUAL User Manual
7
Display menu
Using navigation buttons it is possible to quick & easy navigate through the menu:
- SEL to enter a level or SAVE
- EXIT to exit a level
- Arrow up/down to circle on the same level
Status screen
Rotatory menu
From FW version 1.10, pushing “Arrow down/scan” button or “Arrow up/sync” button, it’s possible
to enter in a rotatory menu where you can see the main parameters of the single receiver as
frequency, group, channel, compander, RF level and audio level:
Group
Channel
Frequency
Audio Modulation Bar
(from -42 to 0 dB)
Peak deviation ≥ 56KHz
RF bar
(8 steps of 10dBµV,
from 10 to 80 dBµV)
TX Battery
Level
RX Number
WARNING!
RX Number and Rx red
LED blink if frequency is
out of filter (32MHz)
see NOTE page 3
Group
Channel
Frequency
RX Number
RX Name
TX Battery
Level
Audio Modulation Bar
(from -42 to 0 dB)
Peak deviation ≥ 56KHz
Antenna A & B
RF bar
(8 steps of 10dBµV,
from 10 to 80 dBµV)
Squelch
mode
Compander

MCR54 / MCR54-DUAL User Manual
8
From the single receiver page press SEL button to enter direct into the
Frequency setup.
Use the arrows to change the parameter (Channel/Group/ Frequency)
and SEL to confirm and shift to the other parameter. NOTE: when the
Channel is locked, the Frequency parameter is not editable.
Status menu
4 RX
Status menu
RX1
Status menu
RX2
Status menu
RX3
Status menu
RX4
❶
❷
❸
❹

MCR54 / MCR54-DUAL User Manual
9
Tree menu
Menu
Preset
Active
Load
U01-Preset1/U02-Preset2/U03-Preset3…. U16-Preset16
Save
U01-Preset1/U02-Preset2/U03-Preset3…. U16-Preset16
Factory
Edit RX1
Edit RX2
Edit RX3
Edit RX4
Name/ Freq./ Ch. Mod./ Compand/ Sq. mode/ Audio/ Sync
Settings
Active RXs/ BT/ Audio Route/ Headphones/ Display/ Act. code/ Panel lock/ fn menu
Scan
Scan now/ Squelch/ Button/ View last
Info
Supply/ Model/ Serial/ Range/ Antenna/ Base/ HW/ FW/ Diag./ Alarms
Preset:
The preset menu has the following four submenus:
▪Active: that allows to verify the active Preset;
▪Load: that allows to reload up to 16 Presets;
▪Save: that allows to save up to 16 Presets;
▪Factory: that allows to do factory settings reset.

MCR54 / MCR54-DUAL User Manual
10
Edit RX1÷RX4
Select Edit RX menu to set RX parameters for each receiver:
Edit RX1/RX2/RX3/RX4
Name
"12 characters max"
Frequency
Group / Channel and Frequency selection
Ch. Modulation
Wide/ Narrow
Compander
ENS Wisy/ ENC Wisy/ ENR Wisy…
Sq. mode
User/ Normal/ LongRange
Audio
AES level
0 to -30 dBFs (1dB step)
Base level
18 to -24 dBu (1dB step)
Top level
18 to -24 dBu (1dB step)
PTT
No/Yes
PTT Base
T+, T-, T, OFF
PTT Top
T+, T-, T, OFF
Phase
0/180
Cal. Tone
Cal. Tone
OFF/ON
Frequency
400/600/1000 Hz
Level
-30 to 0 dB (1 dB step)
Sync
“Active automatic sync with a transmitter”
Name
Selecting Name, it’s possible to edit the name of the receiver (12 characters).
Frequency
Select current group and channel. If the specific group/channel is not locked, frequency can be
edited in this menu.
Ch. Modulation
Narrowband or Wideband software selectable according to transmitter modulation.
NOTE: During the SYNC process the receiver sends the type of modulation (NB or WB) and the TX adapts
automatically to the receiver’s modulation settings accordingly.
Compander
MCR54 supports 5 different types of “Compander systems” (others on request through Digicom):
ENS: designed for voice and music applications.
ENR-Wisy: designed for maximum noise reduction. Ideal for use in louder environments.
ENC-Wisy: designed for maximum audio fidelity (use this in case of special vocal application or to
remote instruments). Ideal for use in quite environments.

MCR54 / MCR54-DUAL User Manual
11
ENR-1.2*/ENC-1.2*: to use with some type of camera (ex. Canon® C300, Canon® XF305, Sony®
Pmw200, Sony® Pmw300, Sony® PmwF5, Sony® Fs7, Nikon® D600 or Nikon® D800, Canon®
SD mark3...) which accept a signal with reduced dynamic. This type of expansion doesn't add
artifacts to the signal and allows to have a less noisy signal. It allows to improve the quality
of the audio registration (compared to the ENR/ENC standard) increasing the S/N ratio up
to 15dB.
To use these expanders, it’s necessary to set ENR on the transmitter and ENR 1.2 on the
receiver or set ENC on the transmitter and ENC 1.2 on the receiver.
ENR-1.2 it’s used for the optimization of noise, ENC-1.2 it’s used to optimize the voice.
NOTE: The compander of the receiver must be the same as the transmitter
MCR54 core is a power digital audio processor that, besides an unbeatable audio quality and
flexibility, can emulate most expanders systems on the market. On this menu you can setup the
audio expanding chipset emulation. ENR is emulating the Philips™SA572 and PTT digital data of
Wisycom transmitters. Other setups can be loaded on request.
Sq. Mode
Squelch Mode is available in 2 possible configurations: Normal or Long Range.
Relevant setup are summarized in the following table:
FIXED PARAMETERS
RF squelch
[dBµV]
Noise
Squelch [dB]
Squelch
ON delay
[ms]
Tone squelch
TSQ delay
[ms]
Normal
6
11
0
ON
500
Long
Range
3
8
0
OFF
500
NOTE: For expert users, there is a 3rd configuration named User which allows to modify each single
parameter using the Wisycom Manager.
VARIABILE PARAMETERS
RF squelch
[dBµV]
Noise
Squelch [dB]
Squelch
ON delay
[ms]
Tone squelch
TSQ delay
[ms]
User
OFF/0/3/6…
/46
From 8 to 25
0 to 2000
ON/OFF
0 to 2000
RF Squelch
RF squelch is a function that acts to suppress the audio output of a receiver in the absence of a sufficiently
strong desired input signal.

MCR54 / MCR54-DUAL User Manual
12
Noise Squelch
Noise squelch is a more powerful tool than RF squelch because it actually looks at the quality of the signal from
the TX relative to the noise floor on the channel which can vary over time. With the noise squelch set to ON
you can set the RF squelch to a much lower level.
Tone Squelch
MCR54 is able to detect a digital tone squelch generated by a Wisycom transmitter (ex.
MTH410/MTH400/MTP40S/ MTP41S/MTB40S/RPU500).
Tone squelch ON: when the tone squelch is enabled the audio is muted unless the correct carrier is detected.
Tone squelch allows to work with lower RF squelch, increasing the coverage and the robustness especially in
presence of digital television carriers (DVB-T).
Audio
Max audio level output can be set:
•from 0 to -30 dBFs (1 dB step) for digital AES3 output
•from 18 dBu to -24 dBu (1 dB step) for analog BASE output
•from 18 dBu to -24 dBu (1 dB step) for analog TOP output
PTT
It’s possible to choose the status of audio output for the Base and the Top when transmitter’s PTT
button is pushed or released. The following table explains the logic used for the nomenclature:
[X]: indicates that audio output is enabled.
[ ]: indicates that audio output is disabled.
Phase
To change audio phase of 0° or 180°.
Cal. Tone
If Cal. tone is enabled, a calibration tone is transmitted from the outputs of the receiver and the
audio LED of the relative RX become blue (to turn off the calibration tone, go on the menu Advanced
>RX and press EXIT)

MCR54 / MCR54-DUAL User Manual
13
It’s possible to select the audio level between -30 dB to 0dB (referred to the maximum output level
set on the audio outputs). It represents the reference of the peak deviation (56 KHz).
The frequency of the tone can be chosen between 400/600/1000 Hz.
Sync
The SYNC function is useful to tune a transmitter on the same
frequency of the receiver via the IR interface. Before starting
the sync function tune the receiver on desired channel,
manually or using the SCAN utility. After this, enable the IR
interface on the transmitter. Now press UP&EXIT buttons
together or enter in the Sync menu to start the SYNC function.
Keep the IR window of the transmitter in front of the IR window of the receiver and, as soon as the
connection is done, the receiver will send to the transmitter all the information needed.
If the operation is not possible, (i.e. the frequency range of the transmitter is not compatible with
the frequency of the receiver), the display will show an error message.
If the transmitter has the function “NAME” enabled, when the sync function is completed it will
show the same name of the synchronized receiver.
Settings
Select Settings menu to access to the main parameters’ settings.
Settings
Active RXs
RX1 RX2 RX3 RX4
BT
Power on
Yes/No
Pairing
Yes/No
Passcode
Yes/No
Reset Dev.
Audio Route
Base#1
Base#2
TOP
Headphones
Volume
-24 to 12 dB (1 dB step)
RX select
RX1/RX2/RX3/RX4
Display
Led mode
Full/Alarms/OFF
Brightn.
0/5
LOW
5/60 sec (step 5 sec)
OFF
10/120 sec (step 10 sec) / OFF
Act. code
Panel lock
Yes/No
fn menu
Audio/ActRX/BT

MCR54 / MCR54-DUAL User Manual
14
Active RXs
Allow to enable/disable each single receivers.
Bluetooth
Pairing: per accoppiare con dispositivo cellulare, tablet etc. Quando accoppiato è possibile editare i
parametri altrimenti si può solo vedere delle info
Passcode: per impostare una password
Reset: per resettare gli accoppiamenti bluetooth
Audio Route
MCR54 provides two audio output: Base & Top. Depending on the rear panel mounted it is
possible to have different scenarios.
Rear panels:
▪BPA54: stand-alone rear panel;
▪SX: Sony cameras rear panel;
▪IKSS:Ikegami/Panasonic cameras rear panel;
▪MRK16: Wisycom 16 channels receiver.
This menu allows to decide the type of audio outputs (Digital AES3 or Analog) and what receivers
come out to the connectors.
Depending on the plugged slot-in it can be configured according to the following tables.
With BPA54 it is possible to enable Digital outputs on TOP or BASE#1. If the outputs are digital it is
possible to come out all the receivers with one connector while in analog mode each connector can
comes out the couple (A1, A2) or (A3, A4).
TOP output
BASE#1 output BASE#2 output
1 GND
2 CHANNEL1+
3 CHANNEL1-
4 CHANNEL2+
5 CHANNEL2-
CH1
CH2
CH1
CH2
CH3
CH4
A1
A2
A1
A2
A3
A4
A3
A4
D1, D2
D3, D4
A1
A2
D1, D2
D3, D4
A3
A4
A3
A4

MCR54 / MCR54-DUAL User Manual
15
With IKSS it is possible to enable Digital outputs on TOP or BASE. If the outputs are digital it is
possible to come out all the receivers with one connector while in analog mode TOP connector can
comes out receivers (A1, A2) or (A3, A4) while BASE connector can only provide receivers (A1, A2).
TOP output
BASE output
2 CHANNEL1+
3 CHANNEL1-
15 CHANNEL2+
16 CHANNEL2-
1 GND
2 CHANNEL1+
3 CHANNEL1-
4 CHANNEL2+
5 CHANNEL2-
CH1
CH2
CH1
CH2
A3
A4
A1
A2
D1, D2
D3, D4
A1
A2
D1, D2
D3, D4
A3
A4
With SX it is possible to enable Digital outputs only on TOP connector. If the outputs are digital it is
possible to come out all the receivers with one connector while in analog mode TOP connector can
comes out the couple (A1, A2) or (A3, A4). BASE connector can only comes out (A1, A2) receivers.
TOP output
BASE output
2 CHANNEL1
3 CHANNEL2
1 GND
2 CHANNEL1+
3 CHANNEL1-
4 CHANNEL2+
5 CHANNEL2-
CH1
CH2
CH1
CH2
A1
A2
A1
A2
A3
A4
D1, D2
D3, D4

MCR54 / MCR54-DUAL User Manual
16
Audio Route: MCR54-DUAL
MCR54-DUAL provides two receivers and works the same as MCR54. For audio routing, the above
tables modify as follows for each rear panel.
BPA54:
TOP output
BASE#1 output BASE#2 output
1 GND
2 CHANNEL1+
3 CHANNEL1-
4 CHANNEL2+
5 CHANNEL2-
CH1
CH2
CH1
CH2
CH3
CH4
A1
A2
A1
A2
-
-
D1, D2
-
-
-
D1, D2
-
A1
A2
-
-
IKSS:
SX:
TOP output
BASE output
2 CHANNEL1
3 CHANNEL2
1 GND
2 CHANNEL1+
3 CHANNEL1-
4 CHANNEL2+
5 CHANNEL2-
CH1
CH2
CH1
CH2
A1
A2
A1
A2
D1, D2
-
TOP output
BASE output
2 CHANNEL1+
3 CHANNEL1-
15 CHANNEL2+
16 CHANNEL2-
1 GND
2 CHANNEL1+
3 CHANNEL1-
4 CHANNEL2+
5 CHANNEL2-
CH1
CH2
CH1
CH2
A1
A2
D1, D2
-
D1, D2
-
A1
A2

MCR54 / MCR54-DUAL User Manual
17
Headphones
This menu the user can select which of the 4 receivers he wants to listen to and can adjust the
volume from 0 to -24 step 1dB.
Display
In this menu item it’s possible to set the mode of switch on of the front LEDs and the contrast and
timeout of the display.
LEDs mode can be:
•Full: all LEDs are activated
•Alarm: the LEDs are ON only in case of alarm (only red)
•OFF: all LEDs are always off
Low timeout indicates the time until the display stays on with the contrast set (after which, the
display contrast is lowered and after another “Low timeout” the display shows the Status screen).
Off timeout is the time until the display stays on (after which, the display will automatically turn
off). If Off timeout is set to OFF the display never turn off automatically.
Act. code
This section allows to insert the activation code for a compander enabling.
Panel lock
By activating this function, it is possible to lock device parameters. Doing this permits to access the
menu and read what it’s selected without modify any parameter.
fn. Menu
This feature allows to select to which parameter accede with the shortcut combination of pressing
“Up and Down” arrows together:
▪Audio: that goes to “Audio route” menu;
▪BT: that goes to “Bluetooth” menu;
▪ActRX: that goes to “Active Rxs” menu.

MCR54 / MCR54-DUAL User Manual
18
Scan
Select Scan menu to access to the frequency parameters settings.
Scan
Scan now
Channels
Freq.
Squelch
OFF/0/3/6/9/12/15/18/21/24/28/32/36/40/46 dBuV
Button
Channels/ Freq.
View Last
The MCR54 allows the user to scan using the Group/Channel frequency file in the unit or by
scanning a manual selection of frequencies. Select which type of scan by going into the scan menu.
Channels

MCR54 / MCR54-DUAL User Manual
19
Channel
Once started a channel scan operation the receiver asks for
group to be used*. Press the SEL button to select the group
to scan.
Then it prompts to turn off all transmitters. This is in order to
provide the most accurate scan data.
Press SEL to start the scan!
After few seconds, scan results are displayed sorted by level,
making easier to pick up the best one.
The dotted line in the graph indicate the squelch threshold.
Under the graph are reported the following parameters:
-Ch: Channel
-Rank: Ranking position (Best/Lowest Noise Level to
Worst/Highest Noise Level)
-Freq: Frequency
-Lev: RF level
Pushing simultaneously UP and DOWN button, the results
can be also displayed on a chart in ascending order according
to the number of the channel.
After the selection of the desired channel, a screen appears
with the selected frequency, channel and group and it is
possible to Set or Synchronize the receiver with the
transmitter. We recommend setting the frequency and then
synchronize it with the transmitter.
