WisyCom MPR52-ENG User manual

High performance
Diversity
Two channels
Camera Receiver
MPR52-ENG User Manual
SN: ________________
rev.14 (ref. FW 1.1)

MPR52-ENG User Manual
1

MPR52-ENG User Manual
2
MAIN FEATURES
Two channels diversity receiver
DSP analogue Output (AES3)
Up to 790 MHz bandwidth in 470/1260 MHz range
Next Gen Multiband front-end filtering:
oHigh Q moving filter in 470-960 MHz
oHigh Q moving filter in 960-1160 MHz (DME)
oCountry specific saw filters:
USA 940-960 MHz &
Japan 1240-1260 MHz or 806-810MHz
Wideband and Narrowband DSP-FM operation (SW selectable):
oNarrowband allows more 50% band efficiency
oNarrowband allows about 3dB extra sensitivity and noise immunity
Extreme low noise VCO with ultrafast spectrum scan for optimal quick & easy setup
High contrast OLED display
Automatic scan & transmitter programming through infrared
DSP based for extreme flexibility and multi-companding operations
Miniature design with integrated battery pack:
- rechargeable lithium pack
- 2 x AA batteries
Operation and charger (lithium) thru USB connector
Monitor & control through USB and Wisycom Manager 2.0 (computer SW):
oThis transform MPR52 in a quick and low noise portable spectrum scanner
Please note that the two channels, in order to protect them from
potential interferences coming from having the ultra-wide band, must use frequencies included
into a 30 MHz filter range.

MPR52-ENG User Manual
3
SAFETY INSTRUCTION
Read this safety instruction and the manual first
Follow all instructions and information.
Do not lose this manual.
Do not use this apparatus under the rain or near the water.
Do not install the apparatus near heaters or in hot environments, do not use outside the
operating temperature range.
Do not open the apparatus, only qualified service technician are enabled to operate on it. The
apparatus needs servicing when it is not properly working or is damaged by liquids, moisture or
other objects are fallen in the apparatus.
Use only accessories or replacement parts authorized or specified by the manufacturer.
Clean the apparatus only with dry cloths, do not use liquids.
Report the serial number and the purchasing date in front of the manual. It is needed to have
proper replacement parts or accessories from the manufacturer.
When replacement parts are needed, use only replacement parts authorized from the
manufacturer. Substitution with not authorized parts could result in electric shock, hazards or
fire.
Keep attention on all the labels with warnings or hazards on the apparatus.
The apparatus is intended for professional use; anyway the manufacturer alerts the user
that the headphone output power of the apparatus could exceed the level of 85 dB(A) of sound
pressure level and this could be dangerous for the hearings. Do not use the headphone with high
power level or for long time. Reduce the power or suspend the hearing in case of any kind of hearing
problem.

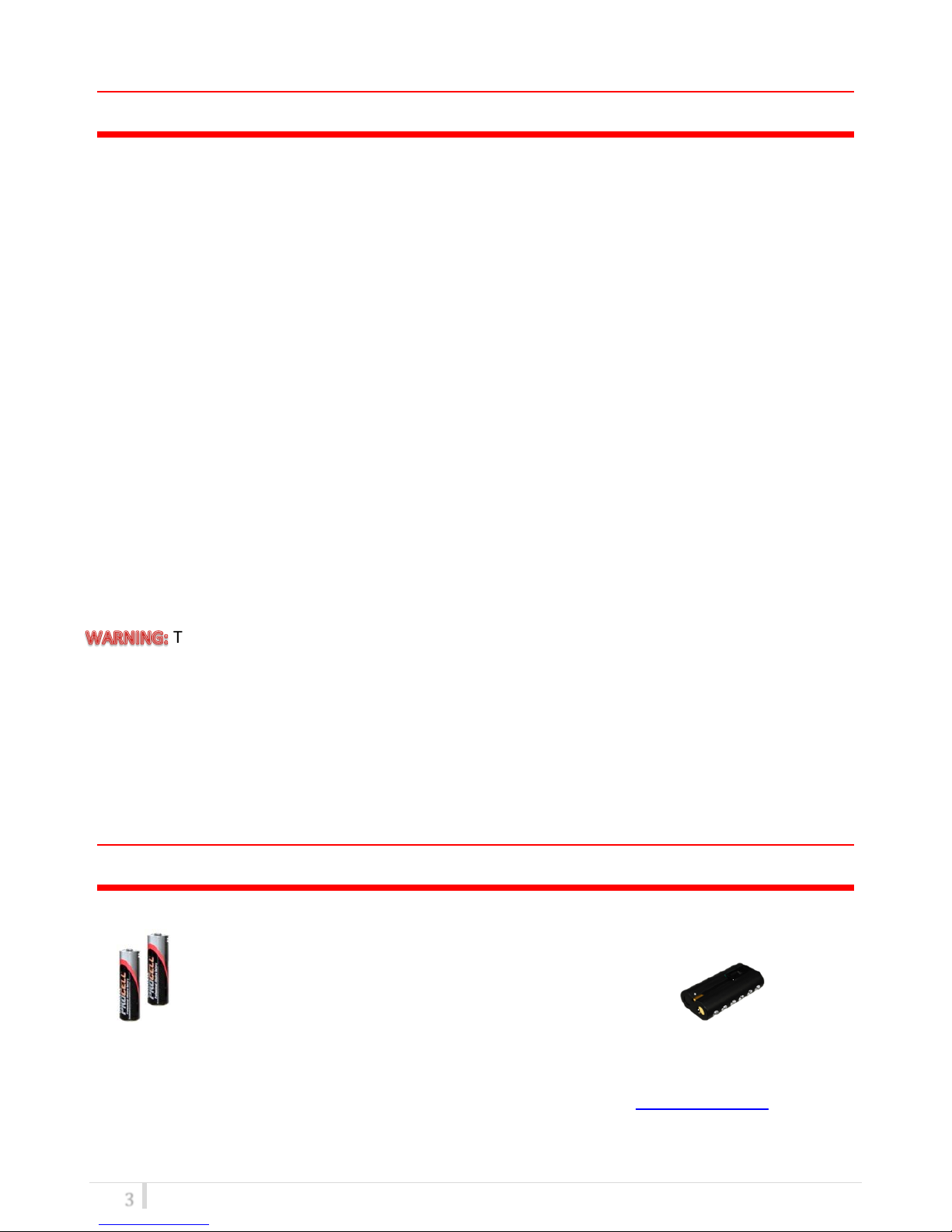

BATTERIES
MPR52-ENG works with standard camera battery:
-2xIEC-LR6 1.5 size-AA alkaline or NiMh rechargeable
-KLIC 8000 (lithium-ion, rechargeable)
-DB50 (lithium-ion, rechargeable)
-DR9708 Duracell (lithium-ion, rechargeable)
Battery status can be checked on OLED display or looking the status of LED indicator ON.
Charging of lithium-ion rechargeable batteries can be done with

MPR52-ENG User Manual
4
A. dedicated charger
B. thru the integrated micro-usb-B connector
C. thru ACM50 battery charger
We don't recommend to use the device during the batteries charging with lithium-ion
rechargeable batteries inside. Don’t use the receiver without batteries . The receiver powered thru
micro-USB or mini-XLR connector without batteries doesn't work correctly.
DO NOT operate the device with some new and some old batteries. Always replace ALL
BATTERIES.
Remember to remove the batteries when the device is not in use.

MPR52-ENG User Manual
5
In compliance with
USA: , 47 CFR 15 Subpart B
CAN RSS-Gen/CNR-Gen
AUDIO OUTPUT
• Audio output : Electronically balanced on 5 pin mini-XLR Female
connector
analogue or digital (SW selectable)
• Digital line 1 & 2 : Electronically balanced on 5 pin mini-XLR Male
connector
• Digital line-output : AES3 @ 48 kHz
• Audio line impedance : ≤ 200 ohm
• Headphone-output : 3.5mm (TRS) stereo plug, locking (M6 x 0.5 thread)
with 50mW @ 32 Ohm
NOTE [1]: RMS value, 22 Hz / 22 kHz, unweighted.
The MPR52ENG receiver complies with ETSI specifications: ETS 300 422
VARIANTS: MPR52-ENG- <Freq Range>
▪FREQUENCY RANGE
B1 470-800 MHz, 940-960 MHz (for USA), 960-1160 MHz (DME)
B2 470-800 MHz, 960-1160 MHz (DME), 1240-1260 MHz (for Japan)
B3 470-800 MHz, 960-1160 MHz (DME), 806-810 MHz (for Japan)

MPR52-ENG User Manual
6

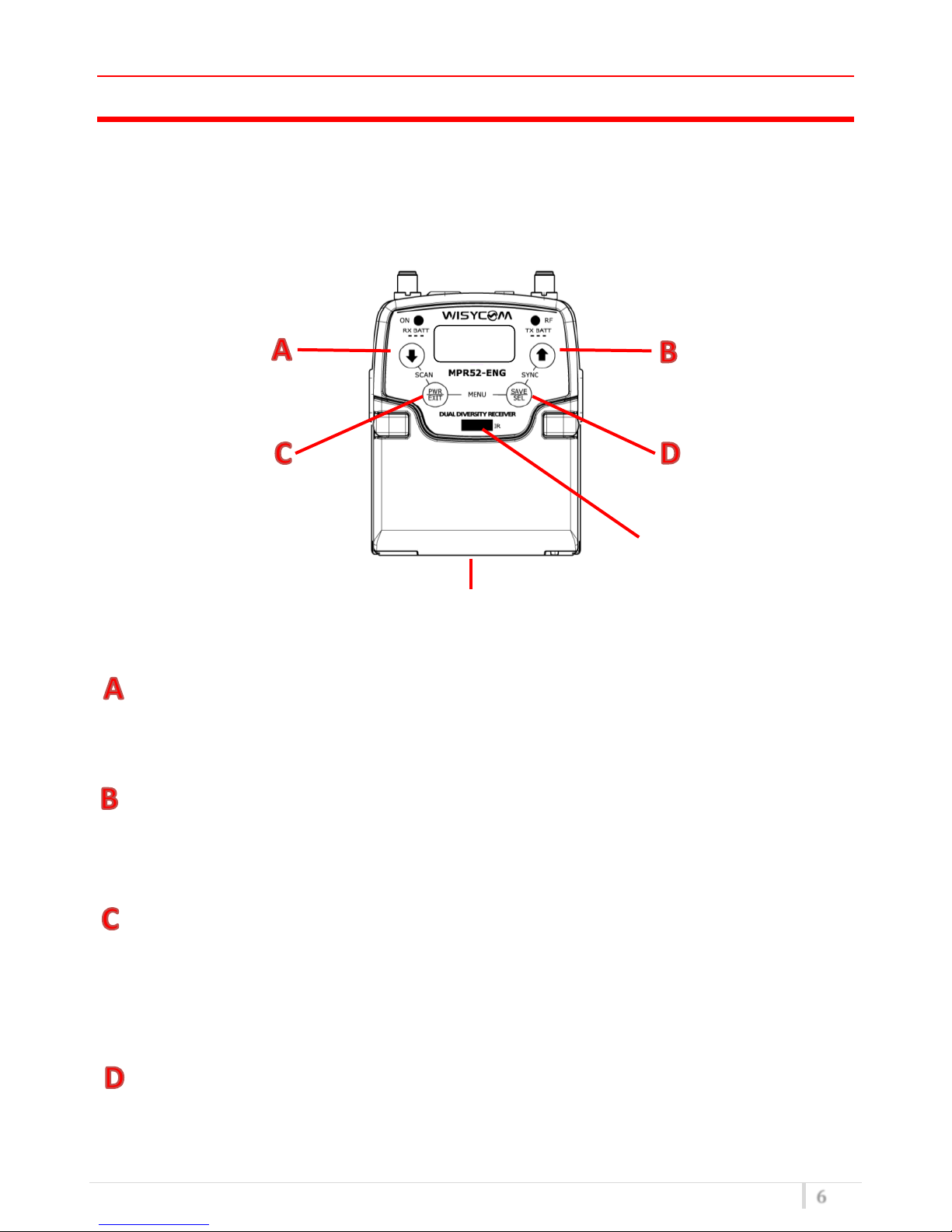

FRONT PANEL
MPR52-ENG allows an easy and quick configuration using buttons, RGB LED’s and a high contrast
OLED Display.
SCAN/DOWN Button
Push this button together with PWR/EXIT (C) to run the auto scan. When inside any menu
use this button to scroll down.
SYNC/UP Button
Push this button together with SAVE/SEL (D) to start a synchronization with a transmitter.
Note that before starting synchronization IRDA must be enabled on Wisycom transmitter.
When inside any menu use this button to scroll up.
POWER/EXIT Button
Push and keep this button to power on/off the receiver. During menu navigation push this
button to exit from current menu (escape function). Quickly push POWER button to turn
on the display when it goes OFF. You can change the time out setting from the “Info”
menu.
SAVE/SELECT Button
Push this button to navigate function menu and keep pushing to save the chosen setup.
uring menu navigation push this button to move-down and select the previous item.
Infrared port
USB port

MPR52-ENG User Manual
7
Pin 1:ground
Pin 2:output AF+ (hot)
Pin 3:output AF-(cold)
1
2
4
5
3
FRONTVIEW
mini xlr 5pin
Pin 1:ground
Pin 2:output AF+ (hot)
Pin 3:output AF-(cold)
Pin 4:Power supplyV+
Pin 5:Powersupplyground
1
2
3
FRONTVIEW
mini xlr 3pin
TOP PANEL
SMA antenna Connector A and B
MPR52-ENG is supplied with a pair of antennas tuned on 232 MHz bandwidth. Depending on the
working bandwidth, it can be provided with different antenna ranges.
For more details see the “Products” “MPR52-ENG” “Accessories” section on our website
www.wisycom.com.
Headphone Output
The audio headphone output with 3.5 mm stereo jack socket lockable (TRS).
Audio level can be adjusted with a headphones menu.
Configuration: Unbalanced mono (L=R), 1/8th inch
Maximum output power: 50mW @ 32Ω, 50mW @ 16Ω
Pin Assignment: Tip = AF+ (hot), Ring = AF+ (hot), Sleeve- Gnd
Line Output
The audio LINE output balanced on:
Pin 1: ground
Pin 2: output channel 1 AF+ (hot)
Pin 3: output channel 1 AF- (cold)
Pin 4: output channel 2 AF+ (hot)
Pin 5: output channel 2 AF- (cold)
SMA connectors Antenna A & B
5 Pin Line Output
Headphones Output

MPR52-ENG User Manual
8
TREE MENU
Infrared
•Active
•Load [Preset1,Preset2,Preset3, User1, User2, factory]
•Save [User1, User2]
Preset
•Headphones
•Volume [Min, -56,...,-5, Max]
•Rx [Rx1(L); Rx2[r]...
•Signal [LINE, TSQ>LINE]
•Output type [Analog, AES3]
•OUT RX1 [-35, ...., 18dBu]
•OUT RX2 [-35, ..,18dBu]
•Sig.ph.RX1 [0,180]
•Sig. ph. RX2 [0,180]
•Cal.Tone [OFF; 0dB, -18dB]
Audio Settings
•Power on [Rx1+RX2, RX1, RX2]
•Edit RX1/2
•Name
•Frequency
•Squelch [OFF, from 0 to +46 dBμV @3dBstep]
•Expander [ENR Wis, ENC WIs, ENS, ENR-1.2, ENC-1.2, JNR Wis, JNC Wis, SEN, SR, AL,
EVO, OVL, DSP_Q5X]
•Tone sq. [OFF, ON]
•Sync
•Settings
•Display
•Contrast [1÷5]
•Low Timeout
•Off Timeout
•Direction [Up/down]
•Led
•Mode [Full, Alarms, OFF]
•Brightness [0÷5]
•RX IF BW [NB, WB]
•Op. mode [Ant. div, Freq. div. True div.]
•Scan
•Act. Code
Advanced
•Supply
•Model
•Serial
•FW
•HW
•Errors
Info

MPR52-ENG User Manual
9
TECHNICAL DATA
• Frequency ranges : 470÷ 800 MHz and 960 ÷ 1160 MHz (DME)
MPR52 B1  option 940 ÷ 960 MHz
MPR52 B2  option 1240 ÷ 1260 MHz
MPR52 B3  option 806 ÷ 810 MHz
• Switchable channels : 2400 user programmable frequencies, organized in 40 groups of 60 channels.
• Switching-window : up 790 MHz.
• Frequencies : microprocessor controlled frequency synthesizer circuit, with 5 kHz minimum step.
The frequencies can be easily PC reprogrammed with the optional UPKmini
Programming Kit or micro-USB
• Frequency error : < ± 2.5 ppm, in the rated temperature range.
• Temperature range : -10 ÷ +50 °C.
• Modulation : FM mono, wideband or narrowband IFB (SW selectable)
• Max deviation : ±54 kHz (wideband), ± 40 kHz (narrowband)
• Antenna input imp. : 50 ohm sma type (SWR < 1:2; typ. 1:1.4).
• Sensitivity :  2 µV ( 6 dBµV), for SND/N > 58 dB;
 5 µV (14 dBµV), for SND/N > 98 dB.
in the whole switching-window [1].
• Amplitude response : < 0.5 dB (for RF input signal:6 dBµV ÷ 100 dBµV).
• Adjacent chan. Sel. : > 80 dB typical (for channel spacing ≥ 400 kHz)
• Spurious emissions : < 2 nW (typical = 0.1 pW).
• Noise Reduction : ENR / ENR-1.2 (Wisycom Extended-NR) , noise optimized
ENC / ENC-1.2 (Wisycom Extended-NC), voice optimized & with reduced pre-emphasis
ENS (for live application)
⇒
Others, compatible with most systems, thru an internal DSP emulation of SA572,
SA575 and Rms envelope compander chip set, fully user programmable
• AF bandwidth : 30 Hz ÷ 20 kHz (wideband), 30 Hz ÷ 15 kHz (narrowband)
• Frequency response : ± 0.5 dB in the 30 Hz ÷ 19 kHz range (wideband),
: ± 0.5 dB in the 30 Hz ÷ 13 kHz (narrowband)
• Distortion : 0.3 % typical.
• SND/D ratio (Anal.) : 100 dB typical [1]
• SND/D ratio (AES3) : > 125 dB typical
• Powering : - 2 x IEC-LR6 1.5V size-AA alkaline or NiMh rechargeable
- C3-V3 battery pack
- KLIC 8000 or CR-V3R lithium (i.e. DR9708 duracell)
• Battery life : approx. 5 hours with MPRLBP Lithium-ion battery pack CS-KLIC8000 type (double
receiver configuration)
approx. 7 hours with MPRLBP Lithium-ion battery pack CS-KLIC8000 type (single receiver
configuration)
• Weight : 100 g approx. without batteries

MPR52-ENG User Manual
10
ITALY ONLY
Obblighi di informazione agli utilizzatori
Modello di informazioni agli utenti dei prodotti di tipo “professionale”
INFORMAZIONE AGLI UTENTI
Ai sensi dell’art. 13 del Decreto Legislativo 25 luglio 2005, n. 151 “Attuazione delle Direttive 2002/95/CE,
2002/96/CE e 2003/108/CE, relative alla riduzione dell’uso di sostanze pericolose nelle apparecchiature
elettriche ed elettroniche, nonché allo smaltimento dei rifiuti”
Il simbolo del cassonetto barrato riportato sull’apparecchiatura o sulla sua
confezione indica che il prodotto alla fine della propria vita utile deve essere
raccolto separatamente dagli altri rifiuti.
La raccolta differenziata della presente apparecchiatura giunta a fine vita e’
organizzata e gestita dal produttore. L’utente che vorrà disfarsi della presente
apparecchiatura dovrà quindi contattare il produttore e seguire il sistema che
questo ha adottato per consentire la raccolta separata dell’apparecchiatura
giunta a fine vita.
L’adeguata raccolta differenziata per l’avvio successivo dell’apparecchiatura dismessa al riciclaggio, al
trattamento e allo smaltimento ambientalmente compatibile contribuisce ad evitare possibili effetti negativi
sull’ambiente e sulla salute e favorisce il reimpiego e/o riciclo dei materiali di cui è composta l’apparecchiatura.
Lo smaltimento abusivo del prodotto da parte del detentore comporta l’applicazione delle sanzioni am-
ministrative previste dalla normativa vigente.
FCC Conformity
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.

MPR52-ENG User Manual
11
Via Spin 156 I-36060 Romano d’Ezzelino Italy
Tel. [phone] Fax +39 - 0424 - 382733
