WODASIGN WodaPlug WP-A001E Product information sheet

Easy Start
WP-A001E WodaPlug Ethernet Adaptor
Easy Start
Version 1.1
CONTENTS
1 INTRODUCTION TO WP-A001E WODAPLUG ETHERNET ADAPTOR................................2
1.1 PACKAGE CONTENTS.....................................................................................................................2
1.2 IMPORTANT SAFETY INSTRUCTIONS..............................................................................................4
2 INSTALLATION AND CONNECTION.............................................................................................5
2.1 SYSTEM REQUIREMENTS...............................................................................................................5
2.2 INSTALLATION AND UNINSTALLATION OF CONFIGURATION UTILITY...............................................5
2.3 CONNECTION AND INDICATOR LIGHTS...........................................................................................6
3 ALL ABOUT THE HOME NETWORK............................................................................................7
3.1 CONFIGURING THE COMPUTER .....................................................................................................7
3.2 EXAMPLES OF APPLICATIONS ........................................................................................................9
3.3 CARE INSTRUCTIONS...................................................................................................................11
3.4 FREQUENTLYASKED QUESTIONS................................................................................................11
4 CONFIGURATION UTILITY USER GUIDE FOR WINDOWS...................................................12
5 INSTALLATION AND CONFIGURATION UTILITY USER GUIDE FOR MACINTOSH........16
6 TECHNICAL DATA..........................................................................................................................19
Product warranty does not apply to damage caused by lightning, power surges or wrong voltage usage.
Page 1 of 19

Easy Start
1 Introduction to WP-A001E WodaPlug Ethernet Adaptor
One of the major drawbacks in setting up home network is the absence of required wiring
inside the house to interconnect networked computers. In recent years several technologies
have attempted to address the issue. The most prominent technology so far is the family of
WIFI (802.11 X) products. Recently, however, another technology called HomePlug has come
forth. It uses electrical grids, already available inside walls to transmit data from computer to
computer. HomePlug technology modulates computer data in a way to enable them use
power grid as a medium of transmission from point to point. Using this technology, two
computers have a virtual Ethernet connection without the need to be physically connected to
each other.
The WP-A001E WodaPlug Ethernet Adaptor has 3 indicator lights (LEDs) and an Ethernet
port. The LEDs depict the connection status, as well as other information, enabling detailed
diagnosis of system malfunction. The Ethernet port is to connect to a device in the home
network. The WP-A001E WodaPlug Ethernet Adaptor has a standard power plug for
connection to a power outlet. There are three main kinds of power plugs:
•A001E (UK) – 3 pins UK plug with integrated 230V AC power supply.
•A001E (EUR) – 2 pins Euro plug with integrated 230V AC power supply.
•A001E (US) – 2 pins US plug with integrated 120V AC power supply.
Computer networking in the office or at home has the following advantages:
1. Share centrally stored data
2. Share one printer
3. Multi-access to one Internet connection
4. Multi-user games over the network.
1.1 Package Contents
Make sure that you have the following items. If any of the items is damaged or missing, please
contact your dealer immediately.
WP-A001E WodaPlug Ethernet Adaptor Easy Start (Qty:1)
(QTY:1 for Single Pack ; QTY:2 for Twin Pack)
CAT-5 UTP Straight Ethernet Network cable (RJ-45) Configuration Utility Installation CD
Page 2 of 19

Easy Start
(QTY:1 for Single Pack ; QTY:2 for Twin Pack) (Qty:1)
Page 3 of 19

Easy Start
1.2 Important Safety Instructions
Please read these instructions carefully:
1. Unplug the WP-A001E WodaPlug Ethernet Adaptor from the wall outlet before cleaning.
Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
2. Do not use the WP-A001E WodaPlug Ethernet Adaptor near water.
3. The WP-A001E WodaPlug Ethernet Adaptor should never be placed near or over a
radiator or heat register, or in a built-in installation unless proper ventilation provided.
4. The WP-A001E WodaPlug Ethernet Adaptor should be operated from the type of power
indicated on the marking label. If you are not sure of the type of power available, consult
your dealer or local power company.
5. The WP-A001E WodaPlug Ethernet Adaptor relies on the building’s electrical installation
for short-circuit (over current) protection. Ensure that a fuse or circuit breaker no larger
than 120 VAC or 230 VAC (depends on the power supply type in your country) is used on
the phase conductors (all current-carrying conductors).
6. Plug the WP-A001E WodaPlug Ethernet Adaptor directly into a 120V AC or 230V AC
(depends on the power supply type in your country) wall outlet. Do not use an extension
cord between the adapter and the AC power source.
7. Do not attempt to service the WP-A001E WodaPlug Ethernet Adaptor yourself, as
opening or removing covers may exposeyou to dangerous voltage points or other risks as
well as ruin product warranty. Refer all servicing to qualified service personnel.
8. Unplug the WP-A001E WodaPlug Ethernet Adaptor from the wall outlet and refer the
product to qualified service personnel for the following conditions:
-If liquid has been spilled into the product.
-If the product has been exposed to rain or water.
-If the product does not operate normally when the operating instructions are followed.
-If the product exhibits a distinct change in performance.
Page 4 of 19

Easy Start
2 Installation and Connection
2.1 System Requirements
WP-A001E WodaPlug Ethernet Adaptor is applicable with all TCP/IP operating systems with
Ethernet port. Drivers are not required for this adapter. But the supplied Configuration Utility
software to assign the network password operates only with Windows operating systems.
Your computer must meet the following requirements in order to use the WP-A001E
WodaPlug Ethernet Adaptor Configuration Utility:
Windows Operating Systems:
•Windows 98SE, Windows Me, Windows 2000 or Windows XP with Ethernet
connection
•Pentium II 300 MHz MMX-Compatible PC or greater
•At least 64MB hard disk space and memory
•CD-ROM drive
Macintosh Operating Systems:
•Mac OS 10.2 or higher
•Mac G3 or higher
•At least 64MB hard disk space and memory
•CD-ROM drive
Note: Your computer or the device to which you want to connect the WP-A001E
WodaPlug Ethernet Adaptor must have an Ethernet port, i.e. a network card or a
network adaptor.
2.2 Installation and Uninstallation of Configuration Utility
Windows Operating Systems
Installation:
1. Connect the WP-A001E WodaPlug Ethernet Adaptor to the computer or the device
with the Ethernet cable.
2. Connect the WP-A001E WodaPlug Ethernet Adaptor to the Power Outlet.
3. Install the Configuration Utility. The Configuration Utility Installation CD has auto run
feature. If the Configuration Utility Installation CD auto run fails, please run the
Setup.exe file in the CD.
4. Follow the on screen instructions to install the Configuration Utility.
Please refer to Page 11 for the Configuration Utility User Guide for Windows.
Note: 1) Before connecting the WP-A001E WodaPlug Ethernet Adaptor, please note its
Security ID / Device Password and keep it available for configuration of the
network.
2) No drivers are required for installation of the WP-A001E WodaPlug Ethernet
Adaptor.
Page 5 of 19

Easy Start
Uninstallation:
1. To uninstall the Configuration Utility, go to the Control Panel of your system.
2. Open the Add/Remove Programs.
3. Select and double click on the PowerPacket Utilities in the Add/Remove Programs
Properties.
4. Follow the on screen instructions to uninstallation the Configuration Utility.
Macintosh Operating Systems
For Mac OS, please refer to Page 15 on Installation and Configuration Utility User
Guide for Macintosh.
2.3 Connection and Indicator Lights
The WP-A001E WodaPlug Ethernet Adaptor has three lights indicator (LEDs) and an
Ethernet port:
PWR: Lights up when connected toAC power supply.
PL-LINK: Lights up when detected and connected with another HomePlug adaptor
within the network.
ETH-LINK/ACT: Lights up when connected to the Ethernet port of the computer or other
Ethernet devices.
Flashes during data transfer.
ETHERNET: This is the connection point for connecting it to a computer or other
devices with Ethernet port.
Page 6 of 19

Easy Start
3 All about the Home Network
This chapter contains important and useful information on networks—from the configuration
of your computer to examples of applications to general tips.
3.1 Configuring the Computer
Now that you have successfully connected and installed your WP-A001E WodaPlug Ethernet
Adaptor, we show you how to configure your computer correctly and how to check existing
settings.
3.1.1 Windows 98 and Windows Me
1. Open the properties of the LAN connection on the connected computers by selecting
Start Settings Control Panel Network
2. Click the entry for the TCP/IP protocol of the network adaptor and on Properties. Enable
the option 'Obtain an IP address automatically'. You can ignore all other options: they
either remain empty or retain their default settings. Close the dialogs with OK.
Note: If you cannot find an entry similar to 'TCP/IP' or 'TCP/IP -> Network Adaptor Name' or
'Internet Protocol (TCP/IP)', you must install the TCP/IPprotocol. Under Add select 'Protocol'
and click Add again. In the next dialog box under 'Manufacturer' select 'Microsoft' and under
'Network Protocol' select 'TCP/ IP'.
3. If you use a router for Internet access, you will still need to configure it, because the
router dials into the Internet, not the computer.
Under Start Settings Control/Panel Internet Option select the
‘Connections’tab and enable the 'Never dial a connection' option. Close the dialogs with
OK.
3.1.2 Windows 2000
1. Open the properties of the LAN connection on the connected computers by selecting
Start Settings Control Panel Network and Dial-up Connections. Click
with the right mouse button on the corresponding LANconnection and select 'Properties'.
2. Click the entry for the TCP/IP protocol of the network adaptor and on Properties. Enable
the option 'Obtain an IP address automatically'. You can ignore all other options: they
either remain empty or retain their default settings. Close the dialogs with OK.
Page 7 of 19

Easy Start
Note: If you cannot find an entry similar to 'TCP/IP' or 'TCP/IP -> Network Adaptor Name' or
'Internet Protocol (TCP/IP)', you must install the TCP/IP protocol. Under Install select
'Protocol' and click Add. In the next dialog box select 'Internet Protocol (TCP/IP)' and confirm
with OK.
3. If you use a router for Internet access, you will still need to configure it, because the
router dials into the Internet, not the computer.
Under Start Settings Control Panel Network and Dial-up Connections,
and enable the 'Never dial a connection' option. Close the dialogs with OK.
3.1.3 Windows XP
The Windows XP start menu can be configured in different ways. See the Windows XP
documentation for more information.
1. Open the properties of the LAN connection on the connected computers.
Select Start Control Panel Network and Internet Connections. Click with
the right mouse button on the corresponding LAN connection and select 'Properties'.
2. Click the entry for the TCP/IP protocol of the network adaptor and on Properties. Enable
the option 'Obtain an IP address automatically'. You can ignore all other options: they
either remain empty or retain their default settings. Close the dialogs with OK.
Note: If you cannot find an entry similar to 'TCP/IP' or 'TCP/IP -> Network Adaptor Name' or
'Internet Protocol (TCP/IP)', you must install the TCP/IP protocol. Under Install select
'Protocol' and click Add. In the next dialog box select 'Internet Protocol (TCP/IP)' and confirm
with OK.
3. If you use a router for Internet access, you will still need to configure it, because the
router dials into the Internet, not the computer.
Under Start Settings Control/Panel Internet Options, select the
'Connections' tab and enable the 'Never dial a connection' option. Close the dialogs with
OK.
Note: Other Internet applications such as e-mail clients may also need this information. This
generally involves changing a setting with a name like 'Connect to' or similar to 'LAN'.
Page 8 of 19

Easy Start
3.2 Examples of Applications
This section demonstrates some of the application scenarios.
3.2.1 Home Networking-option 1
Workstation with Internet connection over an ADSL/Cable modem
3.2.2 Home Networking—option 2
Networking for Online Gaming.

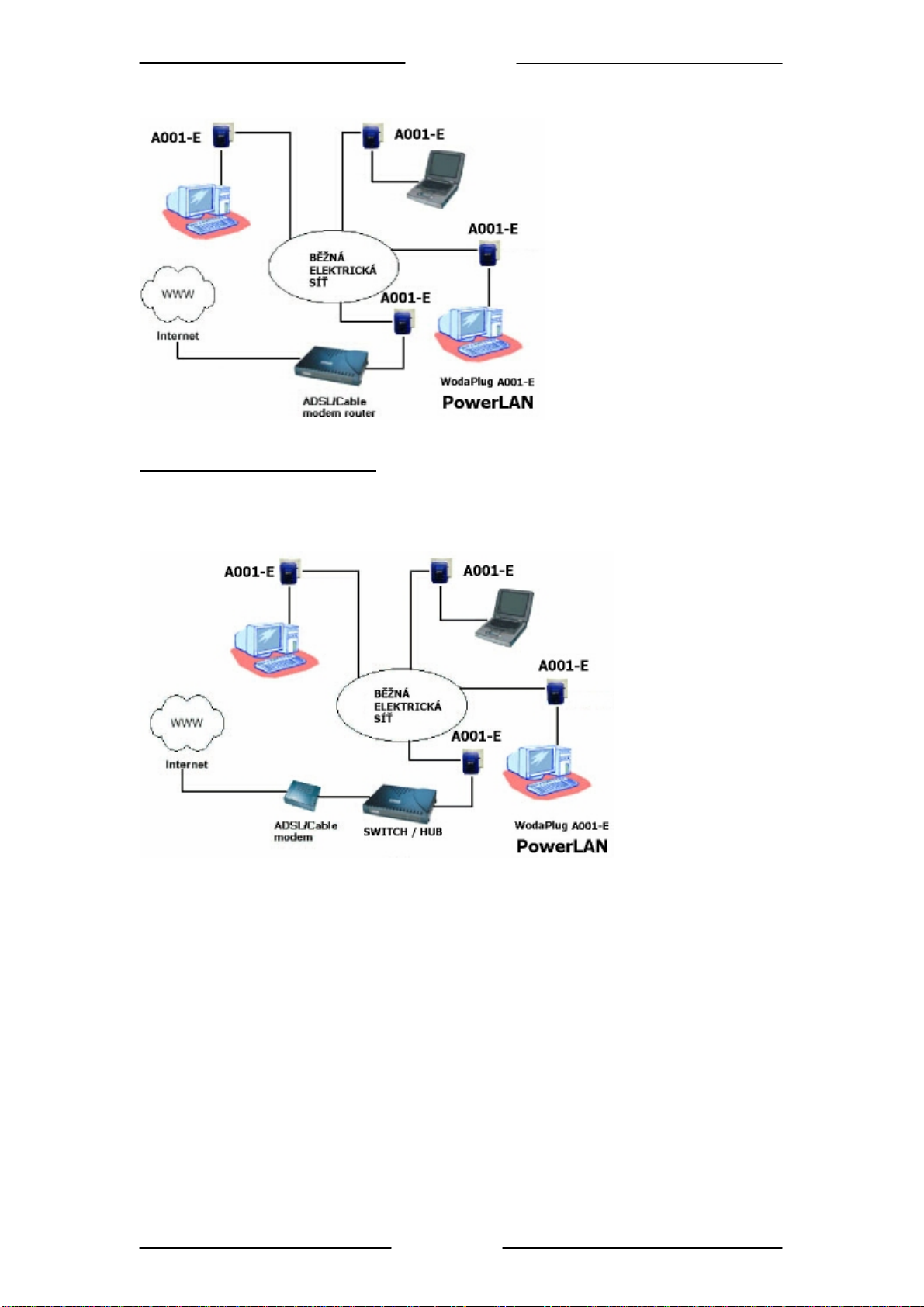

3.2.3 Home Networking—option 3
Networking for several workstations with one Internet connection over an ADSL/Cable
modem router.
Page 9 of 19

Easy Start
3.2.4 Home Networking-option 4
Networking for several workstations with one Internet connection over an ADSL/Cable router
and an ADSL/Cable modem.
Page 10 of 19

Easy Start
3.3 Care Instructions
Network Volume
The maximum number of HomePlug adaptors in a single-family house is theoretically 253
connections, but in practice no more than 10 devices should be transferring data
simultaneously.
Network Security
Normally the electric meter forms a physical barrier, i.e. only devices connected to this meter
can be part of the network and benefit from the phase coupling. We strongly recommend that
you use the WP-A001E WodaPlug Ethernet Adaptor internal device encryption. It is
configured with the WP-A001E WodaPlug Ethernet Adaptor Configuration Utility (refer to
Page 11 on the Configuration Utility User Guide for Windows or Page 15 on the Installation
and Configuration Utility User Guide for Macintosh).
How to Use Passwords Correctly
You can improve your security substantially by following some important rules regarding the
use of passwords.
•Keep your passwords as secret as possible.
•Never write a password down. Popular, but completely unsuitable storage options include
notebooks, wallets and text files in computers.
•Do not pass on your password unnecessarily.
•Select a random password. Use random strings of letters and numbers. Passwords from
common language usage are not secure.
•Change the password regularly or immediately if you feel it has been compromised.
•Passwords should be changed as frequently as possible. This requires a little effort, but
increases your security considerably. Even if only the slightest indication of a leak exists,
the password should be changed.
Note: Always use the internal device encryption (the network password) for security. It can be
configured using the WP-A001E WodaPlug Configuration Utility (refer to Page 11 on the
Configuration Utility User Guide for Windows or Page 15 on the Installation and Configuration
Utility User Guide for Macintosh).
3.4 Frequently Asked Questions
Please refer to the FAQ.html file located in the \Manuals folder on the Configuration Utility
Installation CD for the WP-A001E WodaPlug Ethernet Adaptor frequently asked questions
(FAQ).
Page 11 of 19

Easy Start
4 Configuration Utility User Guide for Windows

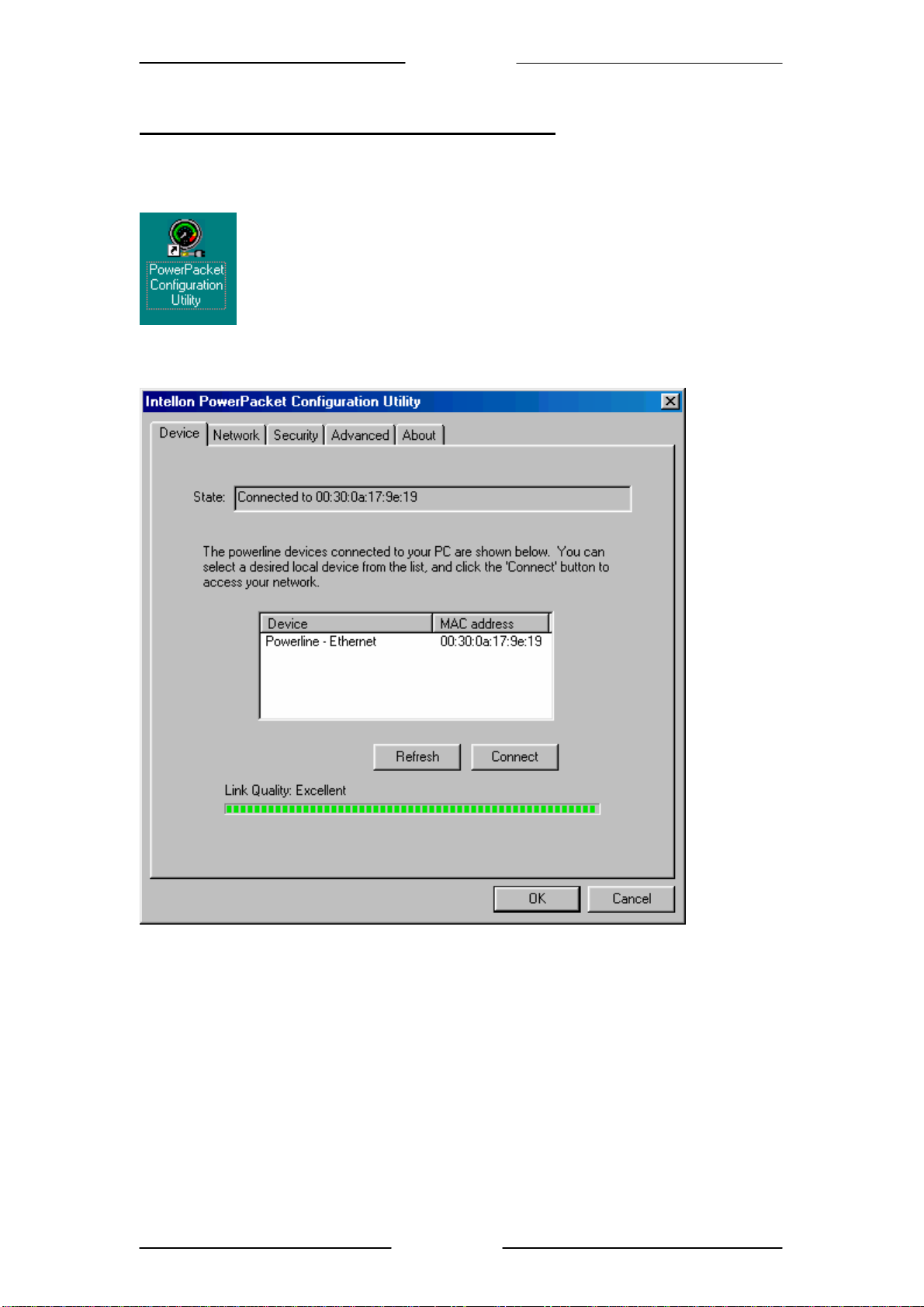

Running the Utility:
To run the utility, double click the PowerPacket Configuration Utility icon on your desktop.
Device dialog screen:
In the text list box, it reports back all devices that are found locally connected to the computer
where the utility is running. In most cases, one device only is listed.
In case you have more, click on one of them and hit Connect. Make sure that the State box
indicates that your PC is connected to the same device. Now you are ready to manage the
powerline network connected to this device, ensure its privacy and measure its data rate
performance.
Press the Refresh button to refresh the search of the powerline devices connected to your
computer. The progress bar will change into a status bar indicating the network average data
rate.
Page 12 of 19

Easy Start
The color of the bar reflects the average performance of the powerline network:
•Green: Excellent performance
•Yellow: Fair performance
•Red: Poor performance

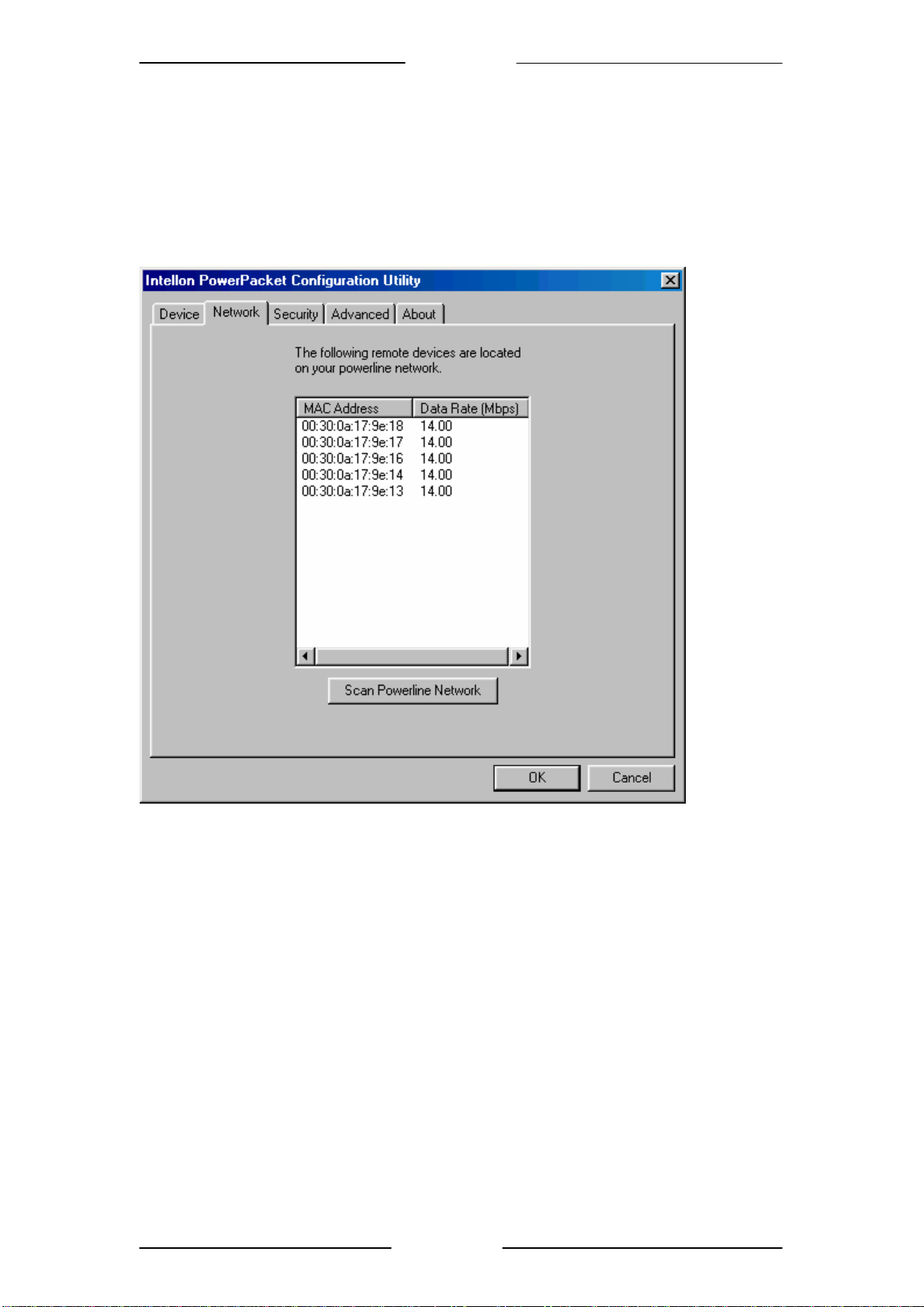

Network dialog screen:
The Network dialog screen provides detailed information about your powerline network.
The text list box shows all HomePlug devices found on your powerline network identified by
their MAC addresses.A second column indicates their data rate measurements in Mbps.
Click on the Scan Powerline Network button to refresh the listed information.
Important Note:
In case a HomePlug device in your home is not listed in the screen above, make sure that its
Network Password has not been made private previously with a different password than
your current private network password.
You can always reset a HomePlug Network Password to the universal one by running the
PowerPacket Configuration Utility on the PC attached to this device and choose
“HomePlug” as the network password.
Page 13 of 19

Easy Start
Security dialog screen:
All HomePlug devices are shipped using “HomePlug” as a Network Password. The
Security dialog screen allows you to change this Network Password and set your own
private password and apply it to the HomePlug device connected to the computer where the
utility is running.
Click on the Restore Default button to restore the original Network Password “HomePlug”
and apply it locally.
Click on the Set Local button to change the network password locally.
Important Note:
Your private Network Password must have between 4 and 24 characters. The password is
case sensitive. The Network Password can include any letters of the alphabet, numbers or
punctuation marks. Remember the Network Password as it will be needed when adding
other devices to the network later.
Page 14 of 19

Easy Start
Advanced dialog screen:
The Advanced dialog screen allows you to set up a network password remotely on other
HomePlug devices through the powerline.
Type your private network password into the Network Password text box.
The other devices on the network with HomePlug capabilities will have a Security ID/Device
Password printed on the device itself. Find the passwords for all devices you want to manage
and type them one by one into the Device Password text box and Click on the Add button.
This will add the passwords to Remote Passwords text list box and set them to the currently
defined Network Password.
Important Note:
The device must be present on the powerline in order for the password to be confirmed and
added to the Remote Passwords list.
The Status indicates whether each device is successfully set to the Network Password. An
“OK” indicates success while “Fail” indicates a failure.
Click on the Set All button to apply your private network password to all devices that are
listed in the Remote Passwords text list box and to your local device connected to the
computer where the utility is running as well.
Select a password and Hit the Remove button to remove it from the list.
Page 15 of 19

Easy Start
5 Installation and Configuration Utility User Guide for Macintosh
1. Copy the PowerPacket Utility.zip file in the Installation CD onto the desktop.
2. Double click the PowerPacket Utility.zip file on the desktop to extract the utility. The
PowerPacket Utility file will be extracted onto the desktop.
3. To run the utility, double click the PowerPacket Utility file on the desktop.
4. A Macintosh Administrator Authentication window maybe prompted. Enter your
administrator login Name and Password or phrase and click on OK.
Page 16 of 19

Easy Start
5. After successful authentication, the PowerPacket Utility will then be prompted to provide
the Local Device Name. Enter the name that you want. The default name is Computer
Adapter.
6. The Configuration Utility will be activated.
7. Click on the Privacy… button to set the Network Password. Please take note that the
passwords are case sensitive.
8. Click on the Diagnostic… button and you can select to View/Save the report.
Page 17 of 19

Easy Start
9. Click on the Scan to search for all the devices within the network.

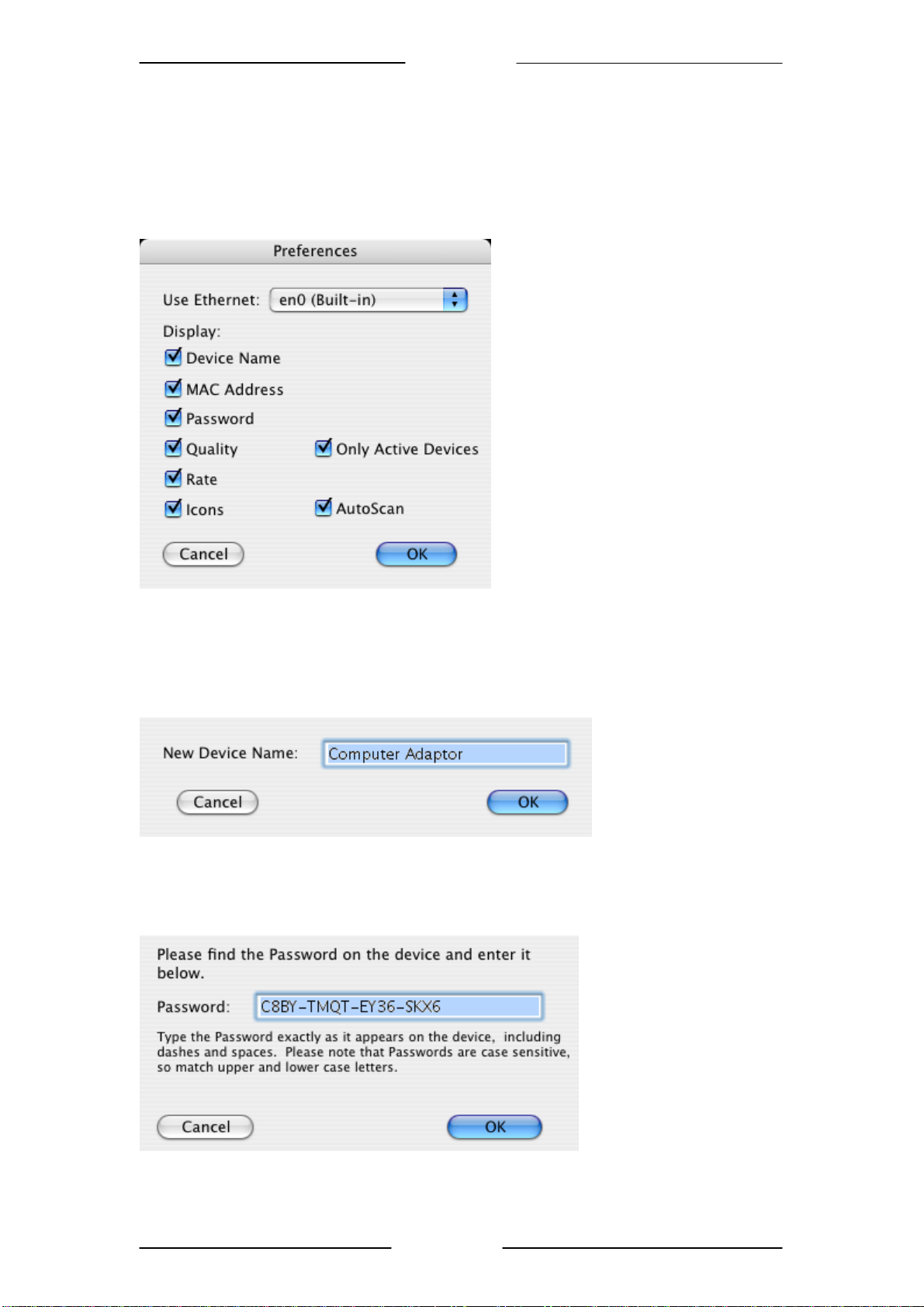

10. Under the PowerPacket Utility tab, select Preferences… and you can choose to have
what data that you would like to be displayed.
11. The default name of the local device that is connected to your system is Computer
Adaptor. Select the Rename Device… under the Options tab if you want to change the
name of the local device.
12. Please find the Device Password on the label at the back of the device. Select the Set
Device Password… under the Options tab and enter the password accordingly.
Page 18 of 19

Easy Start
6 Technical Data
The table below shows the Technical Specifications of the WP-A001E WodaPlug Ethernet
Adaptor.
WP-AOO1E WodaPlug Ethernet Adaptor
Standards
10Base-T Ethernet, IEEE 802.3
10 Mbps Auto MDI / MDIx Support
14 Mbps HomePlug 1.0 compatible
Protocols CSMA/CA MAC control
Transfer rate 14 Mbps
Transfer procedure Asynchronous
Modulation OFDM, DQPSK, DBPSK, ROBO Carrier
Modulation Support
Frequency Band 4.3 Mhz to 20.9 Mhz band
Range Up to 5000 square feet
Security 56 bit DES
Platform Support OS Independent with TCP/IP protocol
installed and with Ethernet port
LED Indicators 1x Power LED
1x Powerline Link Status LED
1x Ethernet Link/Activity Status LED
HomePlug connection Standard power plug
Computer interface RJ45
Power consumption 5.8W
Power supply Integrated 230V AC Supply via Power
Socket for Europe/UK Model
Integrated 120V AC Supply via Power
Socket for US Model
Temperature Storage: -25°C -70°C
Operation: suitable for room temperature,
27°C
Environment Suitable for room temperature, 27°C,
10-90% humidity (non-condensing)
System requirements for Configuration
Utility Ethernet interface Windows 98SE, Windows Me, Windows
2000, Windows XP and Macintosh OS
10.2 or higher
External Connectors 1 x Electrical Power Socket
1 x RJ45 for 10Base-T Ethernet
(AutoMDI/MDI-X)
Dimension Plastic housing
92mm x 66mm x 45mm(height x width x
depth)
Weight Approx 180g
Manufacturer and distributor : Tomorrow Systems s.r.o., Radlická 33, Praha 5, 150 00
www.tomorrows.cz www.wodaplug.com
[e-mail]
[email protected]
tel. [phone]
Page 19 of 19
