WOERNER GMG-B User manual

Leaflet-No. 0704.01.08 EN
Replaces No. 0704.08.07 EN
Page 1 of 8
Leaflet-No. 0704 EN
Page 2 of 8
Description:
Drive:
5 4
Delivery function:
3
2.1
1
Function stirring without delivery:
3
3
The pump aggregate GMG-B is driven by a
gear motor flanged to the pump casing
from downside.
When the eccentric shaft rotates, the
dlivery piston of every pump element
makes a suction and delivery stroke per
rotation each, whilst delivering lubricant
from the reservoir to the lubrication
points.
.
.
GMG-B
.
.
.
.
Pump elements:
suction stroke
2.2 2.1
3
1
2.3
2.4
delivery stroke 3
2.1
2.3
2.4
2.5 2.6
R
At , the pressure spring
moves the delivery piston against
the eccentric shaft . Concurrently, the
lubricant available in the reservoir is
drawn through the suction hole into the
metering chamber .
At , the eccentric shaft
shifts the delivery piston . At the same
time, the suction hole is closed up and
the lubricant volume available in the
metering chamber delivered through
the check valve to the outlet .
The 0,16 cm³ delivery volume pump ele-
ment is marked by a black ring .
Depending on the case of operation
(lubricant, lubricant requirement, etc.), the
pump aggregate can be fitted with different
pump elements, reservoirs, and monitoring
elements
In some modes of operation, improvement
of lubricant quality and delivery behaviour
requires the lubricant to be stirred
additionally
Such stirring is facilitated in the pump
aggregate by means of a specifi-
cally designed eccentric drive
When the eccentric shaft rotates into the
one direction of rotation, the pump elements
are operating while the stirring device
supplies them with the lubricant
As soon as the eccentric shaft starts to
rotate into the other direction, the lubricant
is stirred without any delivery operation by
the pump elements taking place
The integrated control unit allows operating
and off-duty periods for both the delivery
with and without stirring to be programmed
independently from each other
Pump aggregate GMG-B
Pump aggregate
GMG-B
Use:
As pump aggregate in central lubrication
systems
+
+
+
+
+
for the delivery of oil, liquid grease or
grease
1 or 2 pump outlets
up to 20 outlets with progressive
distributor flanged-on
electric control and monitoring
with function stirring without
delivery
Technical data:
Admissible
delivery pressure: at max. 250 bar
Number of pump elements: at max. 2
Delivery volume per stroke and element
with pump element 08: 0,08 cm³
with pump element 16: 0,16 cm³
Temperature range: -20 ... +60 °C
At low temperatures, grease pene-
tration needs to be observed.
Mounting position: vertically
Material
Casing: Aluminium
Pump element: Steel
Reservoir:Steel /Polyamide transparent
Gaskets: NBR (Perbunan)
Medium: Oil and grease up to NLGI class 2
(Mind conditions of use of both the
reservoir and filling level monitoring
device!)
Drive:
Mains voltage: 24 VDC
Current at max.: 2,5A
Speed
(load-dependent): approx. 30 min
System of protection: IP 55
-1
(
.)
Depending on type of construction, the
DC gear motor should only be used
in pulse mode. For other modes of
operation, three-phase current motors
are of advantage (e.g. Pump aggregate
GMA-C)
1
2.1
2
3
4
5
Delivery
stroke:
Suction stroke:
2.1 2.2
2.3
2.4 2.5
2.6
R
EUGEN WOERNER GmbH & Co. KG
Postfach 1661 DE-97866 Wertheim
Am Eichamt 8 DE-97877 Wertheim
Tel. +49 (0) 9342 803-0
Fax.+49 (0) 9342 803-202 www.woerner.de
info@woerner.de
EUGEN WOERNER GmbH & Co. KG
Postfach 1661 DE-97866 Wertheim
Am Eichamt 8 DE-97877 Wertheim
Tel. +49 (0) 9342 803-0
Fax.+49 (0) 9342 803-202 www.woerner.de
info@woerner.de
- Subject to modifications -
- Subject to modifications -
Leaflet-No. 0704.01.08 EN
Replaces No. 0704.08.07 EN
Page 1 of 8
Leaflet-No. 0704 EN
Page 2 of 8
Description:
Drive:
5 4
Delivery function:
3
2.1
1
Function stirring without delivery:
3
3
The pump aggregate GMG-B is driven by a
gear motor flanged to the pump casing
from downside.
When the eccentric shaft rotates, the
dlivery piston of every pump element
makes a suction and delivery stroke per
rotation each, whilst delivering lubricant
from the reservoir to the lubrication
points.
.
.
GMG-B
.
.
.
.
Pump elements:
suction stroke
2.2 2.1
3
1
2.3
2.4
delivery stroke 3
2.1
2.3
2.4
2.5 2.6
R
At , the pressure spring
moves the delivery piston against
the eccentric shaft . Concurrently, the
lubricant available in the reservoir is
drawn through the suction hole into the
metering chamber .
At , the eccentric shaft
shifts the delivery piston . At the same
time, the suction hole is closed up and
the lubricant volume available in the
metering chamber delivered through
the check valve to the outlet .
The 0,16 cm³ delivery volume pump ele-
ment is marked by a black ring .
Depending on the case of operation
(lubricant, lubricant requirement, etc.), the
pump aggregate can be fitted with different
pump elements, reservoirs, and monitoring
elements
In some modes of operation, improvement
of lubricant quality and delivery behaviour
requires the lubricant to be stirred
additionally
Such stirring is facilitated in the pump
aggregate by means of a specifi-
cally designed eccentric drive
When the eccentric shaft rotates into the
one direction of rotation, the pump elements
are operating while the stirring device
supplies them with the lubricant
As soon as the eccentric shaft starts to
rotate into the other direction, the lubricant
is stirred without any delivery operation by
the pump elements taking place
The integrated control unit allows operating
and off-duty periods for both the delivery
with and without stirring to be programmed
independently from each other
Pump aggregate GMG-B
Pump aggregate
GMG-B
Use:
As pump aggregate in central lubrication
systems
+
+
+
+
+
for the delivery of oil, liquid grease or
grease
1 or 2 pump outlets
up to 20 outlets with progressive
distributor flanged-on
electric control and monitoring
with function stirring without
delivery
Technical data:
Admissible
delivery pressure: at max. 250 bar
Number of pump elements: at max. 2
Delivery volume per stroke and element
with pump element 08: 0,08 cm³
with pump element 16: 0,16 cm³
Temperature range: -20 ... +60 °C
At low temperatures, grease pene-
tration needs to be observed.
Mounting position: vertically
Material
Casing: Aluminium
Pump element: Steel
Reservoir:Steel /Polyamide transparent
Gaskets: NBR (Perbunan)
Medium: Oil and grease up to NLGI class 2
(Mind conditions of use of both the
reservoir and filling level monitoring
device!)
Drive:
Mains voltage: 24 VDC
Current at max.: 2,5A
Speed
(load-dependent): approx. 30 min
System of protection: IP 55
-1
(
.)
Depending on type of construction, the
DC gear motor should only be used
in pulse mode. For other modes of
operation, three-phase current motors
are of advantage (e.g. Pump aggregate
GMA-C)
1
2.1
2
3
4
5
Delivery
stroke:
Suction stroke:
2.1 2.2
2.3
2.4 2.5
2.6
R
EUGEN WOERNER GmbH & Co. KG
Postfach 1661 DE-97866 Wertheim
Am Eichamt 8 DE-97877 Wertheim
Tel. +49 (0) 9342 803-0
Fax.+49 (0) 9342 803-202 www.woerner.de
info@woerner.de
EUGEN WOERNER GmbH & Co. KG
Postfach 1661 DE-97866 Wertheim
Am Eichamt 8 DE-97877 Wertheim
Tel. +49 (0) 9342 803-0
Fax.+49 (0) 9342 803-202 www.woerner.de
info@woerner.de
- Subject to modifications -
- Subject to modifications -
Leaflet-No. 0704 EN
Page 4 of 8
Leaflet-No. 0704 EN
Page 3 of 8
Technical data:
Temperature range: 0 ... +60 °C
Switching voltage at max.: 30 VDC
Switching current at max.: 0,25A
Switching power at max.: 3,0 W
For inductive and capacitive loads protec-
tive circuits (diode, RC-member, varistor)
have to be provided for.
Level control "F":
min. level monitoring for oil
The level control "F" consists of a float that
is lifted in the oil.
If oil falls below minimum filling level, the
contact opened.
Reservoir "4P":
Notes on operation:
The pump aggregates must be operated
with clean oil or grease from original
packages only. During start-up, the pump
has initially to be filled with gear oil up to
stirring blade level. Thus, proper venting is
ensured. The lines to the lubrication points
must be clean and have free throughput.
They shall not be connected to the lub-
rication points unless the lubricant comes
out free of bubbles. All connectors of the
delivery line have to be checked for
leakage.
To protect the pump aggregate and the
lines connected from overload, protec-
tive elements such as pressure control
valves have to be integrated basically.
Level control:
Level control "C":
min. level monitoring for grease
.
Version without control:
In case of empty reservoir and rotating
pump drive shaft, the contact is switched.
(approx. 5 seconds).
When "stirring without delivery", signal
evaluation has to be suppressed.
The "Empty" signal is intermittent
The switching mechanism may shift as for
instance during reservoir filling. In case of
external control, signal evaluation must
therefore be delayed when the pump is
switched on
other reservoir versions available on request
Reservoir "1,5":
Capacity
[l]
1,5
Polyamide
translucent
Polypropylene
Polypropylene
4
Reservoir "1,5"
Reservoir 4P""
Material
LidReservoir
Polyamide
translucent
Lubricant available
(permanent signal)
No lubricant available:
(intermittent signal)
Filling connector "W"
Closing nipple
Filling connector:
This part is located beneath the left-side
pump element.
Filling connector "A"
Cone lubricator nipple DIN 71412 - AG1/4
A
W
Filling connector "C"
Flat lubricator nipple DIN 3404 - M22
C
Filling connector "G"
Closing nipple
Accessory for filling connector "G" and "W":
Quick release coupling 954.002-09
(p = 35 bar)
max
G
G1/4
Reservoir "7"
Reservoir "7":
7Steel
galvanized
Steel,
galvanized
EUGEN WOERNER GmbH & Co. KG
Postfach 1661 DE-97866 Wertheim
Am Eichamt 8 DE-97877 Wertheim
Tel. +49 (0) 9342 803-0
Fax.+49 (0) 9342 803-202 www.woerner.de
info@woerner.de
EUGEN WOERNER GmbH & Co. KG
Postfach 1661 DE-97866 Wertheim
Am Eichamt 8 DE-97877 Wertheim
Tel. +49 (0) 9342 803-0
Fax.+49 (0) 9342 803-202 www.woerner.de
info@woerner.de
- Subject to modifications -
- Subject to modifications -
Leaflet-No. 0704 EN
Page 4 of 8
Leaflet-No. 0704 EN
Page 3 of 8
Technical data:
Temperature range: 0 ... +60 °C
Switching voltage at max.: 30 VDC
Switching current at max.: 0,25A
Switching power at max.: 3,0 W
For inductive and capacitive loads protec-
tive circuits (diode, RC-member, varistor)
have to be provided for.
Level control "F":
min. level monitoring for oil
The level control "F" consists of a float that
is lifted in the oil.
If oil falls below minimum filling level, the
contact opened.
Reservoir "4P":
Notes on operation:
The pump aggregates must be operated
with clean oil or grease from original
packages only. During start-up, the pump
has initially to be filled with gear oil up to
stirring blade level. Thus, proper venting is
ensured. The lines to the lubrication points
must be clean and have free throughput.
They shall not be connected to the lub-
rication points unless the lubricant comes
out free of bubbles. All connectors of the
delivery line have to be checked for
leakage.
To protect the pump aggregate and the
lines connected from overload, protec-
tive elements such as pressure control
valves have to be integrated basically.
Level control:
Level control "C":
min. level monitoring for grease
.
Version without control:
In case of empty reservoir and rotating
pump drive shaft, the contact is switched.
(approx. 5 seconds).
When "stirring without delivery", signal
evaluation has to be suppressed.
The "Empty" signal is intermittent
The switching mechanism may shift as for
instance during reservoir filling. In case of
external control, signal evaluation must
therefore be delayed when the pump is
switched on
other reservoir versions available on request
Reservoir "1,5":
Capacity
[l]
1,5
Polyamide
translucent
Polypropylene
Polypropylene
4
Reservoir "1,5"
Reservoir 4P""
Material
LidReservoir
Polyamide
translucent
Lubricant available
(permanent signal)
No lubricant available:
(intermittent signal)
Filling connector "W"
Closing nipple
Filling connector:
This part is located beneath the left-side
pump element.
Filling connector "A"
Cone lubricator nipple DIN 71412 - AG1/4
A
W
Filling connector "C"
Flat lubricator nipple DIN 3404 - M22
C
Filling connector "G"
Closing nipple
Accessory for filling connector "G" and "W":
Quick release coupling 954.002-09
(p = 35 bar)
max
G
G1/4
Reservoir "7"
Reservoir "7":
7Steel
galvanized
Steel,
galvanized
EUGEN WOERNER GmbH & Co. KG
Postfach 1661 DE-97866 Wertheim
Am Eichamt 8 DE-97877 Wertheim
Tel. +49 (0) 9342 803-0
Fax.+49 (0) 9342 803-202 www.woerner.de
info@woerner.de
EUGEN WOERNER GmbH & Co. KG
Postfach 1661 DE-97866 Wertheim
Am Eichamt 8 DE-97877 Wertheim
Tel. +49 (0) 9342 803-0
Fax.+49 (0) 9342 803-202 www.woerner.de
info@woerner.de
- Subject to modifications -
- Subject to modifications -
Leaflet-No. 0704 EN
Page 6 of 8
Leaflet-No. 0704 EN
Page 5 of 8
Electric connection 8:
Equipotential bonding 9:
Connection type: Connector socket
5-pin (M12)
Version with control unit:
1- +24 VDC
2- +24 VDC (external release)
3- 0 V
4- Alarm output
Version without control unit:
1- +24 VDC (delivery function)
2- +24 VDC (stirring function)
3- 0 V
4- Level monitoring
Threaded hole: M4
1)
1)
The control unit serves to monitor and
trigger the pump aggregate. It is capable of
switching the pump on and off depending on
time and load. Besides, the control unit can
be used to monitor the filling level and
functionality of the progressive distributor
In case of failure, a corresponding message
can be made accessible to a higher ranking
system
The control unit must be started via an
external
E1 = Motor overloaded
E2 = Progressive distributor faulty
E3 = Level fault
Fault messages can be deleted by keeping
the “SAVE” key depressed for a while.
Fault Description:
.
.
"release".
Power consumption: 1,7 W
Supply voltage: 24 VDC ± 5 %
Voltage at inputs: 24 VDC
Response time of inputs: 200 ms
Input resistance: 4 k
Temperature range: -20 °C ... +60 °C
Outlet alarm: 200 mA/ 24 VDC / 60W
Data buffer: 10 years
Control variant "B":
Control variant "B1":
Control variant "B2":
Control without distributor monitoring.
Control with distributor monitoring for pro-
gressive distributor flanged on.
Control with distributor monitoring for ex-
ternally mounted progressive distributor
(with functional checking device "RS"). For
connecting cable see "Auxiliaries" below.
Technical data:
Ù
At the right-side pump element, progressive
distributors of the VPB type can be flanged
on directly. As much as 20 lubrication points
with different distribution volumes are
possible. A selection of progressive distri-
butors can be chosen by means of the
GMG-B purchase-designation.
By monitoring the movement of one distri-
butor piston, the lubricant allocation to all
outlets is monitored. Evaluation through the
pump control unit requires selection of a
progressive distributor fitted with the func-
tion control
In case of oil, metering accuracy
depends on viscosity, flow resistance at
the outlets, and delivery speed.
Functionality:
Function control:
Technical data progressive distributor:
The lubricant supplied by the pump element
is delivered to the outlet progressively (i.e.
progressing in the distributor).
RK.
Metering volume per cycle
and outlet: 0,20 cm³
Lubrication point connectors: 4, 6 or 8
other versions available on request
(up to 20 lubrication points)
Operating pressure at max.: 150 bar
Delivery medium
Oil-viscosity: as of approx. 140 cP
(equals ISO VG46 at 20°C)
Grease up to: NLGI class 2
Material
Outer body: Aluminium
Inner parts: Steel
Additional information
on VPB-G: Leaflet-no.: 0177
on VPB-B: Leaflet-no.: 0378
Switching voltage: 10 ... 36 VUC
Switching current at max.: 25 mA
Switching power at max.: 0,9 VA
Ambient temperature: 0 ... 60 °C
Material (casing): PA or 1.4305
Function control RK:
Distributor variants :(VPB-G)
4 outlets
without function checking device "P4"
with function checking device RK "P5"
6 outlets
without function checking device "P0"
with function checking device RK "P1"
8 outlets
without function checking device "P2"
with function checking device RK "P3"
Note on operation:
Note:
N
The 0,16 cm³ delivery volume pump
element is marked by means of a grey
plastic pimple .
Upon start-up, both pump element and
progressive distributor need to be vented.
The lubricant must come out free of bubbles
from all outlets.
At first, the connecting case should be
vented at venting screw or at the built-in
pressure control valve. Then, the progres-
sive distributor should be vented.
6
Auxiliaries:
Pressure control valve at the pro-
gressive distributor:
Opening pressure: Purchase-no.:
70 bar 110.566-65
150 bar 110.564-65
Customised setting:
50 - 150 bar 110.568-65
For delimitation of the maximum operating
pressure, pressure control valves instead
of the venting screw can be screwed in.
7
6
7
Control unit operation:
1. Menu call-up:
By long pressing the "MODE” key, the
menu structure is called up.
2. Navigation within the menus:
By keeping the “Mode” key depressed
another time, the menu items P1 … P11
can be selected successively.
3. Changing of values:
The „SELECT“ key can be used to
change setting values and functions.
In case of time data, short pressing of
the “SELECT” key results in a shifting
by +1, whereas any longer pressing will
result in a shifting by +20. When the
“SAVE” key is depressed for a while,
the set values will be saved. Pressing
the “MODE” key enables the next menu
item to be accessed without any saving
action.
4. Special Functions:
When the “SELECT” key is depressed
in the operating mode “ON” for a while,
pumping action will be carried out for 60
seconds.
1
43
2
Flanged progressive distributor: Control unit:
1) Explanation:
Delivery function: 24 V to Pin 1
Stirring function: 24 V to Pin 1 and 2
Auxiliaries
Cable jack for electric connection:
913.404-65
913.405-07
Connecting cable for externally moun-
ted progressive distributor:
913.405-06
:
Operating voltage: 10 ... 30 VDC
Purchase-number
Cable length 10 m:
Cable length 15 m:
Purchase-number
Cable length 2 m:
Connection type:
Cable cross section: 4x0,34 mm
System of protection: IP67
2
(other cable lengths available on request)
Plug on socket 4-pin
M12 - M12
6
N
8
9
EUGEN WOERNER GmbH & Co. KG
Postfach 1661 DE-97866 Wertheim
Am Eichamt 8 DE-97877 Wertheim
Tel. +49 (0) 9342 803-0
Fax.+49 (0) 9342 803-202 www.woerner.de
info@woerner.de
EUGEN WOERNER GmbH & Co. KG
Postfach 1661 DE-97866 Wertheim
Am Eichamt 8 DE-97877 Wertheim
Tel. +49 (0) 9342 803-0
Fax.+49 (0) 9342 803-202 www.woerner.de
info@woerner.de
- Subject to modifications -
- Subject to modifications -
Leaflet-No. 0704 EN
Page 6 of 8
Leaflet-No. 0704 EN
Page 5 of 8
Electric connection 8:
Equipotential bonding 9:
Connection type: Connector socket
5-pin (M12)
Version with control unit:
1- +24 VDC
2- +24 VDC (external release)
3- 0 V
4- Alarm output
Version without control unit:
1- +24 VDC (delivery function)
2- +24 VDC (stirring function)
3- 0 V
4- Level monitoring
Threaded hole: M4
1)
1)
The control unit serves to monitor and
trigger the pump aggregate. It is capable of
switching the pump on and off depending on
time and load. Besides, the control unit can
be used to monitor the filling level and
functionality of the progressive distributor
In case of failure, a corresponding message
can be made accessible to a higher ranking
system
The control unit must be started via an
external
E1 = Motor overloaded
E2 = Progressive distributor faulty
E3 = Level fault
Fault messages can be deleted by keeping
the “SAVE” key depressed for a while.
Fault Description:
.
.
"release".
Power consumption: 1,7 W
Supply voltage: 24 VDC ± 5 %
Voltage at inputs: 24 VDC
Response time of inputs: 200 ms
Input resistance: 4 k
Temperature range: -20 °C ... +60 °C
Outlet alarm: 200 mA/ 24 VDC / 60W
Data buffer: 10 years
Control variant "B":
Control variant "B1":
Control variant "B2":
Control without distributor monitoring.
Control with distributor monitoring for pro-
gressive distributor flanged on.
Control with distributor monitoring for ex-
ternally mounted progressive distributor
(with functional checking device "RS"). For
connecting cable see "Auxiliaries" below.
Technical data:
Ù
At the right-side pump element, progressive
distributors of the VPB type can be flanged
on directly. As much as 20 lubrication points
with different distribution volumes are
possible. A selection of progressive distri-
butors can be chosen by means of the
GMG-B purchase-designation.
By monitoring the movement of one distri-
butor piston, the lubricant allocation to all
outlets is monitored. Evaluation through the
pump control unit requires selection of a
progressive distributor fitted with the func-
tion control
In case of oil, metering accuracy
depends on viscosity, flow resistance at
the outlets, and delivery speed.
Functionality:
Function control:
Technical data progressive distributor:
The lubricant supplied by the pump element
is delivered to the outlet progressively (i.e.
progressing in the distributor).
RK.
Metering volume per cycle
and outlet: 0,20 cm³
Lubrication point connectors: 4, 6 or 8
other versions available on request
(up to 20 lubrication points)
Operating pressure at max.: 150 bar
Delivery medium
Oil-viscosity: as of approx. 140 cP
(equals ISO VG46 at 20°C)
Grease up to: NLGI class 2
Material
Outer body: Aluminium
Inner parts: Steel
Additional information
on VPB-G: Leaflet-no.: 0177
on VPB-B: Leaflet-no.: 0378
Switching voltage: 10 ... 36 VUC
Switching current at max.: 25 mA
Switching power at max.: 0,9 VA
Ambient temperature: 0 ... 60 °C
Material (casing): PA or 1.4305
Function control RK:
Distributor variants :(VPB-G)
4 outlets
without function checking device "P4"
with function checking device RK "P5"
6 outlets
without function checking device "P0"
with function checking device RK "P1"
8 outlets
without function checking device "P2"
with function checking device RK "P3"
Note on operation:
Note:
N
The 0,16 cm³ delivery volume pump
element is marked by means of a grey
plastic pimple .
Upon start-up, both pump element and
progressive distributor need to be vented.
The lubricant must come out free of bubbles
from all outlets.
At first, the connecting case should be
vented at venting screw or at the built-in
pressure control valve. Then, the progres-
sive distributor should be vented.
6
Auxiliaries:
Pressure control valve at the pro-
gressive distributor:
Opening pressure: Purchase-no.:
70 bar 110.566-65
150 bar 110.564-65
Customised setting:
50 - 150 bar 110.568-65
For delimitation of the maximum operating
pressure, pressure control valves instead
of the venting screw can be screwed in.
7
6
7
Control unit operation:
1. Menu call-up:
By long pressing the "MODE” key, the
menu structure is called up.
2. Navigation within the menus:
By keeping the “Mode” key depressed
another time, the menu items P1 … P11
can be selected successively.
3. Changing of values:
The „SELECT“ key can be used to
change setting values and functions.
In case of time data, short pressing of
the “SELECT” key results in a shifting
by +1, whereas any longer pressing will
result in a shifting by +20. When the
“SAVE” key is depressed for a while,
the set values will be saved. Pressing
the “MODE” key enables the next menu
item to be accessed without any saving
action.
4. Special Functions:
When the “SELECT” key is depressed
in the operating mode “ON” for a while,
pumping action will be carried out for 60
seconds.
1
43
2
Flanged progressive distributor: Control unit:
1) Explanation:
Delivery function: 24 V to Pin 1
Stirring function: 24 V to Pin 1 and 2
Auxiliaries
Cable jack for electric connection:
913.404-65
913.405-07
Connecting cable for externally moun-
ted progressive distributor:
913.405-06
:
Operating voltage: 10 ... 30 VDC
Purchase-number
Cable length 10 m:
Cable length 15 m:
Purchase-number
Cable length 2 m:
Connection type:
Cable cross section: 4x0,34 mm
System of protection: IP67
2
(other cable lengths available on request)
Plug on socket 4-pin
M12 - M12
6
N
8
9
EUGEN WOERNER GmbH & Co. KG
Postfach 1661 DE-97866 Wertheim
Am Eichamt 8 DE-97877 Wertheim
Tel. +49 (0) 9342 803-0
Fax.+49 (0) 9342 803-202 www.woerner.de
info@woerner.de
EUGEN WOERNER GmbH & Co. KG
Postfach 1661 DE-97866 Wertheim
Am Eichamt 8 DE-97877 Wertheim
Tel. +49 (0) 9342 803-0
Fax.+49 (0) 9342 803-202 www.woerner.de
info@woerner.de
- Subject to modifications -
- Subject to modifications -
Leaflet-No. 0704 EN
Page 8 of 8
Leaflet-No. 0704 EN
Page 7 of 8
Purchase-example:
Pump aggregate GMG-B with reservoir
1,5l; with level monitoring "C"; with filling
connector "G"; pump element with 0,08cm³
delivery stroke on the left side and 0,16cm³
delivery stroke on the right side; with electric
control unit incl. distributor monitoring
"B1 and A ; and
progressive distributor with 6 outlets and
monitoring
" 24VDC drive type "3 "
Purchase-designation:
GMG-B.B / 1,5/ C / 0 / G / 08 / 16 / B1 / 3A / P1
Pressure control valve at the pump element:
7
2
For operating pressure delimitation, pressure control valves can be connected to the
pump element
Pressure control valve Purchase-no.:
250 bar 752.502-90
160 - 250 bar 752.502-67
7
with opening pressure:
70 bar 752.502-65
150 bar 752.502-62
Customised setting:
50 - 160 bar 752.502-66
Auxiliary: (state purchase-no., please)
Should the function control of a mounted
progressive distributor with separate pur-
chase-designation be connected to the
GMG-B pump control unit, the variant "P "
for the pump and the function control "R0"
for the progressive distributor have to be
selected.
When using variant "P ”, progressive distri-
butors of the types VPB-B or VPB-G with up
to 20 lubrication points can be mounted.
For the versions, please see
Data sheet VPB-B: No. 0378
Data sheet VPB-G: No. 0177
*
*
1)
2)
Progressive distributors P ... with function
control can only be selected together with
control unit B1.
If the function control of a progressive
distributor is not to be connected to the
pump control unit, then GMG-B with variant
"PX" has to be selected with the progressive
distributor getting a separate purchase
designation.
With level monitoring "F", grease cannot
be stirred.
Screwing kit Purchase-no.:
Ø 10 752.502-64
8
for pipe:
Ø 6 752.502-68
Ø 8 752.502-63
Time Mode / Pulse Mode:
Selection between time mode 01
and pulse mode 02
Default = 01
P1
Cycle Time h:
1)
Cycle time setting in hours
(0-255) Only in P1 = time mode
Default = 0
P2
Cycle Time
minutes
(1-59) Only in P1 = time mode
1) min:
Cycle time setting in
Default = 2
P3
Pulses:
Pulse setting (1-999)
Only in P1 = pulse mode
Default = 5
P4
Distributor Pulse:
Ends pumping action after elapse of pre-
set pulse number ON = on, OFF = off
Default = OFF
P5
Distributor Pulse Number:
Distributor pulse setting (1-100)
Only in P5 = distributor pulse ON mode
Default = -
P6
Delivery Time h:
Delivery time setting in hours
(0-100) Only in P5 = distributor impulse
OFF mode
Default = 0
P8
Delivery Time min:
Delivery time setting in minutes
(1-59) Only in P5 = distributor pulse OFF
Default = 1
P9
Stirring:
Selection between “Stirring on” = ON
and “Stirring off” = OFF (stirring time 1 min.)
Default = OFF
P10
Off-duty Time for Stirring:
Off-duty Time setting in hours
(1-100) Only in P10= Stirring ON
Cycle time = delivery time + off-duty time
1)
Default = 1
P11
Distributor Monitoring:
Fault message release after 4 min. without
distributor signal. ON = on, OFF = off
Default = OFF
P7
OFF
P4 361
Select 362
Select 362
Save
Mode
ON
Mode
P1 01
Select 02
Select 02
Save
Mode
P2 26
Select 27
Select 27
Save
Mode
P3 12
Select 13
Select 13
Save
Mode
P5 OFF
Select ON
Select ON
Save
Mode
P6 4
Select 5
Select 5
Save
Mode
P8 2
Select 3
Select 3
Save
Mode
P9 29
Select 30
Select 30
Save
Mode
P10 OFF
Select ON
Select ON
Save
Mode
P11 29
Select 30
Select 30
Save
Mode
OFFON
END
P10 = OFF P5 = OFF P1 = 02
Short +1
Long +20
Short +1
Long +20
Short +1
Long +20
Short +1
Long +20
Short +1
Long +20
Short +1
Long +20
Short +1
Long +20
P7 OFF
Select ON
Select ON
Save
Mode
7
8
2
For grease:
Intermittent min.
level monitoring
Purchase-designation:
Pump aggregat
4P
C
4l
Polyamide
without
0
without
0
08
0,08cm³
16
0,16cm³
without
0
08
0,08cm³
16
0,16cm³
without
0
For oil :
2)
Min. level
F
Flat lubri-
cation nipple
DIN 3404-M22
Closing
nipple angled
Cone lubri-
cation nipple
DIN 71412
W
A
C
24VDC
Delivery
and stirring
always
concurrently
24VDC
Stirring,
without and
with delivery
3
B
0
without
control unit
VPB-G, 4 outlets
/
without
0
P4
3A
1,5l
Polyamide
Control unit
without distribu-
tor monitoring
Control unit
with distributor
monitoring
B1
P5
VPB-G / VPB-B acc. to
purchase designation 1)
P
1,5
VPB-G, 6 outlets
/
P0 P1
VPB-G, 8 outlets
/
P2 P3
Closing
nipple
G
Control unit
with external
distributor
monitoring
B2
*
GMG-B . B
internal
7l
Steel
7
without
0
Level
checking
Electric
control
Follow-up
piston
Filling
connector
Pump element
left right
flanged pro-
gressive distributor
without / with
function control
Drive2)
Reservoir
EUGEN WOERNER GmbH & Co. KG
Postfach 1661 DE-97866 Wertheim
Am Eichamt 8 DE-97877 Wertheim
Tel. +49 (0) 9342 803-0
Fax.+49 (0) 9342 803-202 www.woerner.de
info@woerner.de
EUGEN WOERNER GmbH & Co. KG
Postfach 1661 DE-97866 Wertheim
Am Eichamt 8 DE-97877 Wertheim
Tel. +49 (0) 9342 803-0
Fax.+49 (0) 9342 803-202 www.woerner.de
info@woerner.de
- Subject to modifications -
- Subject to modifications -
Leaflet-No. 0704 EN
Page 8 of 8
Leaflet-No. 0704 EN
Page 7 of 8
Purchase-example:
Pump aggregate GMG-B with reservoir
1,5l; with level monitoring "C"; with filling
connector "G"; pump element with 0,08cm³
delivery stroke on the left side and 0,16cm³
delivery stroke on the right side; with electric
control unit incl. distributor monitoring
"B1 and A ; and
progressive distributor with 6 outlets and
monitoring
" 24VDC drive type "3 "
Purchase-designation:
GMG-B.B / 1,5/ C / 0 / G / 08 / 16 / B1 / 3A / P1
Pressure control valve at the pump element:
7
2
For operating pressure delimitation, pressure control valves can be connected to the
pump element
Pressure control valve Purchase-no.:
250 bar 752.502-90
160 - 250 bar 752.502-67
7
with opening pressure:
70 bar 752.502-65
150 bar 752.502-62
Customised setting:
50 - 160 bar 752.502-66
Auxiliary: (state purchase-no., please)
Should the function control of a mounted
progressive distributor with separate pur-
chase-designation be connected to the
GMG-B pump control unit, the variant "P "
for the pump and the function control "R0"
for the progressive distributor have to be
selected.
When using variant "P ”, progressive distri-
butors of the types VPB-B or VPB-G with up
to 20 lubrication points can be mounted.
For the versions, please see
Data sheet VPB-B: No. 0378
Data sheet VPB-G: No. 0177
*
*
1)
2)
Progressive distributors P ... with function
control can only be selected together with
control unit B1.
If the function control of a progressive
distributor is not to be connected to the
pump control unit, then GMG-B with variant
"PX" has to be selected with the progressive
distributor getting a separate purchase
designation.
With level monitoring "F", grease cannot
be stirred.
Screwing kit Purchase-no.:
Ø 10 752.502-64
8
for pipe:
Ø 6 752.502-68
Ø 8 752.502-63
Time Mode / Pulse Mode:
Selection between time mode 01
and pulse mode 02
Default = 01
P1
Cycle Time h:
1)
Cycle time setting in hours
(0-255) Only in P1 = time mode
Default = 0
P2
Cycle Time
minutes
(1-59) Only in P1 = time mode
1) min:
Cycle time setting in
Default = 2
P3
Pulses:
Pulse setting (1-999)
Only in P1 = pulse mode
Default = 5
P4
Distributor Pulse:
Ends pumping action after elapse of pre-
set pulse number ON = on, OFF = off
Default = OFF
P5
Distributor Pulse Number:
Distributor pulse setting (1-100)
Only in P5 = distributor pulse ON mode
Default = -
P6
Delivery Time h:
Delivery time setting in hours
(0-100) Only in P5 = distributor impulse
OFF mode
Default = 0
P8
Delivery Time min:
Delivery time setting in minutes
(1-59) Only in P5 = distributor pulse OFF
Default = 1
P9
Stirring:
Selection between “Stirring on” = ON
and “Stirring off” = OFF (stirring time 1 min.)
Default = OFF
P10
Off-duty Time for Stirring:
Off-duty Time setting in hours
(1-100) Only in P10= Stirring ON
Cycle time = delivery time + off-duty time
1)
Default = 1
P11
Distributor Monitoring:
Fault message release after 4 min. without
distributor signal. ON = on, OFF = off
Default = OFF
P7
OFF
P4 361
Select 362
Select 362
Save
Mode
ON
Mode
P1 01
Select 02
Select 02
Save
Mode
P2 26
Select 27
Select 27
Save
Mode
P3 12
Select 13
Select 13
Save
Mode
P5 OFF
Select ON
Select ON
Save
Mode
P6 4
Select 5
Select 5
Save
Mode
P8 2
Select 3
Select 3
Save
Mode
P9 29
Select 30
Select 30
Save
Mode
P10 OFF
Select ON
Select ON
Save
Mode
P11 29
Select 30
Select 30
Save
Mode
OFFON
END
P10 = OFF P5 = OFF P1 = 02
Short +1
Long +20
Short +1
Long +20
Short +1
Long +20
Short +1
Long +20
Short +1
Long +20
Short +1
Long +20
Short +1
Long +20
P7 OFF
Select ON
Select ON
Save
Mode
7
8
2
For grease:
Intermittent min.
level monitoring
Purchase-designation:
Pump aggregat
4P
C
4l
Polyamide
without
0
without
0
08
0,08cm³
16
0,16cm³
without
0
08
0,08cm³
16
0,16cm³
without
0
For oil :
2)
Min. level
F
Flat lubri-
cation nipple
DIN 3404-M22
Closing
nipple angled
Cone lubri-
cation nipple
DIN 71412
W
A
C
24VDC
Delivery
and stirring
always
concurrently
24VDC
Stirring,
without and
with delivery
3
B
0
without
control unit
VPB-G, 4 outlets
/
without
0
P4
3A
1,5l
Polyamide
Control unit
without distribu-
tor monitoring
Control unit
with distributor
monitoring
B1
P5
VPB-G / VPB-B acc. to
purchase designation 1)
P
1,5
VPB-G, 6 outlets
/
P0 P1
VPB-G, 8 outlets
/
P2 P3
Closing
nipple
G
Control unit
with external
distributor
monitoring
B2
*
GMG-B . B
internal
7l
Steel
7
without
0
Level
checking
Electric
control
Follow-up
piston
Filling
connector
Pump element
left right
flanged pro-
gressive distributor
without / with
function control
Drive2)
Reservoir
EUGEN WOERNER GmbH & Co. KG
Postfach 1661 DE-97866 Wertheim
Am Eichamt 8 DE-97877 Wertheim
Tel. +49 (0) 9342 803-0
Fax.+49 (0) 9342 803-202 www.woerner.de
info@woerner.de
EUGEN WOERNER GmbH & Co. KG
Postfach 1661 DE-97866 Wertheim
Am Eichamt 8 DE-97877 Wertheim
Tel. +49 (0) 9342 803-0
Fax.+49 (0) 9342 803-202 www.woerner.de
info@woerner.de
- Subject to modifications -
- Subject to modifications -

Other manuals for GMG-B

1

Other WOERNER Water Pump manuals

WOERNER GMA User manual

WOERNER

WOERNER GMA User manual

WOERNER GMG-K User manual

WOERNER

WOERNER GMG-K User manual

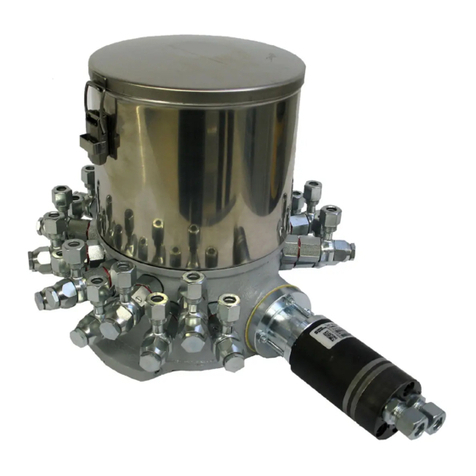

WOERNER GMF-S01 User manual

WOERNER

WOERNER GMF-S01 User manual

WOERNER GMA User manual

WOERNER

WOERNER GMA User manual

WOERNER GMG-LEZ User manual

WOERNER

WOERNER GMG-LEZ User manual

WOERNER GMV-C User manual

WOERNER

WOERNER GMV-C User manual

WOERNER PEK User manual

WOERNER

WOERNER PEK User manual

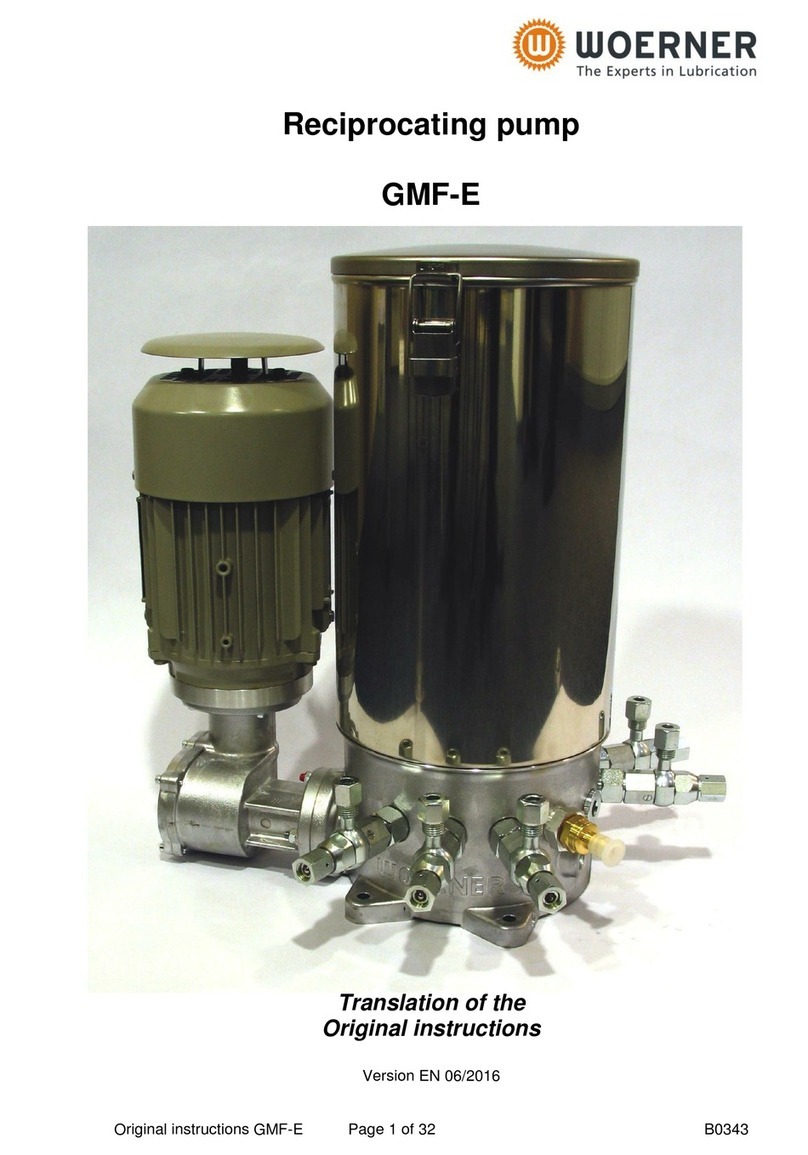

WOERNER GMF-E User manual

WOERNER

WOERNER GMF-E User manual

WOERNER GMG-B User manual

WOERNER

WOERNER GMG-B User manual

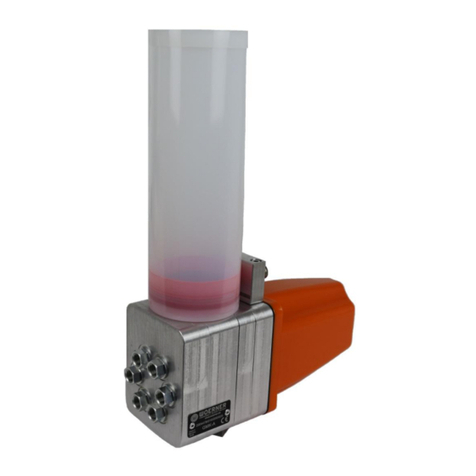

WOERNER GMK-A User manual

WOERNER

WOERNER GMK-A User manual

WOERNER GMV-A User manual

WOERNER

WOERNER GMV-A User manual

WOERNER GMV-B User manual

WOERNER

WOERNER GMV-B User manual

WOERNER GMZ-E User manual

WOERNER

WOERNER GMZ-E User manual

WOERNER GFZ User manual

WOERNER

WOERNER GFZ User manual

WOERNER GMF User manual

WOERNER

WOERNER GMF User manual

Popular Water Pump manuals by other brands

Crane Deming 4310 Series Installation, operation & maintenance manual

Crane

Crane Deming 4310 Series Installation, operation & maintenance manual

salmson EXPANSON COMFORT Installation and starting instructions

salmson

salmson EXPANSON COMFORT Installation and starting instructions

SKF HTL201 EEX operating instructions

SKF

SKF HTL201 EEX operating instructions

Grundfos PS.W.04-20 Installation and operating instructions

Grundfos

Grundfos PS.W.04-20 Installation and operating instructions

Dutypoint ResiSHIELD DH-W Operation and maintenance manual

Dutypoint

Dutypoint ResiSHIELD DH-W Operation and maintenance manual

STA-RITE D125 Series Installation, Operation & Parts Manual

STA-RITE

STA-RITE D125 Series Installation, Operation & Parts Manual

Blue Thumb IllumiFlow 2100 owner's manual

Blue Thumb

Blue Thumb IllumiFlow 2100 owner's manual

Gecko Aqua-Flo Therma-Flo Enviro-Heat Series owner's manual

Gecko

Gecko Aqua-Flo Therma-Flo Enviro-Heat Series owner's manual

Beckett DP80 Product features

Beckett

Beckett DP80 Product features

Parker COMPAX P1 Series Bulletin

Parker

Parker COMPAX P1 Series Bulletin

Grundfos RCME Installation and operating instructions

Grundfos

Grundfos RCME Installation and operating instructions

North Star M106470D.2 owner's manual

North Star

North Star M106470D.2 owner's manual

Golander pump WT300F operating manual

Golander pump

Golander pump WT300F operating manual

mr. steam AromaFlo Installation, operation & maintenance manual

mr. steam

mr. steam AromaFlo Installation, operation & maintenance manual

EBARA GSD Series Translation of the original instructions

EBARA

EBARA GSD Series Translation of the original instructions

Eaton 70122 manual

Eaton

Eaton 70122 manual

Spartan 740 Water Jet owner's manual

Spartan

Spartan 740 Water Jet owner's manual

Allweiler AE1F Series Operating and maintenance instructions with instructions for assembly and disassembly

Allweiler

Allweiler AE1F Series Operating and maintenance instructions with instructions for assembly and disassembly

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
