Wolf Drawer Microwave Oven User manual

Drawer Microwave Ovens
INSTALLATION GUIDE

Important Note
To ensure the safe and efficient use of Wolf equipment,
please take note of the following types of highlighted
information throughout this guide:
IM ORTANT NOTE highlights information that is especially
important.
CAUTION signals a situation where minor injury or product
damage may occur if instructions are not followed.
WARNING states a hazard that may cause serious injury or
death if precautions are not followed.
Contents
Wolf Drawer Microwave Ovens . . . . . . . . . . . . . . . . . . 3
Drawer Microwave Oven Specifications . . . . . . . . . . . 4
Drawer Microwave Oven Installation . . . . . . . . . . . . . 10
ServiceInformation...........................11
Features and specifications are subject to change at any time
without notice. Visit wolfappliance.com/specs for the most
up-to-date information.
IM ORTANT NOTE: Throughout this guide, dimensions in
parentheses are millimeters unless otherwise specified.

IM ORTANT NOTE: When using any microwave oven
generating heat, there are certain safety precautions you
should follow. These precautions are listed in the Wolf
drawer microwave ovens use & care guide provided with
the unit. Read all and follow carefully.
Wolf Drawer Microwave Ovens 3
wolfappliance.com/specs
Drawer Microwave Ovens
IM ORTANT NOTE: This installation must be completed
by a qualified installer or Wolf authorized service center
technician.
Read this entire installation guide prior to installation and
save for the local inspector’s reference. The homeowner
should keep this installation guide for future reference.
This appliance must be installed in accordance with
National Electrical Codes, as well as all state, municipal
and local codes. The correct voltage, frequency and
amperage must be supplied to the appliance from a dedi-
cated, grounded circuit which is protected by a properly
sized circuit breaker or time delay fuse. The proper
voltage, frequency and amperage ratings are listed on
the product rating plate.
Record the model and serial numbers before installing the
warming drawer. Both numbers are listed on the product
rating plate, located on the bottom of the oven cavity. The
drawer must be in the open position to view the rating
plate. Refer to the illustration below.
Wolf Drawer Microwave Oven
Model Number
Serial Number
If the information in this guide is not followed exactly, a
fire or electrical shock may result that could cause
property damage, personal injury or death.
To reduce the risk of tipping, the drawer microwave
oven must be secured by properly installed anti-tip
blocking.
This microwave oven must be electrically grounded in
accordance with local codes.
Make sure the wall coverings and the cabinets around
the appliance can withstand the heat generated by a
microwave oven.
Location of rating plate.
RATING
P ATE

Drawer Microwave Oven Specifications 4

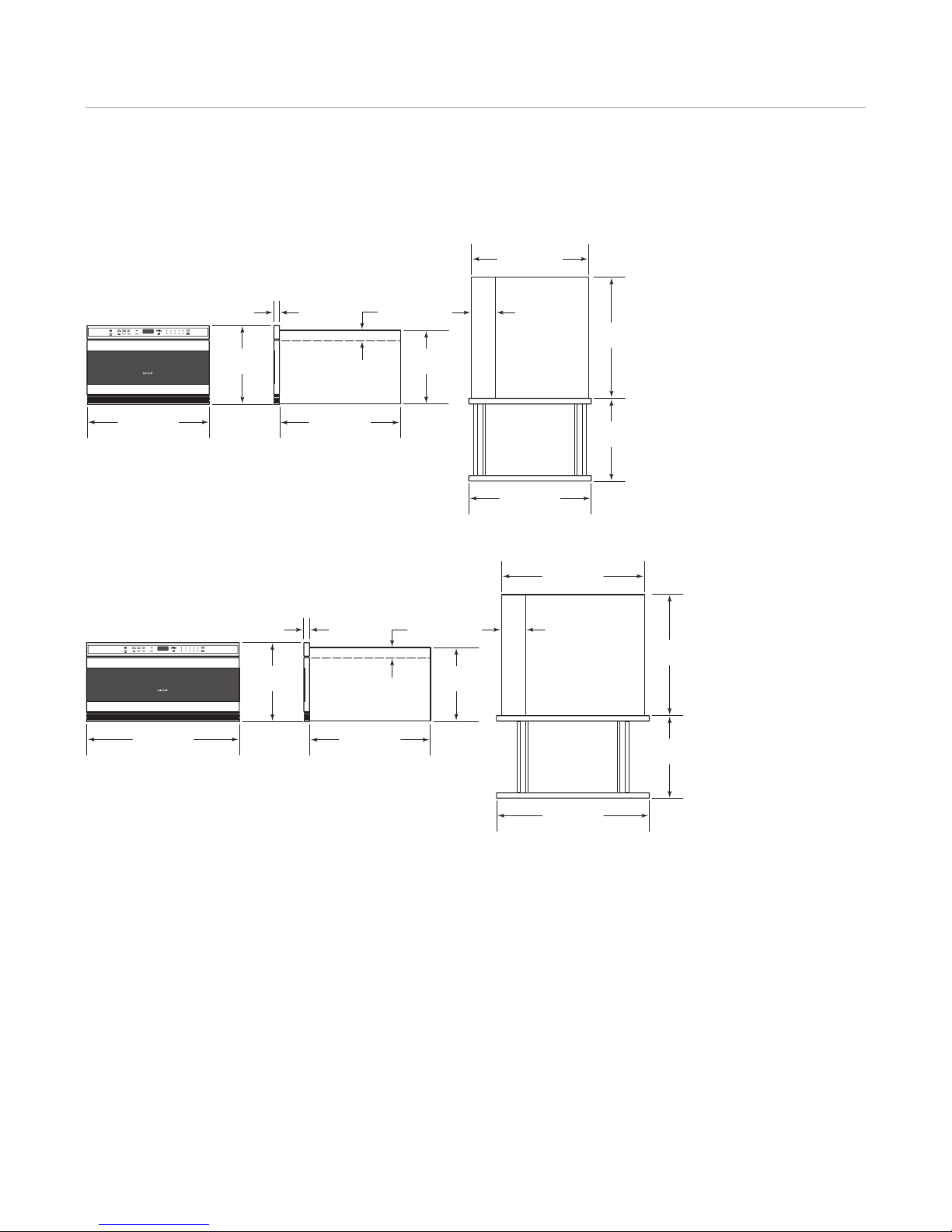

Overall Dimensions
233/8"(594)
BEHIND FRAME
151/4"
(387)
237/8"(606)
219/16"(548)
149/16"
(370)
233/8"
(594)
237/8"(606)
POWER
CORD
CHANNEL
11/4"
(32)
411/16"
(119)
13/4"
(44)
161/2"
(419)
24" (610) DRAWER MICROWAVE OVEN
233/8"(594)
BEHIND FRAME
151/4"
(387)
297/8"(759)
281/8"(714)
POWER
CORD
CHANNEL
11/4"
(32)
411/16"
(119)
2"
(51)
149/16"
(370)
233/8"
(594)
161/2"
(419)
297/8"(759)
30" (762) DRAWER MICROWAVE OVEN

GROUNDING INSTRUCTIONS
This appliance must be grounded. The drawer microwave
oven is equipped with a cord having a grounding wire with
a grounding plug. It must be plugged into a wall recepta-
cle that is properly installed and grounded in accordance
with the National Electrical Code and local codes and
ordinances. In the event of an electrical short circuit,
grounding reduces risk of electric shock by providing an
escape wire for the electric current.
Drawer Microwave Oven Specifications 5
wolfappliance.com/specs

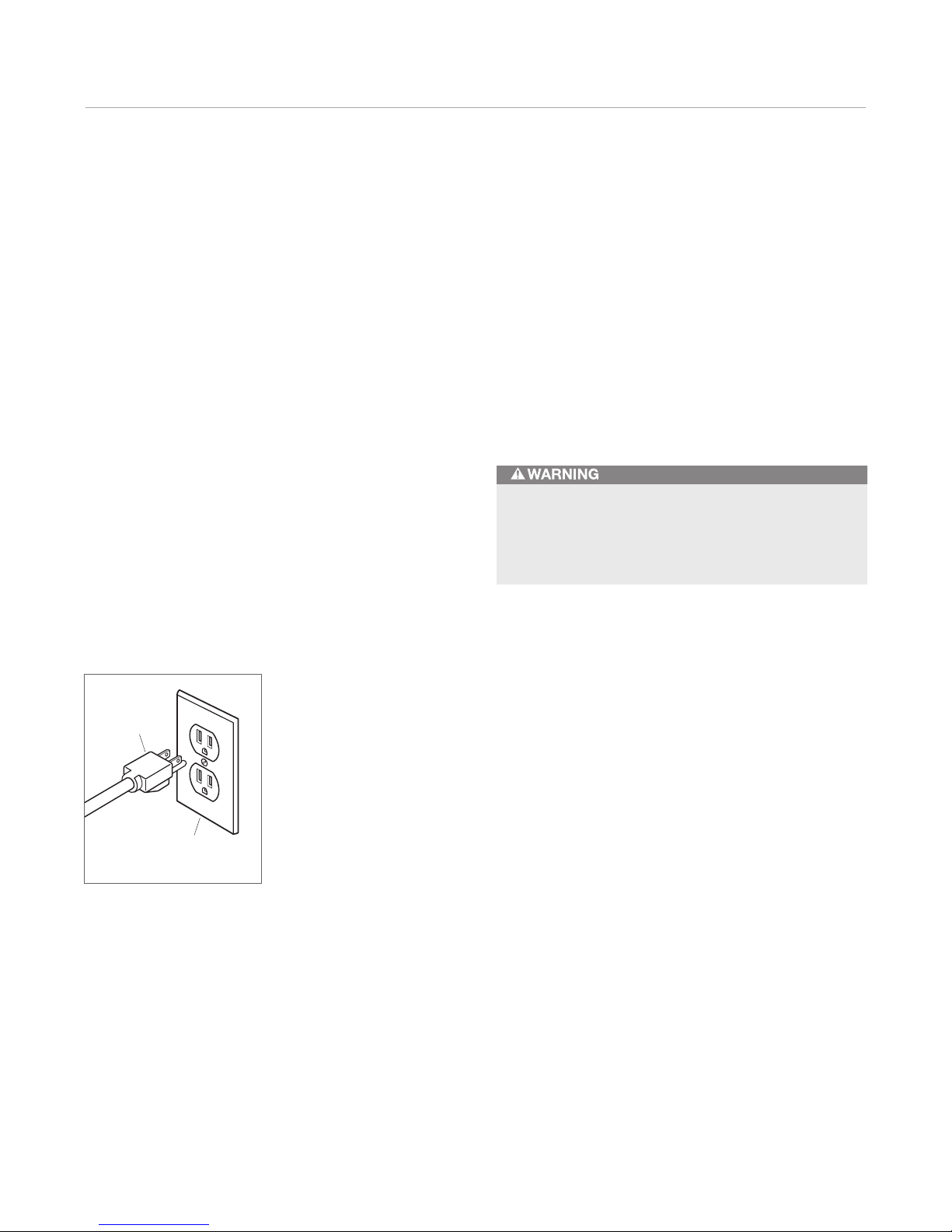

Electrical Requirements
The Wolf drawer microwave oven requires a separate,
grounded 120 V AC, 60 Hz electrical supply. The service
should have its own 15 amp circuit breaker. A grounded
3-prong receptacle should be located within reach of the
power cord.
The receptacle should be located in the upper left area of
the rough opening. Refer to the illustration for your specific
installation on the following pages. The receptacle may
also be located in an adjacent cabinet within reach of the
power cord. An access hole must be provided through the
cabinet for the power cord.
IM ORTANT NOTE: The microwave oven is equipped with
a power cord with a 3-prong grounding plug. The power
cord must be plugged into a mating 3-prong grounded
outlet. If you only have a 2-prong outlet, have a qualified
electrician install a properly grounded outlet. If you have
any questions about the grounding or electrical instruc-
tions, consult a qualified electrician or service technician.
GROUNDING
PLUG
GROUNDED
ELECTRICAL OUTLET
Grounded electrical supply.
Improper use of the grounding plug can result in a risk
of electric shock. Do not use an extension cord. If the
power cord is too short, have a qualified electrician or
service technician install an outlet near the appliance.

Installation Considerations
Wolf drawer microwave ovens can be installed in a
standard or flush inset application. A flush inset installation
requires the microwave to be recessed into the cabinet.
Refer to the illustrations on the following pages for
minimum cabinet dimensions for your specific installation.
The platform of the cabinet must be solid and level and
able to support 125 lbs (57 kg).
In standard applications, the drawer microwave oven trim
will overlap stiles and rails and will match the overlaps of
E series ovens. Refer to the chart below for overlap
dimensions.
COMBINATION INSTALLATIONS
The drawer microwave oven can be built into a cabinet by
itself or in combination with a Wolf cooktop, built-in oven
or warming drawer. Refer to the illustration on page 9 for a
typical combination installation with an E series oven and
warming drawer in a flush inset application.
Drawer Microwave Oven Specifications 6
Trim Overlaps
DRAWER MICROWAVE OVEN 24" MODEL 30" MODELS
Top Overlap 3/8"(10) 3/8"(10)
Bottom Overlap 1/8"(3) 1/8"(3)
Side Overlap 1" (25) 3/4"(19)
Anti-Tip Blocking
INSTALL ANTI-TI BLOCKING
To reduce the risk of tipping, the drawer microwave oven
must be secured by properly installed anti-tip blocking.
The anti-tip blocking must be provided by the installer.
Dimensions will vary with the installation. When installed
to the wall, make sure that screws completely penetrate
the dry wall and are secured in wood or metal, so that the
blocking is completely stable. When fastening, be sure
that screws do not penetrate electrical wiring or plumbing.
Refer to the illustration for your specific installation on the
following pages.
The anti-tip blocking prevents serious injury that might
result from the drawer tipping forward and hot food being
spilled.
Stepping, leaning or sitting on the drawer may result in
serious injuries and can also cause damage to the
drawer microwave oven.
Do not use the microwave oven as a storage space.
This creates a potentially hazardous situation.

Drawer Microwave Oven Specifications 7
wolfappliance.com/specs

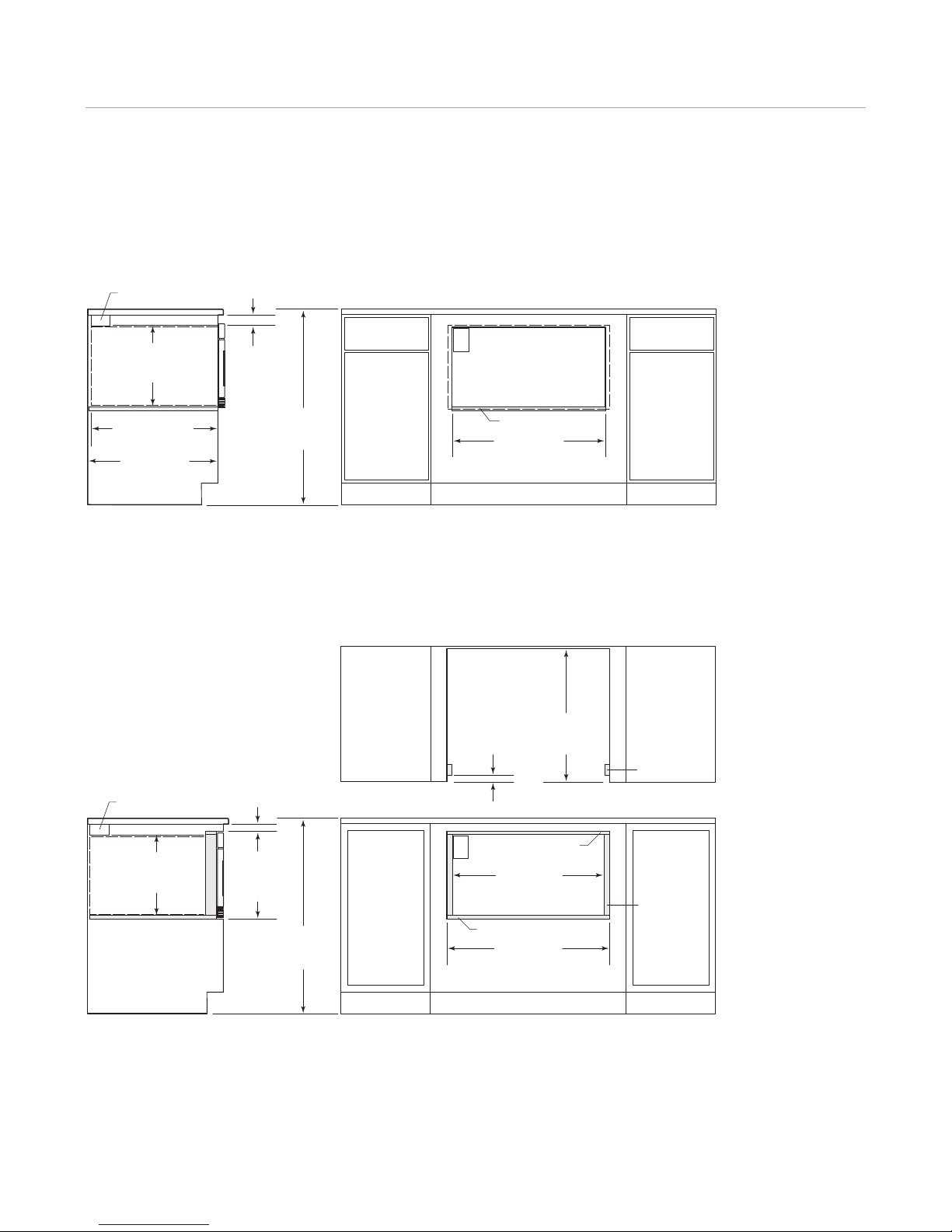

FRONT VIEWSIDE VIEW
24" (610) min
CABINET DEPTH
36" (914)
FLOOR TO
COUNTERTOP
231/2"(597) min
OPENING DEPTH
143/4"(375)
OPENING
HEIGHT
221/8"(562)
OPENING WIDTH
PLATFORM
E
ANTI-TIP BLOCK
*Dimension must accommodate height of anti-tip block and drawer face overlap.
Dashed line represents profile of unit.
DIMENSION
WILL VARY*
*Dimension must accommodate height of anti-tip block and drawer face overlap.
Dashed line represents profile of unit.
FRONT VIEWSIDE VIEW
36" (914)
FLOOR TO
COUNTERTOP
SIDE CLEATS
243/4"
(629) min
FLUSH INSET
DEPTH
11/4"(32)
TOP VIEW
143/4"(375)
OPENING
HEIGHT
153/4"
(400)
FLUSH INSET
HEIGHT
243/8"(619)
FLUSH INSET WIDTH
221/8"(562)
OPENING WIDTH
E
11/8"(29)
SIDE CLEATS
3/8"(10) PLATFORM
5/8"(16)
TOP CLEAT
ANTI-TIP BLOCK
DIMENSION
WILL VARY*
24" (610) Drawer Microwave Oven
STANDARD INSTALLATION
FLUSH INSET INSTALLATION

Drawer Microwave Oven Specifications 8
FRONT VIEWSIDE VIEW
24" (610) min
CABINET DEPTH
36" (914)
FLOOR TO
COUNTERTOP
231/2"(597) min
OPENING DEPTH
143/4"(375)
OPENING
HEIGHT
ANTI-TIP BLOCK
281/2"(724)
OPENING WIDTH
E
PLATFORM
*Dimension must accommodate height of anti-tip block and drawer face overlap.
Dashed line represents profile of unit.
DIMENSION
WILL VARY*
FRONT VIEWSIDE VIEW
36" (914)
FLOOR TO
COUNTERTOP
SIDE CLEATS
243/4"(629) min
FLUSH INSET
DEPTH
11/4"(32)
TOP VIEW
143/4"(375)
OPENING
HEIGHT
153/4"
(400)
FLUSH INSET
HEIGHT
303/8"(772)
FLUSH INSET WIDTH
281/2"(724)
OPENING WIDTH
E
1"(25)
SIDE CLEATS
3/8"(10) PLATFORM
5/8"(16) TOP CLEAT
ANTI-TIP BLOCK
*Dimension must accommodate height of anti-tip block and drawer face overlap.
Dashed line represents profile of unit.
DIMENSION
WILL VARY*
30" (762) Drawer Microwave Oven
STANDARD INSTALLATION
FLUSH INSET INSTALLATION

Drawer Microwave Oven Specifications 9
wolfappliance.com/specs
273/16"
(691)
OPENING
HEIGHT
281/8"
(714) min
FLUSH INSET
HEIGHT
281/2"(724)
E SERIES OVEN
OPENING WIDTH
303/8"(772) min
FLUSH INSET WIDTH
281/2"(724)
DRAWER MICROWAVE
OPENING WIDTH
E
7/8"(22) TOP CLEAT
9/16"(14)
PLATFORM*
5/8"(16) PLATFORM
SIDE CLEATS
243/4"
(629) min
FLUSH
INSET
DEPTH
11/4"(32)
FOR MICROWAVE
1" (25) FOR OVEN
AND WARMING
DRAWER
*Platform must support 250 lbs (113 kg.
NOTE: Location of electrical supply within oven opening may require additional cabinet depth. Dashed line represents profile of unit.
FRONT VIEWSIDE VIEW
TOP VIEW
143/4"(375)
OPENING
HEIGHT
153/8"
(391)
FLUSH INSET
HEIGHT
1" (25)
SIDE CLEATS
105/8"
(270)
FLUSH INSET
HEIGHT
91/8"(232)
OPENING HEIGHT
E
1" (25) PLATFORM
285/8"(727)
WARMING DRAWER
OPENING WIDTH
E
E
5"
(127)
4"
(102)
30" (762) Drawer Microwave Oven
FLUSH INSET INSTALLATION WITH E SERIES OVEN AND WARMING DRAWER

Drawer Microwave Oven Installation 10
Installation
UN ACK THE OVEN
Remove all packing materials from inside the drawer
microwave oven. Do not remove the waveguide cover,
which is located on the upper surface of the drawer
interior. Refer to the illustration below.
Remove the feature sticker, if applicable. Check the
microwave oven for any signs of damage, such as dents,
a misaligned or bent drawer, damaged drawer seals and
sealing surfaces or broken or loose drawer guides. If any
damage is found, contact your authorized Wolf dealer or
a Wolf authorized service center. Do not operate the
microwave oven.
INSTALL THE OVEN
1) Turn power off to the electrical outlet.
2) Place the drawer microwave oven close to the
prepared rough opening. Plug the power cord into the
grounded electrical outlet.
3) Carefully guide the microwave oven into the opening.
Avoid pinching the power cord between the unit and
the cabinet wall.
4) Slide the microwave oven all the way into the opening
until the mounting flange is flush with the face of the
cabinet.
5) Open the drawer. Using the four holes on the mounting
flange as a template (two on each side), pre-drill
mounting holes into the cabinet using a 1/16" bit.
6) Mount the microwave oven with the four screws
provided. Refer to the illustration below.
7) Turn power back on to the electrical outlet.
MOUNTING
FLANGE
Mount the microwave oven.
Location of waveguide cover.
WAVEGUIDE
COVER

Service Information 11
Service Information
If service is necessary, maintain the quality built into
your drawer microwave oven by contacting Wolf factory
certified service.
For the name and number of Wolf factory certified service
nearest you, check the contact & support section of our
website, wolfappliance.com or call Wolf customer care at
800-222-7820.
When calling for service, you will need the model and
serial numbers of the drawer microwave oven. Both
numbers are listed on the product rating plate, located
on the bottom of the oven cavity. The drawer must be in
the open position to view the rating plate. Refer to the
illustration below.
wolfappliance.com/specs
The information and images in this guide are the copyright property of Wolf Appliance, Inc. Neither this guide nor any information or images contained herein
may be copied or used in whole or in part without the express written permission of Wolf Appliance, Inc. ©Wolf Appliance, Inc. all rights reserved.
Wolf, Wolf & Design, Wolf Gourmet, W & Design and the color red as applied to knobs are registered trademarks and service marks of Wolf Appliance, Inc.
Sub-Zero, Sub-Zero & Design, Dual Refrigeration, Constant Care and The iving Kitchen are registered trademarks and service marks of Sub-Zero, Inc.
(collectively, the “Company Marks.”) All other trademarks or registered trademarks are property of their respective owners in the United States and other countries.
Troubleshooting
IM ORTANT NOTE: If the drawer microwave oven does
not operate properly, follow these troubleshooting steps:
•Verify that electrical power is being supplied to the
microwave oven.
•Check electrical connections to ensure that the instal-
lation has been completed correctly.
•Refer to the troubleshooting guide in the Wolf drawer
microwave ovens use & care guide.
•If the drawer microwave oven still does not operate
properly, contact Wolf factory certified service. Do not
attempt to repair the microwave oven yourself. Wolf is
not responsible for service required to correct a faulty
installation.
Location of rating plate.
RATING
P ATE

WOLF A LIANCE, INC. . O. BOX 44848 MADISON, WI 53744 WOLFA LIANCE.COM 800.222.7820
819363 REV-A TINSEB509MRR2 4/2011
