Model MWC24 Convection Microwave Oven
Dimensions in parentheses are in
millimeters unless otherwise specified.
9/06
1
Taking the experience we’ve gained from our
microwave ovens and combining that with the expert-
ise of convection, Wolf has brought the best of both
cooking technologies together in one unit.
This handsome unit comes with optional trim to mount
the unit next to a 30" (762) or 36" (914) Wolf built-in
oven and finish off your cooking tower in a single look.
The trim comes in three stainless steel finishes—
classic, platinum and carbon.
Aside from looking beautiful whether you use it in
conjunction with an oven or not, the unit offers you all
the performance you would expect from Wolf—a
cooking company with a heritage of nearly 75 years in
the kitchen.
The Wolf Model MWC24 24" (610)
convection microwave oven can be used
free-standing or with optional 30" (762)
or 36" (914) trim, it can be built in to fit
above a Wolf 30" (762) or 36" (914)
built-in single oven. Optional trim is
available in classic, platinum or carbon
stainless steel finish.
Model MWC24
Free-Standing
Model MWC24
with 30" (762) trim
Model MWC24
with 36" (914) trim
One-touch door
open pad
Safety door
latches
Lighted digital
display
Oven door
with window
Convection
air openings
Rating plate
location
Door hinges
Turntable
Ventilation
openings (rear)
Oven light
Waveguide
cover
Auto-touch
control panel

Planning Information
Model MWC24 Convection Microwave Oven
Dimensions in parentheses are in
millimeters unless otherwise specified.
Dimensions may vary by ±
1
/ 8 " (3).
2
FEATURES
Built-in or free-standing convection
microwave oven with 1.5 cu ft (42 L)
capacity and 900 watts of power
Optional 30" (762) or 36" (914) trim allows
microwave to be built in to fit above a Wolf
built-in oven
Classic, platinum or carbon stainless steel
trim finishes
Sensor cooking
Slow cook mode for up to four hours
Easy to operate control panel and program-
mable power options
Interactive display—99 minutes, 99 seconds
Menu label and recipe guide
Multi-language—English, French and Spanish
Removable turntable and turntable support
Microwave popcorn and meat tray
Oven door with window
Multiple rack baking
Safety door latches—oven will not operate
unless the door is securely closed
Oven light comes on when oven is operating
or door is open
Tight door seals with one-touch door open
pad
Rear ventilation openings
Two and five year residential warranty –
exclusions apply; warranty information can
be found on our website, wolfappliance.com
297/8" (759)
30" (762) TRIM WIDTH
243/4" (629)
FREE-STANDING
WIDTH
147/8"
(378)
FREE-STANDING
HEIGHT
355/8" (905)
36" (914) TRIM WIDTH
201/8" (511)
BEHIND FRAME
197/8"
(505)
TRIM
HEIGHT
11/4" (32) 11/4" (32) 211/16"
(68)
211/16"
(68)
OVERALL DIMENSIONS

Planning Information
Model MWC24 Convection Microwave Oven
3
Dimensions in parentheses are in
millimeters unless otherwise specified.
30" (762) TRIM OPTIONS
Classic Stainless MWCTRIM30/S
Platinum Stainless MWCTRIM30/P
Carbon Stainless MWCTRIM30/B
Trim allows Model MWC24 to be built in
to fit a 30" (762) wide space.
36" (914) TRIM OPTIONS
Classic Stainless MWCTRIM36/S
Platinum Stainless MWCTRIM36/P
Carbon Stainless MWCTRIM36/B
Trim allows Model MWC24 to be built in
to fit a 36" (914) wide space.
Optional trim kits are available as sales
accessories through your Wolf dealer.
To obtain local dealer information, visit
the Locator section of our website,
wolfappliance.com.
SPECIFICATIONS
Overall Microwave Width (free-standing) 24 3/4" (629)
Overall Microwave Width
with 30" (762) Trim 29 7/8" (759)
Overall Microwave Width
with 36" (914) Trim 35 5/8" (905)
Overall Microwave Height (free-standing) 14 7/8" (378)
Overall Microwave Height with Trim 19 7/8" (505)
Overall Microwave Depth 20 1/8" (511)
Interior Capacity 1.5 cu ft (42 L)
Interior Dimensions 161/8"W x 95/8"H x 161/8"D
(410 x 244 x 410)
Recommended Cabinet Width
with 30" (762) Trim 33" (838)
Recommended Cabinet Width
with 36" (914) Trim 39" (991)
Minimum Cabinet Width with 30" (762) Trim 30" (762)
Minimum Cabinet Width with 36" (914) Trim 36" (914)
Power 900 W
Electrical Rating (with convection) 1.6 kW
Electrical Supply Requirements 120 V AC, 60 Hz
15 amp dedicated circuit
Power Cord 31/2ft (1.1 m) power cord with
3-prong grounded plug
Shipping Weight 68 lbs (31 kg)
Special Note Optional trim allows microwave
to be built in to fit above a
Wolf 30" (762) or 36" (914) built-in oven
Specifications are subject to change without notice.
Model MWC24
Free-Standing
Model MWC24
with 30" (762) trim
Model MWC24
with 36" (914) trim

Planning Information

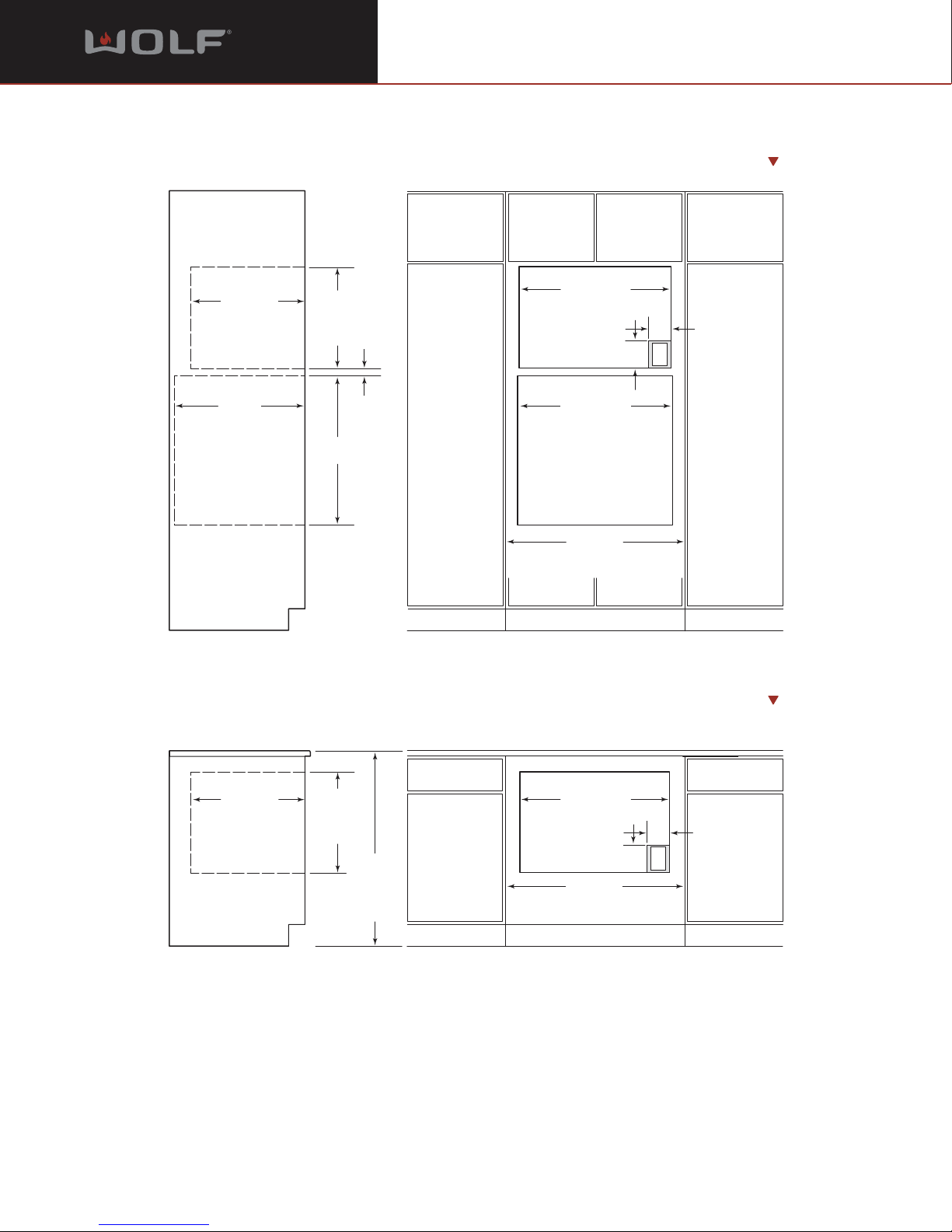

Model MWC24 — Installation with 30" (762) Trim
Dimensions in parentheses are in
millimeters unless otherwise specified.
4
INSTALLATION ABOVE 30" (762) BUILT-IN OVEN
33" (838)
RECOMMENDED CABINET WIDTH
30"min (762)
271/2" (699)
OPENING WIDTH
36" (914)
STANDARD
FLOOR TO
COUNTER
HEIGHT
5"
(127)
4"
(102)
E
201/8"min
(511)
OPENING DEPTH
1811/16"
(475)
OPENING
HEIGHT
NOTE: At installation, wood cleats must be added to the opening for the microwave trim.
24"min
(610)
273/16"
(691)
281/2" (724)
5"
(127)
4"
(102)
E
33" (838)
RECOMMENDED CABINET WIDTH
30"min (762)
271/2" (699)
OPENING WIDTH
201/8"min
(511)
OPENING DEPTH
1811/16"
(475)
OPENING
HEIGHT
1"min
(25)
30-INCH OVEN
ROUGH OPENING
NOTE: At installation, wood cleats must be added to the opening for the microwave trim.
UNDERCOUNTER INSTALLATION
Dimensions shown in the illustrations are for installation of the microwave oven with 30" (762) trim.

Planning Information
Model MWC24 — Installation with 30" (762) Trim
Dimensions in parentheses are in
millimeters unless otherwise specified.
5
INSTALLATION NOTES
Refer to the illustrations and specifications
for overall dimensions, rough openings and
installation specifics.
The Wolf convection microwave oven can be
used free-standing or with optional 30" (762)
trim, can be built in to fit above a Wolf 30"
(762) built-in single oven. The base platform
must be able to support 125 lbs (57 kg).
IMPORTANT NOTE: In all instances, where the
microwave oven is built in, you must use one of
Wolf's trim kits to ensure proper ventilation.
The trim kit for the Wolf convection
microwave oven will overlap cabinetry stiles
and rails on all four sides. The trim overlaps
13/16" (21) on the bottom, 5/16" (8) on the top
and 13/16" (30) on each side.
At installation, wood cleats (not included)
must be added to the microwave opening
for the 30" (762) trim. Refer to the installation
instructions provided with the trim kit for
detailed specifications. These instructions
can also be found on the Wolf website at
wolfappliance.com.
When using the Wolf microwave oven as a
free-standing unit, allow 2" (51) of airflow
space on top, rear and both sides. A minimum
201/8" (511) cabinet depth is required.
The Wolf convection microwave oven
requires a separate, grounded 120 V AC, 60 Hz
power supply. The service should have its own
15 amp circuit breaker and a grounded 3-prong
receptacle should be located within the reach of
the 31/2' (1.1 m) power cord. Locate electrical
within the shaded area shown in the installation
illustration.
IMPORTANT NOTE: A ground fault circuit
interrupter (GFCI) is not recommended and may
cause interruption of operation.
The Wolf convection microwave oven with
30" (762) trim may be installed in combination
with a 30" (762) single oven and/or warming
drawer. Refer to page 8 for additional installa-
tion specifications.
You must follow all National Electrical Code
regulations. In addition, be aware of local codes
and ordinances when installing your service.
Refer to the installation instructions
shipped with each Wolf product for detailed
specifications.
DIMENSIONS
Rough Opening Width 271/2" (699)
Rough Opening Height 18 11/16" (475)
Rough Opening Depth (minimum) 20 1/8" (511)
Recommended Cabinet Width 33" (838)
Minimum Cabinet Width 30" (762)
Location of Electrical Within shaded area
See Installation Instructions shipped with unit for detailed specifications.

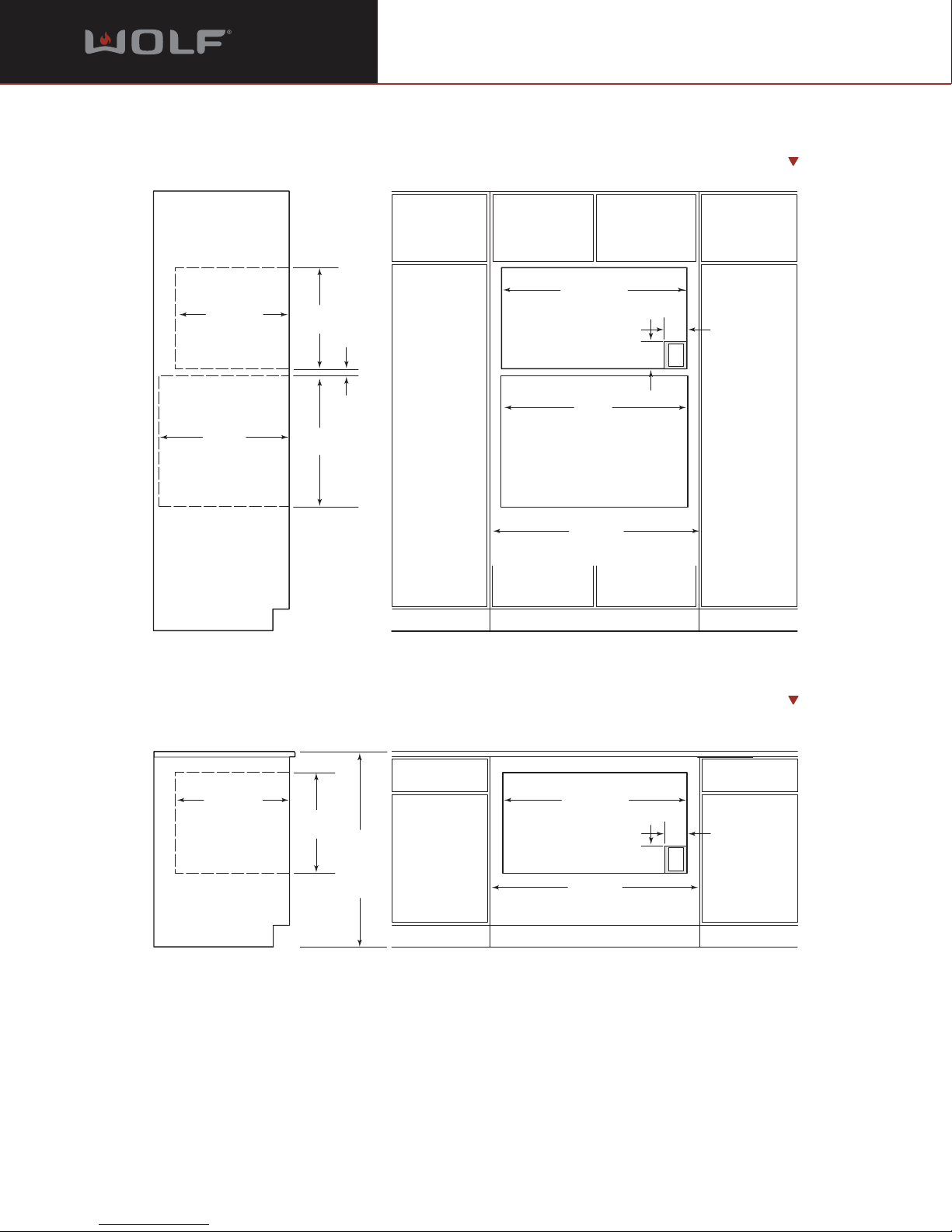

Planning Information
Model MWC24 — Installation with 36" (914) Trim
Dimensions in parentheses are in
millimeters unless otherwise specified.
6
INSTALLATION ABOVE 36" (914) SINGLE OVEN
201/8"min
(511)
36" (914)
STANDARD
FLOOR TO
COUNTER
HEIGHT
1811/16"
(475)
333/8" (854)
ROUGH OPENING WIDTH
39" (991)
RECOMMENDED CABINET WIDTH
36"min (914)
5"
(127)
4"
(102)
E
NOTE: At installation, wood cleats must be added to the openin
g
for the microwave trim.
333/8" (854)
MICROWAVE
OPENING WIDTH
5"
(127)
4"
(102)
E
341/2"
(876 )
39" (991)
RECOMMENDED CABINET WIDTH
36"min (914)
24"min
(610)
241/16"
(611)
1"min
(25)
201/8"min
(511)
1811/16"
(475)
36-INCH OVEN
ROUGH OPENING
NOTE: At installation, wood cleats must be added to the opening for the microwave trim.
UNDERCOUNTER INSTALLATION
Dimensions shown in the illustrations are for installation of the microwave oven with 36" (914) trim.

Planning Information
Model MWC24 — Installation with 36" (914) Trim
Dimensions in parentheses are in
millimeters unless otherwise specified.
7
DIMENSIONS
Rough Opening Width 33 3/8" (854)
Rough Opening Height 1811/16" (475)
Rough Opening Depth (minimum) 201/8" (511)
Recommended Cabinet Width 39" (991)
Minimum Cabinet Width 36" (914)
Location of Electrical Within shaded area
See Installation Instructions shipped with unit for detailed specifications.
INSTALLATION NOTES
Refer to the illustrations and specifications
for overall dimensions, rough openings and
installation specifics.
The Wolf convection microwave oven can be
used free-standing or with optional 36" (914)
trim, can be built in to fit above a Wolf 36"
(914) built-in oven. The base platform must be
able to support 125 lbs (57 kg).
IMPORTANT NOTE: In all instances, where the
microwave oven is built in, you must use one of
Wolf's trim kits to ensure proper ventilation.
The trim kit for the Wolf convection
microwave oven will overlap cabinetry stiles
and rails on all four sides. The trim overlaps
13/16" (21) on the bottom, 5/16" (8) on the top
and 13/16" (30) on each side.
At installation, wood cleats (not included)
must be added to the microwave opening
for the 36" (914) trim. Refer to the installation
instructions provided with the trim kit for
detailed specifications. These instructions
can also be found on the Wolf website at
wolfappliance.com.
When using the Wolf microwave oven as a
free-standing unit, allow 2" (51) of airflow
space on top, rear and both sides. A minimum
201/8" (511) cabinet depth is required.
The Wolf convection microwave oven
requires a separate, grounded 120 V AC, 60 Hz
power supply. The service should have its own
15 amp circuit breaker and a grounded 3-prong
receptacle should be located within the reach of
the 31/2' (1.1 m) power cord. Locate electrical
within the shaded area shown in the Installation
illustration.
IMPORTANT NOTE: A ground fault circuit
interrupter (GFCI) is not recommended and may
cause interruption of operation.
The Wolf convection microwave oven with
36" (914) trim may be installed in combination
with a 36" (914) built-in oven and/or warming
drawer with integrated drawer front.
You must follow all National Electrical Code
regulations. In addition, be aware of local codes
and ordinances when installing your service.
Refer to the installation instructions
shipped with each Wolf product for detailed
specifications.

Planning Information
Model MWC24 Convection Microwave Oven
Dimensions in parentheses are in
millimeters unless otherwise specified.
8
CONVECTION MICROWAVE , BUILT-IN
OVEN AND WARMING DRAWER
The Wolf convection microwave oven with 30"
(762) trim may be installed in combination with a
30" (762) built-in single oven and 30" (762)
warming drawer with stainless steel drawer
front.
Wolf recommends using 33" (838) cabinets with
this installation. Also, you need a minimum 24"
(610) of usable cabinet depth for the oven.
The base platform for the microwave must be
able to support 125 lbs (57 kg). The platform for
the oven must be able to support a weight of
250 lbs (113 kg). And the warming drawer
platform must be able to support 200 lbs (91 kg).
An anti-tip block or platform must be installed to
prevent the warming drawer from tipping
forward when the drawer is opened. The
warming drawer must be fully enclosed, top and
bottom.
For electrical requirements and additional
specifications, refer to page 3, and to the Built-In
Ovens and Warming Drawers section of the Wolf
website at wolfappliance.com. Also refer to the
installation instructions provided with each
microwave trim kit and warming drawer front for
detailed specifications.
285/8" (727)
WARMING DRAWER
OPENING WIDTH
281/2" (724)
30-INCH OVEN
OPENING WIDTH
5"
(127)
4"
(102)
E
30"min (762) CABINET
23/8"
(60)
273/16"
(691)
24"min
(610)
273/16"
(691)
NOTE: Refer to the built-in 30"(762) single oven specifications for electrical location.
2"(51) x 2"(51)
ANTI-TIP BLOCK
91/8" (232)
OPENING
HEIGHT
237/8"min (606)
OPENING DEPTH
24"min
(610)
91/8" (232)
OPENING
HEIGHT
237/8"min (606)
OPENING DEPTH
ANTI-TIP BLOCK APPLICATIONPLATFORM APPLICATION
7/8" (22)
PLATFORM
7/8"
(22)
1"min
(25)
201/8"min
(511)
1811/16"
(475)
1"min
(25)
201/8"min
(511)
1811/16"
(475)
271/2" (699)
CONVECTION MICROWAVE
OPENING WIDTH
5"
(127)
4"
(102)
E
Installation specifications for a convection microwave with 30" (762) trim installed above a 30" (762) built-in single
oven and 30" (762) warming drawer with stainless steel drawer front.
