PRO SERIES ISLAND HOODS INSTALLATION INSTRUCTIONS

2
IMPORTANT INFORMATION
IMPORTANT NOTE: This appliance
must be installed in accordance with
National Electrical Codes, as well as
all state, municipal and local codes.
The correct voltage, frequency and
amperage must be supplied to the
appliance from a dedicated, ground-
ed circuit which is protected by a
properly sized circuit breaker or time
delay fuse. The proper voltage,
frequency, and amperage ratings are
listed on the product rating plate.
Record the model and serial numbers
before installing the island hood.
Both numbers are listed on the rating
plate, located on the left island of
hood shell.
Model #
Serial #
If you have questions concerning the
installation of this product, call Wolf
Appliance Company, LLC at (800)
332-9513.
If you received a damaged island
hood you should immediately contact
your dealer or builder.
IMPORTANT NOTE: This
installation must be completed by a
qualified installer or service agency.
Before you begin installation, read
these instructions completely and
carefully.
•INSTALLER: please retain these
instructions for local inspector’s
reference, then leave them with the
homeowner.
•Please read the entire installation
instructions prior to installation.
•HOMEOWNER: please read and
keep these instructions for future
reference.
•Please read the entire Wolf
Pro Series Ventilation Use & Care
Information book prior to use.
As you follow these installation
instructions, take particular note of
the CAUTION and WARNING
symbols when they appear. This
information is important for the safe
and efficient installation of the Wolf
Pro Series island hood.
In addition, the printed instructions
may signal an IMPORTANT NOTE,
which highlights information that is
especially important for a problem-
free installation.
CAUTION
signals a situation where minor
injury or product damage may
occur if you do not follow
instructions.
WARNING
states a hazard that may cause
serious injury or death if pre-
cautions are not followed.

3
PRO SERIES ISLAND HOOD INSTALLATION
ISLAND HOOD FEATURES
•Available in 36", 42", 54" and 66"
widths (91mm, 1066mm, 1371mm and
1676mm.)
•(R) models include mounting holes
for optional decorative rail
•Recessed controls
•Halogen lighting with night-light setting
•Hand finished with continually
welded seams
•Stainless steel enclosed liner
•Stainless steel baffle filters
•Internal or remote blower option
•Heat Sentry feature
•16-gauge stainless steel shell
• Transition with backdraft damper included
•Optional decorative rail assembly in stain-
less, platinum, brass or copper finish. Hood
must be specifically preordered and con-
figured for rail assembly.
Island Hood Overall Dimensions-see below specs
34"
(864 mm)
(C)
(D)
Center of hood-back of hood
(B)
Width of hood dimension
(A)
Width of top plate dimension
Center of transition
side of hood
Island Width top Width of Height of To center of To center of
Hood plate hood transition transition of hood
(side of hood) (back of hood)
I363418 18” 36” 8.75” 9” 6.5”
I423418 24” 42” 8.75” 12” 6.5”
I543418 36” 54” 8.75” 18” 6.5”
I663418 48” 66” 8.75” 24” 6.5”

INSTALLATION
CONSIDERATIONS
1) A straight, short duct run will
allow the hood to perform more effi-
ciently. Try to limit the number of
elbows and transitions to as few as
possible. Long duct runs, elbows and
transitions will reduce the perform-
ance of the hood.
IMPORTANT NOTES:
All hoods must exhaust to the out-
doors. There is a possibility of noise
issues, if there is a short duct run
coupled with a remote blower.
2) Always use metal ducting. Do not
use flex ducting.
3) Wolf recommends installing a
back-draft damper in all installations
(included with hood). In cold weather
installations a back-draft damper is
necessary to minimize the backflow
of cold air into the room.
4) Wolf recommends the hood be
installed 30”-36” above the cooking
surface.
5) Local building codes may require
the use of make-up air. Consult your
local HVAC professional for specific
requirements in your area.
4
PRO SERIES ISLAND HOOD PRE-INSTALLATION
Island hood installation
CAUTION
To reduce the risk of fire and
electric shock, install this range
hood only with the blowers
manufactured by Wolf
Appliance Co., Model numbers
801640, 801642, 801641,
804701, 804703 and 801642.

5
Shipping Weights for Blowers
Part Shipping
Blower Number Weight
CTBLOWER-60REM 801640 35 lbs.
CTBLOWER-90REM 801641 35 lbs.
CTBLOWER-120REM 801642 39 lbs.
CTBLOWER-150REM 804701 47 lbs.
IBLOWER-120INT 804703 38 lbs
Hood Hardware Contents:
•(4) 1/4” x 3” lag screws
Part number 805666
• (8-16) #10 x 2” hex self-tapping
screws. (qty varies per hood)
Part number 805667
• Extra Hardware Screw Set
Part number 805669

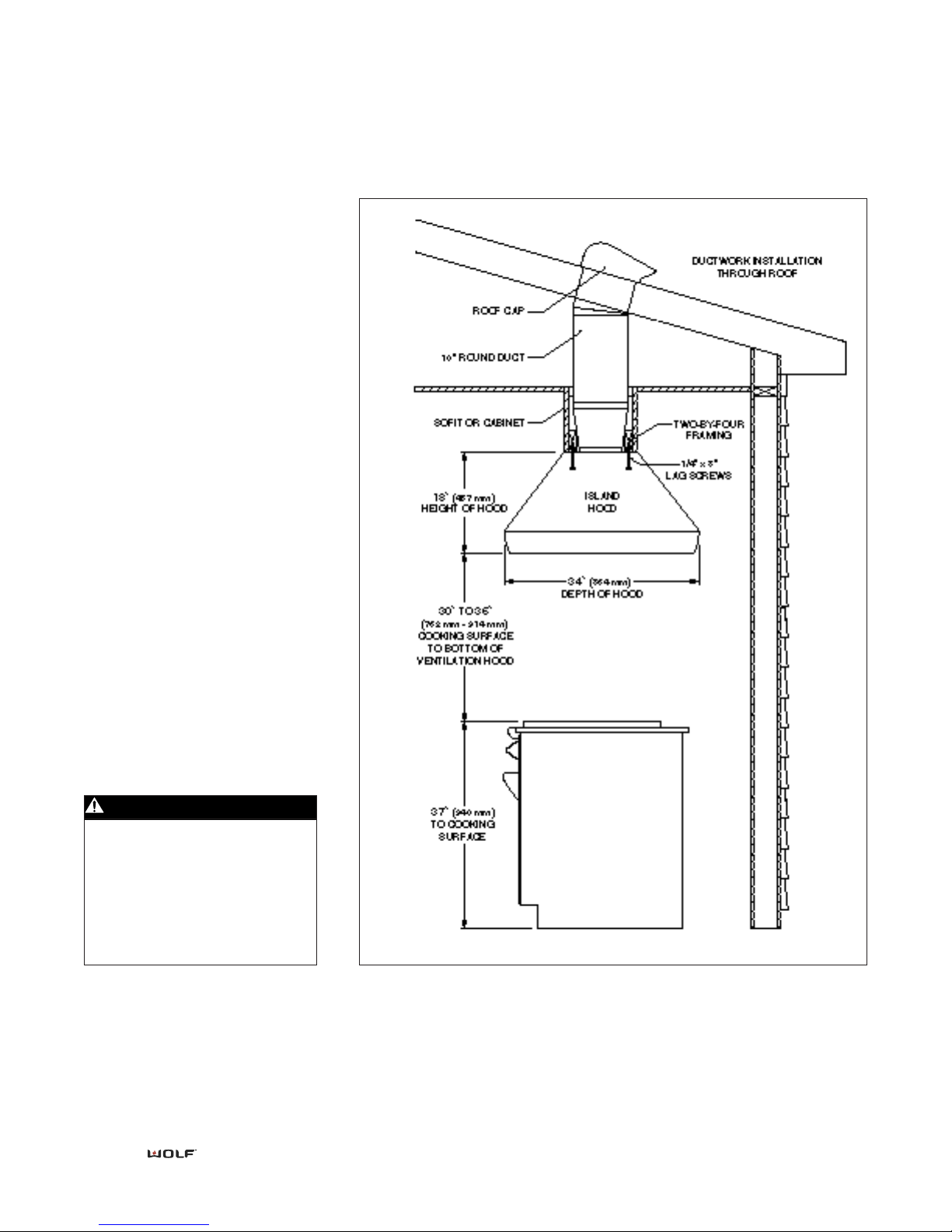

18" (457)
HEIGHT
OF HOOD
34" (864)
DEPTH OF HOOD
36" (914)
WIDTH OF HOOD
30" TO 36"
(762 - 914)
TO COOKING
SURFACE
COOKING SURFACE
LOCATION OF ELECTRICAL
CENTERED THROUGH TOP OF HOOD
30" TO 36"
(762 - 914)
TO COOKING
SURFACE
Dimensions may vary by +_ 1/8" (3 mm).
Dimensions in parentheses are in millimeters.
PRO SERIES ISLAND HOOD INSTALLATION
Shipping Weights for Island Hoods
Model Number Shipping Weight
I363418 88 lbs.
I423418 96 lbs.
I543418 116 lbs.
I663418 137 lbs.
CAUTION
A minimum of three installers is
required to lift island hood into
position.

6
HOOD PREPARATION
IMPORTANT NOTE:
If installing a duct cover, the duct
cover must be installed prior to hood
installation. See page #10 for duct
cover installation instructions or fol-
low those packed with duct cover.
1) Remove hood filters from hood
shell.
2) Remove center filter bank by
removing the 2 screws from each
side. DO NOT DISCARD THESE
PARTS, as they will be reinstalled after
hood installation is complete.
3) The hood assembly is shipped with
the transition attached. The transition
is shipped upside down in the top of
the hood assembly and must be
removed and reinstalled.
4) Detach the transition from the
hood assembly by removing the (4)
screws on the top of the hood assem-
bly. DO NOT DISCARD SCREWS.
Shipping screws are needed for the
reinstallation of the transition to
hood.
5) Invert transition so that the 10”
round points away from top of hood.
Use screws removed from step 4.
6) If installing a remote blower, drill
7/8” hole through framing for con-
duit wiring. See Internal Blower on
page 8 for overall dimensions and
electrical requirements. See installa-
tion instructions provided with the
blower for mounting and installation
information.
IMPORTANT NOTE: Do not run or
remove blower electrical connections
through duct work.
INSTALLATION
Install Ductwork
1) Decide where the ductwork will
run between the hood and the
outside of the home. Your Wolf island
hood has a top discharge which will
run vertically.
IMPORTANT NOTE: All hoods must
exhaust to the outdoors.
2) When not installing an external
ventilator, always install a roof or
island cap. Connect 10" round metal
ductwork to the cap and work back
towards the hood location.
3) Use duct tape to seal the joints
between the ductwork sections.
4) Your Wolf island hood comes stan-
dard with a 10" round transition with
backdraft damper. It is recommended
that a backdraft damper be used in
all installations.
IMPORTANT NOTE: Do not use duct
smaller than 10".
WARNING
To reduce the risk of fire, use
only metal ductwork.

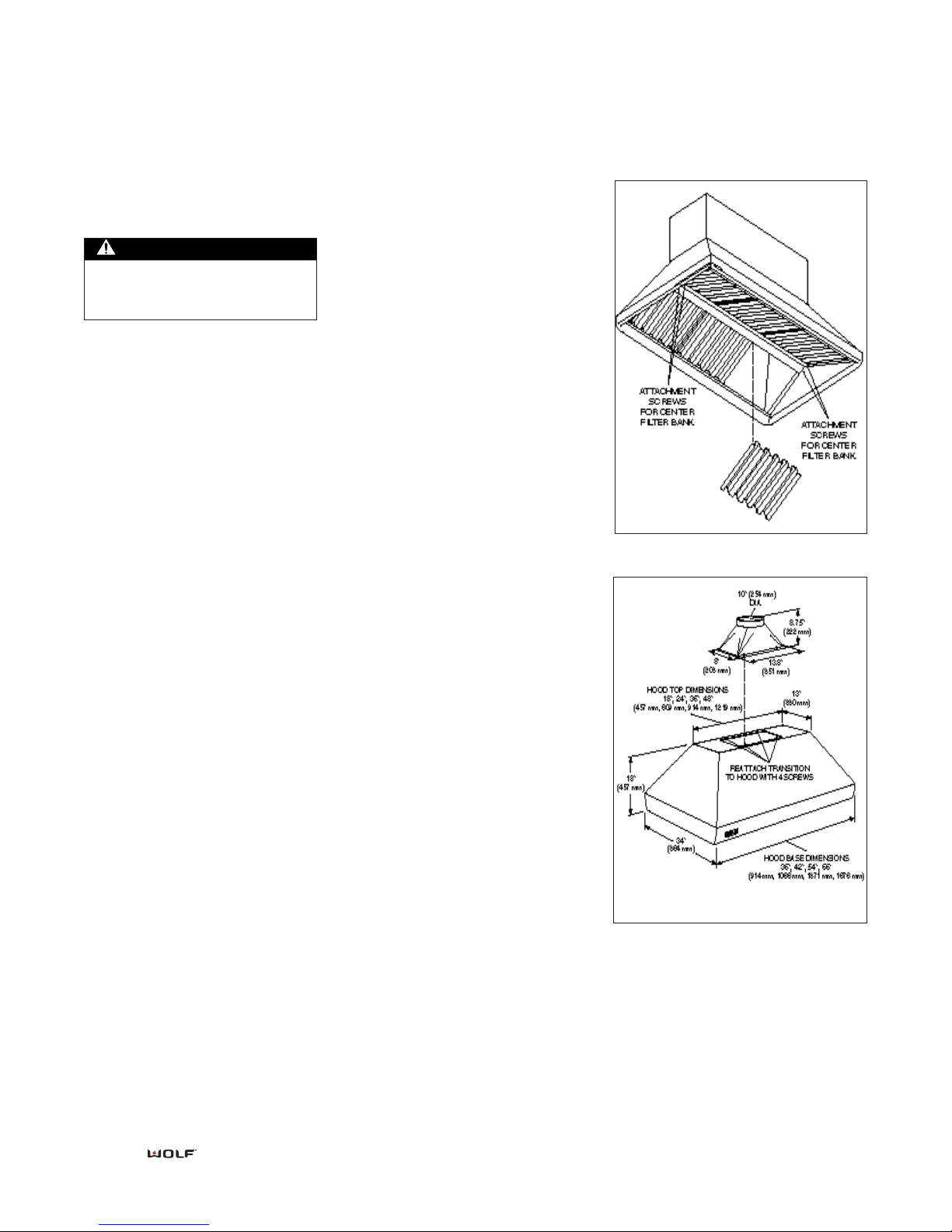

Island Hood Top Transition
PRO SERIES ISLAND HOOD INSTALLATION
Removing Island Hood Filter Bank

7
INSTALL HOOD
1) Make sure there is at least a 10"
opening in the ceiling to accommo-
date the duct work necessary for
proper ventilation.
2) Layout the overall dimensions of
the hood top plate on the finished
ceiling or unfinished surface. The top
plate width is 13", but overall length
will vary with the size of the hood.
Refer to the overall dimensions illus-
tration on page 3.
3) Use 2 x 4’s to construct the fram-
ing. The weight of the hood makes
proper structural support necessary.
4) Mark the center location of the
hood. Install (2) 2 x 4’s across the top
of the ceiling joists.
5) Drill 5/32" holes in 2 x 4’s to
match the pattern of the top of the
hood.
6) Make sure hood filters and hood
filter bank are removed prior to
installation of hood. See page 6 for
direction.
7) Lift the hood and align hood
mounting holes with pre-drilled ceil
ing holes. Slide ⁄" lag screws through
hood mounting holes and tighten
into 2x4 framing. DO NOT OVER
TIGHTEN SCREWS.
8) Connect the 10" round ductwork
to the hood transition using sheet
metal screws or duct tape.
9) Make electrical connections. See
Install Wiring on page 8.
10) Adjust hood to proper location
and tighten all 4 lag screws until
hood surface is flush with ceiling.
Install #10 x 2" screws through
remaining hood mounting holes
along top edge of hood surface for
additional support.
11) If installing internal blower DO
NOT REINSTALL hood filters and
hood center filter bank until blower
installation is complete. See Internal
blower installation on page 8.
PRO SERIES ISLAND HOOD INSTALLATION

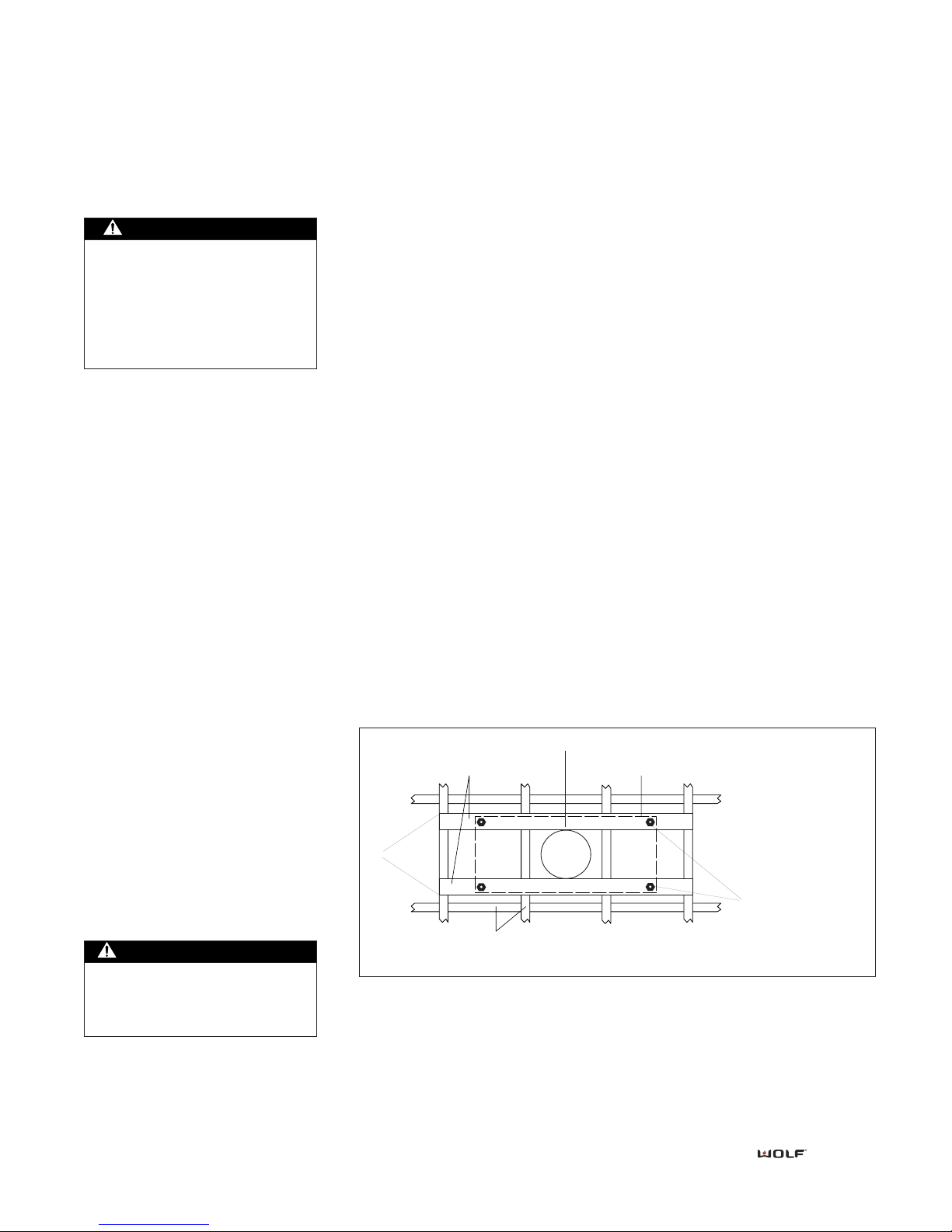

Typical top view of installation
TOP OF
ISLAND HOOD
EXISTING
CEILING JOISTS
2X 4's
DUCT
Distance will vary
depending on hood
size (see pg 3)
10" ROUND
1/4" x 3"
Lag Screws
13"
CAUTION
Framing must be structurally
tied together and tied to ceiling
joists to provide enough
strength to support the weight
of the hood and the internal
blower, if applicable.
CAUTION
A minimum of three installers is
required to lift island hood into
position.

8
INSTALL THE WIRING
This ventilation hood must be pro-
perly grounded, This unit should be
installed by a qualified electrician in
accordance with all applicable
national and local codes.
IMPORTANT NOTE: Do not run or
remove blower electrical connections
through duct work.
1) Run 120 VAC, 15 AMP minimum
circuit electric power cable from the
service panel to the junction box at
the center of hood. Supply 20”
minimum of Romex wire.
2) Remove the knockout located on
the left side of the hood top plate.
See below illustrations for specific
location and dimensions of knockout.
3) Feed the conduit through the hole
on top of the hood to junction box
located in center of hood shell.
4) Remove the junction box cover
and connect black to power supply
black wire, white to power supply
white wire and green wire to green
or bare wire.
5) Place all wiring connections inside
junction box and re-install cover.
Make sure that all wires are secure
and that no wires are pinched
between cover and box.
Island Hood Top Transition
WARNING
Before servicing or cleaning
unit, switch power off at service
panel and lock the service dis-
connecting means to prevent
power from being switched on
accidentally. When the service
disconnecting means cannot be
locked, securely fasten a promi-
nent warning device, such as a
tag, to the service panel.
PRO SERIES ISLAND HOOD INSTALLATION
INTERNAL BLOWER
IMPORTANT NOTE: Before turning
the power on, make sure the blower
is in the "OFF" position. Use wire con-
nectors or wire nuts approved by UL
or C/UL. Refer to installation instruc-
tions provided with each blower to
verify island or roof cut-outs.
IBLOWER-120REM (804703)
Installation
1) Remove hood filter and centerfil-
ter bank from hood. See page 6 for
instructions
2) Lift ventilator into position inside
the hood.
3) Engage two (2) Tabs on Ventilator
into two (2) Slots in Top of Hood.
Secure ventilator to Threaded Studs
with two (2) Hex Nuts (provided.)
4) Plug ventilator's power cords into
receptacles inside the hood. Be sure
to secure power cords with clips on
hood interior so as not to damage
during operation of blower.
5) Replace filters and center filter
bank once blower installation is com-
plete. See page 6 for direction.
WARNING
HEX NUTS
THREADED
STUDS
TOP OF
HOOD
POWER
CORDS
RECEPTACLES
TAB
SLOT
VENTILATOR
Internal Ventilator Blower
0.875" (22 mm)
(Electrical)DIA. HOLE
RECTANGULAR HOLE
5.875" x 8"
(149 mm x 203 mm)
A
B
Wiring Diagram:
Refer to the wiring diagram pack-
aged with the hood for more
information.
(A) Dimension in from
left side of hood
(B) dimension back
from front of hood to
center of knock-out
Hood Size
36" (914mm) 1" (25mm) 1" (25mm)
42" (1067mm) 2" (51mm) 1 1/2" (38mm)
54" (1372mm) 8" (203mm) 1 1/2" (38mm)
Island Hood Electrical Knockout Location Island Hood Electrical Knockout Dimensions

9
REMOTE BLOWER
IMPORTANT NOTE: Before turning
the power on, make sure the blower
is in the "OFF" position. Use wire con-
nectors or wire nuts approved by UL
or C/UL. Refer to installation instruc-
tions provided with each blower to
verify island or roof cut-outs.
STEP 1: Plan the Installation
1) Locate the blower so the length of
the duct run and number of elbows
and transitions are kept to a mini-
mum.
2) Where possible, blower should be
located between island studs or roof
rafters.
3) Avoid pipes, wires or other duct-
work that may be running through
the island.
4) Be sure that there is enough space
for any transitions that may be need-
ed between the blower and the con-
necting ductwork.
5) For best performance, locate tran-
sitions nearest the blower.
STEP 2: Connect Remote Blower
NOTE: Always refer to all blower
installation instructions provided with
the blower for additional mounting
and wiring instructions.
1) Remove cover from wiring box
inside of hood shell. Remove wiring
box knockout.
2) Feed 20” of inbound (Romex)
power cable through the knockout
opening hole and into the wiring
box. Secure the cable to wiring box
with an appropriate connector for
type of cable being used. Connect
leads as follows:
•Black (L1) to black (loose) in the J
box from the switch.
•Neutral to neutral (loose) in the J
box from the switch.
3) Wiring Remote Blower: Follow
wiring instructions at the blower as
outlined in the particular blower
installation instructions. Black (L1) to
black, white (neutral) to white – or
white to blue, or white to brown
(depending on model) and green to
grounding screw. Run remote blower
cable (ROMEX) to the hood.
Feed 20”of (ROMEX) power cable
through the knockout opening hole
and into the wiring box on the
rough-in plate of hood. Secure the
cable to wiring box with an appropri-
ate connector.
Locate cord assembly provided with
the remote blower. The cord assem-
bly has two leads, black (L1) and
white (neutral). Connect these leads
to the leads from the blower, black to
black and white to white.
Connect ALL green and bare wires
together to the ground screw in the
wiring box.
4) Plug cord assembly into receptacle
located near the center of the hood
shell. Use clips on hood interior to
keep excess power cord away from
moving parts.
5) Re-install wiring box cover and
screws. Make sure all wires are secure
and that no wires are pinched
between cover and box.

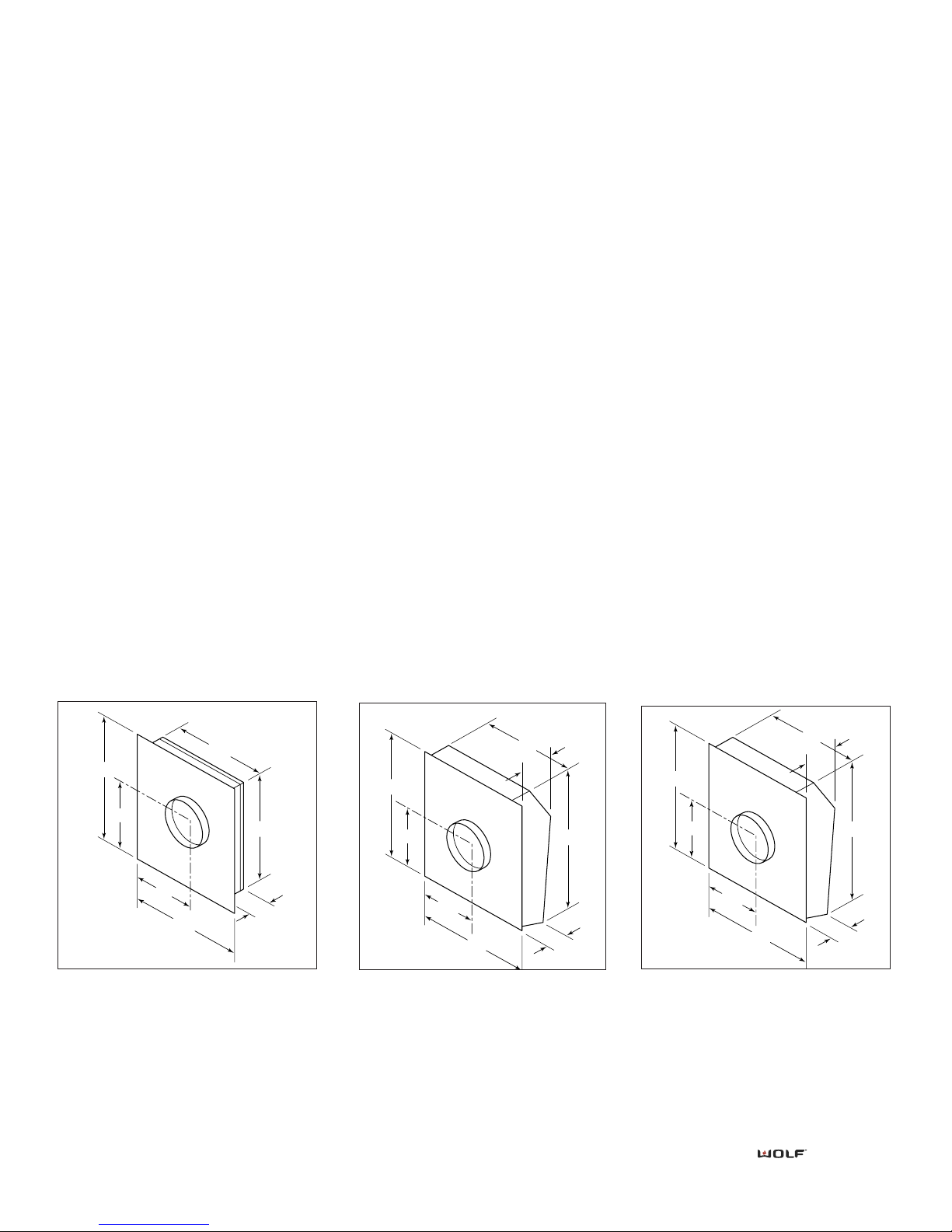

241/2"(622)
151/2"(394)
281/4"(717)
203/4"(527)
243/4"(629)
14"(356) 43/4"(121)
10"(254)
DIAMETER
Remote blower dimensions – 600 CFM (801640) and
900 CFM (801641)
10"(254)
DIAMETER
143/4"(375)
291/2"(749)
291/2"(749)
18"(457)
22"(559)
101/8"(257)
71/4"(184)
10"(254)
Remote blower dimensions – 1200 CFM
(801642)
10"(254)
DIAMETER
143/4"(375)
291/2"(749)
291/2"(749)
21"(533)
25"(635)
103/8"(264)
71/4"(181)
10"(254)
Remote blower dimensions – 1500 CFM
(804701)
PRO SERIES ISLAND HOOD INSTALLATION

10
INSTALL DUCT COVER
1) Duct cover must be installed to
ceiling prior to hood installation
2) Use (4) ⁄" x 3" lag screws provided
with hood to attach duct cover to ceil-
ing frame work. See page 3 for addi-
tional dimension information.
3) Install additional #10 x 2" screws
for support along top edge of duct-
cover and ceiling.
4) Install (4) 5/16" bolts, provided
with duct cover, through hood
mounting holes into bottom edge of
duct cover. Use 5/16" nuts supplied
with duct cover and tighten on bolts.
Use #12 x 7/8" hex head self tapping
screws provided with duct cover to
attach duct cover to hood assembly
PRO SERIES ISLAND HOODS INSTALLATION
INSTALL HOOD FILTER
AND DRIP CUPS
Hood Filters and Drip Cups Install
1) Reinstall hood filter center bank
with screws removed prior to installa-
tion of hood assembly.
2) Remove all packaging material
from filters and drip cups.
3) Slide drip cups along bottom edge
of hood opening so lip overhangs
slightly.
4) Lift filters into place. Lines of fil-
ters must run vertically and align with
drip cups.
5) Adjust filters to fill space by sliding
filters left to right.
CAUTION
Installing a duct cover assembly
will impact all aspects of hood
installation including hood loca-
tion, ducting, electrical place-
ment and adequacy of mounting
surfaces.
INSTALL LOGO
The nameplate is not pre-assembled
because there are various locations that
the logo can be installed. Additionally,
some customers prefer not to have a
nameplate on their hood. For your
convenience, Wolf has created a tem-
plate for a standardized logo location.
Please see the back page of these
installation instructions for Wolf logo
template.
1) Decide on the location for the
nameplate.
2) Clean mounting area with rubbing
alcohol.
3) If desired, cut-out template for
nameplate location.
4) Fold template, locate placement on
hood and tape to hood surface.
5) Check alignment and adjust if nec-
essary.
6) Remove backing paper from name-
plate.
7) Position nameplate in template
cutout and press into place.
8) Remove template and any tape
residue.
OPTIONAL
DUCT
COVER
1/4" x 3" Lag Screw
5/16" SS Nut
5/16" SS Screw
#1/4" x 7/8" #12
self-tapping hex screw
2" #10 hex screw
Duct cover installation

11
DUCT COVERS
Stainless steel duct covers are avail-
able in 6 and 12 inches for all Wolf
island hoods.
6-inch Duct Covers for Island Hoods
•DUC6COVER36I – 6" duct cover for
36" island hoods.
•DUC6COVER42I – 6" duct cover for
42" island hoods.
•DUC6COVER54I – 6" duct cover for
54" island hoods.
•DUC6COVER66I – 6" duct cover for
66" island hoods.
12-inch Duct Covers for Island
Hoods
•DUC12COVER36I – 12" duct cover
for 36" island hoods.
•DUC12COVER42I – 12" duct cover
for 42" island hoods.
•DUC12COVER54I – 12" duct cover
for 54" island hoods.
•DUC12COVER66I – 12" duct cover
for 66" island hoods.
PRO SERIES ISLAND HOOD ACCESSORIES
BLOWERS
Internal Blowers
•IBLOWER-120INT (804703) –
1200 CFM internal blower for island
hoods.
See blower and cooking product
chart for recommendations.
External Blowers
•CTBLOWER-60REM (801640) –
600 CFM external blower for island
hoods (36", 42" and 54" wide).
•CTBLOWER-90REM (801641) –
900 CFM external blower for island
hoods (36", 42" and 54" wide).
•CTBLOWER-120REM (801642) –
1200 CFM blower for island hoods.
•CTBLOWER-150REM (804701) –
1500 CFM blower for island hoods.
See blower and cooking product
chart for recommendations.

12
PRO SERIES ISLAND HOOD ACCESSORIES
DECORATIVE RAIL
ASSEMBLIES
Decorative rail assemblies are available
for Wolf island hoods in stainless steel,
platinum, brass and copper finishes.
Hood must be specifically ordered and
configured for rail assembly. Assembly
includes rail, standoffs and mounting
hardware.
Stainless Steel Finish:
•RAIL-36/SS – Decorative rail for 36"
island hoods.
•RAIL-42/SS – Decorative rail for 42"
island hoods.
•RAIL-54/SS – Decorative rail for 54"
island hoods.
•RAIL-66/SS – Decorative rail for 66"
island hoods.
Platinum Finish:
•RAIL-36/PLT – Decorative rail for 36"
island hoods.
•RAIL-42/PLT – Decorative rail for 42"
island hoods.
•RAIL-54/PLT – Decorative rail for 54"
island hoods.
•RAIL-66/PLT – Decorative rail for 66"
island hoods.
Brass Finish:
•RAIL-36/BR – Decorative rail for 36"
island hoods.
•RAIL-42/BR – Decorative rail for 42"
island hoods.
•RAIL-54/BR – Decorative rail for 54"
island hoods.
•RAIL-66/BR – Decorative rail for 66"
island hoods.
Copper Finish:
•RAIL-36/COP – Decorative rail for 36"
island hoods.
•RAIL-42/COP – Decorative rail for 42"
island hoods.
•RAIL-54/COP – Decorative rail for 54"
island hoods.
•RAIL-66/COP – Decorative rail for 66"
island hoods.

13
SERVICE
INFORMATION
IMPORTANT NOTE: If the island
hood does not operate properly,
follow these troubleshooting steps:
•Verify that power is being supplied
to the island hood.
•Check the electrical connections to
ensure that the installation has been
completed correctly.
•If the island hood still does not
work, contact an authorized Wolf
Factory Authorized Service Center. Do
not attempt to repair the appliance
yourself. Wolf is not responsible for
service required to correct a faulty
installation.
•To obtain the name and number of
a Wolf Factory Authorized Service
Center, call Wolf Customer Service at
[phone] or check our website;
www.wolfappliance.com.
•When calling for service, you will
need the island hood model and seri-
al numbers. Both numbers are listed
on the rating plate, located on the
left island of hood shell.
IMPORTANT INFORMATION
The information and images are the copyright property of Wolf Appliance Company, LLC,
an affiliate of Sub-Zero Freezer Company, Inc. Neither this book nor any information or images
contained herein may be copied or used in whole or in part without the express written permission
of Wolf Appliance Company, LLC, an affiliate of Sub-Zero Freezer Company, Inc.
©Wolf Appliance Company, LLC all rights reserved.
WOLF LOGO TEMPLATE
Use the full-scale template on the
following page 14 when placing the
nameplate in the standardized Wolf
logo location.

14
CUT-OUT FOR LOGO PLACEMENT
BOTTOM EDGE OF HOOD
FOLD LINE FOR LOGO PLACEMENT
LEFT OUTER EDGE OF HOOD

Wolf Appliance Company, LLC
P.O. Box 44848 • Madison, WI 53744 • 800-332-9513
www.wolfappliance.com
805050 7/03
