Planning Information
Pro 24" (610) Deep Wall Ventilation Hood
MODEL PW542418(R)
Model PW542418
Model PW542418
ail Option
Wolf Pro wall hoods provide the ultimate in
ventilation. With standard elements like heat sentry
and dual setting halogen lighting, Wolf elevates the
need for ventilation to an enjoyable perk.
Pro 24" (610) deep wall hoods are available in the
classic stainless steel finish. You also have the option
of a decorative rail. While a classic stainless steel rail
is standard on (R) models, platinum or brass rails are
available to match the bezels of our dual fuel ranges
and sealed burner rangetops.
Pro wall ventilation hoods are recommended for use
with all Wolf cooking appliances. For optimal perform-
ance, a Pro 27" (686) deep wall hood is recommended
for use with ranges and rangetops that contain a
charbroiler or griddle.
Wolf Pro 24" (610) deep wall hoods
are available in the classic stainless steel
finish. ail option hoods ( ) come with a
classic stainless steel decorative rail and
stand-offs. Optional platinum or brass
rails match dual fuel range bezels. Pro
wall hoods are sold as a shell only;
internal, in-line and remote blower
options are available.
Model PW542418 shown with decorative rail.
Classic stainless
steel finish
Stainless steel
baffle filters
Location of
rating plate
Infinite-speed
blower control
Welded seams
and hemmed edges
Halogen lighting
Hand finished
craftsmanship
ecessed easy-
access controls
Decorative rail
(optional)

2
Dimensions in parentheses are in
millimeters unless otherwise specified.
Unit dimensions may vary by ± 1/8" (3).
Planning Information
Pro 24" (610) Deep Wall Ventilation Hood
MODEL PW542418(R)
F E A U R E S
54" (1372) wide wall ventilation hood with
classic stainless steel finish
Rail option wall hoods (R) come with a
classic stainless steel decorative rail and
stand-offs—optional platinum or brass rail
available to match dual fuel range bezels
Internal, in-line and remote blower options
Heavy-duty 16-gauge brushed stainless steel
construction
Stainless steel enclosed liner
Continually welded seams, hemmed edges
and sides and hand finished craftsmanship
Recessed easy-access controls
Infinite-speed blower control
Heat sentry feature automatically turns unit
on when heat is sensed and automatically
adjusts blower speed
Halogen lighting with two settings
Removable, dishwasher-safe, restaurant-
grade stainless steel baffle filters
Transition with backdraft damper included
CSA listed to US and Canadian safety
standards
Two and five year residential warranty—
exclusions apply; warranty information can
be found on our website, wolfappliance.com

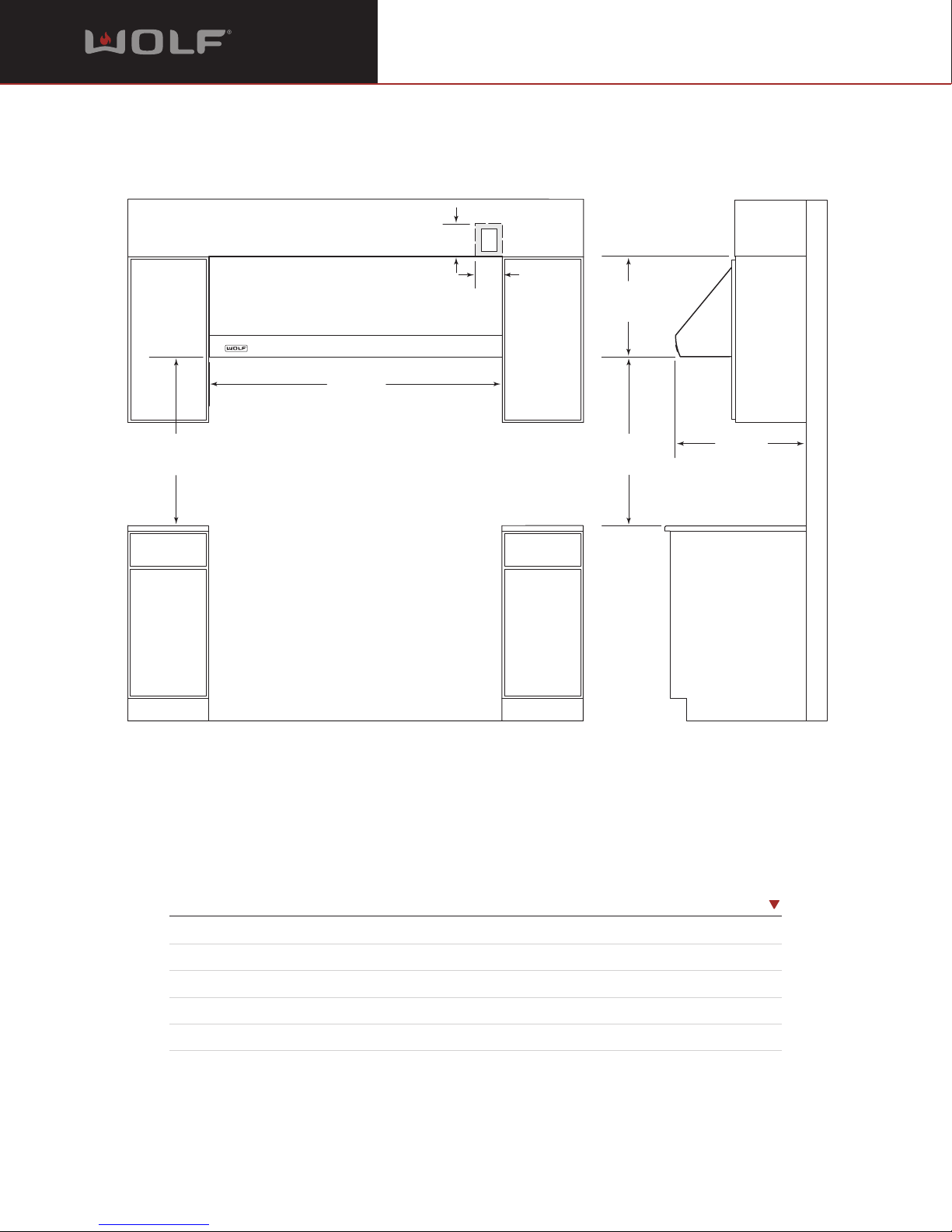

18"(457)
OVERALL
HEIGHT
54" (1372)
OVERALL WIDTH
4"(102)
24" (610)
OVERALL DEPTH
54" (1372)
OVERALL WIDTH
12"
(305)
4"(102)
24" (610)
OVERALL DEPTH
12"
(305)
18"(457)
OVERALL
HEIGHT
2"
(51)
3/4"(19)
DIAMETER
OF RAIL
OVERALL DIMENSIONS
Model PW542418
Model PW542418 with ail

3
Dimensions in parentheses are in
millimeters unless otherwise specified.
Planning Information
Pro 24" (610) Deep Wall Ventilation Hood
MODEL PW542418(R)
S P E C I F I C A I O N S
verall Width of Hood 54" (1372)
verall Height of Hood 18" (457)
verall Depth of Hood 24" (610)
(including rail) 26" (660)
Internal Blower ption 1200 CFM
In-Line Blower ption 1100 CFM
Remote Blower ptions 900, 1200 or 1500 CFM
Discharge Vertical or Horizontal*
Duct Size 10" (254) Round
Electrical Supply Requirements 110 / 120 V AC, 60 Hz
15 amp dedicated circuit
Shipping Weight (shell only) 128 lbs (58 kg)
*Horizontal discharge applications require a horizontal discharge kit.
Specifications are subject to change without notice.
BLOWER OP IONS
1200 CFM Internal Blower 810316
1100 CFM In-Line Blower 808332
900 CFM Remote Blower 801641
1200 CFM Remote Blower 801642
1500 CFM Remote Blower 804701
efer to Pro Ventilation ecommendations
at the end of this section.
ACCESSORIES
Platinum or brass decorative rail
and stand-offs
38" (965) high classic stainless
steel backsplash with or without
warming racks
6" (152), 12" (305), 18" (457) and
24" (610) classic stainless steel
duct covers
Horizontal discharge kit
Accessories are available through your
Wolf dealer. To obtain local dealer
information, visit the Showroom Locator
section of our website, wolfappliance.com.

4
E
6"
(152)
5"
(127)
LOCATION OF
ELECTRICAL
54" (1372)
WIDTH OF HOOD
NOTE: 24" (610) deep wall hoods can be vertical or horizontal discharge.
30" TO36"
(762–914)
TO COUNTERTOP
30" TO36"
(762–914)
TO COUNTERTOP
18" (457)
HEIGHT
OF HOOD
24" (610)
DEPTH OF HOOD
DIMENSIONS
verall Width of Hood 54" (1372)
verall Height of Hood 18" (457)
verall Depth of Hood (excluding rail) 24" (610)
Countertop to Bottom of Hood 30" (762) to 36" (914)
Location of Electrical Within shaded area
See Installation Instructions shipped with unit for detailed specifications.
I N S A L L A I O N S P E C I F I C A I O N S
Dimensions in parentheses are in
millimeters unless otherwise specified.
Planning Information
Pro 24" (610) Deep Wall Ventilation Hood
MODEL PW542418(R)

5
Dimensions in parentheses are in
millimeters unless otherwise specified.
Planning Information
Pro 24" (610) Deep Wall Ventilation Hood
MODEL PW542418(R)
I N S A L L A I O N N O E S
Refer to the illustrations and specifications
for overall dimensions and installation specifics.
Wolf Pro wall ventilation hoods are recom-
mended for use with any Wolf cooking appli-
ance, and should be as least as wide as the
cooking surface. It is recommended that the
hood overlap the cooking surface by 3" (76) on
either side.
IMPOR AN NO E: For optimal performance, a
Pro 27" (686) deep wall hood is recommended
for use with ranges and rangetops that contain
a charbroiler or griddle.
Installation of all Pro ventilation hoods
should be 30" (762) to 36" (914) from the
bottom of the hood to the countertop. Follow
the dimensions shown in the Installation
illustration on page 4.
Wolf Pro wall hoods are shipped without a
blower assembly. Internal, in-line or remote
blower assemblies are available. Blower options
also vary with the volume of air that needs to
be moved and the length of the duct run. Refer
to the charts at the end of this section for Pro
ventilation recommendations and blower
options.
IMPOR AN NO E: Install this ventilation hood
only with a Wolf blower.
Pro wall hoods require a separate, grounded
110/120 V AC, 60 Hz power supply. The service
should have its own 15 amp circuit breaker.
Placement of the electrical supply is not critical,
as long as you provide enough 120 V AC, 60 Hz
power cable to make the electrical connection.
Locate electrical within the shaded area shown
in the Installation illustration on page 4.
You must follow all National Electrical Code
regulations. In addition, be aware of local codes
and ordinances when installing your service.
Refer to the installation instructions shipped
with each Wolf product for detailed specifica-
tions. This information can also be found on
our website, wolfappliance.com.

6
Dimensions in parentheses are in
millimeters unless otherwise specified.
Planning Information
Pro 24" (610) Deep Wall Ventilation Hood
MODEL PW542418(R)
Ducting for Pro 24" (610)
deep wall hoods.
DUCTWORK INSTALLATION

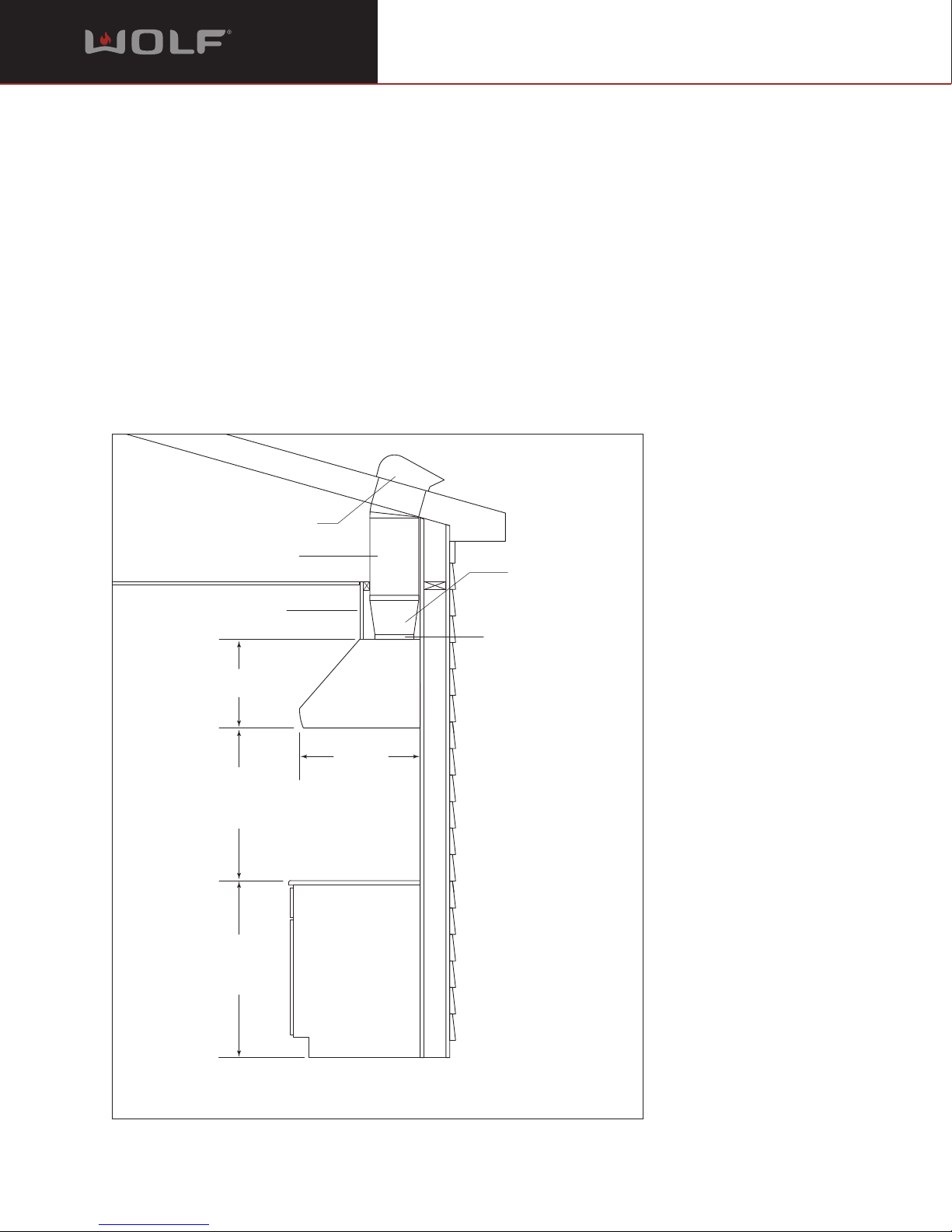

THROUGH ROOF
24" (610)
DEPTH OF HOOD
ROOF CAP OR REMOTE BLOWER
10" (254) ROUND DUCT
SOFFIT OR CABINET
OR DUCT COVER
NOTE: HORIZONTAL DISCHARGE REQUIRES AN ACCESSORY KIT.
VERTICAL DISCHARGE
TRANSITION
221/4"W x 9"D TO 10" ROUND
10"H (INCLUDING FLANGES)
30" TO 36"
(762–914)
COUNTERTOP
TO BOTTOM OF
VENTILATION HOOD
36" (914)
STANDARD
FLOOR TO
COUNTERTOP
HEIGHT
18" (457)
HEIGHT OF HOOD WALL HOOD
D U C I N G C O N S I D E R A I O N S
Wolf Pro 24" (610) deep wall hoods are shipped
without the blower assembly. Internal, in-line
and remote blower assemblies are available.
IMPOR AN NO E: Install this ventilation hood
only with a Wolf blower.
Pro 24" (610) deep wall hoods have a vertical
discharge. A horizontal discharge kit is available
as a sales accessory.
The hood will operate most efficiently when
ductwork does not exceed 50' (15 m) in length.
Local building codes may require the use of
make-up air. Consult your local HVAC profes-
sional for specific requirements in your area.
IMPOR AN NO E: Wolf Pro 24" (610) deep
wall hoods must be vented to the outside. Use
only metal ductwork.
Refer to the illustration below for ducting
considerations for Pro 24" (610) deep wall
hoods.

7
Dimensions in parentheses are in
millimeters unless otherwise specified.
Unit dimensions may vary by ± 1/8" (3).
Planning Information
Pro 24" (610) Deep Wall Ventilation Hood
MODEL PW542418(R)
W O L F B L O W E R A S S E M B L I E S
Aventilation system must include a blower
assembly. Wolf ventilation hoods are shipped
without the blower assembly. An internal, in-line
or remote blower assembly must be selected to
accommodate the cooking appliance, CFM
requirements and homeowner preferences.
Internal, in-line and remote blower assemblies
are available as sales accessories through your
Wolf dealer.
IMPOR AN NO E: Use only a Wolf blower
with all Wolf ventilation products.
Internal blowers are mounted inside the hood
canopy. In-line blowers are mounted in between
the hood and the exterior of the home. Remote
blowers can be mounted on the roof or in some
cases, on an exterior wall. Refer to the illustra-
tions below for dimensions of Wolf in-line and
remote blowers.
Pro ventilation recommendation charts on the
following page provide minimum CFM recom-
mendations according to the cooking appliance
and ventilation hood used and blower options
for each specific Pro 24" (610) deep wall hood.

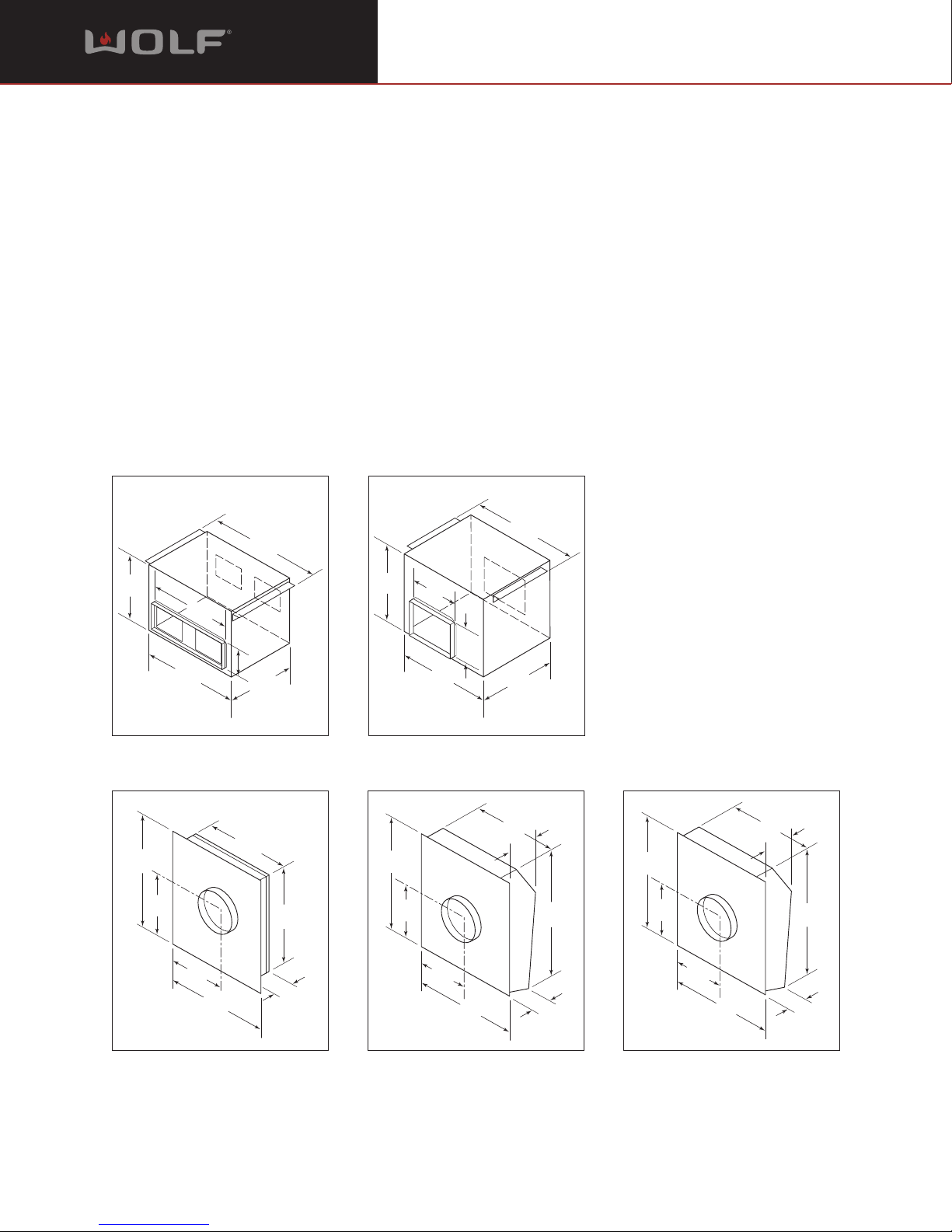

241/2"
(622)
151/2"
(394)
281/4"
(718)
203/4"
(527)
243/4"
(629)
14"
(356)
43/4"
(121)
10" (254)
Diameter
143/4"
(375)
291/2"
(749)
291/2"
(749)
18" (457)
22"
(559)
101/8"
(257)
71/4"
(184)
10"
(254)
10" (254)
Diameter
143/4"
(375)
291/2"
(749)
291/2"
(749)
21" (533)
25"
(635)
103/8"
(264)
71/4"
(184)
10"
(254)
10" (254)
Diameter
113/4"
(298)
211/2"
(546)
243/8"
(619)
181/2"
(470)
121/4"
(311)
41/2"
(114)
In-line BLOWE -60IL
emote BLOWE -60 EM and
BLOWE -90 EM
emote BLOWE -120 EM emote BLOWE -150 EM
18"
(457)
22"
(559)
247/8"
(632)
12"
(305)
18"
(457)
8"
(203)
In-line BLOWE -110IL

8
Dimensions in parentheses are in
millimeters unless otherwise specified.
Planning Information
Pro 24" (610) Deep Wall Ventilation Hood
MODEL PW542418(R)
P R O V E N I L A I O N C F M R E C O M M E N D A I O N S
P R O V E N I L A I O N B L O W E R O P I O N S
Pro 24" (610) Deep Wall Hoods
Blower Description Blower Number Wall Hood Models
600 CFM Internal WBL WER-60INT (810559) PW302418 / PW362418 / PW422418
900 CFM Internal WBL WER-90INT (811131) PW302418 / PW362418 / PW422418
1200 CFM Internal WBL WER-120INT (810316) PW482418 / PW542418 / PW602418 / PW662418
600 CFM In-Line BL WER-60IL (808331) PW302418
1100 CFM In-Line BL WER-110IL (808332) All 24" (610) Deep Wall Hoods
600 CFM Remote BL WER-60REM (801640) PW302418
900 CFM Remote BL WER-90REM (801641) PW302418 / PW362418 / PW422418
PW482418 / PW542418
1200 CFM Remote BL WER-120REM (801642) All 24" (610) Deep Wall Hoods
1500 CFM Remote BL WER-150REM (804701) All 24" (610) Deep Wall Hoods
Pro 24" (610) Deep Wall Hoods
Model PW302418 PW362418 PW422418 PW482418 PW542418 PW602418 PW662418
DF304 / R304 / SRT304 600 600
DF366 / R366 / SRT366 / RT366 900 900
DF364 / R364 / SRT364 / RT364 900 900
RT362 900 900
R488 / RT488 1100 1100
DF486 / R486 / SRT486 / RT486 1100 1100
DF484 / R484 / SRT484 / RT484 1100 1100
DF606 / R606 1500 1500
DF604 1500 1500
Minimum CFM requirements for Wolf ranges and rangetops. CFM recommendations are based on total Btu/hr output.
Additional CFM may be required for long duct runs.
