Wolf DOWNDRAFT User manual

DOWNDRAFT VENTILATION
USE & CARE GUIDE

2 | English
Contents
2Safety Precautions
3Downdraft Features
4Downdraft Operation
4Care Recommendations
5Troubleshooting
5Wolf Warranty
DOWNDRAFT VENTILATION
Customer Care
The model and serial number are printed on the enclosed
product registration card. Both numbers are also listed on
the product rating plate. Refer to page 3 for rating plate
location. For warranty purposes, you will also need the date
of installation and name of your authorized Wolf dealer.
Record this information below for future reference.
SERVICE INFORMATION
Model Number
Serial Number
Date of Installation
Certied Service Name
Certied Service Number
Authorized Dealer
Dealer Number
Important Note
To ensure this product is installed and operated as safely
and efciently as possible, take note of the following types
of highlighted information throughout this guide:
IMPORTANT NOTE highlights information that is especially
important.
CAUTION indicates a situation where minor injury or product
damage may occur if instructions are not followed.
WARNING states a hazard that may cause serious injury or
death if precautions are not followed.
SAFETY PRECAUTIONS
GENERAL SAFETY PRECAUTIONS
•Sufcient air is needed for proper combustion and
exhausting of gases through the ue (chimney) of
fuel burning equipment to prevent back drafting.
•Follow the heating equipment manufacturer’s
guideline and safety standards and the local code
authorities.
•Do not operate any fan with a damaged cord or
plug. Discard fan or return to an authorized service
facility for examination and/or repair.
•This appliance must be grounded (earthed).
CAUTION
For general ventilating use only. Do not use to
exhaust hazardous or explosive materials and
vapors.
•Ducted fans must always be vented to the
outdoors.
•To reduce the risk of re, use only steel ductwork.
•Do not install this downdraft with the activating
switch directly behind a burner or element. The
minimum distance between the switch and edge of
the burner should be 102 mm.
•Do not wear loose-tting or hanging clothing when
operating this appliance. It may be ignited by
burners or elements on the cooktop.
•Children should not be left alone or unattended in
the area where this appliance is in use.
CAUTION
To reduce the risk of fire and properly exhaust air,
be certain to duct air outside. Do not vent exhaust
air into spaces within walls or ceilings or into
attics, crawl spaces or garages.
IMPORTANT INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
•Read this use & care guide carefully before using
your new downdraft ventilation to reduce the risk
of re, electric shock or injury to persons.
•Ensure proper installation and servicing. This
appliance must be properly installed and grounded
(earthed) by a qualied technician.
•Warranty service must be performed by Wolf
factory certied service.
•Installation work and electrical wiring must be done
by qualied person(s) in accordance with all appli-
cable codes and standards, including re-rated
construction codes and standards.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK, OR INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
a)
Use this unit only in the manner intended by
the manufacturer. If you have questions, con-
tact the manufacturer.
b) Before servicing or cleaning unit, unplug the
appliance or switch power off at service panel
and lock the service disconnecting means
to prevent power from being switched on
accidentally. When the service disconnecting
means cannot be locked, securely fasten a
prominent warning device, such as a tag, to
the service panel.

wolfappliance.com | 3
SAFETY PRECAUTIONS
IMPORTANT INSTRUCTIONS
GENERAL SAFETY PRECAUTIONS
•Do not repair or replace any part of this appliance
unless specically recommended in this guide. All
other service should be performed by a qualied
technician.
•To avoid motor bearing damage and noisy or
unbalanced impellers, keep drywall spray, con-
struction dust, etc. off power unit.
•When cutting or drilling into wall or ceiling, do not
damage electrical wiring or other hidden utilities.
•Please read the specication label on the down-
draft for further information and requirements.
WARNING
TO REDUCE THE RISK OF A RANGE TOP
GREASE FIRE:
a)
Never leave surface units unattended at high
settings. Boilovers cause smoking and greasy
spillovers that may ignite. Heat oils slowly on
low or medium settings.
b) Always turn hood ON when cooking at high
heat or when flambéing food (i.e. Crepes
Suzette, Cherries Jubilee, Peppercorn Beef
Flambé).
c) Clean ventilating fans frequently. Grease should
not be allowed to accumulate on fan or filter.
d) Use proper pan size. Always use cookware
appropriate for the size of the surface element.
WARNING
TO REDUCE THE RISK OF INJURY TO PER-
SONS IN THE EVENT OF A RANGE TOP
GREASE FIRE, OBSERVE THE FOLLOWING*:
a)
SMOTHER FLAMES with a close-fitting lid,
cookie sheet, or metal tray, then turn off the
burner. BE CAREFUL TO PREVENT BURNS.
If the flames do not go out immediately, EVAC-
UATE AND CALL THE FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN—You may
be burned.
c) DO NOT USE WATER, including wet dishcloths
or towels—a violent steam explosion will result.
d) Use an extinguisher ONLY if:
1) You know you have a Class ABC extin-
guisher, and you already know how to
operate it.
2) The fire is small and contained in the area
where it started.
3) The fire department is being called.
4) You can fight the fire with your back to an
exit.
*Based on “Kitchen Firesafety Tips” published by NFPA.

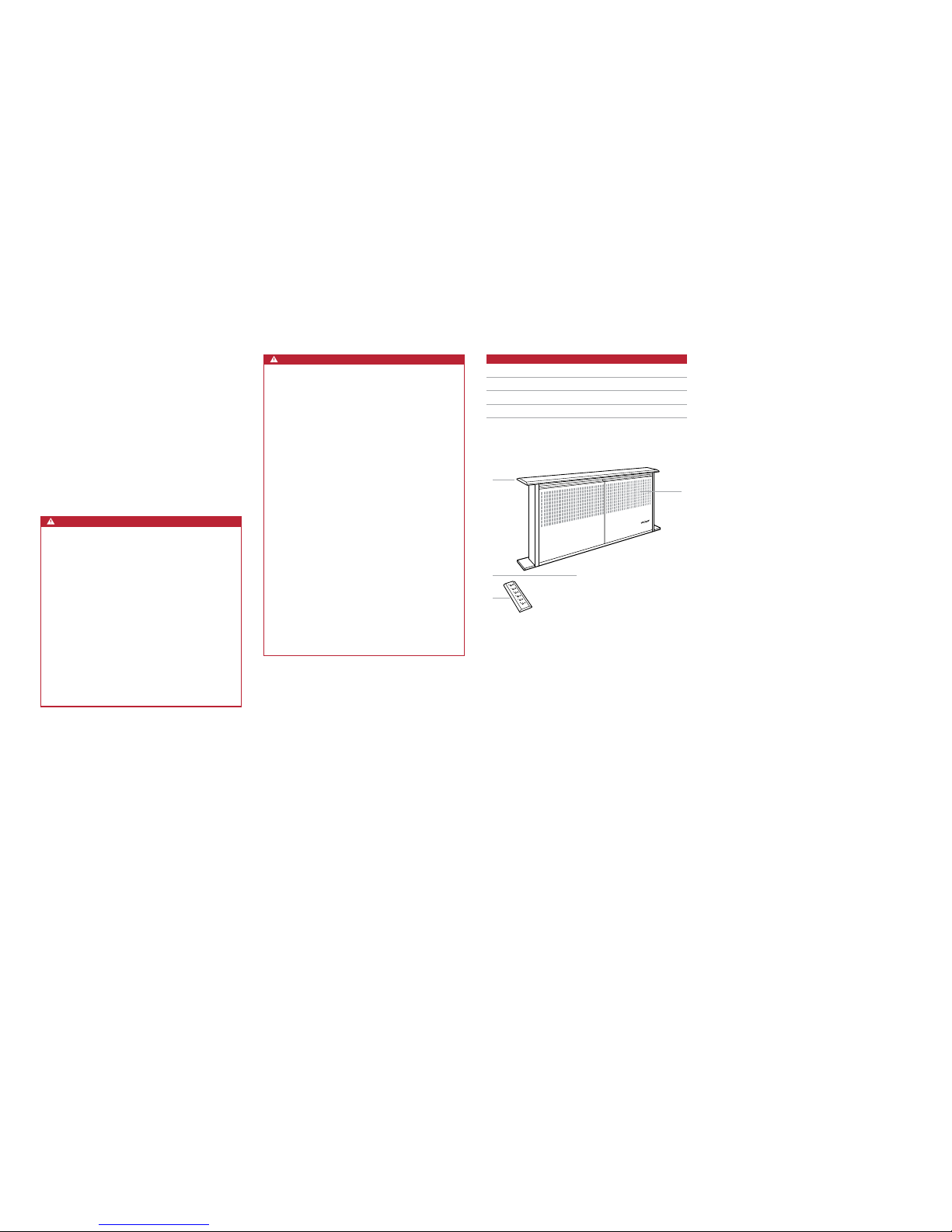

DOWNDRAFT FEATURES
Downdraft Features
FEATURE
1Product Rating Plate (below countertop)
2Remote-Mounted Control Module
3Top Cover
4Filter and Filter Cover
Getting Started
We know you are eager to start cooking, but before you
do, please take some time to read this use & care guide.
Whether you are an occasional cook or an expert chef, it
will be to your benet to familiarize yourself with the safety
practices, features, operation and care recommendations of
your Wolf downdraft ventilation system.
To ensure all residual oil from the manufacturing process
has been removed, clean the downdraft thoroughly with hot
water and a mild detergent prior to use. Rinse and dry with
a soft cloth. Refer to care recommendations on page 4.
Downdraft (model ICBDD36).
3
2
4
1

4 | English
DOWNDRAFT OPERATION
Downdraft Operation
CONTROL MODULE
1To activate the downdraft, press the button. The
drowndraft chimney will elevate and the blower will turn
on automatically to low speed. Refer to the illustration
below.
2To adjust the blower speed, press the , or
button. The corresponding LED will illuminate to indicate
blower setting.
3To initiate boost mode, press and hold the button
for 5 seconds. Boost increases airow by approximately
20% more than high but is limited to 10 minutes. After
10 minutes, the blower will automatically transition to
high.
DELAY FEATURE
The delay feature continues blower operation for approxi-
mately ve minutes after use, then automatically turns off.
If the blower was operating on high or medium speed,
the blower will transition to the next lowest setting for ve
minutes before turning off. The chimney will stay up until the
button is pressed.
FILTER INDICATOR
After approximately 30 hours of operation, the LED will
illuminate to indicate lters need to be cleaned. Refer to
care recommendations on page 4.
To reset the lter indicator, press the button. Refer to the
illustration below.
Control module.
CONTROL MODULE BUTTONS
DELAY MEDIUM
FILTER LOW
HIGH+ UP/DOWN
Filter Removal
To remove lters, push down on the lter while pulling the
lter forward and away from the downdraft. Refer to the
illustration below. Reinstall using the reverse procedure.
The lters are dishwasher safe. Refer to care recommenda-
tions on page 4.
IMPORTANT NOTE: Do not operate the downdraft without
lters.
MELT HIGH
OFFON
OFFON
SIM HIGH
OFFON
SIM HIGH
BRIDGE
OFFON
SIM HIGH
ZONE2
CLEAR
OFF
O
ZONE2
ZONE3
HIGH
SIM OFFON
Filter removal.
CARE RECOMMENDATIONS
Care Recommendations
CLEANING
Stainless
steel
Use a nonabrasive stainless steel cleaner and
apply with a soft lint-free cloth. To bring out the
natural luster, lightly wipe surface with a water-
dampened microber cloth followed by a dry
polishing chamois. Always follow the grain of
stainless steel.
Control
module
Use spray degreaser to remove ngerprints and
food soil. Spray on a cloth before wiping panel.
IMPORTANT NOTE: Do not spray cleaners
directly on the control module.
Filters Place lters and lter covers into the dishwasher
at approximately 160°C, or hand wash using a
biodegradable detergent.

wolfappliance.com | 5
Wolf Products Limited Warranty
INTERNATIONAL PRODUCTS
FOR RESIDENTIAL USE ONLY
FULL TWO YEAR WARRANTY
For two years from the date of original installation, your Wolf Appliance product warranty covers
all parts and labor to repair or replace, under normal residential use, any part of the product that
proves to be defective in materials or workmanship. All service provided by Wolf Appliance under
the above warranty must be performed by Wolf factory certied service, unless otherwise speci-
ed by Wolf Appliance, Inc. Service will be provided during normal business hours.
LIMITED THIRD THROUGH FIFTH YEAR WARRANTY
For ve years from the date of original installation, Wolf Appliance will repair or replace the follow-
ing parts that prove to be defective in materials or workmanship: gas burners (excluding appear-
ance), electric heating elements, blower motors (ventilation hoods), electronic control boards,
magnetron tubes and induction generators. The part(s) will be repaired or replaced, free of charge,
with the owner paying for all other costs including labor. All service provided by Wolf Appliance
under the above warranty must be performed by Wolf factory certied service, unless otherwise
specied by Wolf Appliance, Inc. Service will be provided during normal business hours.
Wolf, Wolf & Design, Wolf Gourmet, W & Design and the color red as applied to knobs are registered trademarks and service marks of Wolf Appliance, Inc. Sub-Zero, Sub-Zero &
Design, Dual Refrigeration, Constant Care, The Living Kitchen, Great American Kitchens The Fine Art of Kitchen Design, and Ingredients are registered trademarks and service marks
of Sub-Zero, Inc. (collectively, the “Company Marks.”) All other trademarks or registered trademarks are property of their respective owners in the United States and other countries.
TROUBLESHOOTING
Troubleshooting
OPERATION
Downdraft ventilation system does not operate.
•Verify power is on.
•Verify electrical power to unit and home circuit breaker
is on.
SERVICE
•Maintain the quality built into your product by contacting
Wolf factory certied service.
•When contacting service, you will need the model and
serial number of your product. Both numbers are listed
on the product rating plate. Refer to page 3 for rating
plate location.
•For warranty purposes, you will also need the date of
installation and name of your authorized Wolf dealer. This
information should be recorded on page 2 of this guide.

WOLF APPLIANCE, INC.
PO BOX 44848
MADISON, WI 53744 USA
WWW.WOLFAPPLIANCE.COM
824656 REV-A 10/2013
