Wolseley Bb110 User manual

Safety Requirements and Regulations

Electric fences shall be installed and operated so that they cause no electrical hazard to persons, animals

or their surroundings.

· Electric fence constructions, which are likely to lead to entanglement of animals or persons, shall

be avoided.

· An electric fence shall not be supplied from more than one energiser or from independent fence

circuits of the same energiser.

· The gap between two separate electric fences with different energisers shall be at least 2m.

· If this gap is to be closed, this should be affected by means of an electrically non conductive

material.

· Barbed or razor wire shall not be electrified by an energiser.

· Any part of an electric fence which is installed along a public path or highway shall be identified

by warning signs (p/no 33020) securely fastened to the fence posts or firmly clamped to the fence

wires at recommended intervals of approximately 10 metres to 50 metres, but not exceeding 90

metres. Warning signs should be at least 100mm x 200mm with a yellow background. The

inscription shall be black and read: TAKE CARE - ELECTRIC FENCE, it should be indelible

and inscribed on both sides, lettering height of at least 25mm.

· Except for low output battery operated energisers, the energiser earth electrode shall penetrate the

ground to a depth of at least 1m.

· Connecting leads that are run inside buildings shall be effectively insulated from the earth

structural parts of the building. This may be achieved by using double insulated high voltage cable

(p/no 31640). Connecting leads that are run underground shall be run in a conduit of insulating

material.

· Care shall be taken to avoid damage to the connecting leads due to the effects of animal hooves or

tractor wheels sinking into the ground.

· Connecting leads shall not be installed in the same conduit as the mains supply wiring,

communication cables or data cables.

· Connecting leads and electric fence wires shall not cross above overhead power or communication

lines.

· Crossings with overhead cables shall be avoided wherever possible. If such a crossing cannot be

avoided, it shall be made underneath the power line and as nearly as possible at right angles to it.

· If connecting leads and electric fences are installed near an overhead power line the clearances

shall be:

1. Power Line Voltage: Under 1000 volts - Clearance: 3 Metres

2. Power Line Voltage: 1000 - 33,000 volts - Clearance: 4 Metres

3. Power Line Voltage: Over 33,000 volts - Clearance: 8 Metres

· If connecting leads and electric fence wires are installed near an overhead power line, their height

above ground shall not exceed 2m. This height applies either side of the orthogonal projection of

the outermost conductors of the power line on the ground surface, for a distance of - 2m for power

lines not exceeding 1000V - 15m for power lines exceeding 1000V.

· A distance of 10m shall be maintained between the energiser and any other earth system such as

the household supply system protective earth or the telecom system earth.

· A warning sign as described earlier, shall be fitted to every point where persons may gain ready

access to the conductors.

· Where an electric animal fence crosses a public pathway, a non-electrified gate shall be

incorporated in the electric fence at that point or a crossing by means of stiles shall be provided.

· At any such crossing, the adjacent electrified wires shall carry warning signs as described earlier.

BB110 Battery

Powered Energiser

Stockshop (L.E.) Ltd, Lodge Trading Estate, Broadclyst, Exeter, Devon, EX5 3BS

Tel: 01392 460077 Fax: 01392 460966 Email: sales@stockshop.co.uk

www.stockshop.co.uk

Please retain instructions for future reference.

The Wolseley BB110 is a portable, dry battery powered energiser for

temporary fencing. It is powered by a standard 9 volt long life electric fence

battery.

Features of the Wolseley BB110

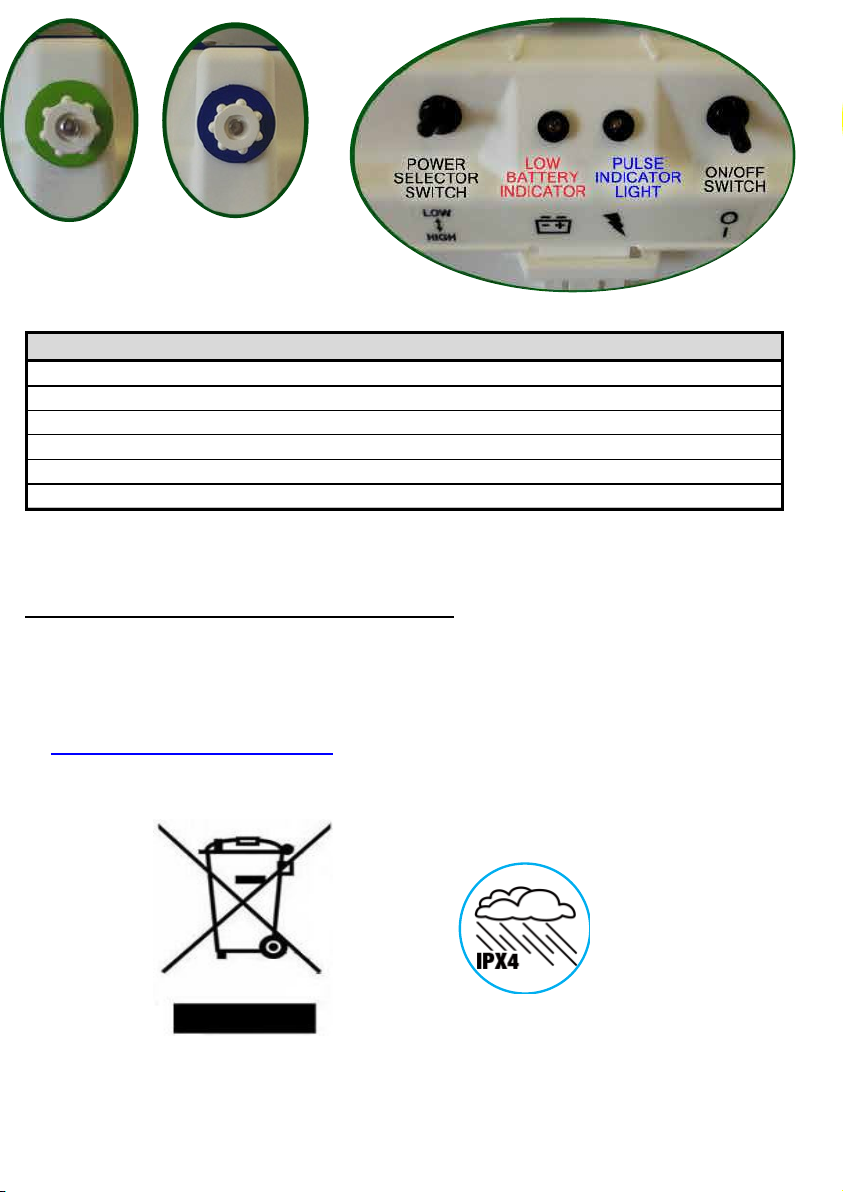

The Wolseley BB110 has a low battery indicator which will shine red when the

battery needs to be replaced. It also features a blue LED that flashes to indicate that the

line is live.

An additional feature of the BB110 is the LOW/HIGH power selector switch. When

HIGH power is selected, a light cell operates at night and automatically switches the

energiser to LOW power during darkness.

Getting started

Warning: Danger of electric shock! Handle with care and always ensure the switch

is in the “off” position before handling.

Only carry out installation when equipment is turned off.

1) To remove the lid: squeeze the clips at the front and back and lift

2) Place the 9 volt battery into the box and release the battery leads

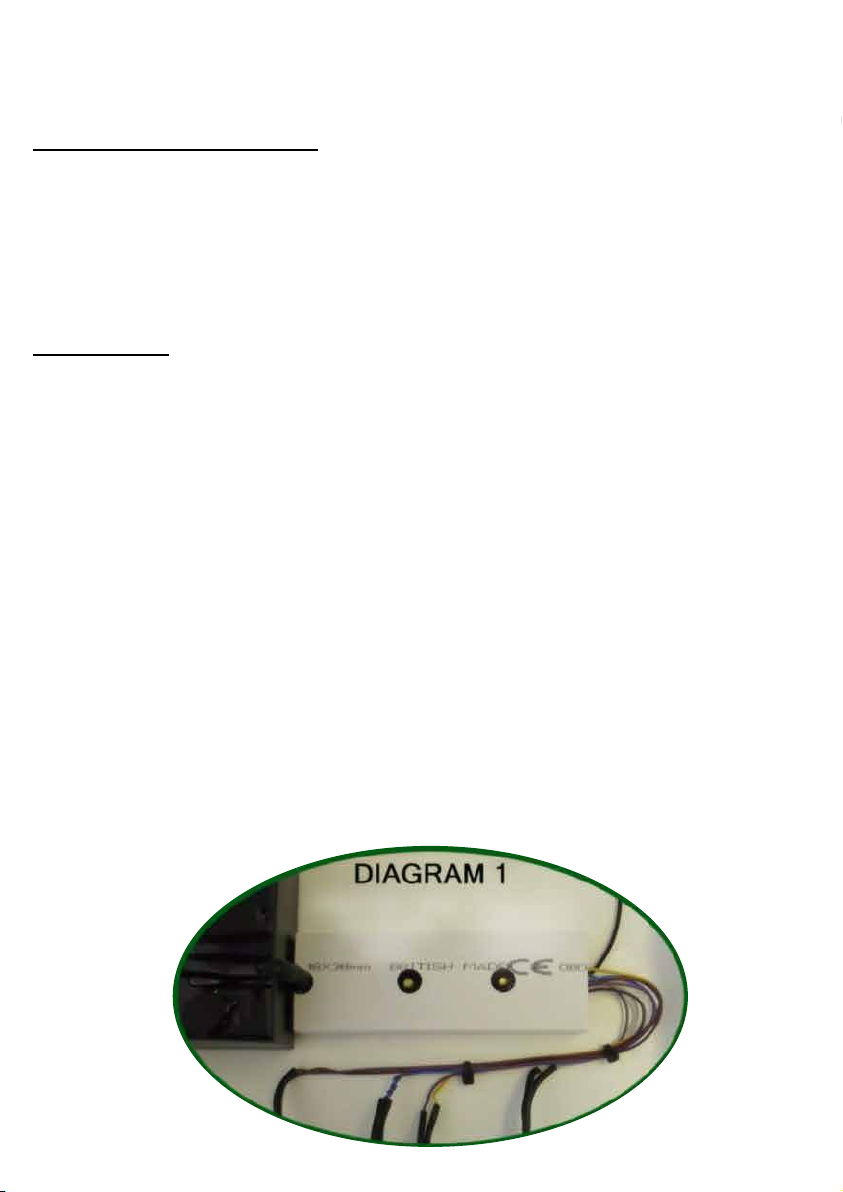

3) Attach the battery leads to the terminals on the inside of the lid; attaching the

positive

lead (red) to the terminal nearest the black box, and the negative (black) to the other

terminal. (See diagram 1)

4) Replace the lid, ensuring that the clips are properly engaged

5) Unscrew the white plastic nuts on the terminals at the back of the unit on the outside

6) Attach the green lead to the green terminal and the blue lead to the blue terminal

7) Locate the fencer in the desired position. For optimum performance this is usually

in the

middle of the fence line

8) Connect the blue HT lead to the line, and the green lead to the earth stake using the

crocodile clip

9) Switch on your energiser and the line is now live.

Specifications

Case moulded in white ultra violet stabilised polypropylene.

Stored Energy (Joules) 0.43 -

Open load 500ohm load

Output Voltage 9 Kv 2.9 Kv

Max Fence length 8km (Single strand galvanised fencing wire)

W.E.E REGISTRATION NUMBER: WEE/GGO133ZR/PRO

EARTH

LEAD

STUD

LEAD

STUD

DISPOSAL AND RECYCLING INFORMATION

Thank you for purchasing the Wolseley BB110 energiser. Please familiarise yourself with

the operating instructions for your product and always use only for the purpose it was

designed. At any point in the future, should you decide to dispose of, or replace your

product, please ensure that you do NOT dispose of it in a Landfill site. Please only

dispose of it, at a registered recycling facility, more information on which can be found

at WWW.RECYCLE- MORE.CO.UK .Also ensure that any batteries, where fitted, are

removed and recycled in the correct manner. For any further advice on recycling our

products, please contact our Service Department on 01392 460077.

BLACK

BOX

POSITIVE LEAD

TERMINAL

(RED)

NEGATIVE

TERMINAL

(BLACK)
