Wonderfire 530U PRESIDENT Assembly instructions

INSTALLER GUIDE
for
MODEL 530U
(G.C. 32-032-21)
PRESIDENT
UNIVERSAL
FREE STANDING GAS STOVE
with
Balanced Flue*
(with Logs or Coals)
(with Logs or Coals)(with Logs or Coals)
(with Logs or Coals)
Please keep in a safe place for future reference
600B353/05
*Open Flue Installations (Type B
A
ppliances)
If this appliance is intended to be
installed to an open metal flue pipe
(Type B appliance) instead of to a
direct vent terminal (Type C
appliance), discard this manual.
Follow the installation and operating
procedure in the manual supplied with
the Open flue adapter kit No 9500388.

2
This Installer Guide gives sufficient details to
enablethe appliance to be installed and
maintained. If further information is required,
our Wonderfire service department will be
pleased to help.
Please phone us on 0121 386 6203.
In the Republic of Ireland call 353 183 75114.
Please leave this Installer Guide with the user
As supplied, this appliance is for use with natural
gas (G20)
When converted using conversion kit no. 9500390
this appliance is for use with propane gas (G31)
This appliance is for use in the United Kingdom
(GB) and the Republic of Ireland (IE) only.
CUSTOMER CARE

3
1. OPTIONS..............................................................................................................................................................................4
1.1. Appliance styles .................................................................................................................................................................................... 4
1.2. Additional optional features............................................................................................................................................................. 4
1.3. LP Gas ..................................................................................................................................................................................................... 4
1.4. Flue & Terminal options.................................................................................................................................................................... 4
2. APPLIANCE DATA...........................................................................................................................................................5
3. GENERAL INSTALLATION REQUIREMENTS.....................................................................................................6
4. LOCATION..........................................................................................................................................................................7
4.1. Terminal location ................................................................................................................................................................................ 7
4.2. Wall & Floor Fixing.............................................................................................................................................................................. 7
4.3. Flue system configurations................................................................................................................................................................ 7
5. PACK CONTENTS ...........................................................................................................................................................11
6. APPLIANCE PREPARATION.......................................................................................................................................12

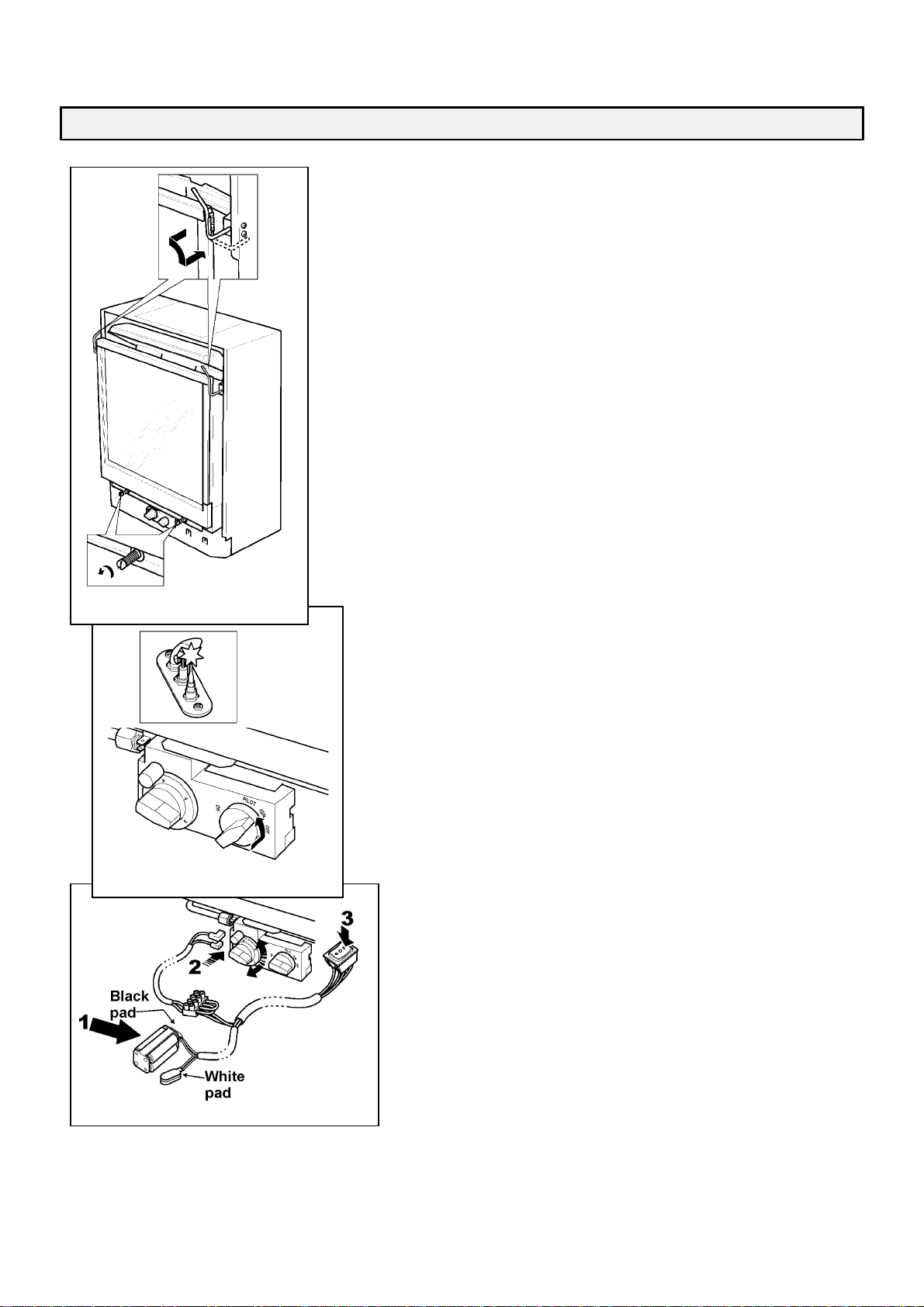

6.1 Detach the window...........................................................................................................................................................................12
6.2. Check ignition spark.........................................................................................................................................................................12
6.3. Check flame control motor.............................................................................................................................................................12
6.4. Top Flue Outlet Positioning........................................................................................................................................................... 13
6.5. Rear Flue Outlet Preparation......................................................................................................................................................... 13
6.6. Attaching Wall Spacers..................................................................................................................................................................... 13
6.7. Attaching Air Restrictors – Appliances with Vertical Flue Rise Only.................................................................................14
6.8. Attaching top air deflector.............................................................................................................................................................. 14
6.9. Appliance Wall or Floor Fixing ...................................................................................................................................................... 14
7. FLUE INSTALLATION..................................................................................................................................................15
7.1. Installations except Flat on Wall with Wonderfire Flue Terminal 9500389 – Flue Pipe Fitting................................... 15
7.2. Flat On Wall Installations With Wonderfire Flue Terminal 9500389 – Terminal Preparation....................................15
7.3. Preparing the wall..............................................................................................................................................................................16
7.4. Securing appliance in place.............................................................................................................................................................16
8. FITTING SIDES & SWITCH.........................................................................................................................................17
9. GAS SUPPLY INSTALLATION...................................................................................................................................18
10. CERAMIC FUEL BED INSTALLATION..................................................................................................................19
10.1. Ceramic Walls Installation.............................................................................................................................................................19
10.2. Ceramic Logs Installation............................................................................................................................................................... 20
10.3. Ceramic coals Installation.............................................................................................................................................................. 21
11. WINDOW REFITTING & CHECKING.....................................................................................................................22
12. FULL OPERATING CHECKS......................................................................................................................................23
12.1 Control operation check................................................................................................................................................................. 23
12.2 Check the reference pressure ........................................................................................................................................................23
13. INSTALLATION COMPLETION ..............................................................................................................................24
14. FINAL REVIEW.................................................................................................................................................................25
15. SERVICING........................................................................................................................................................................25
CONTENTS

4
1. OPTIONS
Heater engine unit 9500384 is used with all installations.
1.1. Appliance styles
The freestanding stovecase is available in the followingalternative finishes:
Black textured - Kit No 9500385.
Black enamelled – Kit No.9500386.
Green enamelled – Kit No. 9500387.
One of the above kits must be used with each installation.
1.2. Additional optional features
Remote control unit Hand operated control for flame & heat adjustment. It may be
fitted before the stove is installed or retrofitted at a later date -
Kit No. 9500397.
1.3. LP Gas
LPG Conversion kit Burner & injector kit forconversion from natural gas to
propane – Kit No. 9500390.
1.4. Flue & Terminal options
1.4.1. Balanced flue installations (Type C appliance)
One or more of the accessories listed below must be used for each installation. See the
“Location” section of this manual.
Kit No
9500389 Wonderfire flue terminal kit for non-combustible wall thickness up to 66cm
(26in)
9940088 Terminal Guard for Wonderfire flue terminal
817VAK Adapter for Dura-vent flue pipes
984 Dura-vent DV GS horizontal square flue terminal with integral guard
945B 45° Dura-vent DVGS elbow
990B 90° Dura-vent DVGS elbow
908B 6” Dura-vent DVGS pipe length
906B 12” Dura-vent DV GS pipe length
904B 24” Dura-vent DV GS pipe length
903B 36” Dura-vent DV GS pipe length
902B 48” Dura-vent DV GS pipe length
911B Adjustable 11”-145/8” Dura-vent DVGS pipe length
940 Decorative wall thimble cover foruse with Dura-vent flue terminal
963 Ceiling firestop
1.4.2. Open flue installations
Kit No. 9500388 converts this appliance from a balanced fluestove to an open fluedstove
for use with a100mm(4in) metal flue pipe. A fullinstallation manual issuppliedwith the
kit.

5
2. APPLIANCE DATA
This product uses fuel effect pieces, burner compartment walls and gaskets containing
Refractory Ceramic Fibres (RCF), which are man-made vitreous silicate fibres. Excessive
exposure to these materials may cause temporary irritation to eyes, skin and respiratory
tract. Consequently, it makes sense to take care when handling these articles to ensure that
the release of dust is kept to a minimum. To ensure that the release of fibres from these
RCF articles is kept to a minimum, during installation and servicing we recommend that
you use a HEPA filtered vacuum to remove any dust and soot accumulated in and around
the fire before and after working on the fire. When replacing these articles we recommend
that the replaced items are not broken up, but are sealed within a heavy duty polythene
bag, clearly labelled as RCF waste. This is not classified as “hazardous waste” and may be
disposed of at a tipping site licensed for the disposal of industrial waste. Protective clothing
is not required when handling these articles, but we recommend you follow the normal
hygiene rules of not smoking, eating or drinking in the work area and always wash your
hands before eating or drinking.
This appliance does not contain any component manufactured from asbestos or asbestos
related products. Nat Gas G20 Propane G31*
Supply pressure 20mbar 37mbar
Input – Max. (Gross) 6.12kW 5.70kW
Input – Min. (Gross) 1.90kW 3.51kW
Test pressure (Cold) 9.2+0.75mbar
(3.7+0.3in w.g.) 26.2+0.75mbar (10.5+0.3inw.g.)
Burner injector Bray cat. 82 size 580 Bray cat. 92 size 200
Appliance category II2H3P
Efficiency class 2
*When converted using kit no. 9500390
Figure 1 Appliance dimensions & clearances
Mantle depth “A” Min. Clearance“B”
Up to 12” 4”
Above 12” up to 18” 8”
More than 18” 8”+extra 1” for every
1” de
p
th above 18”
Mantle leg
projection “D” Min clearance from appliance side “E”
Up to 8” 1”
More than 8” 6”

6
3. GENERAL INSTALLATION REQUIREMENTS
3.1 The installation must be in accordance withthese instructions.
For the user’s protection, in the United Kingdom it is the law that all gas appliances are
installed by competent persons in accordance with the current edition of the Gas Safety
(Installation and Use) Regulations. Failure to install the appliance correctly could lead to
prosecution. The Council for the Registration of Gas Installers (CORGI) requires its
members to work to recognised standards.
In the United Kingdom the installation must also be in accordance with:
a) All the relevant parts of local regulations.
b) The current editionof the Building Regulations issued by the Department of the
Environment andthe WelshOfficeortheBuilding Standards(Scotland)Regulations
issued by the Scottish Development Department.
c) All relevant codes of practice.
d) The relevant parts of the current editions of the following British Standards:-
BS 5440 Part 1
BS 5482 Part 1
BS 5871 Part 1
BS 6891
In the Republic of Ireland the installation must also conform to the relevant parts of:
a) The current editions of:-
IS 813
b) All relevant national andlocal rules in force.
3.2 Before installation, ensure that the local distribution conditions (identification
of the type of gas and pressure) andthe adjustment of the appliance are compatible.
3.3 Note that soft wall coverings (e.g. embossed vinyl, etc.) are easily affected by heat.
They may scorch or become discoloured when close to a heating appliance. Please bear
this in mind when installing.
3.4 Minimum clearances to combustible surfaces are shown in figure 1.
3.5 A hole 178mm (7in) diameter is required through the wall for the flue unit.
3.6 Propane gas appliances must not be installed in a cellar, basement or any room
which is built entirely below ground level (See BS5482 Part 1).
3.7 Minimum allowable distances from the terminal are shown table 1 and figure 2.
3.8 Nospecial ventilation bricks or vents into the room containing the appliance are
required.
3.9 The top castings,frontcastings above the access doorand the glass window are
workingsurfaces. They become hot in use and should not betouched until the stove is
switched off and allowed to cool.

7
4. LOCATION
4.1. Terminal location
Minimum allowable distances from the terminal are shown the table below and figure 2.
Terminal Position Minimum
Distance
(mm)
A Directly below an openable window or
other opening e.g. air brick 300
B Below gutters, soil pipes or drain pipes 300
C Below eaves 300
D Below balconies or car port roof 600
E From vertical drain pipes and soil pipes 75
F From internal or external corners 600
G Above ground, roof or balcony level 300
H From a surface facing a terminal 600
I From a terminal facing a terminal 600
J From an opening in a car port (e.g. door,
window) into dwelling 1200
K Vertically from a terminal on the same wall 1500
L Horizontally from a terminal on the same
wall 300
In England and Wales the Building Regulations require
a terminal guard to be fitted if the terminal could come
into contact with people near the building or be subject
to damage.
Fitting a terminal guard is recommended where contact
withor damage to the terminal is possible even if
regulations do not demand it.
The Dura-vent terminal(Kit 984)is constructed with
an integral guard.
Terminal guard no. 9940088 is suitable for use with the
Wonderfire terminal kit 9500389.
4.2. Wall & Floor Fixing
This appliance can be installed against a wall or in the
room away from walls. The appliance is designed to be
fixed to the floor.The appliance can additionally or
alternatively be fixed to a rear wall. The fixing positions
are shown in figure 3.
4.3. Flue system configurations
4.3.1. Flat on wall
Requires Wonderfire flue terminal kit 9500389 or Dura-vent pipe
lengthwithadapter817VAK andDura-vent terminal984.
The location requirements are shown in figure 4.
The horizontal vent run can not beextended beyond the dimensions shown in
figure 4 by the useof any extra accessory pipes.
Figure 4
Figure 3 Fixing holes
Fig. 2 Terminal Positions

8
4.3.2. Rear flue pipe connection, vertical rise (Fig. 5)
For use with no.984 Dura-vent terminal cap and accessories.
Adapter no.817VAK, two 90° Dura-vent elbows no.990B and
Dura-vent pipe lengths willbe required.
(See options section ofthis manual).
No more than two 90°elbows must beused.
The location requirements are (See figure 5):-
4.3.3. Corner location, horizontal
flue pipe run only (Fig.6)
For use with no.984 Dura-vent terminal cap
and accessories.
Adapter no.817VAK and 45° Dura-vent elbow
no.945B will be required.
(See options section ofthis manual).
Be aware of the limited maximum vent pipe
length and wall depth for this type of
installation – See figure 6.
Figure 5
Minimum Maximum
A: From floor to top of
flue pipe 3ft 7in
(109cm) 10ft 7in (323cm)
B: Back of appliance to
outside wall -5ft5in
(165cm)
C: Back of appliance to
inside wall 141/8in
(36cm) -
D: Vertical pipe run 12in (30cm) 8ft (244cm)
E: Horizontal pipe run
(Total before and after
elbows)
-4ft6in
(137cm)
F: Clearance to
combustible materials
above horizontal pipe
run
25/8in
(6.7cm) -
G: Clearance to
combustible materials
below horizontal pipe
run
15/16in
(3.3cm) -
H: Clearance to
combustible materials
all round vertical pipe
run and at sides of
horizontal pipe run
15/16in
(3.3cm) -
Figure 6

9
4.3.4. Corner location,rear flue
pipe connection, vertical rise,
horizontal termination (Figs 5 &
7)
For use with no.984 Dura-vent terminal
cap and accessories.
Adapter no.817VAK, two 90° Dura-vent
elbows no.990B and Dura-vent pipe
lengths will be required.
(See options section ofthis manual).
No more than two 90°elbows must be used.
All vertical dimensional limits are as
section4.3.2.
The minimum corner location is shown
in fig. 7.
4.3.5. Top flue pipe connection,
vertical rise with horizontal rear
termination (Fig.8)
For use with no.984 Dura-vent terminal
cap and accessories.
Adapter no.817VAK, one 90° Dura-vent elbow no.990B and
Dura-vent pipe lengths willbe required.
(See options section ofthis manual).
The location requirements are (See figure 8):-
Minimum Maximum
A: From floor to top of
flue pipe 4ft (122cm) 11ft (335cm)
B: Back of appliance to
inside wall 31/4 in
(79mm) -
C: Vertical pipe run 9in
(23cm) 8ft (244cm)
D:Horizontalpipe
run -4ft6in (137cm)
E: Clearance to
combustible materials
above horizontal pipe
run
25/8in
(6.7cm) -
F: Clearance to
combustible materials
below horizontal pipe
run
15/16in
(3.3cm) -
G: Clearance to
combustible materials
all round vertical pipe
run and at sides of
horizontal pipe run
15/16in
(3.3cm) -
Figure 8
Figure 7

10
4.3.6. Top flue pipe connection,
vertical rise with horizontal side
termination (Figs.8 &9)
For use with no.984 Dura-vent terminal cap and
accessories.
Adapter no.817VAK, one 90° Dura-vent elbow
no.990B and Dura-vent pipe lengths will be
required.
(See options section ofthis manual).
All vertical dimension, pipe run and clearance
limits are as section 4.3.5.
The minimum floor location is shown in figure 9.
4.3.7. Top flue pipe connection, corner
location, vertical rise, straight horizontal
termination (Figs 8 & 10)
For use with no.984 Dura-vent terminal cap and
accessories.
Adapter no.817VAK, one 90° Dura-vent elbow no.990B and Dura-
vent pipe lengths will be required. (See options section of this
manual).
All vertical dimensions and clearance limits are as section 4.3.5.
The minimum corner location is shown in fig. 10.
Figure 10
Figure 9

11
5. PACK CONTENTS
Engine unit No. 9500384 (Forall
appliances)
1 Appliance engine unit fitted
withwindow
2 Restrictor plates type 1
2 Restrictor plates type 2
2 Restrictor plates type 4
2 Restrictor plates type 5
1Portcover
2 Wall spacer brackets
1 Firebox ceramic rear wall
2 Firebox ceramic side walls
5 Ceramic fuel effects (Logs or
coals)
1 Switch unit
2 Switch lead clips
4 1.5V AA batteries
4Woodscrews
4 Wall plugs
2Threadcuttingscrews
Free standing stove case
Top pack
1Topcasting
1 Top infill plate
Sides pack
1 Front casting unit
2 Side casting units
1Topairdeflector
1 Switchmounting bracket
2Selfcuttingscrews
4Machinescrews
4Washers
Wonderfire flue terminal kit No.
9500389 (Alternative to Dura-vent unit)
1 Vent pipe & terminal unit
1 Polystyrene cutting support
ring
1 Strip of flue sealing tape
Remote control unit No. 9500397
(Additional option)
1 Receiver unit
1 Remote control hand unit
1 9V Battery
LPG conversion kit No. 9500390
Details are with the kit.
Take care when removing the contentsfrom the packaging toprevent damage.Check that
all the contents are inthepacks andare undamaged.

12
6. APPLIANCE PREPARATION
6.1. Detach the window
1. Release the top of the window by pulling forward and rotatingoutwards the two
bars at the top corners. See figure 11.
2. Unscrew the two spring loaded bolts securing the bottom of the window. See
figure 11.
3. Carefully lift the window. Keep the window and bolts in a safe place.
6.2. Check ignition spark
The pilot burner and electrode unit is at the left endof the burner.
Push in the lighting knob and turn anticlockwise through the “IGN” position to
“PILOT”. A spark should flash across from the pilot electrode to the pilot burner
shield. See figure 12.
6.3. Check flame control motor
1. Fit the four batteries into the battery box (Which is attached to the switch leads).
2. Temporarily connect the black connector pad to the control unit – See figure 13.
3. Operate the switch.This should cause the flame control knob to rotate
anticlockwise. See figure 13.
4. Disconnect and remove after checking.
Figure 13
Figure 12
Figure 11

13
6.4. Top Flue Outlet Positioning
If installing with rear flue outlet go to next step.
1. Remove the top plate andseal by unscrewing 12 screws. (See figure 14).
Keep the seal,plate and screws for fitting to the back.
2. Remove the rear outer flue collar and seal by unscrewing 12 screws (See figure
14).
3. Remove the rear inner flue collar and seal by unscrewing 8 screws. (See figure 14).
4. To make sure that the collars are axially aligned, fit the Dura-vent adapter
(Kit No. 817VAK) over the outer flue collar. See figure 15.
5. Position the inner collar and seal vertically inside the topof the appliance. Drop
the outer collar with adapter over the inner collar to ensure alignment. Secure the
inner collar with 8 screws and the outer collar with 12 screws. See figure 15.
6. Drill through the adapter outer tube and appliance outer collar for no.6
screws. Make sure that the drill does not penetrate the inner tubes.
7. Secure the adapter to the outer collar with two no.6 thread-cutting
screws supplied
8. Fit the plate and seal (which was previously removed from the top) to
the back of the appliance with 12 screws. See figure 15.
6.5. Rear Flue Outlet Preparation
If installing flat on wall with Wonderfire terminal kit 9500389 ignore this
step:
1. Fit the Dura-vent adapter (Kit No. 817VAK) over the appliance flue
collars pushing onfirmly.
Align the adapter so that the seam on horizontal Dura-vent pipes is not at
the bottom – Check by temporarily fitting a Dura-vent pipe.
2. Drill through the adapter outer tube and appliance outer collar for no.6
screws. See figure 16. Make sure that the drill does not penetrate the inner tubes.
3. Secure the adapter to the outer collar with two no.6 thread cutting
screws supplied (Fig. 16).
4. Seal the joint between the adapter and appliance outer collar with a
suitable sealant or sealing tape.
6.6. Attaching Wall Spacers
These spacers need not be fitted ifthe rearof the appliance is more than
32mm (11/4in) from any combustible material and if the installer can be absolutely certain
that no combustible construction willbe added at afuture date– consultwiththe owner.
! Warning: Failure to install the wall spacers unless the above conditions can be
assured may result in a fire hazard.
1. Remove the two screws ateachof the reartopcorners of the appliance.See figure 17.
2. Fit the two wall spacers (Supplied with Engine unit) using thescrews just removed.
See figure 17.
Figure 17
Fi
g
ure 16
Figure 15
Figure 14

14
6.7. Attaching Air Restrictors – Appliances with Vertical Flue
Rise Only
No restrictors are required for appliances which only have a horizontal flue run.
There are fourtypes of restrictor supplied withthe engine unit - Types 1, 2, 4 & 5. (Type
3 is not supplied since it is not usedfor Model 530U).They are slightly different insize. They
can be identified by the number of indents – Type 1 has 1 indent, type 2 has 2 indents etc.
See figure 18.
The restrictors cover part of the openings in the firebox rear wall ports – See figure 19.
Each restrictor can be fitted at either maximum or minimum port opening – See figure 19.
Types 1 & 2 are for use with ceramiclog installations.
Types 4 & 5 are for use with ceramiccoal installations.
The correct restrictors to be fitted for each type of installation
are shownin the table below.
To fit the restrictors, remove the centre screws from the rear
ports and fit the restrictors using these screws.To set the
restrictors at maximum port opening, slacken the bottom screws
in the ports, slide the restrictors down as far as possible and
tighten the screws overthe restrictors.
To set the restrictors at minimum port opening,slide the
restrictors up as far as possible and tighten the screws. With the
largest restrictors, the upper screws may need to be slackened to
allow the restrictors to go under the screw heads.
Vertical vent pipe
run Use restrictor type Port opening set at
For
Logs For Coals
Less than2ft (61cm) 1 4 Maximum
From 2ft (61cm) but
less than 4ft (122cm) 14Minimum
From 4ft (122cm) but
less than 6ft (183cm) 25Maximum
6ft (183cm)or more 2 5 Minimum
6.8. Attaching top air deflector
Fit the top air deflector under the top panel of the appliance
case. Secure with two thread cutting screws. See figure 20.
6.9. Appliance Wall or Floor Fixing
The appliance can be secured to the wall and/or floor if required. The
fixing positions are shown in figure 3. Holes should be drilled in the
wall or floor and the holes plugged at this stage. Position the appliance
accuratelyin its final location.Markthroughthe two fixing holes in
the appliance base and/or the holes nearthe top corners at theback.
Plug the holes if necessary. Don’t fix the appliance at this stage. Wait
until the flue pipes are installed.
Figure 20
Figure 19
Figure 18

15
7. FLUE INSTALLATION
See section 4 for full range of horizontal termination applications.
7.1. Installations except Flat on Wall with Wonderfire Flue
Terminal 9500389 – Flue Pipe Fitting
Fit all the required Dura-vent DV GS pipes and elbows securely twist locking each
section.See the Dura-vent instructions supplied with the sections.
Seal each flue pipe joint with a suitable sealant or sealing tape.
With all the flue pipes attached,slide the appliance to its correct position. Markthe wall
for drilling at the centre of the flue pipe.Move the appliance clear for drilling after
marking.
7.2. Flat On Wall Installations With Wonderfire Flue Terminal
9500389 – Terminal Preparation
1. Cut the flue terminal pipe unit
to size (Fig. 21).
Important! The drain hole must be
clearly outside the wall.
a) Measure the wall thickness.
b) Add 32mm (11/4 in) for wall
spacers if fitted or, if appliance is
not going to touch the wall, add
distance from case rear towall.
c) Measure this total length along
the flueunit from where the
termination cap joins the main
terminal pipes. Mark the unit.
d) Insert the Polystyrene support
ring and push it as close as
possible to the marked position.
e) Cut the flue tubes squarely to
length.
f) Make sure that all Polystyrene
is removed from the flue unit after
cutting.
2. Fit the flue unit fully over the
appliance inlet and outlet collars
pushing on firmly. Make sure that
the drain hole is at the bottom.
3. Drill through the terminal
outer tube and appliance outer
collar for no.6 screws. See figure
21. Make sure that the drill does
not penetrate the inner tubes.
4. Secure the terminal to the outer collar with two no.6 thread cutting screws supplied
(Fig. 21).
5. Sealthe joint betweenthe outer collar and the terminalwith sealing tape.
6. Slide the appliance to its correct position.Mark the wall for drilling at the centre of the
flue pipe. Move the appliance clear for drilling after marking.
Figure 21

16
7.3. Preparing the wall
Place dustsheets onthe floor and over any furnishingsetc.
7.3.1. Core drilling
1. Drill a pilot hole through the wall. Inspect the hole to ensure that it is in the
brickwork and not in mortar. If it is in mortar, it is advisable to reposition the hole
approximately 25mm away (making sure that the minimum clearances are complied
with).
2. Drill the flue hole with a 178mm (7in) core drill. Where practical, it is recommended
that the hole is drilled from inside the building to about half thewall depth with the
remainder drilled from outside. This ensures that the edges of the hole are clean on both
sides.
7.3.2. Hammer & Chisel Cutting
1. Mark a178mm (7in) diameter circle forthe flue hole. Chiselout the area marked.
2. It may be necessary to make good both the internal and external wall faces. To
achieve a neat finish and to make any future removal of the flue unit easier, it is
recommended that a cardboard cylinder be formed around the flue unit and inserted in
the hole while making good. Remove the cardboard cylinder after making good.
7.4. Securing appliance in place
1. If the decorative wall thimble cover(Kit no. 940) is to be used with Dura-vent flue
pipes,slide the coverover the flue pipes before connecting the Dura-vent terminal –See
the Dura-vent instructions supplied with the kits.
2. Slide the appliance fully up to its final position. If using Dura-vent kits, refer to the
instructions supplied with the kits.
3. Secure the appliance to the wall or floor if necessary.

17
8. FITTING SIDES & SWITCH
1. a) If fitting with appliance side switch only
•Snap fit the switch into the opening inthe switch mounting bracket. See figure 22
•Fit the two switch lead clips to the right side of the case.
•Routetheswitch leads roundthe backof the valve andconnect to the control unit.
•Connect the battery boxto the black connection pad. See figure 23.
•Place the battery box on the “Velcro” pad in front of the battery shield. Fit the leads
into the clips.See figure 23.
b) If fitting remote control as only active switch (Appliance side switch
disconnected)
Caution! Don’t connect the batteries in the remote control receiver until the
leads are connected to the burner control unit. A short circuit could result in
destruction of the electrical components.
•Route the leads from the receiver round the back of the burner and connect to the
control unit.
•Remove the receiver lid.Connect the battery boxto the receiver leads.Fit the four
1.5 Vbatteries.Replace the receiver lid.
•Place the remote control receiveron the “Velcro” pad in frontof the battery shield.
See figure 24.
•Fit the 9V battery to the handset transmitter.
c) If fitting remote control and active side switch
Caution! Don’t connect the batteries in the remote control receiver until the
leads are connected to the burner control unit. A short circuit could result in
destruction of the electrical components.
•Snap fit the switch into the opening inthe switch mounting bracket. See figure 22.
•Fit the two switch lead clips to the right side of the case.
•Cut offthe “L” terminals from the switch leads on the remote control receiver and
remove insulation from approximately 6mm (¼in) at the ends of the leads.See figure
25.
•Securely connect the leads to the terminal block. Connect the black lead to the
terminal opposite the brown lead. Connect the lead with the white stripe to
the terminal opposite the yellow lead. See figure 26.
•Route theleads round the backofthevalve andconnectthe “L”terminals to the
control unit.
•Remove the remote control receiver lid. Remove the cover from the white connection
pad. Fit this connection pad to the remote control receiver terminals. See figure 27.
•Fit the black connectionpadto abattery box. Fit four1.5V batteries.See figure 27.
•Place the batteries and connection pad in the receiver box and replace the lid.
•Fit the 9V battery to the handset transmitter.
Figure 27
Figure 26
Figure 25
Figure 24
Figure 23
Fi
g
ure 22

18
Figure 29
Figure 28
2. Fit the sides to the engine unit case with two machine screws andwashers per side. See
figure 28.
3. For appliance side switch
Fit the switchmounting bracket to the right side casting withtwo thread cutting screws
supplied. The leads should hang down from the connectors at back of the switch so that
pressingthe upperhalfof theswitch rockerturns the fire up.See figure 29.
9. GAS SUPPLY INSTALLATION
9.1Extend the gas supply pipe to a convenient point and connect it to the inlet pipe at the
rear left corner of the stove. The connection is Rp1/4 (1/4in.B.S.P).
The supply pipe must be of rigid material (e.g. copper). Flexible connections must not
be used.
9.2Provision for isolation of the gas supply upstream of the fire must be provided for
safety andservicing.
9.3Pressure test the installation for gas soundness in accordance with the current edition
of B.S.6891.

19
10. CERAMIC FUEL BED INSTALLATION
10.1. Ceramic Walls Installation
1. Locate the ceramic rear wall inthe channel at backof the firebox and flat againstthe
back ofthe firebox.See figure 31.
2. Locate the side walls inthe channels at the sides of the firebox.See figure 32.
3. Remove two screws from under the top front of the firebox. Using these screws, fit
the port cover.See figure 33.
Figure 33
Figure 32
Figure 31

20
10.2. Ceramic Logs Installation
(See section 10.3 for ceramic coals)
1. Place the base log on the supports in the firebox and against the firebox back.See
figure 34.
2. Place the rear log overthebaselog.Locate the holes inthetoplog intothepegs inthe
base log.See figure 35.
3. Place the front log behind the metal lip at front ofthe firebox.See figure 36.
4. Place therightside log inthe hollow at rightof the base log.Restthe narrow noseof
this log onthe projection at front centre of the base log – It is important that the narrow
nose does not drop down to touch the burner. See figure 37.
5. Place the left side log on base log at the left side. Locate its nose tip behind the nose of
the right side log.It is important that the narrow nose does not drop down to touch the
burner.See figure 38.
Figure 38
Figure 37
Figure 36
Figure 35
Figure 34
