Woods BACKHOE 1050 User manual

OPER ATOR'S MANUAL
BACKHOE
51861
Rev. 7/7/2006
Tested. Proven. Unbeatable.
1050

2 Introduction
Gen’l (Rev. 6/6/2005)
TO THE DEALER:
Assembly and proper installation of this product is the responsibility of the Woods®dealer. Read manual instructions
and safety rules. Make sure all items on the Dealer’s Pre-Delivery and Delivery Check Lists in the Operator’s Manual
are completed before releasing equipment to the owner.
The dealer must complete the Product Registration included with the Operator’s Manual. The customer must sign the
registration which certifies that all Dealer Check List items have been completed. The dealer is to return the prepaid
postage portion to Woods, give one copy to the customer, and retain one copy. Failure to complete and return this
card does not diminish customer’s warranty rights.
TO THE OWNER:
Read this manual before operating your Woods equipment. The information presented will prepare you to do a better and
safer job. Keep this manual handy for ready reference. Require all operators to read this manual carefully and become
acquainted with all adjustment and operating procedures before attempting to operate. Replacement manuals can be
obtained from your dealer. To locate your nearest dealer, check the Dealer Locator at www.WoodsEquipment.com, or in
the United States and Canada call 1-800-319-6637.
The equipment you have purchased has been carefully engineered and manufactured to provide dependable and
satisfactory use. Like all mechanical products, it will require cleaning and upkeep. Lubricate the unit as specified.
Observe all safety information in this manual and safety decals on the equipment.
For service, your authorized Woods dealer has trained mechanics, genuine Woods service parts, and the necessary
tools and equipment to handle all your needs.
Use only genuine Woods service parts. Substitute parts will void the warranty and may not meet standards required for
safe and satisfactory operation. Record the model number and serial number of your equipment in the spaces
provided:
Model: _______________________________ Date of Purchase: _____________________
Serial Number: (see Safety Decal section for location) ____________________________________
Provide this information to your dealer to obtain correct repair parts.
Throughout this manual, the term IMPORTANT is used to indicate that failure to observe can cause damage to
equipment. The terms CAUTION, WARNING, and DANGER are used in conjunction with the Safety-Alert Symbol (a
triangle with an exclamation mark) to indicate the degree of hazard for items of personal safety.
CAUTION
CAUTION
IMPORTANT
IMPORTANT
WARNING
WARNING
DANGER
DANGER
NOTE
NOTE
This Safety-Alert Symbol indicates a hazard and means ATTENTION!
BECOME ALERT! YOUR SAFETY IS INVOLVED!
Indicates an imminently hazardous situation that, if not avoided, will
result in death or serious injury.
Indicates a potentially hazardous situation that, if not avoided, could
result in death or serious injury, and includes hazards that are exposed
when guards are removed.
Indicates a potentially hazardous situation that, if not avoided, may
result in minor or moderate injury.
Indicates that failure to observe can cause damage to equipment.
Indicates helpful information.

Introduction 3
51861 (Rev. 6/16/2006)
TABLE OF CONTENTS
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
GENERAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
SAFETY RULES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
SAFETY DECALS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
OWNER SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
DEALER SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
DEALER CHECK LISTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
INDEX TO PARTS LISTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
BOLT TORQUE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
BOLT SIZE CHART & ABBREVIATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . 56
INDEX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
PRODUCT WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
REPLACEMENT PARTS WARRANTY . . . . . . . . . . . . INSIDE BACK COVER
Si no lee Ingles, pida ayuda a
alguien que si lo lea para que le
traduzca las medidas de seguridad.
LEA EL INSTRUCTIVO!
!

4 Introduction
51861 (Rev. 6/16/2006)

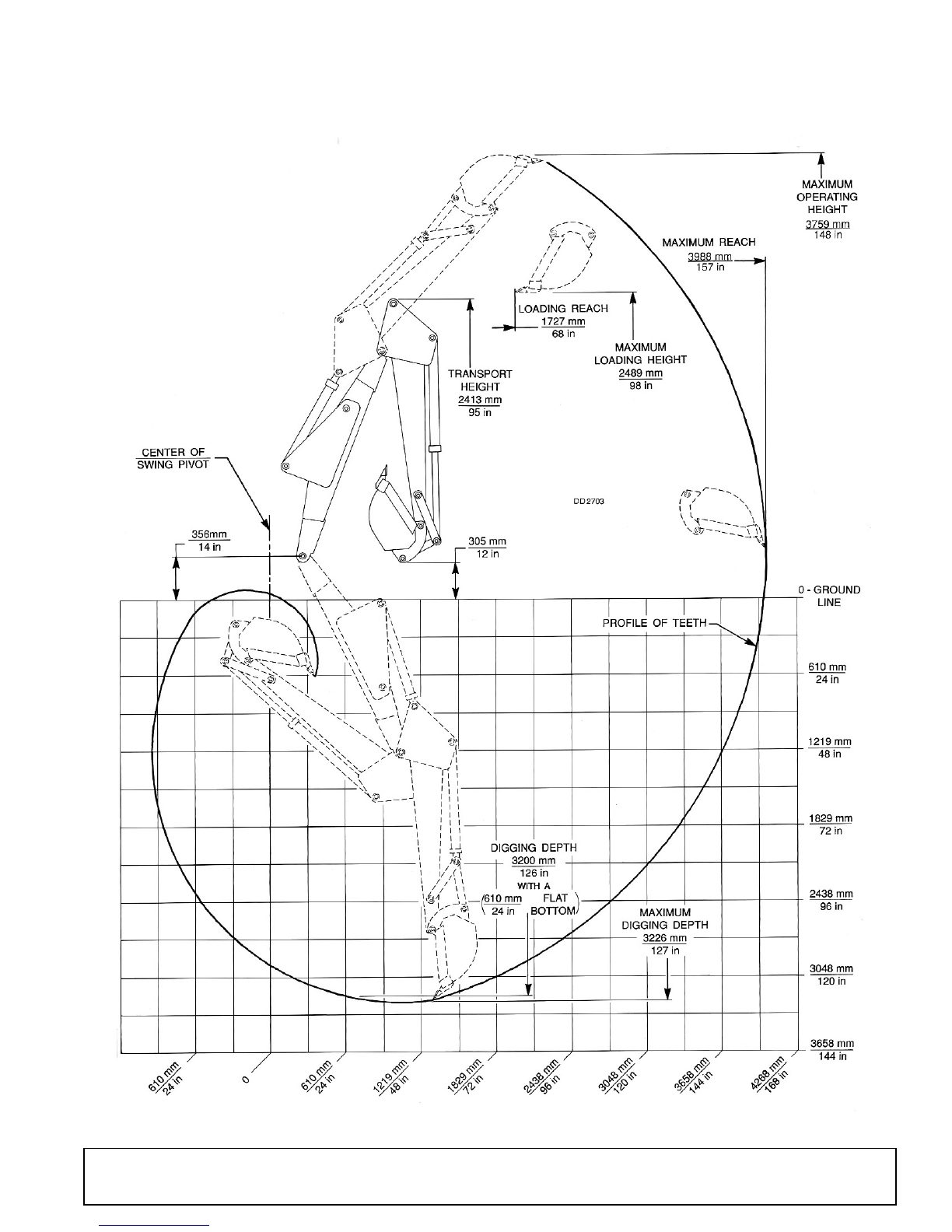

BH1050 SPECIFICATIONS
Reach Below Grade (Standard Bucket)
Maximum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127" (3225.8 mm)
With Two Foot Flat Bottom Trench* . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126" (3200.4 mm)
Loading Height* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98" (2489.2 mm)
Loader Reach . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68" (1727.2 mm)
Reach From Center of Swing Mast Pivot Point* . . . . . . . . . . . . . . . . . . . . . . . . . 157" (3987.8 mm)
Bucket Arc (In Degrees of Curl). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180°
Swing Working Arc (In Degrees) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180°
Operating Pressure
Digging* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2100 psi (14.5 MPa)
Swing* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2100 psi (14.5 MPa)
Stabilizer Spread
Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83" (2108.2 mm)
Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113" (2870.2 mm)
Lift Cylinder
Bore . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3" (76.2 mm)
Stroke . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27" (685.8 mm)
Dipperstick Cylinder
Bore . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3" (76.2 mm)
Stroke . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27" (685.8 mm)
Digging Force* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2863 lbs. (12734.6 N)
Bucket Cylinder
Bore . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5" (63.5 mm)
Stroke . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28" (711.2 mm)
Digging Force* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6000 lbs. (26688.0 N)
Swing Cylinder
Bore . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5" (63.5 mm)
Stroke . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13" (330.2 mm)
Stabilizer Cylinder
Bore . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5" (63.5 mm)
Stroke . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15" (381.0 mm)
Buckets Rated Capacity
12 Inches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.44 ft. (.041 m)
18 Inches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.66 ft. (.047 m)
24 Inches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.93 ft. (.055 m)
36 Inches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.73 ft. (.077 m)
* Per ICED (SAE J49) Definition as found in “A” dictionary of terms and definitions of industrial tractors and construction
equipment.

Introduction 5
51861 (Rev. 6/16/2006)
BH1050 SPECIFICATIONS

6 Introduction
51861 (Rev. 6/16/2006)
GENERAL INFORMATION
The purpose of this manual is to assist in setting up,
operating and maintaining your backhoe. Read it care-
fully. It furnishes information and instructions that will
help you achieve years of dependable performance.
These instructions have been compiled from extensive
field experience and engineering data. Some informa-
tion may be general in nature due to unknown and
varying conditions. However, through experience and
these instructions, you should be able to develop pro-
cedures suitable to your particular situation.
The illustrations and data used in this manual were cur-
rent at the time of printing, but due to possible in-line
production changes, your machine may vary slightly in
detail. We reserve the right to redesign and change the
machines as may be necessary without notification.
■ Some illustrations in this manual show the
backhoe with safety shields removed to provide a
better view. The backhoe should never be operated
with any safety shielding removed.
Figure 1. Backhoe Directions
Throughout this manual, references are made to right,
left, forward and rearward directions. These are deter-
mined from the backhoe operator seat position facing
rearward as shown in Figure 1.
Terms for backhoe components have some variations
throughout the industry. We use SAE designations as
shown in Figure 2.
Figure 2. Backhoe Components
WARNING
1. Bucket
2. Bucket cylinder
3. Dipper cylinder
4. Boom cylinder
5. Console
6. Stabilizer
7. Swing cylinder
8. Boom
9. Dipper
10. Stabilizer cylinder
11. Swing frame
12. Main frame

Safety 7
BH1050_SR (Rev. 1/30/2004)
INSTALLATION
Hydraulics must be connected as instructed in
this manual. Do not substitute parts, modify, or
connect in any other way.
After connecting hoses, check that all control
lever positions function as instructed in the Opera-
tor's Manual. Do not put into service until control
lever and equipment movements are correct.
TRAINING
Safety instructions are important! Read all
attachment and power unit manuals; follow all
safety rules and safety decal information. (Replace-
ment manuals and safety decals are available from
your dealer. To locate your nearest dealer, check
the Dealer Locator at www.WoodsEquipment.com,
or in the United States and Canada call 1-800-319-
6637.) Failure to follow instructions or safety rules
can result in serious injury or death.
If you do not understand any part of this manual
and need assistance, see your dealer.
Know your controls and how to stop engine and
attachment quickly in an emergency.
 Operators must be instructed in and be capable
of the safe operation of the equipment, its attach-
ments, and all controls. Do not allow anyone to
operate this equipment without proper instructions.
Keep hands and body away from pressurized
lines. Use paper or cardboard, not hands or other
body parts to check for leaks. Wear safety goggles.
Hydraulic fluid under pressure can easily penetrate
skin and will cause serious injury or death.
Make sure that all operating and service person-
nel know that if hydraulic fluid penetrates skin, it
must be surgically removed as soon as possible by
a doctor familiar with this form of injury or gan-
grene, serious injury, or death will result. CON-
TACT A PHYSICIAN IMMEDIATELY IF FLUID
ENTERS SKIN OR EYES. DO NOT DELAY.
Never allow children or untrained persons to
operate equipment.
PREPARATION
Check that all hardware is properly installed.
Always tighten to torque chart specifications
unless instructed otherwise in this manual.
Air in hydraulic systems can cause erratic oper-
ation and allows loads or equipment components
to drop unexpectedly. When connecting equipment
or hoses or performing any hydraulic maintenance,
purge any air in hydraulic system by operating all
hydraulic functions several times. Do this before
putting into service or allowing anyone to
approach the equipment.
After connecting hoses, check that all control
lever positions function as instructed in the Opera-
tor's Manual. Do not put into service until control
lever and equipment movements are correct.
Protective hose sleeves must cover all hydrau-
lic hoses within 20 inches of the operator and be
secured onto metal hose fittings. Replace hoses or
sleeves if damaged or if protective sleeve cannot
be properly positioned or secured.
Make sure all hydraulic hoses, fittings, and
valves are in good condition and not leaking before
starting power unit or using equipment. Check and
route hoses carefully to prevent damage. Hoses
must not be twisted, bent sharply, kinked, frayed,
pinched, or come into contact with any moving
parts. Operate moveable components through full
operational range to check clearances. Replace
any damaged hoses immediately.
Always wear relatively tight and belted clothing
to avoid getting caught in moving parts. Wear
sturdy, rough-soled work shoes and protective
equipment for eyes, hair, hands, hearing, and head;
and respirator or filter mask where appropriate.
Make sure spring-activated locking pin or collar
slides freely and is seated firmly in tractor PTO
spline groove.
Make sure attachment is properly secured,
adjusted, and in good operating condition.
Power unit must be equipped with ROPS or
ROPS cab and seat belt. Keep seat belt securely
fastened. Falling off power unit can result in death
from being run over or crushed. Keep foldable
ROPS system in “locked up” position at all times.
Safety is a primary concern in the design and
manufacture of our products. Unfortunately, our
efforts to provide safe equipment can be wiped
out by an operator’s single careless act.
In addition to the design and configuration of
equipment, hazard control and accident preven-
tion are dependent upon the awareness, con-
cern, judgement, and proper training of
personnel involved in the operation, transport,
maintenance, and storage of equipment.
It has been said, “The best safety device is an
informed, careful operator.” We ask you to be
that kind of operator.
SAFETY RULES
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!

8 Safety BH1050_SR (Rev. 1/30/2004)
Only mount this backhoe on 50 hp or greater,
Category 2 or 3 tractors with 2000 lb. lift capacity
and with OEM high-strength top link pin of at least
1” diameter or approved top link brackets and pins.
Brackets and pins are available from your WOODS
dealer for some tractors not originally equipped
with 1” diameter pins.
Refer to “Mounting Guide” (available from your
dealer) for some tractors not originally equipped
with 1” diameter pins.
Never put backhoe into service unless backhoe
manufacturer's 3-point hitch Saf-T-Lok®limiter or
sub-frame has been installed and adjusted.
Do not use a 3-point quick hitch. The quick hitch
will result in improper PTO driveline geometry.
To avoid possible hitch failure, read and follow
the Saf-T-Lok Limiter Installation Instructions in the
Assembly section before mounting backhoe to
tractor 3-point hitch.
Remove seat and upper support assembly
before installing or removing backhoe from tractor.
Failure to comply may result in equipment failure
and/or personal injury.
Connect PTO driveline directly to power unit
PTO shaft. Never use adapter sleeves or adapter
shafts. Adapters can cause driveline failures due to
incorrect spline or incorrect operating length and
can result in personal injury or death.
Make sure safety chain is properly connected
and secured to tractor.
Do not operate backhoe unless there is ade-
quate operator clearance as shown on safety
decal. (Refer to Danger decal in Safety Decal sec-
tion.)
Always use the special heavy-duty top link (pro-
vided with backhoe) and the OEM high-strength top
link pin (provided with tractor) to mount top link to
tractor. Use a 1” x 5” grade 5 bolt to mount top link
to backhoe.
Be sure that backhoe is properly mounted,
adjusted, and in good operating condition.
Place and keep 3-point lift quadrant lever in low-
ered position at all times.
If tractor is equipped with draft sensing control,
set control to “HEAVY” (minimum sensitivity) posi-
tion.
Make sure all safety decals are installed.
Replace if damaged. (See Safety Decals section for
location.)
 Make sure shields and guards are properly
installed and in good condition. Replace if damaged.
A minimum 25% of tractor and equipment
weight must be on the tractor front wheels when
attachments are in transport position. Without this
weight, tractor could tip over, causing personal
injury or death. The weight may be attained with a
loader, front wheel weights, ballast in tires, or front
tractor weights. Weigh the tractor and equipment.
Do not estimate.
Clean all dirt, trash, and grease from operator's
platform and steps.
OPERATION
Do not allow bystanders in the area when oper-
ating, attaching, removing, assembling, or servic-
ing equipment.
Before operating, make sure stabilizer pads are
lowered firmly to the ground. Stabilizer arms pro-
vide support for the backhoe and support for the
backhoe mounting brackets.
Consult local utilities before working. Know
location of all underground cables, pipelines, over-
head wires, and other hazards in working area and
avoid contact.
Keep bystanders away from operator, stabilizer,
and maximum bucket swing areas.
Do not operate or transport equipment while
under the influence of alcohol or drugs.
Operate only in daylight or good artificial light.
Always comply with all state and local lighting
and marking requirements.
Do not allow riders. Do not lift or carry anybody
on the power unit or attachments.
Power unit must be equipped with ROPS or
ROPS cab and seat belt. Keep seat belt securely
fastened. Falling off power unit can result in death
from being run over or crushed. Keep foldable
ROPS system in “locked up” position at all times.
When operating controls, always sit in backhoe
seat.
The only time the backhoe may be operated
from a position other than the operator seat is dur-
ing backhoe attachment and removal. Operator
must:
• Read Mounting Kit Manual instructions on
attaching and removing backhoe and use
extreme care.
• Always stand between rear tire and backhoe
stabilizer arms or along side of tractor to avoid
SAFETY RULES
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!

Safety 9
BH1050_SR (Rev. 1/30/2004)
being trapped should the boom swing control
be accidentally activated.
Do not exceed these PTO speeds:
• 540 rpm on 6-tooth spline PTO
• 1000 rpm on 21-tooth spline PTO.
Always dump spoil at least two feet away from
opening.
Use extreme care when working close to fences,
ditches, other obstructions, or on hillsides.
Be careful when swinging loaded bucket on a
hillside. Always dump spoil on uphill side of back-
hoe to minimize the possibility of upset.
Never leave equipment unattended with engine
running or with bucket in raised position. Always
engage swing and boom transport locks, relieve
system pressure by operating controls, and
remove ignition key before leaving equipment.
Do not use backhoe for craning; it is primarily
designed for digging. Mechanical failures such as
hose rupture will cause a load to drop suddenly.
TRANSPORTATION

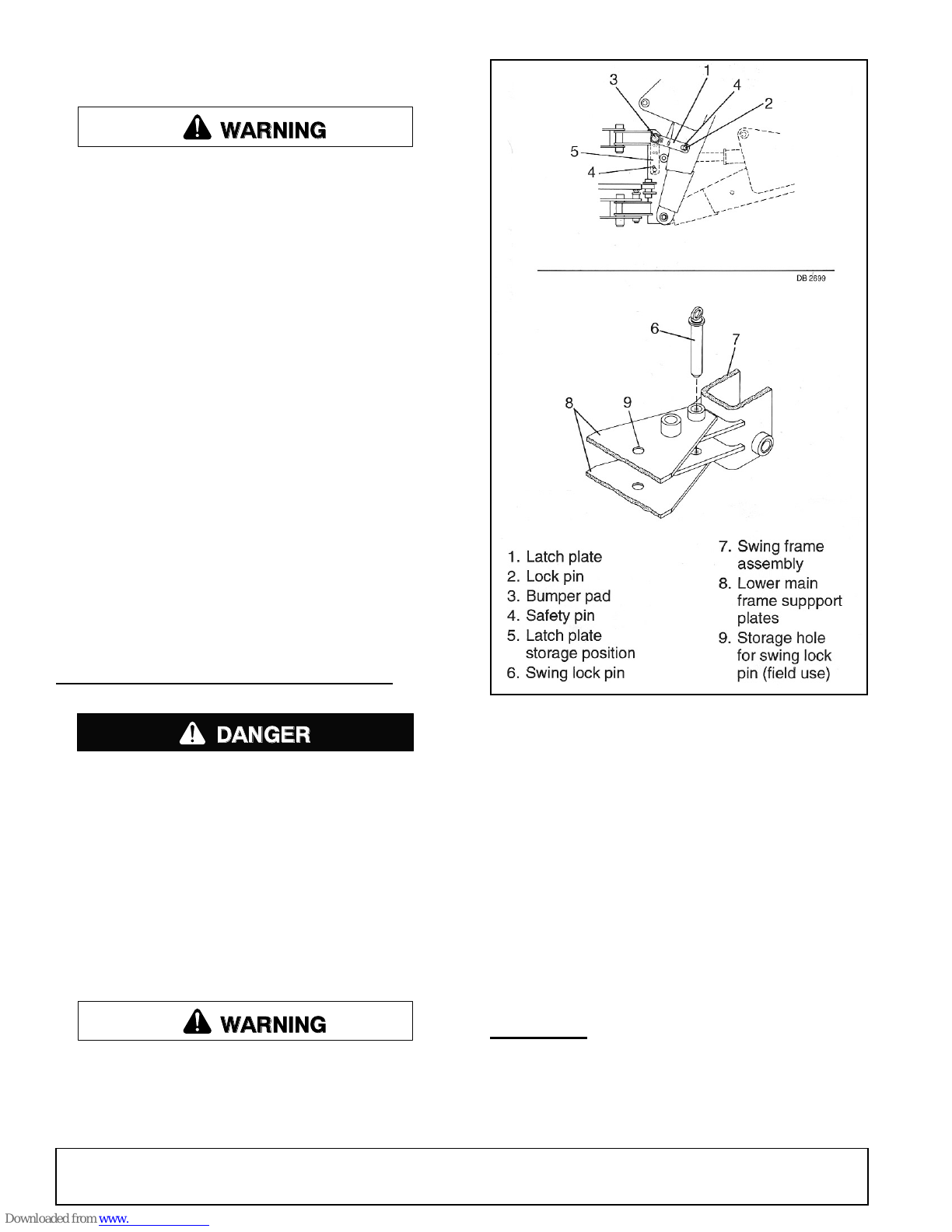

Always engage swing and boom transport locks
and attach Slow Moving Vehicle (SMV) sign before
transporting backhoe.
Power unit must be equipped with ROPS or
ROPS cab and seat belt. Keep seat belt securely
fastened. Falling off power unit can result in death
from being run over or crushed. Keep foldable
ROPS system in “locked up” position at all times.
Never exceed 20 mph during transport.
Always comply with all state and local lighting
and marking requirements.
Never allow riders on power unit or attachment.
Do not operate PTO during transport.
Do not operate or transport on steep slopes.
A minimum 20% of tractor and equipment
weight must be on tractor front wheels when
attachments are in transport position. Without this
weight, tractor could tip over, causing personal
injury or death. The weight may be attained with a
loader, front wheel weights, ballast in tires, or front
tractor weights. When attaining the minimum 20%
weight on the front wheels, you must not exceed
the Roll Over Protection Structure (ROPS) weight
certification. Weigh the tractor and equipment. Don
not estimate.
Do not operate or transport equipment while
under the influence of alcohol or drugs.
MAINTENANCE
Do not modify or alter or permit anyone else to
modify or alter the equipment or any of its compo-
nents in any way.
Do not allow bystanders in the area when oper-
ating, attaching, removing, assembling, or servic-
ing equipment.
Your dealer can supply original equipment
hydraulic accessories and repair parts. Substitute
parts may not meet original equipment specifica-
tions and may be dangerous.
Adjustment of system relief pressure must be
done by a qualified, experienced dealership. Incor-
rect adjustment can result in system failures and
serious personal injury.
Always wear relatively tight and belted clothing
to avoid getting caught in moving parts. Wear
sturdy, rough-soled work shoes and protective
equipment for eyes, hair, hands, hearing, and head;
and respirator or filter mask where appropriate.
Dealer service personnel must perform work
that requires engine operation during service.

Before working on backhoe, extend boom and
dipperstick and place bucket on ground. Make sure
that all system pressure has been relieved by oper-
ating controls before performing maintenance or
service or before disconnecting any hydraulic lines.
Keep all persons away from operator control
area while performing adjustments, service, or
maintenance.
Tighten all bolts, nuts, and screws to torque
chart specifications. Check that all cotter pins are
installed securely to ensure equipment is in a safe
condition before putting unit into service.
Make sure all safety decals are installed.
Replace if damaged. (See Safety Decals section for
location.)
 Make sure shields and guards are properly
installed and in good condition. Replace if damaged.
STORAGE
Block equipment securely for storage.
Keep children and bystanders away from stor-
age area.
Refer to Removing and Storing Backhoe in
Operation section of backhoe manual.
SAFETY RULES
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!

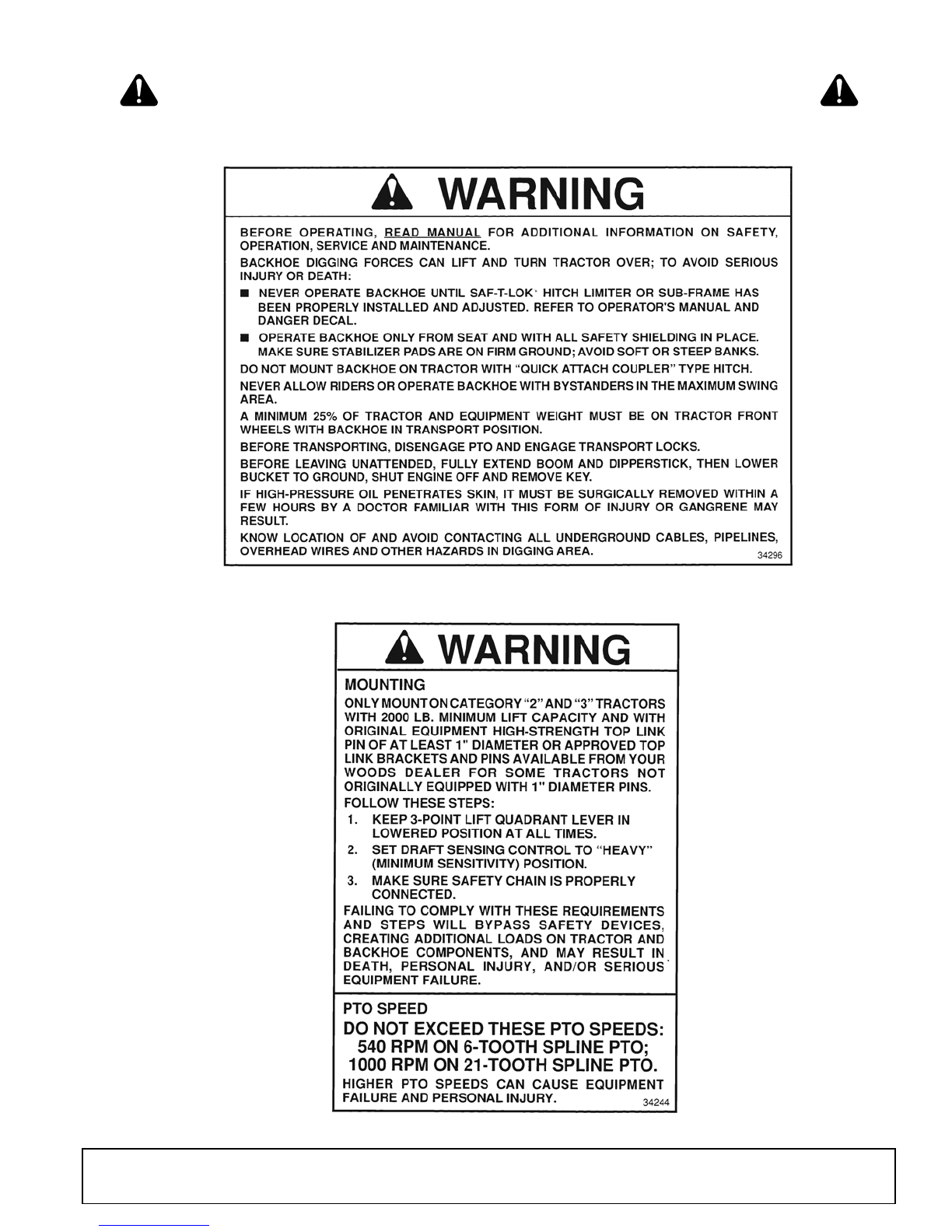

10 Safety 51861 (Rev. 6/16/2006)
LOCK
33437-E
4 - 33437
1 - 34994
5 - SERIAL NUMBER PLATE
MODEL NO. SERIAL NO.
Woods Equipment Company
Oregon, Illinois, U.S.A.
BE CAREFUL!
Use a clean, damp cloth to clean safety
decals.
Avoid spraying too close to decals when
using a pressure washer; high-pressure
water can enter through very small
scratches or under edges of decals causing
them to peel or come off.
Replacement safety decals can be ordered
free from your Woods dealer. To locate your
nearest dealer, check the Dealer Locator at
www.WoodsEquipment.com, or in the
United States and Canada call 1-800-319-
6637.
SAFETY & INSTRUCTIONAL DECALS
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
Replace Immediately If Damaged!
