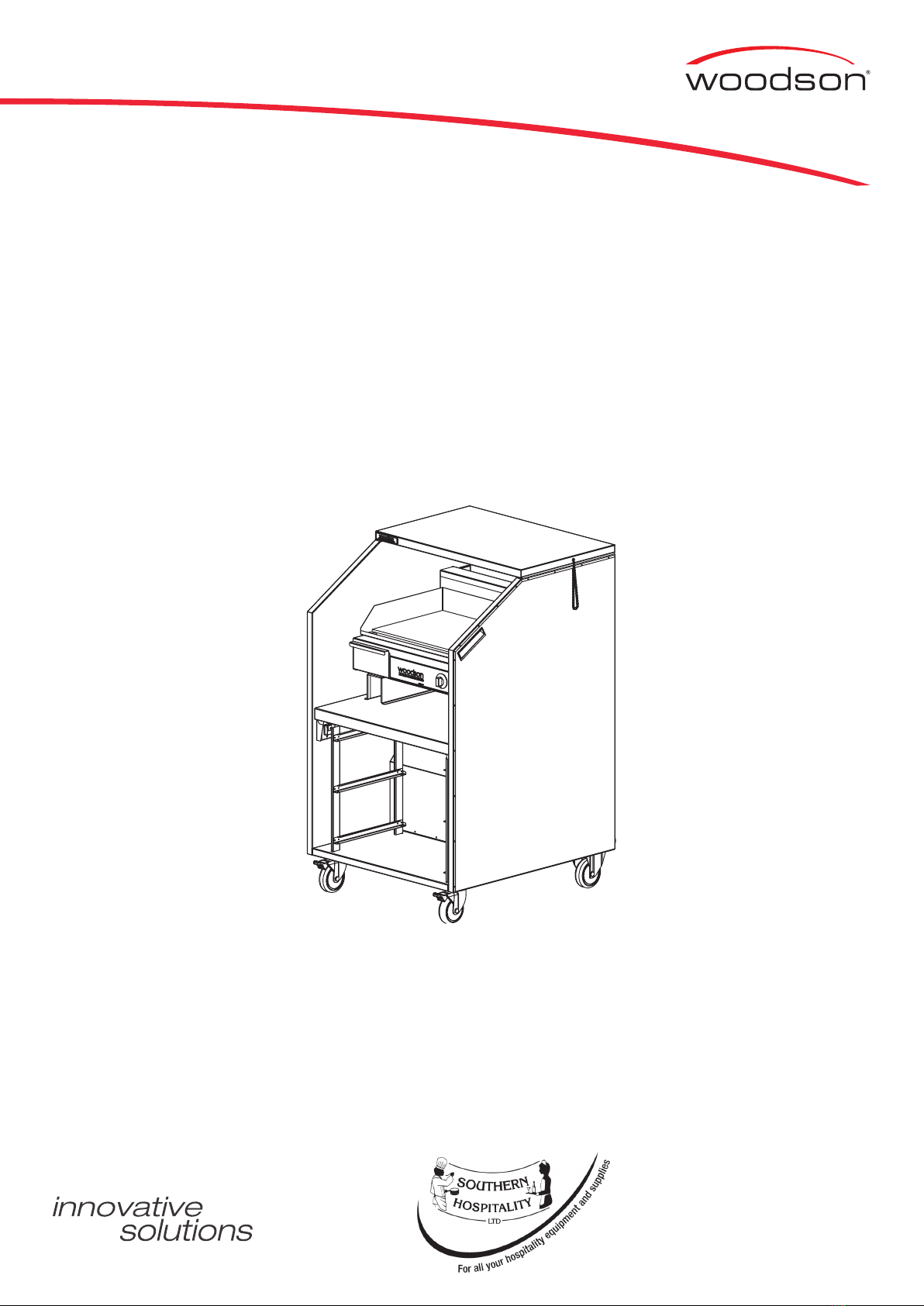

Woodson W.MVS User manual

A guide on the use, care and maintenance
of your quality Woodson product
Specication, Installation
and Operation Manual
Models:
W.MVS & W.MVS850
Mobile Ductless Filter Hood
Rev: B - 27/07/2018
Phone: [phone]
Spare Parts: 0800 503 503
www.southernhospitality.co.nz

Page Intentionally Left Blank
Page 1

Page 2
Introduction
Your New Woodson Product � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3
Product Overview� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3
Attention � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
General Information � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
Service
Installation
Setting Up � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
Handling
Unpacking
Positioning
Disposal
Electrical Connection � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 6
Information
Specication
Technical Specifications � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7
W.MVS
W.MVS850
Operation
Initial Start-up & Operation � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 9
Initial Start-up
Operation
Cleaning � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 10
General Information
Corrosion Protection
Surface Finish
Cleaning Schedule
Materials Required
Cleaning Procedure
Cleaning Procedure - External Surfaces
Troubleshooting � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 12

Page 3
Thank you for choosing this quality Woodson product� All our products are designed and made to meet the needs of food service professionals�
By using, caring and maintaining your Woodson product according to these instructions, your Woodson product should give you many years of
reliable service�
Stoddart is a wholly Australian owned company, which manufactures and distributes Woodson commercial catering equipment�
Stoddart products are manufactured and/or engineered in Australia to provide excellent results whilst offering-value-for-money, ease-of-use
and reliability�
Stoddart manufacture and distribute a comprehensive range of equipment for kitchens, food preparation and presentation�
Configuration may vary according to model�
Introduction
Your New Woodson Product
Product Overview
W�MVS
Rack Frames
Fixed Castor
Brake Castor
Switch
Plastic Handle
Lid Stay Chain
Baffle, Polyester &
Carbon Filter
CAUTION
Surface is Hot

Page 4
Thank you for choosing this quality Woodson product� All our products are designed and made to meet the needs of food service professionals�
By using, caring and maintaining your Woodson product according to these instructions, your Woodson product should give you many years of
reliable service�
Stoddart is a wholly Australian owned company, which manufactures and distributes Woodson commercial catering equipment�
Stoddart products are manufactured and/or engineered in Australia to provide excellent results whilst offering-value-for-money, ease-of-use
and reliability�
Stoddart manufacture and distribute a comprehensive range of equipment for kitchens, food preparation and presentation�
Configuration may vary according to model�
Introduction
• Only specifically trained/qualified Technicians (Stoddart, one of our service agents, or a similarly qualified persons) should carry out any
and all repairs, maintenance and services
Carefully read this instruction booklet, as it contains important advice for safe installation, operation and maintenance� Keep this booklet on
hand in a safe place for future reference by other operators or users�
Stoddart design, manufacture & distribute Food Service Equipment (appliances) exclusively for the commercial market.
This appliance is not designed nor intended for household or domestic use & must not be used for this purpose.
This product is intended for commercial use, and in line with Australian electrical safety standards the following warnings are provided:
• This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or instruction concerning the use of the product by a person
responsible for their safety� Children should be supervised to ensure that they do not play with the product
•If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid
a hazard
• All units MUST be installed according to the procedures stated in the installation section of this manual
• In the case of new personnel, training is to be provided before operating the equipment
• DO NOT use this unit for any other purpose than its intended use
• DO NOT store explosive substances such as aerosol cans with a flammable propellant in or near this unit
• Keep fingers out of “pinch point” areas
• Unit is not waterproof DO NOT use jet sprays, hoses or pour water over/on the exterior of the unit
• Only use this unit with voltage specified on the rating label
• Do NOT remove any cover panels that may be on the unit
• DO NOT use sharp objects to activate controls
• If any fault is detected, refer to troubleshooting
• The manufacturer declines any liability for damages to persons and/or things due to an improper/wrong and/or unreasonable use of the
machine
When using any electrical unit, safety precautions must always be observed�
Our units have been designed for high performance� Therefore, the unit must be used exclusively for the purpose for which it has been designed�
Read these instructions carefully and retain for future reference�
The manufacturer and distributor cannot be held responsible or liable for any injuries or damages of any kind occurred to persons, units
or others, due to abuse and misuse of this unit in regards to installation, un-installation, operation, servicing or maintenance, or lack of
conformity with the instructions indicated in this documentation�
Disclaimer
All units made by the manufacturer are delivered assembled, where possible, and ready to install� Any installation, un-installation,
servicing, maintenance and access or removal of any parts, panels or safety barriers that is not permitted, does not comply in
accordance to this documentation, or not performed by a TRAINED AND AUTHORISED SPECIALIST will result in the
IMMEDIATE LOSS OF THE WARRANTY�
The manufacturer cannot be held responsible or liable for any unauthorized modifications or repairs� All modifications or repairs must
be approved by the manufacturer in writing before initiating� All modifications or repairs performed to this unit must be performed at all
times by a TRAINED AND AUTHORISED SPECIALIST�
Attention
General Information
Service

Page 5
• Use suitable means to move the unit: eg� A lift truck or fork pallet trucks (the forks should reach more completely beneath the unit)
• Check the unit for damage before and after unpacking� If unit is damaged, contact the distributor and manufacturer
• Should any item have physical damage, report the details to the freight company and to the agent responsible for the dispatch within
seven (7) days of receipt� No claims will be accepted or processed after this period
• The unit is supplied fully assembled
• Remove all protective plastic film, tapes, ties and packers before installing and operating
• Clean off any remaining residue from the interior/exterior of the unit using a clean cloth dampened with warm soapy water
• Choose an area that is well ventilated and provides access for future maintenance
• Place the unit on a level stable work surface capable of supporting its weight
• Do not position the unit in a wet area, an area with a lot of heat and steam or near flammable substances
• Allow an air gap between the unit and other objects or surfaces� We recommend a minimum gap of 100mm for normal operational use
(if the unit is near any heat sensitive material we suggest you allow additional space)
• Please consult national and local standards to ensure that your unit is positioned in accordance with any existing requirement
• At the end of the appliance’s working life, make sure it is scrapped & components recycled properly
• Current environmental protection laws in the state/country of use must be observed
• Doors must be removed before disposal
• Power supply cable must be removed before disposal
• For further information on the recycling of this product, contact the local dealer/agent or the local body responsible for waste disposal
WARNING
Improper installation, adjustments, alterations, service or
maintenance can cause property damage, injury or death.
Installation
Setting Up
Handling
Unpacking
Positioning
Disposal

Page 6
Installation
On-site Connection:
• The electrical supply must comply with the rating plate data
• Ensure that the unit is connected to a suitably rated and earthed power source
• Ensure that there is an isolation switch installed near the unit
•If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a
hazard� Please contact Stoddart for parts and we will advise how to do this in order to avoid any electrical hazard
• The power cable should be dry and/or isolated from moisture or water
Aggregate electrical ratings of the Unit are expressed in kilowatts in this manual�
Single Phase Units:
Supplied with an appropriately rated plug and lead fitted and be indicated as:
• 10A plug & lead fitted
• 15A plug & lead fitted
• 20A plug & lead fitted
Some procedures in this manual require the power to the equipment to be turned
off and isolated. Turn the power OFF at the power point and unplug the power
supply lead by the plug body. If the power point is not readily accessible turn the
equipment off at the isolation switch or the circuit breaker in the switchboard.
Attach a yellow “CAUTION-DO NOT OPERATE” tag. This must be performed
where relevant unless the procedures specify otherwise.
FAILURE TO DO SO MAY RESULT IN ELECTRIC SHOCK.
WARNING
WARNING
This unit must be installed in accordance with AS/NZS 60335.1
Electrical Connection
Information

Page 7
Technical Specications
Specication
Specications
Model W.MVS W.MVS850
Height 1200mm 1200mm
Width 700mm 850mm
Depth 775mm 800mm
Power 0.5kW 0.5kW
AMPS 10A plug & lead fitted 10A plug & lead fitted

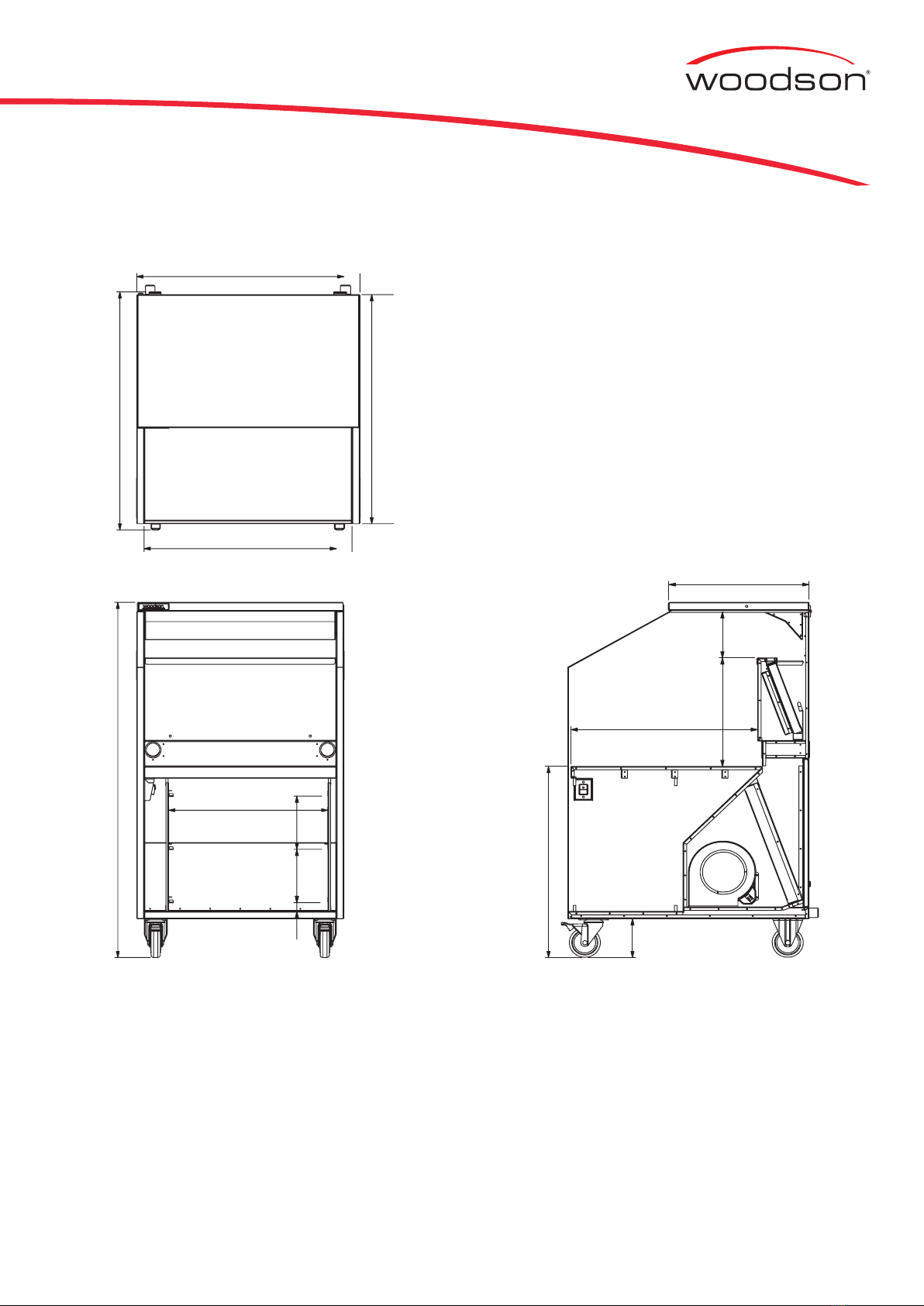

W.MVS
450
600
155 367
650
135
775 815
650
700
1200
180 180 30 538

Page 8
Specication
W.MVS850
450
625
155 367
650
135
1200
180 180 30
538
800 815
800
850

Page 9
Initial Start-up & Operation
Initial Start-up
Operation
1� Ensure that all stainless steel and polyester filters are correctly installed into the unit before use
2� Ensure that the duct cover panel is in position and secure before use
3� Ensure that the fryer appliance (WFRT80 or similar) is secure on the work shelf
4� Switch on the fan before starting any frying appliances� The top access lid must be closed before starting any frying operations� This
will create a draft over the top of the fryer appliance to draw away any cooking vapours
5� Allow the fan to continue running after the fryer appliance has been turned off� This will help to remove any residual vapours that are
present as the fryer is cooling down
6� When shutting down at the end of the work day, simply switch the fan off
7� Ensure that the cleaning instructions are followed at the end of each work day
Upon setting up your equipment, the following steps must be followed:
Operation
