Woodstock Shop Fox W1686 User manual

OWNER'S MANUAL
(FOR MACHINES MANUFACTURED SINCE 11/10)
MODEL W1686
1HP OSCILLATING
SPINDLE SANDER
Phone: [phone] • Online Technical Support: [email protected]
COPYRIGHT © AUGUST, 2002 BY WOODSTOCK INTERNATIONAL, INC. REVISED JULY, 2018 (MN)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
#4505DS Printed in Taiwan
177335
V2.07.18

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.
Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.
The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre-
hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.
The manufacturer will not be held liable for injury or property
damage from negligence, improper training, machine modifications or
misuse.
Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State of
California to cause cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement and other masonry products.
• Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip-
ment, such as those dust masks that are specially designed to filter
out microscopic particles.

SETUPELECTRICAL MAINTENANCE SERVICE PARTS
OPERATIONS
SAFETYINTRODUCTION
USE THE QUICK GUIDE PAGE LABELS TO SEARCH OUT INFORMATION FAST!

Woodstock Technical Support .................. 2
Machine Specifications .......................... 3
Identification ..................................... 5
Controls & Components ......................... 6

Standard Machinery Safety Instructions ...... 7
Additional Safety for Spindle Sanders ........ 9
 
Circuit Requirements .......................... 10
Grounding Requirements...................... 11
Extension Cords ................................ 11

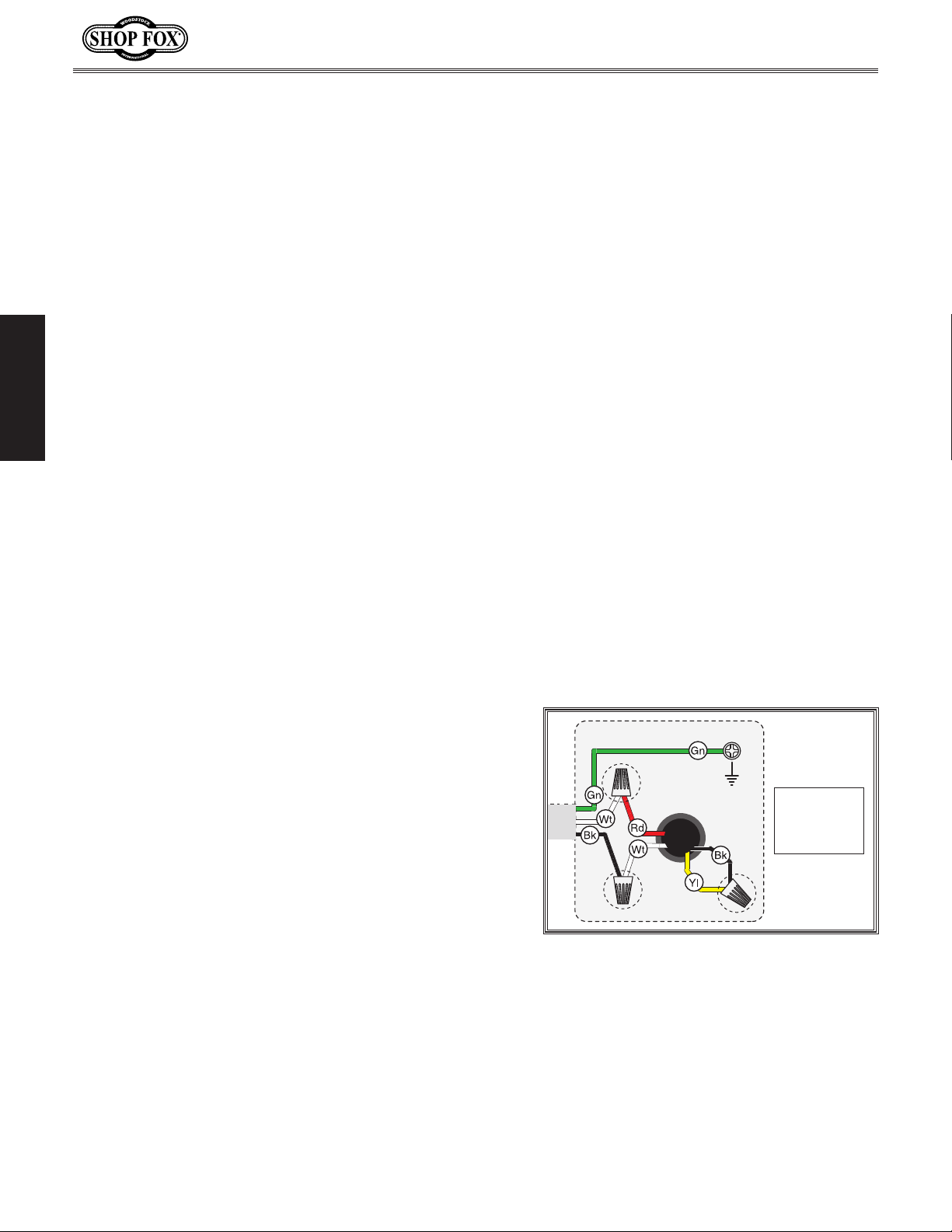

Converting Voltage to 240V .................. 12
 
Unpacking ....................................... 13
Items Needed for Setup....................... 13
Hardware Recognition Chart ................. 14
Inventory ........................................ 15
Cleaning Machine............................... 16
Machine Placement ............................ 17
Assembly......................................... 18
Dust Collection ................................. 20
Check Gearbox Oil ............................. 21
Test Run.......................................... 21
 
General .......................................... 22
Stock Inspection ................................ 23
Sanding Tips..................................... 23
Installing Sanding Spindles.................... 24
Replacing Sanding Sleeves .................... 25
Installing Table Inserts ........................ 26
Contour Sanding ................................ 26
Bevel Sanding ................................... 27
 
Spindle Sander Accessories ................... 28
 
General .......................................... 30
Cleaning & Protecting ......................... 30
Changing Gearbox Oil ......................... 31
Cleaning Sanding Sleeves ..................... 31
 
Troubleshooting................................. 32
Electrical Safety Instructions................. 34
Wiring Diagram ................................. 35
 
Main .............................................. 36
Spindle & Base.................................. 38
 


-2-
Model W1686 (For Machines Mfd. Since 11/10)
INTRODUCTION


This machine has been specially designed to provide many years of trouble-free service. Close attention
to detail, ruggedly built parts and a rigid quality control program assure safe and reliable operation.
Woodstock International, Inc. is committed to customer satisfaction. Our intent with this manual is to
include the basic information for safety, setup, operation, maintenance, and service of this product.
We stand behind our machines! In the event that questions arise about your machine, please contact
Woodstock International Technical Support at [phone] or send e-mail to: 
. Our knowledgeable staff will help you troubleshoot problems and process warranty claims.
If you need the latest edition of this manual, you can download it from .
If you have comments about this manual, please contact us at:






-3-
Model W1686 (For Machines Mfd. Since 11/10)
INTRODUCTION
Model W1686 Machine Specifications, Page 1 of 2
MODEL W1686
1 HP OSCILLATING SPINDLE SANDER
Product Dimensions
Weight.......................................................................................................... 287 lbs.
Width (side‐to‐side) x Depth (front‐to‐back) x Height........................ 25‐1/4 x 28‐3/4 x 44‐1/2 in.
Footprint (Length x Width).............................................................................. 16 x 16 in.
Shipping Dimensions
Type....................................................................................................... Wood Crate
Content........................................................................................................ Machine
Weight.......................................................................................................... 381 lbs.
Length x Width x Height........................................................................... 26 x 28 x 37 in.
Electrical
Power Requirement.......................................................... 120V or 240V, Single‐Phase, 60 Hz
Prewired Voltage................................................................................................. 120V
Full‐Load Current Rating................................................................ 12A at 120V, 6A at 240V
Minimum Circuit Size................................................................... 15A at 120V, 15A at 240V
Connection Type......................................................................................... Cord & Plug
Power Cord Included.............................................................................................. Yes
Power Cord Length.............................................................................................. 12 ft.
Power Cord Gauge............................................................................................ 16 AWG
Plug Included....................................................................................................... Yes
Included Plug Type.................................................................................... 5‐15 for 120V
Recommended Plug Type............................................................................. 6‐15 for 240V
Switch Type............................................................ Paddle Safety Switch w/Removable Key
Motors
Main
Horsepower................................................................................................. 1 HP
Phase.............................................................................................. Single‐Phase
Amps..................................................................................................... 12A/6A
Speed.................................................................................................. 1720 RPM
Type......................................................................... TEFC Capacitor‐Start Induction
Power Transfer ................................................................................... Direct Drive
Bearings............................................................... Shielded & Permanently Lubricated
Centrifugal Switch/Contacts Type................................................................. External
Main Specifications
Machine Specifications

-4-
Model W1686 (For Machines Mfd. Since 11/10)
INTRODUCTION
Model W1686 Machine Specifications, Page 2 of 2
Spindle Sander Info
Sanding Drum Diameters................................. 1/4, 3/8, 1/2, 5/8, 3/4, 1, 1‐1/2, 2, 3, 4 in.
Sanding Drum Length............................................................................... 5, 6, 9 in.
Spindle Speed........................................................................................ 1720 RPM
Spindle Oscillation...................................................................................... 72 SPM
Stroke Length......................................................................................... 1‐1/2 in.
Table Length......................................................................................... 25‐1/4 in.
Table Width.......................................................................................... 25‐1/4 in.
Table Thickness....................................................................................... 1‐1/8 in.
Table‐to‐Floor Height.............................................................................. 35‐1/2 in.
Number of Table Inserts...................................................................................... 3
Included Sanding Sleeve Grit Size........................................................................ 100
Table Tilt............................................................................. Front 45, Back 20 deg.
Construction Materials
Base............................................................................................... Formed Steel
Stand.............................................................................................. Formed Steel
Table......................................................................................... Ground Cast Iron
Frame............................................................................................... Sheet Metal
Paint Type/Finish............................................................................. Powder Coated
Other Related Info
Number of Dust Ports......................................................................................... 1
Dust Port Size.............................................................................................. 4 in.
Compatible Mobile Base............................................................................... D2260A
Other
Country of Origin ............................................................................................. Taiwan
Warranty ....................................................................................................... 2 Years
Approximate Assembly & Setup Time ................................................................. 45 Minutes
Serial Number Location .......................................................................... Machine ID Label
ISO 9001 Factory ................................................................................................... No
Certified by a Nationally Recognized Testing Laboratory (NRTL) ......................................... Yes
Features
Features Ground Steel Table Inserts
Includes Formed and Welded Steel Stand
100‐Grit Sleeve Included for Each Spindle
Cast‐Iron Table
Table Tilts 45 deg.

-5-
Model W1686 (For Machines Mfd. Since 11/10)
INTRODUCTION


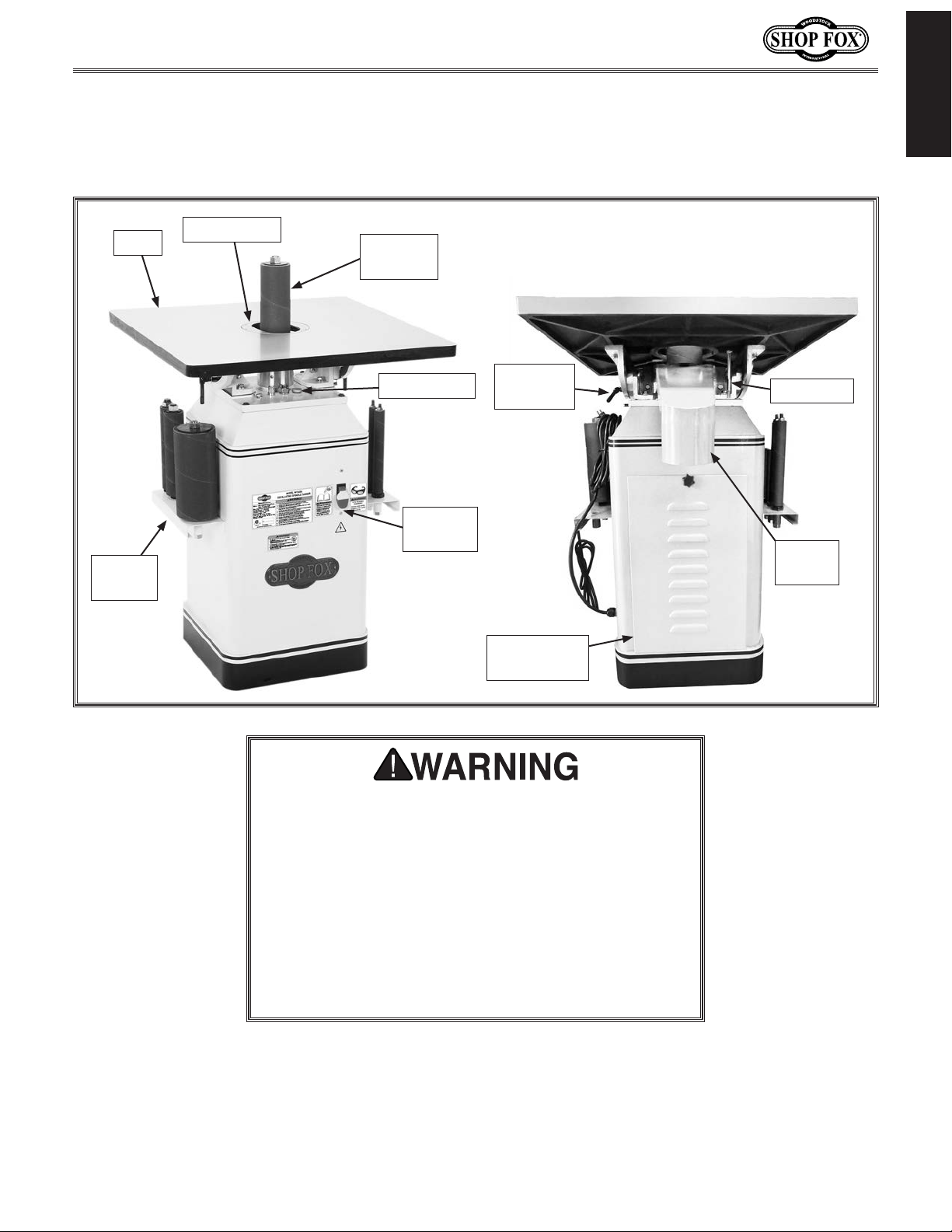

Become familiar with the names and locations of the controls and features shown below to better
understand the instructions in this manual.


 
 
 

 

 


Table Table Insert
Sanding
Spindle
Spindle
Rack
Oil Fill Plug
Rear Access
Panel
4" Dust
Port
Tilt Lock
Lever Stop Bolt
ON/OFF
Switch

-6-
Model W1686 (For Machines Mfd. Since 11/10)
INTRODUCTION

Refer to  and the following descriptions to
become familiar with the basic controls and components
of this machine. Understanding these items and how they
work will help you understand the rest of the manual and
stay safe when operating this machine.
A. Table: Provides sanding platform with -20°to +45°
tilt positioning.
B. Table Inserts: Covers opening in table surrounding
sanding spindle.
C. Sanding Spindle: Shaft on which a sanding drum
is mounted. Rotates and oscillates when motor is
turned ON.
D. Tightens and loosens table
tilt bracket to adjust tilt position.
E.  Indicates degree of table tilt.
F.  Turns spindle sander ON and OFF.
Remove yellow key to disable switch.
G. Stops table tilt position at 0°
 Body components.
F
 Rear components.
G
  

 Upper table components.
AB
C
 Lower table components.
E
D

-7-
Model W1686 (For Machines Mfd. Since 11/10)
SAFETY









NOTICE


Read and understand this
owner’s manual BEFORE using machine.

Untrained operators
have a higher risk of being hurt or killed. Only
allow trained/supervised people to use this
machine. When machine is not being used,
disconnect power, remove switch keys, or
lock-out machine to prevent unauthorized
use—especially around children. Make
workshop kid proof!

Do not use
machinery in areas that are wet, cluttered,
or have poor lighting. Operating machinery
in these areas greatly increases the risk of
accidents and injury.

Full mental
alertness is required for safe operation of
machinery. Never operate under the influence
of drugs or alcohol, when tired, or when
distracted.
You can
be shocked, burned, or killed by touching live
electrical components or improperly grounded
machinery. To reduce this risk, only allow an
electrician or qualified service personnel to
do electrical installation or repair work, and
always disconnect power before accessing or
exposing electrical equipment.
Always disconnect
machine from power supply BEFORE making
adjustments, changing tooling, or servicing
machine. This eliminates the risk of injury
from unintended startup or contact with live
electrical components.
Always wear ANSI-approved
safety glasses or a face shield when operating
or observing machinery to reduce the risk of
eye injury or blindness from flying particles.
Everyday eyeglasses are not approved safety
glasses.



              


   




-8-
Model W1686 (For Machines Mfd. Since 11/10)
SAFETY
Do not wear
clothing, apparel,or jewelry that can become
entangled in moving parts. Always tie back
or cover long hair. Wear non-slip footwear to
avoid accidental slips, which could cause loss
of workpiece control.

Dust created while using
machinery may cause cancer, birth defects,
or long-term respiratory damage. Be aware of
dust hazards associated with each workpiece
material, and always wear a NIOSH-approved
respirator to reduce your risk.

Always wear hearing
protection when operating or observing
loud machinery. Extended exposure to this
noise without hearing protection can cause
permanent hearing loss.

Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys,
wrenches, or any other tools on machine.
Always verify removal before starting!

Only use machine for its
intended purpose—never make modifications
without prior approval from Woodstock
International. Modifying machine or using
it differently than intended will void the
warranty and may result in malfunction or
mechanical failure that leadsto serious
personal injury or death!

Keep proper footing and
balance at all times when operating machine.
Do not overreach! Avoid awkward hand
positions that make workpiece control difficult
or increase the risk of accidental injury.

Keep children and
bystanders at a safe distance from the work
area. Stop using machine if they become a
distraction.

Guards and covers reduce
accidental contact with moving parts or flying
debris—make sure they are properly installed,
undamaged, and working correctly.
Do not force machine. It
will do the job safer and better at the rate for
which it was designed.
Serious injury may
occur if machine is tipped or if the cutting
tool is unintentionally contacted.
Unexpected movement during
operation greatly increases risk of injury or
loss of control. Before starting, verify machine
is stable and mobile base (if used) is locked.
Consult
this owner’s manual or the manufacturer for
recommended accessories. Using improper
accessories will increase risk of serious injury.
To reduce the risk
of accidental injury, turn machine OFF and
ensure all moving parts completely stop
before walking away. Never leave machine
running while unattended.
Follow all maintenance
instructions and lubrication schedules to
keep machine in good working condition. A
machine that is improperly maintained could
malfunction, leading to serious personal injury
or death.
Regularly inspect
machine for any condition that may affect
safe operation. Immediately repair or replace
damaged or mis-adjusted parts before
operating machine.
When disconnecting
cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the
cord may damage the wires inside, resulting
in a short. Do not handle cord/plug with wet
hands. Avoid cord damage by keeping it away
from heated surfaces, high traffic areas, harsh
chemicals, and wet/damp locations.
If at any time
you experience difficulties performing the
intended operation, stop using the machine!
Contact Technical Support at [phone].

-9-
Model W1686 (For Machines Mfd. Since 11/10)
SAFETY

              


           
               

       Rotating sanding drums can
remove a large amount of flesh in a few sec-
onds. Always keep hands away from drum dur-
ing operation. Never touch moving drum on
purpose. Use a brush to clean table of sawdust
and chips.
 Forcefully jamming work-
piece into sanding surface could cause work-
piece to eject back at operator or damage
machine. Always allow spindle to reach full
speed. Firmly hold workpiece with both hands
and ease it against spindle using light pres-
sure.
 Feeding workpiece incorrect-
ly can cause it to be thrown from machine,
allowing your hands to slip into the rotating
drum or striking yourself or bystanders. To
reduce these risks, feed workpiece against
direction of rotation, and never sand tapered
or pointed stock with point facing feed direc-
tion.
 Sanding creates large amounts
of dust and flying chips that can lead to eye
injury or serious respiratory illness. Reduce
your risk by always wearing approved eye and
respiratory protection when using sander.
Never operate without adequate dust collec-
tion system in place and running. However,
dust collection is not a substitute for using a
respirator.
 DO NOT wear loose
clothing, gloves, or jewelry, and tie back long
hair. Keep all guards in place and secure.
 Nails, staples, knots,
or other imperfections in workpiece can be
dislodged and thrown from sander at high rate
of speed into operator or bystanders, or cause
damage to sanding sleeves or drum. Never
sand stock that has embedded foreign objects
or questionable imperfections.
 A pinch point for fingers and
workpieces exists in the gap between table
and oscillating drum. Always use table insert
that fits closest to diameter of installed drum
to keep this gap as small as possible and
reduce risk of injury.
 An accidental startup
while changing sleeves can result in entangle-
ment or abrasion injuries. Always disconnect
machine from power source before changing
sanding sleeve to avoid this risk.
 Sanding fragile work-
pieces can result in loss of control, resulting
in entanglement, impact injuries, or damage
to the sanding sleeve or drum. Only sand solid
workpieces that can withstand power sand-
ing forces. Make sure shape of workpiece is
properly supported; avoid sanding workpieces
without flat bottom surfaces unless some type
of jig is used to maintain support and control
when sanding force is applied.
 Worn or damaged
sanding sleeves can tear apart and become
entangled in spindle, resulting in subsequent
injuries from operator loss of workpiece con-
trol. Replace worn or damaged sanding sleeves
promptly.

-10-
Model W1686 (For Machines Mfd. Since 11/10)
ELECTRICAL

This machine must be connected to the correct size and
type of power supply circuit, or fire or electrical damage
may occur. Read through this section to determine if an
adequate power supply circuit is available. If a correct
circuit is not available, a qualified electrician MUST install
one before you can connect the machine to power.
A power supply circuit includes all electrical equipment
between the breaker box or fuse panel in the building
and the machine. The power supply circuit used for
this machine must be sized to safely handle the full-
load current drawn from the machine for an extended
period of time. (If this machine is connected to a circuit
protected by fuses, use a time delay fuse marked D.)

This machine can be converted to operate on a power
supply circuit that has a verified ground and meets the
requirements listed below. (Refer to
Voltage Conversion
instructions for details.)
 
 
    

This machine is prewired to operate on a power supply
circuit that has a verified ground and meets the following
requirements:
 
 
 

The full-load current rating is the amperage a machine
draws at 100% of the rated output power. On machines
with multiple motors, this is the amperage drawn by the
largest motor or sum of all motors and electrical devices
that might operate at one time during normal operations.
 


The machine must be properly set up
before it is safe to operate. DO NOT
connect this machine to the power
source until instrtucted to do so later
in this manual.
    



    

NOTICE

  


       
     


      


-11-
Model W1686 (For Machines Mfd. Since 11/10)
ELECTRICAL

This machine MUST be grounded. In the event of certain
types of
malfunctionsor breakdowns, grounding provides
a path of least resistance for electric current
to travel—in
order
to reduce the risk of electric shock.
Improper connection of the equipment-grounding
wire
will
increase
the risk of electric shock. The wire with green
insulation
(with/without yellow stripes)is the equipment-
grounding
wire. If repair or replacement of the power
cord or plug is necessary, do not connect the equipment-
grounding
wire to a live (current carrying) terminal.
Check with a qualified electrician or service personnel
if
you do not understand these grounding requirements,
or if
you are in doubt about whether the tool is
properly grounded.
If you ever notice that a cord or
plug is damaged or worn, disconnect it from power, and
immediately replace it with a new one.
Grounding Prong
Current Carrying Prongs
6-15 PLUG
GROUNDED
6-15 RECEPTACLE
240V
 NEMA 6-15 plug & receptacle.
Grounding Prong
Neutral Hot
5-15 PLUG
GROUNDED
5-15 RECEPTACLE
120V
 NEMA 5-15 plug & receptacle.
A NEMA 6-15 plug (see figure) has a grounding prong that
must be attached to the equipment-grounding wire inside
the included power cord.
The plug must only be inserted
into a matching
receptacle that is properly installed
and grounded in accordance with all local codes and
ordinances.

This machine is equipped with a power cord with an
equipment-grounding
wire and NE M A 5-15 grounding
plug
(see figure). The plug must only be inserted into
a matching
receptacle that is properly installed and
grounded in accordance with local codes and ordinances.


We do not recommend using an extension cord with
this machine. Extension cords cause voltage drop, which
may damage electrical components and shorten motor
life. Voltage drop increases with longer extension cords
and smaller gauge sizes (higher gauge numbers indicate
smaller sizes).
Any extension cord used with this machine must contain a
ground wire, match the required
plug and receptacle, and
meet the following requirements:


The machine must be properly set up
before it is safe to operate. DO NOT
connect this machine to the power
source until instrtucted to do so later
in this manual.
      
       
     

      


-12-
Model W1686 (For Machines Mfd. Since 11/10)
ELECTRICAL


The voltage conversion MUST be performed by an
electrician or qualified service personnel.
The voltage conversion procedure consists of rewiring the
motor and installing the correct plug. A wiring diagram is
provided on Page 35 for your reference.
IMPORTANT: If the diagram included on the motor
conflicts with the one on Page 35, the motor may have
changed since the manual was printed. Use the diagram
included on the motor instead.
 
• Phillips Head Screwdriver #2 ............................1
• Electrical Tape ................................. As Needed
• Wire Cutters/Stripper.....................................1
• NEMA 6-15 Plug ............................................1

1. DISCONNECT MACHINE FROM POWER!
2. Cut off existing 5-15 plug.
3. Open motor junction box and loosen two wire nuts.
4. Use wire nuts to connect wires as indicated in
Figure .Twist wire nuts onto their respective wires
and wrap them with electrical tape so they will not
come loose.
5. Close and secure motor junction box.
6. Install a 6-15 plug on power cord, according to plug
manufacturer's instructions.
— If plug manufacturer's instructions are not
available, NEMA standard 6-15 plug wiring is
provided on Page 35.Figure .Motor rewired to 240V.
Neutral
Hot Hot
Hot
Ground
Ground
PADDLE SWITCH
(viewed from behind)
Rewired to 240V
Rewired for 240V
G
5-15 Plug
120 VAC (Prewired)
240
VAC
6-15 Plug
(As Recommended)
Ground
Start
Capacitor
300uF
125VAC
Ground
Rewired for 240V
Connect
Wires with
Nuts Here

-13-
Model W1686 (For Machines Mfd. Since 11/10)
SETUP


This machine has been carefully packaged for safe
transportation. If you notice the machine has been
damaged during shipping, please contact your authorized
Shop Fox dealer immediately.

The following items are needed, but not included, to set
up your machine.
SUFFOCATION HAZARD!
Immediately discard all
plastic bags and packing
materials to eliminate
choking/suffocation
hazards for children and
animals.
Wear safety glasses during
entire setup process!
This machine presents
serious injury hazards
to untrained users. Read
through this entire manual
to become familiar with
the controls and opera-
tions before starting the
machine!
HEAVY LIFT!
Straining or crushing
injury may occur from
improperly lifting the
machine or some of its
parts. To reduce this
risk, get help from other
people and use a forklift
(or other lifting equip-
ment) rated for weight of
machine.
 
• Additional Person ..........................................1
• Safety Glasses for Each Person..........................1
• Cleaner/Degreaser ........................... As Needed
• Disposable Shop Rags ......................... As Needed
• Machinist's Square .........................................1
• Dust Collection System ...................................1
• Dust Hose 4" ................................................1
• Hose Clamps 4" ............................................2

-14-
Model W1686 (For Machines Mfd. Since 11/10)
SETUP
Hex
Wrench
16mm
MEASURE BOLT DIAMETER BY PLACING INSIDE CIRCLE
7
⁄16"
3⁄8"
1⁄4"
5⁄16"
#10
1⁄2"
WASHERS ARE MEASURED BY THE INSIDE DIAMETER
USE THIS CHART TO IDENTIFY
HARDWARE DURING THE
INVENTORY/ASSEMBLY
PROCESS.
Flat Washer
Lock
Washer
Hex
Nut
Wing
Nut
Set
Screw
Cap
Screw
Carriage
Bolt
Hex
Bolt
Button
Head
Screw
Flange
Bolt
LINES ARE 1⁄16" INCH APART
1⁄4"
3⁄8"
1⁄2"
5⁄8"
5⁄16"
7
⁄16"
9⁄16"
3⁄4"
7
⁄8"
3
21⁄4"
21⁄2"
23⁄4"
2
13⁄4"
11⁄2"
11⁄4"
1
LINES ARE 1MM APART
5mm
10mm
20mm
15mm
25mm
40mm
30mm
35mm
45mm
50mm
60mm
55mm
70mm
65mm
75mm
W
A
S
H
E
R
D
I
A
M
E
T
E
R
5⁄8"
W
A
S
H
E
R
D
I
A
M
E
T
E
R
9⁄16" 1⁄2"
W
A
S
H
E
R
D
I
A
M
E
T
E
R
W
A
S
H
E
R
D
I
A
M
E
T
E
R
12mm
W
A
S
H
E
R
D
I
A
M
E
T
E
R
10mm
7
⁄16"
W
A
S
H
E
R
D
I
A
M
E
T
E
R
W
A
S
H
E
R
D
I
A
M
E
T
E
R
8mm
3⁄8"
W
A
S
H
E
R
D
I
A
M
E
T
E
R
5⁄16"
W
A
S
H
E
R
D
I
A
M
E
T
E
R
1⁄4"
W
A
S
H
E
R
D
I
A
M
E
T
E
R
#10
W
A
S
H
E
R
D
I
A
M
E
T
E
R
W
A
S
H
E
R
D
I
A
M
E
T
E
R
4mm
W
A
S
H
E
R
D
I
A
M
E
T
E
R
6mm
W
A
S
H
E
R
D
I
A
M
E
T
E
R
5mm
4mm
6mm
5mm
8mm
10mm
12mm
Tap
Screw
Phillips
Head
Screw
Flat
Head
Screw
E-Clip
External
Retaining
Ring
Internal
Retaining
Ring
Key
Lock
Nut


-15-
Model W1686 (For Machines Mfd. Since 11/10)
SETUP
 
 Spindle Sander Unit (Not Shown) .......................1
 Sanding Spindles
1⁄4" x 5"......................................................1
3⁄8" x 6"......................................................1
1⁄2" x 6"......................................................1
5⁄8" x 6"......................................................1
3⁄4" x 9"......................................................1
1" x 9" .......................................................1
11⁄2" x 9" ....................................................1
2" x 9" .......................................................1
3" x 9" .......................................................1
4" x 9" .......................................................1
 Table Insert 13⁄4" x 23⁄16".................................1
 Table Insert 23⁄16" x 31⁄2".................................1
 Table Insert 41⁄4" x 6" .....................................1
 4" Dust Chute...............................................1
 Combo Flat Wrench 7⁄8" x 11⁄4"..........................1
 Spindle Wrench 1" x 3⁄4"..................................1
 Flat Wrench 11⁄8"..........................................1
 Hex Wrench 2mm..........................................1
 Set Screws 1⁄4-20 x 5⁄8.................................. 12
 Roll Pins 5 x 28.............................................3
 Table Stop Bolt 3⁄8"-16 x 61⁄2" w/Hex Nut 3⁄8"-16 ....1

4" Dust chute.
F
 Sanding spindles and table
inserts.
B
CDE
 Tools and hardware.
I
J
KL M
G H
The following is a list of items shipped with your machine.
Before beginning setup, lay these items out and inventory
them.
Note:
If you cannot find an item on this list, carefully
check around/inside the machine and packaging materials.
Often, these items get lost in packaging materials while
unpacking or they are pre-installed at the factory.

-16-
Model W1686 (For Machines Mfd. Since 11/10)
SETUP
To prevent
corrosion during shipment and storage of your
machine, the factory has coated t
he bare metal surfaces
of your machine
with a heavy-duty rust prevention
compound
.
I
f you are unprepared or impatient, this compound can
be difficult to
remove. To ensure that the removal of this
coating is as easy as possible, please gather the correct
cleaner, lubricant, and tools listed below:
• Cleaner/degreaser
designed to remove storage wax
and grease
• Safety glasses & disposable gloves
•
Solvent brush or paint brush
• Disposable Rags



DISCONNECT MACHINE FROM POWER!

Put on safety glasses and disposable gloves.

Coat the rust preventative with a liberal amount of
cleaner/degreaser, then let it soak for 5–10 minutes.

Wipe off surfaces. If your cleaner/degreaser is
effective, the coating will wipe off easily.
 An easier way to clean off thick coats of rust
preventative from flat surfaces is to use a PLASTIC
paint scraper to scrape off the majority of the
coating before wiping it off with your rag. (Do
not use a metal scraper or you may scratch your
machine.)

Repeat cleaning steps as necessary until all of the
compound is removed.

To prevent rust on freshly cleaned surfaces,
immediately coat with a quality metal protectant.





  
  
  
   
  
   
   

    
      
    
    

       



-17-
Model W1686 (For Machines Mfd. Since 11/10)
SETUP

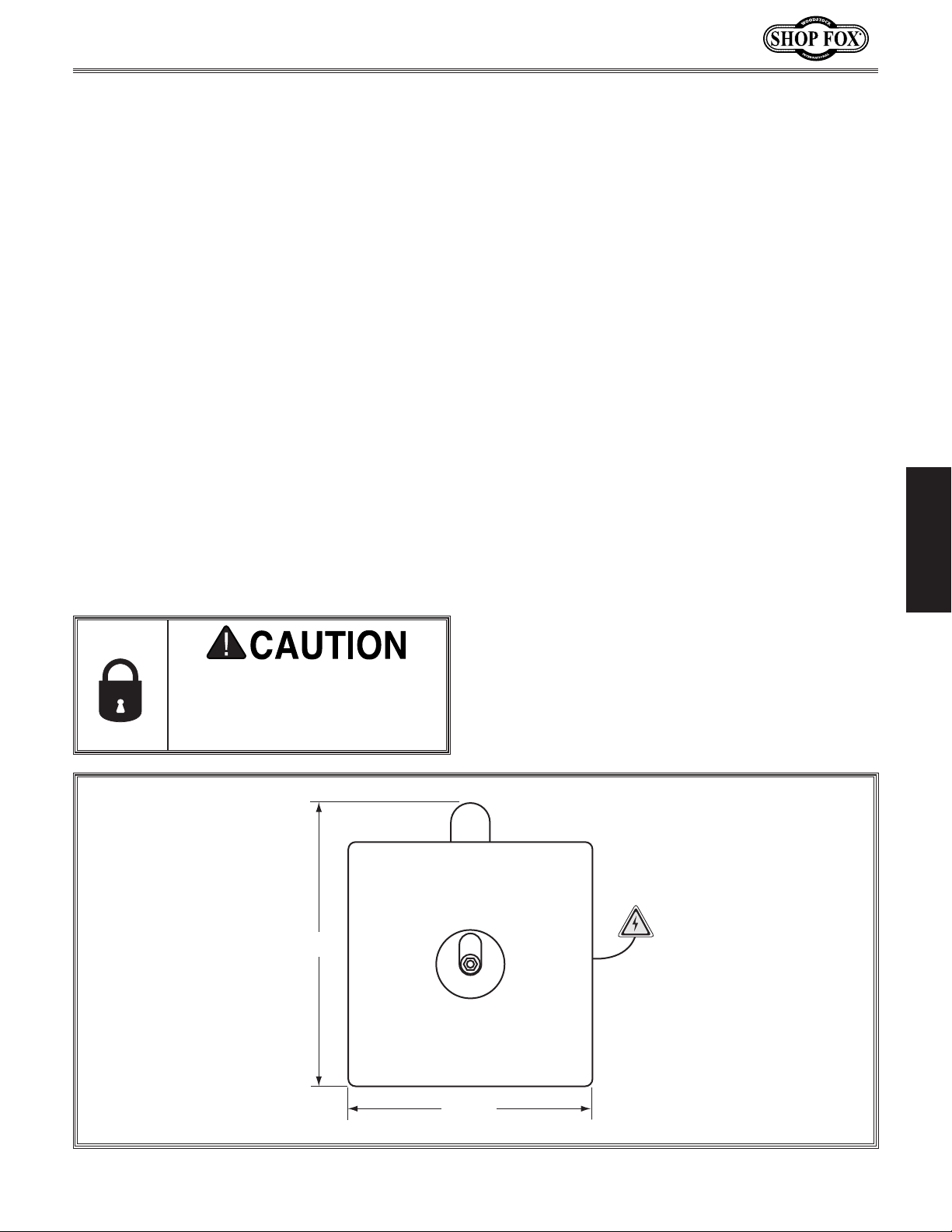

 Working clearances.

283/4"
251/4"

Refer to the
 for the
weight of your machine. Make sure that the
surface upon which the machine is placed will
bear the weight of the machine, additional
equipment that may be installed on the
machine, and the heaviest workpiece that will
be used. Additionally, consider the weight of
the operator and any dynamic loading that may
occur when operating the machine.

Consider the largest size of workpiece that
will be processed through this machine and
provide enough space around the machine
for adequate operator material handling or
the installation of auxiliary equipment. With
permanent installations, leave enough space
around the machine to open or remove doors/
covers as required by the maintenance and
service described in this manual.



The physical environment where your machine is
operated is important for safe operation and the
longevity of its components. For best results,
operate this machine in a dry environment
that is free from excessive moisture, hazardous
chemicals, airborne abrasives, or extreme
conditions. Extreme conditions for this type
of machinery are generally those where the
ambient temperature range exceeds 41°–104°F;
the relative humidity range exceeds 20–95%
(non-condensing); or the environment is subject
to vibration, shocks, or bumps.

Place this machine near an existing power
source. Make sure all power cords are protected
from traffic, material handling, moisture,
chemicals, or other hazards. Make sure to leave
access to a means of disconnecting the power
source or engaging a lockout/tagout device.

Lighting around the machine must be adequate
enough that operations can be performed
safely. Shadows, glare, or strobe effects that
may distract or impede the operator must be
eliminated.
   
  



-18-
Model W1686 (For Machines Mfd. Since 11/10)
SETUP

Before beginning the assembly process, refer to 

and gather everything you need.
Ensure all parts have been properly cleaned of any
heavy-duty rust-preventative applied at the factory (if
applicable). Be sure to complete all steps in the assembly
procedure prior to performing the  .

 Secure dust chute to trunnion assembly with pre-
installed (2) 3⁄8"-16 x 1
1⁄2" hex bolts, 3⁄8" lock
washers, and 3⁄8"-16 hex nuts (see ).
 Thread
3⁄8"-16 x 61⁄2" stop bolt and jam nut into
sander base, as shown in .
 Trunnion assembly components.
Hex Bolts &
Nuts
Trunnion
Assembly
Dust
Chute
 Location of table stop bolt.
Jam Nut
Stop Bolt
Sander
Base
 Loosen table tilt lock levers located on each side of
table trunnion assembly (see ).
 Pointer adjustment.
Scale
Retainer
Screw
Scale
Pointer
Tilt Lock
Levers
