User Instructions
Floor standing oil fired condensing boiler conventional flue and room sealed flue
Greenstar Danesmoor Utility ErP 32/50 & 50/70
6 720 813 330-01.1TL
For fully pumped open vent and sealed central heating systems and domestic hot water cylinders.
For use with Kerosene (Class C2) only.
6 720 813 330 (2014/09)

2
Preface
Greenstar Danesmoor Utility ErP – 6 720 813 330 (2014/09)
Preface
Please read these instructions carefully
These instructions are applicable to the Worcester, Bosch
Group appliance model stated on the front cover only.
These instructions apply in the UK only and must be followed
except for any statutory obligation.
After installation please leave this User instruction Manual,
Installation, Commissioning and Servicing Instructions and
completed Benchmark Checklist with the user.
Dedicated to heating comfort
Thank you for purchasing a Greenstar oil-fired condensing
appliance manufactured by Worcester, Bosch Group. The
company prides itself on manufacturing appliances to the
strictest quality control standards throughout every stage of
production.
Worcester, Bosch group has led the field in innovative
appliance design and performance for over 50 years. This
heritage means all our products are of exceptional quality and
proven reliability.
The Greenstar range in particular is extremely energy efficient,
offering you economical running costs and value for money. It is
amongst the top energy rated appliances available.
There is also the reassurance of our parts and labour guarantee
- backed up by Worcester Total Cover, an optional complete
maintenance scheme to keep your appliance operating at peak
condition and efficiency.
Contents
1 Key to symbols and safety instructions . . . 3
1.1 Key to symbols . . . . . . . . . . . . . . . . . . 3
1.2 Safety instructions . . . . . . . . . . . . . . . 3
2 General Information 4
2.1 Energy efficiency . . . . . . . . . . . . . . . . 4
2.2 Servicing . . . . . . . . . . . . . . . . . . . . . . . 4
2.3 User caution . . . . . . . . . . . . . . . . . . . . 4
3 Using your boiler . . . . . . . . . . . . . . . . . . . . . . . 5
3.1 Controls . . . . . . . . . . . . . . . . . . . . . . . . 5
3.2 Operating the boiler . . . . . . . . . . . . . . 5
3.2.1 Switching the boiler on/off . . . . . . . . 5
3.2.2 Setting temperature . . . . . . . . . . . . . . 5
3.2.3 Controlling central heating . . . . . . . . . 6
3.2.4 Frost protection . . . . . . . . . . . . . . . . . 6
4 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4.1 Maintaining your boiler . . . . . . . . . . . 6
4.2 Servicing . . . . . . . . . . . . . . . . . . . . . . . 6
5 General information . . . . . . . . . . . . . . . . . . . . 7
5.1 Ventilation information . . . . . . . . . . . 7
5.2 General notes . . . . . . . . . . . . . . . . . . . 8
5.2.1 Central heating systems . . . . . . . . . . . 8
5.2.2 Condensate drain . . . . . . . . . . . . . . . . 8
5.2.3 Clearances - service . . . . . . . . . . . . . . 8
6 Fault finding . . . . . . . . . . . . . . . . . . . . . . . . . . 9
6.1 Accessing reset buttons . . . . . . . . . . 10
6.2 Fault conditions . . . . . . . . . . . . . . . . 10
7 Fault or breakdown . . . . . . . . . . . . . . . . . . . 11
8 Energy saving . . . . . . . . . . . . . . . . . . . . . . . . 12
8.1 Tips on energy saving . . . . . . . . . . . . 12
9 Environment/disposal . . . . . . . . . . . . . . . . . 12
10 Your guarantee . . . . . . . . . . . . . . . . . . . . . . . 13
10.1 Guarantee registration 13
10.2 Your guarantee 13

3
Key to symbols and safety instructions
Greenstar Danesmoor Utility ErP – 6 720 813 330 (2014/09)
1 Key to symbols and safety instructions
1.1 Key to symbols
Warnings
The following keywords are defined and can be used in this
document:
•NOTICE indicates a situation that could result in damage to
property or equipment.
•CAUTION indicates a situation that could result in minor to
medium injury.
•WARNING indicates a situation that could result in severe
injury or death.
•DANGER indicates a situation that will result in severe
injury or death.
Important information
Additional symbols
Examples of additional symbols used
A numbered step in an action sequence
A sequence of numbered steps or actions carried out in a
specific order to complete a task.
1. First action
2. Second action
3. Third action
etc.
A step in an action sequence
A sequence of defined actions or steps carried out in order to
complete a task.
▶Action
▶Nextaction
▶etc
A reference to a related part in the document or to other
related documents.
To refer the reader to a specific figure/table/section within the
manual.
e.g. figure 1.
A reference number to identify or refer to a part or item.
In a related figure, items or parts identified by a sequential
number.
List entries, first and second levels
• A single component/item
• A component/list, made up of multiple parts/items.
– Sub component or sublist of main component/list.
–etc.
1.2 Safety instructions
These operating instructions are intended for the user of the
heating system.
▶ Read any operating instructions (boiler, heating controls,
etc.) carefully before operation and keep them.
▶ Observe the safety instructions and warnings.
Oil fumes or leaks from the appliance
If you smell oil fumes, observe the following rules.
▶Extinguishanynakedflames
▶ Isolate the electrical supply
▶ Isolate the fuel supply to the boiler
▶ Open windows and doors
▶ Rectify the fault
Health and safety
The appliance contains no asbestos and no substances have
been used in the construction process that contravene the
COSHH Regulations (Control of Substances Hazardous to
Health Regulations 1988). Where applicable, the CE mark
indicates compliance with relative EU Directives.
Safety instructions in this document are
framed and identified by a
warning triangle which is printed on a grey
background.
This symbol indicates important information
where there is no risk to people or property.
Symbol Meaning
1. a numbered step in an action sequence
▶ a step in an action sequence
a reference to a related part in the document or to
other related documents
a reference number to identify or refer to a part or
item
•alistentry
– a list entry (second level)
Table 1
1

4
General Information
Greenstar Danesmoor Utility ErP – 6 720 813 330 (2014/09)
Combustion air/room air
The air in the installation room must be free of combustible or
chemically aggressive substances.
▶ Do not use or store combustible or explosive materials
(paper, propellants, thinners, paints, etc.) within the
vicinity of the appliance.
▶ Do not use or store corrosive substances (solvents,
adhesives, chlorinated cleaning agents, etc.) within the
vicinity of the appliance.
Appliance operation:
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge, if they have
been given supervision or instruction concerning the use of the
appliance, in a safe way, and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children
without supervision.
Intended use
This appliance must only be used as a heat appliance in a sealed
hot water heating system for domestic purposes.
Any misuse or unauthorised modifications to the appliance,
flue or associated accessories and heating system will
invalidate the guarantee.
• Do not modify the appliance or flue system in any way.
Worcester, Bosch Group accepts no liability arising from any
such actions. This does not affect your statutory rights.
2 General Information
2.1 Energy efficiency
Energy efficiency information is given in the Installation,
Commissioning and Servicing Instructions supplied with the
appliance.
2.2 Servicing
The Service Checklist can be found at the rear of the boiler’s
installation instructions. It will be required in the event of any
guarantee work and may be required by the local Building
Control Inspector.
▶ Have the boiler serviced regularly by a competent, OFTEC
registered engineer.
▶ Ensure that the service engineer completes the Service
Record, at the rear of the Installation, Commissioning and
Servicing Instruction manual, after each service.
▶ Have any work carried out only by a competent, OFTEC
registered engineer.
▶ Always use original spares, to help maintain the efficiency,
safety and reliability of the appliance.
2.3 User caution
• It is forbidden for any interference with the appliance other
than those actions allowed in this document.
CAUTION: Incorrect use
▶ Any incorrect use can result in danger to
the householder.

5
Using your boiler
Greenstar Danesmoor Utility ErP – 6 720 813 330 (2014/09)
3Usingyourboiler
3.1 Controls
Fig. 1
[A] Temperature control (behind upper front panel)
[B] Reset button - boiler overheat thermostat (behind front
panel)
[C] Reset button - flue overheat thermostat (behind front
panel)
[D] Reset button - lockout (top of burner under top panel)
[E] Upper front panel (pull squarely away from the boiler to
remove)
[F] Top panel (lift squarely up from boiler to remove)
3.2 Operating the boiler
3.2.1 Switching the boiler on/off
▶ To switch on the boiler; turn on the oil and electricity supply
to the boiler.
▶ Check the programmer/timer is correct and is set to ON.
▶ Set the room thermostat to the desired setting.
▶ Open and set thermostatic radiator valves as required.
▶ Turn the boiler water temperature control to the required
setting.
▶ To switch off the boiler; turn the programmer/timer to OFF
for heating and hot water.
If the boiler is left unused and exposed to freezing conditions;
shut off all the mains supplies, isolate the boiler and drain the
system and boiler.
3.2.2 Setting temperature
▶ Turn the control clockwise to increase the water
temperature.
▶ Turn the control anti-clockwise to reduce the water
temperature.
The minimum and maximum ranges of the temperature control
positions are approximately 60°C to 82°C.
Fig. 2
3.2.3 Controlling central heating ▶ Set the programmer/timer to the correct time with the
required ON/OFF periods.
6 720 813 330-02.1TL
6 720 813 330-03.1TL

6
Maintenance
Greenstar Danesmoor Utility ErP – 6 720 813 330 (2014/09)
▶ Turn the room thermostat to the temperature required.
▶ Set thermostatic radiator valves to the required
temperature for each room.
3.2.4 Frost protection
▶ Frost thermostats can be wired into the boiler.
▶ Frost protection should be fitted to the system where the
system is most exposed and at risk of freezing.
If there is no hot water or heating, check page 6 for fault
condition guidance.
4Maintenance
4.1 Maintaining your boiler
Your new boiler represents a long term investment in a reliable,
high quality product.
In order to realise its maximum working life and to ensure it
continues to operate at peak efficiency and performance, it is
essential thatservicing andmaintenance checks are performed
at least once a year by an OFTEC engineer or other suitably
qualified person.
If you would like to know more about servicing options from
Worcester, Bosch Group, please visit worcester-bosch.co.uk.
Please tick the appropriate box on your warranty registration
card for further details of the Worcester, Bosch Group Service
Contract.
When your boiler requires servicing please contact a
Worcester, Bosch Group contact centre (see the back cover for
details).
In addition to the service contract we are pleased to offer a one
-off annual service or breakdown call out for your boiler.
Maintenance tips:
• Regularly check the oil level in the tank
• Do not obstruct the flue outlet or the air inlet
• Regularly check the system pressure gauge, see chapter 4
Use in hard water areas
In exceptionally hard water areas a device to prevent scale
formation may be fitted. Installation of a scale inhibitor
assembly should be in accordance with the requirements of the
local water company.
An isolating valve should be fitted to allow for servicing.
4.2 Servicing
You must have the boiler regularly serviced by a competent,
qualified OFTEC registered engineer using approved spares, to
help maintain the economy, safety and reliability of the boiler.
The boiler should be serviced once each year after installation
unless the installation conditions and usage demand more
frequent services.
Ensure that the service engineer completes
the Service Record in the checklist after each
service.
The completed checklist will be required in the
event of any warranty work and may be
required by the local Building Control
Inspector.
The checklist and service interval record can
be found at the rear of the Installation,
Commissioning and Servicing Instructions.

7
General information
Greenstar Danesmoor Utility ErP – 6 720 813 330 (2014/09)
5 General information

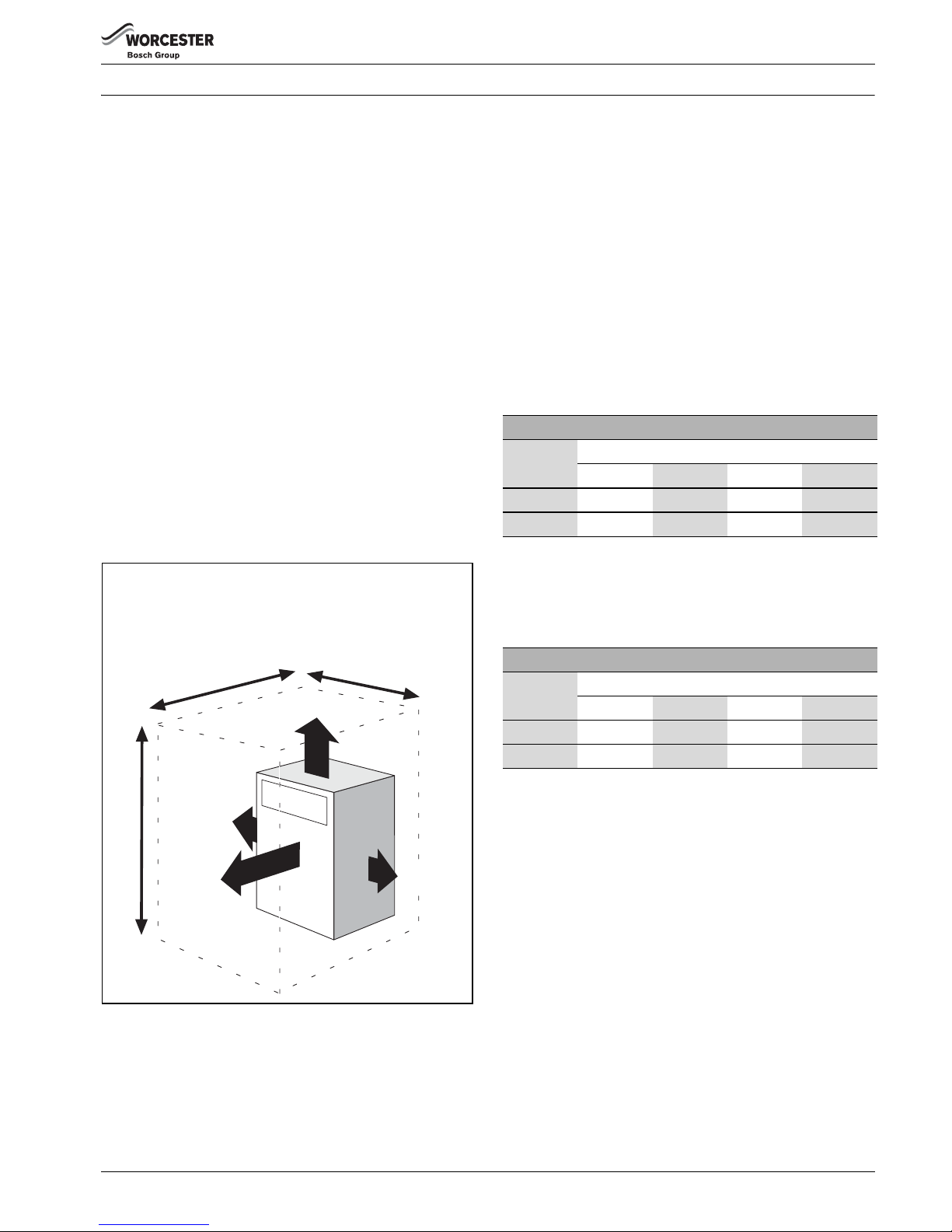

5.1 Ventilation information
Boiler location
**The boiler can be installed under a work top as long as:
▶ The work top above the boiler is easily removable for
maintenance.
▶ There is at least 10mm clearance above the boiler.
▶ The front of the boiler is not enclosed.
Ventilation
Air vents must be functional at all times and the air supply must
not be restricted or contaminated.
The boiler clearances must meet the minimum shown below for
servicing and venting purposes.
* If this clearance is less than 75mm the flue "knock-out" panel
sections must be removed to improve air circulation and
cooling.
Do not place clothes or objects to hinder the air circulation
required by the boiler.
Fig. 3
Conventional flue boilers require an adequate supply of fresh
air which must be delivered to the boiler for combustion
purposes through a permanent inlet, such as an air brick, into
the area where the boiler is situated.
If a cupboard or compartment which is to be used for storage or
airing is built around the boiler after installation there must be
a non-combustible partition around the boiler. Further
information can be found in BS 5410 which also describes
venting requirements.
Conventional flued boilers
Minimum area of air inlet for combustion:
248cm2 for 32/50kW appliances
358cm2 for 50/70kW appliances
Minimum air vent area (cm2) for boilers installed in a
compartment
ANNUAL
SERVICE CLEARANCES
600mm
30 0mm
10mm
10mm
720mm
1415mm
1312mm
6 720 813 330-05.1TL
Conventional flue
kW Internal ventilation1)
1) Internal air to and from a space/room inside the building.
External ventilation2)
2) External air to and from directly outside the building.
High Level Low Level High Level Low Level
32/50 495 743 248 495
50/70 715 1073 358 715
Table 2
Room Sealed flue
kW Internal ventilation1) External ventilation2)
High Level Low Level High Level Low Level
32/50 495 495 248 248
50/70 715 715 358 358
Table 3

8
General information
Greenstar Danesmoor Utility ErP – 6 720 813 330 (2014/09)
Venting compartments
▶ Ventilation must be provided for boilers fitted into
compartments as described in BS 5410
▶ A minimum of two air vents must be fitted, one at low level
and another at high level onto the same wall using the same
air for circulation.
▶ Combustion air must not be taken from a room or internal
space containing a bath or shower and must not
communicate with a protected area such as a hall, stairway,
landing, corridor, lobby, shaft etc.
▶ Air vents must allow access for clean free air and must be
sited to comply with the flue terminal position
requirements.
▶ Air ducting runs must not exceed 3m.
▶ Low level air vents must be less than 450mm from the
floor.
▶ A warning label must be attached to the vents with a
statement to the effect:
"Do not block this vent. Do not use for storage".
5.2 General notes
To get the best from your boiler. please read these instructions
carefully.
5.2.1 Central heating systems
During the first few hours of operation of the central heating
system, check that all radiators are being heated at an even
rate. If the top of a radiator is at a lower temperature than the
bottom then it should be vented by releasing air through the
venting screw at the top of the radiator. Ask your installer to
show you how this is done. Repeated venting will reduce the
quantity of water in the system and this must be replenished for
safe and satisfactory operation of the boiler.
When excessive venting or water leaks are found in the system
you must contact a service engineer to inspect the installation
and rectify any fault.
Only use additives compatible with the boiler and system. Use
of incompatible additives can cause damage and will invalidate
the boiler guarantee.
5.2.2 Condensate drain
This is a condensing boiler and the terminal will, at times give
out a plume of water vapour. This is quite normal.
The boiler also produces quantities of condensate which is
discharged regularly via a pipe to drain. This pipe must not be
blocked or altered in any way.
5.2.3 Clearances - service
Your installer will have provided adequate space around the
boiler for safety and servicing access.
Do not restrict this space with the addition of cupboards,
shelves etc. next to the boiler.

9
Fault finding
Greenstar Danesmoor Utility ErP – 6 720 813 330 (2014/09)
6Faultfinding
In the event that the appliance stops functioning or does not perform as expected, you can carry out a few simple checks. These
checks are some of the most common causesand are listed in the table below. Should the problem persist or if other fault codes are
displayed, then it will be necessary to contact Worcester, Bosch Group.
Problem Cause Remedy
Desired room
temperature is not
reached
Thermostatic radiator valve(s) set too low ▶ Increase thermostatic radiator valve setting(s).
Temperature control for central heating flow on
boiler set too low
▶ Increase central heating flow temperature
control setting
Low temperature setting on the room thermostat ▶ Increase settings on room thermostat
Desired room
temperature is too
high
Thermostatic radiator valve(s) are set too high ▶ Turn down thermostatic radiator valves/room
thermostat
Room thermostat is set too high ▶ Reduce central heating temperature by turning
down the Central Heating control on boiler
Heating stays on for
too long
Clock is incorrectly set ▶ Check setting and adjust
Hot water
temperature too low
Temperature set too low on cylinder thermostat
control.
▶ Check setting and adjust
Hot water
temperature too
high
Temperature set too high on cylinder thermostat
control.
▶ Check setting and adjust
Table 4 Fault finding

10
Fault finding
Greenstar Danesmoor Utility ErP – 6 720 813 330 (2014/09)
6.1 Accessing reset buttons
Reset buttons [A, B & C]
▶ To remove upper front panel pull panel squarely away from
the front of the boiler.
▶ To replace, realign ball studs and push back into place.
Burner lockout reset button [D]
▶ Pull top panel squarely upwards to remove.
▶ To replace, realign ball studs and push back into place.
Always keep pressure to the edges of the panels to avoid
accidental damage.
Fig. 4
6.2 Fault conditions
If the boiler fails to operate.
▶ Check the oil level in the oil storage tank.
▶ Check there is not a power cut and the power supply to the
boiler is switched on.
▶ Check the programmer is set to on.
▶ Check the room thermostat and where fitted, the radiator
thermostats are set correctly.
▶ Remove upper front panel and check the thermostat
control knob [A] is turned on.
If the above checks prove satisfactory and the boiler remains
off, then a safety device in the boiler control system may have
been activated to prevent the boiler from operating.
Automatic reset
▶ An excessive boiler operating temperature can activate a
thermostat to switch off the boiler. This thermostat
automatically resets when the boiler has cooled down
sufficiently.
Do not attempt to repeatedly start the boiler using the
manual reset buttons as persistent failure indicates a fault
requiring the attention of a service engineer.
Boiler overheat (manual reset)
▶ Should the boiler temperature rise beyond the automatic
reset level, a high limit thermostat will switch the boiler off,
indicated by button [B] standing proud. When the boiler
has cooled down, press and release [B] to reset the
thermostat.
Flue overheat (manual reset)
▶ Excessive combustion gas temperatures can activate a
thermostat to switch off the boiler, indicated by button [C]
standing proud. Press and release [C] to reset thermostat.
Burner lockout (manual reset)
▶ Flame failure, for any reason, will cause the burner to go
safely to a lockout condition.
▶ Remove the boiler top panel and check the lockout button
[D]. If this is illuminated it indicates a "lockout" condition.
To cancel lockout, wait 2 minutes, then press and release
button [D].
6 720 813 330-04.1TL

11
Fault or breakdown
Greenstar Danesmoor Utility ErP – 6 720 813 330 (2014/09)
7 Fault or breakdown
This boiler is supported in mainland UK by Worcester, Bosch
Group, part of Bosch Thermotechnology Ltd.
Specialist service engineers are available to attend a
breakdown occurring on this appliance.
• No charge will be made for parts and/or labour providing:
An appliance fault is found and the appliance is within the
guarantee period. Reasonable evidence of this must be
supplied on request. i.e. the Benchmark Checklist.
• A call-out charge will be made where:
– The appliance is outside the guarantee period.
– Evidence cannot be provided that the first year service
inspection has been carried out (i.e. an entry in the
Benchmark Checklist).
– Our Field Service Engineer finds no fault with the
appliance.
– The cause of breakdown is misuse or with other parts of
your plumbing/heating system, or with equipment not
supplied by Worcester, Bosch Group.
If the boiler fails to give complete satisfaction, please
check the following points before calling for a service
engineer:
1. Oil level in the tank
2. Power to the boiler
3. All control settings
Technical support
In the event of a appliance fault or breakdown please contact
Worcester, Bosch Group appointments team on 0330 123
9339.
Your advisor will arrange for an engineer to call with the
minimum of delay; under normal circumstances this will be
from 1 - 3 working days (excluding weekends and bank
holidays) for priority breakdown situations (no hot water and/
or heating).
Boiler data label
The data label can be found on the inside of the boiler on top of
the control box.
To access:
▶ Lift top panel to release lugs.
To replace top panel:
▶ Replace the top panel and gently push down (from the
edges so as not to damage the panel) until it clips back into
place.
(You can record this information on the inside back cover of
this manual.)
Fig. 5
Invoices for attendance and repair work
carried out on this appliance by any third party
will not be accepted.
No appliance fault is found on over 30% of
all service calls.
In the case of a suspected fault, refer to the
fault finding section of this guide.
6 720 813 330-06.1TL

12
Energy saving
Greenstar Danesmoor Utility ErP – 6 720 813 330 (2014/09)
8 Energy saving
8.1 Tips on energy saving
Room thermostats
Reducing the setting of the room thermostat by 1°C can reduce
fuel consumption by up to 10%.
New control systems
Upgrade your heating control system with the latest equipment
available. The minimum level of control for a heating system is
a programmer, interlocking room thermostat and thermostatic
radiator valves.
Radiators
More often than not radiators will be sited underneath a
window, so the warm air from the radiator heats the colder
incoming air from the window.
The performance of the radiator will be affected if the curtains
are allowed to drape over the radiator or shelves are fitted
above it.
The positioning of furniture and tables in front of the radiator
should also be avoided.
It is advisable to manually adjust all radiator valves every 2-3
months to prevent them from sticking. It is also important that
the plastic tops of all valves are always in position and not
cracked or damaged to help prevent accidents. Care should be
taken when vacuum cleaning carpets to avoid damage to valves
and pipework.
The heating system and the outputs of the radiators have been
carefully selected by your installer. The temperature
obtainable in any given room is dependent on all radiators
being operated at the same time. If you decide to turn off
radiators in unused rooms, spare bedrooms etc., you may
experience slightly lower room temperatures in rooms adjacent
to unheated rooms.
Heating economically
The boiler is designed to provide a high level of comfort while
keeping oil consumption and the resulting environmental effect
as low as possible.
The central heating control on the boiler should be set as low as
possible while still maintaining a comfortable room
temperature.
The temperature of each room can be set individually using the
thermostatic radiator valves (except the primary room with the
room thermostat).
Roof insulation
Around 30% of the heat loss from a property is through the
roof. Replace any old insulation with new insulation, preferably
to a minimum thickness of 200mm.
Window frames
Single glazed windows, particularly those with steel frames,
can lose a great deal of heat.
Consideration should be given to replacement with PVCu or
wooden framed double glazed units.
Curtains
Lined curtains, or heavier full length curtains can provide
excellent insulation. However, always ensure that the curtains
do not drape over radiators.
Draughts
Try to ensure that draughts around doors, windows, letter
boxes and keyholes etc. are reduced by using a suitable
draught excluder.
9 Environment/disposal
Environmental protection is a fundamental corporate strategy
of the Bosch Group.
The quality of our products, their economy and environmental
safety are all of equal importance to us and all environmental
protection legislation and regulations are strictly observed.
We use the best possible technology and materials for
protecting the environment taking account of economic
considerations.
Packaging
We participate in the recycling programmes of the countries in
which our products are sold to ensure optimum recycling.
All of our packaging materials are environmentally compatible
and can be recycled.

13
Your guarantee
Greenstar Danesmoor Utility ErP – 6 720 813 330 (2014/09)
10 Your guarantee
10.1 Guarantee registration
You should complete and return the postpaid Guarantee
Registration Card within 30 days of installation.
Returning your card will register you as the owner of your new
boiler and will assist us in maintaining an effective and efficient
customer service by establishing a reference and permanent
record for your boiler.
This does not affect your statutory rights.
10.2 Your guarantee
This boiler is guaranteed against faulty materials or
workmanship from the date of installation subject to the
following conditions:
▶ During the period of this guarantee any components of the
unit which are proved to be faulty or defective in
manufacture will be exchanged or repaired free of material
charges and free of labour charges if repaired directly by
Bosch Thermotechnology Ltd.
▶ The householder may be asked to prove, when requested,
the date of installation, that the boiler was correctly
commissioned and, where appropriate, that the 12 month
service inspection has been carried out to the satisfaction
of Bosch Thermotechnology Ltd.
This should be documented in the Oil Boiler
Commissioning Checklist and Service Interval Record in
the back of the Installation, Commissioning and Servicing
manual.
▶BoschThermotechnologyLtdwill not accept responsibility
for damage caused by faulty installation, neglect, misuse or
accidental damage and non-observance of the instructions
contained in the Installation and Users Instructions
manuals.
▶ The boiler has been used only for normal domestic
purposes, for which it was designed.
▶ This guarantee applies only to equipment purchased and
installed in mainland UK.
This guarantee is given in addition to all your normal statutory
rights.
Worcester, Bosch Group is a brand name of Bosch
Thermotechnology Ltd.
Guarantee registration
Your Greenstar appliance carries a guarantee against faulty
material or manufacture subject to Terms and Conditions.
To read the full Terms and Conditions please visit us on-line at
www.worcester-bosch.co.uk/guarantee. The guarantee
registration form is available on the same page and can be
completed and submitted electronically.
Alternatively, please telephone one of our Guarantee
Registration advisors on 0330 123 2552.
Your statutory rights are not affected by the manufacturer’s
guarantee.
For your own records
Model
Serial number
(See identity label inside boiler casing)
Type/size
Date of installation
Installer details
If the boiler fails to give complete satisfaction,
please make the general checks shown on the
back page this manual before calling for a
service engineer.

14 Greenstar Danesmoor Utility ErP – 6 720 813 330 (2014/09)
Notes

15Greenstar Danesmoor Utility ErP – 6 720 813 330 (2014/09)
Notes

WORCESTER, BOSCH GROUP:
TECHNICAL SUPPORT: 0330 123 3366
APPOINTMENTS: 0330 123 9339
SPARES: 0330 123 9779
LITERATURE: 0330 123 9119
TRAINING: 0330 123 0166
SALES: 0330 123 9669
Worcester, Bosch Group
Cotswold Way, Warndon, Worcester WR4 9SW.
Tel. [phone]
Worcester, Bosch Group is a brand name of
Bosch Thermotechnology Ltd.
worcester-bosch.co.uk
6 720 813 330 (2014/09)
General checks before calling a Service engineer
1. Oil level in the tank?
2. Power to the boiler?
3. All control settings?
Please read the fault section of the manual before
contacting our service team.
No boiler fault is found on over 30% of
all service call outs.
