OPERATING INSTRUCTIONS
Page 1 of 9

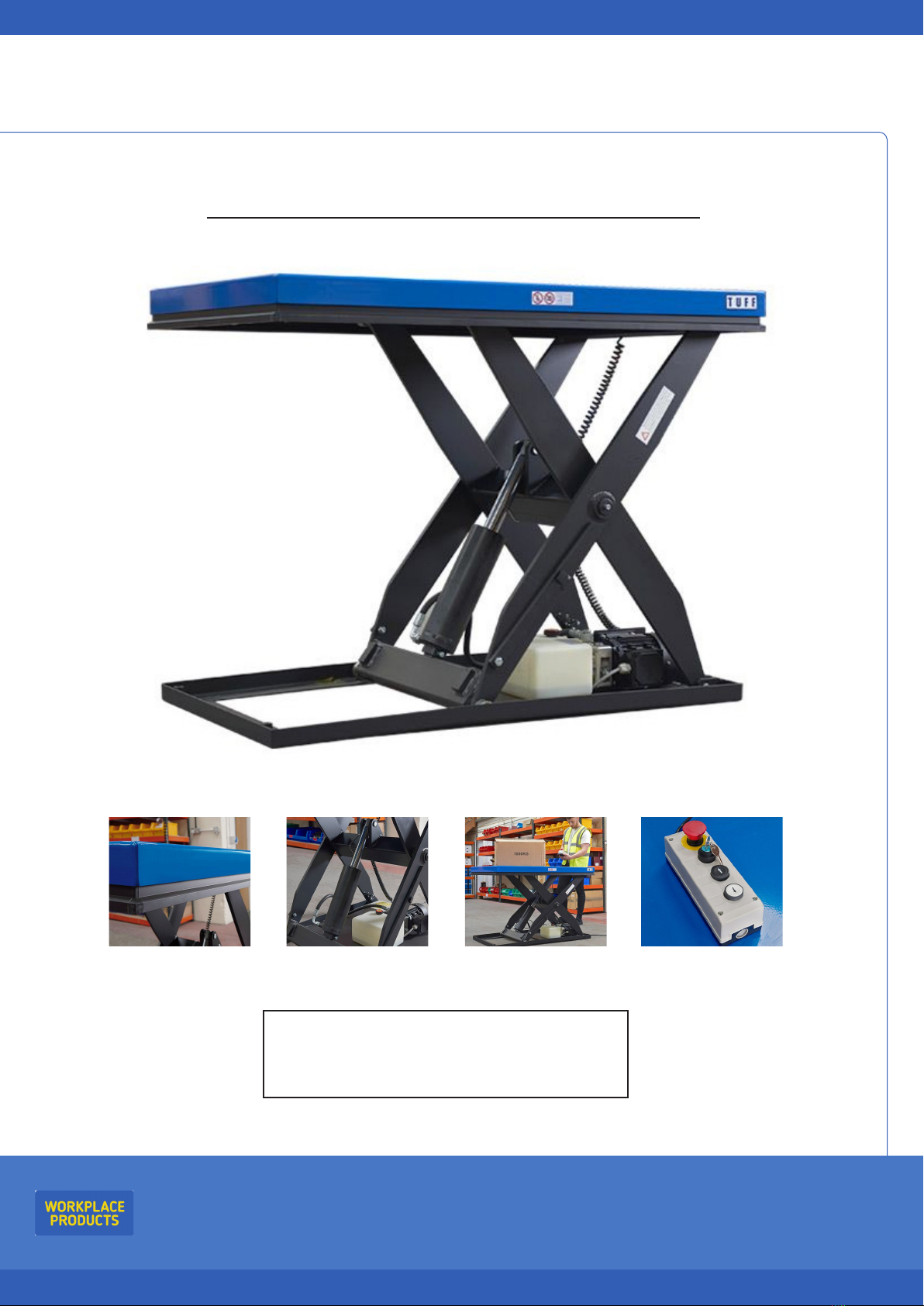

STATIC SCISSOR LIFTS 500kg / 1000kg
Note: The owner and user MUST read and
understand these operating instructions
before using this product.

t. 01922 743 833 | e. [e-mail] | w. workplace-products.co.uk
Workplace Products, Timmis Road, Lye, Stourbridge, West Midlands DY9 7BQ, United Kingdom
Information, data & specications are correct at time of writing. E&OE. AO16062022
OPERATING INSTRUCTIONS
Page 2 of 9
This lift table is made of high quality steel and is designed to give a
durable, reliable and easy to use. For your safety and correct operation,
please carefully read this instruction and warnings on the lift table
before using it.
Type HIW1.0EU HIW2.0EU
Capacity 500 kg 1000 kg
Max. height 1010 mm 1010 mm
Min.height 190 mm 190 mm
Dimension of the table 1300 x 800 mm 1300 x 800 mm
Lifting speed 15 s 26 s
Lower speed 13 s 20 s
Pump electric current 3 l/min 3 l/min
Oil tank 2 l 2 l
Pump station AC3 x 380V, 750W AC3 x 380V, 750W
Weight 160 kg 220 kg
Type HIW4.0EU HIW3.0EU
Capacity 2000 kg 3000 kg
Max. height 1010 mm 1020 mm
Min.height 190 mm 220 mm
Dimension of the table 1300 x 800 mm 1300 x 800 mm
Lifting speed 40 s 26 s
Lower speed 30 s 22 s
Pump electric current 3 l/min 5 l/min
Oil tank 3 l 3 l
Pump station AC3 x 380V, 750W AC3 x 380V, 1500W
Weight 280 kg 320 kg
Trouble Clause Fixing methods
The table can
not be up the
max. height
- The hydraulic oil is not enough
- The position of the travel
switch
- Pour in the oil
- Adjust the position of
travel switch
The table can
not lift.
- Without hydraulic oil.
- Safety valve has no enough
pressure.
- Pour in the oil
- Adjust the safety
valve
The motor cannot
run
- The piston rod or cylinder is
deformed resulting from partial
loading slanting to one side or
over-loading.
- The fork was kept in the high
position for long time, which
cause piston rod bared to
arise in rusting and jamming
of the rod.
- The release valve of pump can
not work because of abrasion
- Replace the piston
rod or cylinder with
new one
- Keeping the fork in
the lowest position if
not using, and pay
more attention to
lubricate the piston
rod.
- Replace with new
one
The table cannot
descend
- The piston rod or cylinder is
deformed resulting from partial
loading slanting to one side or
over-loading.
- The fork was kept in the high
position for long time, which
cause piston rod bared to
arise in rusting and jamming
of the rod.
- The release valve of pump can
not work because of abrasion
- Replace the piston
rod or cylinder with
new one
- Keeping the fork in
the lowest position if
not using, and pay
more attention to
lubricate the piston
rod.
- Replace with new
one
Leaks - Sealing parts worn or damaged.
- Some parts cracked
- Replace with
new one
- Replace with
new one
The fork descends
without
the release valve
worked
- The impurities in the oil cause
the release valve to be unable
to close tight.
- Sealing parts worn or
damaged.
- The release valve is damaged.
- Replace with new oil
- Replace with new
one
- Replace with new
one
Attention:
Environmentally hazardous waste, such as batteries and electronics, will have a negative
eect on the environment, or health, if handled incorrectly.
The waste packages should be sorted and put into solid dustbins according to the
materials and be collected disposal by local special environment protection bureau. To
avoid pollution, it’s forbidden to
throw away the wastes randomly.
To avoid leaking during the use of the products, the user should prepare some absorbable
materials (scraps of wooden or dry duster cloth) to absorb the leaking oil in time. To avoid
second pollution to the environment, the used absorbable materials should be handed in
to special departments in terms of local authorities.
Note:
All of the information reported herein is based on data available at the moment of
printing. We reserve the right to modify our own products at any moment without
notice and incurring in any sanction. So, it is suggested to always verify possible updates.
1.SPECIFICATIONS
5.TROUBLESHOOTING
2. SAFETY GUIDANCE
3. OPERATING GUIDANCE
4. MAINTENANCE
Operator should read all warning signs on the truck and instructions here before using it.
2.1
Do not put foot and hand under the scissors, inury could happen.
2.2
Do not enter under table.
2.3
Do not overload.
2.4
Do not use it on slope, lift table may become uncontrollable and create danger.
2.5
Do not lift persons. People could fall down and suer severe injury.
2.6
Do not side or end load .Load must be distributed on at least 80% of the table area.
2.7
The table should be maintained by the professional operator,
2.8
Keep watching the condition of load, stop operating lift table if load becomes unstable.
2.9
Check and maintain the lift table regularly.
2.10
Do not use the lift table continuously, the pump station would be damaged.
2.11
Stop operating the lift table if the temperature of the oil is too high.
2.12
The table should be lowered to the bottom if the lift table is not used.
2.13
When you press down this switch, it will switch o the power, and then you turn it
clockwise, it will switch on the power
3.1 EMERGENCY SWITCH
When you press down this switch, the table will lift; when you loose your hand,
the table will stop lifting.
3.2 LIFTING SWITCH
When you press down this switch, the table will be lowering; when you loose
your hand, the table will stop lowering.
3.3 LOWERING SWITCH
3.4 The table can not lift or lower when the function of safety protection framestarts. When
you press down the lifting or lowering switch, the table will lift or lower again.
Please check the oil level every six months. The oil can be hydraulic oil: ISO VG 32(GB11118-89), its
viscosity should be 32cSt at 40, total volume is about 4.Olt.
4.1 HYDRAULIC OIL
It is necessary to check the truck daily. Special attention should be paid to the rollers, the axles, as
thread, rags, etc., it may block the rollers; the scissors and the table should be checked, they may be
deformed; the table should be unloaded and lowered in the lowest position when the job is over.
4.2 DAILY CHECK AND MAINTENANCE
Use motor oil or grease to lubricate all movable parts.
4.3 LUBRICATION
Note: Do not attempt to repair the truck unless you are trained and authorized.

t. 01922 743 833 | e. [e-mail] | w. workplace-products.co.uk
Workplace Products, Timmis Road, Lye, Stourbridge, West Midlands DY9 7BQ, United Kingdom
Information, data & specications are correct at time of writing. E&OE. AO16062022
OPERATING INSTRUCTIONS
Page 3 of 9
6. MAINTENANCE

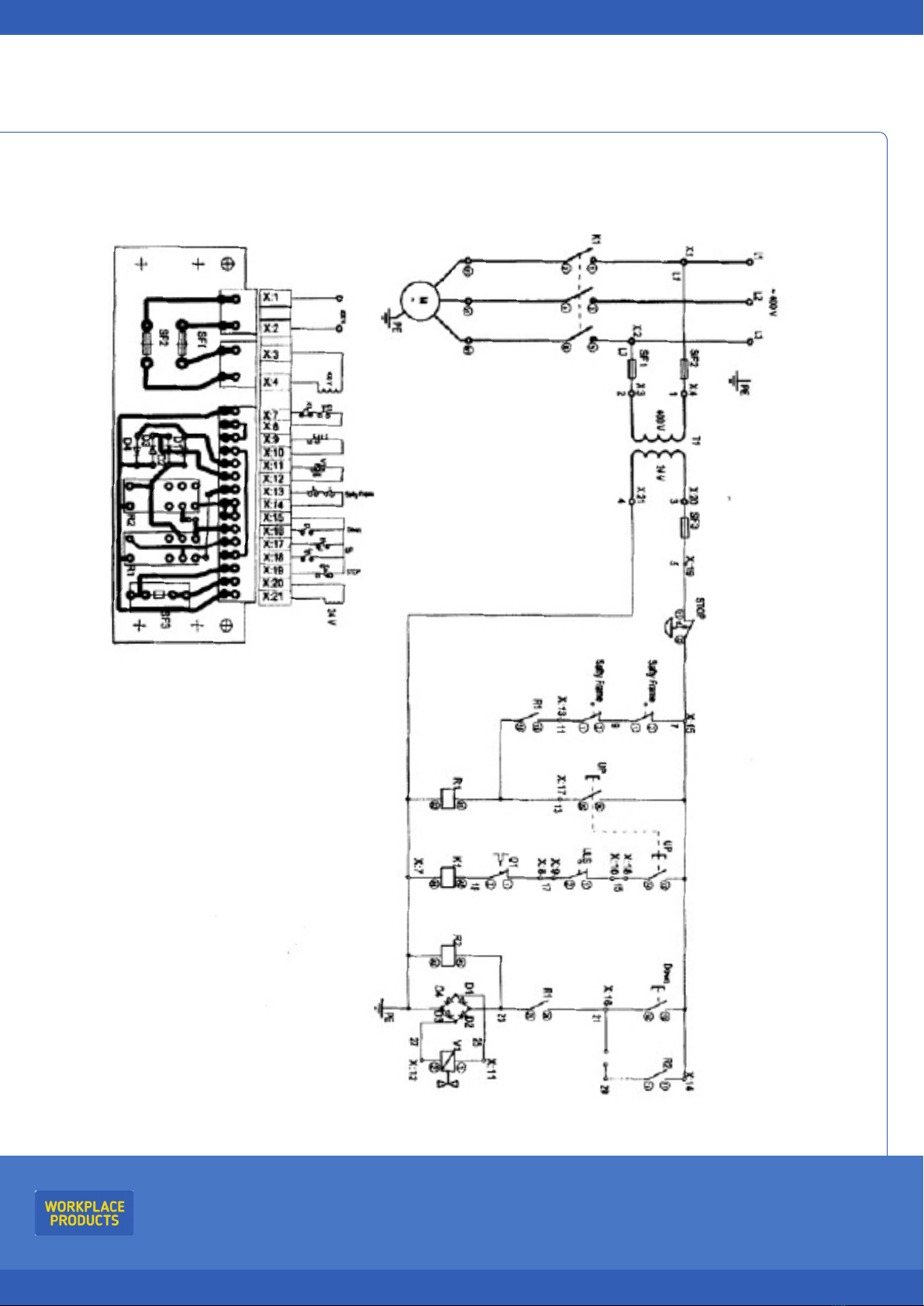

6.1 CIRCUIT DIAGRAM

t. 01922 743 833 | e. [e-mail] | w. workplace-products.co.uk
Workplace Products, Timmis Road, Lye, Stourbridge, West Midlands DY9 7BQ, United Kingdom
Information, data & specications are correct at time of writing. E&OE. AO16062022
OPERATING INSTRUCTIONS
Page 4 of 9

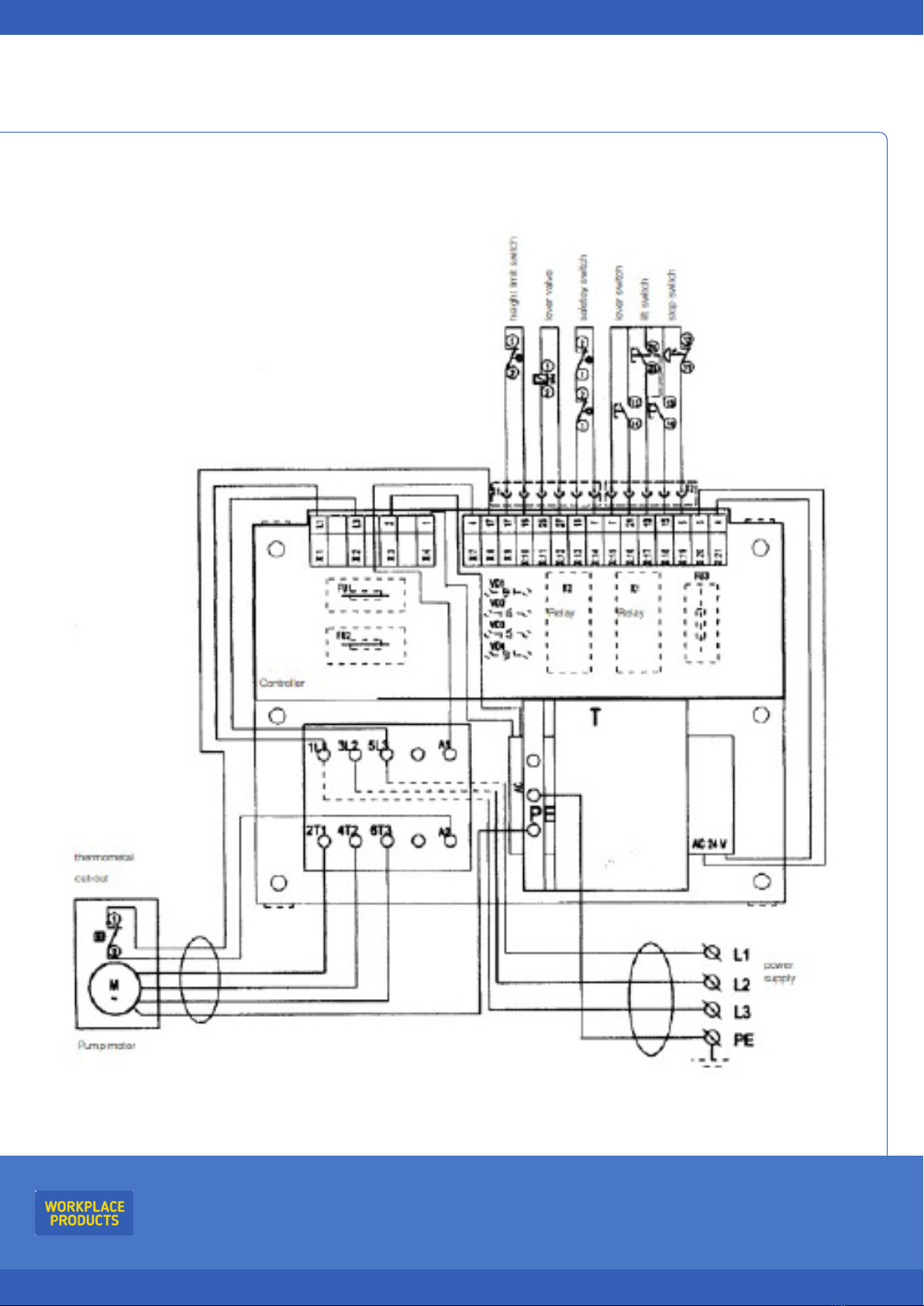

6.2 CONNECTION DIAGRAM

t. 01922 743 833 | e. [e-mail] | w. workplace-products.co.uk
Workplace Products, Timmis Road, Lye, Stourbridge, West Midlands DY9 7BQ, United Kingdom
Information, data & specications are correct at time of writing. E&OE. AO16062022
OPERATING INSTRUCTIONS
Page 5 of 9
7. HYDRAULIC SYSTEM
HYDRAULIC SYSTEM
1. Tank
2.Filter
3. Pump
4. Motor
5. Check Valve
6. Relief Valve
7. Trottie Valve
8. Solenoid Valve
9. Cylinder
10. Fuse Valve
HYDRAULIC SYSTEM
1. Tank
2.Filter
3. Pump
4. Motor
5. Check Valve
6. Relief Valve
7. Trottie Valve
8. Solenoid Valve
9. Cylinder
10. Fuse Valve

t. 01922 743 833 | e. [e-mail] | w. workplace-products.co.uk
Workplace Products, Timmis Road, Lye, Stourbridge, West Midlands DY9 7BQ, United Kingdom
Information, data & specications are correct at time of writing. E&OE. AO16062022
PARTS LIST - 500KG
Page 6 of 9
8. PARTS LIST
8.1 HIW1.0EU (1000LBS/500KG)
No Description Qty.
1Table 1
2Bolt 3
3Microswitch 2
4Bolt 4
5Safety Border 1
6Bushing 4
7Retaining Ring 4
8Shaft 4
9Fork Arm 1
10 Roller 2
11 Retaining Ring 2
12 Control Switch 1
13 Support Plank 2
14 Nut 2
15 Screw 2
16 Chopper 1
17 Pump 1
18 Screw 4
19 Bottom Plank 1
20 Bolt 1
21 Connect Plank 1
22 Nut 2
23 Roller 2
24 Retaining Ring 2
25 Nut 4
26 Screw 2
27 90° Curve 2
28 Pipe 1
29 Reduction 1
30 Seal Washer 1
31 Shaft 1
32 Cylinder 1
33 Retaining Ring 4
34 Shaft 1
35 Plank 1
36 Nut 2
37 Bolt 2
38 Microswitch 1
39 Bolt 4
40 Shaft 1
41 Washer 2
42 Screw 2

t. 01922 743 833 | e. [e-mail] | w. workplace-products.co.uk
Workplace Products, Timmis Road, Lye, Stourbridge, West Midlands DY9 7BQ, United Kingdom
Information, data & specications are correct at time of writing. E&OE. AO16062022 Page 7 of 9
No. Description Qty.
201 Piston rod 1
202 O ring 1
203 O ring 2
204 Piston 1
205 Y-Seal ring 1
206 Pump body 1
207 Pin 1
208 Pump cover 1
209 Y-Seal ring 1
210 Dust ring 1
211 Safety Valve 1

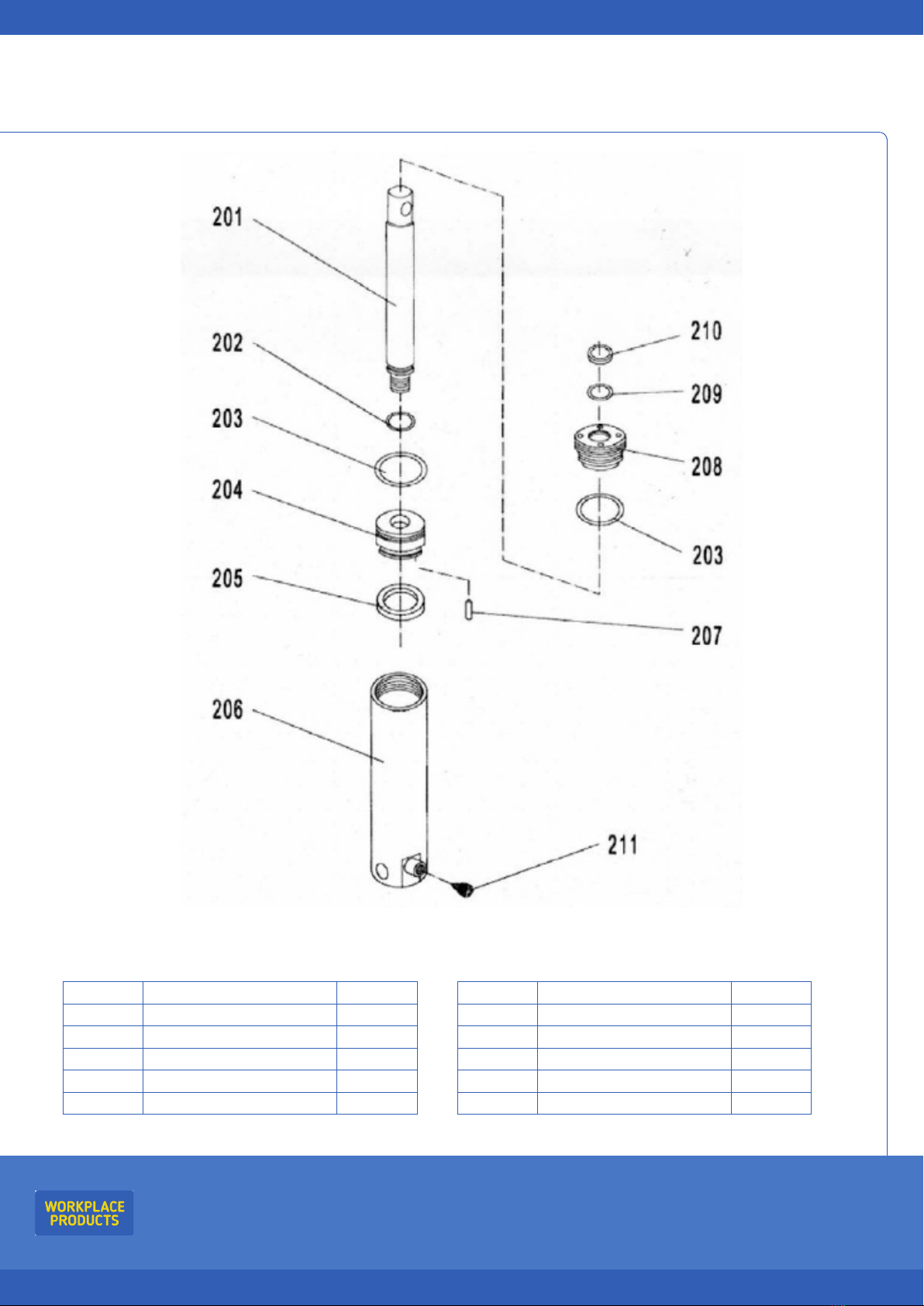

PARTS LIST OF THE CYCLINDER OF HIW1.0EU
(1000LBS/500KG)
PARTS LIST - 500KG

t. 01922 743 833 | e. [e-mail] | w. workplace-products.co.uk
Workplace Products, Timmis Road, Lye, Stourbridge, West Midlands DY9 7BQ, United Kingdom
Information, data & specications are correct at time of writing. E&OE. AO16062022 Page 8 of 9

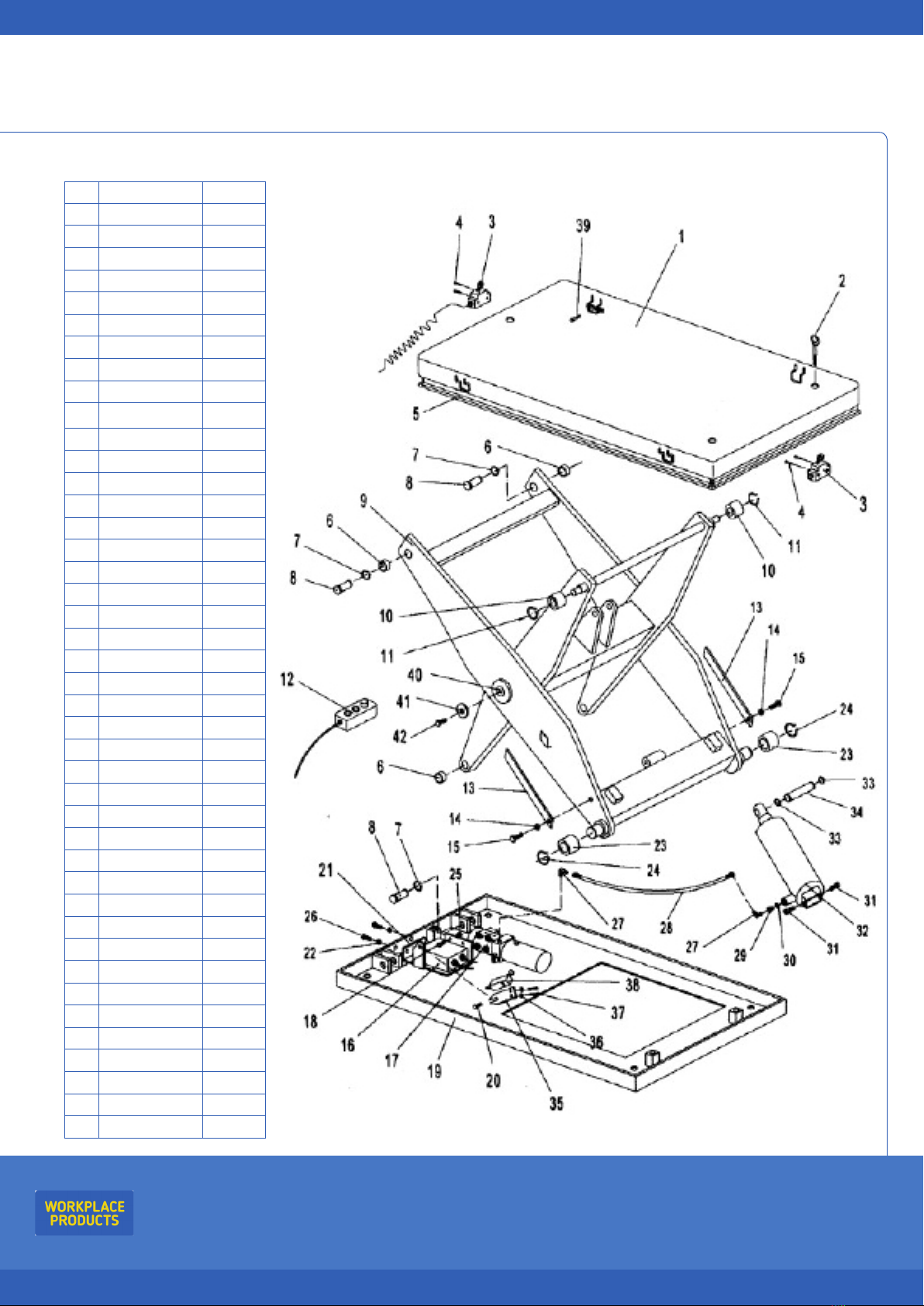

8.2 HIW2.0EU
No Description Qty.
1Table 1
2Bolt 3
3Microswitch 2
4Bolt 4
5Safety Border 1
6Bushing 4
7Retaining Ring 4
8Shaft 4
9Fork Arm 1
10 Roller 2
11 Retaining Ring 2
12 Control Switch 1
13 Support Plank 2
14 Nut 2
15 Screw 2
16 Chopper 1
17 Pump 1
18 Screw 4
19 Bottom Plank 1
20 Bolt 1
21 Connect Plank 1
22 Nut 2
23 Roller 2
24 Retaining Ring 2
25 Nut 4
26 Screw 2
27 90° Curve 2
28 Hose 1
29 Reduction 1
30 Seal Washer 1
31 Screw 2
32 Cylinder 1
33 Retaining Ring 4
34 Shaft 1
35 Plank 1
36 Nut 2
37 Bolt 2
38 Microswitch 1
39 Bolt 4
40 Shaft 1
41 Washer 2
42 Screw 2
(2000 LBS / 1000KG)
PARTS LIST - 1000KG

t. 01922 743 833 | e. [e-mail] | w. workplace-products.co.uk
Workplace Products, Timmis Road, Lye, Stourbridge, West Midlands DY9 7BQ, United Kingdom
Information, data & specications are correct at time of writing. E&OE. AO16062022 Page 9 of 9
No. Description Qty.
201 Piston rod 1
202 O ring 1
203 O ring 2
204 Piston 1
205 Y-Seal ring 1
206 Housing 1
207 Pin 1
208 Cylinder Cap 1
209 Y-Seal ring 1
210 Dust ring 1
211 Safety Valve 1

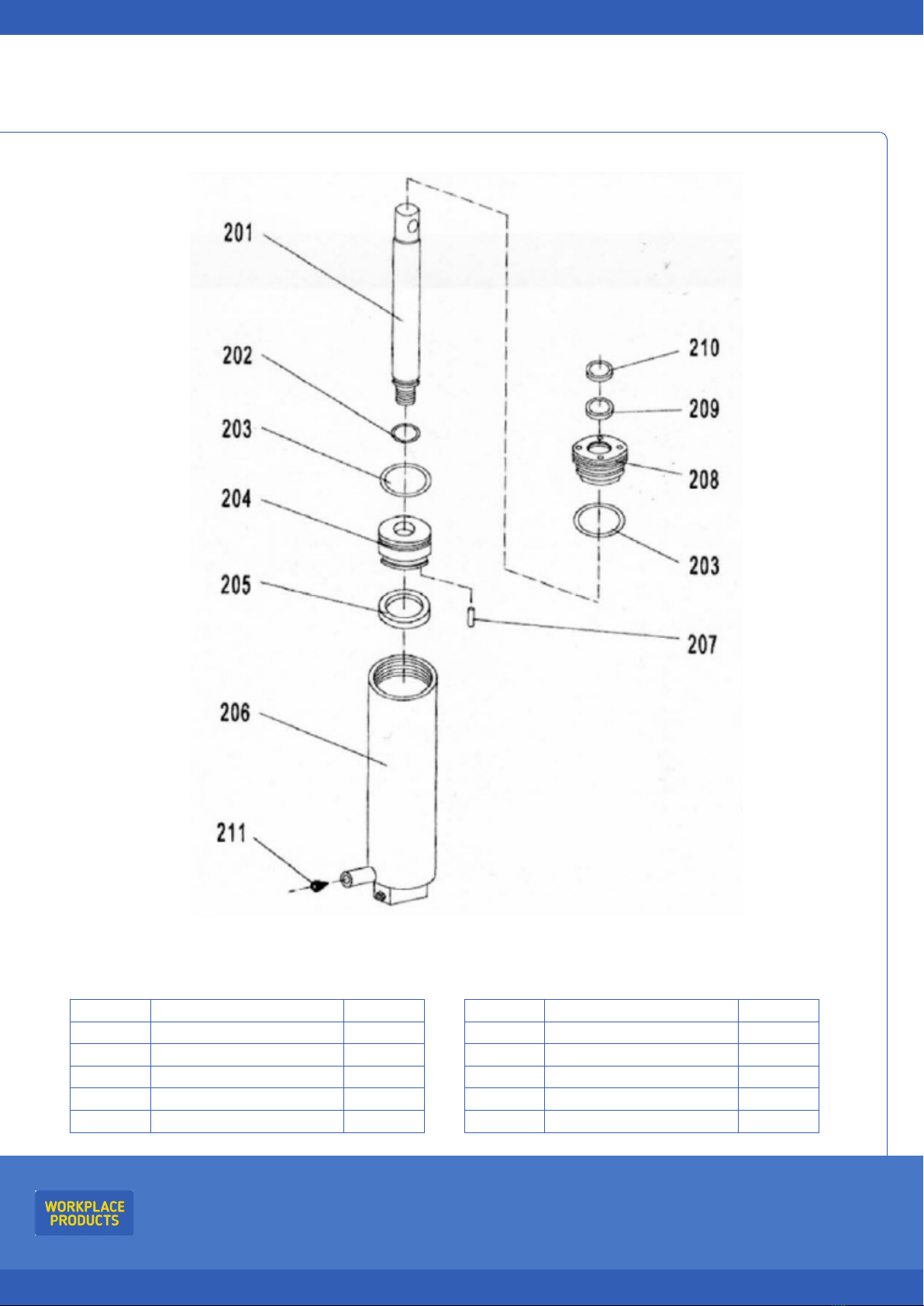

PARTS LIST OF THE CYCLINDER OF HIW2.0EU
(2000LBS/1000KG)
PARTS LIST - 1000KG
