WorkPro AM 105 User manual

AM 105
User Manual/Manual de Uso
STEREO RE CEIVER AMPLIFIER
VCR AUX
CD DVD
1 2
3 4
56
7 8
A
B
C
D
MEMO RY
SCA N
AUTO
POWE R
TUNER
MUTE
BALANCE
VOL
AM/F M
TREBLE
BASS
SLEEP

Voltage:
Voltages are 230V AC,50Hz.
CAUTION: To reduce the risk of electric shock, do
not remove cover (or back). No user-serviceable
parts inside. Only refer servicing to qualified service
personnel.
CAUTION
RISK OF SHOCK
NOTICE! !NOTICE! !NOTICE! !
Thank you for purchasing our product.
To assure the finest performance, please read this manual
carefully.Keep it in a safe place for future reference.
Explanation of Graphical Symbols
The lightning flash & arrowhead symbol,
within an equilateral triangle, is intended
to alert you to the presence of danger.
The exclamation point within an equilate-
ral triangle is intended to alert you to the
presence of important operating and ser-
vicing instructions.
IMPORTANT SAFETY INSTRUCTIONS
1. Read Instructions - All the safety and operating instru-
ctions should be read before the appliance is operated.
2. Retain Instructions - The safety and operating instru-
ctions should be retained for future reference.
3. Heed Warnings - All warnings on the appliance and in
the operating instructions should be adhered to.
4. Follow Instructions - All operating and use instructions
should be followed.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accord-
ance with the manufacturer's instructions.
8. Do not near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers)
that produce heat.
9. Do not defeat the safety purpose of the polarized or gro-
unding-type plug. A polarized plug has two blades with one
wider than the other. A grounding type plug has two blades
and a third grounding prong. The wide blade or the third
prong is provided for your safety. If the provided plug does
not fit into your outlet. Consult an electrician for replacem-
ent of the obsolete outlet.
10. Protect the power cord from being walked on or pinched.
11. Only use attachments/accessories specified by the
manufacturer.
12. Use only with the cart, stand, tripod,
bracket, or table specified by the man-
ufacturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination
to avoid injury from tip-over.
13.Unplug this apparatus during lightning storms or when
unused for long periods of time.
14.Refer all servicing to qualified service personnel. Serv-
icing is required when the apparatus has been damaged in
any way, such as power-supply cord or plug damage, liquid
has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, or the
apparatus does not operate normally or has been dropped.
WARNING
To reduce the risk of fire or electric shock, do not
expose this unit to rain or moisture.
This symbol on the product or on its packaging indicates that this product
shall not be trated as household waste. Instead it shall be handed over to
the applicable collection point for the recycling of electrical an electronic
equipment. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste handling
of this product. The recycling of amterials will help to conserve natural
resources. For more detailed information sabout recycling of this product,
please contact your local city office, your household waste disposal service
or the shop where you purchased the product.

SETUP AND MAINTENANCE OF
THE RECEIVER
15cm/6"
10cm/
4"
10cm/
4"
1.Provide spaces for sufficient ventilation as indicated:
3.Do not use your receiver immediately after transferring it from
a cold place to a warm due to there is risk of condensation.
4.Do not expose your receiver to water or excessively high te-
mperatures.
5.After having disconnected your receiver, clean the case with
a soft cloth, or with a slightly damp leather chamois. Never use
strong solvents.
PROTECT YOUR RECEIVER FROM
OVERHEATING
1.Do not block ventilation holes. Arrange the receiver so that air
can circulate freely.
2.Do not stack the receiver and other components directly on
top of each other.
3.Allow adequate ventilation when placing your receiver in a
stand.
4.Place an amplifier near the top shelf of the stand so heated
air rising from it will not affect other apparatus. If you have a
satellite receiver, you should place it on the top shelf.
10cm/
4"
15cm / 6"
15. Cleaning - Unplug this unit from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol cleaners.
Use a damp cloth for cleaning.
16. Power lines - An outdoor antenna should be located
away from power lines.
17. Object and Liquid Entry - Care should be taken so that
objects do not fall and liquids are not spilled into the enclo-
sure through openings.
To CATV system installer's (U.S. A.): This reminder is
provided to call the CATV system installer's attention
to Article 820-40 of the NEC that provides guidelines
for proper grounding and, in particular , specifies that
the cable ground shall be connected as close to the
point of cable entry as practical.
Note:
IMPORTANT SAFETY INSTRUCTIONS
2.Do not connect to the AC power cords until all are
completed.
apparatus
STER EO RECEI VER AMP LIFIER

TABLES OF CONTENTS
1
UNPACK THE RECEIVER
ABOUT REMOTE CONTROL
BASIC CONNECTIONS
CONNECTING THE SPEAKERS
CONNECTING THE ANTENNAS
CONNECTING FOR POWER
USING HEADPHONES
FIRST STEPS
TABLES OF CONTENTS
RECEIVER CONTROLS & OPERATIONS
PANEL INTRODUCTION
DISPLAY MESSAGES
TUNING THE RECEIVER
CONNECTING AUXILIARY COMPONENTS
BACK PANEL INTRODUCTION
BEFORE YOU CONNECT
CONNECTING A COMPACT DISC PLAYER
REMOTE CONTROL
RECEIVER/TUNER OPERATION
REMOTE CONTROL OPERATION
GENERAL
CLEANING THE EXTERIOR
EQUIPMENT SPECIFICATIONS
2
1
2
3
4
5
5
5
7
8
8
7
SELECT THE AM/FM BAND
TUNING
AUTO TUNING
STORING STATIONS IN MEMORY
MANUAL
TO STORE STATION
MANUAL PRESET
RETRIEVING PRESET STATIONS
10
11
11
12
CARE AND MAINTENANCE
TROUBLESHOOTING TIPS
10
13
13
14
8
8
8
9
9
9
9
13
13
13
13
CONNECTING THE WIRES
CONNECTING THE MAIN SPEAKERS
5
6
6

One instruction book
Indoor FM antenna
AM loop antenna
One receiver unit
2
One Remote Control
UNPACKING THE RECEIVER
You should receiver the following items:
AAA,R3,UM-4 batteries
FIRST STEPS
STER EO REC EIVER AM PLIFI ER
VCR AUX
CD DVD
1 2
3 4
56
7 8
A
B
C
D
MEMORY
SCAN
AUTO
AM-105
POWER
TUNER
MUTE
BALANCE
VOL
AM/FM
TREBLE
BASS
SLEEP
AM 105
User Manual/Manual de Uso
STEREO REC EIVER AMPLI FIER
VCR AUX
CD DVD
1 2
3 4
56
7 8
A
B
C
D
MEMORY
SCAN
AUTO
POWER
TUNER
MUTE
BALANCE
VOL
AM/FM
TREBLE
BASS
SLEEP

STER EO REC EIVER AM PLIFIE R
INSTALLING BATTERIES IN THE
REMOTE CONTROL
Since the remote controller will be used for many of this
unit control operations, you should begin by installing the
supplied batteries.
1.Turn the remote controller over and slide the battery
compartment cover in the direction of the arrow.
2. Insert the batteries(AAA,R03,UM-4 TYPE) according to
the polarity markings on the inside of the battery compa-
rtment.
3.Close the battery compartment cover.
NOTES ABOUT THE REMOTE CONTROL
Batteries Replacement
If you find that the remote controller must be used close to the
main unit, the batteries are weak. Replace both batteries with
new ones.
REMOTE CONTROL OPERATION RANGE
Within approximately
6m(19.7feet)
30
30
1.The area between the remote controller and the main unit must be
clear of large obstacles.
2.Do not expose the remote control sensor to strong lighting, in
particular an inverter type fluorescent lamp. Otherwise, the remote
controller may not work properly. If necessary, position the main unit
away from direct lighting.
ABOUT REMOTE CONTROL
3
Danger of explosion if battery is incorrectly
replaced.
CAUTION
1.Use AAA,R03,UM-4 batteries.
2.Be sure the polarities are correct.(See the illustration inside the bat-
tery compartment.)
3.Remove the batteries if the remote controller is not used for an exte-
nded period of time. If batteries leak, dispose of them immediately.
4.Avoid touching the leaked material and contact with clothing, etc.
Clean the battery compartment thoroughly before installing new batt-
eries.
NOTES:NOTES:
FIRST STEPS
VCR AUX
CD DVD
1 2
3 4
56
7 8
A
B
C
D
MEMORY
SCAN
AUTO
AM-105
POWER
TUNER
MUTE
BALANCE
VOL
AM/FM
TREBLE
BASS
SLEEP

FIRST STEPS

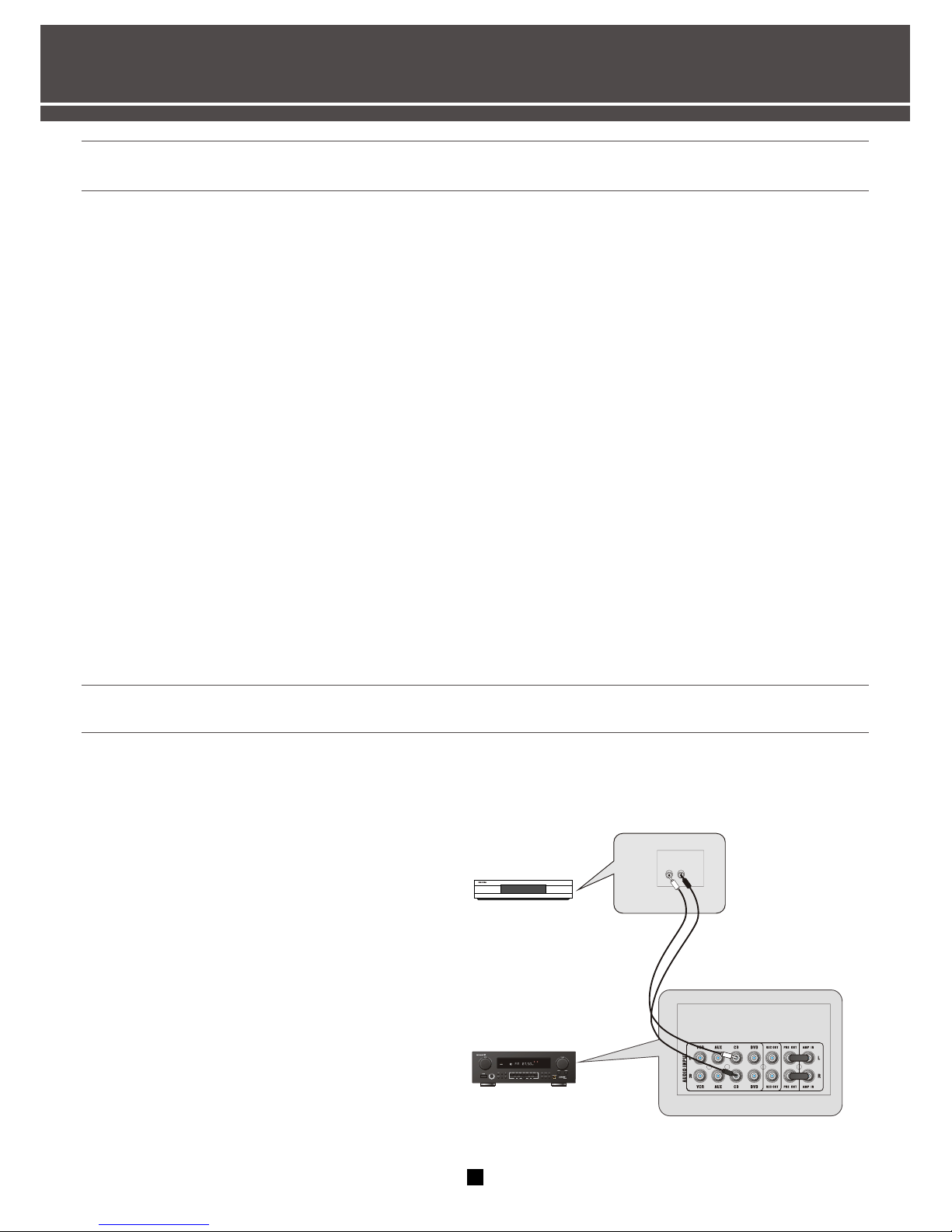

BASIC CONNECTIONS
Assuming you have a DVD, the following steps will help you quickly set up your new receiver. If you have more electronic compone-
nts, consult the table of contents or index for the page on which to find the connection description that best suits your situation.
the wires(bought from store ) and jacks have been color-coded to assist you.
1.Using an audio wire with red and white connectors, connect the audio OUT jack on the back of your stereo DVD to the audio
IN jack under the DVD heading on the back of the receiver.
2.Using the video cable with yellow connectors, connect the video OUT jack on the back of your DVD to the VIDEO IN or
VIDEO INPUT on the back of your TV. If there are multiple video jacks on the back of your TV, use VIDEO 1 .
L/
MONO
OUT AUDIO
RIGHT
IN
CABLE/
ANTENNA
VIDEO
INPUT
S-VIDEO
DVD
VIDEO
OUT
IN
R L
IN FROM ANT
OUT TO TV
Ch3
Ch4
AUDIO
RECEIVER
TV
199
4
STEREO RE CEIV ER AMPLI FIER

CONNECTING THE SPEAKERS
CONNECTING THE WIRES
CONNECTING THE MAIN SPEAKERS
The two main speakers should be set between six and 10 feet
apart. Putting the speakers any closer or any farther apart may
result in distorted sound. The speakers should also form a 45
degree angle to the central listening point in the room, creating
a triangle of listening enjoyment.
CONNECTING THE ANTENNAS
The AM and FM antennas connect to the AM and FM terminals
on the system's back panel. They must be hooked up for you
to receive clear reception. Uncoil the antenna wires and locate
the bare ends. Press down on the tab to open the terminal and
insert the wire. Snap the tab closed. After connecting the ante-
nnas, extend them to their full length and adjust their positioni-
ng for better reception.
Method 1
Method 2
1.Loosen the knob.
2.Insert the bare wire.[Remove approx.5mm(1/4 ) insulation
from the speaker wires].
3.Tighten the knob and secure the wire.
Or you also may use a banana plug.
Speaker Polarity
When connecting the speakers, make sure the polarities ("+"
speaker wire to "+" on the receiver) of speaker wires and term-
inals are matched. If the cords are reversed, the sound will be
distorted and will lack bass("out of phase"effect).
1.Do not let the bare speaker wires touch each other or any metal part
of this unit. This could damage this unit or the speakers, or both.
2.Connect the speakers terminals to your speakers with the wire of the
proper gauge (keep as short as possible).if the connections are faulty,
no sound will be heard from the speakers.
5
NOTE:
RIGHT SPEAKER
RIGHT LEFT
LEFT SPEAKER
FIRST STEPS

CONNECTING FOR POWER
Make sure you connect all your other electronic components
and the speakers before plugging your receiver into the outlet.
Plug the power cord into the wall outlet, matching the wide
blade of the plug with the wide slot in the outlet. Be sure to
insert the plug completely.
USING HEADPHONES
To listen privately through your audio system, use the HEADPHONES jack on the receiver. However, make sure you turn down the
volume before you put on the headphones. Increase the volume to the desired level after headphones are in place.
Hearing Comfort & Well-Being
1.Do not play your headset at a high volume.
hearing experts advise against continuous
extended play.
2.If you experience a ringing in your ears,
reduce volume or discontinue use.
6
FIRST STEPS

7
1.INPUT selector
Turn the knob
Number 1-8 button
Press these buttons to select preset tuning channel.
4.
.
7.POWER switch
MUTE
10.
to select the input source you want to listen to
or watch.
2.Standby indicator
Lights up when this unit is in standby mode.
3.
Display window
Display a variety of information. (e.g. Main volume source and
parameter etc.)
5.Remote control sensor
Receives signals from the remote controller.
6Master volume
Press this switch to turn on the power. Press the switch again
to turn off the power.
8.Standby button
Press this button to set this in the standby mode.
Press again turn on the power of this unit.
9.
Mute the sound. Press again to restore the audio out to the
previous volume level.
SLEEP button
Press the button repeatedly to turn the sleep time on and off,
and set the sleep time(10-20-30-40-50-60-70-80-90mins).
Controls the output level of all audio channels.
11.
Press the SCAN+ side to tune to a higher Frequency.
Press the SCAN- side to tune to a lower frequency.
Press and keep two second minutes, scan automatically.
13.TUNER automatically tuning button
FM/AM band switches button
Press the button to switch the reception band between FM and
AM.
BASS Parameter adjustment buttons
Press the buttons to adjust the low-frequency response.
.TREBLE Parameter adjustment buttons
Press the buttons to adjust the high-frequency response.
BALANCE Parameter adjustment buttons
Press the buttons to adjust the balance between left and right.
Allows you enjoyment for private listening with headphones.
When you connect headphones, no signals are output to all
speakers.
Press them to adjust brightness of the display(VFD).
A/B/C/D
12. uning scan button
14.
15.
16.
17
18.
19.Headphone jack
20.Display(VFD)brightness adjustment buttons
Selects one of the 4 preset station groups (A to D).
T
Hold down this button for more than 3 seconds to start autom-
atically preset tuning(AM/FM is detached).
Stores a station in the memory
7 8 910 11 12 13 14 15 1917 18
16
1 2 5
346
20
PANEL INTRODUCTION
RECEIVER CONTROLS & OPERATIONS
STEREO RE CEIVER AMPLIFIER
