VMax®V2
Electrical specifications:

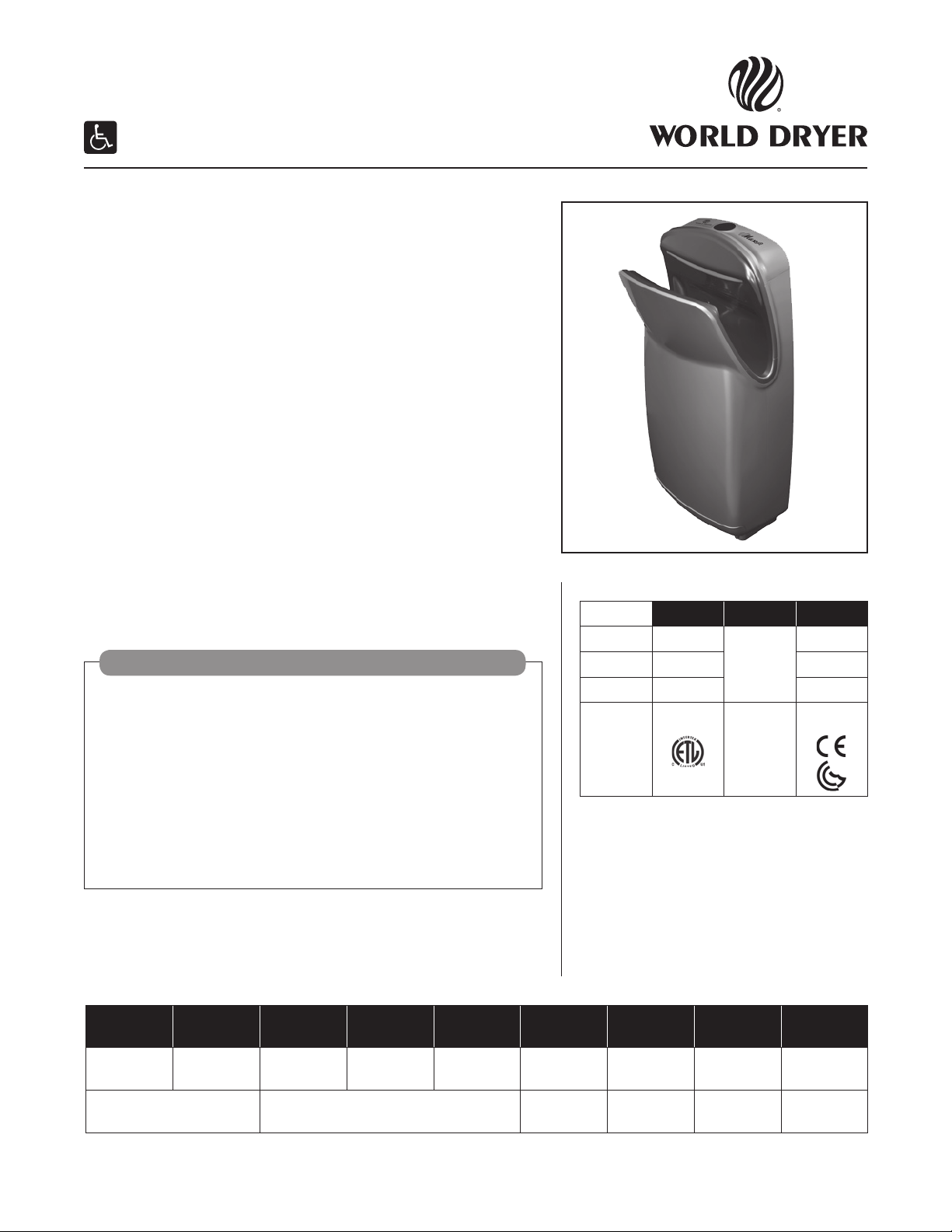

VMax® V2 is a ‘hands in’ vertical style high speed hand dryer powered
by a brushless DC motor and featuring a HEPA filter system, wider
hand drying cavity opening and antimicrobial technology. Dedicated
water collection reservoir eliminates water from collecting on the
floor and reducing maintenance. Quiet operation is ideal for sound
sensitive areas.
Product Features and Benefits
•10 - 12 second dry time
•25% wider hand drying cavity opening creates a comfortable user experience
without touching sides of hand dryer
• Combines HEPA filtration and antimicrobial technology to clean the air
and enhance dryer sanitation
•Collects residual water in a dedicated reservoir and prevents wet
floor hazards
• Intelligent LED display signals when filter should be changed or water
reservoir emptied through LED display
• Quiet operation ideal for sound sensitive areas
• Simple mounting bracket for easy installation
• Surface-mounted ADA compliant suitable for walkways and pathways
• Durable and vandal resistant
• IP33 ingress protection against water
• Brushless DC motor
* The water collection tray will fill with water with hand dryer
use. The LED Display will indicate when the water collection
tray is full and needs emptying. High washroom traffic may
require more frequent emptying of the water collection tray.
1,2 This hand dryer is equipped with a replaceable cartridge
containing a HEPA filter and an odor neutralizing tablet. The
LED display panel will indicate when the HEPA filter requires
replacement. High washroom traffic may require more
frequent replacement of the HEPA filter.
VMax V2 hand dryer supplied by World Dryer Corporation shall have a
power consumption of 1000 watts powered by a thermally-protected
brushless DC motor. Hand dryer shall nominally deliver 70 CFM (119
m3/h) air flow at a velocity of 335 mph (539 km/h). Dryer shall be activated
by an automatic infrared sensor with a 20 second vandal shut-off. Dryer
exterior shall be constructed of high impact ABS polymer incorporating
antimicrobial technology to inhibit the growth of bacteria, mold and
fungus. Dryer will incorporate a drain inside the drying cavity with a water
collection tray, replaceable HEPA filter¹ and odor neutralizing tablet² and
LED display for identifying operation and servicing requirements.
Architecture & Engineering Specifications
120V 208-240V 220-240V
Amps 10
N/A
4.3
Watts 1000 1000
Hz 60 Hz 50/60 Hz
Region/
Certifications
North
America
North
America
EU
Middle East
Cover Material Cover Finish/Kit 110-120 V 208-240V
(60 Hz)
220-240V
(50 Hz) Unit Weight Shipping Weight
Unit Size
(HxWxD)
inch/mm
Shipping Size
(HxWxD)
inch/mm
High Impact ABS Silver # V-649A #V48-629CE2 19.5 lbs.
8.9 kgs
25 lbs.
11.3 kgs
13”x26.25”x9.25”
330x667x235mm
16”x28.5”x12”
406x724x305mm
HEPA filter with odor
neutralizing tablet (1 pk) #93-10385 0.17 lb. 0.08 kg
0.2 lb
0.09 kg
6.29”x1.57”x2.44”
160x40x62mm
6.29”x1.57”x2.44”
160x40x62mm
High-Speed Vertical Hand Dryer

340 County Line Road
Bensenville, IL 60106 U.S.A.
800-323-0701
www.worlddryer.com
92-MT091
Certifications
Warranty
LED Display
The LED display provides information about the operation and servicing needs
of the hand dryer.
How to Use
1. The hand dryer will start automatically when hands are inserted.
2. Slowly move your hands up and down through the air stream for 10–12 seconds.
3. The hand dryer will stop automatically after hands are removed.
Installation Guide
1. Use the mounting template provided to mark the locations for the (4) wall mounting
anchors to attach the wall mounting bracket to the wall.
2. It is recommended that at least 1 of the 4 mounting anchors for the unit be
fastened to a wall stud or support.
3. To use the hollow wall anchors included with the wall mounting kit, pre-drill the wall
in the marked locations using a 5/16” (8mm) drill, insert the plastic anchors and
tap flush to the wall.
4. Complete attachment of the wall mounting bracket to the wall with the
(4) mounting anchors using a No. 25 torx screwdriver.
5. Connect power supply wiring to terminal block and secure Power Supply Cover
6. Hang the hand dryer on the bracket. Remove water collection tray from bottom of
dryer, and complete the attachment of the dryer with the 4th anchor.
7. Replace the water collection tray.
IP33
5 year limited warranty
LED Display :
13” (330 mm)
26.25” (667 mm)
26.25” (667 mm)
9.25” (235 mm)
Specifications :
HEPA Filter Water Tray
