Worx WG650 User manual

Snow thrower EN
Souffleuse à neige F
Quitanieves ES
P08
P19
P32
HELPLINE NUMBER
1-866-354-WORX (9679)
HELPLINE NUMBER
WG650

14
13
12
11
10
9
8
1
2
3
4
5
6
7

10
15
12 12
13
10
1
4
5
6
a
b
e
c
d
i
i
ii
i ii iii
c
d
a
e
a g f
b
c
d
a
a
f
e
g
b
a
14
A B C
D E F
G H I
J K L
M N O
P Q R
S T U
V W X
Y Z1
Z4
Z2
Z3

10
15
12 12
13
10
1
4
5
6
a
b
e
c
d
i
i
ii
i ii iii
c
d
a
e
a g f
b
c
d
a
a
f
e
g
b
a
14
A B C
D E F
G H I
J K L
M N O
P Q R
S T U
V W X
Y Z1
Z4
Z2
Z3

10
15
12 12
13
10
1
4
5
6
a
b
e
c
d
i
i
ii
i ii iii
c
d
a
e
a g f
b
c
d
a
a
f
e
g
b
a
14
A B C
D E F
G H I
J K L
M N O
P Q R
S T U
V W X
Y Z1
Z4
Z2
Z3

Snow thrower EN
98
98
1. LOCK-OFF BUTTON
2. SAFETY LEVER
3. UPPER HANDLE
4. CHUTE DEFLECTOR
5. CHUTE DEFLECTOR KNOB
6. DISCHARGE CHUTE
7. AUGER
8. BELT COVER
9. LOCKING CAM LEVERS AND BOLT
10. MIDDLE HANDLE
11. CHUTE CRANK BAR
12. CHUTE CRANK HANDLE
13. CABLE CLIP
14. POWER CORD HOOK
15. LOWER HANDLE (See Fig. A)
Not all the accessories illustrated or described are included in standard delivery.

98
Snow thrower EN
98
TECHNICAL DATA
Voltage 120V~60Hz
Power input 13A
No load speed 2200/min
Clearing width 18’’
Snow cut depth 10’’
Auger style 4blades
Throw distance 30’
Machine weight 30lbs
ACCESSORIES
Screwdriver 1
Spanner 1
We recommend that you purchase your accessories from the same store that sold you the tool.
Use good quality accessories marked with a well-known brand name. Choose the type according
to the work you intend to undertake. Refer to the accessory packaging for further details. Store
personnel can assist you and offer advice.

Snow thrower EN
1110
1110
SAFETY INSTRUCTIONS
WARNING: Some dust created by
power sanding, sawing, grinding,
drilling and other construction activities
contains chemicals known to the State
of California to cause cancer, birth
defects or other reproductive harm.
Some examples of these chemicals are:
1) Lead from lead-based paints.
2) Crystalline silica from bricks and cement
and other masonry products.
3) Arsenic and chromium from chemically-
treated lumber.
Your risk from these exposures varies,
depending on how often you do this type
of work.To reduce your exposure to these
chemicals:
• Work in a well-ventilated area.
• Work with approved safety equipment,
such as those dust masks that are specially
designed to filter out microscopic particles.
WARNING: Read all instructions
before using this appliance.
IMPORTANT
WARNING: When using electric
appliances, basic safety precautions
should always be followed to reduce the risk
of fire, electric shock, and personal injury,
including the following:
Notice the personal safety alert symbol
used in this manual to draw your
attention to a WARNING given along
with the particular operating instruction.
This means that the operation requires
special ATTENTION, CAUTION, and
AWARENESS.
1. Work area
a. Keep work area clean and well lit.
Cluttered, dark areas invite accidents.
b. Do not operate snow thrower in an
explosive atmosphere, such as in the
presence of flammable liquids, gases, or
dust. Electrical appliances create sparks
that may ignite the dust or fumes.
c. Keep children, pets, and bystanders
away from work area. Be aware that the
normal noise of the machine when turned
on may make it difficult for you to hear
approaching people.
2. Electrical safety
a. Electrical plugs must match the
outlet. Never modify the plug in any
way. Do not use any adapter plugs with
grounded appliances. Unmodified plugs
and matching outlets will reduce risk of
electric shock.
b. Avoid body contact with earthed
or grounded surfaces such as pipes,
radiators, ranges, and refrigerators.There
is an increased risk of electric shock if your
body is earthed or grounded.
c. Do not abuse the cord. Keep cord away
from heat, oil, sharp edges or moving
parts. Damaged or entangled cords
increase the risk of electric shock. Never
carry the snow thrower by its cord or yank
the cord to disconnect it from the electrical
outlet.
d. Replace or properly repair damaged
cords. If cord is damaged in any manner
while plugged in, pull the extension cord
from the wall receptacle.
e. Contact with water while operating
the snow thrower can result in
electric shock and serious bodily
injury. Do not use the snow thrower in
damp or wet locations or expose to rain.
Do not handle the plug or the appliance
with wet hands or while standing in water.
f. Extension Cord - WARNING - Only
use a UL rated extension cord for
OUTDOOR, all-weather use (usually
orange color). To prevent the extension
cord from disconnecting during operation,
tie it around the top right side of the
middle frame before connecting it to the
snow thrower as shown in Figure 18. See
WARNING box on page 10 for more cord
information.
g. Turn off the power switch and
disconnect the power cable before
inspecting, servicing, repairing, or
cleaning the snow thrower. Any such
operation should be performed after
revolving parts inside the snow thrower
stop completely.
h. Do not move or transport the snow

1110
Snow thrower EN
1110
thrower when the plug is connected
to the power socket and the switch is
turned on.
3. Personal safety
a. Stay alert -Watch what you are doing
and use common sense when operating
the snow thrower. Do not use the machine
when tired, ill, or under the influence of
drugs, alcohol, or medication. A moment of
inattention may result in serious personal
injury.
b. Wear proper clothing - Wearing rubber
boots offers additional protection from
electric shock. Do not wear loose clothing
or jewelry that may become caught in
the machine.Wear protective headgear
to keep hair away from revolving parts of
the machine. Safety glasses offer better
protection than everyday eyeglasses.
c. Moving parts present risks - Keep
your face, hair, clothing, hands and feet
away from moving parts. All guards and
safety attachments must be installed
properly before using the unit. Shut off and
disconnect cord before touching any parts
other than the handles and switch.
d. Surfaces -This snow thrower is intended
for use on paved surfaces. Do not use on
gravel, stone, or other unpaved surfaces
unless the snow thrower is adjusted for
such surfaces according to the instructions
given in the operator’s manual.
e. Avoid accidental starting - Make sure
the switch is in the off position before
plugging in the unit. Do not carry the snow
thrower with your finger on the switch.
f. Body position - Maintain proper footing
and balance at all times. Place heels firmly
on the ground and tightly grasp the handle
bar. Watch for uneven surfaces and do
not overreach. In case you fall or collide
with the snow thrower, inspect the unit for
damage.When stepping backwards, be
careful to avoid obstacles beneath your
feet or behind you to avoid falling.
4. Snow thrower use and care
a. Read the operator’s manual carefully.
Learn your snow thrower’s applications
and limitations as well as the specific
potential hazards related to this machine.
Do not use this machine for any purpose
other than the one for which it was
designed. Otherwise, it may cause
mechanical defaults, serious damage or
personal injury.
b. Preliminary unit inspection -Thoroughly
inspect the unit before use.Make sure all
the parts are secure and installed correctly.
If you notice any abnormalities, do not
use the machine until it has been properly
repaired. Always perform a test run the
first time you use the snow thrower or after
replacing parts to ensure that the unit is
functioning properly.
c. Preliminary area inspection - Clear
the area to be plowed before each use.
Remove all objects such as rocks, broken
glass, nails, wire, or string, which can be
thrown by or become entangled in the
snow thrower. Keep the area of operation
clear of all persons, particularly children
and pets.
d. Excessive force -The snow thrower
was designed to respond at a certain rate
for various snow conditions for optimum
safety and performance. Do not force it;
keep pressure constant.
e. Malfunctioning switch - Do not use the
snow thrower if the switch does not turn
it on and off. Any electrical appliance that
cannot be controlled by the switch is not
safe to use and must be repaired.
f. Hitting an object - If the snow thrower
accidentally strikes an object, first stop
the snow thrower; inspect for damage;
repair or replace any damaged part before
restarting and operating the snow thrower.
g. Discharge chute safety - Never direct
the snow discharge chute at the operator,
at bystanders, at vehicles or at windows.
The throwing snow and foreign objects
accidentally picked up by the snow thrower
can cause serious damage and personal
injury. Do not use your hands to unclog
the discharge chute. Stop the motor before
removing debris.
h. Hand-held operating position -
Operation of the snow thrower in the

Snow thrower EN
1312
1312
hand-held position is unsafe. i. Abnormal
operation - If you notice the snow
thrower running in an unstable state or
hear abnormal sounds from the engine,
stop the machine, disconnect the power
immediately, and contact your original
distributor.
j. Noise control - When using the snow
thrower, you must respect local laws and
regulations regarding noise control and
environmental protection.To avoid noise
disturbance, you should carefully decide
upon an appropriate operation time and
consider the surrounding conditions.
k. When work is completed - Disconnect
the snow thrower from the power
source when not in use, when changing
accessories, and before performing any
maintenance function.
l. Store safely - Store snow thrower
indoors in a dry area between uses. Keep
in a locked area, where children and
unauthorized users cannot gain access.
Do not store the machine while it is still
connected to the power source. It may
cause damage and injury.
m. Maintain for safety and longevity
- Check for misalignment or binding of
moving parts, breakage of parts, and any
other conditions that may affect the unit’s
operation. If damaged, repair or replace the
damaged part before use. Use only those
replacement parts made for your model.
When replacing any parts, you must strictly
observe the instructions and procedures
described in this manual. Special care
should be paid to any rubber parts, since
these parts may increase the engine load
and decrease its mechanical power if
damaged.
SAFE OPERATION PRACTICES FOR
WALK-BEHIND SNOW THROWERS
WARNING: Use the accessory
or attachment the manufacture
recommended, Use of any other accessory
or attachment may increase the risk of injury.
DANGER!
Do not use hands to unclog chute. Stop motor
before removing debris. Do not walk in front
of running machine. Co not direct discharge at
bystander.
CAUTION!
Use for snow removal only.
WARNING!
To reduce the risk of electric shock - replace
damaged cord immediately.
To reduce the risk of injury, do not operate
without guards in place.
Double insulation - when servicing, use only
identical replacement parts.
A. FOR ALL DOUBLE-INSULATED SNOW
MOVERS
Replacement parts
When servicing use only identical replacement
parts. Replace or repair damaged cords.
B. FOR ALL SNOW MOVERS
1) Do not use on graveled surface unless the
snow mover is adjusted for such a surface
in accordance with the operator’s manual.
2) Keep children away - All visitors should be
kept a safe distance from work area.
3) Dress properly - Do not wear loose clothing
or jewelry.They can be caught in moving
parts.
4) Wear rubber boots when operating the
snow mover.
5) Operation of the snow mover in the
hand-held position is unsafe, except in
accordance with the special instructions
for such use provided in the operator’s
manual.
6) Warning -To prevent electric shock use only
with an extension cord suitable for outdoor
use.
7) Extension cords -To prevent disconnection
of snow mover cord from the extension
cord during operation.
i) Make a knot as shown in Figure 1.
ii) Use one of the plug-receptacle retaining
straps or connectors described in this
manual.

1312
Snow thrower EN
1312
Figure 1
Method of securing extension cord
(A)Tie cord as shown
CORD
SET
APPLIANCE
CORD
(B) Connect plug and receptacle
8) Avoid accidental starting - Don’t carry
plugged-in snow mover with finger on
switch. Be sure switch is off when plugging
in.
9) If cord is damaged in any manner while
plugged in, pull extension cord from wall
receptacle.
10)Don’t abuse cord - Never carry snow mover
by cord or yank it to disconnect from
receptacle. Keep cord from heat, oil, and
sharp edges.
11)Keep hands away from moving parts.
12)Keep guards in place and in working order.
13)Don’t force snow mover - It will perform
better and safer at the rate for which it was
designed.
14)Don’t overreach - Keep proper footing and
balance at all times.
15)If the snow mover strikes a foreign object
follow these steps:
i) Stop snow mover.
ii) Inspect for damage.
iii) Repair any damage before restarting and
operating the snow mover.
16)Disconnect appliance - Disconnect the
appliance from the power supply when not
in use, before servicing, when changing
accessories such as blades, and the like.
17)Store idle appliances indoors - When
not in use, appliances should be stored
indoors in dry, and high or locked-up place
-out of reach of children.
18)Maintain appliance with care - Follow
instructions for lubricating and changing
accessories.
TRAINING
1. Read the operating and service instruction
manual carefully. Be thoroughly familiar
with the controls and the proper use of the
equipment. Know how to stop the unit and
disengage the controls quickly.
2. Never allow children to operate the
equipment. Never allow adults to operate
the equipment without proper instruction.
3. Keep the area of operation clear of all
persons, particularly small children, and
pets.
4. Exercise caution to avoid slipping or falling,
especially when operating in reverse.
PREPARATION
1. Thoroughly inspect the area where the
equipment is to be used and remove all
doormats, sleds, boards, wires, and other
foreign objects.
2. Disengage all clutches and shift into neutral
before starting the motor.
3. Do not operate the equipment without
wearing adequate winter outer garments.
Wear footwear that will improve footing on
slippery surfaces.
4. Use extension cords and receptacles
as specified by the manufacturer for all
units with electric drive motors or electric
starting motors.
5. Adjust the collector housing height to clear
gravel or crushed rock surface.
6. Never attempt to make any adjustments
while the motor is running (except
when specifically recommended by
manufacturer).
7. Let motor and machine adjust to outdoor
temperatures before starting to clear snow.
8. Always wear safety glasses or eye shields
during operation or while performing an
adjustment or repair to protect eyes from
foreign objects that may be thrown from
the machine.

Snow thrower EN
1514
1514
OPERATION
1. Do not put hands or feet near or under
rotating parts. Keep clear of the discharge
opening at all times.
2. Exercise extreme caution when operating
on or crossing gravel drives, walks, or
roads. Stay alert for hidden hazards or
traffic.
3. After striking a foreign object, stop the
motor, disconnect the cord on electric
motors, thoroughly inspect the snow
thrower for any damage, and repair the
damage before restarting and operating
the snow thrower.
4. If the unit should start to vibrate
abnormally, stop the motor and check
immediately for the cause. Vibration is
generally a warning of trouble.
5. Stop the motor whenever you leave the
operating position, before unclogging the
collector / impeller housing or discharge
guide, and when making any repairs,
adjustments, or inspections.
6. When cleaning, repairing, or inspecting,
make certain the collector / impeller and
all moving parts have stopped. Disconnect
the plug from mains to prevent accidental
starting.
7. Do not clear snow across the face of
slopes. Exercise extreme caution when
changing direction on slopes. Do not
attempt to clear steep slopes.
8. Never operate the snow thrower without
proper guards, plates or other safety
protective devices in place.
9. Never operate the snow thrower near glass
enclosures, automobiles, window wells,
drop-offs, and the like without proper
adjustment of the snow discharge angle.
Keep children and pets away.
10.Do not overload the machine capacity by
attempting to clear snow at too fast a rate.
11. Never operate the machine at high
transport speeds on slippery surfaces. Look
behind and use care when backing.
12.Never direct discharge at bystanders or
allow anyone in front of the unit.
13.Disengage power to the collector / impeller
when snow thrower is transported or not in
use.
14.Use only attachments and accessories
approved by the manufacturer of the
snow thrower (such as wheels weights,
counterweights, cabs, and the like).
15.Never operate the snow thrower without
good visibility or light. Always be sure of
your footing, and keep a firm hold on the
handles. Walk; never run.
MAINTENANCE AND STORAGE
1. Check shear bolts and other bolts at
frequent intervals for proper tightness to
be sure the equipment is in safe working
condition.
2. Always refer to operator’s guide
instructions for important details if the
snow thrower is to be stored for an
extended period.
3. Maintain or replace safety and instruction
labels, as necessary.
4. Run the machine a few minutes after
throwing snow to prevent freeze-up of the
collector / impeller.

1514
Snow thrower EN
1514
SYMBOLS ASSEMBLY
CAUTION! Inspect wiring, which,
if damaged during shipping, may
cause serious bodily injury during
equipment use. If any damage is seen
or suspected, do not assemble. Instead,
contact WORX Customer Service for
assistance. Handle with care during
assembly so that electrical wiring does
not become damaged.
GETTING STARTED
1. Remove the snow thrower and all other
items from the box.
2. Determine the left and right hand sides
of the snow thrower by standing in the
normal operating position.
3. Check all items for shipping damage. If
damage is seen or suspected, or if any of
the parts are missing, do not assemble.
Instead, promptly inform the dealer where
you bought the snow thrower or contact
WORX customer service for assistance.

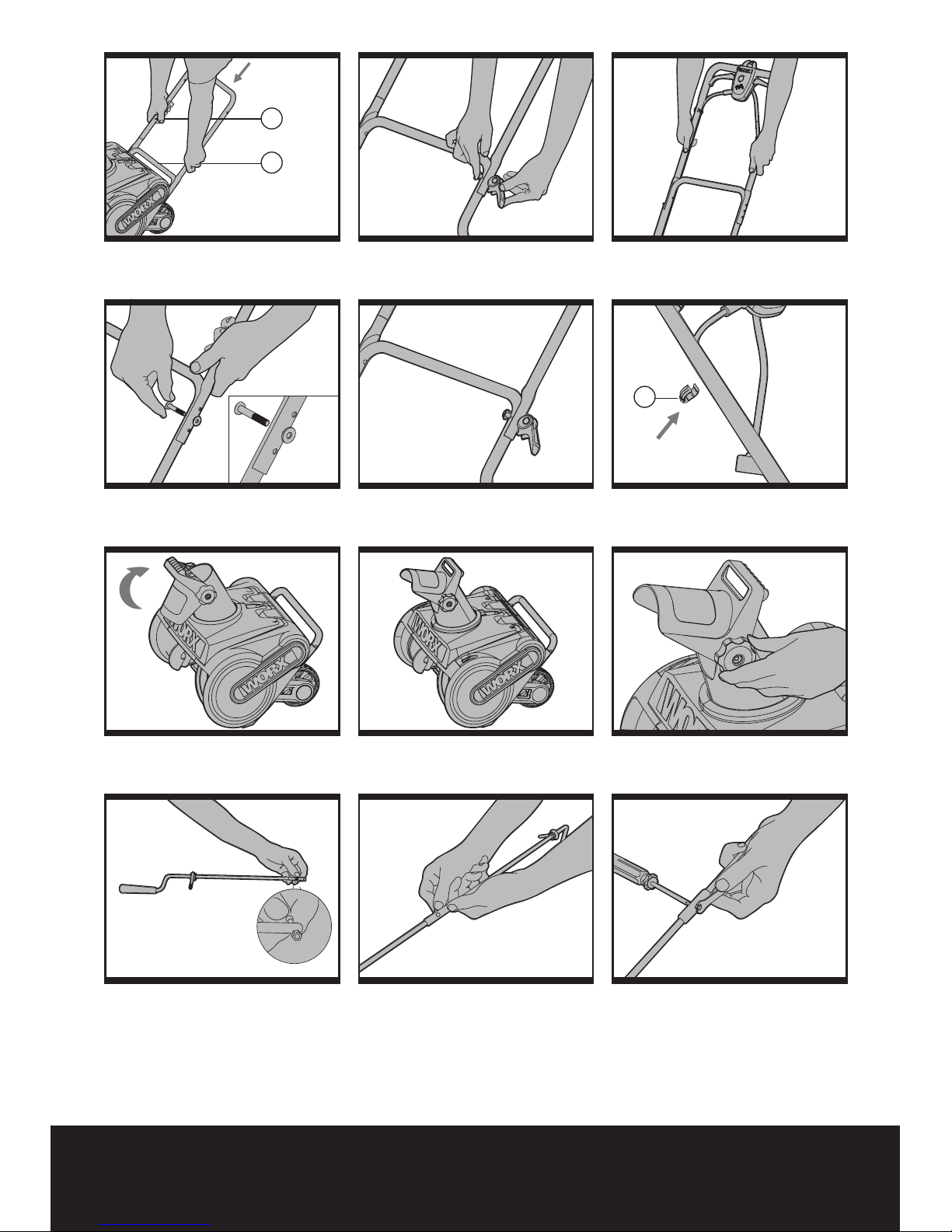

1. INSTALLING THE HANDLES
1) Loosen and remove the four sets of bolts,
washers, and locking cam levers.
2) Attach the middle handle (10) with the bolts
and lock cam lever (9) to the lower handle
(15). (See Fig. A)
3) Tightening the two Lock cam levers. Check
that the handle is FULLY secured.
(See Fig. B)
The cam lever pressure can be adjusted by
adjusting the lock cam lever (9) clockwise/
counter-clockwise. DO NOT OVERTIGHTEN.
NOTE: Ensure the bolts are fully inserted
through the handles before fitting the handle
knobs.
4) Connect the upper handle to the middle
handle in the same way as described in
step 2 and 3. Use the bolts, washers, and
knobs to secure the connection on both
sides. (See Fig. C,D,E)
5) Attach the cable clips (13) provided, to the
upper and lower handle. Insert the cable
into the clips ensuring there is enough
cable slack. (See Fig. F)
NOTE: The upper handle can be adjusted
to 3 different height positions.
(See Fig. D)
Pictorial for snow discharge
opening
DANGER! Shut off motor before
unclogging discharge chute.
DANGER! Avoid injury from
rotating auger – Keep hands, feet,
and clothing away.
KEEP HANDS AND FEET AWA Y
GARDER MAINS ET PIEDS À DISTANCE

Snow thrower EN
1716
1716
2. INSTALLING THE CHUTE CRANK
1) Lift the chute deflector so that it snaps and
locks securely onto the discharge chute.
(See Fig. G, H)
2) Raise or lower the chute deflector to the
desired height of the snow stream and
tighten the chute deflector knobs (5).
NOTE: Do not overtighten the chute deflector
knobs. (See Fig. I)
3) Locate the upper chute crank in the parts
bag. Remove the screw and nut from
the upper chute crank using a Phillips
screwdriver and the wrench provided.
(See Fig. J)
NOTE: You may be able to unfasten the screw
and nut by hand.
4) Slide the upper chute crank into the lower
chute crank, aligning the screw holes.
Tighten the screw into the aligned holes
using a screwdriver. Fasten the nut with
wrench. (See Fig. K, L)
5) Insert the end of the control bar in the
shroud. (See Fig. M)
6) Turn the chute crank rod slowly until the
end drops into the slot in the gear, and
then firmly push the chute crank into the
gear until it snaps into place. (See Fig. N)
7) Remove the washer and nut from the eye
bolt with rubber grommet found on the
upper chute crank. Position the chute crank
so that the eye bolt with rubber grommet
inserts into the center hole of the middle
handle. Secure with washer and nut.
(See Fig. O,P)
NOTE: Do not overtighten the nut.
3. MAINS SUPPLY CABLE STRAIN
RELIEF (See Fig Q)
In order to reduce strain on the cable inlet,
form a loop and locate the cable around the
strain relief arm.
OPERATION
NOTE: Before using this machine,
make sure that the power source you
will use complies with the specifications
detailed in this manual. Before inserting the
plug into the socket, verify that the snow
thrower’s roll shaft and rubber plates are
firmly secured with screws, and that the
rubber plates are facing the correct direction.
Perform a test run to ensure that the rotor
turns freely.
1. STARTING AND STOPPING
(See Fig. R, S)
STARTING
Connect the plug to the mains and switch ON.
The switch box is provided with a lock-
off button to prevent accidental starting.
With one hand press and hold the safety
button (1), with the other hand squeeze the
switch lever (2) towards the handle, and
release the safety lock off button.The machine
is now started; wait until the product is at
full speed before working.Then use both
your hands to hold the switch lever to keep it
running.
STOPPING
Release the switch lever.The lever is spring
loaded and will quickly return to the off
position upon release.
2. MOVING THE MACHINE AND
PLOWING THE SNOW
WARNING: Foreign objects, such
as rocks, broken glass, nails, wire, or
string, can be picked up and thrown by the
snow thrower, causing serious personal injury.
Remove all foreign objects from the area to be
plowed before operating the snow thrower.
1) Keep the area of operation free of foreign
objects that can become thrown by
the rotor blades. Perform a thorough
inspection of the area since some
objects may be hidden from view by
surrounding snow. If the snow thrower
hits an obstruction or picks up a foreign
object during use, stop the snow thrower,
disconnect the extension cord, remove
the obstruction, and inspect the unit for
damage. Repair or replace any damaged
part before restarting and operating the
unit.
2) Keep children, pets, and bystanders away
from the area of operation. Be aware that
the normal noise of the machine when
turned on may make it difficult for you to
hear approaching people.

1716
Snow thrower EN
1716
3) When moving the snow thrower, use the
wheels on one side as the pivot point.
Slightly tilt the snow thrower on this pivot
point to move it forward or backward.
4) Start your clearing path near the electrical
outlet and work outward, throwing snow
in a back and forth motion.To clear in the
opposite direction, step over the cord and
pivot the snow thrower on its wheels.
Make sure to overlap clearing paths.
5) Note wind direction. If possible, move in
the same direction as the wind so that the
snow is not thrown against the wind (and
thus back into your face and on the just
cleared path).
6) While moving the snow thrower, do not
drag the power cable violently or roughly.
The snow thrower should move within the
range that the cable can reach.
7) Do not push the snow thrower with
excessive force.You should push the
machine gently and evenly in accordance
with the unit’s throw rate.
8) Do not apply additional man-made load
to the engine since this may cause engine
damage.
9) Some parts of the snow thrower may
freeze under extreme temperature
conditions. Do not attempt to operate
the snow thrower with frozen parts. If the
parts freeze while the snow thrower is in
use, stop the snow thrower, unplug the
extension cord, and inspect for frozen
parts. Free all parts before restarting or
operating the snow thrower. Never force
controls that have frozen.
10) Working on pebbles, gravel, or unpaved
surfaces -To avoid throwing loose surface
material along with the snow, pushes
down on the handle to raise the scraper at
the base of the unit above the pebbles or
gravel.
3. CHANGING THROW DIRECTION AND
THROW HEIGHT (See Fig. T, U)
WARNING: Never direct the snow
discharge chute at the operator,
at bystanders, at vehicles or at nearby
windows. The discharged snow and
foreign objects accidentally picked
up by the snow thrower can cause
serious damage and personal injury.
Always orient the discharge chute in
the opposite direction from where you,
bystanders, surrounding vehicles, or
windows are located.
1) The discharge chute can be adjusted 180
degrees by rotating the chute crank. Rotate
the chute control crank clockwise to move
the discharge chute to the left (See Fig. T);
counterclockwise to move the chute to the
right (See Fig. U).
2) The chute deflector on the top of the
discharge chute controls the height of the
snow stream. Loosen both chute deflector
knobs to raise or lower the deflector to the
desired height of snow you wish to throw.
Tighten the knobs to secure the deflector
(See Fig. V).
NOTE: Do not overtighten the chute deflector
knobs.
WARNING: Make sure that the
chute deflector snaps and locks
completely onto the discharge chute.
An opening between the discharge
chute and the chute deflector may
allow foreign objects to be picked up
by the snow thrower and thrown in the
direction of the operator causing serious
boldly injury.
Do not advance the chute deflector too
far forward causing an opening to appear
between the deflector and discharge
chute.
Do not overtighten the knobs on the
chute deflector (See Fig. I).
MAINTENANCE
IMPORTANT: All electrical repairs should
be performed only by an Authorized
Service Dealer.
NOTE: Determine the left and right sides
of the machine from the normal operating
position.
WARNING: If the extension cord
is plugged into the snowthrower,
someone could accidentally operate
snowthrower while you are performing
maintenance on it, causing serious

Snow thrower EN
1918 1918
personal injury. Disconnect the
extension cord before you perform any
maintenance.
1. LUBRICATING THE SNOWTHROWER
Lubrication is not necessary and may damage
the unit.The snow thrower is lubricated for
lifetime use at the factory before shipment.
2. GENERAL MAINTENANCE TIPS
1) Do not attempt to repair the machine
unless you have the proper tools and
instructions for disassembly and repair of
the machine.
2) Check the shear bolts and other bolts at
frequent intervals for proper tightness
to ensure that the equipment is in safe
working condition.
3) After each snow removal session, run the
snow thrower for a few minutes to prevent
the collector/impeller from freezing. Shut
off the motor, wait for all revolving parts to
stop completely, and wipe residual ice and
snow off the unit. Rotate the chute crank
several times to remove any excess snow.

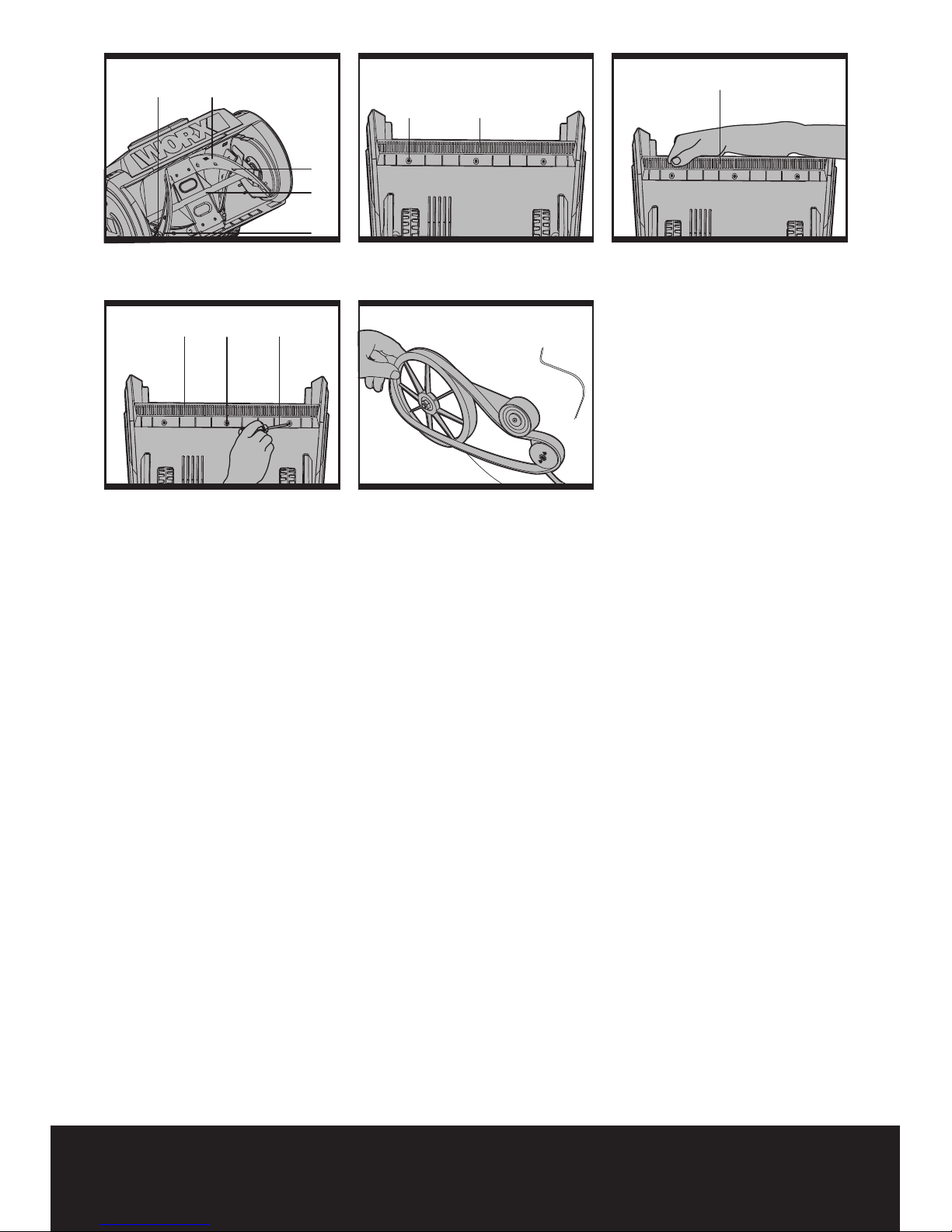

3. REPLACING THE RUBBER PLATES
NOTE: When replacing worn rubber plates,
pay close attention to carefully distinguish
between the coarse and smooth side of the
plates. Place the coarse side inside and the
smooth side outside.
1) Detach the worn rubber plate by removing
the two sets of nuts, bolts, and washers
used to secure it.
2) Install the new rubber plate so that the
coarse side faces inward and the smooth
side faces outward (See Fig. W,X,Y).
3) Insert the bolt with the small flat washer
into the corresponding holes on each
end of the rubber plate. Use the large flat
washer and locknut to secure the bolt on
each end. Install the other rubber plates in
the same way (See Fig. W,X,Y).
a: Rubber plate; b: Rivet; c: Small flat washer;
d: Bolt; e: Auger; f: Large flat washer;
g: Locknut
4. REPLACING THE SCRAPER
i: Scraper; ii: Screw; iii: Screwdriver
The scraper is located at the base of the snow
thrower beneath the rotor housing
(See Fig. Z1).
1) Detach the worn scraper from the snow
thrower by removing the 3 screws that
hold it in place (See Fig. Z2).
2) Install the new scraper and fasten it
securely to the snow thrower with 3 screws
(See Fig. Z3).
5. REPLACING THE BELT
NOTE: Determine the left and right hand sides
of the snow thrower by standing behind the
unit in the normal operating position.
1) Remove the screws from the left panel of
the snowthrower.
2) Lift the belt tension and roll the large belt
off the big pulley (See Fig. Z4).
A-Big pulley; B-Belt tension; C-Large belt
3) Replace the large belt by following
instructions in reverse order.
STORAGE
1. Allow the motor to cool and clean the snow
thrower before storing or transporting. Be
sure to secure the unit while transporting.
2. Disconnect the extension cord from the
snow thrower.
3. Inspect the extension cord closely for signs
of wear or damage. Replace it if it is worn
or damaged.
4. Inspect the snow thrower carefully for
worn, loose, or damaged parts. Check
connections and screws and tighten if
necessary. For repairing or replacing parts,
contact your WORX dealer.
5. Store the unit, along with the disconnected
extension cord, in a locked, dry place
out of the reach of children to prevent
unauthorized use or damage. Cover loosely
with a tarp for added protection.

1918
Souffleuse à neige F
1918
1. BOUTON DE SÉCURITÉ
2. LEVIER DU COMMUTATEUR
3. POIGNÉE SUPÉRIEURE
4. DÉFLECTEUR D’ÉJECTION
5. ÉCROU À POIGNÉE DU DÉFLECTEUR D’ÉJECTION
6. CONDUIT D’ÉJECTION
7. TARIÈRE ROTATIVE
8. COUVERCLE DU CHÂSSIS
9. LEVIERS DE VERROUILLAGE ET BOULON
10. CADRE INTERMÉDIAIRE
11. BARRE DE RÉGLAGE DE LA GOULOTTE D’ÉJECTION
12. POIGNÉE DE RÉGLAGE DE LA GOULOTTE D’ÉJECTION
13. SERRE-CÂBLES
14. CROCHET POUR LE CORDON D’ALIMENTATION
15. POIGNÉE INFÉRIEURE (Voir Fig A)
Tous les accessoires illustrés ou décrits ne sont pas inclus dans une livraison
standard.

Souffleuse à neige F
2120
2120
DONNÉES TECHNIQUES
Tension 120V~60Hz
Courant assigné 13A
vitesse à vide 2200/min
Largeur de déblayage 46cm(18’’)
Profondeur de coupe dans la neige 25cm(10’’)
Type de tarière 4Hoja
Distance d'éjection 9m(30’)
Poids de la machine 13.6kg(30lbs)
ACCESSOIRES
Tournevis 1
Clé à mollette 1
Nous vous recommandons d’acheter tous vos accessoires du même magasin qui vous a vendu
l’outil. N’utilisez que des accessoires de bonne qualité de marque renommée. Choisissez le type
d’outil approprié au travail que vous désirez entreprendre. Pour de plus amples renseignements,
consultez l’emballage de l’accessoire. Le personnel du magasin peut également vous conseiller.
