WODO Series
Dental Delivery Unit
Operation Manual
ASS0101
REV-A
Operation Documentation
Copyright © 2015 By Woson Medical Instrument Co., Ltd.

Dental Delivery Unit Operation Manual
REV-A Page 1 of 43
Regulatory Requirement
This product complies with regulatory requirements of the following European Directive
93/42/EEC concerning medical devices.
Ningbo
Jiangbei
Woson Medical Instrument Co., Ltd
.
Address: No.25, Lane 300, Jinshan Road, Jiangbei
District, Ningbo 315032, China
Tel: 86-574-83022668
Fax: 86-574-87639376
Website: www.woson.com.cn
E-mail: overseas@woson.com.cn

Dental Delivery Unit Operation Manual
REV-A Page 2 of 43
Revision History
REV ISSUE DATE REASON FOR CHANGE
Rev-A 2015-07-15 First Issue
Please verify that you are using the latest revision of this document. Information pertaining to
this document is maintained on manufactory. If you need to know the latest revision, please
contact your distributor, sales representative, or our service department.

Dental Delivery Unit Operation Manual
REV-A Page 3 of 43
Regulatory Requirements
Conformance Standards
The content of this instruction is fit for Dental Unit.
93/42/EEC EN ISO 10993-1
EN ISO 7494-1 EN ISO 10993-5
EN ISO 7494-2 EN ISO 10993-10
EN 1640 EN 60601-1:1990+A1+A2+A13
EN 1639 EN 60601-1-1
ISO 9687 EN 60601-1-2
ISO 6875 EN 60601-1-4
ISO 9680 EN 60601-1-6
ISO 10637 EN 980
ISO 9168 EN 1041
DIN 13940-1 EN ISO 14971
EN ISO 17664
European Authorized Representative
DTF Technology s.r.l.
Address: via De Sanctis 32, 20141 Milan, Italy
Tel: 39 02 84893641
Fax: 39 02 84718594
This product complies with the regulatory requirement of the following:
Council Directive 93/42/EEC concerning medical devices:
The CE label affixed to the product testifies compliance to the Directive.
The location of the CE marking is shown in this manual.
Certifications
Manufactory is ISO 9001 and ISO 13485 certified.
Original Documentation
The original document is written in English.
Declaration of Conformity
Council Directive 93/42/EEC concerning medical devices:
The CE label affixed to the product testifies compliance to the Directive.
The location of the CE marking is shown in this manual. In this manual there are present the
CE certification and the Conformity. Check appendixes.

Dental Delivery Unit Operation Manual
REV-A Page 4 of 43
Table of Content
Regulatory Requirement ................................................................................................ 1
Revision History .............................................................................................................. 2
Regulatory Requirements ............................................................................................... 3
Chapter 1 Introduction ................................................................................................... 6
1.1 Attention ........................................................................................................... 6
1.2 Usage Indications .............................................................................................. 6
1.3 Contraindication ................................................................................................ 6
Chapter 2 Safety .............................................................................................................
2.1 Sign Explanation ................................................................................................ 7
2.2 General Safety Reco endations .................................................................... 8
2.3 Safety Parts...................................................................................................... 11
2.4 Operation Risk ................................................................................................. 12
2.5 Protection Tool ................................................................................................ 12
Chapter 3 Description and Specification ...................................................................... 13
3.1 Overview ......................................................................................................... 13
3.2 Specification .................................................................................................... 14
Chapter 4 Receiving and Pre-installation ..................................................................... 16
4.1 Check the Package........................................................................................... 16
4.2 Unpack the Accessories .................................................................................. 16
4.3 Optional Accessories ....................................................................................... 17
4.4 Installation Environ ent ................................................................................. 18
4.5 Before Setting .................................................................................................. 18
4.6 Power Connection ........................................................................................... 18
Chapter 5 Installation ................................................................................................... 20
5.1 Pipeline Connection ........................................................................................ 20
5.2 Set Chair and Junction Box .............................................................................. 20
5.3 Pipeline and Electron Connection ................................................................... 21
5.4 Light Ar and Operation Light Asse bly ....................................................... 22

Dental Delivery Unit Operation Manual
REV-A Page 5 of 43
5.5 Operation Light Asse bly ............................................................................... 24
5.6 Headrest Asse bly.......................................................................................... 24
5.7 Ar Holder Asse bly ..................................................................................... 25
5.8 Balance Ar Asse bly .................................................................................... 25
5.9 Handpiece and 3-Way Syringe Asse bly ........................................................ 26
Chapter 6 Operation and Testing................................................................................2
6.1 Operation Panel ............................................................................................. 27
6.2 Gargling Water Function ................................................................................. 28
6.3 Cuspidor Clean Water Function ...................................................................... 29
6.4 Delivery Tray Receptacle Testing ..................................................................... 30
6.5 Assistant Console Testing ................................................................................ 31
6.6 Position Foot Control ...................................................................................... 31
6.7 X-ray viewer..................................................................................................... 32
6.8 Foot Control .................................................................................................... 32
6.9 Chair position resetting progra .................................................................... 32
6.10 Dental Unit Pre-set IIIIII Position Operation ......................................... 33
6.11 Dental Chair Urgency Stop ............................................................................ 33
6.12 Water Supply Syste .................................................................................... 34
Chapter Maintenance ............................................................................................... 36
Chapter 8 Essential Information................................................................................... 39
Chapter 9 Essential Information................................................................................... 40
9.1 Basic Infor ation ............................................................................................ 40
9.2 Safety Infor ation .......................................................................................... 40
Chapter 10 Transportation and Storage ...................................................................... 41
Appendix 1 Electronic and Pipeline Drawing ............................................................... 42
Electronic Drawing ................................................................................................ 42
Pipeline Drawing..................................................................................................43

Dental Delivery Unit Operation Manual
REV-A Page 6 of 43
Chapter 1 Introduction
1.1 Attention
This Operation manual contains necessary and sufficient information to operate the dental unit,
like optimal usage, safe and reliable operation, regular and correct servicing requirements.
Read and understand all instructions in this manual before attempting to use the product.
Keep this manual with the unit all times. Periodically review the procedures for operation and
safety precautions.
1.2 Usage Indications
The chair-mounted dental unit is intended to properly position a patient to perform dental procedures. A
dental operative unit is attached to supply power to and serve as a base for other dental devices, such as
a dental handpiece, a dental operating light, an air or water syringe unit, and oral cavity evacuator, a
suction unit, and other dental devices and accessories.
This dental unit can be used for dental clinic, laboratory, hospital and so on, by doctors and
professionals for diagnosing, operating, examining.
1.3 Contraindication
There is no any contraindication of this equipment.

REV-A
Chapter 2 Safety

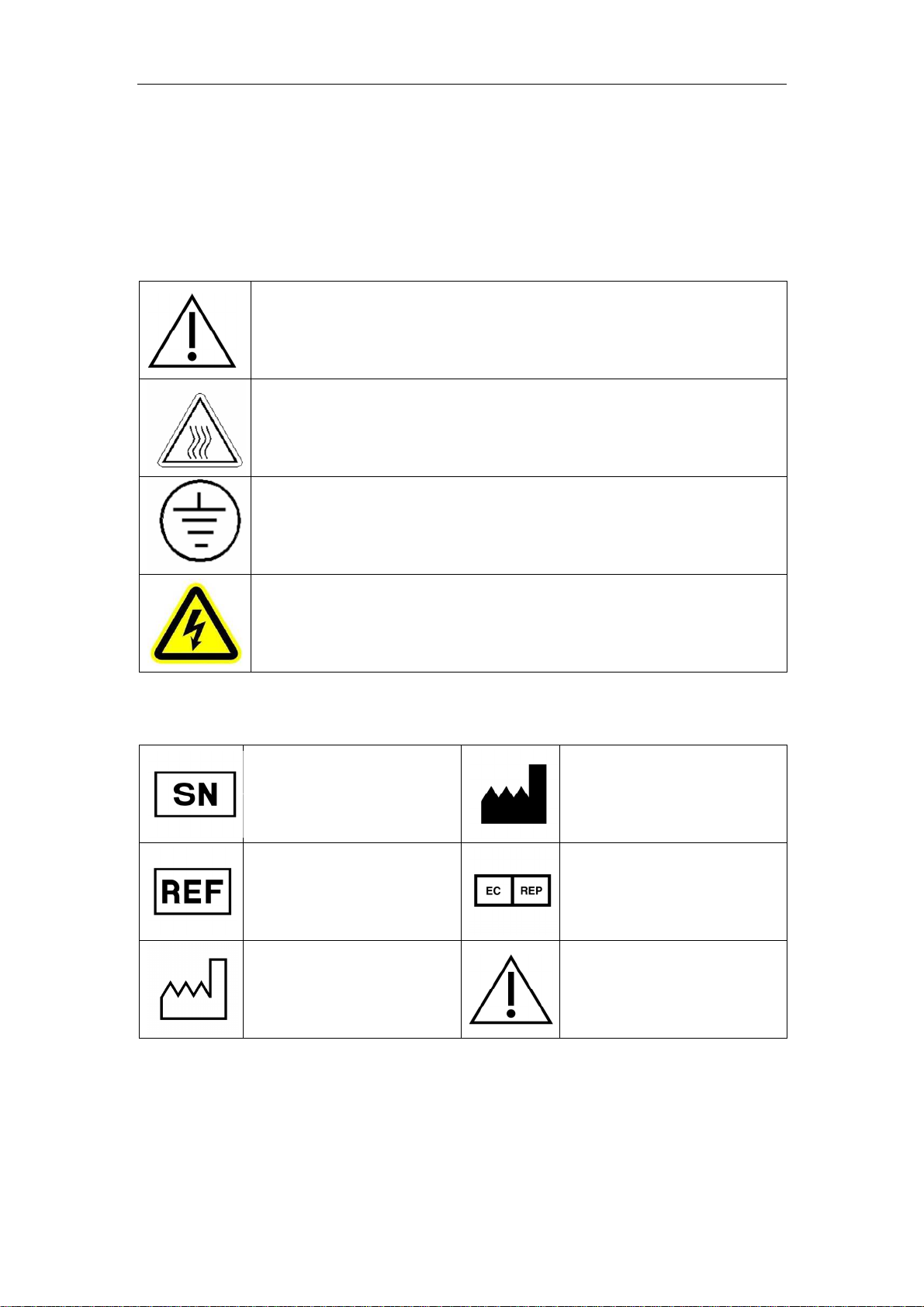

2.1 Sign
Explanation
Device Sign
Description
“ATTENTION”
to refer to the operat
information cannot be provided on the label.
“ATTENTION”
to
the dental unit
“Protective Earth”
“CAUTION”
used to indicate electric shock hazards.
Label Description
Symbol for
"SERIAL NUMBER"
Symbol for
"CATALOGUE NUMBER"
Symbol for
"DATE OF MANUFACTURE"
Dental Delivery
Unit
Chapter 2 Safety
Explanation
Description
“ATTENTION”
– Refer to this Operation Manual
” is intended to alert the user
to refer to the operat
ion
manual or other instructions when complete
information cannot be provided on the label.
“ATTENTION”
– Pay attention to the high temperatures
in the
the dental unit
exterior when exhausting system
is running.
“Protective Earth”
- Indi
cates the protective earth (grounding) terminal.
“CAUTION”
-
Dangerous voltage” (the lightning flash with arrowhead) is
used to indicate electric shock hazards.
"SERIAL NUMBER"
Symbol for
"MANUFACTURER"
"CATALOGUE NUMBER"
Symbol for
REPRESENTATIVE IN THE
EUROPEAN COMMUNITY
"DATE OF MANUFACTURE"
Symbol for "CAUTION"
Unit
Operation Manual
Page 7 of 43
” is intended to alert the user
manual or other instructions when complete
in the
chamber, and
is running.
cates the protective earth (grounding) terminal.
Dangerous voltage” (the lightning flash with arrowhead) is
"MANUFACTURER"
"AUTHORISED
REPRESENTATIVE IN THE
EUROPEAN COMMUNITY
Symbol for "CAUTION"

Dental Delivery Unit Operation Manual
REV-A Page 8 of 43
Operation Prompt
NOTE Indicates that concerned information is easier or helpful in operation.
CAUTION
Indicates that a potential hazard may exist which, through inappropriate
conditions or operation, will or can cause:
• Minor injury;
• Property damage;
• Damage to machine;
WARNING
Indicates that a specific hazard exists which, through inappropriate
conditions or operation, may cause:
• Severe personal injury;
• Substantial property damage;
• Substantial damage to machine;
NOTE PLEASE APPLY THE PRECAUTIONS OR RECOMMENDATION
INDICATED IN THE MANUAL.
2.2 General Safety Recommendations
The user is responsible for proper operation and maintenance of the unit in accordance with
the instructions listed in this manual.
2.2.1 Dental Chair
The cushion do not less than 520mm and higher than 680mm;
Dental chair backrest angle swing should higher than 50 °;
Dental chair should keep stable lifting without noise and jamming phenomenon when no
load;
The foot switch could control the dental chair position;
The decoration materials and filler materials should follow the requirements of 5.1.5
YY/T0058-2004;
The headrest should follow the requirements of 5.2.1.1 YY/T0058-2004;
The armrest should follow the requirements of 5.2.2 YY/T0058-2004;
Carrying capacity should follow the requirements of 5.2.3 YY/T0058-2004;
The pressure of explosion should follow the requirements of 5.2.4 YY/T0058-2004;
The additional load under the emergency should follow the requirements of 5.2.7
YY/T0058-2004;
The integrated design should follow the requirements of 5.1.1~5.1.4. YY/T0058-2004.

Dental Delivery Unit Operation Manual
REV-A Page 9 of 43
2.2.2 Delivery Tray
Keep stable anytime, the at each position, the gradient should not more than 3°;
Lift freely when more than 1000mm and keep stay any position;
The maximum to bear on delivery tray is 2kg.
2.2.3 Water supply for gargle device should be stable without splashing;
2.3.4 Saliva Ejector
The saliva ejector have strong gear and weak gear;
Low saliva ejector: when the water pressure is 200kPa, the vacuum should higher than
27kPa, the pumping rate should higher than 400ml/min;
High saliva ejector: when the water pressure is 400kPa, the vacuum should higher than
10kPa, the pumping rate should higher than 1000ml/min.
2.3.5 Spittoon
Made with health, firm and corrosion resisting material, washable and disinfection;
The filter inside the spittoon should retain the residue which the diameter is more than
2mm;
When the pressure is 200kPa, the dirty on the cuspidor should be washed clean.
2.3.6 3-way Syringe
Well sealing performance, open and close flexibly, injection evenly, adjustable direction;
When respectively press button, should be clear the gas or water; spray fog flow when
press both buttons at same time.
2.2.7 Operation Light
Operation light should follow the requirements of 4.1 YY1120-1999;
Operation light should follow the requirements of 4.2 YY1120-1999;
Operation light should follow the requirements of 4.3 YY1120-1999;
Operation light should follow the requirements of 4.4 YY1120-1999;
Operation light should follow the requirements of 4.5 YY1120-1999;
Operation light should follow the requirements of 4.6 YY1120-1999;
Operation light should follow the requirements of 4.7 YY1120-1999;
Operation light should follow the requirements of 4.8 YY1120-1999.
2.2.8 The x-ray viewer is milky white, brightness should be higher than 4000Lx;

Dental Delivery Unit Operation Manual
REV-A Page 10 of 43
2.2.9 Foot Switch
Turn on the foot switch when the air source condition is 4.1f, the air pressure should
stable and follow the requirements of the working pressure for any handpiece.
2.2.10 Doctor Stool
Doctor stool should move freely when the load is more than 1350N;
Doctor stool could support more than 180N;
The range of height adjustment should more than 130mm;
The doctor stool should drop less than 10mm after loading 135kg(after initial settlement);
The cover materials and filler materials of doctor stool should follow the requirements of
4.2.1.5.
2.2.11 Air supply switch for water bottle should be with well performance;
2.2.12 The air and water system should be with well performance, and all values
should be operated easily;
2.2.13 The dental unit should be with well sealing, no leakage;
2.2.14 The working noise should be less than 70dB (except the air compressor);~
2.2.15 The pressure system should be safe and reliable, without leakage and
explosion when in the normal condition;
2.2.16 The parts which may generate pressure in the fire accident, should be
equipped with pressure release devises;
2.2.17 Additional load in the emergency measure
The dental unit should be afforded additional 40kg in 1min, which should be interval 1sec;
keep the dental unit stay when in the testing, no damage obviously after testing.
2.2.18 The speed of high speed handpiece should be more than 260×
××
×103r/min with
medical devise registration certificate;
2.2.19 The speed of motor handpiece should be more than 22×
××
×103r/min, the torque
should be more than2.65N·
··
·m, with medical devise registration certificate;
2.2.20 The curing light should be with medical devise registration certificate;
2.2.21 The flow on the handpiece should be adjusted with 28L/min
40L/min;
2.2.22 The dental unit should follow the requirements of 5.1 YY/T1043-2004;
2.2.23 The dental unit should follow the requirements of 5.3.1 YY/T1043-2004;

Dental Delivery Unit Operation Manual
REV-A Page 11 of 43
2.2.24 The dental unit should follow the requirements of 5.3.6 YY/T1043-2004;
2.2.25 Appearance and Structure
The appearance should be smooth and even without obvious concave-convex, bump,
scratch and burr;
The switches and buttons should flexible and stable without loose;
Paint parts should follow the requirements of Part 2 of Appearance YY/T91055-1999;
Electroplating parts should follow the requirements of Class 2 of YY0076-92 IV;
The cushion parts should be smooth, uniform color without crack.
2.2.26 The dental unit should follow the safety requirements on Appendix A;
2.2.27 Environmental Tests
The dental unit should follow the environment requirements of Group II climate
environment and Group II mechanical environment, GB/T14710-93;
The transportation test should follow the requirements of Chapter 3, GB/T147710-93;
The power supply voltage adaptability test should follow the requirements of Chapter 4,
GB/T147710-93.
2.2.28 All cable and pipeline should be protected from friction and stretch;
2.2.29 The control device should be equipped separately;
2.2.30 Any exposed parts should be cleaned and disinfected easily without any
damage on the surface and symbol.
2.3 Safety Parts
Temperature Protection
Part Name Function
Temperature Protector
(Heating bottle ) Cut off current when the heating bottle temperature is too high.
Electricity Protection
Part Name Function
Fuse ( Power Impute) Cut off current when the connected power is too high or unstable.
Fuse (X-ray Viewer) Cut off current when the connected power is too high or unstable.

Dental Delivery Unit Operation Manual
REV-A Page 12 of 43
Control Part
Part Name Function
Operation Panel The main control panel of the dental unit
Foot switch Control the air and water supply
Foot control
The foot control button to control the moving of dental chair
PCB Control Control system for all the process of operation
CAUTION
MANUFACTURER IS NOT HELD RESPONSIBLE FOR ANY ARBITRARY
DISASSEMBLY, AMENDMENT WITH THE UNIT, BY UNAUTHORIZED
PERSON OR UNPROFESSIONAL TECHNITIAN.
2.4 Operation Risk
Please take attention on avoid operation risk during operation.
Squeeze risk
Each time operating chair when patient lying on, please control carefully to avoid squeezing.
2.5 Protection Tool
Name Function
Rubber glove Take to avoid infection
Respirator Take to avoid infection

Dental Delivery Unit Operation Manual
REV-A Page 13 of 43
Chapter 3 Description and Specification
3.1 Overview
The dental unit is contained by dental chair and operation unit. Please check the details as
followed:
Figure 3
Figure 3Figure 3
Figure 3-
--
-1 The Structure of Dental Unit
1 The Structure of Dental Unit1 The Structure of Dental Unit
1 The Structure of Dental Unit
No.
Name Description
1 Foot Control Control water, air, fog by pedal
2 Front Cover Protect the front part of dental chair
3 Junction Box The main supply system of dental unit
4 Control Box The main control system of dental unit
5 Rotatable Spittoon Spittoon to collect used water

Dental Delivery Unit Operation Manual
REV-A Page 14 of 43
6 Gargle Water Faucet Provide the gargle water
7 Light Pole The main post to hold the arm
8 Light Adjusting Arm Adjust angle and direction of operation light
9 Operation Light Operation light for diagnosing, operation or examining
10 Balance Arm Connect the instrument tray
11 Instrument Tray Assistant device receptacle
12 Right Armrest Armrest on the right position of dental chair
13 Low Saliva Ejector Weak Suction Syringe
14 High Saliva Ejector Strong Suction Syringe
15 Air/Water Syringe A tool to provide air, water and fog
16 Left Armrest Armrest on the left position of dental chair
17 Dental Chair The chair could be adjusted as up and down, backrest front
and back for different requirement
18 Position Foot Control Control the moving direction of dental chair
3.2 Specification
Basic Specification
Rated Voltage: A.C.
220V±22V, 50Hz±1Hz
Rated Power: 1100W
Motor Voltage: DC 5V
Working Condition
Operation Temperature: 540
Relative Humidity: ≤85%
Air Resource: Output 550kPa800kPa; Air volume should not less than 50 L/min.
Water Resource: Output 200kPa400kPa; Water volume should not less than 10L/min.
Electronic Specification
Electronic Security Class: I Class
Electronic Defending Class: B Class
Running: interrupted load and continued device
Input Power: 1100VA

Dental Delivery Unit Operation Manual
REV-A Page 15 of 43
Application Device: high speed handpiece(driven by an external source), electric dental chair
(driven by DC motor)
Sign: No input signal, output signal
Non movable common device, splash-proof foot switch
Fuse Information
Type Qty Position
RT1-20 φ5×20 6.3A 1 Power Resource
RT1-20 φ5×20 2A 1 Delivery Tray
RT1-20 φ5×20 5A 2 Dental Unit
RT1-20 φ5×20 5A 2 Dental Unit

Dental Delivery Unit Operation Manual
REV-A Page 16 of 43
Chapter 4 Receiving and Pre-installation
4.1 Check the Package
Please check package carefully when you receive the product.
Front Flank
Item All-in-one
Package Split Package
Packing Size(mm) 1450×1100×1210
1160*750*560 123kg
1300*610*500 45kg
910*320*730 39kg
1250*580*280 22kg
780*240*160 4kg
Gross Weight(kg) 220kg 300*260*340 2kg
CAUTION
WHEN YOU REMOVE THE PACKAGE, PLEASE ENSURE THAT YOU DO
NOT DAMAGE THE MACHINE INSIDE. WHEN CUTTTING THE PLASTIC
BAG, BE CAREFULL NOT TO CUT THE TUBES INSIDE.
4.2 Unpack the Accessories

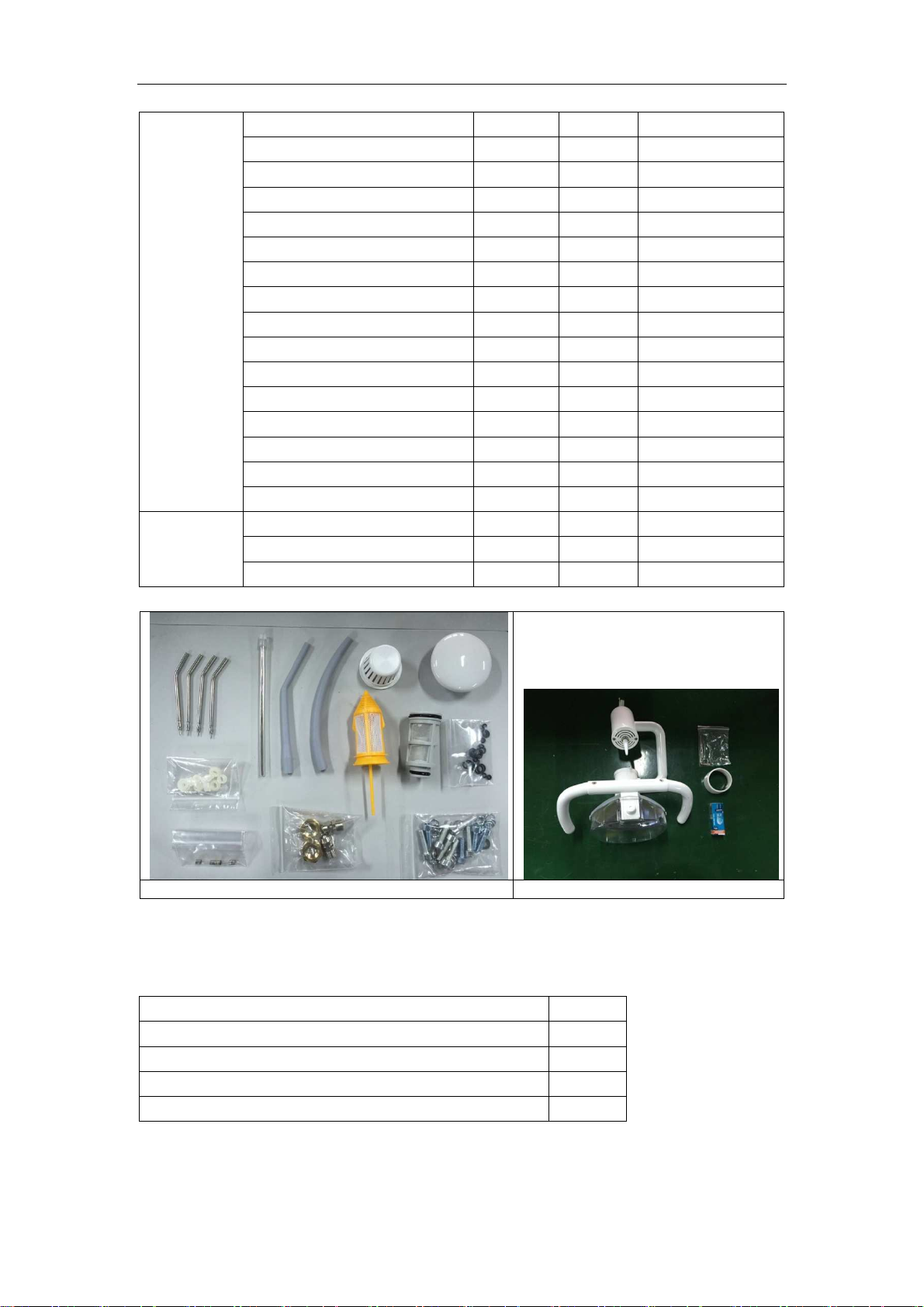

Open the package, remove the plastic bag, and then check all accessories as listed:
Item Name QTY Unit Remark
Lamp Box
Operation Light 1 pcs
Ornament Ring 1 pcs
Halogen Lamp 1 pcs
Allen Key φ2 2 pcs Assembly Tool
Allen Key φ2.5 1 pcs Assembly Tool
Allen Key φ4 1 pcs Assembly Tool
Light Arm
Box
Light Pole 1 pcs
Light Pole Ornament Ring 1 pcs
Light Arm 1 pcs
Light Arm Ornament Ring 1 pcs

Dental Delivery Unit Operation Manual
REV-A Page 17 of 43
Accessory
Box
High-volume Aspirator Tube 2 pcs
Low-volume Aspirator Tube 1 pcs
Syringe tip 4 pcs
Connection Port 1/4"-8 and Nut
2 sets Backup
Connection Port 1/2"-1/4" 2 pcs Backup
Fuse 2A 1 pcs Backup
Fuse Tube 6.3A 1 pcs Backup
Gargle Hydrant with O Ring 1 pcs
Cuspidor Filter 1 pcs
Strong Suction Aspirator Filter
1 pcs
Water Filer 1 pcs
Screw M6×25 6 pcs Backup
Water Connection Port 1 pcs Backup
φ4 Plastic Hoop 5 pcs Backup
φ6 Plastic Hoop 5 pcs Backup
φ8 Plastic Hoop 5 pcs Backup
Folder Operation Manual 1 pcs
Quality Certificate 1 pcs
Packing List 1 pcs
Accessory
Box
Lamp Box
4.3 Optional Accessories
Name QTY
Oral Camera 1
Air Compressor / Suction Unit 1/1
Curing Light 1
Ultrasonic Scaler 1

Dental Delivery Unit Operation Manual
REV-A Page 18 of 43
4.4 Installation Environment
The machine should be set in a place as followed:

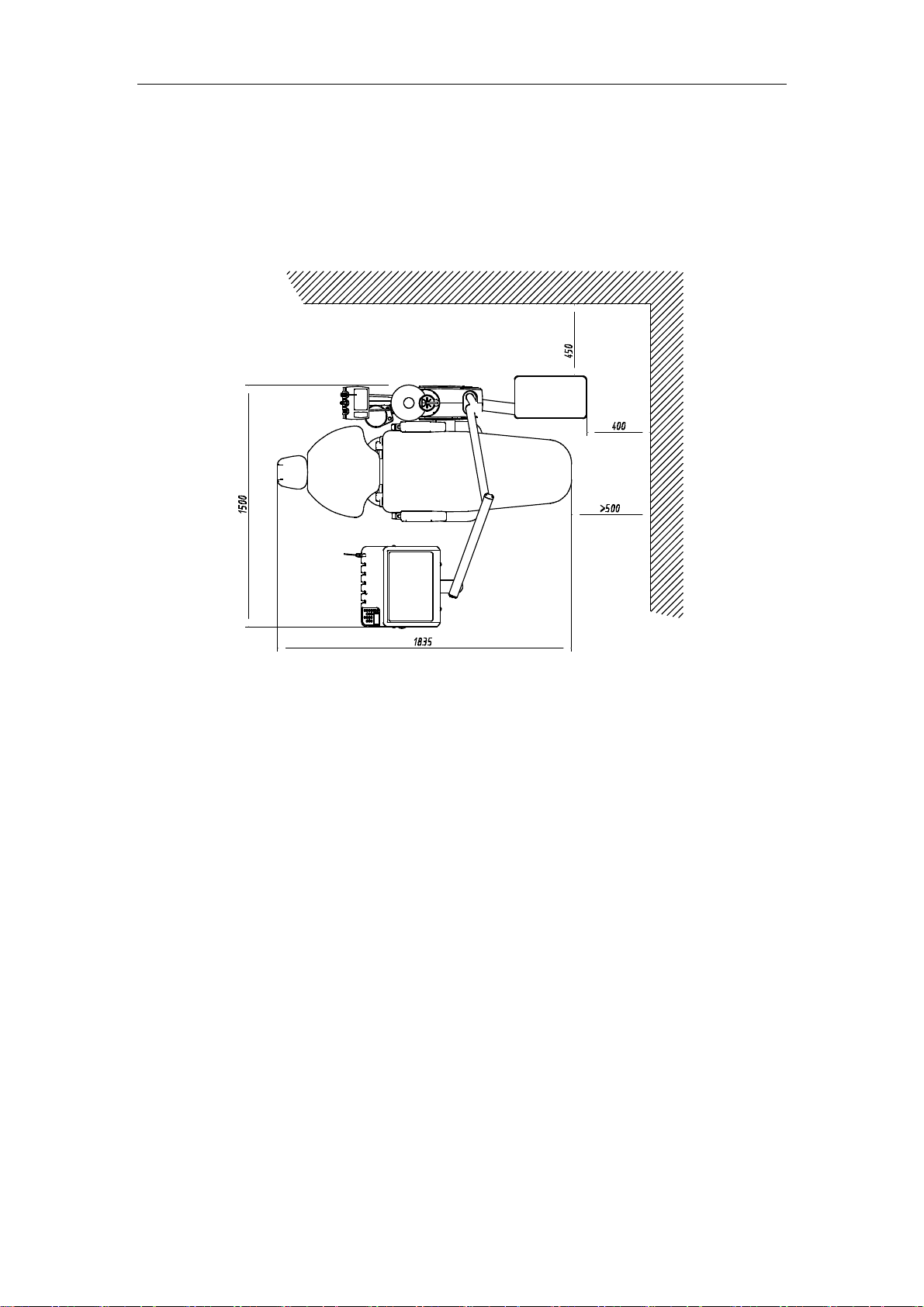

Pic 4-1 Overall Layout (External Junction Box)
The temperature of environment: 5-40 .
The humidity of environment: ≤85%.
Atmosphere pressure: 860Hpa1060Hpa.
An earth connection is essential.
4.5 Before Setting
Please ensure the place which has a separate and stable power source supply.
Please ensure the place which has the sewage draining tube to connect.
Please ensure the place which has the air source supply.
Please ensure the palace which has the water source supply.
4.6 Power Connection
The dental unit should be connected with a stable and separate power source.
Power socket is at the back of the dental unit.
Please confirm the connection power is complied with specification of nameplate at the
back of dental unit.

Dental Delivery Unit Operation Manual
REV-A Page 19 of 43
CAUTION
DO NOT BEND THE POWER WIRE TO AVOID DAMAGE OF POWER WIRE.
DO NOT PUT ANY HEAVY STUFF ON THE POWER WIRE TO AVOID DAMGE
OF POWER WIRE.
DO NOT USE OTHER POWER WIRE TO AVOID DAMAGE OF DENTAL UNIT.
DO NOT TRY TO ADD THE POWER WIRE TO AVOID ACCIDENT AND RISK.

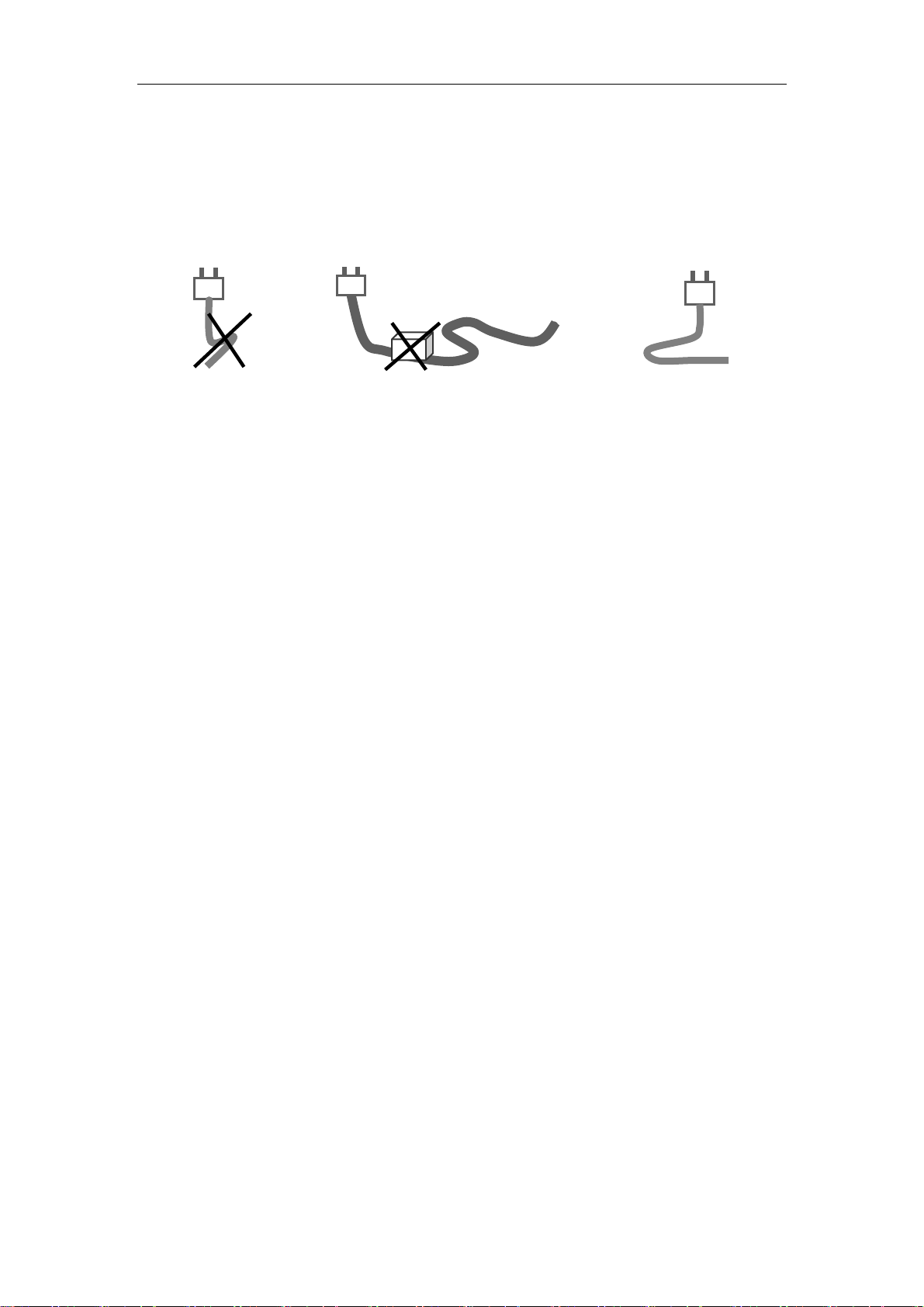

WRONG WRONG RIGHT
Table of contents
Other Woson Dental Equipment manuals
Popular Dental Equipment manuals by other brands

Coltene
Coltene CanalPro CL2 user guide

Renfert
Renfert Twister Translation of the original instructions for use

Rem
Rem M-Vac Series installation guide

Waterpik
Waterpik WaterFlosser quick start guide

EMS
EMS AIR-FLOW handy 3.0 Operation instructions

Amanngirrbach
Amanngirrbach Straumann Argotherm user manual
