WTI Sidewinder SW720A User manual

SIDEWINDER Series
SW720A : 120VAC
Installation Manual
R0710

©WTI (Wireless Technology, Inc.) : Sidewinder Page 2of 17
TABLE OF CONTENTS
INFORMATION ……………………………………………………………… Page 3
PRODUCT WARRANTY & REPAIR …………………………………………. Page 4
SIDEWINDER SERIES: SW720A …………………………………………… Page 6
SAFEGUARDS, TOOLS & INSTALLATION ………………………………… Page 7
MOUNTING …………………………………………………………………. Page 8
SIGNAL CONNECTIONS …………………………………………………… Page 10
SEALING & PRESSURIZATION ……………………………………………. Page 14
TECHNICAL SPECIFICATIONS ……………………………………………. Page 16

©WTI (Wireless Technology, Inc.) : Sidewinder Page 3of 17
INFORMATION
FCC NOTICE
This device complies with Part 15 of the
FCC Rules.
Operation is subject to the following two
conditions:
1.) This device may not cause harmful
interference.
2.) This device must accept any
interference that may be received,
including interference that may
cause undesired operation.
READ THIS MANUAL
Every effort has been made to insure that
this WTI system is of the highest quality.
This product has been carefully inspected
to comply with rigid quality standards
before shipment to you. In consideration of
your investment and the desire to obtain
full performance capability engineered into
your new WTI product, we recommend that
you read this manual before attempting to
operate your system.
FOR MORE ASSISTANCE OR MORE
INFORMATION
WTI (Wireless Technology, Inc.)
2064 Eastman Avenue, Suite 113
Ventura, CA 93003-7787
TOLL FREE. 866/gotowti (468-6984)
TEL. [phone]
FAX. [phone]
EMAIL: [email protected]
INTERNET: http://www.gotowti.com or
http://www.wirelesstech.com
The software / firmware furnished with the
equipment is confidential to and is
copyrighted by Wireless Technology, Inc. (WTI)
It is not to be copied or disclosed in any
manner without the consent of Wireless
Technology, Inc. (WTI). The software/firmware
is furnished to the purchaser under a
license for use on a single system.
Information furnished by Wireless Technology,
Inc. (WTI) is believed to be accurate and
reliable. However, no responsibility is
assumed by Wireless Technology, Inc. (WTI) for
its use or for any infringements of other
rights of third parties, which may result
from its use. No license is granted by
implications or otherwise under any patent
or patent rights of Wireless Technology, Inc.
(WTI)
©2010 Wireless Technology, Inc. (WTI)
All rights reserved.

©WTI (Wireless Technology, Inc.) Page 4of 17
PRODUCT WARRANTY AND REPAIR
PRODUCT WARRANTY
We appreciate your purchase of Wireless Technology, Inc. (WTI) security products. We take pride in
the quality of our products and have manufactured each new WTI product to exacting quality
standards. In normal use, it will provide you with years of satisfactory performance. However,
should you experience difficulty; you are protected under the provisions of this warranty.
WTI warrants to the original user a product that is free of defects in materials and
workmanship in normal use. WTI warrants to the original user that WTI’s products will be free
of defects in materials and workmanship in normal use for a period of 12 months from the
date of sale. WTI’s obligation under this warranty shall be limited to the repair, including all
necessary parts and the cost of labor connected therewith, or at our option, the replacement of
any product that shows evidence of a manufacturing defect within the warranty period.
This warranty is extended to all WTI products purchased and used within the United States of
America and is valid only when service is rendered by the authorized WTI (Wireless Technology,
Inc.) Warranty Station.
This warranty shall not apply to appearance or accessory items including, but not limited to,
knobs, connectors, cabinets and connecting cables. This warranty shall not, in addition, apply
to repairs or replacements necessitated by any cause beyond the control of WTI including, but
not limited to, acts of nature, improper installation, misuse, lack of proper maintenance,
accident, voltage fluctuations, unauthorized repairs or modifications.
This warranty becomes void in the event serial numbers are altered, defaced or removed, or an
attempt is made to field service or alter performance of any WTI products.
WTI reserves the right to make changes in design, or to make additions to, or improvements
upon, products without incurring any obligation to install the same on products previously
manufactured.
The foregoing is in lieu of all other warranties expressed or implied and WTI neither assumes
nor authorizes any person to assume for it any other obligation or liability in connection with
the sale of our products. In no event shall WTI or its Authorized Dealers be liable for special or
consequential damage arising from the use of this product, or any delay in the performance of
this warranty due to causes beyond its control.

©WTI (Wireless Technology, Inc.) Page 5of 17
PRODUCT WARRANTY AND REPAIR
REPAIR AUTHORIZATION
Please contact Wireless Technology, Inc. (WTI), to obtain a repair authorization number (RA) and
provide the following information:
1.) Product Model & Serial Numbers.
2.) Date of shipment, purchase order number, sales order number or WTI invoice number.
3.) Details of the defect or malfunction. If there is a dispute regarding the warranty or
product, which does not fall under the warranty conditions stated within the
description of the written warranty, please include a written explanation with the
product when returned.
SHIP FREIGHT PRE-PAID TO:
WTI (Wireless Technology, Inc.)
2064 Eastman Avenue, Suite 113
Ventura, CA 93003-7787
TEL [phone]
FAX [phone]
RETURNS
No unauthorized returns will be accepted. All returns must have an authorized (RA) number
issued by the factory (CA number if returned for credit and RA number if returned for repair).
Products returned for repair or credit will be rejected if no authorization number has been
issued or freight has not been pre-paid. All merchandise returned for credit will be subject to a
20% restocking and refurbishing charge.

©WTI (Wireless Technology, Inc.) Page 6of 17
SIDEWINDER SERIES: SW720A
The Sidewinder SW720A is a pan-tilt-zoom camera system that provides day/night color or
black and white standard definition NTSC (PAL optional) video. The day/night feature can be
set for manual or automatic operation. The camera provides 360 degree rotation in both the
pan and tilt axes, and provides an optical zoom magnification of 35 times. A self-cleaning
hydrophilic coating is provided on the front lens window of the camera to ensure clear, crisp
video images and to reduce maintenance. An Indium-Tin-Oxide coating is provided on the
inside of the front lens window to heat it and prevent fogging.
The Sidewinder SW720A camera operates on AC line voltages within a voltage range of 85VAC
to 265VAC and an operating frequency of 47Hz to 63Hz. All camera signals, including power,
communication and video, are provided on a 16 pin circular plastic connector or an18 pin
circular MS style connector mounted at the end of a 36 inch umbilical cable exiting from the
bottom of the camera.
The Sidewinder SW720A camera uses a 4 wire full duplex RS-485 or RS-422 compatible
communication link to provide pan-tilt-zoom control and to allow setting of all of the presets,
tours and other camera features. While basic pan-tilt-zoom operation can be implemented
with only a two wire uni-directional interface, it is recommended that the camera be provided
with the full 4 wire interface to enable the more advanced features, such as remote firmware
uploading and camera status queries.
The SW720A camera supports industry standard COHU and Pelco setup and command codes
sets. NTCIP Code support can be provided as an option. Please contact the factory for code
support information.
Unpacking
Please examine the equipment carefully when unpacking the shipping container. If any
damage is noted please be sure to file a claim with the carrier. WTI is not responsible for any
damage that occurs during shipping. Please verify that all of the contents are present and
carefully check the packing material for any loose items before recycling it.

©WTI (Wireless Technology, Inc.) Page 7of 17
SAFEGUARDS, TOOLS & INSTALLATION
Safeguards
1.) Read Instructions. It is important to read all safety and operating instructions before
installing or using this equipment.
2.) Retain Instructions. Retain this manual and any supplements for future reference.
3.) Follow Instructions. Follow all instructions herein for use of this equipment.
4.) Heed all warnings. Adhere to all warnings on the equipment, and in this manual.
5.) To reduce the risk of electric shock or equipment damage, work on the unit only when
the power is shut off and is unplugged from its power source to prevent accidental
activation. Also take precautions to avoid contact between the equipment and other
electrical wires or power sources that may be present at the installation site.
6.) Some internal components of this camera are static sensitive. When performing work
on the inside of the camera unit, work only at an approved static free work station.
Recommended tools and accessories for proper installation
1.) Tie wraps to secure cable runs.
2.) Set of open end and socket wrenches.
3.) Cordless power drill.
4.) Safety cable recommended (prevents camera falling during overhead installations).
5.) Self-sealing connector tape to weatherproof all cable connections.
Installation planning
1.) The maximum cable length that should be planned for is 750 feet. This is primarily a
limitation related to achieving acceptable video quality. Excessively long video runs
will not have crisp detail in the images, due to the high frequency roll off of the long
video cable.
2.) The Sidewinder SW720A camera draws up to 50 Watts maximum, which translates to
about 0.59 Amps at the low line voltage limit of 85VAC. This will result in an AC Line
voltage drop of no more than 6VAC over the maximum 750 foot umbilical cable run.
3.) Be sure to verify that there are no physical obstructions that might prevent the camera
from turning freely in all directions.
4.) Be sure to verify that there are no physical obstructions in the way of any required
viewing directions.
5.) If at all possible, utilize all 4 bi-directional interface connections, rather than a simpler
2 conductor unidirectional interface. This will allow field firmware updates without
having to dismount the camera and can provide valuable troubleshooting information
in the case of any problems that might be encountered during the installation process.
Equipment supplied with unit
~Camera
~4 each ¼-20 x ¾” mounting screws
~Manual

©WTI (Wireless Technology, Inc.) Page 8of 17
MOUNTING
Equipment that may be required but not supplied with unit
1.) Mating connector and strain relief for umbilical cable
2.) 11 contact pins for mating connector
3.) Crimping tool for connector pins
4.) Camera mounting bracket
5.) Interconnect cables
6.) Video monitor
7.) PC or laptop computer
8.) Setup software
9.) Local rack mount control panel
Mechanical dimensions
Mounting
The Sidewinder SW720A camera should normally be mounted in an upright orientation, as
shown in the drawing above. The camera may also be mounted upside down if desired, but a
cover of some sort should be placed over the bottom of the camera, extending out to about 6
inches past the camera all around, to prevent debris, dirt or snow and ice from accumulating
on the bottom of the camera housing, since the conical shaped profile of the camera will no
longer be able to naturally shed material to the sides. The camera may NOT be mounted with
the base facing horizontally.
The base of the Sidewinder SW720A camera has four ¼-20 screw holes that are equally spaced,
90° apart, on a 4.75” diameter circle. If mounting screws other than those provided with the
camera are used, the length of the mounting screws should be selected so that the screws
penetrate no more than 0.75 inches into the base.
WTI manufactures several different mounts for the Sidewinder SW720A that allow the camera
to be attached to pole tops, horizontal poles, vertical poles and walls (see the following table for
more information).

©WTI (Wireless Technology, Inc.) Page 9of 17
MOUNTING
Model #SWWM1: Wall Mount Model #SWWM1 and #SWVPA: Wall Mount with Vertical
Pole Mount Adapter
Model #SWPTM1: Post Top Mount Model #SWHPM1: Horizontal Pole Mount

©WTI (Wireless Technology, Inc.) Page 10 of 17
SIGNAL CONNECTIONS
The Sidewinder SW720A camera is supplied with a 36 inch umbilical cable to allow the cable
to be routed through the camera mount before the actual physical installation of the camera.
Signal Connections

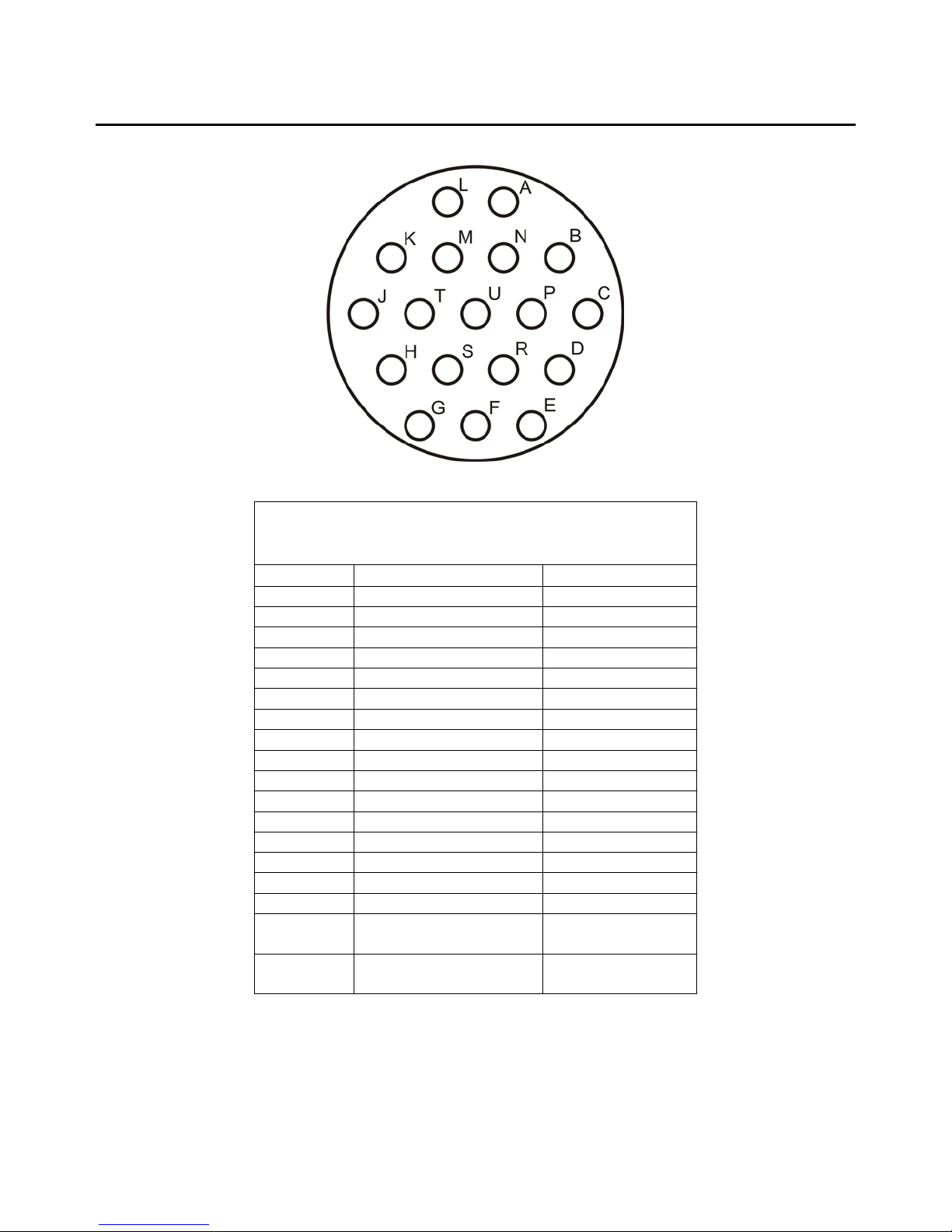

The Sidewinder SW720A is provided with a 36 inch umbilical cable and is available with either
an AMP 16 pin circular plastic connector or an 18 pin MS Style connector at the end. The
umbilical cable provides the power, video and control data signal connections for the camera.
The umbilical cable is also available with the cable stripped and tinned, instead of with the 16
pin circular connector. The umbilical cable exits through the bottom of the camera housing.
The connector pin outs and umbilical cable wire color code are as follows:
