GENERAL DESCRIPTION
The Sidewinder SW720HV-H264-TI is a pan-tilt-zoom camera system that provides
320x240 8-14uM thermal video over an Ethernet connection, using H.264 or MJPEG
video compression. The camera provides 360 degree rotation in both the pan and tilt axes,
and provides a digital zoom magnification of up to 4 times. A hard carbon coating is
provided on the front lens window of the camera to protect the lens surface. An anti-
reflection coating is provided on the inside of the front lens window to increase the
sensitivity of the camera sensor.
The Sidewinder SW720HV-H264-TI camera operates on AC line voltages within a
voltage range of 85VAC to 265VAC and an operating frequency of 47Hz to 63Hz.
Ethernet 10/100Base-T communication is used for transport of the video and control
signals. Power and Ethernet signals are provided via a 36 inch long bottom egress
umbilical cable bundle using an outdoor rated SJOOW #18x3 power cable and an
outdoor rated CAT-5e Ethernet cable, or terminated using a side egress MS connector.
The 36 inch umbilical cables can also be terminated with an 18 pin MS style connector.
The Sidewinder SW720HV-H264-TI camera is capable of supporting an H.264 and a
second H.264 or MJPEG compressed video stream simultaneously. Support is provided
for unicasting and multicasting.
The SW720HV-H264-TI camera provides Ethernet ports for support of industry standard
PTZ control protocols such as Pelco D, COHU, NTCIP and ONVIF. Legacy support for
physical camera control units can be implemented using serial port to Ethernet
converters.
SW720HV-H.264-TI WTI ~ Page 7 of 21

INSTALLATION
RECOMMENDED TOOLS FOR PROPER INSTALLATION
1) Tie wraps to secure cable runs.
2) Set of open end wrenches including 7/16” for mounting bolts.
3) Cordless power drill for mounting some brackets.
4) Safety cable recommended (prevents camera falling during overhead
installations).
5) Self-sealing connector tape to weatherproof all cable connections.
INSTALLATION PLANNING
1) The maximum cable length that should be planned for is 100 meters, based on the
limit for 10/100Base-T Ethernet connections.
2) The Sidewinder SW720HV-H264-TI camera draws up to 50 Watts maximum,
which translates to about 0.59 Amps at the low line voltage limit of 85VAC.
3) Be sure to verify that there are no physical obstructions that might prevent the
camera from turning freely in all directions.
4) Be sure to verify that there are no physical obstructions in the way of any required
viewing directions.
5) Be sure that there is access to the end of the umbilical cable on the bottom of the
camera to facilitate connecting and disconnecting the camera while it is in place
on the mounting bracket or pole.
UNPACKING
Please examine the equipment carefully when unpacking the shipping container. If any
damage is noted please be sure to file a claim with the carrier. WTI is not responsible for
any damage that occurs during shipping. Please verify that all of the contents are present
and carefully check the packing material for any loose items before recycling it.
EQUIPMENT SUPPLIED WITH UNIT
1.) Camera
2.) 4 each ¼-20 x ¾” mounting screws with washers
3.) Quick Start Manual
EQUIPMENT THAT MAY BE REQUIRED, BUT NOT SUPPLIED WITH UNIT
1.) Mating connector and strain relief for umbilical extension cable
2.) Camera mounting bracket
3.) Interconnect cables
4.) Video monitor
5.) PC or laptop computer
6.) Setup software
SW720HV-H.264-TI WTI ~ Page 8 of 21

DIMENSIONS AND MOUNTING
MECHANICAL DIMENSIONS
Bottom Egress
Side Egress
SW720HV-H.264-TI WTI ~ Page 9 of 21

MOUNTING
The Sidewinder SW720HV-H264-TI camera should normally be mounted in an upright
orientation, as shown above. The camera may also be mounted upside down if desired,
but a cover of some sort should be placed over the bottom of the camera, extending out to
about 6 inches past the camera all around, to prevent debris, dirt or snow and ice from
accumulating on the bottom of the camera housing, since the conical shaped profile of the
camera will no longer be able to naturally shed material to the sides. The camera may
NOT be mounted with the base facing horizontally.
The base of the Sidewinder SW720HV-H.264-TI camera has four ¼-20 screw holes that
are equally spaced, 90 degrees apart, on a 4.75” diameter circle, as shown in figure 2
(Note that 24VAC versions of the Sidewinder camera will have 5/16” mounting screws).
If mounting screws other than those provided with the camera are used, the length of the
mounting screws should be selected so that the screws penetrate no more than 0.75 inches
into the base.
SW720HV-H.264-TI WTI ~ Page 10 of 21

MOUNTING ACCESSORIES
WTI manufactures several different mounts for the Sidewinder camera series that allow
the camera to be attached to pole tops, horizontal poles, vertical poles and walls.
SWWM1 – Wall Mount Option
SW720HV-H.264-TI WTI ~ Page 11 of 21

SWWM1 + SWVPA – Wall Mount with Vertical Pole Adapter
SW720HV-H.264-TI WTI ~ Page 12 of 21

SWPTM1 – Pole Top Mount
SW720HV-H.264-TI WTI ~ Page 13 of 21

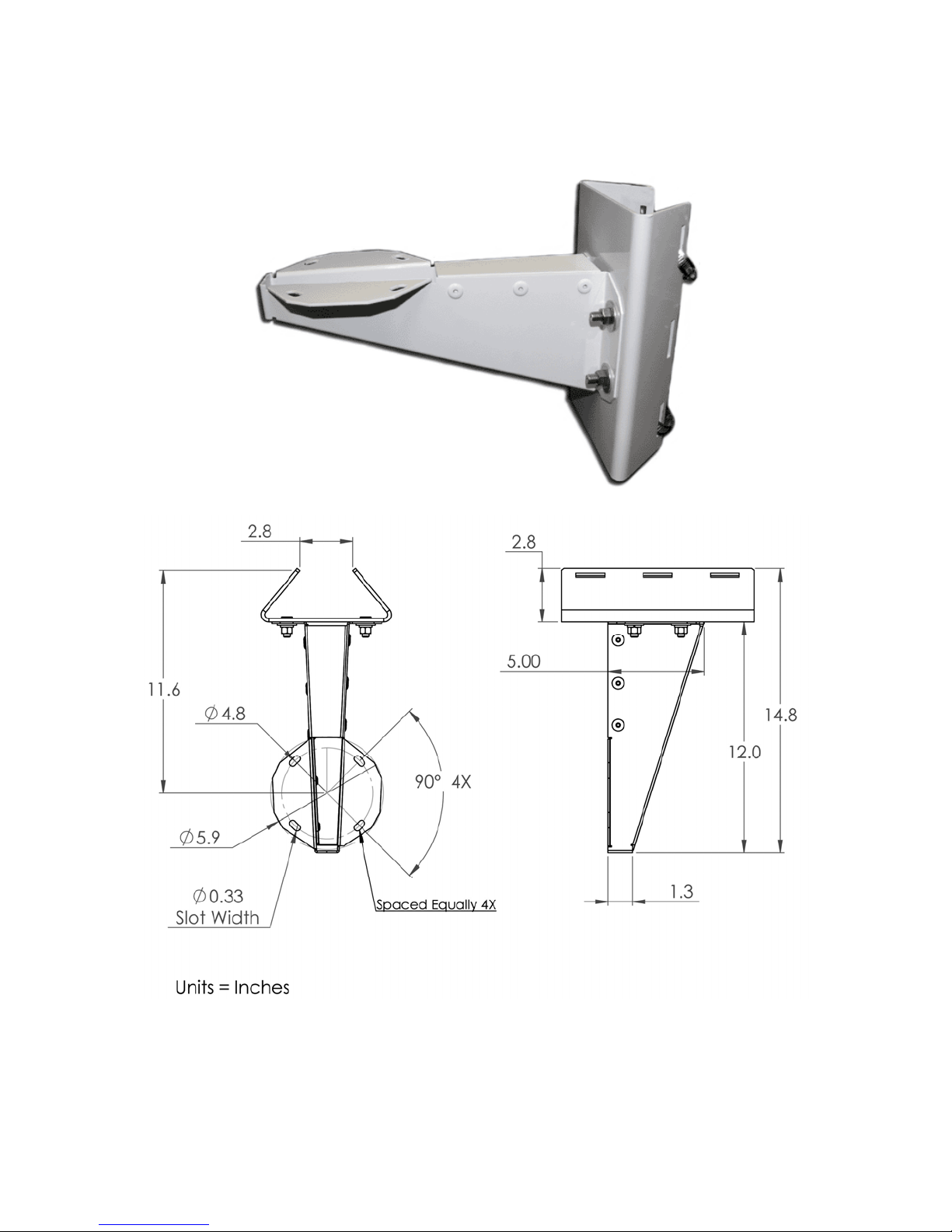

SWHPM1 – Horizontal Pole Mount
SW720HV-H.264-TI WTI ~ Page 14 of 21

15-4-1430 – 6”x6”x3/8” Square Mounting Plate
SW720HV-H.264-TI WTI ~ Page 15 of 21

15-4-913 – 6”Round Riser Mounting Base
SW720HV-H.264-TI WTI ~ Page 16 of 21

SIGNAL CONNECTIONS
The Sidewinder SW720HV-H.264-TI camera is provided with a side egress MS
connector. The MS connector provides the power and Ethernet data and control signals
for the camera. The connector pin outs and suggested cable wire color code are as
follows:
PIN Signal Description Wiring Color Code and Wire
Recommendations
A *(Analog Video Ground) RG-59U Shield
B
C
D Tx+ Orange/White CAT-5e
E Tx- Orange CAT-5e
F Rx+ Green/White CAT-5e
G AC Safety Ground Green 22 AWG Minimum (Same or heavier
than AC Line Input)
H Rx- Green CAT-5e
J
K
L *(Analog Video Out) RG-59U Center Conductor
M *(RS-422 RX +) Brown CAT-5e
N *(RS-422 RX -) Brown/White CAT-5e
P
R *(RS-422 TX -) Blue/White CAT-5e
S *(RS-422 TX +) Blue CAT-5e
T AC Line Neutral (low) White 22 AWG Minimum
U 85-265 AC Line Input (high/hot) Black 22 AWG Minimum
* Optional
SW720HV-H.264-TI WTI ~ Page 17 of 21

AC LINE CONNECTIONS
The AC Line connections should be connected to an AC mains source with a voltage of
85VAC to 265V AC, operating at a frequency of 47Hz to 63Hz. The nominal operating
voltage is normally 115VAC or 230VAC. The camera draws 50 Watts maximum, which
translates to about 0.6 Amps at the worst case low line voltage of 85VAC.
The “hot” side of the AC mains connections should applied to Pin U of the 18 pin MS
connector.
The “low” side of the AC mains connections should applied to Pin T of the 18 Pin MS
connector.
The AC mains safety ground connection should applied to Pin G of the 18 Pin MS
connector.
ETHERNET DATA AND VIDEO CONNECTIONS
The PTZ camera control functions and video streaming functions to and from the
SW720HV-H264-TI camera are transmitted over a 100Base-TX Ethernet connection
using specific Ethernet ports assigned for each of the various functions and protocols.
CAMERA PTZ CONTROL PROTOCOLS AND PORTS
The SW720HV-H264-TI camera supports COHU, Pelco D, WTI, NTCIP and
Web/ONVIF protocols over Ethernet and through the optional RS-485 data
connections.
The various protocols are accessed through the use of different port numbers
when sending camera control commands to the Sidewinder using an Ethernet
connection.
COHU Protocol: 55002
Pelco D Protocol: 55001
WTI Protocol: 53935
NTCIP Protocol: 55000
Web/ONVIF Protocol: 55003
OPTIONAL HARD WIRED PTZ CONTROL PORT
An optional hard wired RS-485 port can be configured on the SW720HV-H264-
TI camera for special situations. These signals are provided on pins M, N, R and S
of the 18 pin MS connector and can be wired to the normally unused Blue and
Brown twisted pairs on the CAT-5e extension cable (see wiring chart). This
option MUST be ordered at time of purchase.
SW720HV-H.264-TI WTI ~ Page 18 of 21

There are internal 120 Ohm termination resistors for both the TX and RX signal
pairs. The factory shipped default state for the 120 Ohm terminations is for both
the TX and RX terminations to be enabled. Applications that involve multiple
cameras on the same RS-485 communications lines will require that the
terminations on all cameras but one be turned off.
VIDEO STREAMING PROTOCOLS AND PORTS
The SW720HV-H264-TI camera supports the following video streaming formats
on the following ports:
RTSP Server (TCP): 8554
RTP Video Data (UDP) Stream 1: 18888
RTP Video Data (UDP) Stream 2: 18890
RTCP Video Reception Data Stats (UDP) Stream 1: 18889
RTCP Video Reception Data Stats (UDP) Stream 2: 18891
OPTIONAL ANALOG VIDEO CONNECTIONS
An optional NTSC standard definition video signal connection provide a 1Vpp
NTSC video signal with a 75 Ohm drive impedance on Pins L and A of the 18 pin
MS connector (see wiring chart).
SW720HV-H.264-TI WTI ~ Page 19 of 21

SURGE PROTECTION
SURGE PROTECTION
The SW720HV-H264-TI camera provides internal surge protection for all of the power,
data and video signals.
1.) The AC line power connections are provided with 275 volt 135 Joule MOV surge
arrestors rated for 6000 Amp pulses. A 3A SMT fuse is included in the primary
circuit to prevent catastrophic printed circuit board damage in the case of gross
AC line input overloads.
2.) The video signal lines incorporate a two stage protection circuit consisting of a
primary 90V gas discharge tube, followed by a high speed, low capacitance 6.2V
2kW peak power transient voltage suppressor.
3.) The data signal lines incorporate a two stage protection circuit consisting of a
primary 90V gas discharge tube, followed by an 18V, 300W, 40A transient
voltage suppressor.
SEALING AND PRESSURIZATION
The SW720HV-H264-TI camera provides two levels of sealing and pressurization. The
entire camera, including the base, housing and camera tube are all sealed to IP66/67
levels to prevent any ingress of dust or moisture. An additional option is available, in
which the camera housing tube is pressurized to 5 psi with dry nitrogen gas.
The SW720HV-H264-TI camera with the pressurization option is provided with a
Schrader valve to allow periodic replenishment of the dry Nitrogen in the camera housing
tube. Since no sealing system will remain 100% airtight indefinitely, it may be necessary
to replenish the dry Nitrogen occasionally. This can be done at the same time that the
regular camera cleaning is performed. A 15psi pressure relief safety valve is provided to
prevent damage to the seals and to prevent blowing out the front or back plates of the
SW720HV-H.264-TI WTI ~ Page 20 of 21
