WTI Sidewinder SW720A User manual

Sidewinder Standard Definition Analog Cameras
SW720A
Installation and Operation Manual
Including:
Optional Electric Brakes (ENG)
Optional Nitrogen Pressurization (P)
Optional Connector Interfaces (HV)(AMP)
REVISION 04/06/15

TABLE OF CONTENTS
INFORMATION.................................................................................................................................3
FCC NOTICE .................................................................................................................................. 3
READ THIS MANUAL...................................................................................................................3
PRODUCT WARRANTY AND REPAIR ...........................................................................................4
PRODUCT WARRANTY.............................................................................................................. 4
REPAIR AUTHORIZATION....................................................................................................... 5
RETURNS ....................................................................................................................................... 5
WARNING......................................................................................................................................6
SAFEGUARDS....................................................................................................................................7
MODELS AND FEATURES............................................................................................................. 8
GENERAL DESCRIPTION..............................................................................................................9
INSTALLATION..............................................................................................................................10
RECOMMENDED TOOLS FOR PROPER INSTALLATION.............................................. 10
INSTALLATION PLANNING ................................................................................................... 10
DIMENSIONS AND MOUNTING...................................................................................................11
MECHANICAL DIMENSIONS ................................................................................................. 11
MOUNTING .................................................................................................................................12

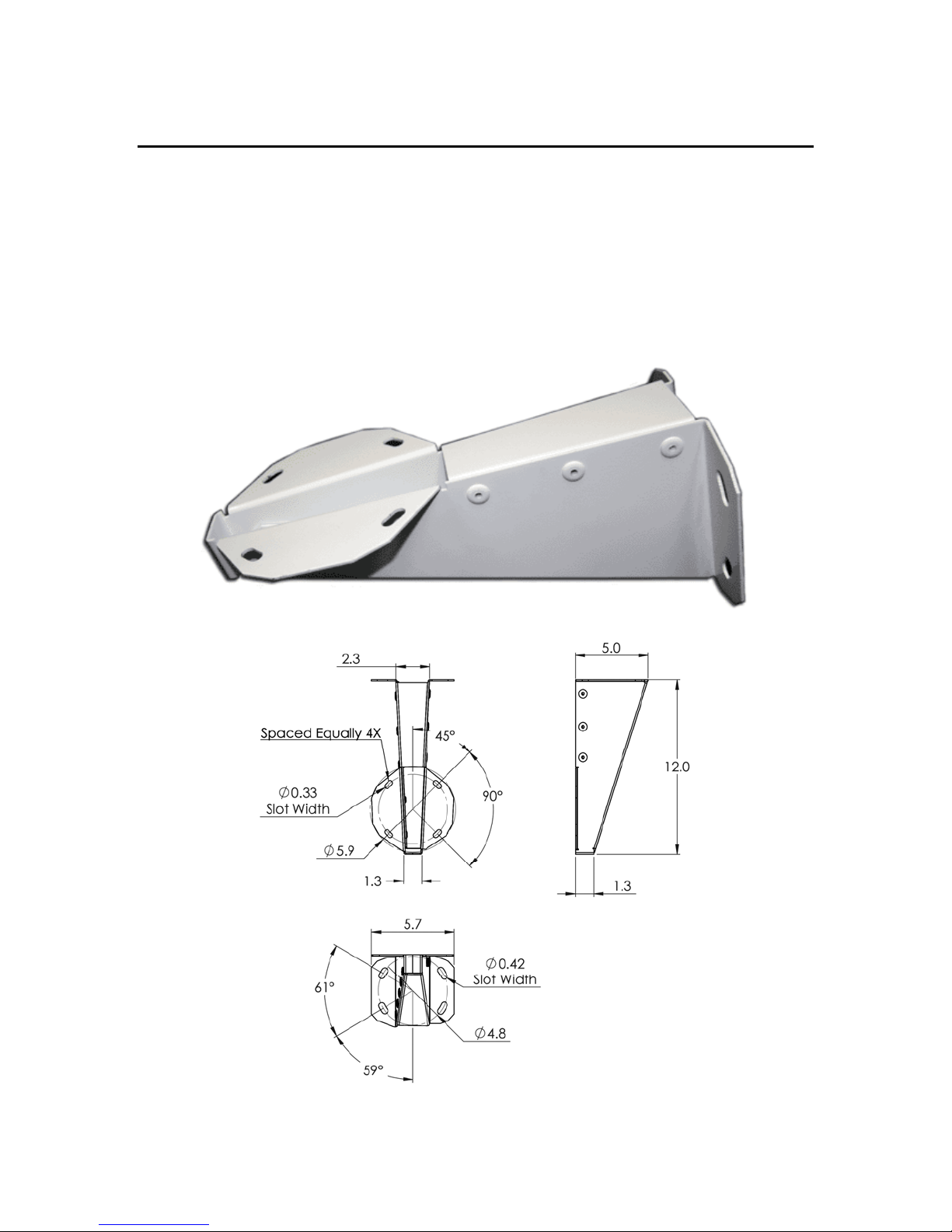

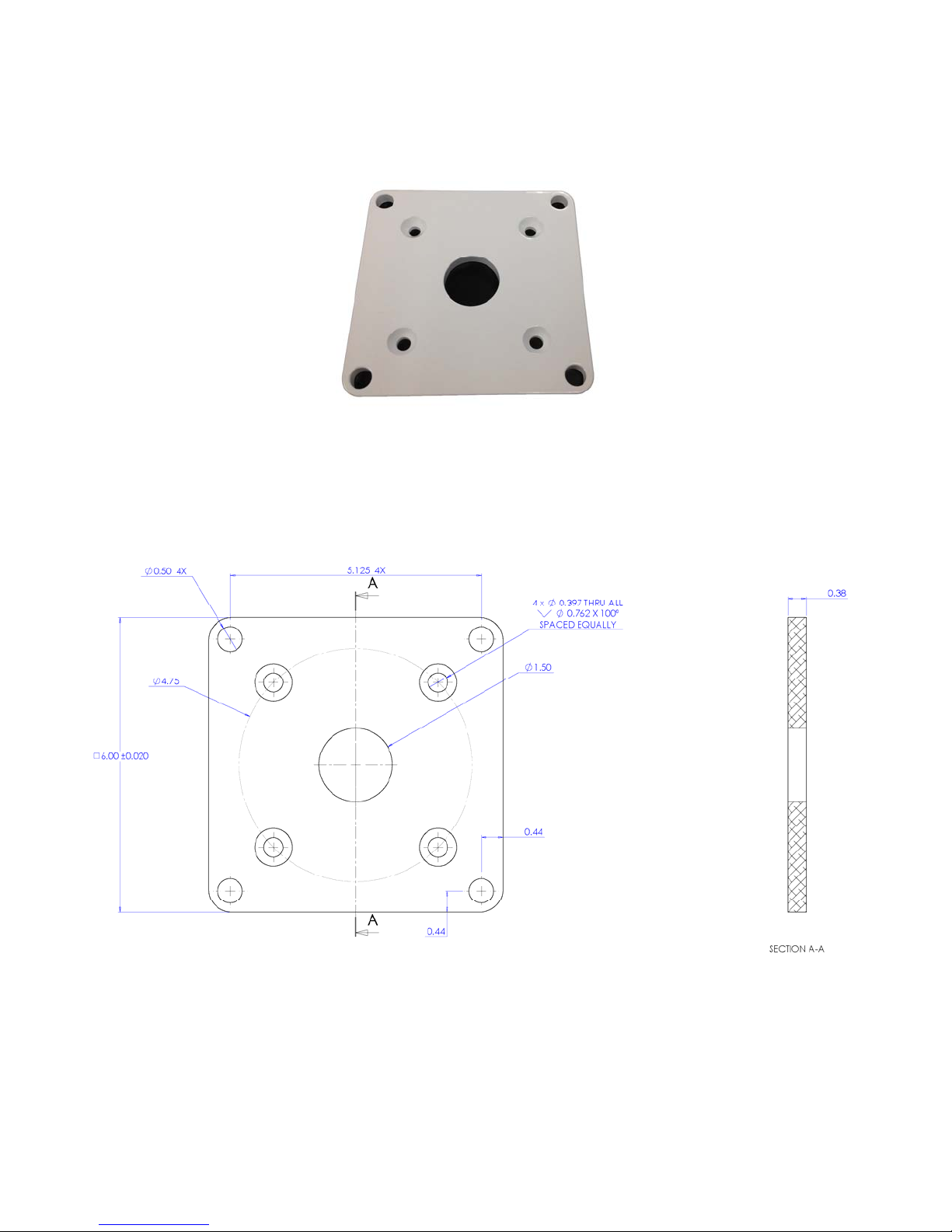

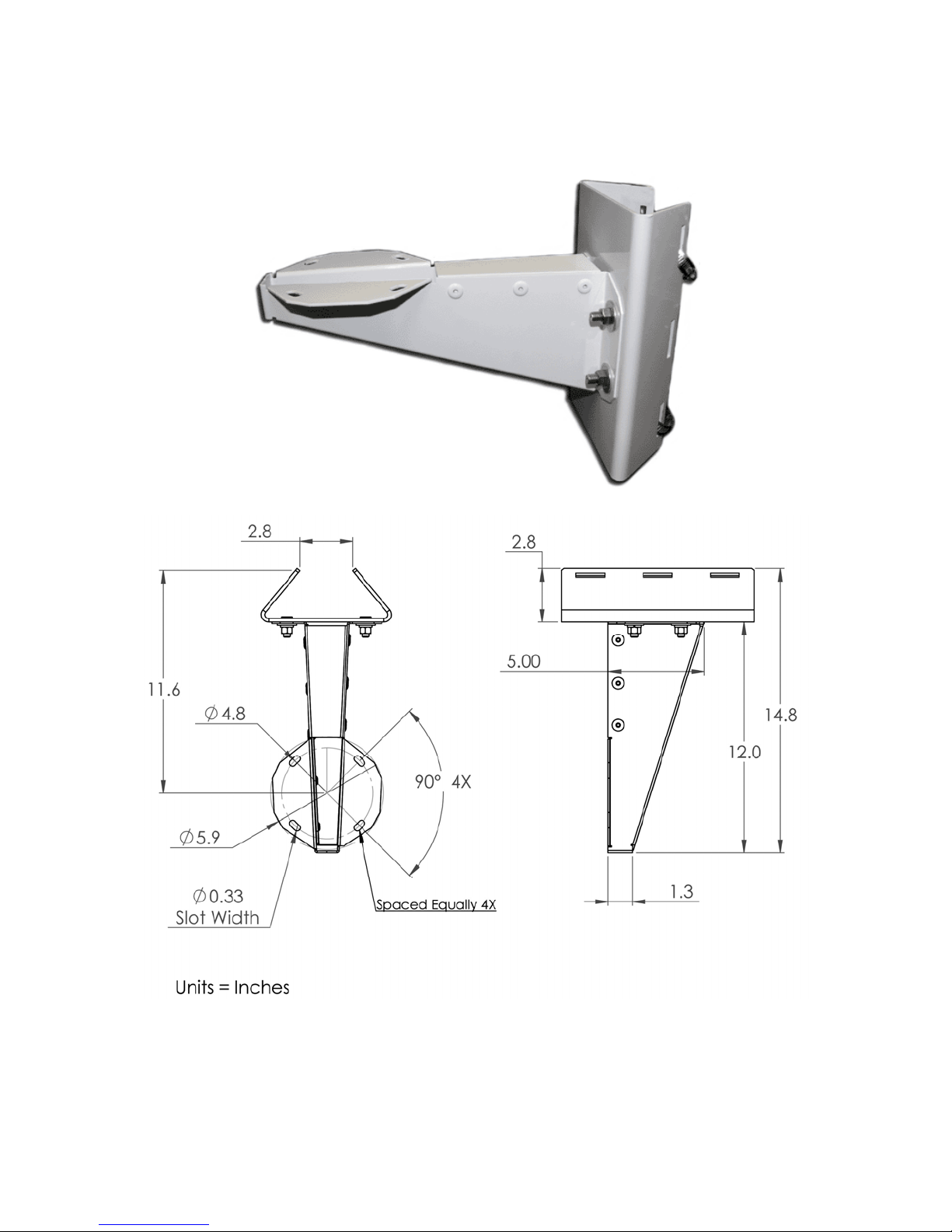

MOUNTING ACCESSORIES ........................................................................................................ 13
15-4-913 – 6”Round Riser Mounting Base 120 VAC MS STYLE UMBILICAL
CONNECTIONS............................................................................................................................... 17
15-4-913 – 6”Round Riser Mounting Base 120 VAC MS STYLE UMBILICAL
CONNECTIONS............................................................................................................................... 18

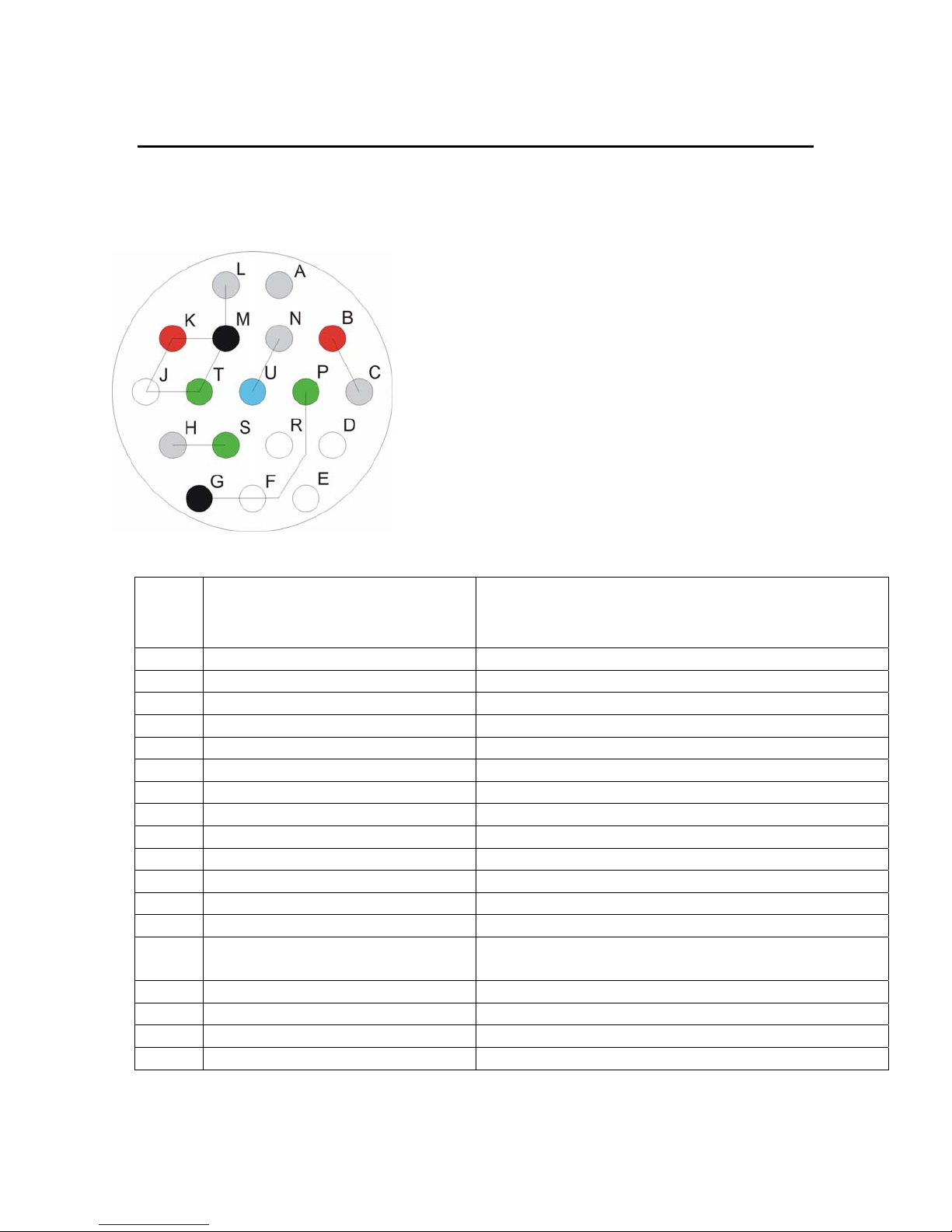

120 VAC MS STYLE UMBILICAL CONNECTIONS ................................................................19
120 VAC SIDE EGRESS MS CONNECTIONS............................................................................ 20

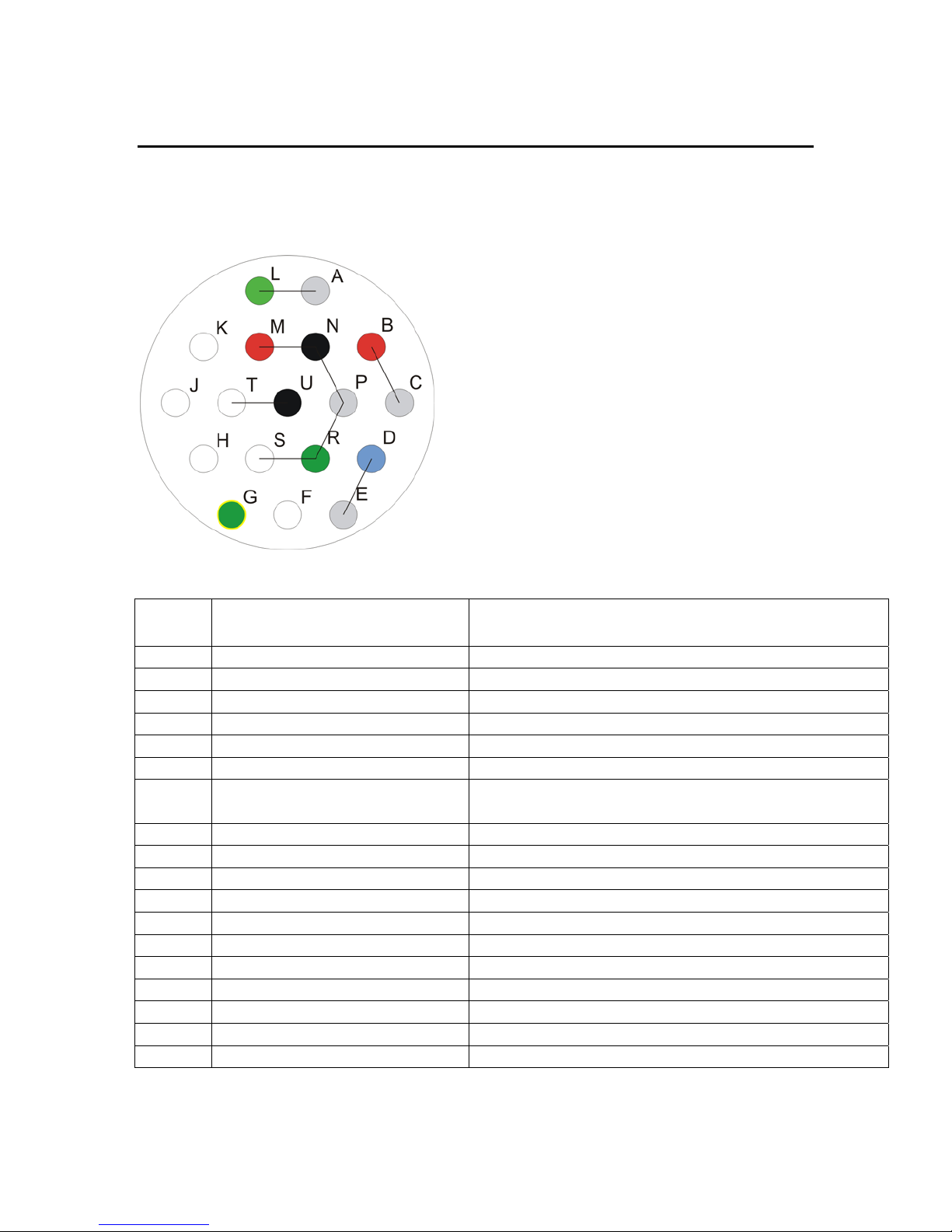

120 VAC AMP STYLE UMBILICAL CONNECTIONS.............................................................21
SIGNAL DESCRIPTIONS.............................................................................................................. 22
AC LINE CONNECTIONS......................................................................................................... 22
ANALOG VIDEO CONNECTIONS..........................................................................................22
PTZ SERIAL CONTROL PORT ...............................................................................................22
SURGE PROTECTION AND PRESSURIZATION .................................................................... 23
SURGE PROTECTION...............................................................................................................23
SEALING AND PRESSURIZATION........................................................................................23
SPECIFICATIONS ..........................................................................................................................24
IMAGE SENSOR AND LENS ....................................................................................................24
CAMERA HOUSING MODULE ...............................................................................................24
PAN AND TILT DRIVE ASSEMBLIES ...................................................................................25
ELECTRICAL.............................................................................................................................. 26
ENVIRONMENTAL.................................................................................................................... 26
MECHANICAL............................................................................................................................26
REVISION HISTORY.....................................................................................................................27
SW720A WTI ~ Page 2 of 27

SW720A WTI ~ Page 3 of 27
INFORMATION
FCC NOTICE
This device complies with Part 15 of the FCC
Rules.
Operation is subject to the following two
conditions:
1.) This device may not cause harmful
interference.
2.) This device must accept any interference
that may be received, including interference
that may cause undesired operation.
READ THIS MANUAL
Every effort has been made to insure that this
WTI system is of the highest quality. This
product has been carefully inspected to
comply with rigid quality standards before
shipment to you. In consideration of your
investment and the desire to obtain full
performance capability engineered into your
new WTI product, we recommend that you
read this manual before attempting to operate
your system.
FOR MORE ASSISTANCE OR MORE
INFORMATION
WTI (Wireless Technology, Inc.)
2064 Eastman Avenue, Suite 113
Ventura, CA 93003-7787
TOLL FREE. 866/gotowti (468-6984)
TEL. [phone]
FAX. [phone]
EMAIL: [email protected]
INTERNET: http://www.gotowti.com
The software / firmware furnished with the
equipment is confidential to and is
copyrighted by Wireless Technology, Inc.
(WTI) It is not to be copied or disclosed in any
manner without the consent of Wireless
Technology, Inc. (WTI). The
software/firmware is furnished to the
purchaser under a license for use on a single
system.
Information furnished by Wireless
Technology, Inc. (WTI) is believed to be
accurate and reliable. However, no
responsibility is assumed by Wireless
Technology, Inc. (WTI)for its use or for any
infringements of other rights of third parties,
which may result from its use. No license is
granted by implications or otherwise under
any patent or patent rights of Wireless
Technology, Inc. (WTI)
©2014 Wireless Technology, Inc. (WTI)
All rights reserved.

PRODUCT WARRANTY AND REPAIR
PRODUCT WARRANTY
We appreciate your purchase of Wireless Technology, Inc. (WTI) security products. We
take pride in the quality of our products and have manufactured each new WTI product to
exacting quality standards. In normal use, it will provide you with years of satisfactory
performance. However, should you experience difficulty; you are protected under the
provisions of this warranty.
WTI warrants to the original user a product that is free of defects in materials and
workmanship in normal use. WTI warrants to the original user that WTI’s products will
be free of defects in materials and workmanship in normal use for a period of 24 months
from the date of sale. WTI’s obligation under this warranty shall be limited to the repair,
including all necessary parts and the cost of labor connected therewith, or at our option,
the replacement of any product that shows evidence of a manufacturing defect within the
warranty period. This warranty is extended to all WTI products purchased and used
within the United States of America and is valid only when service is rendered by the
authorized WTI (Wireless Technology, Inc.) Warranty Station.
This warranty shall not apply to appearance or accessory items including, but not limited
to, knobs, connectors, cabinets and connecting cables. This warranty shall not, in
addition, apply to repairs or replacements necessitated by any cause beyond the control of
WTI including, but not limited to, acts of nature, improper installation, misuse, lack of
proper maintenance, accident, voltage fluctuations, unauthorized repairs or modifications.
This warranty becomes void in the event serial numbers are altered, defaced or removed,
or an attempt is made to field service or alter performance of any WTI products.
WTI reserves the right to make changes in design, or to make additions to, or
improvements upon, products without incurring any obligation to install the same on
products previously manufactured.
The foregoing is in lieu of all other warranties expressed or implied and WTI neither
assumes nor authorizes any person to assume for it any other obligation or liability in
connection with the sale of our products. In no event shall WTI or its Authorized Dealers
be liable for special or consequential damage arising from the use of this product, or any
delay in the performance of this warranty due to causes beyond its control.
SW720A WTI ~ Page 4 of 27

PRODUCT WARRANTY AND REPAIR
REPAIR AUTHORIZATION
Please contact Wireless Technology, Inc. (WTI), to obtain a repair authorization number
(RA) and provide the following information:
1.) Product Model & Serial Numbers
2.) Date of shipment, purchase order number, sales order number or WTI invoice
number.
3.) Details of the defect or malfunction. If there is a dispute regarding the warranty or
product, which does not fall under the warranty conditions stated within the
description of the written warranty, please include a written explanation with the
product when returned.
SHIP FREIGHT PRE-PAID TO:
WTI (Wireless Technology, Inc.)
2064 Eastman Avenue, Suite 113
Ventura, CA 93003-7787
TEL [phone]
FAX [phone]
RETURNS
No unauthorized returns will be accepted. All returns must have an authorized (RA)
number issued by the factory (CA number if returned for credit and RA number if
returned for repair). Products returned for repair or credit will be rejected if no
authorization number has been issued or freight has not been pre-paid. All merchandise
returned for credit will be subject to a 20% restocking and refurbishing charge.
SW720A WTI ~ Page 5 of 27

PRODUCT WARRANTY AND REPAIR
WARNING
The Sidewinder series of IP66/IP67 rated cameras provide a fully sealed, moisture free
environment for the internal electronic and mechanical components. If the camera
housing cover or seals become compromised due to being struck by objects or damaged
during handling, the cameras should be taken out of service IMMIDIATELY, so that the
camera can be returned to WTI for repair. This will help prevent further EXPENSIVE
internal corrosion damage from occurring. Below are some examples of Damage that will
compromise the sealing integrity of the camera.
SW720A WTI ~ Page 6 of 27

SAFEGUARDS
IMPORTANT SAFEGUARDS
1.) Read Instructions. It is important to read all safety and operating instructions
before installing or using this equipment.
2.) Retain Instructions. Retain this manual and any supplements for future reference.
3.) Follow Instructions. Follow all instructions herein for use of this equipment.
4.) Heed all warnings. Adhere to all warnings on the equipment, and in this manual.
5.) To reduce the risk of electric shock or equipment damage, work on the unit only
when the power is shut off and is unplugged from its power source to prevent
accidental activation. Also take precautions to avoid contact between the
equipment and other electrical wires or power sources that may be present at the
installation site.
SW720A WTI ~ Page 7 of 27

MODELS AND FEATURES
The Sidewinder Standard Definition 120VAC cameras are available with several signal
connector arrangements, optional electric brakes and optional pressurization. The
following table provides a quick reference to the major features available in each camera
model.
MODEL
36 INCH MS UMBILICAL 36 INCH AMP UMBILICAL SIDE EGRESS MS PRESSURIZATION ELECTRIC BRAKES
SW720A x
SW720A-ENG x x
SW720A-MS x
SW720-MS-ENG x x
SW720AP x x
SW720AP-MS x x
SW720HV x
SW720HV-ENG x x
SW720HVP x x
SW720A WTI ~ Page 8 of 27

GENERAL DESCRIPTION
The Sidewinder SW720A is a pan-tilt-zoom camera system that provides standard
definition composite 1Vpp NTSC color video over video coaxial cable. The camera
provides 360 degree continuous rotation in both the pan and tilt axes, and provides an
optical zoom magnification of 36 times. A self-cleaning hydrophilic coating is provided
on the front lens window of the camera to ensure clear, crisp video images and to reduce
maintenance. An electrically conductive Indium-Tin-Oxide coating is provided on the
inside of the front lens window to provide direct window heating and prevent fogging and
icing.
The Sidewinder SW720A camera operates on AC line voltages within a voltage range of
85VAC to 265VAC and an operating frequency of 47Hz to 63Hz. The camera umbilical
cable is available terminated with an 18 Pin MS style male connector or a 16 Pin AMP
style connector.
Camera control signal wiring is provided on an RS-485 serial data port and supports
several industry standard protocols, including Pelco D protocol and COHU protocol.
The standard definition analog NTSC video output is 1Vpp with a 75 Ohm output
impedance. An F1.4 zoom lens with x36 optical zoom and x12 digital zoom is standard.
Electronic Image Stabilization can be enabled to provide stable images when high zoom
magnification is used.
The Sidewinder SW720A camera series is designed to operate over a temperature range
of -35C to +75C and the entire camera is IP66/IP67 rated. The cameras are all 100%
submersion tested during final test to ensure that the cameras are water tight.
The Sidewinder SW720A camera is available with optional camera tube dry nitrogen
pressurization and several output signal connector options.
SW720A WTI ~ Page 9 of 27

INSTALLATION
RECOMMENDED TOOLS FOR PROPER INSTALLATION
1) Tie wraps to secure cable runs.
2) Set of open end wrenches including 7/16” for mounting bolts.
3) Cordless power drill for mounting some brackets.
4) Safety cable recommended (prevents camera falling during overhead
installations).
5) Self-sealing connector tape to weatherproof all cable connections.
INSTALLATION PLANNING
1) The maximum cable length that should be planned for is about 750 feet, which is
based primarily on the limitations of transmitting the video signal over long
coaxial cable distances.
2) The Sidewinder SW720A camera draws up to 50 Watts maximum, which
translates to about 0.59 Amps at the low line voltage limit of 85VAC.
3) Be sure to verify that there are no physical obstructions that might prevent the
camera from turning freely in all directions. The camera must be able to rotate
360 degrees in each axis during power up initialization in order to properly
initialize the pan and tilt drive positions.
4) Be sure to verify that there are no physical obstructions in the way of any required
viewing directions.
5) Be sure that there is access to the end of the umbilical cable on the bottom of the
camera to facilitate connecting and disconnecting the camera while it is in place
on the mounting bracket or pole.
UNPACKING
Please examine the equipment carefully when unpacking the shipping container. If any
damage is noted please be sure to file a claim with the carrier. WTI is not responsible for
any damage that occurs during shipping. Please verify that all of the contents are present
and carefully check the packing material for any loose items before recycling it.
EQUIPMENT SUPPLIED WITH UNIT
1.) Camera
2.) 4 each ¼-20 x ¾” mounting screws with washers
3.) Quick Start Manual
EQUIPMENT THAT MAY BE REQUIRED, BUT NOT SUPPLIED WITH UNIT
1.) Mating connector and strain relief for umbilical extension cable
2.) Camera mounting bracket
3.) Interconnect cables
4.) Video monitor
5.) PC or laptop computer
6.) Setup software
SW720A WTI ~ Page 10 of 27

7.) DIMENSIONS AND MOUNTING
MECHANICAL DIMENSIONS
Bottom Egress
Side Egress
SW720A WTI ~ Page 11 of 27

MOUNTING
The Sidewinder SW720A camera should normally be mounted in an upright orientation,
as shown above. The camera may also be mounted upside down if desired, but a cover of
some sort should be placed over the bottom of the camera, extending out to about 6
inches past the camera all around, to prevent debris, dirt or snow and ice from
accumulating on the bottom of the camera housing, since the conical shaped profile of the
camera will no longer be able to naturally shed material to the sides. The camera may
NOT be mounted with the base facing horizontally.
The base of the Sidewinder SW720A camera has four ¼-20 screw holes that are equally
spaced, 90 degrees apart, on a 4.75” diameter circle, as shown in figure 2. If mounting
screws other than those provided with the camera are used, the length of the mounting
screws should be selected so that the screws penetrate no more than 0.75 inches into the
base.
SW720A WTI ~ Page 12 of 27

MOUNTING ACCESSORIES
WTI manufactures several different mounts for the Sidewinder SW720A that allow the
camera to be attached to pole tops, horizontal poles, vertical poles and walls. The
Sidewinder SW720A camera is supplied with a 36 inch umbilical cable to allow the cable
to be routed through the camera mount before the actual physical installation of the
camera.
SWWM1 – Wall Mount Option
SW720A WTI ~ Page 13 of 27

SWWM1 + SWVPA – Wall Mount with Vertical Pole Adapter
SW720A WTI ~ Page 14 of 27

SWPTM1 – Pole Top Mount
SW720A WTI ~ Page 15 of 27

SWHPM1 – Horizontal Pole Mount
SW720A WTI ~ Page 16 of 27

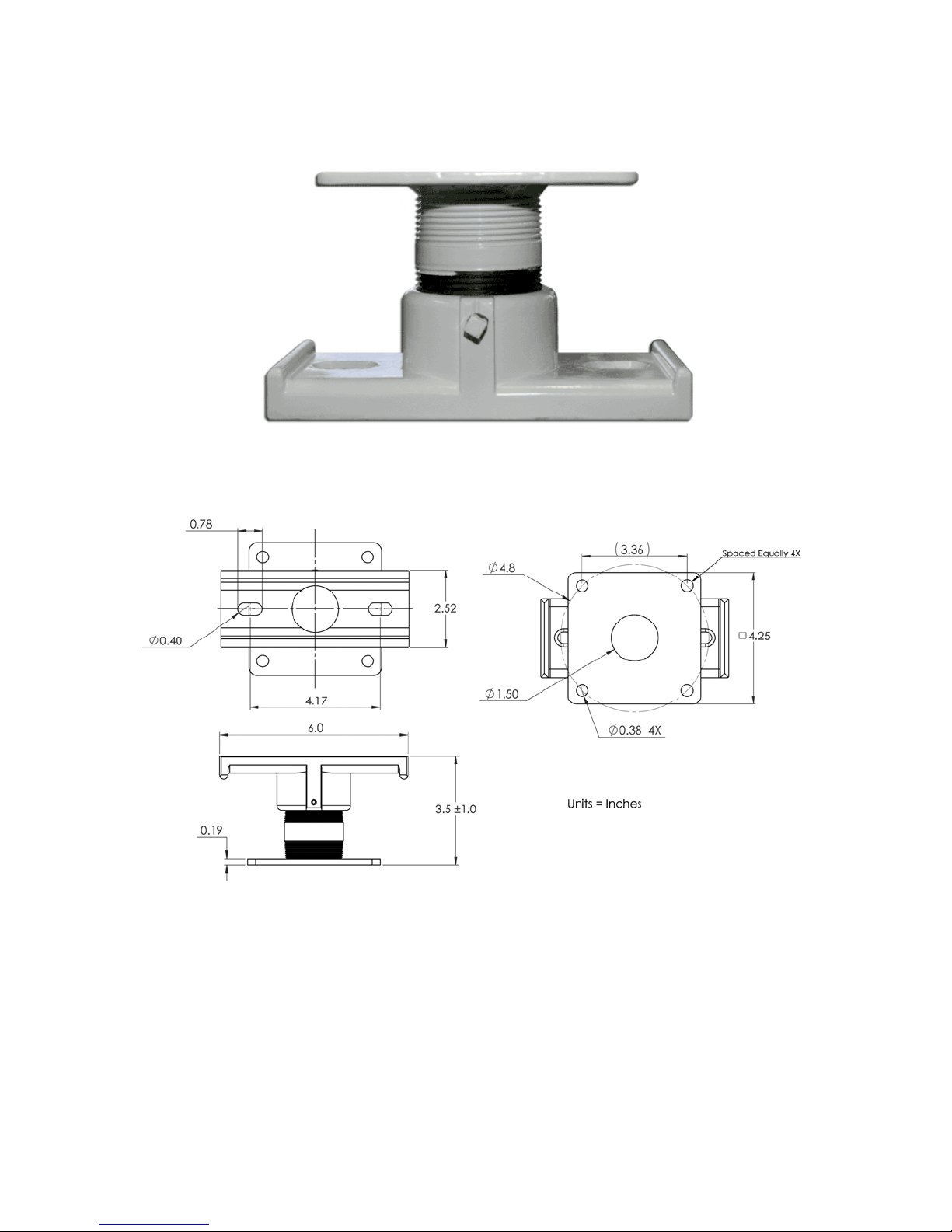

15-4-1430 – 6”x6”x3/8” Square Mounting Plate
SW720A WTI ~ Page 17 of 27

15-4-913 – 6”Round Riser Mounting Base
SW720A WTI ~ Page 18 of 27

120 VAC MS STYLE UMBILICAL CONNECTIONS
SW720A-MS - 36 inch umbilical cable with an 18 pin MS style connector
SW720AP-MS -36 inch umbilical cable with an 18 pin MS style connector
SW720-MS-ENG -36 inch umbilical cable with an 18 pin MS style connector
Mating Connector
Female MS - Style MIL-DTL-26482
Amphenol P/N MS3116F-14-18S
Shell Size 14 - 18 Contact Pattern
PIN Signal Description Wiring Color Code and Wire Recommendations
A SD or Green Video Ground Coaxial Cable #1 RG-59 Shield
B Red Video Output (HD Only) Coaxial Cable #2 RG-59 Center
C Red Video Shield (HD Only) Coaxial Cable #2 RG-59 Shield
D Blue Video Output (HD Only) Coaxial Cable #3 RG-59 Center
E Blue Video Shield (HD Only) Coaxial Cable #3 RG-59 Shield
F ------
G AC Safety Ground Green 22 AWG Minimum (Same or heavier than AC
Line Input)
H Cable Shield Overall Shield
J ------
K ------
L SD or Green Video Output Coaxial Cable #1 RG-59 Center
M Rx+ Red – Twisted Pair #2 22-26 AWG
N Rx- Black – Twisted Pair #2 22-26 AWG
P Data Ground Data Cable Shield
R Tx- Green – Twisted Pair #1 22-26 AWG
S Tx+ White – Twisted Pair #1 22-26 AWG
T AC Line Neutral (low) White 22 AWG Minimum
U 85-265 AC Line Input (high/hot) Black 22 AWG Minimum
SW720A WTI ~ Page 19 of 27

120 VAC SIDE EGRESS MS CONNECTIONS
SW720HV- Side egress 18 Pin MS style connector
SW720HV-ENG- Side egress 18 Pin MS style connector
SW720HVP- Side egress 18 Pin MS style connector
Mating Connector
Female MS Connector
Style MIL-DTL-26482
Amphenol P/N MS3116F-14-18S
Shell Size 14
18 Contact Pattern
PIN Signal Description Wiring Color Code and Gauge
Recommendations
A Chassis Ground Overall Shield Drain Wire
B Pr Red Video Output (HD Only) Coaxial Cable #2 RG-59 Center
C Pr Red Video Shield (HD Only) Coaxial Cable #2 RG-59 Shield
D
E
F AC Line Neutral (low) White #22 AWG Minimum
G 85-265 AC Line Hot Black #22 AWG Minimum
H SD or Green Video Shield Coaxial Cable #1 RG-59 Shield
J Rx- White – Twisted Pair #1 22-26 AWG
K Tx- Red – Twisted Pair #2 22-26 AWG
L Data Ground Data Cable Shield
M Tx+ Black – Twisted Pair #2 22-26 AWG
N Pb Blue Video Shield (HD Only) Coaxial Cable #3 RG-59 Shield
P AC Safety Ground Green - 22 AWG Minimum (Same or Heavier than
AC Line)
R
S SD or Green Video Output Coaxial Cable #1 RG-59 Center
T Rx+ Green – Twisted Pair #1 22-26 AWG
U Pb Blue Video Output (HD Only) Coaxial Cable #3 RG-59 Center
SW720A WTI ~ Page 20 of 27
