wurth Master H 28-MA User manual
H 28-MA
Bedienungsanleitung
Operating Instructions
Istruzioni d’uso
Notice d’utilisation
Instrucciones para el manejo
Instruções de utilização
Gebruiksaanwijzing
Betjeningsvejledning
Bruksanvisning
Käyttöohje
Bruksanvisning
Οδηγίες χειρισµού
Kullanım kılavuzu
Instrukcja obs∆ugi
Kezelési Utasítás
Návod k obsluze
Návod na obsluhu
Instrucøiuni de utilizare
Navodila za uporabo
Ръководство на потребителя
Kasutusjuhend
Vartojimo informacijà
EkspluatÇcijas instrukcija
Руководство по эксплуатации
H 28 MA - D.book Seite 1 Freitag, 2. September 2005 6:36 18
1
2
4
5
6
7
8
9
10
11
3
12 13
H 28 MA - Bildseite 1 Seite 3 Freitag, 2. September 2005 7:14 19
BA
C
X
14
4
11
3
2
H 28 MA - D.book Seite 4 Freitag, 2. September 2005 6:36 18
11
Working safely with this machine is
possible only when the operating and
safety information are read com-
pletely and the instructions contained
therein are strictly followed. In addition, the gen-
eral safety instructions in the enclosed booklet
must be followed. Before using for the first time,
ask for a practical demonstration.
The machine must not be damp and
must also not be operated in damp sur-
roundings.
High noise levels can lead to hearing
defects. Wear protective glasses and
hearing protection.
Wear a dust protection mask.
For long hair, wear hair protection.
Work only with closely fitting clothes.
❏Before each use, check the machine and battery.
If damage is detected, do not use the machine.
Have repairs performed only by a qualified tech-
nician. Never open the machine yourself.
❏Use power tools only with specifically desig-
nated battery packs. Use of any other battery
packs may create a risk of injury and fire.
❏Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If con-
tact accidentally occurs, flush with water. If
liquid contacts eyes, additionally seek medical
help. Liquid ejected from the battery may cause
irritation or burns.
❏Before any work on the machine itself (e. g.
maintenance, tool change, etc.) as well as
when transporting and storing, always set the
rotational direction switch to the centre posi-
tion. Otherwise danger of injury is given when
unintentionally actuating the On/Off switch.
❏Ensure the switch is in the off position before
inserting battery pack. Inserting the battery
pack into power tools that have the switch on
invites accidents.
❏Convince yourself before using that the battery
is securely seated in the machine.
❏Do not strain the machine so heavily that it
comes to a standstill.
❏When working with the machine, always hold
it firmly with both hands and provide for a
secure stance.
❏Operate the machine only with the auxiliary
handle 11. Loss of control over the machine
can lead to accidents.
❏Hold the power tool only by the insulated
gripping surfaces, when performing an oper-
ation where the cutting tool may run into hid-
den wiring.
Contact with a “live” wire will make exposed
metal parts of the tool “live” and shock the
operator.
❏Use appropriate detectors to determine if util-
ity lines are hidden in the work area or call the
local utility company for assistance.
Contact with electric lines can lead to fire and
electric shock. Damaging a gas line can lead to
explosion. Penetrating a water line causes
property damage.
❏Always switch the machine off and wait until it
has come to a standstill before placing it down.
❏Never allow children to use the machine.
Battery and Battery Charger
❏The enclosed operating instructions for the
battery charger must be read carefully!
❏Recharge only with the charger specified by
the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of
fire when used with another battery pack.
❏Allow a heated battery to cool before charging.
Protect the battery from heat and fire:
Danger of explosion! Do not place the
battery on radiators or expose to strong
sun rays for a longer time; temperatures
over 50 °C cause damage.
❏Do not open the battery, and protect it from
impact. Store in a dry and frost-free place.
❏When battery pack is not in use, keep it away
from other metal objects like paper clips,
coins, keys, nails, screws, or other small metal
objects that can make a connection from one
terminal to another.
Shorting the battery terminals together may
cause burns or a fire. Do not dispose of the
battery in household
waste or discard into
fire or water.
❏Use only original Würth parts and accesso-
ries.
For Your Safety
GB
☞For further notes on safety refer to the enclosed sheet
H 28 MA - D.book Seite 11 Freitag, 2. September 2005 6:36 18
12

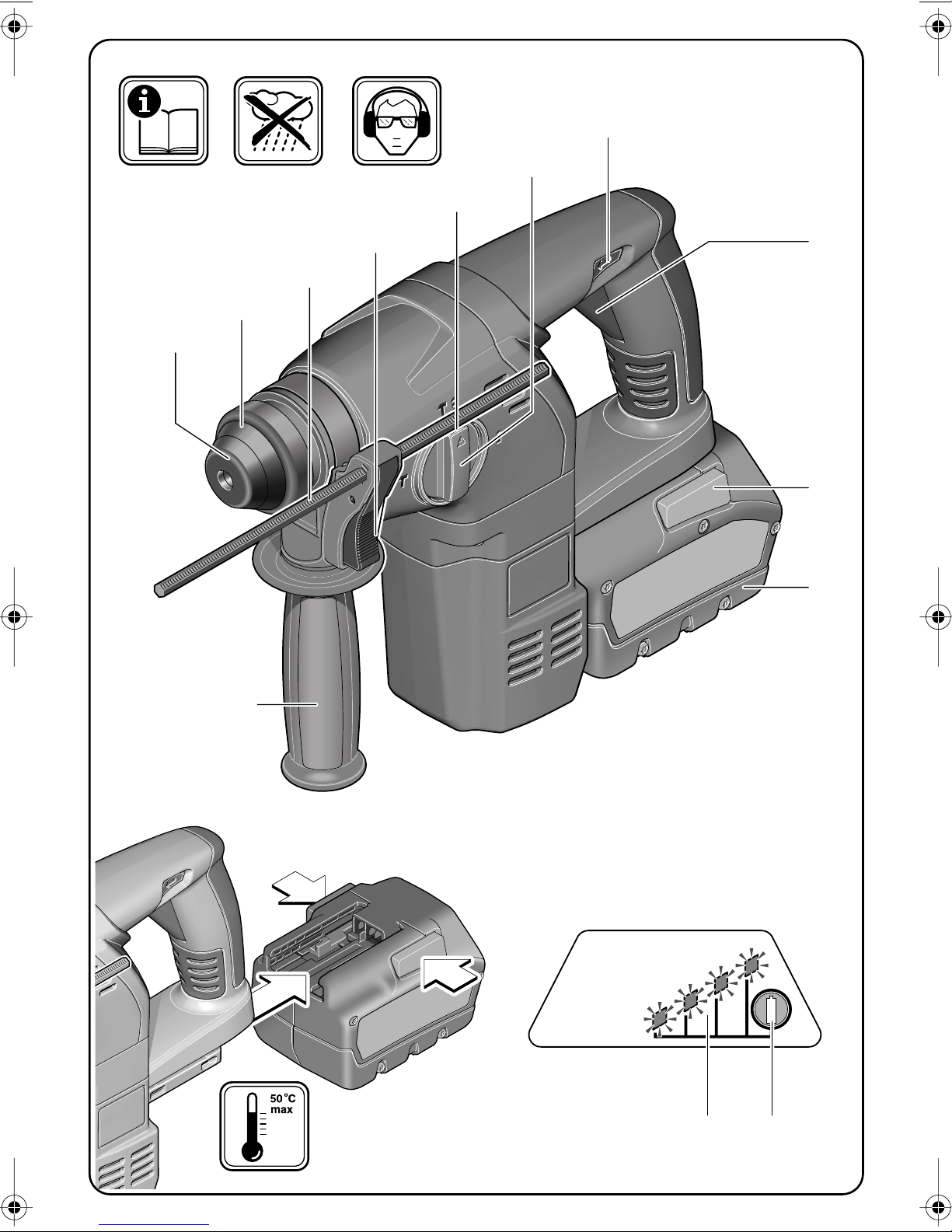

Machine Elements
1 Dust protection cap
2 Locking sleeve
3 Depth stop
4 Push-button for depth-stop adjustment
5 Release button
6 Mode selector switch
7 Rotational direction switch
8 On/Off switch
9 Battery unlocking button
10 Battery
11 Auxiliary handle
12 Charge-control indicator
13 Button
14 Clamping band
Not all of the accessories illustrated or described are included
as standard delivery.
Tool Specifications
Intended Use
The machine is intended for hammer drilling in con-
crete, brick and stone as well as for chiselling. It is
also suitable for drilling without impact in wood,
metal, ceramic and plastic.
The user is responsible for damage caused by usage
other then intended.
Before Putting into Operation
The batteries are partially charged and delivered in
idle state. The battery must be activated before using
for the first time. For this, place the battery onto the
charger for a short time. The LED on the battery indi-
cates the charge condition.
When the battery is not used for longer periods, it
switches to the idle state. In order to use the battery
again, it must be reactivated.
When the battery is completely discharged, it
switches off automatically (deep discharging not
possible). When the power tool is switched on none-
theless, the battery delivers only brief current pulses.
The power tool “flickers” as an indication that the
battery must be charged.
As a general rule: Should the power tool not be
operative after inserting the battery, place the bat-
tery onto the charger. The indicators on the battery
and the charger then provide information about the
battery condition.
At low temperatures, further operation is possible
with reduced power output. The battery switches off
automatically below -10 °C.
Battery Charging
A battery that is new or has not been used for a
longer period does not develop its full capacity until
after approximately 2 – 3 charging/discharging
cycles.
To remove the battery 10, push back the release but-
ton 9 and pull the battery out downwards. Do not
exert any force.
Please refer to the enclosed “Battery Charger”
instructions for the operation of the battery charger
as well as for a description of the charging process.
The battery is equipped with an NTC temperature
control which allows charging only within a temper-
ature range of between -10 °C and +66 °C. A long
battery service life is achieved in this manner.
A significantly reduced working period after charg-
ing indicates that the batteries are used and must be
replaced.
❏Observe the notes on environmental protection.
Battery-Rotary Hammer H 28-MA
Article number 0700 677 X
Rated speed 0 –1400 rpm-1
Impact rate 0 –4700/min
Impact energy per stroke 3.2 J
Tool holder SDS-plus
Drilling output:
- Concrete (twist drill bit) 26 mm
Brickwork (core bit) 68 mm
- Wood max. 30 mm
- Steel max. 13 mm
Weight with battery, approx. 4.1 kg
Battery Li-Ion
Article number 0700 956 730
Temperature control NTC
Rated voltage 28 V
Capacity 3.0 Ah
Weight, approx. 1.0 kg
H 28 MA - D.book Seite 12 Freitag, 2. September 2005 6:36 18
13
Charge-control Indicator
The battery 10 is fitted with a charge-control indica-
tor 12. It indicates the charge of the battery at any
given time during the working process.
By pressing the button 13, the battery charge can
also be checked when the battery has been
removed, or when the machine is at a standstill
(machine must be switched off for at least 1 minute).
After approx. 4 seconds the battery charge display
automatically turns off.
When the first display element begins to flash (0 –
10 %) the battery is almost empty and must be
recharged.
Auxiliary Handle/Depth Stop
(see figure )
❏Operate the machine only with the auxiliary
handle 11.
Loosen the handle by turning to the left. Rotate the
auxiliary handle 11 and adapt to the working posi-
tion. Make sure that the clamping band 14 of the
auxiliary handle remains in the groove.
Afterwards tighten the handle again by turning in
clockwise direction.
The drilling depth can be set with the depth stop 3.
For this, press the button for the depth-stop adjust-
ment 4, adjust the required drilling depth Xand
release the button again.
The ribbing on depth stop 3 must point upwards.
Changing the Tool
❏Before any work on the machine itself, remove
the battery.
With the SDS-plus tool holder, simpler and easier
tool changing is possible without additional aids.
Grease the shank end of the tool regularly.
The dust protection cap 1 largely prevents the entry
of drilling dust during operation. When inserting the
tool, take care that the dust protection cap 1 is not
damaged.
A damaged dust protection cap should be changed
immediately. We recommend having this carried
out by an after-sales service.
☞As a requirement of the system, the SDS-plus
tool must rotate freely. At no-load speed, this
leads to a certain amount of radial run-out.
This does not affect the accuracy of the drill
hole, as the bit is automatically centred during
drilling.

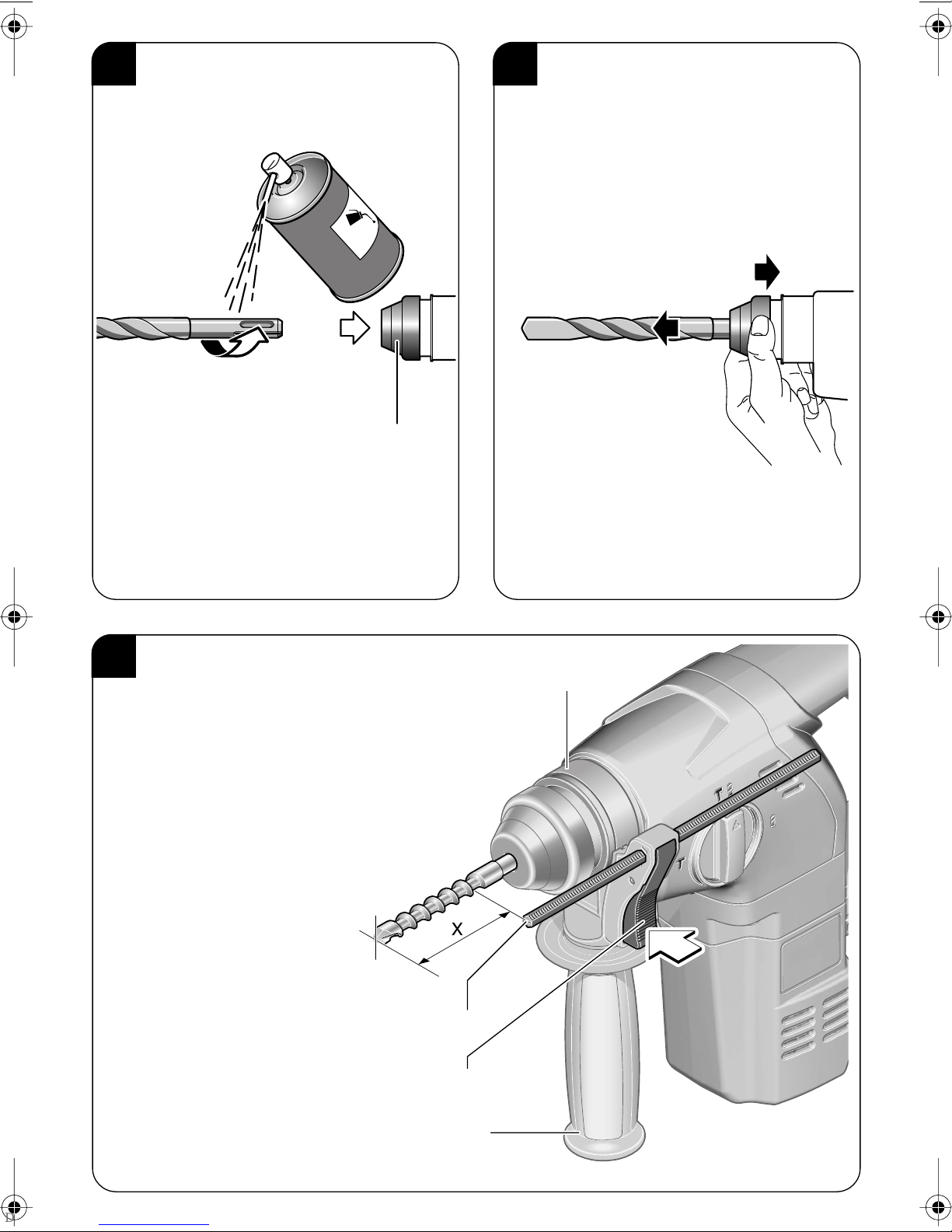

Inserting (see figure )
Clean and grease the shank end of the tool.
Insert the tool in a twisting manner into the tool
holder until it locks. Check if it has locked by pulling
the tool.
Removing (see figure )
Push back the locking sleeve 2 of the tool holder and
remove the tool.
Starting Operation
Inserting the Battery
Set the rotational direction switch 7 to the centre
position (locked off). Slide the charged battery 10
into the handle until it can be felt to latch.
Switching On and Off
To start the machine, press the On/Off switch 8 and
keep it depressed.
The machine runs with variable speed between 0
and maximum, depending on the pressure applied
to the On/Off switch 8. Light pressure on the On/
Off switch 8 results in low rotational speed, thus
allowing smooth, controlled starts. Further pressure
on the switch results in an increase in speed.
To switch off the machine, release the On/Off
switch 8.
Do not strain the machine so heavily that it comes to
a standstill.
❏The machine is not suitable for stationary opera-
tion, e. g., in a drill stand.

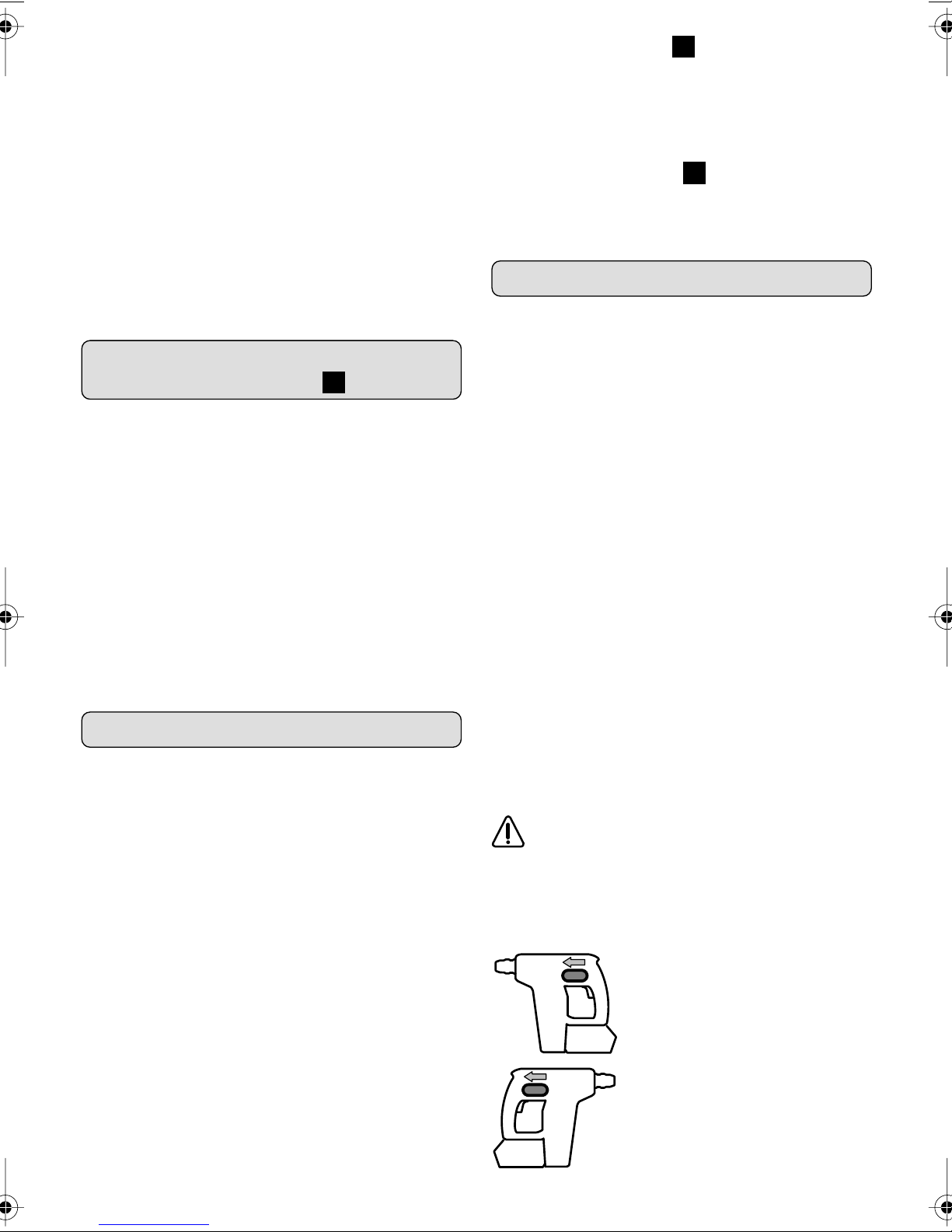

Reversing the Rotational Direction
Operate the rotational direction switch 7
only at a standstill.
The rotational direction switch 7 is used to reverse
the rotational direction of the machine. However,
this is not possible with the On/Off switch 8
pressed.
Right Rotation
Press the rotational direction
switch through to the right stop
(normal operation).
Left Rotation
Turn the rotational direction
switch through to the left stop.
C
A
B
H 28 MA - D.book Seite 13 Freitag, 2. September 2005 6:36 18
14
Mode Selector Switch
❏Operate the mode selector switch 6 only when
the machine is at a standstill.
Press the release button 5 on the mode selector
switch 6 and turn the switch to the desired position.
Drilling
Hammer drilling
Changing the Chiselling Position
Chiselling (rotation off)
Safety Clutch
If the tool insert becomes caught or jammed,
the drive to the drill spindle is interrupted.
Because of the forces that occur, always hold the
power tool firmly with both hands and provide for
a secure stance.
If the drilling tool jams, switch the machine off and
loosen the drilling tool. When switching the machine
on with the drilling tool jammed, high reaction tor-
ques can occur!
Changing the Chiselling
Position
The chisel can be locked in 36 positions. In this man-
ner, the optimum working position can be set for
each application.
Insert the chisel in the tool holder.
Turn the mode selector switch 6 to “Changing the
chiselling position”.
Turn the tool holder to the desired chiselling position.
Allow the mode selector switch 6 to latch in the
“Chiselling”position. The tool holder is locked in this
position.
Maintenance and Cleaning
❏Before any work on the machine itself, remove
the battery.
☞For safe and proper working, always keep the
machine and the ventilation slots clean.
❏Keep the tool holder clean at all times.
Changing the Dust Protection Cap
A damaged dust protection cap should be changed
immediately. We recommend having this carried
out by an after-sales service.
If the machine should fail despite the care taken in
manufacturing and testing, repair should be carried
out by a Würth Master-Service agent.
For all correspondence and spare parts orders,
always include the article number on the type plate
of the machine.
For the current spare parts list of this machine, log
into the Internet under “http://www.wuerth.com/
partsmanager” or ask for a copy at your nearest
Würth branch office.
Disposal
Power tools, accessories and packaging
should be sorted for environmen-
tal-friendly recycling.
Only for EC countries:
Do not dispose of power tools into household waste!
According to the European Directive 2002/96/EC
on waste electrical and electronic equipment and its
incorporation into national law, power tools that are
no longer suitable for use must be separately col-
lected and sent for recovery in an environmen-
tal-friendly manner.
Battery packs/batteries:
Do not dispose of battery packs/batteries into
household waste, water or fire. Battery packs/bat-
teries must be collected, recycled or disposed of in
an environmentally-friendly way.
Only for EC countries:
Defective or dead batteries must be recycled accord-
ing to the directive 91/157/EEC.
H 28 MA - D.book Seite 14 Freitag, 2. September 2005 6:36 18
15
Warranty
For this Würth tool, we provide a warranty in
accordance with statutory/country-specific regula-
tions from the date of purchase (proof of purchase
by invoice or delivery note). Damage that has
occurred will be corrected by replacement or repair.
Damage caused by normal wear, overloading or
improper handling is excluded from the warranty.
Claims can be recognised only when the tool is pre-
sented undisassembled to a Würth branch office or
a Würth field service employee.
Noise/Vibration Information
Measured values determined according to
EN 60 745.
Typically the A-weighted noise levels of the machine
are: sound pressure level 94 dB (A); sound power
level 105 dB (A). Measurement uncertainty
K = 3 dB.
Wear hearing protection!
The typically weighted acceleration is 12 m/s2.
Declaration of Conformity
We declare under our sole responsibility that this
product is in conformity with the following standards
or standardization documents:
EN 60745, EN 55014-1, EN 55014-2 according
to the provisions of the regulations 89/336/EEC,
98/37/EC.
05
Adolf Würth GmbH & Co. KG
P. Zürn R. Bauer
Subject to change without notice
H 28 MA - D.book Seite 15 Freitag, 2. September 2005 6:36 18
Würth
worldwide:
Würth Albania Ltd.
Rr. Asim Vokshi
Pall 49/1 Ap. 9
AL-Tirana
Albania
Tel. ++355/42/29748
Fax. ++355/42/29748
Würth Armenia Co. Ltd.
63 Tigran Mets Ave.
AM-375005 Yerevan
Armenia
Tel. ++3741/559970
Fax. ++3741/559972
Würth Handelsges.m.b.H.
Würth Strasse 1
AT-3071 Böheimkirchen
Austria
Tel. ++43/2743/70700
Fax. ++43/2743/70703333
Würth Australia Pty Ltd
4 Redwood Drive
AU-Dingley VIC 3172
Australia
Tel. ++61/3/95517244
Fax. ++61/3/95512994
Wurth Aztur Ltd
Mir Galal Str.63.
AZ-370134 Baku
Azerbaijan
Tel. ++994/12/601934
Fax. ++994/12/601934
Wurth BH d.j.l.
Dzemal Biedia 162
BA-71000 Sarajevo,BIH
Bosnia
Tel. ++387/33/461770
Fax. ++387/33/461825
Würth Belux N.V.
Everdongenlaan 29
BE-2300 Turnhout
Belgium
Tel. ++32/14/445566
Fax. ++32/14/423077
Wuerth Bulgaria EOOD
Iskarsko Chaussee Boul. 12
BG-1592 Sofia
Bulgaria
Tel. ++359/2/9659955
Fax. ++359/2/9659966
Würth Belarus Ltd.
Botanitscheskaja Str. 5a-603
BY-220038 Minsk
Belarus
Tel. ++375/172/363919
Fax. ++375/172/852512
Würth AG
Dornwydenweg 11
CH-4144 Arlesheim
Switzerland
Tel. ++41/61/7059111
Fax. ++41/61/7059494
Würth Guangzhou
International Trading Co., Ltd.
Room 601, North Tower,
Nantian Building,
3 Jiangong Road
Tianhe High and New
Technology
Industry Development Zone
CN-510665 Guangzhou
China
Tel. ++86/20/85552840
Fax. ++86/20/855550245
cn
Würth Hong Kong Co. Ltd.
Unit B 6/f Prince Ind Bidg
106 King Fuk St.,
San Po Kong, Kowloon
CN-Hong Kong
China
Tel. ++8/52/27508118
Fax. ++8/52/27530084
Wuerth China-Shanghai
Langsheng Trading Co., Ltd.
2nd Floor (West)
No. 18 Factory Site
No. 481 Gui Ping Road
CN-200233 Shanghai
China
Tel. ++86/21/64951418
Fax. ++86/21/64848610
Würth Tianjin International
Trade Co., Ltd.
Jie Fang Nan Lu Str. 518-1
CN-300221 Tianjin
China
Tel. ++86/22/88242263
Fax. ++86/22/88243813
Wuerth Cyprus LTD
Strovolos industrial estate
P.O. Box 8899
CY-2083 Nicosia
Cyprus
Tel. ++357/2/512086
Fax. ++357/2/512091
Würth, spol. s r.o.
Sazecská 2
CZ-10800 Praha 10
Czech Republic
Tel. ++420/2/72106111
Fax. ++420/2/72106119
Adolf Würth GmbH
& Co. KG
Postfach
D-74650 Künzelsau
Reinhold-Würth-Str. 12-16
DE-74653 Künzelsau
Germany
Tel. ++49/7940/15/0
Fax. ++49/7940/15/1000
Würth Danmark A/S
Montagevej 6
DK-6000 Kolding
Denmark
Tel. ++45/79/323232
Fax. ++45/75/517250
Würth Estonia AS
Liimi 3 A
EE-10621 Tallinn
Estonia
Tel. ++372/6563509
Fax. ++372/6563494
Würth Egypt for Trading
S.A.E.
27th. Km Alexandria Cairo
Desert Road, Behind Mercedes
EG-Amriya Alexandria
Egypt
Tel. ++2/03/4700432
Fax. ++2/03/4700432
Würth España S.A.
Poligono Riera de Caldes
Carrer Dels Joiers 21-23
ES-08184 Palau de Plegamans
Barcelona
Spain
Tel. ++34/93/8629500
Fax. ++34/93/8646203
Würth Oy
Herajoki
FI-11710 Riihimäki
Finland
Tel. ++358/19/7701
Fax. ++358/19/729010
Würth France S.A.
Z.I. Ouest
Rue Georges Besse
FR-67158 Erstein Cedex
France
Tel. ++33/3/88645300
Fax. ++33/3/88646200
Wurth U.K. Ltd.
1 Centurion Way
Erith
GB-Kent DA 18 4 AE
Great Britain
Tel. ++44/208/3196000
Fax. ++44/208/3196400
Würth Georgia Ltd.
Marshal Gelovani Avenue 36
GE-380059 Tbilisi
Georgia
Tel. ++995/32/530610
Fax. ++995/32/250610
Würth Hellas S.A.
23. Klm. National Road
Athens-Lamia
145 68 Krioneri Attikis
P.O. Box 51877
Attikis
GR-145 02 Agios Stefanos
Attikis
Greece
Tel. ++30/1/6290800
Fax. ++30/1/8134756
Würth- Hrvatska d.o.o.
Franje Lucica 23/III
HR-10000 Zagreb
Croatia
Tel. ++385/1/3498784
Fax. ++385/1/3498783
Würth Szereléstechnika KFT
Gyár utca 2
HU-2040 Budaörs
Hungary
Tel. ++36/23/418130
Fax. ++36/23/421777
PT Wuerth Indah
JI. Meruya Ilir Raya No. 82 A-B
ID-Jakarta 11360
Indonesia
Tel. ++62/21/5860036
Fax. ++62/21/5861043
Würth Ireland Ltd.
Monaclinoe Industrial Estate
Ballysimon Road
IR-Limerick
Ireland
Tel. ++353/61/412911
Fax. ++353/61/412428
Würth Israel Ltd.
Alon Hatavor 2
Zone 1
IL-Caesarea Industrial Park
P.O. Box 3585
IL-Caesarea Industrial Park
Zip 38900
Israel
Tel. ++972/4/6273939
Fax. ++972/4/6270999
Wuerth India Pvt. Ltd.
33, Santosh Building,
Marol Co-operative Industrial
Estate,
M V Road, Andheri (East)
IN-Mumbai 400 059
India
Tel. ++91/22/8507023
Fax. ++91/22/8507020
Würth Teheran Ltd.
Pasdaran St.-Corner of
Negarestane 5-No.183
IR-16619 Teheran-Iran
Iran
Tel. ++98/21/2842828
Fax. ++98/21/2856171
Würth á Íslandi ehf.
Veslurhraun 5
IS-210 Gar∂abær
Iceland
Tel. ++354/5302000
Fax. ++354/5302001
Würth S.r.l. - GmbH
Via Stazione, 51
I - 39044 Egna (BZ)
Tel. ++39/0471/828 111
Fax. ++39/0471/828 600
Wurth-Jordan Co. Ltd.
Al-yadoudeh
P.O. Box 951
JO-Amman-11592
Jordan
Tel. ++962/6/4122512
Fax. ++962/6/4122510
Würth Japan Co., Ltd.
MT Building
33 Sanmaicho, Kanagawa-ku
JP-Yokohama 221-0862
Japan
Tel. ++81/45/4884186
Fax. ++81/45/4884187
Würth Nippon GmbH
& Co. KG
6F Tsuruga Bldg., 1-29-15
Shinyokohama, Kohoku-Ku
JP-Yokohama 222-0033
Japan
Tel. ++81/45/4704633
Fax. ++81/45/4704621
Wuerth Kenya Ltd.
P.O. BOX 16751
Meru Road
KE-Mombasa
Kenya
Tel. ++254/11/312403
Fax. ++254/11/312437
Würth Foreign Swiss
Company Ltd.
3 Erkindik Boulevard
KG-Bishkek, 720040
Kyrgyzstan
Tel. ++996/312/227976
Fax. ++996/312/661025
Würth Kosova
No. 36 Pashe Dibra
Bregu i diellit
Prishtina
Tel. ++377/44/186514
Wurth Korea Co. Ltd.
128-1, O-Keum Dong,
KR-Song Pa-Gu, Seoul, Korea
(138-859)
South Korea
Tel. ++82/2/4009311
Fax. ++82/2/4009315
Wuerth Kazakhstan Ltd.
Abai 125, 2nd floor
KZ-480008, Almaty
Kazakhstan
Tel. ++7/3272/622432
Fax. ++7/3272/622495
Würth Lietuva
Dariaus ir Gireno 21
LT-2038 Vilnius
Lithuania
Tel. ++370/2/263045
Fax. ++370/2/264108
Würth Reinsurance
Company, S.A.
B.P. 2217
L-1022 Luxembourg
Siège social
65, Avenue de la gare
LU-1611 Luxembourg
Tel. ++352/494177
Fax. ++352/494188
Würth Maroc SARL
48 Avenue Pasteur
MA-Casablanca 20150
Marocco
Tel. ++212/2/2405700
Fax. ++212/2/2405706
Würth Moldova Ltd.
b-dul Stefan cel Mare, nr 4
Hotel National
MD-Chisinau
Moldavia
Tel. ++373/2/540398
Fax. ++373/2/540398
Würth Makedonien GmbH
ul. Gorce Petrov 108a
MK-91000 Skopje
Macedonia
Tel. ++389/233/2230
Fax. ++389/233/2083
Würth Caraibes Sarl
Z.I. Cocotte Canal
MQ-97224 Ducos-Martinique
Tel. ++596/560701
Fax. ++596/564369
Würth Limited
Würth House
Triq il- Masgar
MT-Qormi QRM09
Malta
Tel. ++356/494604
Fax. ++356/441081
Wuerth (Malaysia) Sdn.
Bhd.
6, Jalan Permas 9/13
Taman Permas Jaya
MY-81750 Masai Johor
Malaysia
Tel. ++60/7/3876280
++60/7/3881712
Fax. ++60/7/3884391
Würth Nederland B.V.
Moeskampweg 13
NL-5222 AW 's-Hertogenbosch
Postbus 344
NL-5201 AH 's-Hertogenbosch
Netherlands
Tel. ++31/73/6291911
Fax. ++31/73/613137
Würth Norge AS
Postboks 84
NO-1483 Skytta
Morteveien 12, Gjellerasen
Naeringspark
NO-1481 Hagan
Tel. ++47/670/62500
Fax. ++47/670/62711
Würth New Zealand Ltd.
42 Hobill Avenue,
P.O. Box 97079
Manukau City
NZ-South Auckland/Mail
Centre
New Zealand
Tel. ++64/9/2623040
Fax. ++64/9/2623030
Wuerth Philippines, Inc.
Air-Rich Building
Km. 19.5 East Service Road,
South Expressway
PH-Parañaque City,
Philippines
Tel. ++63/2/8382697
Fax. ++63/2/8382195
Würth Polska Sp. z o.o.
ul. Plochinska 33
PL-03-044 Warzawa
Poland
Tel. ++48/22/819041
Fax. ++48/22/8117190
Würth Portugal Tecnica
de Montagem, Ldo.
Estrada Nacional, 249-4
Abrunheira
P-2710-089 Sintra
Portugal
Tel. ++351/21/9157200
Fax. ++351/21/9151038
Würth Romania S.R.L.
Zapada Mielior 16-18
Sector 1
P.O. 18-85
RO-Bucarest 71529
Romania
Tel. ++40/1/2323282
Fax. ++40/1/2328933
Wuerth Mittelrussland
c/o Logovaz
Transportnaja Ul. 20
RU-394043 Voronezh
Russia
Tel. ++7/0732/727065
Fax. ++7/0732/727065
Würth Irtysch
Ul. Dobrovolskogo 8/1
RU-644099 Omsk
Russia
Tel. ++7/3812/245291
Fax. ++7/3812/245291
Würth Russia
Bulwar Generala
Karbyschewa, 8, Of.504
RU-123154 Moskau
Russia
Tel. ++7/095/9468028
Fax. ++7/095/9468028
Würth Nordkaukasus Ltd.
Krasnoarmejskaja Str. 206
RU-344010 Rostow am Don
Russia
Tel. ++7/8632/618051
Fax. ++7/8632/618054
ZAO Wuerth-Siberia
Serebrennikovskaja, 14, of. 501
RU-630007 Novosibirsk
Russia
Tel. ++7/3832/234673
Fax. ++7/3832/234673
Würth St. Petersburg
Prospekt Dunaiski 68
RU-192 288 St. Petersburg
Russia
Tel. ++7/812/1726166
Fax. ++7/812/1726085
ZAO Wuerth-Ural
Institutskaja, 6, of. 202
RU-620016 Ekaterinburg
Russia
Tel. ++7/3432/432393
Fax. ++7/3432/432393
ZAO Wuerth-Volga
Novosadovaja st., 221, of. 205
RU-443011 Samara
Russia
Tel. ++7/8462/703252
Fax. ++7/8462/703252
Würth Svenska AB
Würth´s väg
Hjälmarberget
Box 1705
SE-70117 Örebro
Sweden
Tel. ++46/19/351000
Fax. ++46/19/351001
Würth Singapore Pte. Ltd.
Bukit Batok central Post Office
P.O. box 365
SG-Singapore 916513
Tel. ++65/487/4238
Fax. Box 1705
Würth d.o.o.
Plemljeva 86
SI-1210 Ljubljana
Slovenia
Tel. ++386/1/5128690
Fax. ++386/1/5121472
Würth s.r.o.
Pribylinská ul. c. 2
SK-83104 Bratislava
Slovakia
Tel. ++421/7/49201211
Fax. ++421/7/49201299
Wuerth Verbindungs-
technik Co., Ltd.
41/198 Sukhontasawad Road
TH-Ladprao Bangkok 10230
Thailand
Tel. ++66/2/9078880
Fax. ++66/2/9078877
Würth Otomotiv ve Montaj
San. Ürün. Paz. Ltd. Sti.
Eski Silivri Caddesi No. 22
TR-34900 Mimarsinan
Büyükcekmece
Turkey
Tel. ++90/212/8634603
Fax. ++90/212/8634608
Wurth Taiwan, Co., Ltd.
4th Fl., 28 Lane 80,
Sec. 3 Nan-Kang Rd.,
TW-Taipei, Taiwan, R.O.C.
Taiwan
Tel. ++886/2/27857122
Fax. ++886/2/27857027
Würth Ukraine Ltd.
Maschynobudiwna, 44
UA-Kiew 03680
Ukraine
Tel. ++380/44/4465376
Fax. ++380/44/4466467
Würth Central Purchasing
America, Inc.
91 Grant Street
US-Ramsey, NJ 07446
USA
Tel. ++1/201/9951111
Fax. ++1/201/9959908
Würth Technik
Halklar Dustligi 132-1
UZ-706800 Nawoi
Uzbekistan
Tel. ++998/79/2235207
Fax. ++998/79/2235207
Cong ty TNHH Vu Viet
9/3 Ly Van Phuc-
Tan Dinh Ward- Dist 1
VN- Ho Chi Minh City
Vietnam
Tel. ++84/8/8205635
Fax. ++84/8/8205634
Wurth d.o.o. za trgovinu
montaznom opremom
Zrenjaninski put 153 h
YU-11211 Beograd
Yugoslavia
Tel. ++381/11/3320198
Fax. ++381/11/3320242
Würth South Africa Co (Pty)
Ltd.
P.O. Box 616
ZA-Isando 1600
South Africa
Tel. ++27/11/9747191
Fax. ++27/11/9746169
For more countries and information see
http://www.wuerth.com
H 28 MA - D.book Seite 129 Freitag, 2. September 2005 6:36 18
Nieder-
lassungen:
Aachen
Jülicher Straße 236-248
52070 Aachen
Telefon (02 41) 5 68 79-0
Telefax (02 41) 5 68 79 50
Aalen
Robert-Bosch-Straße 47
73431 Aalen
Telefon (0 73 61) 92 30-0
Telefax (0 73 61) 92 30 50
Augsburg
Flotowstraße 15
86368 Gersthofen
Telefon (08 21) 2 97 61 20
Telefax (08 21) 2 97 61 50
Backnang
Gewerbegeb. Backnang-Süd
Beim Erlenwäldchen 8
71522 Backnang
Telefon (0 71 91) 90 40-0
Telefax (0 71 91) 90 40 50
Bad Mergentheim
Industriepark Würth, Gebäude 1
97980 Bad Mergentheim
Telefon (0 79 31) 9 24 05-0
Telefax (0 79 31) 92 40 59
nl.bad-
Bamberg
Biegenhofstraße 24
96103 Hallstadt
Telefon (09 51) 7 00 84-0
Telefax (09 51) 7 00 84 50
Bayreuth
Hasenweg 6
95448 Bayreuth
Telefon (09 21) 7 92 05-0
Telefax (09 21) 7 92 05 50
Berlin-Charlottenburg
Spandauer Damm 60-64
14059 Berlin
Telefon (0 30) 32 67 84 30
Telefax (0 30) 32 67 83 51
nl.berlin-charlottenburg
@wuerth.com
Berlin-
Hohenschönhausen
Grenzgrabenstraße 4
13053 Berlin
Telefon (0 30) 98 60 01-0
Telefax (0 30) 98 60 01 55
nl.berlin-hohenschoenhausen
@wuerth.com
Berlin-Reinickendorf
Osramhöfe
Seestraße/Oudenarderstraße 16
13347 Berlin
Telefon (0 30) 45 08 27 60
Telefax (0 30) 45 08 27 53
nl.berlin-
Biberach
Riss-Center
Riss-Straße 19
88400 Biberach
Telefon (0 73 51) 5 87 98-0
Telefax (0 73 51) 5 87 98 50
Bielefeld
Obere Hillegosser Str. 37
33699 Bielefeld
Telefon (05 21) 9 24 18-0
Telefax (05 21) 9 24 18 27
Bochum
Harpener Feld 27
44805 Bochum
Telefon (02 34) 9 55 43-0
Telefax (02 34) 9 55 43 50
Böblingen
Hanns-Klemm-Straße 46
71034 Böblingen-Hulb
Telefon (0 70 31) 2 11 76-0
Telefax (0 70 31) 2 11 76 50
Braunschweig
Hansestraße 66
38112 Braunschweig
Telefon (05 31) 3 54 78-0
Telefax (05 31) 3 54 78 90
Bremen
Gewerbegebiet Bayernstraße
Straubinger Straße 11
28219 Bremen
Telefon (04 21) 3 99 88-0
Telefax (04 21) 3 99 88 51
Chemnitz
Gewerbegebiet
Südring/Neefestraße
Carl-Hamel-Straße 5
09116 Chemnitz
Telefon (03 71) 2 71 47-0
Telefax (03 71) 2 71 47 50
Cottbus
Gewerbegebiet
An der Reichsbahn
Am Gleis 15
03042 Cottbus-Sandow
Telefon (03 55) 7 56 61-0
Telefax (03 55) 7 56 61 50
Crailsheim
Industriegebiet Zur Flügelau
Roßfelder Straße 60
74564 Crailsheim
Telefon (0 79 51) 96 37-0
Telefax (0 79 51) 96 37 50
Darmstadt
Weiterstadt Park
Brunnenweg 19
64331 Weiterstadt
Telefon (0 61 50) 18 18-0
Telefax (0 61 50) 18 18 50
Dortmund
Wilhelmstraße 35A
59439 Holzwickede
Telefon (0 23 01) 9 12 62-0
Telefax (0 23 01) 91 26 50
Dresden-Löbtau
Malterstraße 37
01159 Dresden
Telefon (03 51) 4 38 47-0
Telefax (03 51) 4 38 47-50
Dresden-Mickten
Marie-Curie-Straße 6
01139 Dresden
Telefon (03 51) 4 14 53-0
Telefax (03 51) 4 14 53-50
Düsseldorf
Lierenfelder Straße 53
40231 Düsseldorf
Postfach 105532
40046 Düsseldorf
Telefon (02 11) 9 73 06-0
Telefax (02 11) 9 73 06 50
Erfurt
Über dem Feldgarten 11
99198 Erfurt-Linderbach
Telefon (03 61) 4 20 57-0
Telefax (03 61) 4 20 57 50
Essen
Heinz-Bäcker-Straße 15
45356 Essen
Telefon (02 01) 8 66 45-0
Telefax (02 01) 8 66 45 50
Esslingen
Plochinger Straße 45
73779 Deizisau
Telefon (0 71 53) 92 94-0
Telefax (0 71 53) 92 94 50
Frankfurt
Weiskirchen, Gewerbegeb. Ost
Daimlerstraße 19
63110 Rodgau
Telefon (0 61 06) 84 01-0
Telefax (0 61 06) 84 01 50
Frankfurt II
Hanauer Landstraße 338
60314 Frankfurt/Main
Telefon (0 69) 42 69 38-0
Telefax (0 69) 42 69 38 50
Freiburg
Industriegebiet Nord
Mitscherlichstraße 5
79108 Freiburg
Telefon (07 61) 5 59 66-0
Telefax (07 61) 5 59 66 50
Gera
Gewerbegebiet Bieblach Ost
Heinrich-Hertz-Straße 14
07552 Gera
Telefon (03 65) 4 37 28-0
Telefax (03 65) 4 37 28 50
Gießen
Gewerbegebiet Gießen-West
Robert-Bosch-Straße 16
35398 Gießen
Telefon (06 41) 9 62 36-0
Telefax (06 41) 9 62 36 50
Göppingen
Industriegebiet Ost
Heilbronner Straße 12
73037 Göppingen
Telefon (0 71 61) 6 80 61
Telefax (0 71 61) 6 89 00
Goslar
Gewerbegebiet Bassgeige
Alte Heerstraße 15
38644 Goslar
Telefon (0 53 21) 35 19 30-0
Telefax (0 53 21) 3 51 93 50
Halle (Saale)
Delitzscher Straße 70
06112 Halle (Saale)
Telefon (03 45) 6 85 90 10
Telefax (03 45) 5 75 56 54
Hamburg
Industriegebiet Nettelkrögen
Gutenbergring 44
22848 Norderstedt
Telefon (0 40) 53 43 61-0
Telefax (0 40) 53 43 61 50
Hamburg-Süd
Helmspark Hittfeld
Helmsweg 6-16
21218 Seevetal-Hittfeld
Telefon (0 41 05) 58 44-0
Telefax (0 41 05) 58 44 50
Hannover
Gewerbegebiet Godshorn
Bayernstraße 37
30855 Langenhagen-Godshorn
Telefon (05 11) 7 86 80-0
Telefax (05 11) 7 86 80 50
Heidelberg
Gewerbegebiet Rohrbach-Süd
Redtenbacher Straße 1/1
69126 Heidelberg
Telefon (0 62 21) 5 89 88-0
Telefax (0 62 21) 5 89 88 50
Heilbronn
Dieselstraße 8
74076 Heilbronn
Telefon (0 71 31) 95 56-0
Telefax (0 71 31) 95 56 50
Ingolstadt
Eriagstraße 8
85053 Ingolstadt
Telefon (08 41) 95 67 78 70
Telefax (08 41) 9 31 87 51
Jena
Löbstedter Straße 80
07749 Jena
Telefon (0 36 41) 45 12-0
Telefax (0 36 41) 45 12 50
Karlsruhe
Printzstraße 2a
76139 Karlsruhe
Handwerk Holz:
Telefon (07 21) 62 52 2-0
Telefax (07 21) 6 25 22 50
Kassel
Industriegebiet Waldau West
Otto-Hahn-Straße 18
34123 Kassel
Telefon (05 61) 9 98 68-0
Telefax (05 61) 9 98 68 50
Kempten
Messerschmittstraße 16
87437 Kempten
Telefon (08 31) 5 74 48-0
Telefax (08 31) 5 74 48 50
Kiel
Seekoppelweg 7a
24113 Kiel
Telefon (04 31) 6 47 40-0
Telefax (04 31) 6 47 40 50
Koblenz
Auf dem Hahnenberg 51
56218 Mülheim-Kärlich
Telefon (0 26 30) 94 70-0
Telefax (0 26 30) 94 70 50
Köln
Köhlstraße 43
50827 Köln-Ossendorf
Telefon (02 21) 95 64 42-0
Telefax (02 21) 95 64 42 50
(08 00) 8 65 13 90
Künzelsau-Gaisbach
Verkaufsniederlassung
Schliffenstraße 22
74653 Gaisbach
Telefon (0 79 40) 15 25 55
Telefax (0 79 40) 15 45 55
Landshut
Sonnenring 17a
84032 Altdorf
Telefon (08 71) 9 53 71-0
Telefax (08 71) 9 53 71 50
LE Stetten
Industriegebiet Stetten
Sielminger Straße 65
70771 LE-Stetten
Telefon (07 11) 22 06 29-0
Telefax (07 11) 22 06 29 50
nl.leinfelden-echterdingen
@wuerth.com
Leipzig
Zum Bahnhof 20
04178 Leipzig/Rückmarsdorf
Telefon (03 41) 4 90 14-0
Telefax (03 41) 4 90 14 40
Würth Service-Container
Am Airport 2000
Postfach 1244
04029 Leipzig
Telefon (03 41) 2 24 19 76
Telefax (03 41) 2 24 19 77
Funk (01 70) 6 33 70 73
Leonberg
Hertichstraße 10
71229 Leonberg-Eltingen
Telefon (0 71 52) 9 28 24-0
Telefax (0 71 52) 9 28 24 29
Lübeck
Taschenmacherstraße 10
23556 Lübeck (Roggenhorst-
Nord)
Telefon (04 51) 8 71 92-0
Telefax (04 51) 8 71 92 50
Magdeburg
Silberbergweg 29
39128 Magdeburg
Telefon (03 91) 2 55 87-0
Telefax (03 91) 2 55 87 50
Mainz
Carl-Zeiss-Straße 13
55129 Mainz-Hechtsheim
Telefon (0 61 31) 6 27 39-0
Telefax (0 61 31) 6 27 39 50
Mannheim
Fraunhoferstraße 7
68309 Mannheim
Telefon (06 21) 7 27 46-0
Telefax (06 21) 7 27 46 50
Minden
Ringstraße 49-51
32427 Minden
Telefon (05 71) 82 97 68 60
Telefax (05 71) 3 98 38 53
Mönchengladbach
Gewerbegebiet Engelbleck
Borsigstraße 13
41066 Mönchengladbach
Telefon (0 21 61) 4 77 69-0
Telefax (0 21 61) 4 77 69 50
(08 00) 7 24 16 70
om
München
Am Lenzenfleck 2
85737 Ismaning
Telefon (0 89) 96 07 03-0
Telefax (0 89) 96 07 03 50
nl.muenchen-
München 2
Ridlerstraße 65
80339 München
Telefon (0 89) 43 19 72-0
Telefax (0 89) 43 19 72 50
Münster
Harkortstraße 11
48163 Münster
Telefon (02 51) 2 65 37-0
Telefax (02 51) 2 65 37 50
Neubrandenburg
Gneisstraße 8
17036 Neubrandenburg
Telefon (03 95) 4 30 48-0
Telefax (03 95) 4 30 48 50
Nordhausen
Freiherr-vom-Stein-Straße 30c
99734 Nordhausen
Telefon (0 36 31) 4 78 93-0
Telefax (0 36 31) 47 89 50
Nürnberg
Lenkersheimer Straße 10a
90431 Nürnberg
Telefon (09 11) 9 31 92-0
Telefax (09 11) 9 31 92 50
Offenburg
Robert-Bosch-Straße 2
77656 Offenburg-Elgersweier
Telefon (07 81) 9 69 84-0
Telefax (07 81) 9 69 84 50
Oldenburg
Ammerländer Heerstaße 246
26129 Oldenburg
Telefon (04 41) 2 19 89-0
Telefax (04 41) 2 19 89 50
Osnabrück
Hettlicher Masch 12
49084 Osnabrück
Telefon (05 41) 9 09 01-0
Telefax (05 41) 9 09 01 50
Paderborn
Frankfurter Weg 70-72
33106 Paderborn
Telefon (0 52 51) 8 71 91 30
Telefax (0 52 51) 8 73 67 50
Papenburg
Siemensstraße 22-24
26871 Papenburg
Telefon (0 49 61) 66 87-0
Telefax (0 49 61) 66 87 50
Passau
Regensburger Straße 14
94036 Passau
Telefon (08 51) 9 56 62-0
Telefax (08 51) 9 56 62 50
Pforzheim
Gewerbegebiet
Wilferdinger Höhe
Rastatter Straße 36
75179 Pforzheim
Telefon (0 72 31) 56 86 80
Telefax (0 72 31) 56 87 99
Potsdam
Am Verkehrshof 1
14478 Potsdam
Telefon (03 31) 88 88 40
Telefax (03 31) 8 88 84 50
Regensburg
Franz-Hartl-Straße 4
93053 Regensburg
Telefon (09 41) 7 83 98-0
Telefax (09 41) 7 83 98 50
Reutlingen
Industriegebiet West
Ferdinand-Lassalle-Straße 55
72770 Reutlingen
Telefon (0 71 21) 56 95-0
Telefax (0 71 21) 56 95 50
Rhein-Sieg
Redcarstraße 2b
53842 Troisdorf-Spich
Telefon (0 22 41) 2 34 02-0
Telefax (0 22 41) 2 34 02 50
Rodgau
siehe bei Frankfurt/Main
Rosenheim
Isarstraße 1A
83026 Rosenheim
Telefon (0 80 31) 2 30 89-0
Telefax (0 80 31) 2 30 89 50
Rostock
Gewerbegebiet
Neu-Roggentiner-Straße 4
18184 Roggentin
Telefon (03 82 04) 6 16-0
Telefax (03 82 04) 6 16 50
Saarbrücken
Im Rotfeld 21
66115 Saarbrücken
Telefon (06 81) 9 48 65-0
Telefax (06 81) 9 48 65-50
Schwäbisch Hall
Industriegebiet Hessental-Ost
Schmollerstraße 41
74523 Schwäbisch Hall
Telefon (07 91) 4 07 23-0
Telefax (07 91) 4 07 23 50
Siegen
(Kaan-Marienborn)
Hauptstraße 84
57074 Siegen
Telefon (02 71) 6 60 49-0
Telefax (02 71) 6 60 49 29
Sinsheim
In der Au 22
74889 Sinsheim
Telefon (0 72 61) 40 21-0
Telefax (0 72 61) 40 21 50
Stuttgart
Kölner Straße 10
Hallschlag
70376 Stuttgart
Telefon (07 11) 9 55 73-20
Telefax (07 11) 9 55 73 50
Trier
Ohmstraße 6-8
54292 Trier
Telefon (06 51) 4 36 99-0
Telefax (06 51) 4 36 99 50
Ulm/Neu-Ulm
Carl-Zeiss-Straße 3
89231 Neu-Ulm
Telefon (07 31) 9 78 98-0
Telefax (07 31) 9 78 98 50
Urbach
Schorndorfer Straße 22
73660 Urbach
Telefon (0 71 81) 4 88 66-0
Telefax (0 71 81) 48 86 56
Villingen-Schwenningen
Industriegebiet Vockenhausen
Heinrich-Hertz-Straße 9
78052 VS-Villingen
Telefon (0 77 21) 87 19-0
Telefax (0 77 21) 87 19 50
nl.villingen-schwenningen
@wuerth.com
Weingarten/Ravensburg
Hähnlehofstraße 5
88250 Weingarten
Telefon (07 51) 5 61 04-0
Telefax (07 51) 5 61 04 50
nl.weingarten-ravensburg
@wuerth.com
Weißenburg
Dettenheimer Straße 11
91781 Weißenburg
Telefon (0 91 41) 99 55-0
Telefax (0 91 41) 99 55 50
Wiesbaden
Hagenauer Straße 17-19
65203 Wiesbaden
Telefon (06 11) 1 86 97-0
Telefax (06 11) 1 86 97 50
Wuppertal
Industriegebiet
Nächstebreck
Möddinghofe 21
42279 Wuppertal
Telefon (02 02) 6 47 71-0
Telefax (02 02) 6 47 71 25
Würzburg
Gewerbegebiet Ost
Sandäcker 11
97076 Würzburg
Telefon (09 31) 2 79 89-0
Telefax (09 31) 2 79 89 18
Adolf Würth GmbH & Co. KG
Postfach · 74650 Künzelsau · Telefon (0 79 40) 15-0 · Telefax (0 79 40) 15 10 00
0700 677 X BA 0508 - Printed in Germany - Imprimé en Allemagne MWV-OSW-08/05 • © by Adolf Würth & Co. KG • Nachdruck, auch auszugsweise, nur mit Genehmigung.
4100 396260
H 28 MA - D.book Seite 130 Freitag, 2. September 2005 6:36 18
Table of contents
Other wurth Rotary Hammer manuals
