WYBOTICS WY350 User manual

AUTOMATIC SWIMMINGPOOL
CLEANERR
User Manual
WY350
EN

1
READ AND KEEP THESE INSTRUCTIONS FOR FUTURE
REFERENCE
Thank you for purchasing WYBOTICS Robotic Pool Cleaner. If you have
any question or issue, please contact us for customer service.

2
CONTENTS
Important Safety Instructions...................................................01
1. Brief introduction to product ...............................................03
2. Packing List ...........................................................................04
3. Schematic diagram of product .............................................05
4. Specifications and parameters .............................................06
5. Instructions for use...............................................................07
LIMITED WARRANTY.................................................................15

01
Important Safety Instructions
1. When the cleaner is placed on shore or is taken out from the pool,
please make sure to turn off the power supply, otherwise it will
easily cause serious damage to the cleaner.
2. The power cord of the cleaner must be plugged into the socket
with leakage protection device. No one is allowed to enter the
swimming pool when the cleaner is working, so as to avoid danger
and injury.
3. When putting the cleaner into the swimming pool or take it out
from the swimming pool, you must hold the handle. Do not pull
the cable. Before starting the cleaner every time, exhaust the gas
in the machine as much as possible (there is no bubbles or the
machine completely sinks to the bottom of the pool), so as to avoid
the gas affecting the normal operation of the cleaner.
4. Before starting the cleaner, it must be confirmed that the cable is
completely relaxed, so as to avoid cable entanglement during work,
which will affect the cleaning effect of the cleaner. In serious cases,
it may cause damage to the cleaner.
5. Clean the filter basket in time after each use of the cleaner, so as
not to affect the work of the cleaner due to excessive dirt in the
filter basket.
6. When the cleaner is not in use, please store the cleaner in a cool
and ventilated place indoors. Avoid direct sunlight.
7. When the cleaner is working, the power supply control box
should be placed in the shade. Do not place or cover anything on
the power supply control box to prevent damage to the internal
electrical components due to overheating.

02
8. Non-professionals shall not disassemble the main machine body
of the cleaner and the power supply control box at will, to avoid
danger or avoid damage to the cleaner.
9. To prevent accidents, it is recommended that the power supply box
should be connected to the fixtures beside the pool with safety
ropes before use.
10. It is strictly forbidden to use this machine beyond its operating
conditions. Please read this user manual carefully before using
the machine.
11. Ensure that the PH value of the water of the swimming pool is 7.0-
7.2.
12. It is forbidden to put water treatment chemicals into the machine,
to use the machine for chemical distributing. If the machine is
damaged for this reason, the manufacturer is not responsible for
the warranty.

03
1. Brief introduction to product
WY350 is a high-end series product, which integrates the most
advanced technology of swimming pool cleaning robot, including
sensor integration, intelligent path planning, self-adaption to
swimming pool, super obstacle-surmounting capacity, high-efficiency
dirt suction, remote control and upgrade functions. It is suitable for
large/medium swimming pools. The machine has strong climbing
function and can work flexibly in swimming pools made of PVC,
ceramic tiles, cement and other materials. The machine is equipped
with 3-motor drive system, it can easily solve the problem of line
winding. The machine is equipped with high-precision gyroscope,
infrared, and it adopts multi-sensor integration algorithm. It can
provide the optimal path planning according to the shape and size
of the swimming pool to achieve efficient and high-quality cleaning
effect.
The main machine body is powered by low-voltage DC 28V power
supply, it has high safety and reliability.
Before using this product, please read the manual carefully so that
you can use this machine correctly.

04
2. Packing List
S/N Name Specifications Quantity (pieces)
1 Main machine body of the cleaner WY350 1
2 Power supply box Power I 130 1
3 User Manual 1
4 Quick guide manual 1
5 Certificates of conformity 1

05
3. Schematic diagram of product
Roller Handle
Filter basket Swivel Floating Cord Power Supply Unit

06
4. Specifications and parameters
1. Model WY350
2. Rated input voltage 100~240VAC, 50Hz/60Hz
3. Rated output voltage DC 28V
4. Rated power 100W
5. Working modes Pool bottom mode/wall mode/whole
pool mode/waterline mode
6. Cable length 18m
7. Filtration volume About 15m³/h
8. Filter density 180μm
9. Maximum cleaning area Up to 1399sq. ft(130m2)
10. Waterproof level Cleaner IPX8, power supply box IPX5
11. Pool water temperature 50 ℉-95 ℉(10~+35℃)
12. Creeping speed 11m/min~16m/min
13. Product size L460mm*W440mm*H245mm
14. Weight Main machine body 9.5Kg±0.1Kg
15. Storage condition 41 ℉-95 ℉(5℃-35℃), RH≤75%

07
5. Instructions for use
5.1 Setup

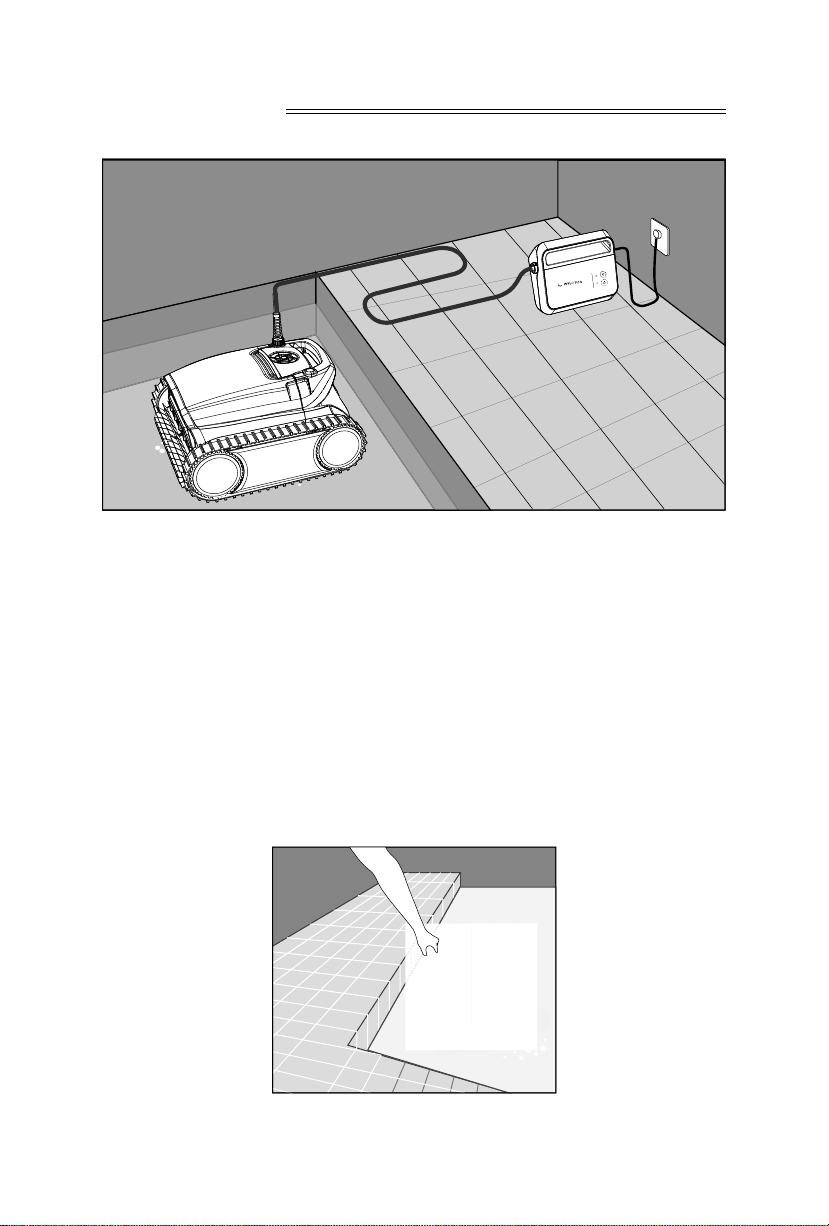

a. Attach the blue cable to the power supply by inserting it with the
notch on the connector, lined up to the groove in the socket on the
power supply, turn it clockwise.
b. The power supply control box must be placed in a suitable position
to ensure that the cleaner can reach every corner of the swimming
pool. At the same time, the position of the power supply control
box should not be less than 3.5 meters from the edges of the
swimming pool.

08
3.5M
5.2 When putting the cleaner into the swimming
pool, the bottom of the cleaner shall face the
pool wall
a. Hold the handle and put the cleaner into the water. And the
cleaner will slowly discharge the gas (the gas in the cleaner must
be completely discharged, otherwise it will affect the normal
operation of the machine). Make the machine naturally sinks to the
bottom of the pool.

09

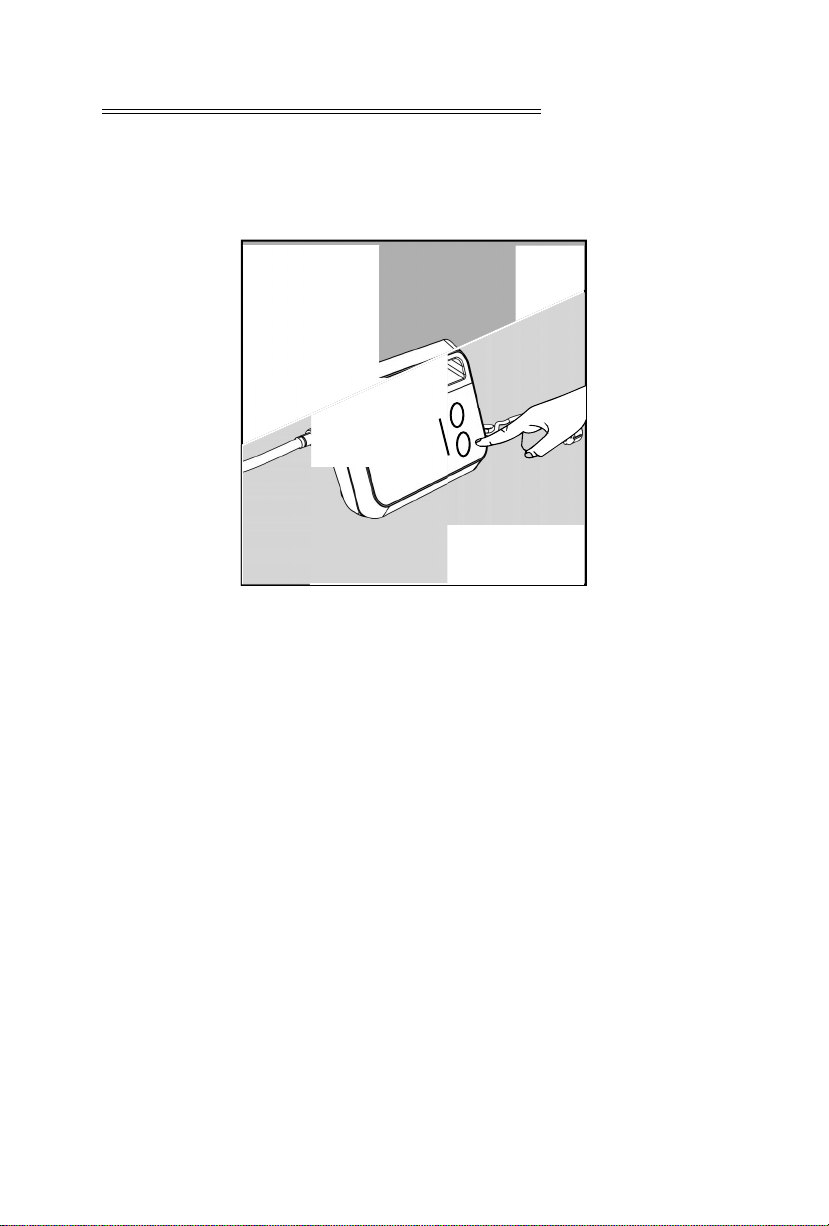

b. Turn the power supply on, wait for 15 seconds, the robot will begin
working.
5.3 Acquisition of mobile App and connection
5.3.1 Scan the QR code to download the APP

10
5.3.2 Download the App in app store
1. In case of Android phones, search google play for WYBOT, and
download it.
2. In case of iPhone, searches the app store for WYBOT, download it.
5.3.3 After the connection between the APP and the machine is
successful, the APP will give a "Success" prompt
5.3.4 After entering the APP interface, the parameters of the
current machine will be displayed, and users can modify the
parameters according to their own demands in cleaning
Note:
1. When using App, it needs to obtain Bluetooth use permission and
location permission of the mobile phone.
2. App is suitable for ios14 and above, and Android 8.0 and above.
3. To obtain weather information in APP, you need to turn on Location
service.

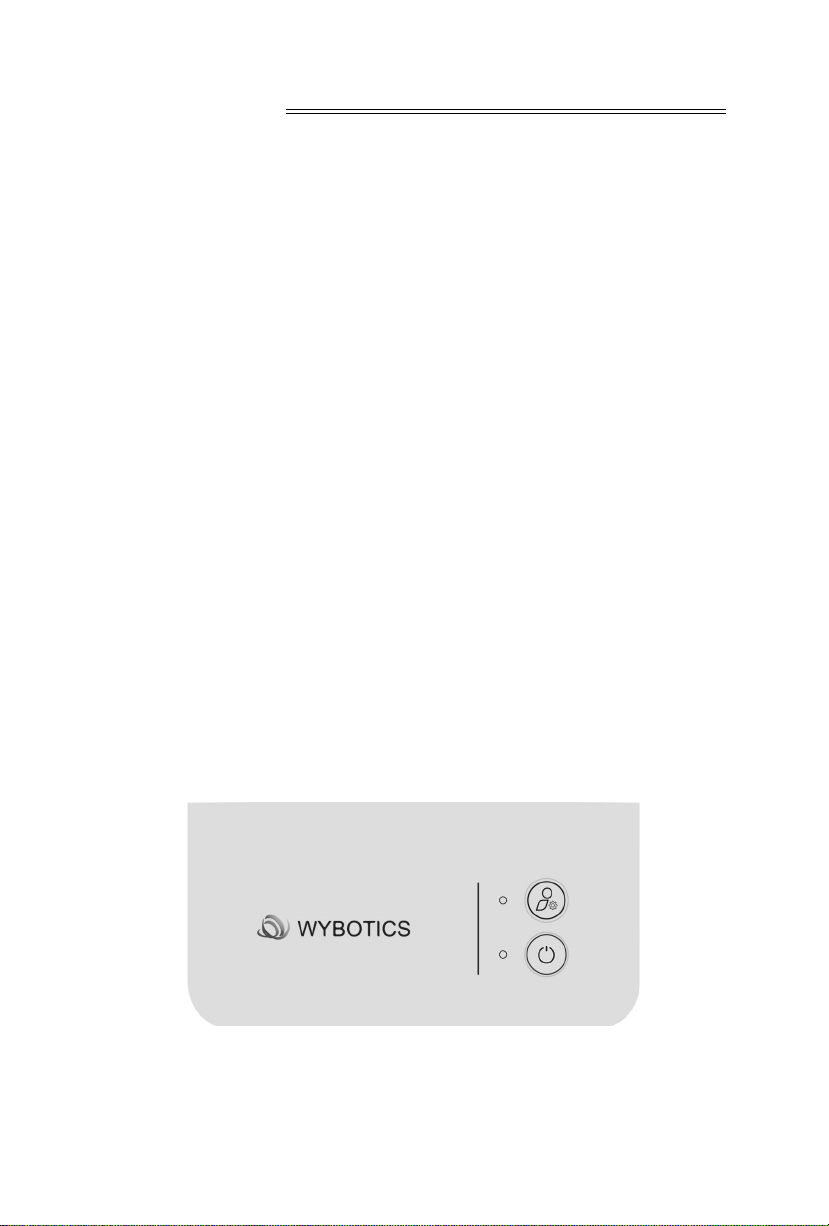

5.4 Switch button and indicator

11
5.4.1 Power button: press it long: start-up/shutdown
Press it short: (after startup) standby/automatic operation.
Optional Configuration button: it is used with APP, the default
function is WIFI configuration. Press the button long, and the function
will take effect. And connect with the Bluetooth according to the user
name and password sent by APP.
5.4.2 State of indicator lights
State of indicator lights Description
Two lights are ON and OFF once at the
same time
After the power supply supplies
electricity, perform it once
The Configurable indicator light is
always on
The Bluetooth connection with the
power supply box is successful, and
when the indicator light goes out,
it indicate that Bluetooth is not
connected
The power supply indicator is always
on
The power supply box outputs normally
and the machine underwater is in
running state
The power supply indicator light flashes
The power supply box outputs normally
and the underwater machine is in
standby state
The Configurable indicator light and the
power supply indicator light flash at the
same time
Alarm for overload of the power supply
box

12
5.5 Remove the pool cleaner from the water
a. Turn off the power supply.
b. When taking out the cleaner from the pool, you only can hold the
handle, do not pull the cable.

13
5.5 Clean the filter
a. After cleaning is completed, take out the cleaner from the
swimming pool, press the button at the tail, the upper cover will
automatically bounce off, lift the upper cover, take out the filter
basket, pour out the sundries inside it.

14
b. Clean the filter basket.
c. Re-install the filter basket.
Pay attention to the installation position and close the top cover.

15
LIMITED WARRANTY
WYBOTICS ROBOT, owned by WYBOTICS CO., LTD, makes products
at the best quality we can offer. All WYBOTICS products have been
inspected against defects in materials and workmanship prior to
leaving factory. WYBOTICS is happy to offer warranty for the repair
or replacement of pool products for two (2) years on motor and PCB
from the date of purchase. The provisions of this Limited Warranty
only apply to the original purchaser. Please keep your original
sales receipt, as this proof of purchase will be required and must
accompany warranty claims to WYBOTICS or its designated agents.
This Limited Warranty does not apply without proof of purchase; or
should the purchaser modify or repair the product themselves or by
unauthorized people; use non-WYBOTICS parts or accessories with
the product; use the product in contravention of the manufacturer’s
instructions; use improper voltage; abuse the product in any way; or
through accident or negligence. This Limited Warranty will not cover
consequential damages, including claims for normal wear-and-tea or
any Act of God outside the control of WYBOTICS. Non-manufacturing
defects, such as grasses that may grow through the ground cloth
and/or pool liner are examples of which WYBOTICS cannot hold
responsible for.
IN NO EVENT SHALL WYBOTICS, ITS AUTHORIZED AGENTS, RELATED
ENTITIES, OR EMPLOYEES BE LIABLE TO THE BUYER OR ANY OTHER
PARTY FOR DIRECT OR CONSEQUENTIAL DAMAGES. Some states
or countries, or other jurisdictions, do not allow the exclusion or
limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply to you.

16
This Limited Warranty is not extended to close-outs, factory seconds,
or resold products (i.e., garage sales, online auctions, or online
retailers not purchased directly from WYBOTICS). Any issue with
items purchased from these types of vendors/sellers will need to be
addressed through these stores.
FCC Caution:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:(1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be
installed and operated with minimum distance between 20cm the radiator your body:
Use only the supplied antenna.
