Wyred 4 Sound DAC-2v2 User manual
DAC-2v2 Series
DAC-2v2 & DAC-2v2SE
DIGITAL-TO-ANALOGCONVERTER
WITHREMOTECONTROLANDVOLUMECONTROL
USER MANUAL
What’s Included
●DAC-2v2 or DAC-2v2SE Digital-to-Analog converter
●User Manual
●6 ft. AC Power Cable
●1.5 meter USB 2.0 A to B cable
●1.5 meter DC trigger cable (3.5mm Mono cable)
●Remote control
●2x AAA batteries for remote control
●Wyred 4 Sound USB driver disk (for Windows)
We strongly suggest keeping the original packaging in case of the need to ship the DAC in the future.
Important Safeguards
●All the safety and operating instructions should be read before this product is operated.
●The safety and operating instructions should be retained for future reference.
●All warnings on the appliance and in the operating instructions should be adhered to.
●Follow all instructions.
●The appliance should not be used near water or moisture – for example, in a wet basement or near a
swimming pool, and the like.
●Clean only with dry cloth.
●Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
●Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
●Do not defeat the safety purpose of the polarized or grounding plug. A polarized plug has two blades with
one wider than the other. A grounding plug has two blades and a third grounding prong. The wide blade or
the third prong is provided for your safety. If the provided plug does not fit your outlet, consult an electrician
for replacement of the obsolete outlet.
●Protect the power cord from being walked on or pinched particularly at the plugs, convenience receptacles,
and at the point where they exit from the apparatus.
●Unplug this apparatus during lightning storms or when unused for long periods of time.
●Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any
way such as the power cord or plug is damaged. Other damage may occur if liquid or objects have been
dropped or spilled into the apparatus. Dropping the apparatus, exposure to rain, and excessive moisture
may cause additional damage.
●Keep the unit in a well ventilated environment. Ensure at least 4” clearance around top and sides.
●CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of
electric shock, do not perform any servicing other than that contained in the operating instructions unless
you are qualified to do so.
●WARNING: To reduce the risk of electric shock, do not expose this apparatus to rain or moisture. The
apparatus shall not be exposed to dripping or splashing and that objects filled with liquids, such as vases,
shall not be placed on apparatus.
2
© Wyred 4 Sound. All rights reserved. DAC-2v2 & DAC-2v2SE Manual v2
●WARNING: The mains plug/appliance coupler is used as disconnect device, the disconnect device shall
remain readily operable.
●The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the product's enclosure that may be of sufficient
magnitude to constitute a risk of electric shock.
●No naked flame sources, such as lighted candles, should
be placed on the apparatus.
●WARNING: The terminals marked with symbol of “+/-“
may be of sufficient magnitude to constitute a risk of
electric shock. The external wiring connected to the
terminals requires installation by an instructed person or
the use of ready made insulated leads or cords.
●Correct Disposal of this product. This marking indicates
that this product should not be disposed with other household wastes throughout the EU.
To prevent possible harm to the environment or human health from uncontrolled waste
disposal, recycle it responsibly to promote the sustainable reuse of material resources. To
return your used device, please use the return and collection systems or contact the retailer
where the product was purchased. They can take this product for environmentally safe recycling.
●Keep your packaging! It is custom made for your unit and will effectively protect it for possible future use.
●Be sure to register your product. It is very important to complete the warranty registration form located on
our website. Complete and submit the form within 30 days of purchase to activate your warranty.
FCC Warning
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
●Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your
authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
The device has been evaluated to meet general RF exposure requirement. The device can be used in portable
exposure condition without restriction.
3
© Wyred 4 Sound. All rights reserved. DAC-2v2 & DAC-2v2SE Manual v2
Contents
Section
Page
Introduction
5
DAC-2v2 Series Design Features
5-6
Getting Connected
7
Front Panel Operation
8
Powering your DAC
9
Setup Menu
9-14
- Setup Menu Table: DAC-2v2
10
- Setup Menu Table: DAC-2v2SE
11
- Setup Menu Details
12-14
Remote Control
15
USB Configuration
15
“Break-In” Period
16
Troubleshooting
16
Specifications
17
Output Level Adjustment
17
Warranty Coverage
18-19
Service
19
4
© Wyred 4 Sound. All rights reserved. DAC-2v2 & DAC-2v2SE Manual v2
Introduction
Wyred 4 Sound products are a perfect example of what is accomplished when practical engineering and knowledge
are combined. All components are selected for the greatest possible functionality, durability, and most importantly,
quality. Wyred 4 Sounds’ excellence in engineering will provide you with first-class performance and years of
satisfaction. All Wyred 4 Sound products are proudly designed and assembled in California.
Our product goal is simple: to deliver the beauty and realism of your music into your home with as little change as
possible. We know what our competition has to offer, and you can be sure that we constantly strive to make the
value of our products substantially more. We hope you enjoy your new Wyred 4 Sound product for years to come,
and that you consider us in the future as we continue to provide exceptional and innovative audio components to
music lovers worldwide.
DAC-2v2 Series Design Features
The new DAC-2v2 series (DAC-2v2 and DAC-2v2SE) represents our latest step forward in DAC design and
innovation. These new DACs offer some of the latest technology available today and bring new life to digital music.
The new DAC-2v2 features the ESS Sabre 9028PRO DAC chip, while the DAC-2v2SE is equipped with the flagship
ESS Sabre 9038PRO chip. The ESS Sabre Pro DAC is the world’s highest performance 32-bit audio DAC solution. In
our implementation, we utilize the 8ch chip in quad-differential mode meaning that there are actually four differential
D-A conversion circuits for each channel in parallel. This helps achieve a spectacular S/N ratio and output drive
capability. The I²S DSD format offers a jitter-free solution to transmitting digital data from our cutting-edge USB
interface to the Sabre chip. Newly implemented technology and hardware now takes full advantage of this
remarkable feature. The upgraded interface instantly detects the native DSD data and routes the signal to the
appropriate internal processors resulting in unparalleled sonic performance.
Another design feature is the galvanically isolated I²S USB interface which prevents computer noise from interfering
with the quality of the audio signal. Setup with your source via USB is driverless for Linux and Mac, while Windows
users will require a quick driver install to begin playing your favorite tracks.
The DAC-2v2 series can process signals up to 24/200 kHz via the coax digital inputs. Toslink inputs are tested to
function up to 192 kHz sample rate, although due to limitations inherent in toslink transmission, a maximum of 174.6
kHz has proven to be more reliable. Both the USB input and I²S input will process signals up to 32 bits in length and
sample rates of up to 384 kHz PCM and DSD 256.
Each of the coax inputs are transformer coupled to isolate the source while maintaining proper loading. To ensure
that the lowest input signal level will satisfy the digital conversion engine, the signals also pass through TTL buffers to
maintain consistent signal integrity. To simplify input selection, the ESS chip is also used as the receiver chip and
performs all the signal selection and routing. Automatic signal up-sampling is done internally to keep output filtering
to a minimum, and is a crucial part of the jitter elimination. To ensure source immunity, the time domain jitter
elimination is executed as the signal enters the DAC chip by re-clocking to the desired rate selected by the ESS chip.
With an oversized toroidal transformer, more than 115,000uF of capacitance, 3 stages of filtering and 13 regulation
points, the power-supply in the DAC-2v2 series is incredibly robust. The analog output stages are powered by a
separate power-supply to ensure isolation from the digital front-end. House-keeping voltages also use separate
supplies to guarantee minimal supply contamination. The digital board is supplied with 7 out of the 13 dedicated
regulators to ensure tight tolerances and consistent power delivery.
5
© Wyred 4 Sound. All rights reserved. DAC-2v2 & DAC-2v2SE Manual v2
Another key component adding to the incredible sound quality of the DAC-2v2 series DACs is the proprietary
discrete output stages. Instead of choosing the simple path like many others, we took the “dirt road” and it paid off in
a big way in the form of transparency and naturalness of sound. The grain-free soundstage reproduction is the
product of our discrete dual-differential FET input amplifier stage which uses all Dale RN55d resistors for precise
control. Because of the dual differential circuits, the completely balanced signal offers balanced and unbalanced
outputs which both take advantage of common-mode rejection.
The New Reference: DAC-2v2SE
The DAC-2v2SE starts with the already incredible DAC-2v2 and substantially improves upon its design and sonics.
Key components throughout the entire audio circuit are upgraded—including utilizing the reference-level ESS Sabre
9038PRO chip—culminating in a reference-level DAC that rewards the listener with the most engaging and life-like
sonic experience possible.
Upgrades bestowed on the all-important power circuit include low-loss ultra fast Schottky diodes, premium
inductors, upgraded fuse, a series of custom low ESR capacitors and newly designed discrete regulators, which are
more than 100 times quieter and faster than stock.
The analog signal is significantly improved with custom-made naked Vishay Z-Foil resistors in 20 locations.
Compared to the stock Dale resistors which offer 1% tolerance and +/-100ppm/°C temperature coefficient, the new
resistors are 0.1% and +/-0.5ppm/°C respectively.
For the most accurately timed digital signal, we replace the standard clock with a Femto-grade clock—one of the best
available. The new clock optimizes audio quality by lowering phase jitter by over 80% as well as greatly reducing
phase noise in the digital circuit. This is crucial in obtaining the highest fidelity, distortion-free output.
Finally, we complete the 2v2SE package with a quieter, green OLED display, further distinguishing this model. The
result of such extensive labor and attention to detail is that the DAC-2v2SE is simply one of the best DACs on the
market today.
6
© Wyred 4 Sound. All rights reserved. DAC-2v2 & DAC-2v2SE Manual v2
Getting Connected
⚠
CAUTION: Disconnect the power cord or turn the rear switch off before making connections to the DAC. Doing so
will minimize any risk of equipment damage.
1. DC trigger in/out
For details on configuration and usage, see “Remote Control/DC Trigger” section.
2. Rear power switch
Turn the switch on to supply power the DAC, off to disconnect power.
3. Digital inputs
Toslink inputs are tested up to 24 bit/192 kHz, coaxial inputs can receive up to 200 kHz. The USB and I²S
inputs are capable of up to 32 bit/384 kHz PCM files as well as DSD 256.
4. AC input
Use supplied power cable or your own. Be sure to observe proper voltage and grounding.
5. Right analog outputs
Connect to the right input of your preamplifier or amplifier. XLR and RCA cables are acceptable.
6. HT Bypass inputs
The inner RCA jacks are HT Bypass inputs (not outputs). For details, see “Remote Control/DC Trigger” section.
7. Left analog outputs
Connect to the left input of your preamplifier or amplifier. XLR and RCA cables are acceptable.
7
© Wyred 4 Sound. All rights reserved. DAC-2v2 & DAC-2v2SE Manual v2

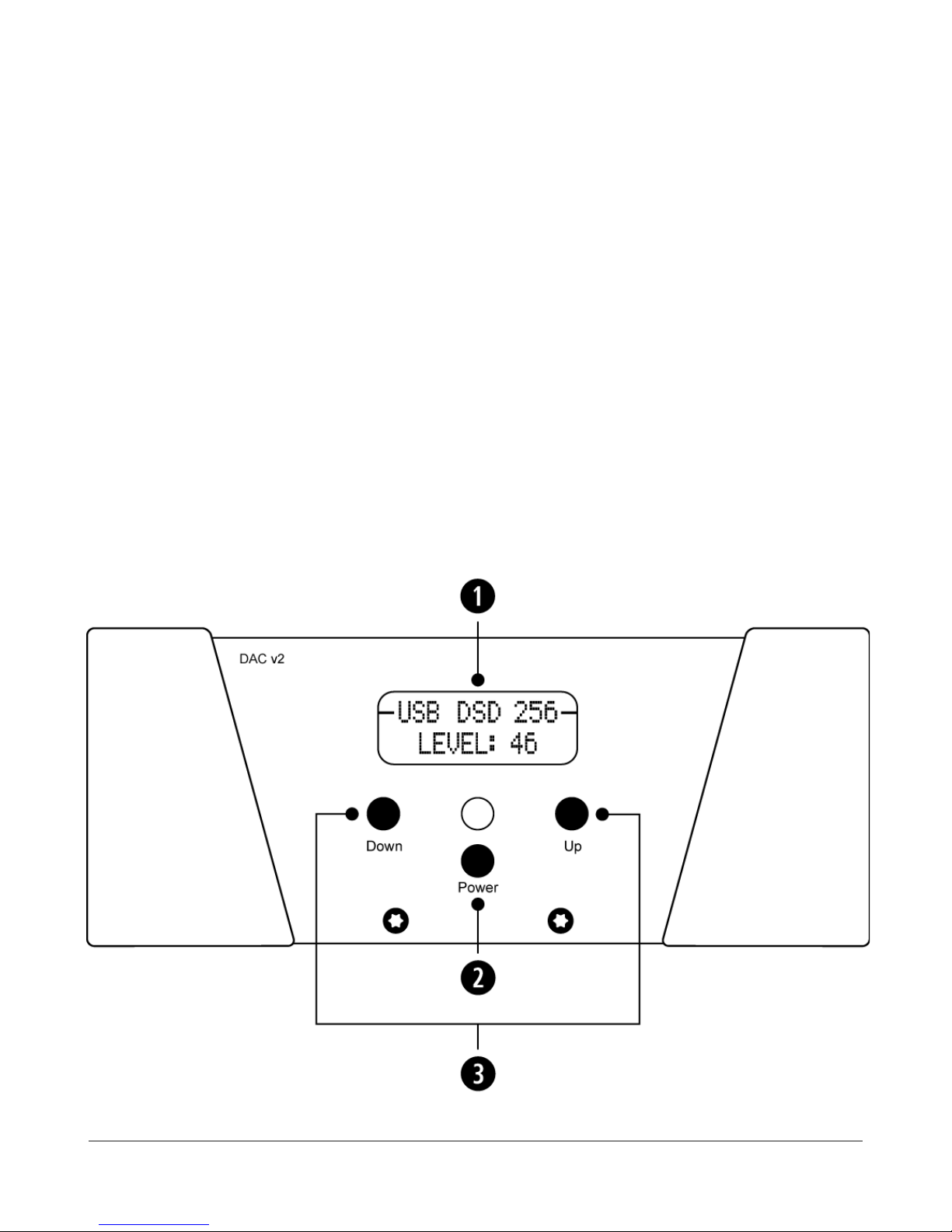

Front Panel Operation
The front panel of the DAC-2v2 series is a model of elegance, simplicity and efficiency. An LED display and three
simple buttons give the user a wealth of control and configuration options.
1. LED display
The two-line LED display will show input and file information on the top line and volume information on the
bottom line (either the volume level or the word “FIXED”). The active line is indicated with a “—” on each
side. When a sample rate is displayed, the DAC is receiving and locked onto that rate. “< ? >” indicates no or
lost signal. When in the Setup Menu, the display will show menu items and settings.
2. Power button
When the rear switch is on, the Power button turns the DAC on or puts it in low-power standby mode.
When the DAC is powered on, tapping the Power button will toggle between top and bottom lines on the
display. When in the Setup Menu, the Power button is used to select and confirm options. We strongly
recommend putting the DAC in standby mode when not in use. This prolongs the life of DAC and display.
3. Down and Up buttons
Depending on which line is active on the display, use the Down and Up buttons to switch inputs or change
volume level (if set to “VARIABLE” in the Setup Menu). While in the Setup Menu, use the Down and Up
buttons to toggle through menu options
8
© Wyred 4 Sound. All rights reserved. DAC-2v2 & DAC-2v2SE Manual v2
Powering Your DAC
When a power cord is connected to the AC input and the rear switch is turned on, the DAC is ready to be turned on.
Use the Power button on the front to turn the DAC on or put it into a low-power “standby” mode (display will be off).
Leaving the rear switch in the on position will keep power supplied to the DAC. Turning the rear switch off
disconnects all power.
Setup Menu
The extensive Setup Menu gives the user many options to configure your DAC. To enter the Setup Menu, ensure the
DAC is in standby mode (the rear switch is on but the DAC is not powered on with the front Power button).
1. Push and hold the Up and Down buttons and simultaneously push the Power button, then release all three.
The Setup Menu is now shown on the display (you will see the first menu item, “IIR BNDWITH”).
2. Once the menu is activated, you can use the Up and Down buttons to scroll through the menu.
3. When an item is displayed that you wish to adjust, press the Power button quickly (do not press and hold or
the unit may turn off) to enter that item and use the Up or Down arrows to scroll through item options.
When the desired option is displayed, press the Power button quickly again to save the selection and return
to the main menu.
4. When finished, press and hold the Power button while in the main menu. The unit will go back in standby
mode and your changes will be ready for use the next time the DAC is powered on.
Default Reset: Should you wish to reset all menu items to factory default settings, first power the unit off front panel
Power button. Next, push and hold the Up and Down buttons while pressing and holding the Power button. This is
similar to the procedure to enter the Setup Menu, except you will continue to hold all three buttons in for a few
seconds. You will then see “----RESET----” on the display, at which point you can release all buttons. Once the
screen goes blank, the reset has been applied and all settings are restored to their factory configuration.
Setup Menu Tables for DAC-2v2 and 2v2SE are on the following two pages.
9
© Wyred 4 Sound. All rights reserved. DAC-2v2 & DAC-2v2SE Manual v2
Setup Menu Table: DAC-2v2
Default settings are bolded and are our recommendation for most users, with the exception of input level which
should be set to Fixed if you use a separate preamplifier. The following menu table follows in order and assumes you
hit Up starting with IIR Bandwidth.
IIR Bandwidth
<50k / 50k / 60k / 70k
Filters
Slow rolloff, linear phase / Slow rolloff,
minimum phase / Fast rolloff, linear phase /
Fast rolloff, minimum phase / Apodizing fast
rolloff, linear phase / Hybrid fast rolloff,
minimum phase / Brickwall
I
2
S Type
I
2
S / Left justified / Right justified
Remote/Trigger
On-Off / Off-Off / On-On / Off-On
HT Display Dim Level
Off / Low / Medium / High
Coax Level
Variable / Fixed
Coax Minimum Level*
0-70
Coax Maximum Level
0- 70
Toslink Level
Variable / Fixed
Toslink Minimum Level*
0-70
Toslink Maximum Level
0- 70
USB Level
Variable / Fixed
USB Minimum Level*
0-70
USB Maximum Level
0- 70
AES/EBU Level
Variable / Fixed
AES/EBU Minimum Level*
0-70
AES/EBU Maximum Level
0- 70
I
2
S Level
Variable / Fixed
I
2
S Minimum Level*
0-70
I
2
S Maximum Level
0- 70
Discrete Input
On / Off
*Default Minimum Level is 5.
10
© Wyred 4 Sound. All rights reserved. DAC-2v2 & DAC-2v2SE Manual v2
Setup Menu Table: DAC-2v2SE
Default settings are bolded and are our recommendation for most users, with the exception of Volume which should
be set to Fixed if you use a separate preamplifier. The following menu table follows in order and assumes you hit Up
starting with IIR Bandwidth. The pages following further explain the Setup Menu items.
IIR Bandwidth
<50k / 50k / 60k / 70k
Filters
Slow rolloff, linear phase / Slow rolloff,
minimum phase / Fast rolloff, linear phase /
Fast rolloff, minimum phase / Apodizing fast
rolloff, linear phase / Hybrid fast rolloff,
minimum phase / Brickwall
I
2
S Type
I
2
S / Left justified / Right justified
Remote/Trigger
On-Off / Off-Off / On-On / Off-On
HT Display Dim Level
Off / High
Volume
Variable /Fixed
Coax Minimum Level*
0-70
Coax Maximum Level
0- 70
Toslink Minimum Level*
0-70
Toslink Maximum Level
0- 70
USB Minimum Level*
0-70
USB Maximum Level
0- 70
AES/EBU Minimum Level*
0-70
AES/EBU Maximum leLevelvel
0- 70
I
2
S Minimum Level*
0-70
I
2
S Maximum Level
0- 70
Discrete Input
Jitter Eliminator
Dim Delay**
On / Off
Disabled/Lowest/*/**/ *** /****/*****/******/
Highest
10-240 seconds
*Default Minimum Level is 5.
**Default Dim Delay is 40 seconds
11
© Wyred 4 Sound. All rights reserved. DAC-2v2 & DAC-2v2SE Manual v2
Setup Menu Option Details
Bandwidth/IIR Settings
The Bandwidth/IIR Setting more for personal taste and fine-tuning. The default setting is typically the best for most
users, however, feel free to adjust it according to your preference. PCM bandwidth selects the range of which the
DAC will filter the signal. Allowing higher bandwidths may introduce more information, but also more noise. IIR
stands for Infinite Impulse Response. Please note that these settings will likely not offer significant sonic differences
and might not be appreciated until the unit is fully “broken-in”.
Filters
Each filter curve subtly affects sonic signature and allows the user to fine-tune the overall rendition to individual
tastes. Default setting is what we prefer, but feel free to experiment with different options.
●Slow rolloff, linear phase
●Slow rolloff, minimum phase
●Fast rolloff, linear phase
●Fast rolloff, minimum phase
●Apodizing fast rolloff, linear phase
●Hybrid fast rolloff, minimum phase
●Brickwall
12
© Wyred 4 Sound. All rights reserved. DAC-2v2 & DAC-2v2SE Manual v2
I
2
S Type
The DAC-2v2 series is equipped with a balanced I
2
S connection via HDMI. The I
2
S Type setting adjusts the signal
timing alignment based on what you connect. It will be obvious if the this is set improperly (very distorted sound).
Please note, I
2
S is NOT a ‘typical’ A/V HDMI connection and is incompatible with DVD players, game consoles, TVs,
etc. The corresponding source must also be specifically I
2
S equipped.
Remote Control/DC Trigger
Your new DAC is equipped with a DC trigger output and input jack on the back panel. The Trigger input is on the top
and is used for the HT Bypass or Trigger-on feature. In the Setup Menu, you can select the trigger input to be
configured as a HT Bypass or Remote turn-on feature.
●HT (Home Theater) Bypass mode:
When the setting under “TRIG” is Off, then the HT Bypass on trigger input is active. To use the HT Bypass
feature, connect the pre-outs of your home theater receiver or surround sound processor to the HT Bypass
inputs on the DAC (be sure both DAC and receiver are off before doing so). When either the HT input is
selected on the remote control or the trigger input is activated, the HT Bypass inputs will activate and the
display will read “HT BYPASS”. Caution: be aware that the HT Bypass inputs is a line-level signal at full
volume. Be sure that your receiver or processor’s volume is turned down before playing any material.
●HT dim level:
When in the HT Bypass mode, different display dim settings can be set in the Setup Menu. When going back
to normal operation the pre-selected dim level will be restored, regardless of the HT dim level setting.
●Remote Trigger On mode:
When the setting under “TRIG” is On, the remote turn-on with trigger input is active. When the DC trigger
input is applied, the DAC will power up as if you pushed the Power button on the front panel. The last used
input will be selected upon power up. The trigger input signal needs to remain active for the unit to stay on.
Once the trigger falls low, the unit will return to the off state.
●Trigger output:
The lower trigger connector is used for a trigger output to remotely power up power amplifiers when the
DAC is on or in HT mode. Connect one 3.5mm DC trigger cable from the trigger output of your source to the
DAC trigger input to remotely activate the HT bypass or remote turn on feature (one or the other based on
the Setup Menu setting). Connect another 3.5mm cable from the trigger output of the DAC to the trigger
input on your power amps if supplied with one. This will remotely activate your power amps anytime the
DAC in operational even when in HT MODE.
●Remote:
When the setting under “REMOTE” is Off it will disable the remote. This can be beneficial when you are
operating the DAC with another Wyred component such as the STI or STP-SE in order to eliminate
interference between them. A setting of On leaves the remote control active.
Input Level (DAC-2v2) or Volume Level (DAC-2v2SE)
Choose Fixed or Variable for input/volume level. Fixed mode bypasses the internal DAC volume control, while
Variable mode engages it. Fixed mode should be used if you are connecting the DAC to a preamplifier, receiver, etc.
to use that component’s volume control. Choose Variable to use the DAC’s internal volume control for connecting
13
© Wyred 4 Sound. All rights reserved. DAC-2v2 & DAC-2v2SE Manual v2
directly to an amplifier. On the DAC-2v2, you can adjust this for each input type. On the DAC-2v2SE, the Volume
setting is global, affecting all inputs.
Minimum/Maximum Volume Level Settings
The Min/Max volume level settings can be set differently for each input type and allow you to tailor and optimize the
DAC’s output to your preamplifier (or amplifier if connecting directly). For many users, the default settings will work
best. However, with so many gain variables inherent in different systems, being able to raise the minimum output
level or lower the maximum one can be an invaluable feature.
The volume table for the DAC is 70 steps in size and offers different size steps depending on the location of the step.
When the minimum level for the corresponding input is set to 5, the maximum level will be 65. Essentially, the Min
level is the amount of steps skipped in the first position. When used, the Min amount is subtracted from the 70
possible steps total.If a system doesn’t have enough gain to utilize the bottom several steps, you can remove them
from the table by raising the Min setting to within the playback range of the system. Similarly, if you find the DAC
output level too high, you can adjust the Max level down to within your personal preferences. See the Output Level
Adjustment table on page 17 for volume level settings and the corresponding output voltages.
Example: With a less efficient system requiring a DAC volume level of 12 to hear anything, setting the Min level of 10
removes steps 1-10 which likely will be desirable. In this instance, the Max volume would then equal 60.The volume
table offers from 3db to 1dB steps as follows (refer to the end of this manual for a chart correlating volume level to
output voltage):
●0 = mute
●Steps 1-9 = 3dB
●Steps 10-24 = 2dB
●Steps 25-70 = 1dB
Discrete Input
Input selection with the standard remote is accomplished by scrolling up or down through all available inputs. While
our remote control does not have the option for direct input selection, many universal remotes can support that
feature. The Discrete Input Setting (on/off) enables or disables the direct input commands that can be received by
the DAC. The database for the Logitech universal remotes has these commands pre-loaded for your convenience.
Jitter Eliminator (DAC-2v2SE only)
This option sets the ‘window’ of digital signal tracking employed by the DAC chip. The lower the setting, the tighter
the window. Signals with higher jitter could be harder to track, which would result in brief signal dropouts. However,
at lower settings, the sonics may improve. If you are experiencing dropouts, try setting this option higher.
Dim Delay (DAC-2v2SE only)
Dim Delay is meant to provide optimum sound, reduce internal heat and preserve the OLED display on your new
DAC by turning off the display after a set period of time. Set the number of seconds the display will stay on until it
goes off. Note, every time you use the remote or front panel to change something, the display will come on and stay
on for the number of seconds this option is set to. If the display is off and you wish to check it, push the Power button
on the front of the DAC or the Dim button on the remote. The display will come on for the number of seconds set for
this option.
14
© Wyred 4 Sound. All rights reserved. DAC-2v2 & DAC-2v2SE Manual v2
Remote Control
The remote control supplied with the DAC-2v2 series offers you full functionality. Also, if you find the need to, you
can always program a universal remote to control the DAC as well (set the Discrete Input in the menu to “On”). For
your convenience we have uploaded the remote commands to the Logitech universal remote database.
Balance and display dim controls are exclusive to the remote control. Distances of up to 20 ft. or so shouldn’t be a
problem for the remote, but further distances might not behave properly. Note: The phase button is disabled and
non-functional.
USB Conguration
The USB interface of the DAC-2v2 is driverless for Mac and Linux, thus the DAC-2v2 series is ‘plug-n-play’ for those
operating systems. For Windows, the included driver disk has standard drivers as well as ASIO® drivers. All users
(Mac, Linux, PC) will need to configure the DAC as the output device for their computer. Please see step 6 below.
Windows Setup
When using the DAC with a Windows machine via USB you MUST install the drivers before connecting the DAC. Do
not connect the DAC with a USB cable until the drivers are completely installed. The included ASIO® drivers are not
required for audio playback but can be beneficial in some configurations. If you do choose to install the ASIO®
drivers, be sure to install them after the standard driver installation is complete. ( ASIO ® is a registered trademark of
Steinberg Media Technologies GmbH.)
1. Insert the included CD into the disk drive of your computer
2. Locate and open folder that shows the contents of the CD
3. Double click the correct Setup32 or Setup64 file to initiate the install.
4. Once the install process has begun, follow the on-screen instructions. The install wizard will prompt you
when the process is complete.
5. Connect the DAC to your computer with a USB cable, power the DAC on, and select the USB input. You may
be prompted by an install wizard that additional installation steps are required. Follow the on-screen
instructions. The install wizard will prompt you when the process is complete.
Selecting the DAC as the Audio Output Device
6. It is now necessary to select the Wyred 4 Sound USB interface as the default output device for your system.
The device name will vary depending on the operating system you are using.
a. MAC OS: 32bit 384kHz DSD Interface
Locate and open the Audio MIDI Setup: Go to Finder > Applications > Utilities > Audio MIDI Setup.
Select the W4S DAC as the default output device and apply the setting.
b. Windows: Digital Output / Wyred 4 Sound USB Driver 1.0.56
Locate the Audio output device (Manage Audio Devices) selection which is found in the control
panel located in the startup menu. You will need to set the default output device to the Wyred 4
Sound interface. This setting will be part of the OS and not the media player.
Please note: Additional output configuration and device selection may be required in your media player.
7. The last step is easy—enjoy your music!
15
© Wyred 4 Sound. All rights reserved. DAC-2v2 & DAC-2v2SE Manual v2
“Break-in” Period
Your new DAC will deliver outstanding performance brand new. However, over the course of playing it for the first
200 hours or so, the DAC will go through a “break-in” period as it reaches its ultimate sonic potential. This is a normal
phenomenon of high-end audio equipment and the before/after differences are readily audible. If you are hearing
bright, tight, light or dimensionally flat characteristics, those are symptoms of a product that is not quite broken in
yet. Patience will reward you! After the break-in period, your unit will be ready to perform as soon as it’s powered
on. If you have any questions on your DAC’s performance, contact your dealer or Wyred 4 Sound directly.
Troubleshooting
No sound? If you have your input source and speakers connected, and you can’t get music to play, check the
following:
1. Verify that the power cord is plugged in and that the outlet is powered up.
2. Check the front panel and make sure that the display lights up.
3. If the display is on and the DAC is locked onto a signal, increase the volume to a significant level to ensure
the level is high enough for music playback.
4. If you can hear the slight turn on and off noise when the DAC is activated, but there still isn’t any sound,
make sure you are getting a signal to it.
5. Verify that the input is selecting the proper input for what you have connected, and is displaying a sample
rate.
6. If the input is in the proper position and still no sound, then try replacing the interconnects to verify the
connection between the DAC and source.
7. Verify that the interconnects are conducting by replacing them on a different set from a connection that you
know works.
8. Now that you have interconnects that you know work, try connecting the DAC to another source that you
know has worked in the past.
Note: Because the DAC-2v2 is really an 8ch DAC inside, make sure that all sources (where applicable, ie: DVD
players, cable/satellite boxes) are programmed in their Setup Menu to output 2ch PCM or stereo digital signals. In
some cases, the DAC will actually try to decode multichannel formats, but will be unsuccessful because the DAC’s
outputs are tied together internally. If you hear loud switching noises, or no sound at all, this may be why.
Got Hum?
Is there hum or hiss coming out of your speakers? If you put your ear right next to the tweeter of your speaker, you
should barely be able to hear any hiss in normal conditions, depending on amps. If the noise is easily heard at a
distance, try putting your source on mute, or pause. If this eliminates the noise, it’s inherent in the source. If the
noise is still there when the preamplifier is muted, try disconnecting the inputs to the amplifier. If the noise is still
there when the amp inputs are disconnected, and the inputs are shorted with shorting plugs, then your amplifier may
need some servicing. If the noise is not there when the inputs are disconnected, try putting a cheater plug (ground
isolator) on one or all components in order to eliminate a ground loop issue. NOTE: We only recommend using a
ground isolator for troubleshooting purposes, and should be removed after the problem has been found. Having the
ground of any unit disconnected can potentially create a dangerous situation.
If you are still experiencing problems after checking all possibilities and using the resources provided please contact
your dealer or Wyred 4 Sound directly for further assistance.
16
© Wyred 4 Sound. All rights reserved. DAC-2v2 & DAC-2v2SE Manual v2
Specications
Typical Distortion THD+N (20-20kHz A-weighted @ Vol. 55)
<0.002% THD+N
Frequency Response
(20-20kHz)
± 0.065db
S/N Ratio
> 120 db
Crosstalk
> 125 db
Noise (A-weighted)
< 7uV
Noise
< 9uV
Balanced Output Level (Vol. 100%)
10.5V (20.1 db)
Unbalanced Output Level (Vol. 100%)
5.2V (14.5 db)
Output Impedance
DAC-2v2: 100Ω
DAC-2v2SE: 50Ω
Channel Tracking
< ± 0.50 db
Dimensions
8.5"W x 4.125"H x 13.5"D
Weight
14 lbs.
Output Level Adjustment
For lowering the output level with the Max Level setting, see the following chart for the desired level. Note: This table
assumes your Min level is set to 0.
Output type
Volume setting
RCA
70
RCA
67
RCA
61
XLR
70
XLR
67
XLR
65
XLR
64
XLR
Output voltage
4.1v
2.9v
1.4v
8.3v
5.9v
4.6v
4.1v
2.9v
61
17
© Wyred 4 Sound. All rights reserved. DAC-2v2 & DAC-2v2SE Manual v2
Warranty Coverage
Wyred 4 Sound, as defined below, warrants this Wyred 4 Sound-branded hardware product against defects in
materials and workmanship under normal use for a period of FIVE (5) YEARS from the date of retail purchase by the
original end user purchaser ("Warranty Period"). If the product has been transferred from the original owner to a
second hand owner it has a ONE (1) YEAR warranty, valid from the original date of purchase by the original owner.
Displays are warranted from a year of purchase. We strongly recommend dimming or turning off the display when
not in use. If a hardware defect arises and a valid claim is received within the Warranty Period, at its option, Wyred 4
Sound will either (1) repair the hardware defect at no charge, using new or refurbished replacement parts, or (2)
exchange the product with a product that is new or which has been manufactured from new or serviceable used
parts and is at least functionally equivalent to the original product. Wyred 4 Sound may option that you replace
defective parts with new or refurbished user-installable parts that Wyred 4 Sound provides in fulfillment of its
warranty obligation. A replacement product or part, including a user-installable part that has been installed in
accordance with instructions provided by Wyred 4 Sound, assumes the remaining warranty of the original product or
ninety (90) days from the date of replacement or repair, whichever provides longer coverage for you. When a
product or part is exchanged, any replacement item becomes your property and the replaced item becomes Wyred
4 Sound's property. Parts provided by Wyred 4 Sound in fulfillment of its warranty obligation must be used in
products for which warranty service is claimed. When a refund is given, the product for which the refund is provided
must be returned to Wyred 4 Sound and becomes Wyred 4 Sound's property.
EXCLUSIONS AND LIMITATIONS
Wyred 4 Sound does not warrant that the operation of the product will be uninterrupted or error-free. Wyred 4
Sound is not responsible for damage arising from failure to follow instructions relating to the product's use. This
warranty does not apply: (a) to damage caused by use with non-Wyred 4 Sound products; (b) to damage caused by
accident, abuse, misuse, flood, fire, earthquake or other external causes; (c) to damage caused by operating the
product outside the permitted or intended uses described by Wyred 4 Sound; (d) to damage caused by service
(including upgrades and expansions) performed by anyone who is not a representative of Wyred 4 Sound or a
Wyred 4 Sound Authorized Service Provider; (e) unauthorized removal of cover (f) to a product or part that has been
modified to significantly alter functionality or capability without the written permission of Wyred 4 Sound; (f) if any
Wyred 4 Sound serial number has been removed or defaced.
TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN
LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR WRITTEN, STATUTORY,
EXPRESS OR IMPLIED. AS PERMITTED BY APPLICABLE LAW, WYRED 4 SOUND SPECIFICALLY DISCLAIMS ANY AND
ALL STATUTORY OR IMPLIED WARRANTIES, INCLUDING, AND WITHOUT LIMITATION, WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND WARRANTIES AGAINST HIDDEN OR LATENT
DEFECTS. IF WYRED 4 SOUND CANNOT LAWFULLY DISCLAIM STATUTORY OR IMPLIED WARRANTIES THEN TO
THE EXTENT PERMITTED BY LAW, ALL SUCH WARRANTIES SHALL BE LIMITED IN DURATION TO THE DURATION
OF THIS EXPRESS WARRANTY AND TO REPAIR OR REPLACEMENT SERVICE AS DETERMINED BY WYRED 4 SOUND
IN ITS SOLE DISCRETION EXCEPT AS PROVIDED IN THIS WARRANTY AND TO THE EXTENT PERMITTED BY LAW,
WYRED 4 SOUND IS NOT RESPONSIBLE FOR DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES
RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION, OR UNDER ANY OTHER LEGAL THEORY,
INCLUDING BUT NOT LIMITED TO LOSS OF USE; LOSS OF REVENUE; LOSS OF ACTUAL OR ANTICIPATED PROFITS
(INCLUDING LOSS OF PROFITS ON CONTRACTS); LOSS OF THE USE OF MONEY; LOSS OF ANTICIPATED SAVINGS;
LOSS OF BUSINESS; LOSS OF OPPORTUNITY; LOSS OF GOODWILL; LOSS OF REPUTATION; LOSS OF, DAMAGE TO
OR CORRUPTION OF DATA; OR ANY INDIRECT OR CONSEQUENTIAL LOSS OR DAMAGE HOWSOEVER CAUSED
INCLUDING THE REPLACEMENT OF EQUIPMENT AND PROPERTY, ANY COSTS OF RECOVERING, PROGRAMMING,
18
© Wyred 4 Sound. All rights reserved. DAC-2v2 & DAC-2v2SE Manual v2
OR REPRODUCING ANY PROGRAM OR DATA STORED OR USED WITH WYRED 4 SOUND PRODUCTS AND ANY
FAILURE TO MAINTAIN THE CONFIDENTIALITY OF DATA STORED ON THE PRODUCT. THE FOREGOING LIMITATION
SHALL NOT APPLY TO DEATH OR PERSONAL INJURY CLAIMS. WYRED 4 SOUND DISCLAIMS ANY REPRESENTATION
THAT IT WILL BE ABLE TO REPAIR ANY PRODUCT UNDER THIS WARRANTY.
Obtaining Warranty Service
Please access and review the resources referred to in the documentation accompanying this hardware product
before requesting warranty service. If the product is still not functioning properly after making use of these resources,
please contact your Wyred 4 Sound representative. Wyred 4 Sound or its Wyred 4 Sound Authorized Service
Providers will provide warranty service on products that are tendered or presented for service during the Warranty
Period, as permitted by law. Wyred 4 Sound is not responsible for freight charges to our facility for warranty repairs.
We will cover return freight charges (domestic only) if the unit is found to be faulty and still within the warranty
coverage period. You will be responsible for delivery and return shipping and handling charges if the product cannot
be serviced in the country it is in. In accordance with applicable law, Wyred 4 Sound may require that you furnish
proof of purchase details and/or comply with registration requirements before receiving warranty service.
Service
In the event there is a problem with your Wyred 4 Sound component, first contact your dealer, distributor, or Wyred
4 Sound directly to discuss the issue before you return the component to our manufacturing facilities for repair.
Products shipped to the factory will be refused and returned freight collect if not accompanied by a Wyred 4 Sound
Service Department issued return authorization number (RA Number) .
Wyred 4 Sound
Phone: +1 (805) 466-9973
Email: [email protected]
Website: wyred4sound.com
Office hours: Mon - Thurs: 7am - 4:30pm. Fri: 7am - 11am, PST
Service procedure
1. Contact your dealer or Wyred 4 Sound to discuss the issue(s)
2. If repair is deemed necessary, fill out the online Service form at wyred4sound.com/support/service-request
3. After the form is received, Wyred 4 Sound Service Department will email you an RA number and
instructions.
4. Write the RA number on the outside box. Insure and accept all liability for loss or damage to the product
during shipment to the Wyred 4 Sound factory and ensure all freight (shipping) charges are prepaid.
The product may also be hand delivered to the California facility if arrangements with the Service Department have
been made in advance. Proof of purchase from an authorized Wyred 4 Sound dealer, distributor or agent will be
required for warranty validation at the time of hand delivery. Use of the original packaging to ensure the safe transit
of the product is strongly recommended. To purchase additional packaging if needed, please contact your authorized
Wyred 4 Sound dealer, distributor, or the Wyred 4 Sound Service Department for assistance.
Voltage changes to match your country’s voltage and frequency requirements to your Wyred 4 Sound product are
possible only at the time of purchase. The SX-1000R amplifier is set to a fixed voltage to match your country’s
requirements and may not be easily changed. Should voltage change be required, contact Wyred 4 Sound.
19
© Wyred 4 Sound. All rights reserved. DAC-2v2 & DAC-2v2SE Manual v2
4235 Traffic Way
Atascadero, CA 93422
USA
Ph: +1 (805) 466-9973
Fax: +1 (805) 462-8962
Website: wyred4sound.com
Email: [email protected]
Be sure to sign up for our newsletter to receive the latest news and updates!
See the “Wyred In” section in the footer of our website.
Follow us on Facebook: facebook.com/wyred4sound
Follow us on Twitter: twitter.com/Wyred4Sound
This manual suits for next models
1
Table of contents
Other Wyred 4 Sound Media Converter manuals
