Wyred 4 Sound
µDAC
Owner’s Manual
Wyred 4 Sound
4235 Traffic Way
Atascadero CA, 93422
©Wyred 4 Sound 2014
All rights reserved.
v1.2

Page 2of 11
Table of Contents
READ FIRST Important 2
Package Contents 2
Introduction 2
µDAC USB Configuration (MAC) 3-4
µDAC USB Configuration (PC) 4-6
µDAC S/PDIF Configuration 7
Troubleshooting 7
Warranty 8-9
Service 10

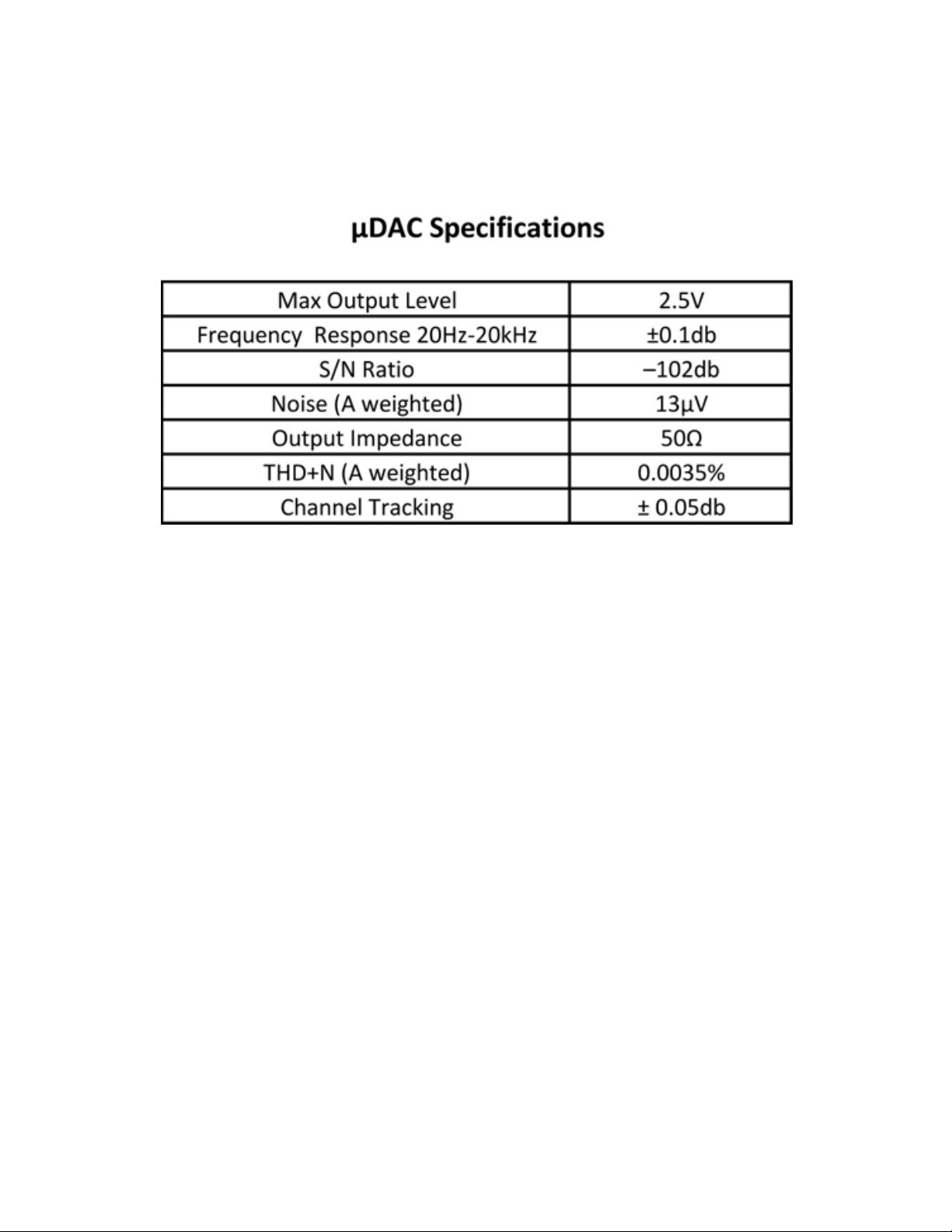

Specifications 11
Important
Please read the entire manual before connecting this product to any existing components or
power. This manual contains detailed information regarding the design, operation and features of the
Wyred 4 Sound µDAC. Damage due to misuse or improperly following instructions will not be covered
under warranty. See “Warranty” for an in depth understanding of the warranty restrictions regarding
this product.
Package Contents
●1 - Manual/Driver disk
●1 - USB Cable (Connecter type: A to B)
●1 - USB power adapter
●1 - Unit
Introduction
Thank you for purchasing your new piece of Wyred 4 Sound gear. This ultra-compact unit has a
variety of features that would be expected in a chassis well over double the size! There are two S/PDIF
inputs which support 24 bit 192 kHz signals as well as an asynchronous USB input for computer
streaming. Any of these inputs provide the kind of performance expected from a price tag many times
higher. From Internet radio to high resolution streaming this unit will not miss a beat. We have included
a ESS DAC to take full advantage of the limited real-estate in this 3.5”x3.5” chassis.
Not only does the µDAC perform well, its soft lines and smooth finish make for a sleek looking
product. Made from machined aircraft-grade aluminum with the W4S logo as a lock light (lights up blue
when the unit is locked onto a signal!), this unit is very functional yet so simple. This manual contains
details regarding the setup of this device in your system so please review it carefully.

Page 3of 11
µDAC USB Configuration (MAC)
When connecting to Mac computers the USB interface automatically installs the drivers into the
operating system. If you are using a PC, drivers are required for asynchronous operation and they are
located on this disk. Please refer to the section titled ”µDAC USB Configuration (PC)” for PC setup
instructions. If you are using a Mac please follow these directions.
(Please note: This USB device currently does not support Mac OS 10.5 or earlier)
1. Connect a USB cable from the µDAC to the computer with the computer powered on.
2. USB Power: Power up the µDAC by selecting “USB”on the POWER SELECT three position switch labeled
(DC-OFF-USB)
DC Power: Connect the power supply to the wall outlet and then the DC jack on the unit. Power up the
µDAC by selecting “DC”on the POWER SELECT three position switch labeled (DC-OFF-USB).
3. Select the “USB”input on the INPUT SELECT three position switch labeled (TOS-USB-COAX).
4. Connect the RCA outputs to your pre-amp, integrated amp, etc.
5. Once the installation has finished, you may be prompted that the µDAC has completed installation and is
ready to use.
6. It is now necessary to select the µDAC as the output device for your computer. Please locate the Audio
Midi setup by following this directory: Click On Finder----> Applications---> Utilities----> Audio Midi
setup.
Once you have reached the Midi setup you will need to select the “W4S 24/96 USB INTERFACE”as the
default output device and apply the setting. To apply the selection click on the device listed above,
followed by clicking the “gear” icon located at the bottom of the window which is previewed on the next
page.

Page 4of 11
When you click the gear icon a pop up window will be displayed, click on “Use this device for sound
output” to properly apply the setting.
7. Now you can open your preferred music playback program and find the preferences or options tab.
Once you locate the output device, make sure the “24/96 USB Audio Sound” interface is selected. It is
not necessary to select the µDAC as the output device in programs such as iTunes, Amarra or BitPerfect.
8. The last step is easy……Enjoy your music!
µDAC USB Configuration (PC)
Please follow these steps when connecting your new unit to a PC computer. Drivers are located
on this disk and are also available for download on the Wyred 4 Sound website. The drivers can be
accessed directly at this address (http://www.wyred4sound.com/downloads.html). The driver package
on our website is called “µDAC 24/96 Asynchronous Driver Package and manual”. Please refer to the
section above titled “µDAC USB Configuration (MAC)” if you will be connecting to a Mac computer.
1. Locate the file titled “PC” on this disk and double click “Wyred 4 Sound 24-96 Driver Install”.

Page 5of 11
2. Click “Setup Software” in the window that pops up.
3. Click “Next” to proceed with installation.
4. On the bottom of the new window, choose whether this should be installed for “Everyone” or “Just me”
and click “Next”. (Typically “Everyone” will be the appropriate choice. If you have multiple user profiles
on your computer and would prefer the driver to only be available when you are logged in, select “Just
me”)

Page 6of 11
5. Follow all prompts with-in the setup to continue the procedure. (Click “Next” two times) If you are
asked to continue with non-Windows “signed” driver, please click “continue installation”.
6. Once the installation has finished, you will be see a window called “RegSvr32”, please click “Ok”. The
installation has completed and the driver is ready to use. It will be necessary to restart the computer for
proper operation.
7. Restart the computer after clicking “OK”.
8. Once the computer has finished booting up connect a USB cable from the µDAC to the computer.
USB Power: Power up the µDAC by selecting “USB”on the POWER SELECT three position switch labeled
(DC-OFF-USB).
DC Power: Connect the power supply to the wall outlet and then the DC jack on the unit. Power up the
µDAC by selecting “DC”on the POWER SELECT three position switch labeled (DC-OFF-USB).
9. Select the “USB”input on the INPUT SELECT three position switch labeled (TOS-USB-COAX).
10. Connect the RCA outputs to your pre-amp, integrated amp, etc.
11. It is now necessary to select the unit as your default output device. Click “Start” at the bottom of your
screen and then “Control Panel”
12. Windows XP: Click on “Sounds and Audio Devices”
Windows Vista & 7: Click on “Hardware and Sound”
13. Windows XP: Click on the “Audio” tab and then the “Default device” drop down menu. Select “24/96
Async USB Audio Sound”.
Windows Vista & 7: Click on “Manage audio devices” and select “SPDIF OUT 24/96 Async USB Audio
Device”.
After selecting the µDAC as the output device it may be necessary to select the device in you preferred
media player. Please refer to the FAQ section of our website for a detailed J. River setup guide.
14. The last step is easy……Enjoy your music!

Page 7of 11
µDAC S/PDIF Configuration
If you will be using the S/PDIF inputs for the µDAC please follow these directions.
1. USB Power: Connect the USB cable to the USB power adapter and plug it into an outlet. Next plug the
USB cable into the µDAC and turn it on by selecting “USB”on the POWER SELECT three position switch
labeled (DC-OFF-USB).
DC Power: Connect the power supply to the wall outlet and then to the DC jack on the unit. Power up
the µDAC by selecting “DC”on the POWER SELECT three position switch labeled (DC-OFF-USB).
2. Connect your source to the toslink or coaxial input using the appropriate digital cable.
3. Connect the RCA outputs to your pre-amp, integrated amp, etc.
4. Select the appropriate input on the INPUT SELECT three position switch labeled (TOS-USB-COAX).
5. Enjoy!
Troubleshooting
No sound?
If you have your input source and speakers connected, and you can’t get music to play, check
the following. Feel free to test for output at any time during this process if you find and correct a
potential problem.
Always check the position of the volume control in your system before starting to play music. Damage
to any equipment due to the volume being set to high is not covered under warranty.
1. Verify that the INPUT SELECT and POWER SELECT switches are in the correct position.
2. Check that the unit is powered on and locked onto a signal. This is indicated by the logo being
illuminated on top of the unit.
3. If you are using the USB input please be sure that you have installed drivers if necessary and properly
selected the device for sound output. (See USB Configuration above)
4. Please be sure that the RCA interconnects are firmly plugged into the µDAC.
5. Verify that your source is in fact playing music. (Indicated by a track timer, or countdown, etc.)
6. Take moment to confirm that your pre-amp has the proper input selected and that the RCAs are plugged
firmly into that input.
7. Check the level of your pre-amp to be sure that the setting is sufficient for music to be audible in your
system.
8. If possible try testing the RCA interconnects in a known good system configuration.
If you are still experiencing problems and have exhausted your available resources and time please
contact the dealer/distributor that you purchased the product from for further assistance.

Page 8of 11
Warranty coverage
Wyred 4 Sound’s warranty obligations are limited to the terms set forth below:
Wyred 4 Sound, as defined below, warrants this Wyred 4 Sound-branded hardware product against
defects in materials and workmanship under normal use for a period of FIVE (5) YEARS from the date of retail
purchase by the original end user purchaser ("Warranty Period"). If the product has been transferred from the
original owner to a second hand owner it has a ONE (1) YEAR warranty, valid from the original date of purchase
by the original owner. If a hardware defect arises and a valid claim is received within the Warranty Period, at its
option, Wyred 4 Sound will either (1) repair the hardware defect at no charge, using new or refurbished
replacement parts, or (2) exchange the product with a product that is new or which has been manufactured from
new or serviceable used parts and is at least functionally equivalent to the original product. Wyred 4 Sound may
option that you replace defective parts with new or refurbished user-installable parts that Wyred 4 Sound provides
in fulfillment of its warranty obligation. A replacement product or part, including a user-installable part that has
been installed in accordance with instructions provided by Wyred 4 Sound, assumes the remaining warranty of the
original product or ninety (90) days from the date of replacement or repair, whichever provides longer coverage
for you. When a product or part is exchanged, any replacement item becomes your property and the replaced item
becomes Wyred 4 Sound's property. Parts provided by Wyred 4 Sound in fulfillment of its warranty obligation must
be used in products for which warranty service is claimed. When a refund is given, the product for which the
refund is provided must be returned to Wyred 4 Sound and becomes Wyred 4 Sound's property.
EXCLUSIONS AND LIMITATIONS
Wyred 4 Sound does not warrant that the operation of the product will be uninterrupted or error-free.
Wyred 4 Sound is not responsible for damage arising from failure to follow instructions relating to the product's
use. This warranty does not apply: (a) to damage caused by use with non-Wyred 4 Sound products; (b) to damage
caused by accident, abuse, misuse, flood, fire, earthquake or other external causes; (c) to damage caused by
operating the product outside the permitted or intended uses described by Wyred 4 Sound; (d) to damage caused
by service (including upgrades and expansions) performed by anyone who is not a representative of Wyred 4
Sound or a Wyred 4 Sound Authorized Service Provider; (e) to a product or part that has been modified to
significantly alter functionality or capability without the written permission of Wyred 4 Sound; (f) if any Wyred 4
Sound serial number has been removed or defaced.
TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE
AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR WRITTEN,
STATUTORY, EXPRESS OR IMPLIED. AS PERMITTED BY APPLICABLE LAW, WYRED 4 SOUND SPECIFICALLY DISCLAIMS
ANY AND ALL STATUTORY OR IMPLIED WARRANTIES, INCLUDING, AND WITHOUT LIMITATION, WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND WARRANTIES AGAINST HIDDEN OR LATENT
DEFECTS. IF WYRED 4 SOUND CANNOT LAWFULLY DISCLAIM STATUTORY OR IMPLIED WARRANTIES THEN TO THE
EXTENT PERMITTED BY LAW, ALL SUCH WARRANTIES SHALL BE LIMITED IN DURATION TO THE DURATION OF THIS
EXPRESS WARRANTY AND TO REPAIR OR REPLACEMENT SERVICE AS DETERMINED BY WYRED 4 SOUND IN ITS SOLE
DISCRETION EXCEPT AS PROVIDED IN THIS WARRANTY AND TO THE EXTENT PERMITTED BY LAW, WYRED 4 SOUND
IS NOT RESPONSIBLE FOR DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY
BREACH OF WARRANTY OR CONDITION, OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED TO
LOSS OF USE; LOSS OF REVENUE; LOSS OF ACTUAL OR ANTICIPATED PROFITS (INCLUDING LOSS OF PROFITS ON
CONTRACTS); LOSS OF THE USE OF MONEY; LOSS OF ANTICIPATED SAVINGS; LOSS OF BUSINESS; LOSS OF
OPPORTUNITY; LOSS OF GOODWILL; LOSS OF REPUTATION; LOSS OF, DAMAGE TO OR CORRUPTION OF DATA; OR
ANY INDIRECT OR CONSEQUENTIAL LOSS OR DAMAGE HOWSOEVER CAUSED INCLUDING THE REPLACEMENT OF
EQUIPMENT AND PROPERTY, ANY COSTS OF RECOVERING, PROGRAMMING, OR REPRODUCING ANY PROGRAM OR
DATA STORED OR USED WITH WYRED 4 SOUND PRODUCTS AND ANY FAILURE TO MAINTAIN THE
CONFIDENTIALITY OF DATA STORED ON THE PRODUCT. THE FOREGOING LIMITATION SHALL NOT APPLY TO DEATH
OR PERSONAL INJURY CLAIMS. WYRED 4 SOUND DISCLAIMS ANY REPRESENTATION THAT IT WILL BE ABLE TO
REPAIR ANY PRODUCT UNDER THIS WARRANTY.

Page 9of 11
Obtaining warranty service
Please access and review the resources referred to in the documentation accompanying
this hardware product before requesting warranty service. If the product is still not functioning
properly after making use of these resources, please contact the Wyred 4 Sound
representatives or, if applicable, a Wyred 4 Sound Authorized Service Provider/dealer using the
information provided on the Wyred 4 Sound website. A Wyred 4 Sound representative or
Wyred 4 Sound Authorized Service Provider will help determine whether your product requires
service, and if it does will inform you how Wyred 4 Sound will provide it. Wyred 4 Sound or its
Wyred 4 Sound Authorized Service Providers will provide warranty service on products that are
tendered or presented for service during the Warranty Period, as permitted by law. Wyred 4
Sound is not responsible for freight charges to our facility for warranty repairs. We will cover
return freight charges (domestic only) if the unit is found to be faulty and still within the
warranty coverage period. You will be responsible for delivery and return shipping and
handling charges if the product cannot be serviced in the country it is in. In accordance with
applicable law, Wyred 4 Sound may require that you furnish proof of purchase details and/or
comply with registration requirements before receiving warranty service. Please refer to the
Service page on the Wyred 4 Sound website. For more details on this and other matters on
obtaining warranty service contact your dealer. Recovery and reinstallation of system and
application software and user data are not covered under this Limited Warranty.

Page 10 of 11
Service
In the unlikely event there is a problem with your Wyred 4 Sound component, please
contact your dealer, distributor, or Wyred 4 Sound to discuss the problem before you return
the component to our manufacturing facility for repair. Products shipped to the factory will be
refused and returned freight collect if not accompanied by a Wyred 4 Sound Service
Department issued return authorization number (RA Number). Return authorization numbers
must be prominently displayed on the outside of the box and an accompanying letter
describing the problem and re-listing the RA number must be inside the box to qualify for
service.
To contact the Wyred 4 Sound Service Department:
Telephone: [phone]
Hours: M/TH 7:00 am to 4:30 pm; Friday 7:00am to 11:00am PST
Fax: [phone]
Email: [email protected]om
Website: www.wyred4sound.com
If you are located in the United States and purchased direct use the following procedure:
1. Fill out the Service form located on our website under the support tab.
2. If service is approved we will issue a Return Authorization Number (R/A number) from the
Wyred 4 Sound Service Department. Be sure to confirm the current shipping address.
3. Insure and accept all liability for loss or damage to the product during shipment to the W4S
facility and ensure all freight (shipping) charges are prepaid.
The product may also be hand delivered to the California facility if arrangements with the
Service Department have been made in advance. Proof of purchase from an authorized Wyred
4 Sound dealer, distributor or agent will be required for warranty validation at the time of hand
delivery. Use the original packaging to ensure the safe transit of the product to the factory,
dealer, or distributor. Wyred 4 Sound may, at its discretion, return a product in new packaging
and bill the owner for such packaging if the product received by Wyred 4 Sound was boxed in
nonstandard packaging or if the original packaging was so damaged to the point it was
unusable. If Wyred 4 Sound determines that new packaging is required, the owner will be
notified before the product is returned. To purchase additional packaging, please contact your
authorized Wyred 4 Sound dealer, distributor, or the Wyred 4 Sound Service Department for
assistance.
If you did not purchase the product directly from us and require service please contact your
dealer or distributors’ service department for information regarding service.
If you feel your authorized dealer or distributor is either unwilling or unable to service your
Wyred 4 Sound products, please contact our service department by emailing
[e-mail] or the above phone number to discuss and resolve the situation.

Page 11 of 11
Wyred 4 Sound
PH: 805-466-9973
Fx: 805-462-8962
Email: [e-mail]
