X-Vision XANB35 User manual

XTREME NIGHT VISION
BINOCULAR XANB35
USER MANUAL
X-X-Vision Optics | 5140 Moundview Dr. | Red Wing, MN 55066

Table of Contents
1. Package Contents
2. About the Binocular
3. Quick Start
⚫Install Batteries
⚫Insert a Micro SD Card (for photo and video
taking)
⚫Turn on the Binocular
⚫Adjust Screen Brightness
⚫Use Digital Zoom
⚫Take a Picture
⚫Take a Video
4. Display Information
5. Trouble Shooting
6. Appendix: Specifications
1
Third Edition, August 2020. Published by X-Vision Optics, Red Wing,
Minnesota © 2020 X-Vision Optics. All rights reserved.
X-Vision Optics | 5140 Moundview Dr. | Red Wing, MN 55066

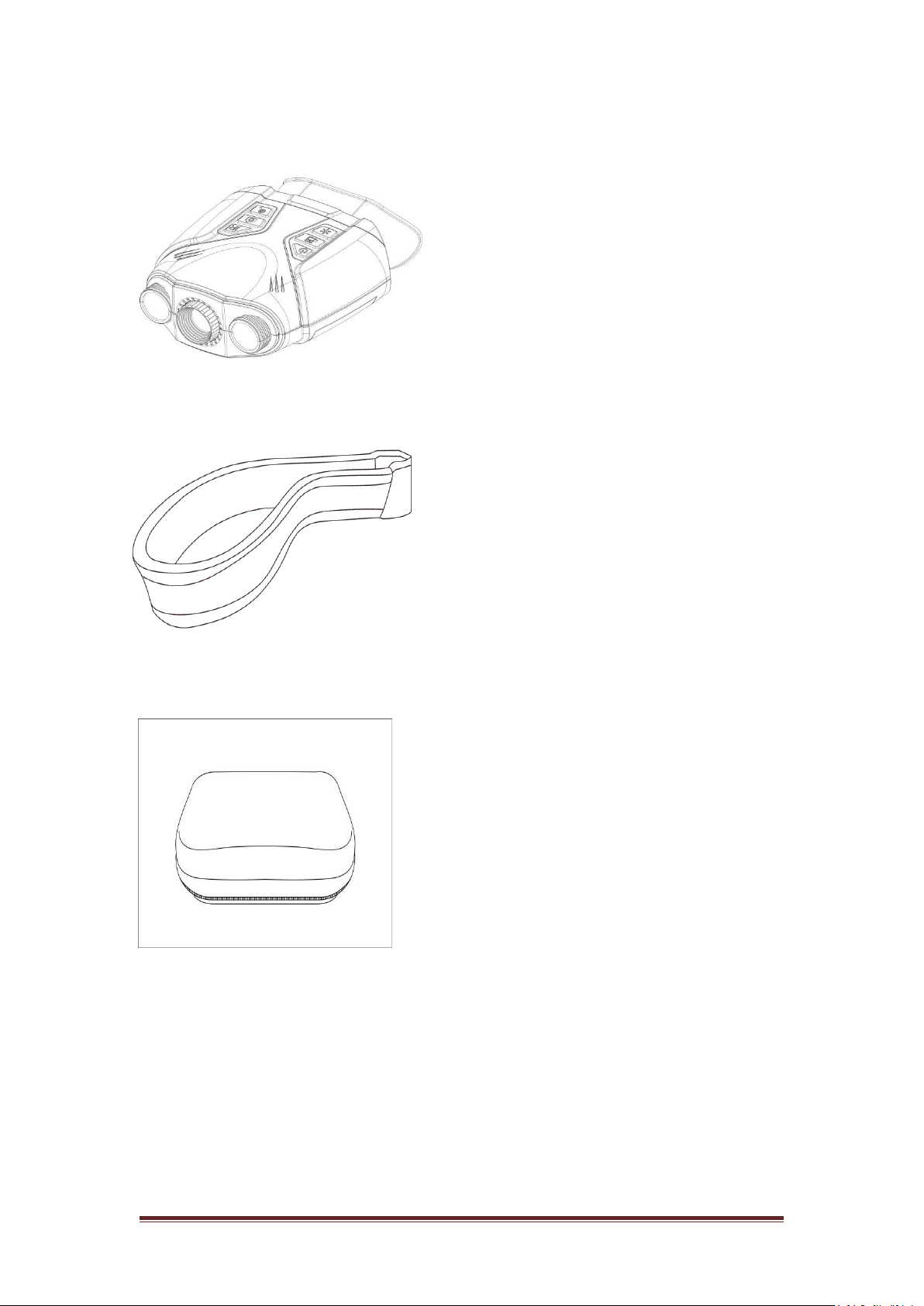

1. Package Contents
Binocular
Neck Strap
Protection Case
2020-8-24 Version 2

2. About the Binocular

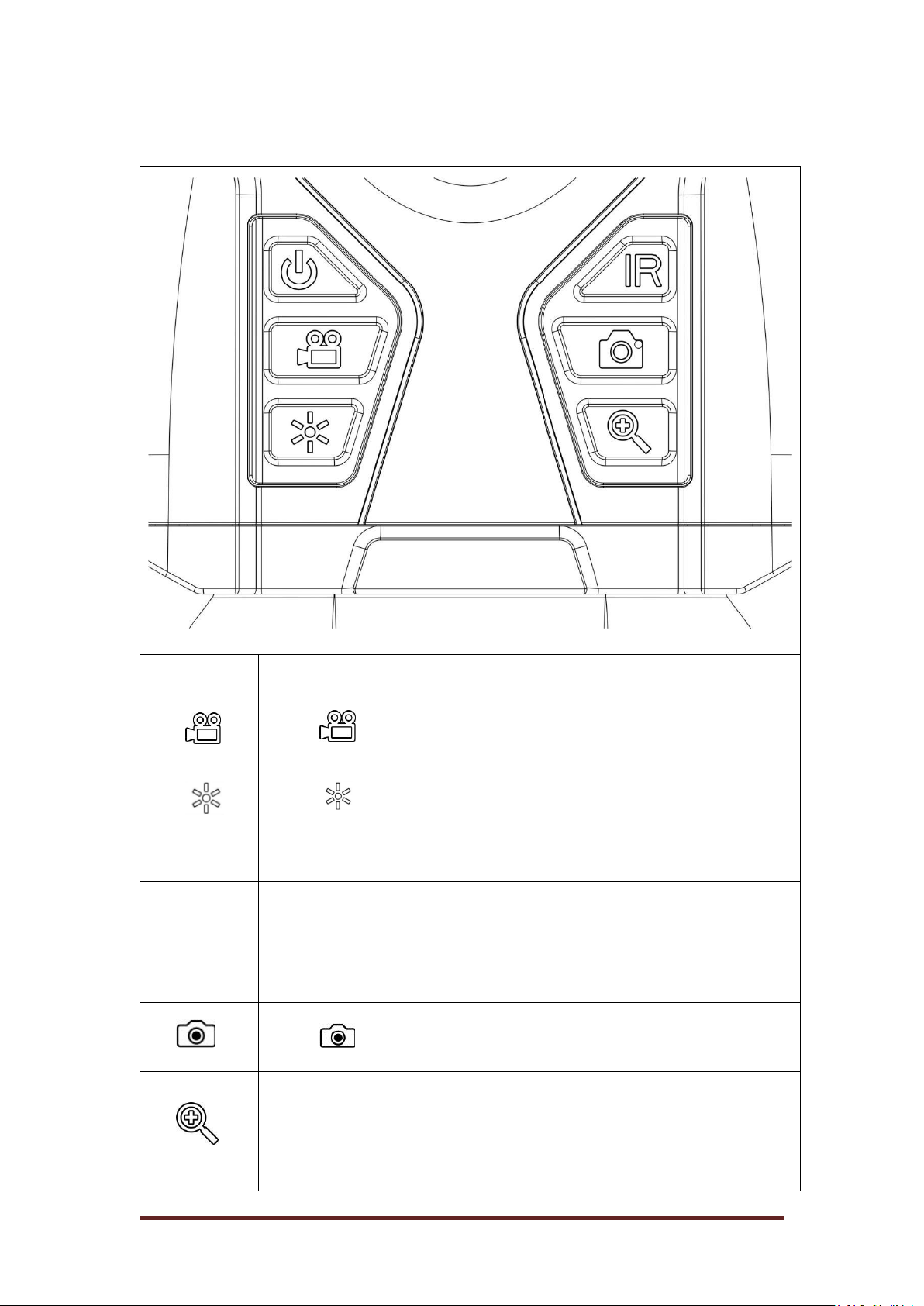

①Power Long press for power on and off.
②Press to take video.
③Press for 3 levels of screen brightness (1->2->3>1...)
First time power on, brightness is set as 1.
④IR Press IR for 4 levels of brightness.
(IR Off-> IR1->IR2->IR3->IR Off...) First time power on, IR is
set to IR2. Always make sure the IR is on for night time use.
⑤ Press to take photo.
②
①④
⑤
③⑥
⑥
Press zoom to zoom in at multiple levels: 3X, 4.5X and 6X.
Once reaching 6X, keep pressing zoom to go back to 3X.
2020-8-24 Version 3
2020-8-21 Version 4

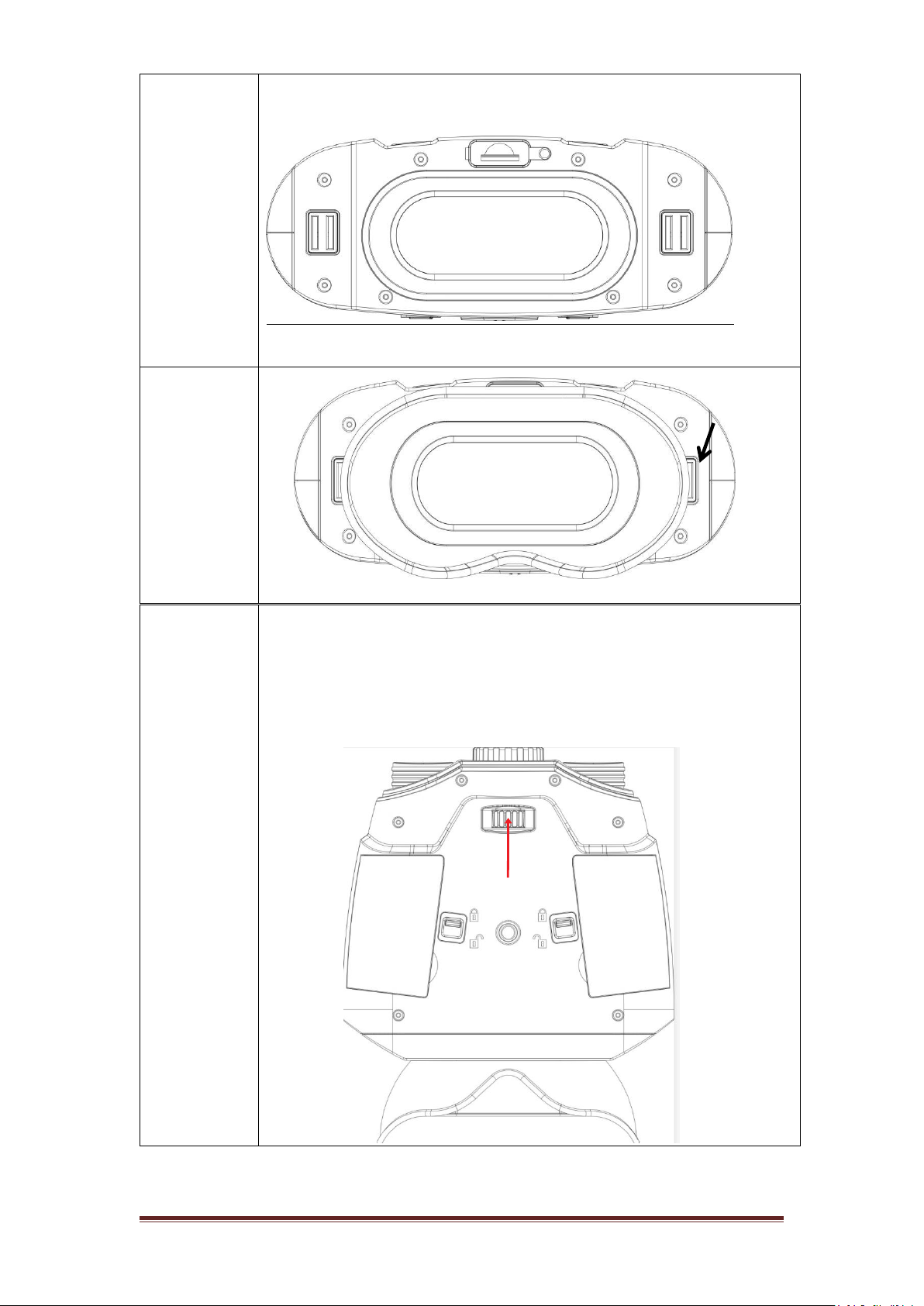

⑦Micro
SD Card
Slot
For Micro SD card insert (when the power is off)
⑧View Area
⑨Strap
Hook ⑧
⑨
⑦
⑩Focus
Wheel
⑪Battery
Compartment
⑫Tripod
Holder
HOW TO FOCUS
Turn Focus Wheel ⑩
11
○○
11
10
○
⑫
⑩
2020-8-24 Version 4

3. Quick Start

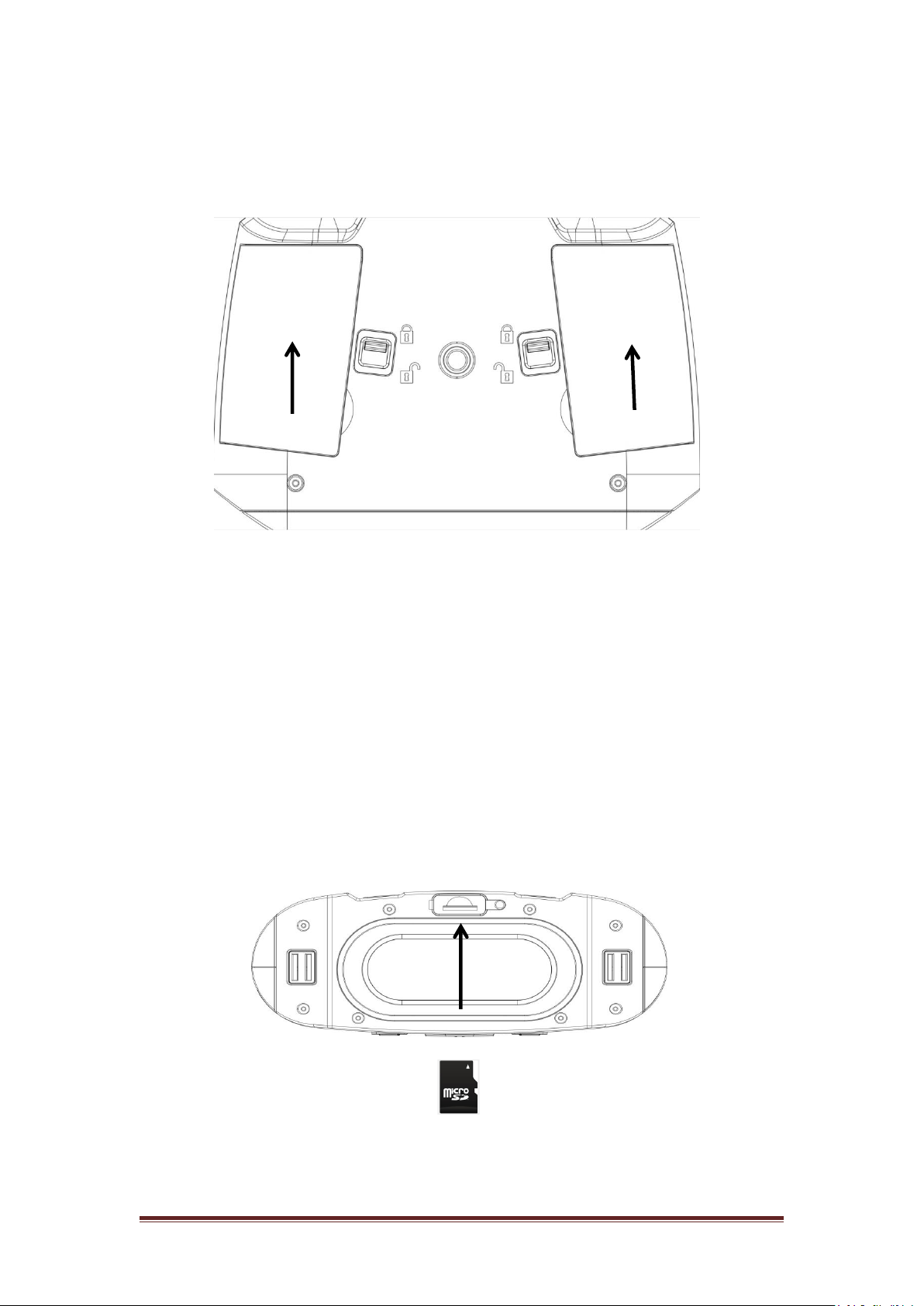

⚫Install Batteries:
(1) Open the covers.
(2) A total of 8pcs batteries are needed. Put in 4 AA Alkaline
batteries in each compartment in the directions of + and –.
(3) Close the battery compartments.
⚫Insert a Micro SD Card (for photo and video taking):
(1) First make sure the power is off.
(2) Then insert the card in the direction as shown below.
Push the card into the slot to lock it.
(3) To remove the card, push it in to release. When the card is
partially ejected, pull it out.
2020-8-24 Version 5

⚫Turning on the Binoculars:
(1) Long press the power button to turn on the binocular. Once
the power is on, look into the LCD screen inside for preview.
(2) Adjust the focus by turning the focus wheel at the front
bottom. See below arrow for “focus wheel”
(3) For daytime use, make sure the IR is off. For night use, turn
on the IR by pressing the IR button. Increase the brightness
by pressing the button repeatedly. It has 4 levels of
brightness (0ff->1->2->3->0ff…).
(4) Long press the Power button to shut down the Binocular.
(5) The binocular will save the setting from last use.
(6) This Binocular has an auto shut off feature. After 5 minutes
the Binocular will power off to conserve battery power.
⚫Adjust Screen Brightness:
Press the Screen Brightness button at multiple levels up to 3. Once
reaching 3, keep pressing to go back to 1.
⚫Use Digital Zoom:
Press zoom to zoom in at multiple levels: 3X, 4.5X and 6X. Once
reaching 6X, keep pressing zoom to go back to 3X.
⚫Taking a Picture:
(1) Turn on the Binocular.
(2) Adjust the focus by turning the focus wheel. (see “Turn on
the Binocular” section for details)
(3) If at night, adjust the brightness by pressing the IR
button. (see “Turn on the Binocular” section for details)
(4) Press to take pictures.
2020-8-24 Version 6

⚫Taking a Video:
(1) Turn on the Binocular.
(2) Adjust the focus by turning the Focus Wheel. (see “Turn on
the Binocular” section for details)
(3) If at night, adjust the brightness by pressing IR. (see “Turn
on the Binocular” section for details)
(4) Press to start video recording and press it again to
stop recording.
4. Display Information
LCD Screen
Battery Status
Indicating the zoom in levels,
up to 6X.
Indicating IR levels (OFF,1,2,3).
The higher the setting the further you can see.
Indicating backlight levels (1-3).
The higher the setting the
brighter the display.
2020-8-24 Version 7

00038
LCD Screen
Number of files
(including photos
and videos) taken.
SD Card installed and ready for
photos.
If is showing, power off
and then insert the SD card.
Battery Status
⚫Photo Mode:
Photo Mode: Ready to
take picture. Press
to take pictures.
00:45:00
LCD Screen
1
⚫Video Mode:
Video Mode: Ready to take
videos. Press to start video
recording and press it again to
stop recording.
Minutes of videos
taken.
SD Card installed and ready for
photos.
If is showing, power off
and then insert the SD card.
Battery Status
Screen Brightness (1-3):
This indicates the screen brightness.
00:45:00
2020-8-24 Version 8

5. Trouble Shooting
⚫Binocular Power Off:
If the binocular fails to activate, check for defective, missing or
improperly-installed batteries. Replace or install batteries correctly.
Please make sure to use Alkaline batteries.
⚫Poor Image:
✓If you wear glasses, please keep them on while using the binocular.
✓For day use, please make sure the IR is off. For night use, make sure
the IR is on.
✓Adjust the focus by slowly turning the Focus Wheel at the front
bottom of the binocular. Make sure it is focused.
⚫Why is “No SD Card” message showing on the screen while the
Micro SD card has been inserted?
✓Please turn off the power, insert the card, and check again.
✓If the issue persists, please check the Micro SD card. In some cases,
Micro SD cards may fail to be read due to compatibility issue. Try
inserting another Micro SD card.
2020-8-24 Version 9

6. Appendix: Specifications
Viewfinder
EVF mode
Aspect ratio
4:3
Aperture
F1.4 with adjustable aperture Day and Night dual
mode
Visual distance 300 yards at night, 500 yards at day
Object lens Focus Manually adjust
Visual angle 6.8° degrees
Luminance IR LED
External Memory 4GB to 32GB micro SD card
Power Supply Alkaline AA battery x 8
Power Life Up to 10 hours for day use, 6 hours for night use
Recording Yes,with Micro SD Card
Unit Size
15.9cm x 14.9cm x 6.8cm (approx.)
6.26” x 5.87”x 2.68” (approx.)
Net Weight 0.99 lbs
Colors Black (rubber spray)
Packing 8pcs/master
Accessories Neck strap, carrying case (Micro SD Card and
batteries not included)
Specifications are subject to change without prior notice.
Patented in EU, U.S.A., Taiwan and China
2020-8-24 Version 10
FOR CUSTOMER SERVICE CONTACT US AT:
Email: [email protected]
Phone: [phone]
