Xencelabs Medium Bundle User manual

Quick Start Guide

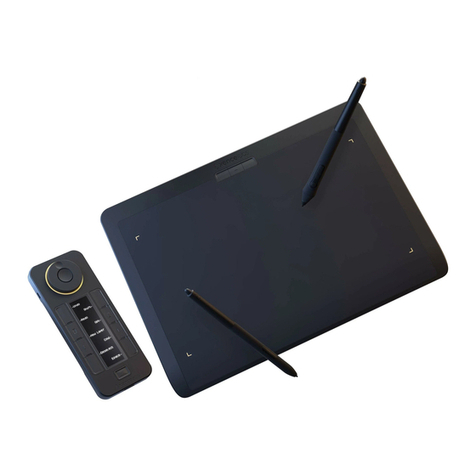

Xencelabs Pen Tablet Medium Bundle

Initial Setup Tablet Features Quick Keys Features Connect Wirelessly Device Charging Product Registration
What’s in the box
What’s in the Box
Xencelabs Pen Tablet Medium Bundle
If you have any questions or concerns,
please feel free to reach out at:
[e-mail]
Pen Tablet Medium
Quick Keys
L-Style USB-A to USB-C Cable
Xencelabs Decal
Tablet Sleeve
Pen Case
Thin Pen
3-Button Pen
Adapter – USB-A to USB-C
Wireless Dongle
Nibs (6 standard, 4 felt)
Nib Extractor
USB-A to USB-C Cable
Drawing Glove
* Warranty Sheet and
Thank-You Card (not shown)
1
2
3
4
5
6
7

What’s in the box Tablet Features Quick Keys Features Connect Wirelessly Device Charging Product RegistrationInitial Setup
Important Note: For the initial setup only, the
installation wizard requires a wired connection
to at least one of your Xencelabs devices.
Initial Setup
Xencelabs Pen Tablet Medium Bundle
1. Driver Download, Install, and Setup Video
https://youtu.be/WLi52ToFMLA
2. Download Drivers
To get the tablet’s full benets, we strongly recommend
you download and install the driver. The Quick Keys
requires driver installation, however, the tablet will only
have basic navigation functions without the driver.
Use the link below to access the Xencelabs downloads
page for the latest drivers for Windows, Mac and Linux.
xencelabs.com/support/download-drivers/
3. Install Drivers
After your download is complete, run the driver installer,
start the setup wizard, and begin using your new tablet.
Mac users should restart their computer after software
installation is complete for the Xenselabs driver to
function correctly.
Find quick answers to the most commonly
asked questions by checking on our online
FAQ Knowlege Base page:
xencelabsassist.freshdesk.com/en/support/solutions
2
1
3
4
5
6
7

Connection
indicator
Blinking Blue - Trying to Connect
Breathing Blue - Wired Connection
Solid Blue - Connected
Blinking Blue - Trying to Connect
Breathing Blue - Wired Connection
Solid Blue - Connected
Blinking Blue - Trying to Connect
Breathing Blue - Wired Connection
Solid Blue - Connected
What’s in the box Initial Setup Quick Keys Features Connect Wirelessly Device Charging Product RegistrationTablet Features
Tablet Features
Xencelabs Pen Tablet Medium Bundle
Security
Kensington NANO Security Slot
Charging Indicator
Solid green light indicates full charge,
breathing green light indicates
charging, solid amber light indicates
the device has a low charge.
Power Slide Switch
Slide and hold to turn on/off.
Adjustable sleep times are in the
settings panel.
Connection Indicator
Blinking blue light indicates
searching for connection, solid blue
light indicates successful wireless
connection and breathing blue light
when connected via USB cable.
Buttons
Three buttons at the top of the
tablet give access to commonly used
functions. All the buttons can be
easily re-assigned in the software
settings panel.
LED Active Area Markers
Active area brightness and color can
be changed in the settings panel.
Curved Palm Rest
Seamless transition from the drawing
area to the gently curved palm rest
for increased comfort.
Sculpted Returns
Allows for easy pickup.
Connection Indicator
Solid Blue – Connected
Breathing Blue – Wired Connection
Blinking Blue – Trying to Connect
3
1
2
4
5
6
7

Connection
Indicator
Blinking Blue - Trying to Connect
Breathing Blue - Wired Connection
Solid Blue - Connected
Blinking Blue - Trying to Connect
Breathing Blue - Wired Connection
Solid Blue - Connected
Blinking Blue - Trying to Connect
Breathing Blue - Wired Connection
Solid Blue - Connected
What’s in the box Initial Setup Tablet Features Connect Wirelessly Device Charging Product RegistrationQuick Keys Features
Quick Keys Features
Xencelabs Pen Tablet Medium Bundle
Connection Indicator
Solid Blue – Connected
Breathing Blue – Wired Connection
Blinking Blue – Trying to Connect
Security
Kensington NANO Security Slot
USB-C Port
Charge the battery and/or connect to
the computer.
Dial
Customize the dial with 8 dimmable
LED color ring options.
Dial Mode Button
Switch between up to 4 different
modes per application (ie. zoom,
brush size, etc).
Eight Shortcut Keys
5 customizable groups of 8 keys per
application for a total of 40 shortcuts.
You can disable sets if they are not
needed. For example, group your
workow activities into sets
(ie. sketching, coloring, editing).
Set Button
Controls the OLED display and
allows you to switch between up
to 5 shortcut groups.
Connection Indicator
Blinking blue light indicates
searching for connection, solid blue
light indicates successful wireless
connection and breathing blue light
when connected via USB cable.
Power Slide Switch
Slide and hold to turn on/off.
Adjustable sleep times are in the
settings panel.
Charging Indicator
Solid green light indicates full charge,
breathing green light indicates
charging, solid amber light indicates
the device has a low charge.
OLED Display
Displays shortcut key assignments.
4
1
2
3
5
6
7

Blinking Blue - Trying to Connect
Breathing Blue - Wired Connection
Solid Blue - Connected
Blinking Blue - Trying to Connect
Breathing Blue - Wired Connection
Solid Blue - Connected
Blinking Blue - Trying to Connect
Breathing Blue - Wired Connection
Solid Blue - Connected
What’s in the box Initial Setup Tablet Features Quick Keys Features Device Charging Product RegistrationConnect Wirelessly
Connection
Indicator
Connection
Indicator
If you have any questions or concerns,
please feel free to reach out at:
[e-mail]
Connection Indicator
Solid Blue – Connected
Breathing Blue – Wired Connection
Blinking Blue – Trying to Connect
You can connect the tablet wirelessly with the
provided dongle which establishes a wireless
connection between the dongle and the tablet.
Additionally, we have provided a USB-A to USB-C
adapter should you need it.
For added convenience, the single provided dongle
will connect both the tablet and the Quick Keys.
Connect Wirelessly
Xencelabs Pen Tablet Medium Bundle
5
1
2
3
4
6
7

Power Indicator
Power
Indicator
Wireless
Indicator
Solid Green - Charged
Breathing Green - Charging
Solid Amber - Low
Solid Green - Charged
Breathing Green - Charging
Solid Amber - Low
Solid Green - Charged
Breathing Green - Charging
Solid Amber - Low
What’s in the box Initial Setup Tablet Features Quick Keys Features Connect Wirelessly Product RegistrationDevice Charging
Device Charging
Xencelabs Pen Tablet Medium Bundle
To charge your tablet and/or Quick Keys connect
it to a powered-on computer, powered USB hub,
or other USB charger (5mAh required). To use
your devices over a wireless connection, make
sure they are suciently charged.
When fully charged, the tablet will give you
approximately 16 hours of continuous use and
the Quick Keys will give you up to 52 hours
continuous use. When critically low the LED lights
will turn amber, and a breathing green light
indicates charging. See driver settings panel for
charge status.
If you have any questions or concerns,
please feel free to reach out at:
[e-mail]
Charging Indicator
Solid Amber – Low Charge
Breathing Green – Charging
Solid Green – Fully Charged
6
1
2
3
4
5
7

What’s in the box Initial Setup Tablet Features Quick Keys Features Connect Wirelessly Device Charging Product Registration
Product Registration
Xencelabs Pen Tablet Medium Bundle
Register your New Product
Register to join the growing community
of creatives using Xencelabs products
and receive access to benets like:
• Update Notications
• Tips and Tricks
• New Product Announcements
• Special Promotions
• Xencelabs Events
Register Today at:
register.xencelabs.com
Product Support at:
support.xencelabs.com
7
Locate Your Serial Number
Your product serial number can
be found on both your box, and
the underside of your tablet.
1
2
3
4
5
6

Xencelabs Technologies Ltd.
202 E. Evergreen Blvd STE 100
Vancouver, WA 98660, USA
xencelabs.com
VERSION 2.0
