Xiaomi imilab EC4 User manual

IMILAB EC4
Spotlight Battery Camera Set
User Manual
Read this manual carefully before use,
and retain it for future reference.
EN DE ES FRIT RU HE PL

CONTENTS
English 01-18
19-36Deutsch
37-54Español
55-72Italiano
73-90Français
91-108
109-124
Pусский
125-141Polski
ע ִ בר ִ י ת

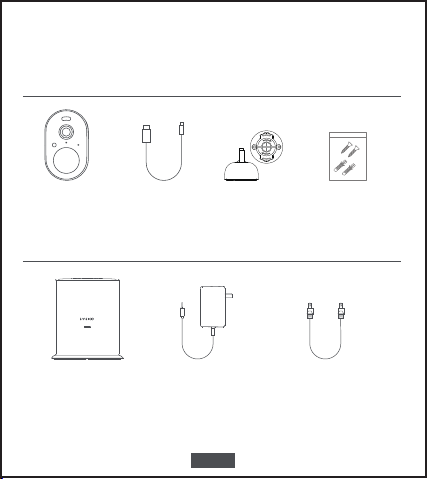

Getting started
1.Camera quantity and accessories vary by bundle package.
2.Hub power adapter varies by region.
For hub installation
IMILAB
Smart Hub
Power Adapter Ethernet Cable
IMILAB EC4 Micro-USB
Charging Cable
Mounting
Bracket
Mounting Screws
and Anchors
For camera installation
EN-01

Product overview

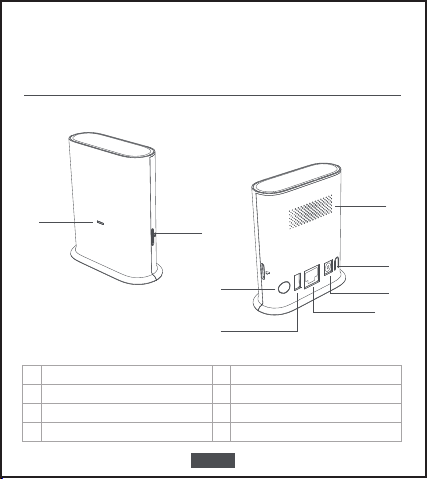

Hub
Alarm
USB
Power
Reset
Ethernet
1
1
2
3
4
5
6
7
8
2
3
4
Reset Button
5
Power Port
6
Ethernet Port
7
USB Charging Port
Alarm
8
EN-02
Status LED
MicroSD Card Slot
Speaker

Camera
1
2
5
6
3
4
7
8
9
10
EN-03
1
2
3
4
6
7
8
9Motion sensor
Status LED
Mounting hole
Speaker
SYNC Button
5 10Microphone USB Charging Port
Spotlight
Lens
Light sensor

Connecting the hub
1.Use the ethernet cable provided to connect the hub to your
home router.
2.Power on the hub.
3.The status LED indicator turns flashing orange then hub is
ready for setup.
SYNC
USB
Power
Reset
Ethernet
Status LED
EN-04

Setting up the system
Download the app and set up the system
1. Download the Imilab Home APP
from the app store (ios devices) or
google play (Android devices).
2. Sign up for a imilab home account , then follow the
onscreen instructions to complete the setup.
EN-05

7-10 ft
(2-3 m)
Up to 26 ft (8 m)
Camera field
of view Motion
Detection
Zone
Mounting the camera
Select height and location
1. Hang the camera 7-10 ft (2-3m) above the ground. This
height maximizes the detection range of the motion sensor
of the camera.
EN-06

Mount the camera
The camera can be mounted both indoors and outdoors.

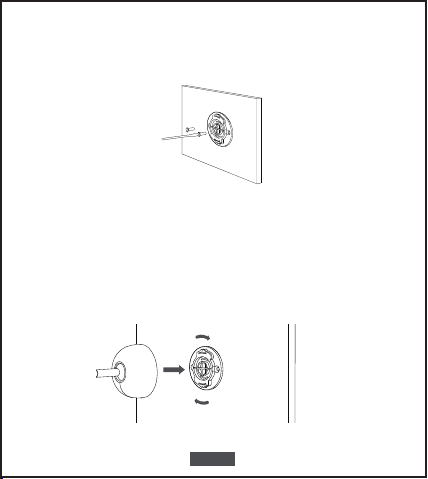

1. Drill two holes on the wall by using the base of the IMILAB
EC4 as a template. It is recommended that you mark the
locations of the hole with a pencil before drilling. The
diameter of each hole is approximately 6 mm, and the depth
is approximately 30mm.
2. Insert the anchors into the holes.
EN-07

4. Match the bottom groove of the camera mounting base
with the raised area on the base. Press down until the two
surfaces are flush, then turn it in either direction to lock it in
place.
EN-08
3. Firmly screw the base of the mounting bracket onto the wall.

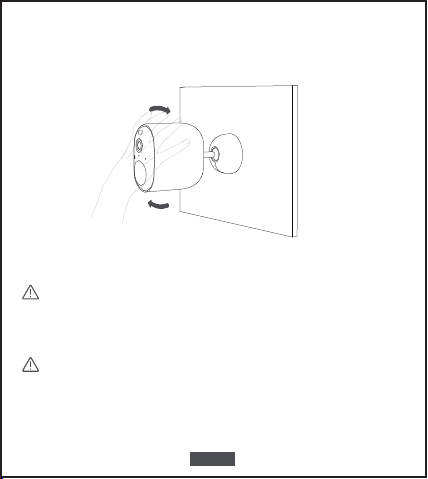

5. Tighten the camera to the mounting bracket and adjust the
viewing angle by checking the live stream feed in the app.
Warning:
To avoid any damages or injuries, the device must be
securely fastened to the Ceiling/wall as specified in the
installation instructions.
When mounting the security camera on a wall:
Please note that the wall must be able to support at least
triple the product's total weight.
EN-09

Method 1
Method 2
5V USB Charger
Charging the camera
SYNC
USB
Power
Reset
Ethernet
EN-10

EN-11
Explanations for LEDS
Hub LED Status
Blinking blue
Solid orange
Blinking orange
Blue and orange flashes
3 times alternately
Press and hold the reset
button for 5 seconds,
until the indicator light
changes to solid orange,
then release the button.
Blinking orange
During the reset process,
the hub will restart
Reset is successful and
you can start binding
Solid blue
Network connection is in progress
/ not connected
Network connection is successful
/ connected
Waiting for connection
/ device and app binding in progress
The hub is booting up
/ Reset successfully
/ A firmware update is in progress
Firmware update failed
Status

EN-12
Power on/off
You will hear the power-on music
you will hear the power-off music
Press and hold the sync
button for 2 seconds until the
blue light becomes to solid
Press and hold the sync
button for 15 seconds until
the LED blinks red
Press and hold the sync button
for 8 seconds until the LED
blinks blue, release the button
Use USB to charge the camera,
Red blinks three times
Solid green
Blinking blue
Solid blue
(turn off after 5 seconds)
Blue and orange blinks 3 times
alternately
Starts charging
Fully charged
Start resetting
(The camera will reboot during
the reset process)
Reset successfully
Pairing Successful
Pairing Failed
Camera
charging
Camera
reset
Camera LED Status Status
Orange blinks once PIR detects motion
PIR continues to detect motionOrange blinks continuously
PIR
detection
sensitivity
adjustment

Specifications
Safety statement
Name: IMILAB EC4
Model: CMSXJ31A
Resolution: 2560x1440
Aperture: F1.6
Power Input: 5 V 2 A
Item Dimensions: 82 x 86.8 x 50 mm
Operating Temperature: -20 °C ~ 50 °C
FCC ID：2APA9-CMSXJ31A
Name: IMILAB Smart Hub
Model: CMWG31B
Power Input: 12 V 1.5 A
Item Dimensions: 89.2 x 38 x 101.3 mm
Operating Temperature: -10 °C ~ 45 °C
Expandable Memory: MicroSD card (up to 64 GB)
Wireless Connectivity: Wi-Fi IEEE 802.11 b/g/n 2.4 GHz
Wired Connection: A 10/100M Self-adaptive ethernet interface
FCC ID：2APA9-CMWG31B
EN-13

The suitable operationg temperature range for this product
is between -20℃~50℃. Don't use the product in an
environment with temperatures above or below the
specified range.
When charging, the operating tempreture range for this
product is between 0°C~ 45°C. Don't charge the product in
an environment with temperatures above or below the
specified range.
Using the product in a low tempreture environment or
charging status will affect its standby time. The actual
standby time is related to the user's environment and habbit.
To improve the product's performance, please do not place
the camera lens facing or next to a reflective surface, such as
glass windows/doors and white walls, which will cause the
image to appear overly bright inareas close to the camera
and darker in areas further away, or cause the camera to
produce white images.
Please install the product in areas with Wi-Fi reception, and
try to place the device where the Wi-Fi signal is strong. In
addition, please keep the security camera away from metal
structures, microwave ovens, or other locations where signal
strength may be impacted.
Don't replace the battery in camera yourself—if not properly
replaced, there is a danger of explosion.
Precautions
EN-14

EN-15
Battery (battery pack or batteries) must not be exposed to
sunlight, fire, or similar overheating conditions.
This product is a low power consumption camera with
battery built-in. Don't use Real-Time Monitoring feature for
long time when charging, in order to avoid battery life loss.
Do not use the device in the environment at too high or too
low temperature, never expose the device under strong
sunshine or too wet enviroment.

FCC Statement
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment. This device complies with Part 15 of
the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and
can radiate radio frequency energy, and if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or
more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
EN-16

All products bearing this symbol are waste electrical
and electronic equipment (WEEE as in directive 2012/
19/EU) which should not be mixed with unsorted
household waste. Instead, you should protect human
health and the environment by handing over your waste equi
pment to a designated collection point for the recycling of
waste electrical and electronic equipment, appointed by the
government or local authorities. Correct disposal and recycling
will help prevent potential negative consequences to the
environment and human health. Please contact the installer
WEEE Information
-Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for
help.
FCC 20cm Statement: This equipment complies with FCC
radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and
operated with a minimum distance of 20cm between the
radiator & your body. This transmitter must not be co-located
or operating in conjunction with any other antenna or
transmitter.
EN-17

Hereby, Shanghai Imilab Technology Co., Ltd. declares that
the radio equipment type IMILAB EC4 is in compliance with
Directive 2014/53/EU.
Hereby, Shanghai Imilab Technology Co., Ltd. declares that
the radio equipment type IMILAB Smart Hub is in compliance
with Directive 2014/53/EU.
EU Declaration of Conformity
EN-18
or local authorities for more information about the location
as well as terms and conditions of such collection points.
