Xiaomi Mi Outdoor Camera CW300 User manual

Xiaomi Outdoor Camera CW300 User Manual

01
A
B C-1
C-2
1
3
1
2
4
5
6
8
9
7
6
2
7
3
8
4
9
5
10

02
D-1
D-3
D-5
E-3
E-1
E-2
D-2
D-4
E-1-1
E-2-2 E-2-4
E-2-1
E-2-3
>50 cm

03
○The operating temperature range for this camera is -30°C to 60°C. Do not use this camera
in environments with temperatures above or below the specified operating range.
○This camera is a precision electronic product that has an IP66 dust-tight and water-resistant
rating. To ensure normal use, do not use the camera in extremely humid environments
or locations that may cause water ingress.
○The power adapter that comes along with this product is not waterproof and is only for indoor
use. Do not use the power adapter in extremely humid environments or locations that may
cause water ingress. The operating temperature range for the power adapter is -30°C to 45°C.
Do not use the camera in environments with temperatures above or below the specified range.
○To improve the camera's performance, do not place it where its lens faces or is next to
a reflective surface, such as glass windows or white walls, as this will cause the image to
appear overly bright in areas close to the camera and darker in areas further away, or cause the
camera to produce white images.
○When using Wi-Fi, make sure the camera is installed in an area with a strong Wi-Fi signal.
Do not install the camera near microwave ovens and other objects or places that may affect its
Wi-Fi signal.
○When enabling or disabling the night vision of the camera, the infrared cut-off filter will be
switched and a slight clicking sound will be made, which is normal.
○If the power cable gets damaged, please contact the after-sales service team for replacement.
Read this manual carefully before use, and retain it for future reference.
Precautions

04
Product Overview
Installing a microSD card
Make sure the camera is unplugged. Remove the waterproof cover from over the microSD card
slot and insert a microSD card with its contact side facing up. (Fig. C-1)
CAUTION: Unplug the camera when inserting or removing the microSD card. Please use
a microSD card from a qualified brand (the camera supports a microSD card with a maximum
capacity of 256 GB and the FAT32 format only, and a microSD card with a capacity of 64 GB
and above may need to be formatted to the FAT32 format before use via Settings > Manage
storage on the camera’s plug-in page in the Mi Home/Xiaomi Home app). It is recommended
that the microSD card has a read/write speed of no less than U1/Class 10.

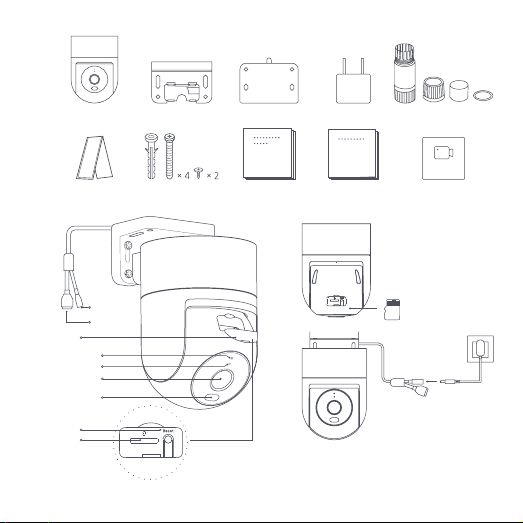

Package Contents (Fig. A) Camera (Fig. B)
1. Power Port
2. Network Cable Port
3. Indicator
4. Microphone
5. Lens
6. Spotlight
7. Waterproof Cover
8. Reset Button
9. MicroSD Card Slot
1. Xiaomi Outdoor Camera CW300
2. Wall Mount
3. Mounting Template Sticker
4. Power Adapter
5. Waterproof Network Port
Accessories
6. Waterproof Tape
7. Mounting Screws
8. User Manual
9. Warranty Notice
10. Attention Sticker
How to Use
Note: Illustrations of product, accessories, and user interface in the user manual are for
reference purposes only. Actual product and functions may vary due to product enhancements.

0 5
Note: After inserting or removing the microSD card, make sure to reinstall the waterproof
cover over the card slot to prevent water from entering the camera and affecting normal use.
Turning on
Plug the power adapter cable into the power port on the camera, and the camera will
automatically turn on. (Fig. C-2)
When the indicator keeps in orange and a voice notification is heard, the camera is successfully
turned on.
Note: Please make sure to use the original power adapter cable provided to charge the camera to
avoid the camera not working properly. When the camera is turned on, do not turn the lens of the
camera nor force it to rotate. If the positioning of the lens is inaccurate, please calibrate it in the
Mi Home/Xiaomi Home app.
Indicator Status
Orange: Awaiting connection/Reset successfully
Blinking orange: Connecting to a network…
Blinking blue: Connecting to a server/OTA update in progress…
Blue: Connected successfully/Working normally
Connecting with the Mi Home/Xiaomi Home App
This product works with the Mi Home/Xiaomi Home app*. Use the Mi Home/Xiaomi Home
app to control your device, and to interact with other smart home devices. Scan the QR code
to download and install the app. You will be directed to the connection setup page if the app
is installed already. Or search for "Mi Home/Xiaomi Home" in the app store to download and
install it. Open the Mi Home/Xiaomi Home app, tap "+" on the upper right, and then follow the
instructions to add your device.

06
Notes: The version of the app might have been updated, please follow the
instructions based on the current app version. When connecting, make sure
the network connection is stable, the camera is turned on, and the indicator
remains orange. Once connected, the indicator will change to blue.
* The app is referred to as Xiaomi Home app in Europe (except for Russia).
The name of the app displayed on your device should be taken as the default.
Reset
Press and hold the reset button for about 7 seconds if changing the network or the Xiaomi
account connected to the camera. A voice notification will be heard once the reset is completed.
Note: Resetting the camera will not delete any data on the microSD card.
Installation
1. Stick the mounting template sticker in the correct position on the wall, making sure the right
side of the sticker is over 50 cm from the corner of the wall. Drill holes in the wall that align with
the holes on the sticker, with a diameter of about 6 mm and a depth of about 35 mm. (Fig. D-1)
2. Insert the plastic wall plugs into the drilled holes. (Fig. D-2)
3. Wall-mounted installation: Attach the wall mount to the wall by inserting the screws into the
holes and screwing them into the wall plugs. If the power cable is being installed upward, it
should pass through the groove in the wall mount first before the wall mount is screwed onto the
wall. (Fig. D-3)
4. Ceiling installation: Turn the base of the camera upward, line it up with the clip on the
mounting bracket, and tighten the screw on the right side. (Fig. D-4)
5. Once the camera is secured in place, wrap the waterproof tape around the power port to avoid
water ingress. (Fig. D-5)
10F1A6C2

07
CAUTIONS:
○The wall must be able to support at least three times the total weight of the camera.
○To prevent possible injury, the camera must be securely fixed to the wall according to the
installation instructions.
○Do not install near a heat source, such as an outdoor air conditioning unit, range hood outlet, or
gas water heater outlet.
Installing the waterproof network port accessories
E-1-1. Sealing Ring
E-2-1. Network Cable
E-2-2. Waterproof Sleeve
E-2-3. Stopper
E-2-4. Waterproof Rear
Cover
The waterproof network port accessories include: sealing ring, waterproof sleeve, stopper,
and waterproof rear cover. Once installed, the network port’s waterproof performance will be
improved. Place the sealing ring on the camera's network port (Fig. E-1). Thread the waterproof
rear cover, stopper, and waterproof sleeve over the network cable in order (Fig. E-2), then plug the
network cable into the port. Screw together the waterproof sleeve and sealing ring, then screw
together the waterproof rear cover and waterproof sleeve (Fig. E-3).
When network cable is not used, please still install the waterproof network port accessories.
Please use a shielded network cable.
Specifications
Model: MBC21
Video Codec: H.265
Rated Input: 12V=1A
Net Weight: 487 g
Resolution: 2560 × 1440
Name: Xiaomi Outdoor Camera CW300
Item Dimensions: 168 × 100 × 123 mm
Night Vision Light: 850 nm infrared light × 2, white light × 2
Wireless Connectivity: Wi-Fi IEEE 802.11 b/g/n 2.4 GHz
Wi-Fi Operation Frequency: 2412–2472 MHz
Wi-Fi Maximum Output Power: <20 dBm
Storage: MicroSD card (8 GB–256 GB supported)/Cloud
storage Operating Temperature: -30°C to 60°C

08
WEEE Information
All products bearing this symbol are waste electrical and electronic equipment
(WEEE as in directive 2012/19/EU) which should not be mixed with unsorted
household waste. Instead, you should protect human health and the environment
by handing over your waste equipment to a designated collection point for
the recycling of waste electrical and electronic equipment, appointed by the
government or local authorities. Correct disposal and recycling will help prevent
potential negative consequences to the environment and human health. Please
contact the installer or local authorities for more information about the location as
well as terms and conditions of such collection points.
EU Declaration of Conformity
Hereby, Shanghai Moshon Technology Co., Ltd. declares that the radio equipment
type Xiaomi Outdoor Camera CW300 (product name) MBC21 (model) is in
compliance with Directive 2014/53/EU. The full text of the EU declaration of
conformity is available at the following internet address: http://www.mi.com/
global/service/support/declaration.html
Under normal use of condition, this equipment should be kept a separation distance of at least
20 cm between the antenna and the body of the user.
CAUTION: Possibly hazardous optical radiation emitted from this product.
Do not stare at operating lamp. May be harmful to the eyes.
Note: The power adapter is not waterproof and is only for indoor use. Do not use it in
extremely humid environments or locations that may cause water ingress.

09
Manufactured for: Xiaomi Communications Co., Ltd.
Manufactured by: Shanghai Moshon Technology Co., Ltd.
(a Mi Ecosystem company)
Address: No. 668 Shenzhuan Road, Songjiang Hi-Tech
Park, Caohejing Development Zone, Shanghai, China
For further information, please go to www.mi.com
User Manual Version: V1.0
