Xiaomi Redmi Buds 3 Lite User manual

Redmi Buds 3 Lite
User Manual • Uživatelský manuál •
Užívateľský manuál • Használati utasítás •
Benutzerhandbuch

2

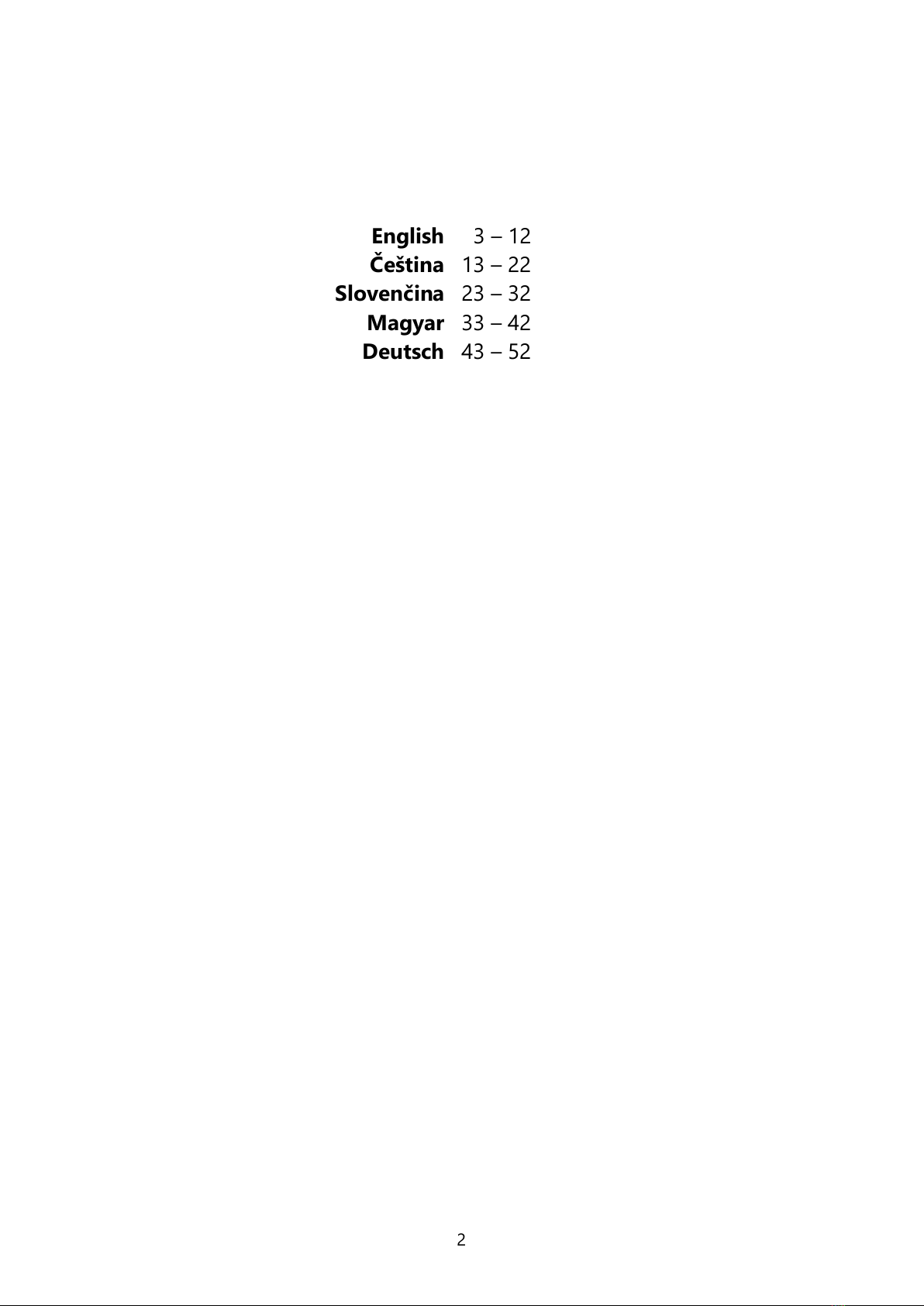

English
3 –12
Čeština
13 –22
Slovenčina
23 –32
Magyar
33 –42
Deutsch
43 –52

3

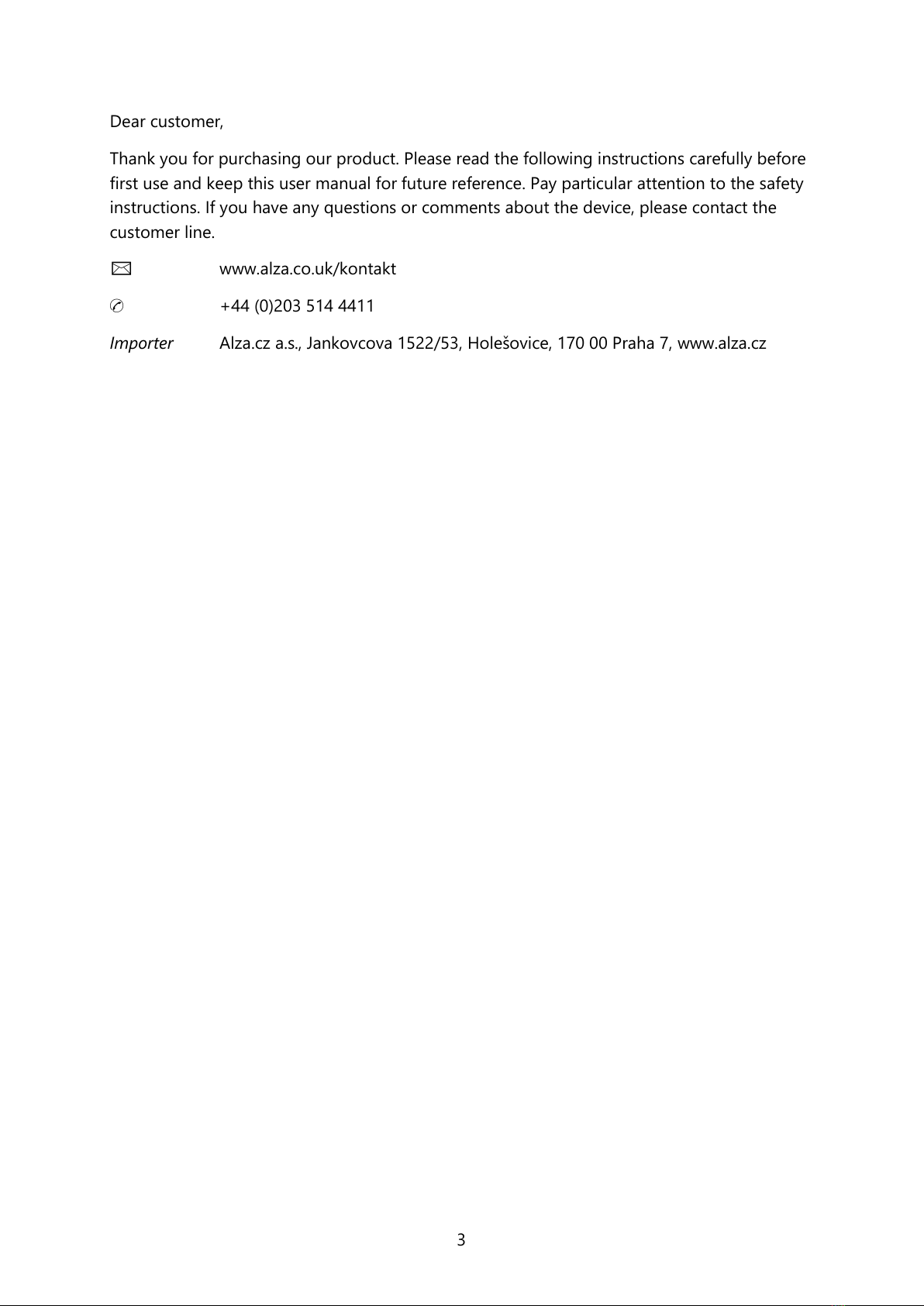

Dear customer,
Thank you for purchasing our product. Please read the following instructions carefully before
first use and keep this user manual for future reference. Pay particular attention to the safety
instructions. If you have any questions or comments about the device, please contact the
customer line.
✉www.alza.co.uk/kontakt
✆[phone]
Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz

4
Read this manual carefully before use, and retain it for future reference.
Illustrations of product, accessories, and user interface in the user manual are for reference
purposes only. The actual product and functions may vary due to product enhancements.
Product Overview
Charging
Before use, please remove the protective film from the contact points on both earbuds and
fully charge the charging case and the buds.
Connect the charging cable to the charging case and keep the earbuds inside the case to
charge simultaneously.
When the charging case is not fully charged, its indicator is white. When it is fully charged, its
indicator is o.
Turning on
Charging
Indicator
Charging
Port
Charging Case
Multi-Function
Touch Area
Indicator
Microphone
Ear hook (install with
the letter facing
downwards
Charing Contact
Points
Earbuds
Protective Film

5
Make sure the charging case is not out of battery with earbuds in it. The earbuds will
automatically turn on when removed from the charging case.
Turning Off
Make sure the charging case is not out of battery. Place both earbuds in the charging case
and the indicators on them will turn white. The earbuds will automatically disconnect and
start charging and turn o once being fully charged.
When the earbuds enter the pairing state and are out of the charging case, they will be
automatically turned o if not connecting to any device within 10 minutes.
Wearing
Gently place the earbud into your ear canal, then adjust it to a comfortable position.
During calls, make sure to point the primary microphone towards your mouth for clearer
calls.
Note: The M-size ear tips and L-size ear hooks are pre-installed on the earbuds. If they are
not suitable, please replace them with a proper size.
Connection

6
First-time Connection
Open the lid and take out the earbuds. When the indicators on both earbuds slowly blink
white, it means the earbuds can be connected. Enable the Bluetooth function on your phone,
and then search and tap "Redmi Buds 3 Lite" to connect the earbuds.
Note: If the earbuds cannot be connected, place them back into the charging case, close the
lid and repeat the above operation.
Connecting to Other Devices
Disable the Bluetooth connection of the paired phone or reset the earbuds to connect to
other devices.
Reset Earbuds
following steps to reset them. Make sure the charging case is not out of battery before reset.
Open the lid of the charging case and place both earbuds in the case. Press and hold the
multi-function touch areas on both earbuds for at least five seconds and then release.
Indicators on both earbuds will blink white three times, indicating the
earbuds have been reset successfully. (The connection records between the left and right
earbuds, and the earbuds and the phone have been cleared.)
Function Overview
Press and hold both earbuds for 5 seconds simultaneously

7

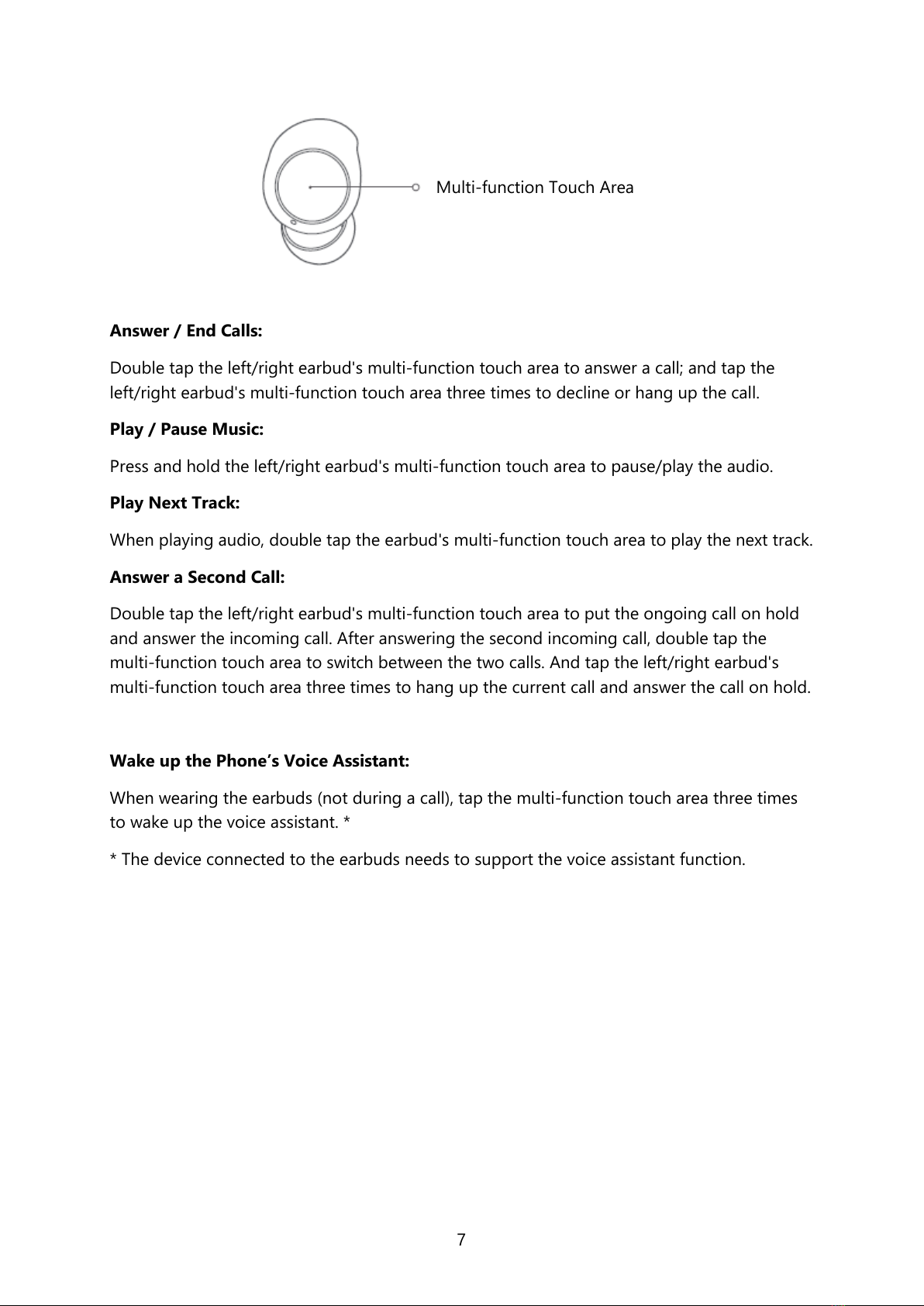

Answer / End Calls:
Double tap the left/right earbud's multi-function touch area to answer a call; and tap the
left/right earbud's multi-function touch area three times to decline or hang up the call.
Play / Pause Music:
Press and hold the left/right earbud's multi-function touch area to pause/play the audio.
Play Next Track:
When playing audio, double tap the earbud's multi-function touch area to play the next track.
Answer a Second Call:
Double tap the left/right earbud's multi-function touch area to put the ongoing call on hold
and answer the incoming call. After answering the second incoming call, double tap the
multi-function touch area to switch between the two calls. And tap the left/right earbud's
multi-function touch area three times to hang up the current call and answer the call on hold.
Wake up the Phone’s Voice Assistant:
When wearing the earbuds (not during a call), tap the multi-function touch area three times
to wake up the voice assistant. *
* The device connected to the earbuds needs to support the voice assistant function.
Multi-function Touch Area

8

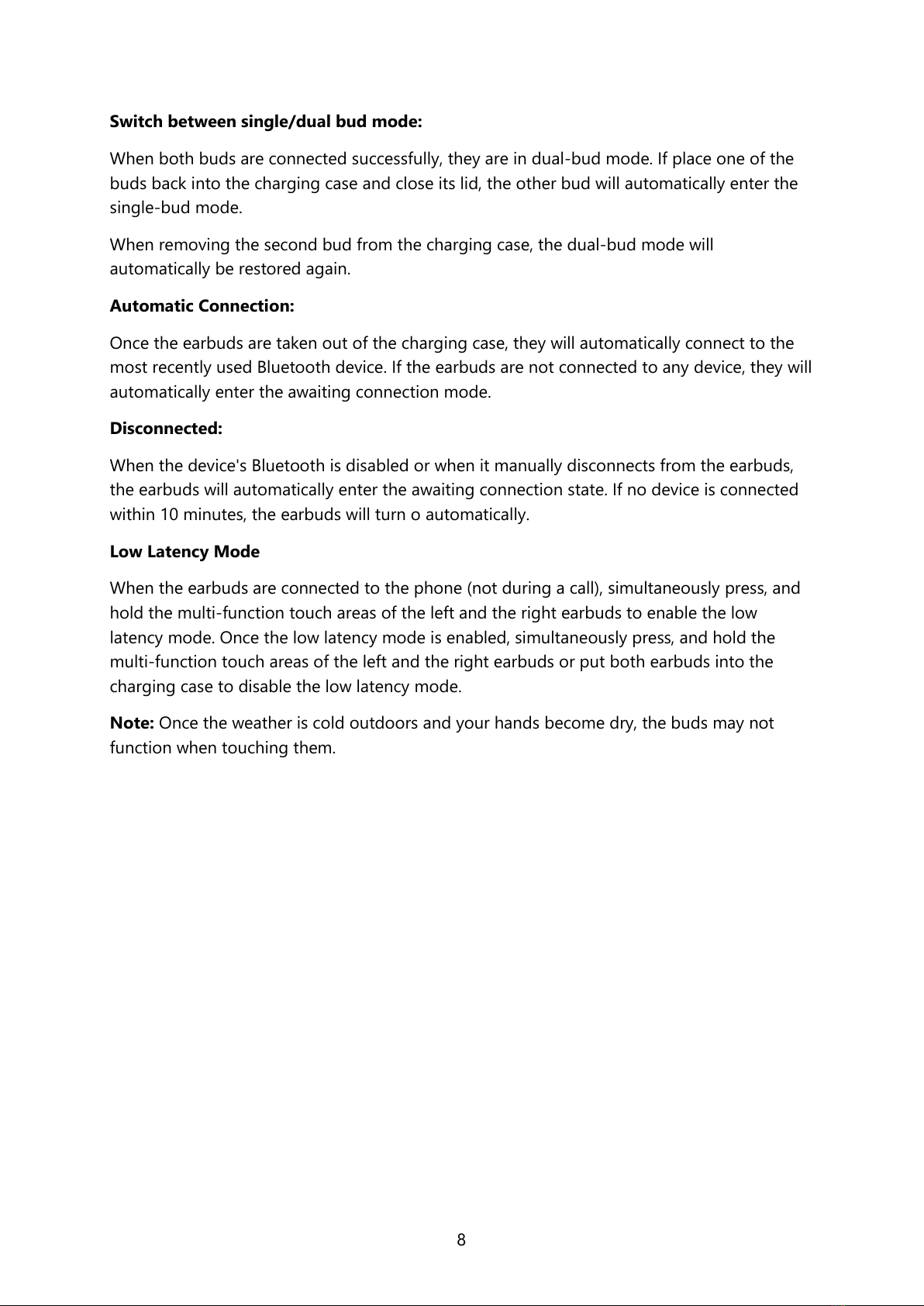

Switch between single/dual bud mode:
When both buds are connected successfully, they are in dual-bud mode. If place one of the
buds back into the charging case and close its lid, the other bud will automatically enter the
single-bud mode.
When removing the second bud from the charging case, the dual-bud mode will
automatically be restored again.
Automatic Connection:
Once the earbuds are taken out of the charging case, they will automatically connect to the
most recently used Bluetooth device. If the earbuds are not connected to any device, they will
automatically enter the awaiting connection mode.
Disconnected:
When the device's Bluetooth is disabled or when it manually disconnects from the earbuds,
the earbuds will automatically enter the awaiting connection state. If no device is connected
within 10 minutes, the earbuds will turn o automatically.
Low Latency Mode
When the earbuds are connected to the phone (not during a call), simultaneously press, and
hold the multi-function touch areas of the left and the right earbuds to enable the low
latency mode. Once the low latency mode is enabled, simultaneously press, and hold the
multi-function touch areas of the left and the right earbuds or put both earbuds into the
charging case to disable the low latency mode.
Note: Once the weather is cold outdoors and your hands become dry, the buds may not
function when touching them.

9
Specifications
Name:
Wireless Earphones
Model:
M2110E1
Frequency Band:
2402–2480 MHz
Max RF Output Power:
< 20 mW
Earbuds
Dimensions:
24.5 × 16.7 × 24.6 mm
Wireless Range:
10 m (in an obstacle-free environment)
Input:
5 V=50 mA
Wireless Connectivity:
Bluetooth® 5.2
Charging Case
Dimensions:
24.5 × 16.7 × 24.6 mm
Wireless Range:
10 m (in an obstacle-free environment)
Input:
5 V=50 mA
Wireless Connectivity:
Bluetooth® 5.2
Storage Temperature:
0 °C to 45 °C
Operating Temperature:
0 °C to 45 °C
Service Life:
1 year

10
Important Safety Information
The product has a built-in battery that cannot be removed or replaced. To avoid
damage to the battery or the product, do not disassemble or modify the battery by
yourself. The battery can only be replaced by the authorized service providers and
must be replaced with the same type. Replacement of a battery with an incorrect type
may defeat a safeguard (such as catching fire, explosion and leakage of corrosive
electrolyte). Do not dispose of used batteries with household waste. Disposal of this
product and the used batteries shall comply with local laws and regulations.
Do not attempt to disassemble, repair, or modify the product, as this may cause fire
or even completely damage the product.
Keep the product's indicator away from the eyes of children and animals while the
product is in use.
Do not disassemble, puncture, or crush the product nor expose it to fire.
Please stop using the product immediately and seek medical assistance if the contact
area on your skin shows signs of redness or swelling.
To prevent possible hearing loss, do not use high volume for long periods of time.
This product is not a toy and may contain small parts. Please keep them out of the
reach of children.
Disposal of a battery into fire or a hot oven or water or other liquids or mechanically
crushing or cutting of a battery, that can result in an explosion.
Leaving a battery in an extremely high temperature surrounding environment that can
result in an explosion or the leakage of flammable liquid or gas.
A battery subjected to extremely low air pressure that may result in an explosion or
the leakage of flammable liquid or gas.
Product information and certification marks are located in the Charging Case.
= The symbol indicates DC voltage.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG,
Inc. and any use of such marks by Xiaomi Inc. is under license. Other trademarks and trade
names are those of their respective owners.

11

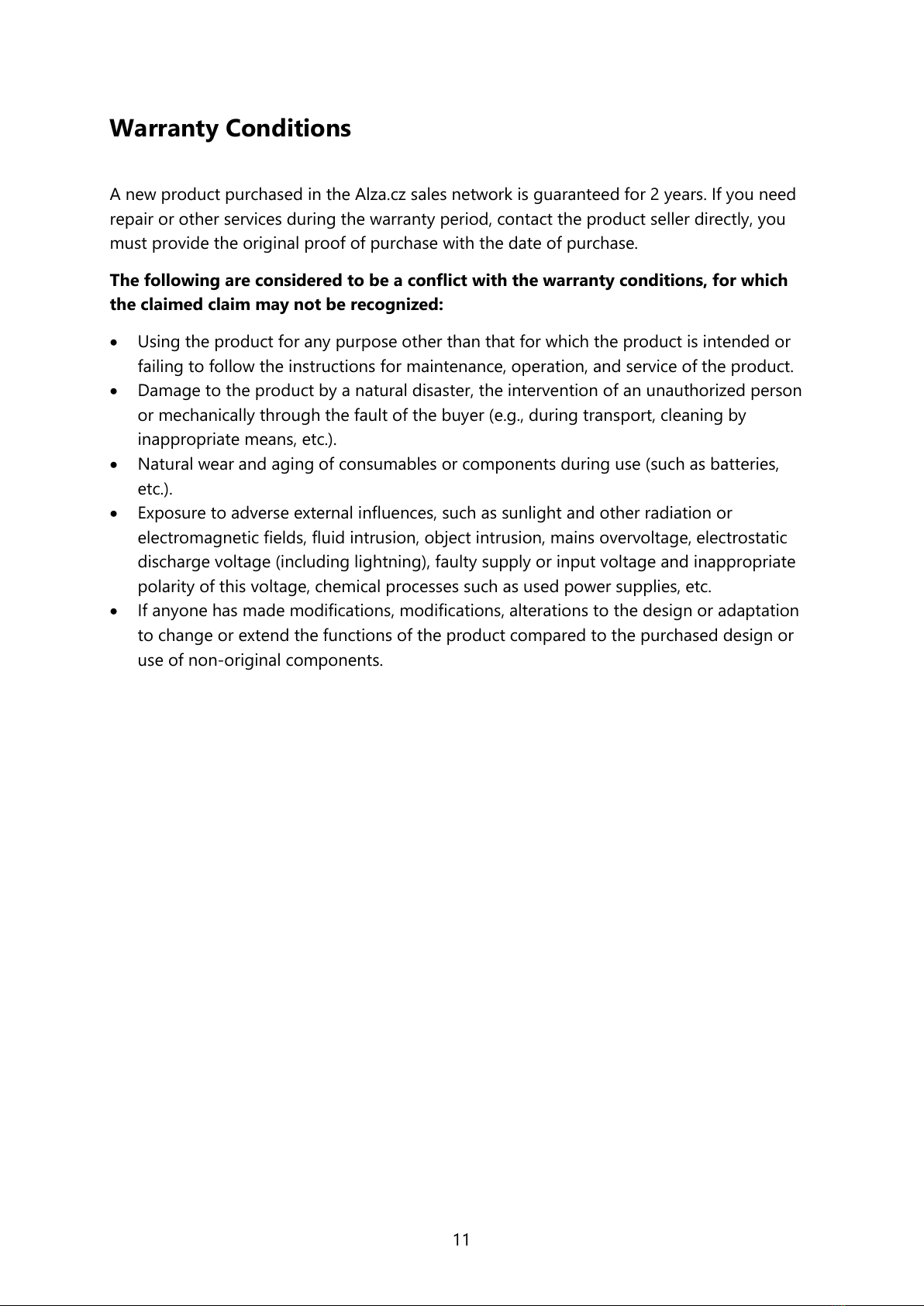

Warranty Conditions
A new product purchased in the Alza.cz sales network is guaranteed for 2 years. If you need
repair or other services during the warranty period, contact the product seller directly, you
must provide the original proof of purchase with the date of purchase.
The following are considered to be a conflict with the warranty conditions, for which
the claimed claim may not be recognized:
Using the product for any purpose other than that for which the product is intended or
failing to follow the instructions for maintenance, operation, and service of the product.
Damage to the product by a natural disaster, the intervention of an unauthorized person
or mechanically through the fault of the buyer (e.g., during transport, cleaning by
inappropriate means, etc.).
Natural wear and aging of consumables or components during use (such as batteries,
etc.).
Exposure to adverse external influences, such as sunlight and other radiation or
electromagnetic fields, fluid intrusion, object intrusion, mains overvoltage, electrostatic
discharge voltage (including lightning), faulty supply or input voltage and inappropriate
polarity of this voltage, chemical processes such as used power supplies, etc.
If anyone has made modifications, modifications, alterations to the design or adaptation
to change or extend the functions of the product compared to the purchased design or
use of non-original components.

12

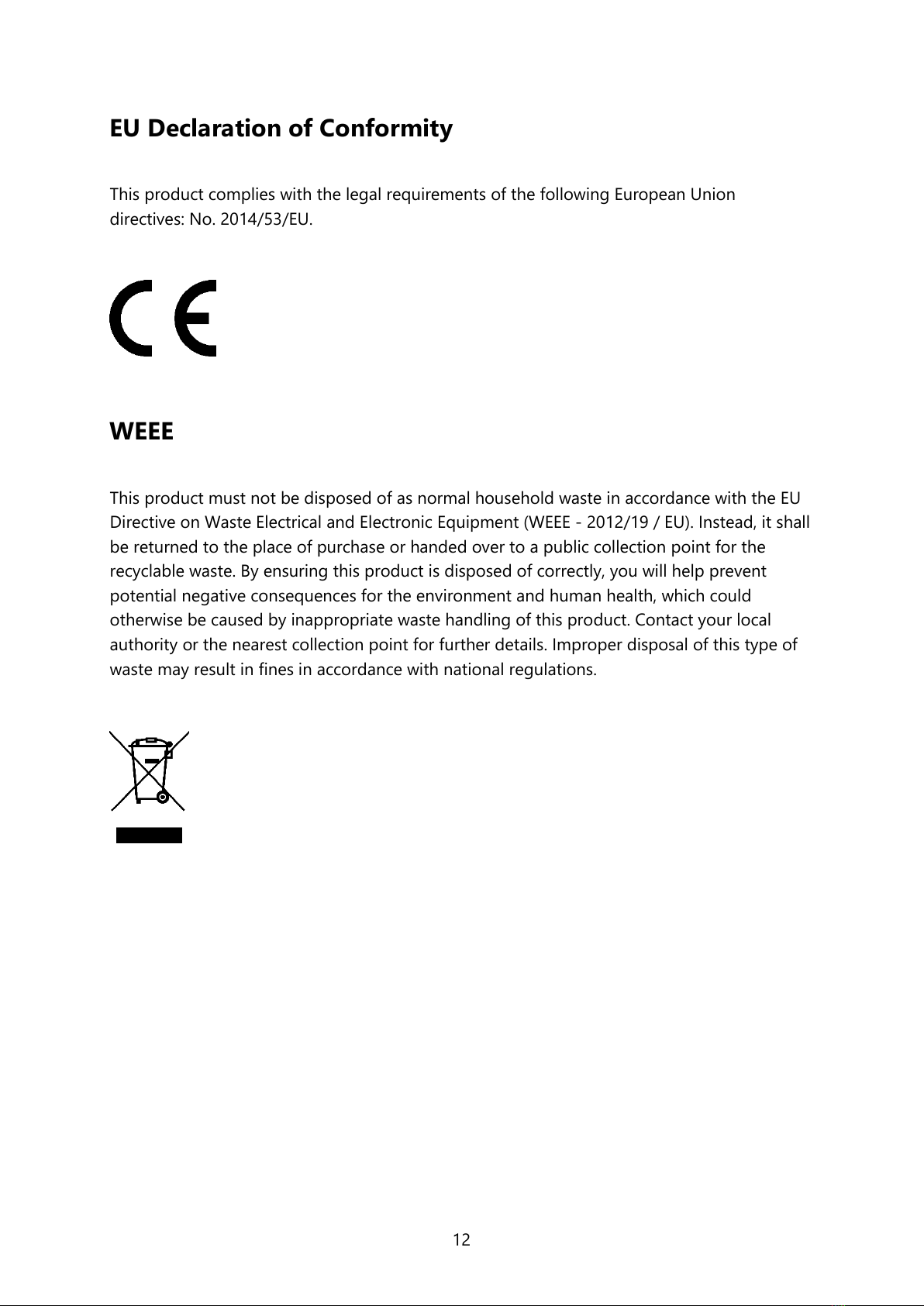

EU Declaration of Conformity
This product complies with the legal requirements of the following European Union
directives: No. 2014/53/EU.
WEEE
This product must not be disposed of as normal household waste in accordance with the EU
Directive on Waste Electrical and Electronic Equipment (WEEE - 2012/19 / EU). Instead, it shall
be returned to the place of purchase or handed over to a public collection point for the
recyclable waste. By ensuring this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. Contact your local
authority or the nearest collection point for further details. Improper disposal of this type of
waste may result in fines in accordance with national regulations.
