XM xpress xmc-10a User manual

vehicle guide
XMC-10A

2
Congratulations .........................................................................3
FCC Information ........................................................................4
Cautions and Warnings .............................................................5
Contents XMC-10A.....................................................................6
Accessory Kit..........................................................................7
Installation/Wiring Precautions ..................................................8
Setting Up and Installing Your Kit ..............................................9
Cabling Interconnections........................................................9
Installing the Cradle Mount Base Assembly..........................9
Interconnect Diagram ..........................................................10
Using Other Manufacturer’s Mounts ....................................15
Installing the Xpress XM®Into the Cradle ............................15
Connection Options .............................................................17
Installation Guidelines .........................................................20
Warranty ...................................................................................24
Table of Contents
Table of Contents

3
Congratulations
Congratulations
Thankyoufor purchasingtheAudiovox XpressXM®SatelliteRadio2ndVehicle
Kit. You are one step closer to experiencing the latest innovation in XM
Satellite Radio. XM Satellite Radio will revolutionize your vehicle or
in-homeentertainment.
XM is America’s number one satellite radio service with more than 7 million
subscribers. Broadcastinglivedaily fromstudiosin Washington, DC,NewYork
City, the Country Music Hall of Fame in Nashville, Toronto and Montreal, XM’s
2006 lineup includes more than 170 digital channels of choice from coast to
coast:themostcommercial-freemusicchannels,sports,talk,comedy,children’s
and entertainment programming; and the most advanced traffic and weather
information.
XM, the leader in satellite-delivered entertainment and data services for the
automobile market through partnerships with General Motors, Honda, Toyota,
Hyundai, Nissan, Subaru, Suzuki and Porsche, is available in more than 140
differentvehiclemodels for2006. XM’sindustry-leading productsareavailable
at consumer electronics retailers nationwide. For more information about XM
hardware,programming andpartnerships,pleasevisithttp://www.xmradio.com.
Required subscription for service sold separately. Premium Channels available at
additional monthly costs. Installation costs and other fees and taxes may apply,
including a one-time activation fee. All fees and programming subject to change.
College sports games subject to availability. Subscriptions subject to Customer
Agreement included with the XM Welcome Kit and available at
http://www.xmradio.com. Only available in the 48 contiguous United States.
©2006 XM®Satellite Radio Inc. XM is a trademark of XM Satellite
Radio. All rights reserved. All other trademarks are the property of their
respective owners.

4
FCC Information
Please note that the power cable that has been supplied with your device is supplied
with permanently attached ferrite beads at each end. It is the responsibility of the user to
use the cable with the ferrite beads.
The user is cautioned that changes or modifications not expressly approved by XM®
Satellite Radio Inc. can void the user’s authority to operate this device.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the installation instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the antenna of the affected receiver.
- Increase the separation between the XM equipment and the affected receiver.
- Connect the XM equipment into an outlet on a circuit different from that to which
the affected receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Warning: The FCC and FAA have not certified XM Satellite Radio Receivers for use in
any aircraft (neither portable nor permanent installation). Therefore, XM Satellite
Radio, Inc. cannot support this type of application or installation.
FCCInformation

5
Cautions and Warnings
1. Do not install the XMC-10A vehicle cradle in a position that
hinders your view through the windshield, or obstructs viewing
of the dashboard indicators and displays.
2. Do not install the unit where it may obstruct the operation or
deployment of safety devices, such as airbags, etc.
3. Do not allow operation of the unit to detract from safe driving
practices; remember that you are responsible as the vehicle
operator to adhere to all safe driving and traffic regulations.
4. By adhering to these warnings and safety considerations,
serious accidents and/or personal injury can be avoided.
Cautions and Warnings

6

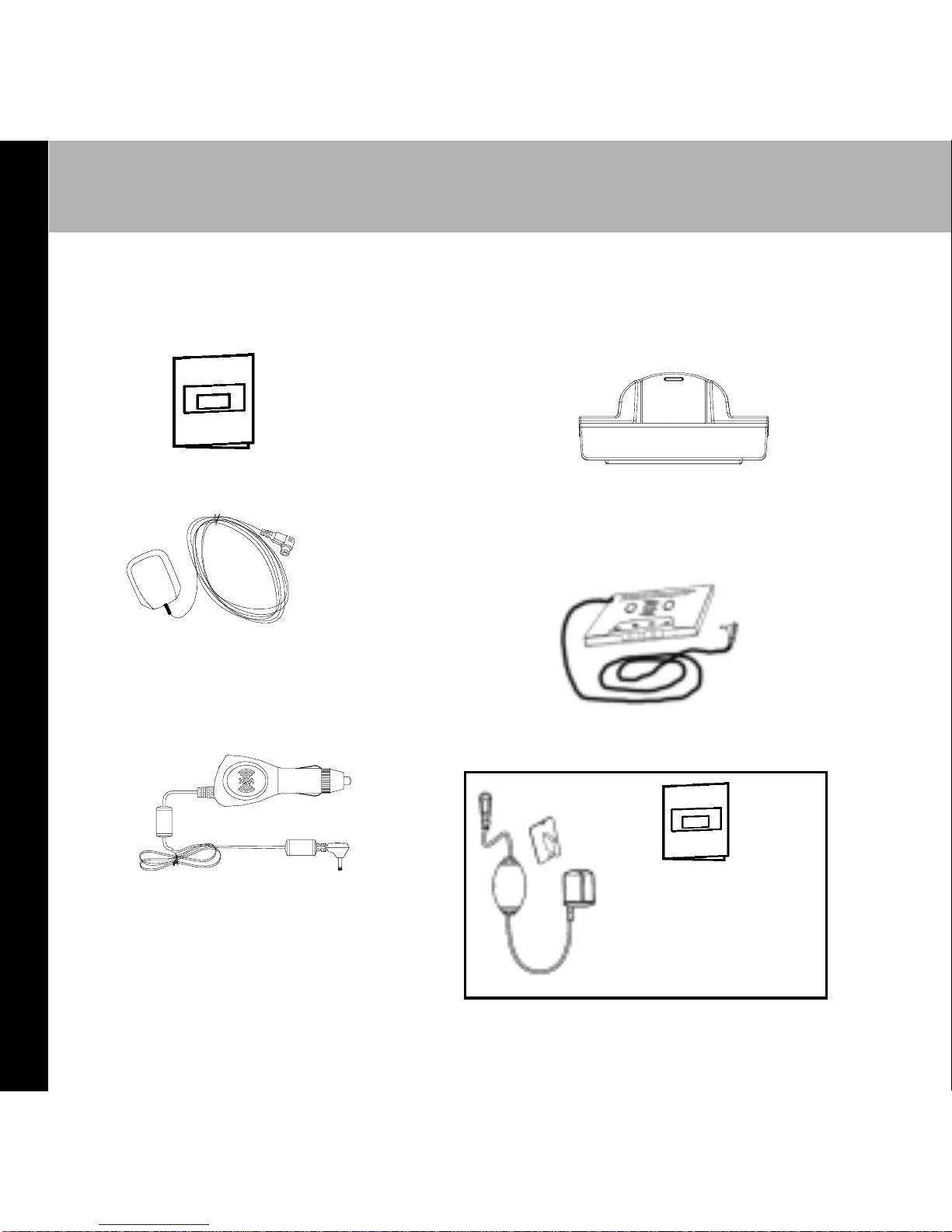

12 Volt-to-5 Volt DC Power
Adapter 1 pc.
Install Manual
Antenna and Antenna
Cable Exit Plug 1 pc.
Cradle XMC-10A 1 pc.
XM SureConnect Kit 1 pc.
Cassette Adapter 1pc.
See XM SureConnect
Vehicle installation
Contents XMC-10A
Contents

7
OPTIONAL(sold separately)
FM Direct Adapter
(P/N XMFM-1)
ACCESSORY KIT, MOUNTING
Alcohol Cleaning Pad,
Surface Cleaning Pad,
Instruction Sheet,
Swivel Bracket.
AudioCable
(P/NSAT-RCA)
Contents XMC-10A (Cont)
Contents

8
Installation/Wiring Precautions
1. To prevent a short-circuit, be sure to turn off the ignition and remove
the negative (-) battery cable prior to installation. Connect power
wires last.
2. Do not install the unit in locations exposed to direct sunlight or, in
areas subject to extreme temperatures.
3. Incorrect installation may cause damage to the system. Mount
the unit firmly in place, using the supplied hardware.
4. Be careful not to damage the vehicle wiring.
5. Be sure to use the supplied screws and washers.
6. Be careful not to snag any wires when tightening screws.
7. Useonlythe12Volt-to-5VoltDCPowerAdapter supplied. Useofan
alternativepoweradaptermaydamagetheXpressXMreceiverand/
or the XMC-10A cradle.
CAUTION: You could drain the vehicle battery if the DC power
adapter remains plugged in after the ignition is turned
off. Unplug the adapter to prevent this possibility.
Installation/Wiring Precautions

9
Setting Up and Installing Your Kit
NOTE: The XM signal can be received and processed virtually
anywhere as long as there are no obvious satellite signal
obstructions such as nearby buildings, high terrain, parking
garages or tunnels.
1. Cabling Interconnections
You can begin to enjoy XM Satellite Radio as soon as the Xpress
XM Receiver and Vehicle Kit installation are complete. Set up your
Audiovox Xpress XM System using the following installation
instructions, or enlist the help of a professional installer:
2. Installing the Cradle Mount Base Assembly
a. Interconnect all of the components as shown on the adjacent
page to verify that the system operates normally.
b. Locate a firm, reasonably flat surface within your car to permit
optimumviewing and line-of-sightaccessby the suppliedremote
control unit.
Setting Up and Installing Your Kit

10

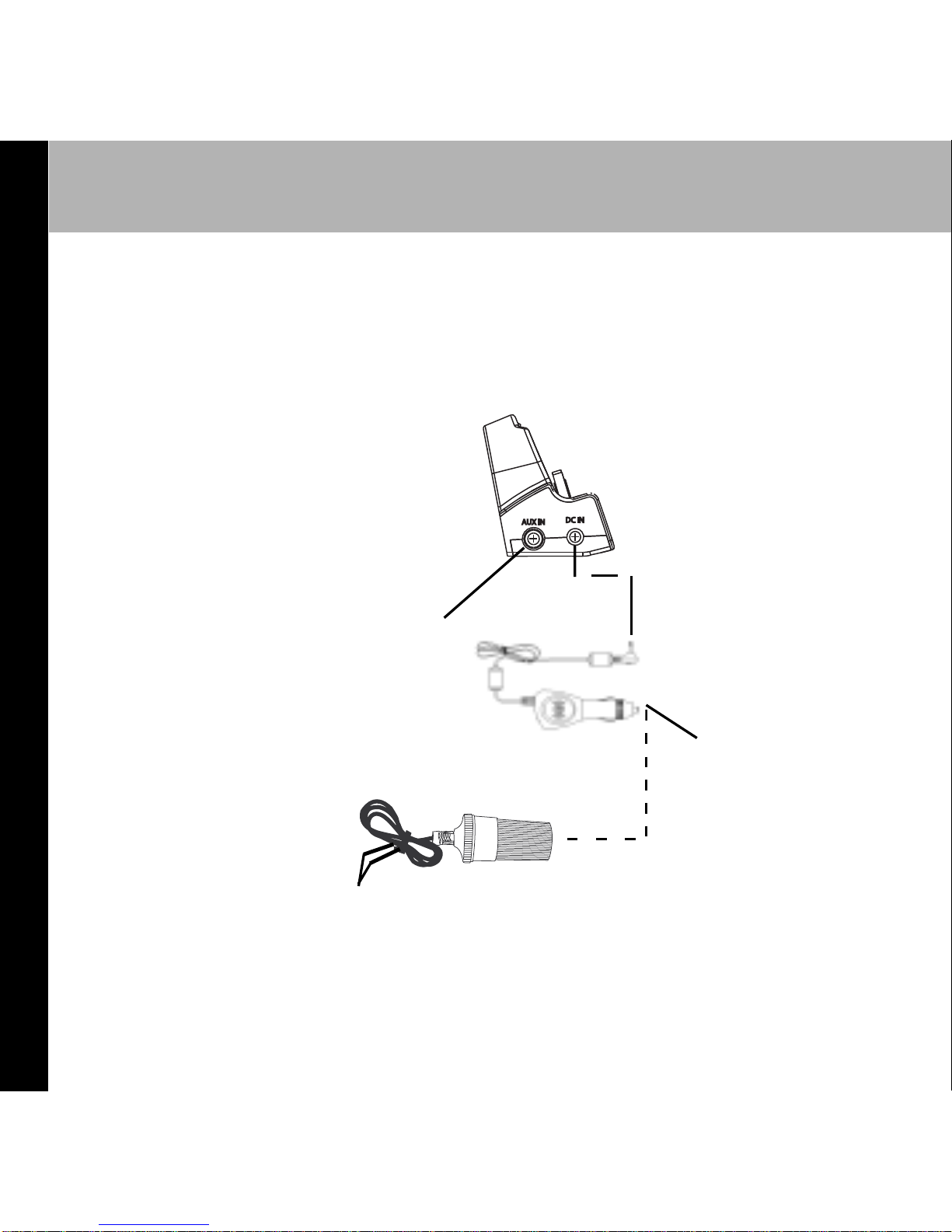

Interconnect Diagram
AUX AUDIO INPUT TO AUDIO OUTPUT
OFEXTERNALPLAYBACKDEVICE.THIS
PERMITS AUDIO FROM AN EXTERNAL
DEVICE SUCH AS A PORTABLE CD
PLAYER OR MP3 PLAYER TO BE
PLAYEDTHROUGHTHEXPRESSXM FM
MODULATOR.
NOTE:
1. IF THE XMC-10A IS INSTALLED
USINGTHEOPTIONALXMFM-1FM
DIRECT ADAPTER, DO NOT
CONNECT AN AUDIO CABLE TO THE
AUDIO OUT CONNECTOR OF THE
CRADLE.
2. THE FM MODULATOR OPTION
MUST BE SET TO ”FM ON” IN THE
XPRESS XM USER MENU. (REFER TO
THE USER GUIDE)
CLA FEMALE SOCKET WIRES
TO VEHICLE +12 VDC POWER
RECEPTACLE (OPTION WITH
XMFM1KIT)
+12V to +5V
DC POWER
ADAPTER
TO VEHICLE
+12 VDC POWER
RECEPTACLE
OR
XMC-10ACRADLE
(LEFT SIDE VIEW)
Setting Up and Installing Your Kit

11

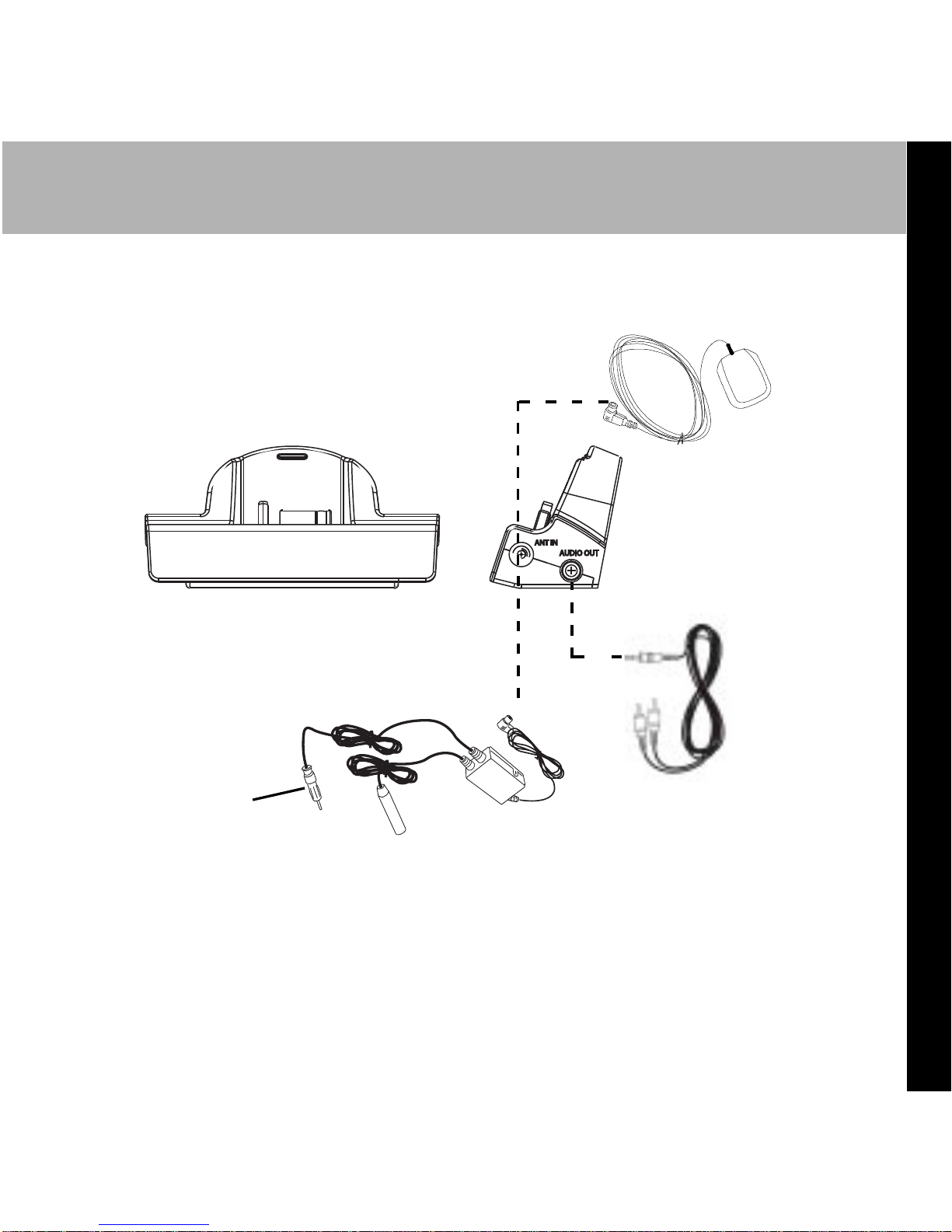

XMC-10ACRADLE
(REAR VIEW)
XMANTENNA
OPTIONALSAT-RCA
AUDIO CABLE
(SOLDSEPARATELY)
(CONNECT TO AUXILIARY
AUDIO INPUTS ON
VEHICLE HEAD UNIT.)
OPTIONAL FM DIRECT
ADAPTERXMFM-1(SOLD
SEPARATELY)
TOVEHICLERADIO
ANTENNA JACK
XMC-10ACRADLE
(RIGHT SIDE VIEW)
Interconnect Diagram (Cont)
Setting Up and Installing Your Kit

12
c. Using the alcohol swab supplied with your kit, clean the
mounting surface and thoroughly wipe the area dry with a clean
lint-free cloth.
d. If the outside air temperature is cold, it may be beneficial to
warm the adhesive backing on the bracket using a portable hair
dryer, or by holding the backing surface in front of a vehicle
heater vent.
CAUTION: Do not install the swivel bracket on a leather or
fabric surface, or in a position that could impair your
vision, block air bag(s) or obstruct vehicle dashboard
controls and/or radio CD/cassette operational
displays.
NOTE: The adhesive backing on the bracket will not permit
easy repositioning once it has been mated to the
surface; use extreme care and planning when selecting
the mounting location. If the bracket is to be screwed
to the surface, make sure the area in back of the
mounting surface is clear of wires or other items to
prevent unintentional damage.
Setting Up and Installing Your Kit

13
NOTE: Allow a 72-hour period for the adhesive backing to
cure completely.
e. Remove the plastic liner from the adhesive backing on the
bracket, and fix the base in position on the surface; make sure
the mounting pad is accurately positioned on the first try, since
repositioning may be difficult, if not impossible.
f. If the bracket is to be screwed in place, do not remove the
plastic liner from the adhesive backing. Use appropriate sheet
metal or machine screws for this purpose.
g. To mount the XMC-10A cradle atop the swivel bracket, line up
the slot at the rear of the cradle with the bracket retainer tab,
and slide the cradle down so that the slot and tab mesh together
ina locked position.
Setting Up and Installing Your Kit

14
SCREWHOLES(2)
FOR DIRECT HARD
MOUNTING
PLASTICLINERAND
ADHESIVEBACKING
SWIVEL
ADJUSTMENT
SCREW
SWIVEL
BRACKET
SIDE(HORIZONTAL)
MOUNTING
CONFIGURATION
VERTICALMOUNTING
CONFIGURATION
XMC-10A
CRADLE
ASSEMBLY
Setting Up and Installing Your Kit

15

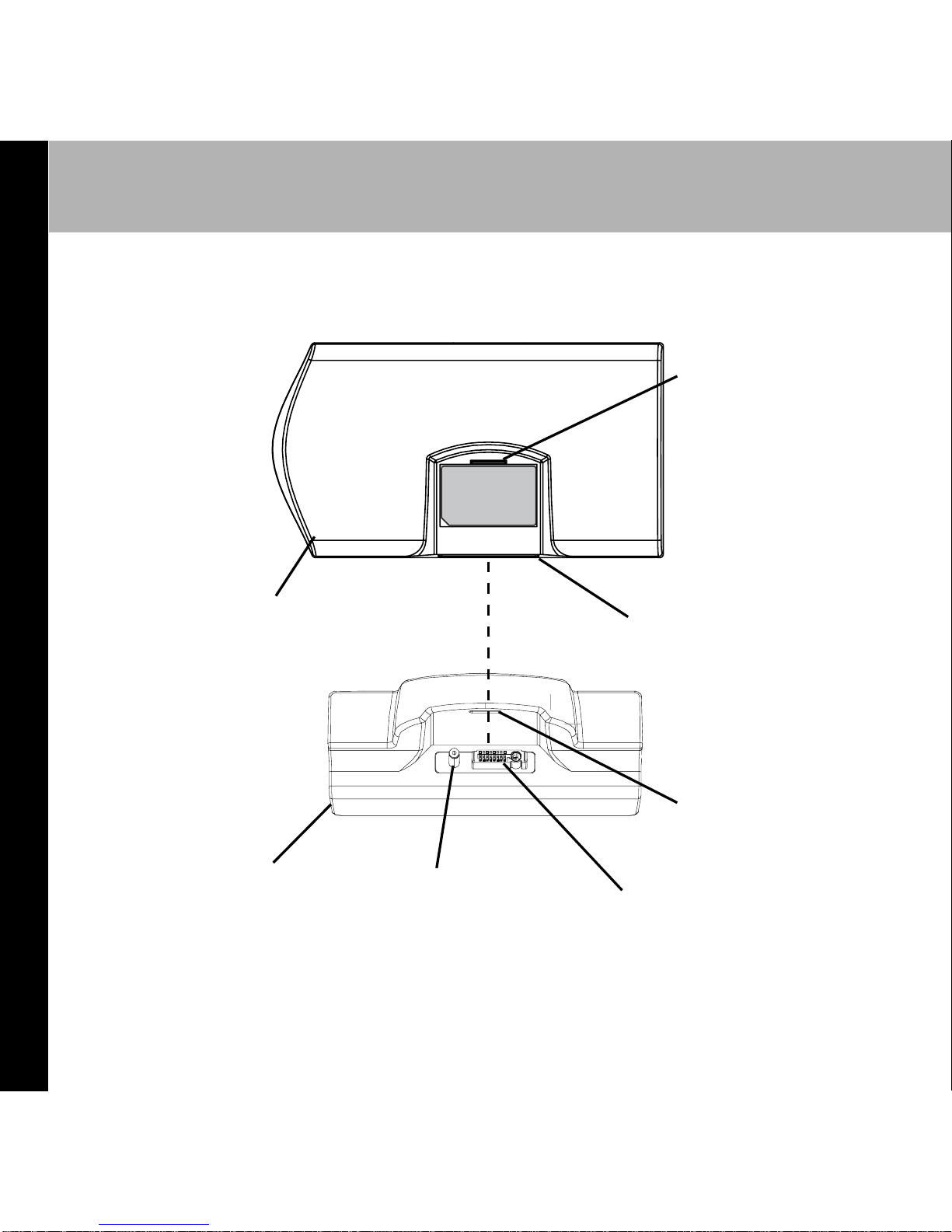

4. Installing the Xpress XM Receiver into the Cradle
Install the Receiver as follows:
a. After making sure the connectors and guide pin hole are properly
lined up, gently lower the Xpress XM Receiver into the cradle
and press down on the Xpress XM Receiver to mate the
connectors together. The raised detent on the cradle will enter
the notch on the rear of the Receiver, indicating the Xpress XM
is properly seated.
b. The Xpress XM Receiver should now be secured in the
cradle.
3. Using Other Manufacturer’s Mounts
The XMC-10A Cradle can also be installed using other
manufacturer’s mounts; the mounting plate provisions on the rear
and bottom of the cradle provide you with two mounting options
withinthe vehicleusingvarious vehicle-specific aftermarketbrackets.
Setting Up and Installing Your Kit

16
CRADLE
FRONTVIEW CONNECTOR
GUIDEPIN XMC-10A SYSTEM
CONNECTOR
Xpress XM
RECEIVER
SYSTEM
CONNECTOR
Xpress XM
RECEIVER
REARVIEW
RAISED
DETENT
RECEIVER
NOTCH
Setting Up and Installing Your Kit

17
5. Connection Options
The Xpress Receiver and Cradle provide an audio output signal
in three ways:
a. FM Modulator - When using the XMC-10A cradle with the FM
modulator option, the XM audio signal can be received through
your vehicle’s radio on selectable FM frequencies using the
menu option included in your Xpress Receiver. (Refer to the
User Guide.) The XM audio signal can then be played through
your vehicle’s radio when that radio is tuned to one of the
available frequencies.
NOTE: To minimize radiated interference from the XM
equipment (antenna and receiver), it will be necessary to
incorporate the XM SureConnect Vehicle Installation
instructions provided in the XMC-10A.
b. FM Direct Wiring - If the FM modulator does not provide
satisfactory performance in your vehicle, use the optional FM
Direct Adapter, Part # XMFM-1, which provides a hard wired FM
output.
c. Low-Level Audio Output - Forvehicles equipped withradiohead
units with auxiliary audio inputs, the audio signal can be routed
through an optional audio cable (Part No. SAT-RCA) and applied
to the auxiliary inputs of a radio or entertainment system. In this
case, it is best to turn the Xpress Receiver FM modulator option
off to avoidinterference.
Setting Up and Installing Your Kit

18
XM research and lab test results show that using a vehicle cassette
adapter can best maximize the relationship between the best sound
quality and ease of installation (see chart below).
OPTIONAL SAT-RCA
AUDIO CABLE
(SOLD SEPARATELY)
(CONNECT TO
AUXILIARY AUDIO
INPUTS ON VEHICLE
HEAD UNIT.)
OPTIONAL FM DIRECT
ADAPTER XMFM-1
(SOLD SEPARATELY)
TO VEHICLE
RADIO ANTENNA
JACK
XMC-10A CRADLE
(RIGHT SIDE VIEW)
d. Xpress Cassette Adapter -The XM Xpress Cassette Adapter
offers an additional audio connection option by utilizing your
existing vehicle’s in-dash cassette deck.
Setting Up and Installing Your Kit

19
1
2
3
4

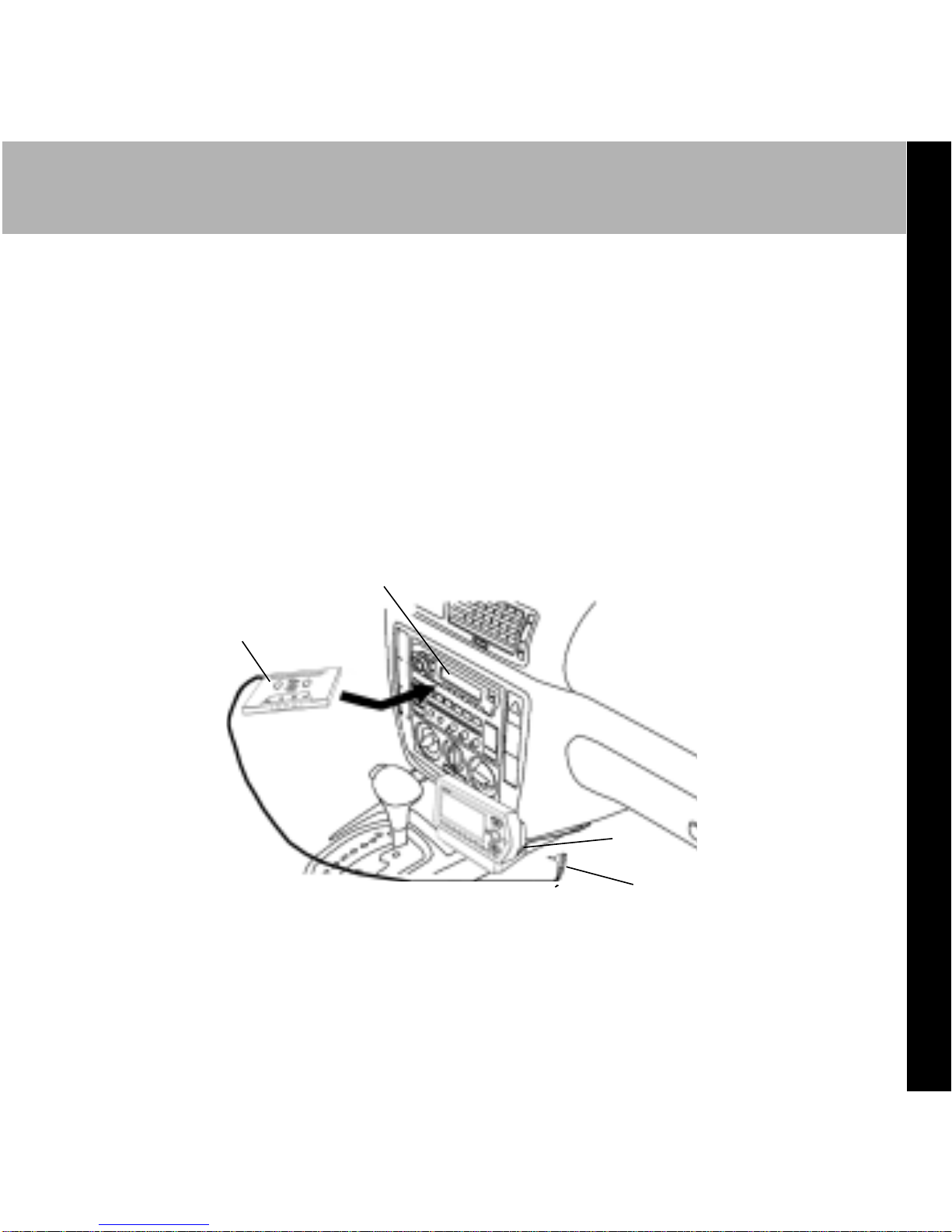

Xpress Cassette Adapter Installation.
Installation is simple.
1.) Plug the end jack (1) into the XM Xpress Car Cradle’s
audio output (2).
2.) Insert the cassette adapter (3) in the vehicle’s in-dash
cassette slot (4).
Setting Up and Installing Your Kit

20
KEEP EXCESS CABLE
UNDER OR BEHIND
THEDASHBOARD

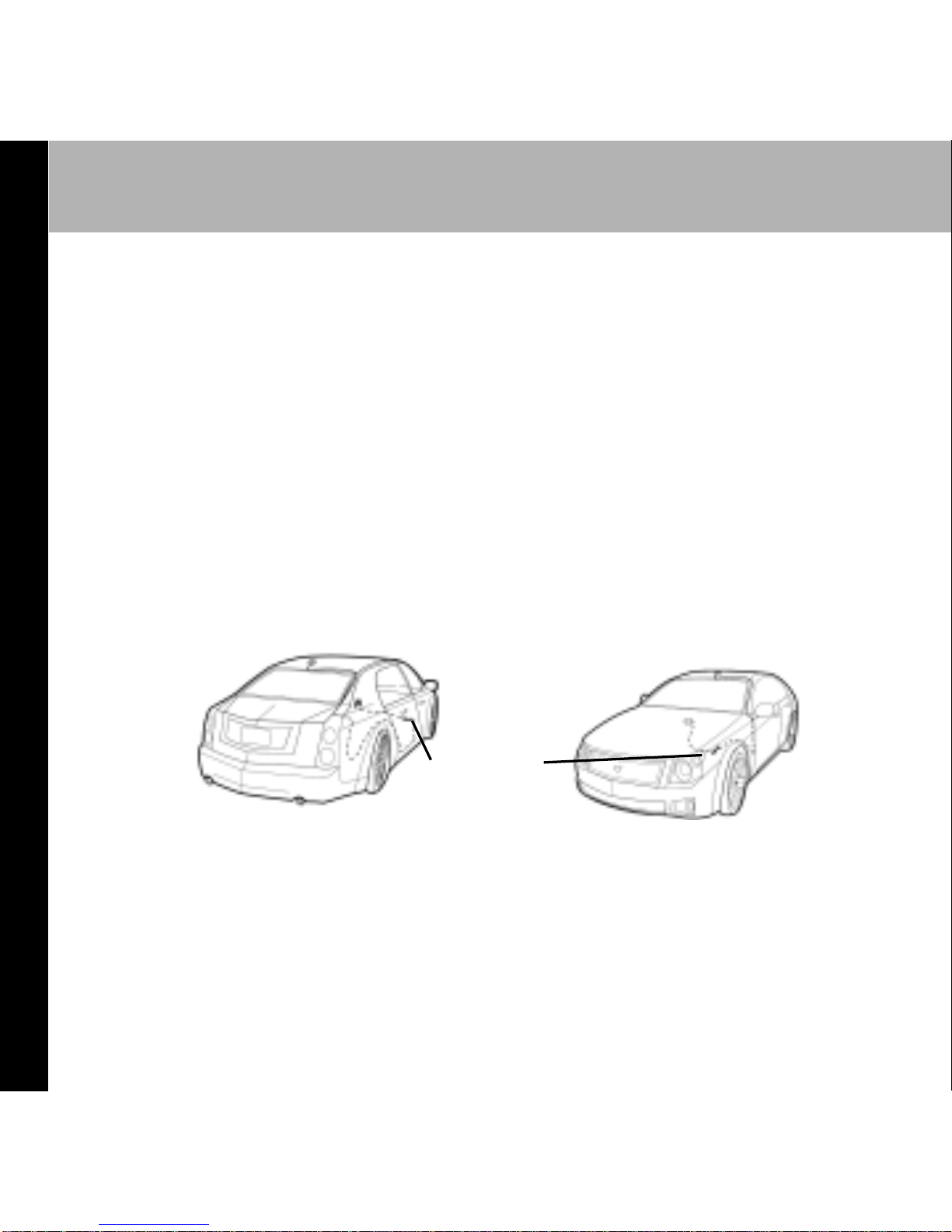

OPTION 1 OPTION 2
6. Installation Guidelines
Step 1.
First, determine the proper location for your XM satellite radio
antenna based on the following criteria for your specific vehicle:
a.You must locate the satellite radio antenna on the top of the
roof either in front of the rear window (option 1) or behind the
windshield (option 2). The satellite radio antenna will perform
best if magnetically attached to a steel surface with an
unobstructed view of the open sky and minimum of 3 to 6
inches of metal surrounding the antenna.
b.When routing the antenna cable along the windshield or rear
window, tuck the antenna cable under the window seal to
maintain a professional looking installation and to avoid
loose wires on the exterior of the vehicle which are
susceptible to damage. Follow the interior cable routing
diagramdepicted by dashed lines in the illustration above
where possible.
Setting Up and Installing Your Kit
