XO Appliance XOA30 User manual

READ AND SAVE THE INSTRUCTIONS
FOR RESIDENTIAL COOKING ONLY
Register your product online at: www.xoventilation.com
NEED HELP?
Call our ventilation experts at 800-966-8300
XOA30
XOA36

Dear Customer,
If you follow the recommendations contained in this Instruction Manual, our appliance
will give you constant high performance and will remain efficient for many years to
come.
CONTENTS
WARNING &CAUTION
CHARACTERISTICS
INSTALLATION & USE
MAINTENANCE & CLEAN
P r odu ct S peci f i ca t io n & T echnica l P a r a m eter s
Rated Voltage
Rated Power Frequency
Light Power
Motor Power
Total Power
Motor
120V
60Hz
2x20W High Efficiency Bulbs
2x130W
300W
2
- 6" Round Vertical Duct
- 3 1/4" x 10" Rectangle Vertical Duct
- 3 1/4 x 10" Rectangle Horizontal Duct
Parameters of Ducting Outlets
Options
Ampere
Mounting height
2.5 Amps
26” to 32” from cooking surface
X O H ow B ea utiful K itc hens B reath
1 2
1
1

WARNING
TO RUDUCE THE RICK OF FIRE, ELECTRIC SHOCK OR INJURE TO PERSONS,
PLEASE OBSERVE THE FOLLOWINGS:
1. Installation work and electric wiring (including switch location) must be done by the
qualified person(s) in accordance with local applicable codes and standards, including fire-
rated construction.
2. This hood may have sharp edges. Be careful to avoid cuts and abrasions during installation
and cleaning.
3. The hood must be placed at a minimum distance of 26” and a maximum of 32” from the
cooktop for best capture of cooking impurities and a minimum distance of 28” from gas
range.
4. Provide sufficient air for proper combustion and exhausting of gases through the chimney
of the burning equipment to prevent back drafting. Follow the heating equipment
manufacturer’s guideline and safety standards such as those published by the National Fire
Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air
Conditioning Engineer (ASHRAE), and the local code authorities.
5. Ducted fans must always be vented to the outdoors.
6. This appliance is design to be operated by adults. Children should not be allowed to temper
with the controls or play with this appliance.
7. To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed
control device.
8. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other
hidden utilities.
9. Before servicing or cleaning unit, switch power off at service panel and lock the service
disconnecting means to prevent power from being switched on accidentally. When the
service disconnecting means cannot be locked, securely fasten a prominent warning device,
such as a tag, to the service panel.
10.Use this unit only in the manner intended by manufacturer. If you have questions, please
contact the manufacturer or local agent.
11.This unit must be grounded.
WARNING-TO REDUCE THE RISK OF FIRE, USE ONLY THE METAL DUCTWORK.

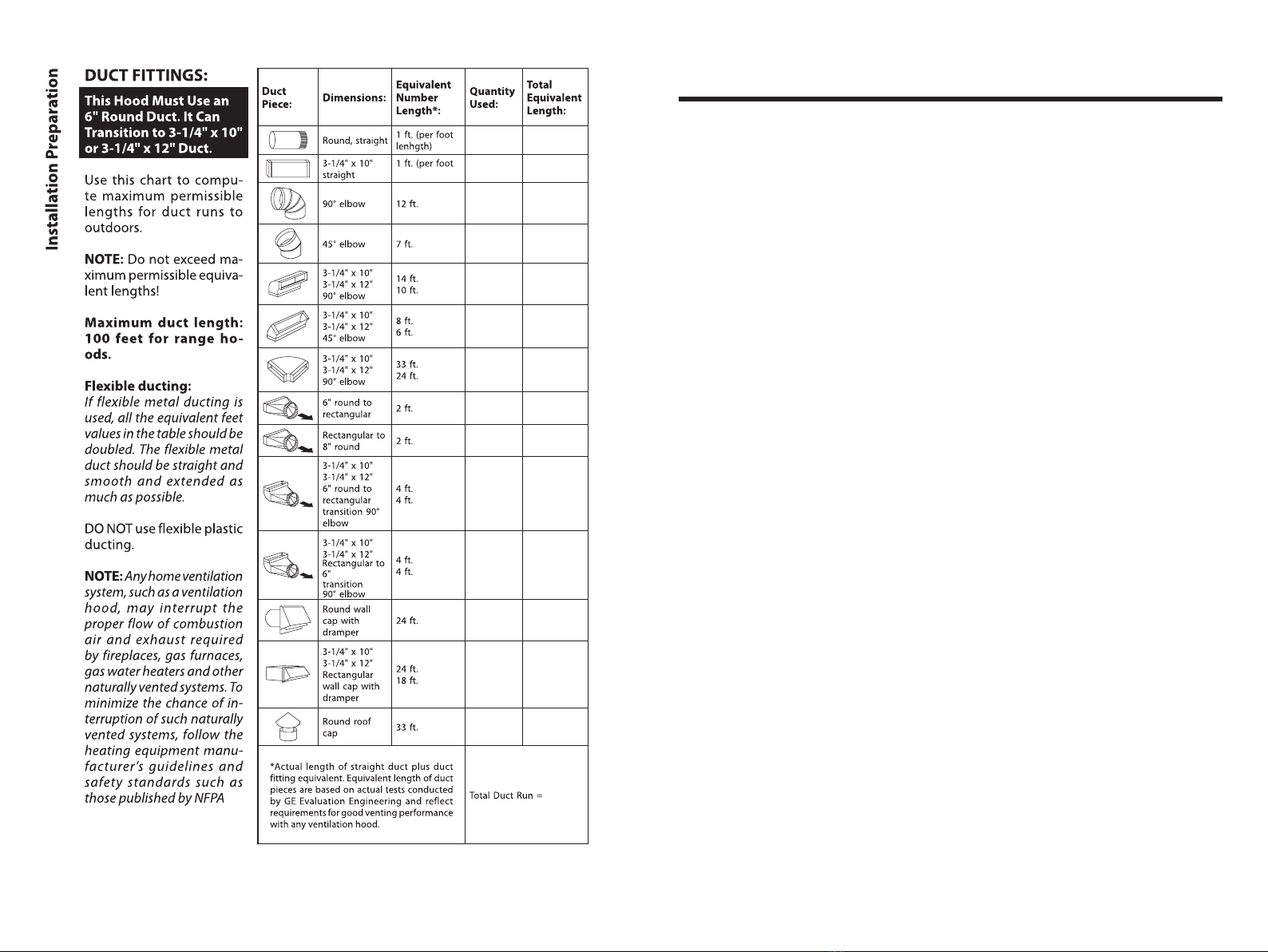

3 4
and ASHRAE.
length)
round

WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
1. Never leave surface units unattended at high settings. Boilovers cause smoking
and greasy spillovers that may ignite. Heat oils slowly on low or medium
settings.
2. Always turn hood ON when cooking at high heat or when cooking flaming
foods (i.e. Crepes Suzette, Cherries Jubilee, and Peppercorn Beef Flambé).
3. Clean ventilating fans frequently. Grease should not be allowed to accumulate
on fan or .
4. Use proper pan size. Always use cookware appropriate for the size of the
surface element.
WARNING – TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF
A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn
off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out
immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN – You may be burned or spread the fire.
3. DO NOT USE WATER, including wet dishcloths or towels – violent steam
explosion will result.
4. Use an extinguisher ONLY if:
a. You know you have a Class ABC extinguisher and you already know how to
operate it.
b. The fire is small and contained in the area where it started.
c. The fire department is being called.
d. You can fight the fire with your back to an exit.
Based on “Kitchen Fire Safety Tips” published by NFPA.
grease guards/cup/pan
CAUTION
1. For indoor use only.
2. For general ventilating use only. Do not use to exhaust hazardous or explosive materials
and vapors.
3. To avoid motor bearing damage and noisy and/or unbalanced impeller, keep drywall spray,
construction dust, etc., off power unit.
4. Your hood motor has a thermal fuse which will automatically shut off the motor if it
becomes overheated.
5. The hood MUST NOT BE LESS than 26” and at a maximum of 32” above cooktop for
best capture of cooking impurities.
6. This hood is not intended to be used as a shelf.
7. Please read specification for further information and requirements.
CHARACTERISTICS
Dimension
INSTALLATION & USE
NOTE: on the stainless steel hoods, carefully remove the plastic protective film from exterior of
the surfaces of the hood prior to final installation.
Caution: To Reduce Risk of Fire and Electric Shock, install this range hood only with
integral blowers supplied by manufacturer.
DESCRIPTION / CONNECTION
This appliance can only be installed in ducted version. Use proper installation template, for
replacement of ductwork and electrical cutout in cabinet or wall.
DUCTED VERSION
The hood discharge kitchen air saturated with odor and fume passes it through the grease
guards and expels it to the outside through an outlet pipe.
1. Determine whether the hood will discharge vertically (3 1/4″×10″ or 6” round) or horizontally
(3 1/4″×10″ only). For vertical or horizontal discharge, run ductwork between the hood
location and a roof cap or wall cap. For best results, use a minimum number of transitions and
elbows.
5 6

** Duct and roof cap/wall cap are not supplied.
Warning: to avoid the risk of fire, use only the metal ductwork.
HOOD PREPARATION
1.Remove the bottom panel of the hood by removing its (7) mounting screws and set
aside.
2.Punch out the wiring knock-out located on the top or back of the Unit.

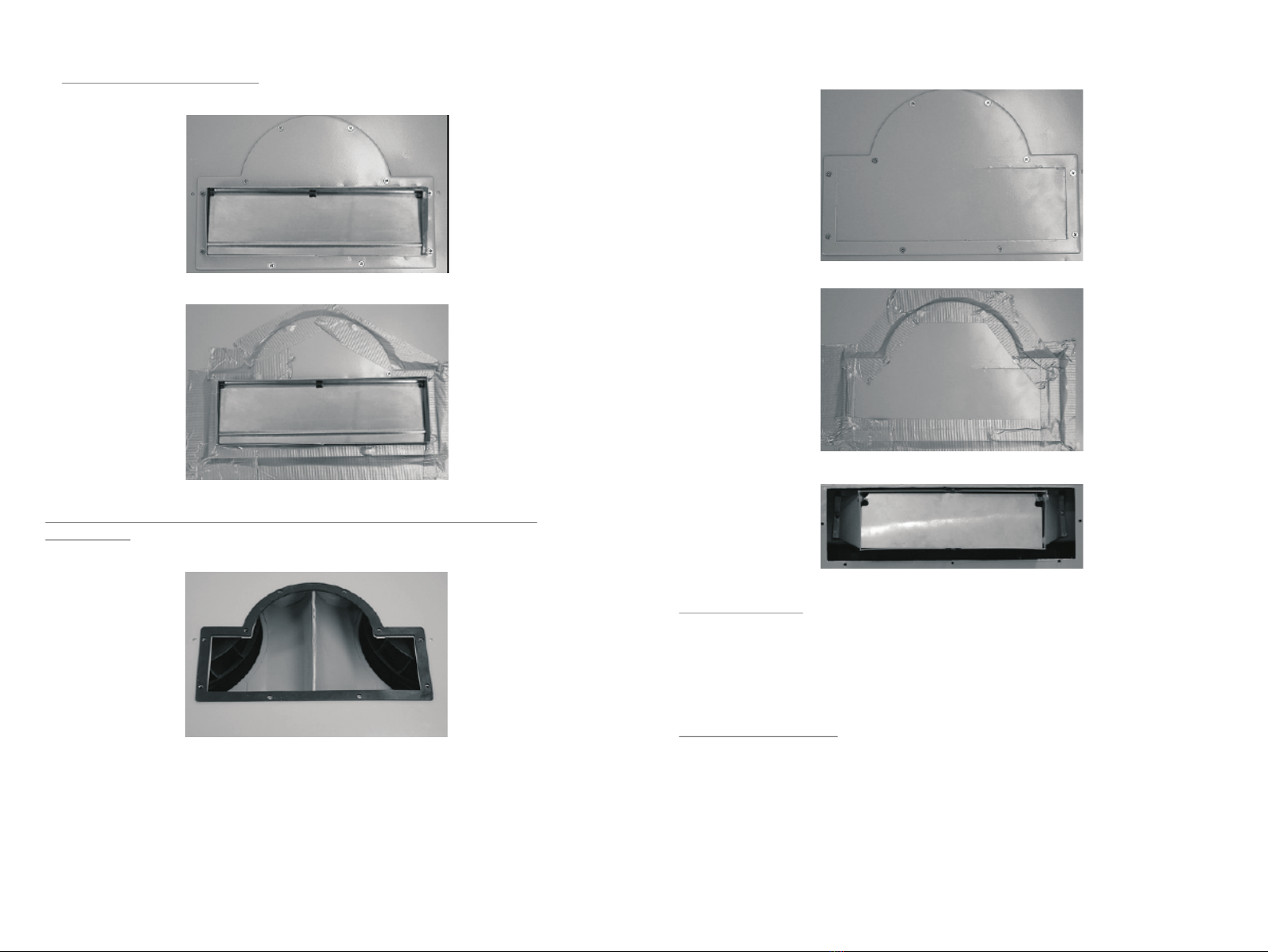

HOOD PREPARATION-VERTICAL DISCHAREG INSTALLATION
1.Install the small shutoff plate inside the back of the hood. Using 10 screws
2.Install the large shutoff plate on the back of the hood. Using 5 screws.
3.Install the rubber gasket（Included）on the top of the hood. As shown below.
6’’ ROUND DUCT INSTALLATION
4.Mount 6’’ round duct on the top of the hood, using 10 screws
5.Seal with duct tape.
7 8
HOUSE WIRING
26"-32"

3 1/4’ ’×10’ ’ DUCT INSTALLATION
4.Mount 3 1/4″×10″duct on the top of the hood, using 5 screws(Included).
5.Seal with duct tape.
HOOD PREPARATION-HORIZONTAL DISCHAREG INSTALLATION 3 1/4’ ’×10’ ’ DUCT
INSTALLATION
1.Install the gasket (Included) on the top of the hood, as shown below.
2.Mount the shutoff plate on the top of the hood, using 10 screws(Included)
3.Seal with duct tape.
4.Install the adapter in the back of the hood, using 6 screws.
HOOD INSTALLATION
1.Insert the power cable in the hood and tighten the wire clamp to screw the cable.
2.Align hood’s keyhole mounting slots over the 4 partially installed screws.
3.Making sure the duct positions over the hood’s duct adapter, push the hood against the
rear wall.
ELECTRICAL CONNECTION
1. Using provided wire connectors, connect wires as follow: BLACK wire to BLACK
wire (A), WHITE wire to WHITE wire (B), GREEN or BARE wire to GREEN wire(C).
9 10

2.Reinstall the wiring box cover.
3.Plug back the small connector inside the hood.
4.Reinstall the bottom plate, make sure both grease guides are aligned with the
holes, install the grease pan.
5.Using long nose pliers. Pull out each of grease guides (A) , then set them in
such a way their flange slightly protrudes above the bottom of surface (B) .
LIGHT BULB
This range hood may require two halogen bulbs (Type JCD, 12V, 20W Max, G-4 Base)
WARNING: Always switch off the electrical supply before carrying out any operation on
the appliance.
To change bulbs:
1.Kick off the halogen bulb cover by using the flat screw driver.
2.Remove the bulb by pulling sideward (DO NOT ROTATE).
3.Replace with Type JCD, 12V, 20W Max, G-4 Base halogen bulb. Do not touch
replacement bulb with bare hands!
CAUTION:
1.THE SURFACE, THE COVER OF THE HALOGEN BULBS MAY BE HOT. TAKE CARE WHEN
TAKING THE REPLACEMENT.
2.BULBS MAY BE HOT. TAKE CARE WHEN TAKING THE REPLACEMENT.
OPERATION
The hood is operated using electronic switch on the front panel.
ELECTRONIC SWITCH
1 –TIMER DELAY OFF SWITCH
2 – LAMP SWITCH
3 - DISPLAY
4 – FAN SPEED SWITCH
5 - ON/OFF SWITCH
LOCK ADJUSTMENT
When using this hood for the first time, or after a power failure, the display flashes regularly. To
stop flashing, press on/off key for more than 5 seconds, the hood will be set to time
setting mode. By pressing lamp key or fan speed key to change time setting, each single
press or keep keys pressing can changes the time by 1 or 3 either up or down. Press the
on/off key for confirmation when the right time appears.
1.The timer delay off switch, user can adjust the time 3-6-9-12-15-0 minutes by
pressing this button in turn, if no action occurs within 3 seconds, the countdown will
start automatically. The hood will be off when the countdown ends.
2.The lamp switch button,
Controls the lamp on and off;
Change the time down in time setting mode.
3.Display, shows the hood operation status and setting.
4.Fan speed button (six speeds)
Controls the fan speed;
Change the time up in time setting mode.
5.On/off switch button
Controls the hood on and off if pressing less than 5 seconds.
Entry to time setting mode if pressing more than 5 seconds.
11 1 2

MAINTENTANCE & CLEAN
1.Disengage the grease pan from the hood body.
2.Disengage the small grease guard cups from the grease guard by turning
counterclockwise and remove.
3.Remove the screw retaining the grease guard to the hood.
4.Remove the grease guard from the hood. Then remove the bottom plate.
5.Unscrew the clips and remove the wheel grease collector.
6.Remove the wheel center cap.
7.Loosen the wheel set screw in order to disengage the wheel from its motor shaft.
Let soak for 30 minutes all removed parts in warm water with soft soap. Then wash with
nylon brush, rinse and dry completely before reinstalling.
4
7
HOOD CLEANING
Stainless steel is one of the easiest materials to keep clean. Occasional care will help
preserve its fine appearance.
Cleaning tips:
* Hot water with soap or detergent is all that is usually needed.
* Follow all cleaning by rinsing with clear water. Wipe dry with a clean, soft cloth to avoid
water marks.
* For discolorations or deposits that persist, use a non-scratching household cleanser or
stainless steel polishing powder with a little water and a soft cloth.
* For stubborn cases use a plastic scouring pad or soft bristle brush together with
cleanser and water. Rub lightly in direction of polishing lines or “grain” of the stainless
finish. Avoid using too much pressure that may mar the surface.
* Do not allow deposits to remain for long periods of time.
* Do not use ordinary steel wool or steel brushes. Small bits of steel may adhere to the
surface causing rust.
* Do not allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain
in contact with stainless steel for extended periods. Many of these compounds contain
chemicals that may be harmful. Rinse with water after exposure and wipe dry with a clean
cloth.
* Painted surfaces should be cleaned with warm water and mild detergent only.
REPLACEMENT PARTS
Light Bulb: Model: XOPXOAB (Type JCD, 12V, 20W Max, G-4 Base)
Replacement Grease Guard: Model: XOPXOAG
13 1 4
NOTE : When reinstalling the wheel, align the end of
the set screw with the flat part of the motor shaft (A).
