XOMI ISLAND
MODELS XOMI36GC, XOMI42GC

- 3 -
When buying any XO appliance
you can be confident you have chosen a
high quality, innovative and stylish product
from a company that cares about you!
If you require service or have questions,
there are 2 ways to contact our ventilation experts;
Online @ https://xoappliance.com/priority-service-for-your-xo-product/
Or by phone [phone]
CONGRATULATIONS
on purchasing your XO.
Before you proceed, take just a
moment to register your XO at:
www.xoappliance.com/register-your-product/
REGISTRATION HELPS YOU BY -
Ensuring warranty coverage should you need service
Providing ownership verification for insurance purposes
Let’s XO notify you in the event of product changes or recalls.

- 4 -
It’s for your
own good...
Honest.
please read and follow
all safety instructions
where things are
GETTING READY
Safety and Precautions
Planning Ductwork
Install Examples
Dimensions
THE INSTALL
Mounting Height
Installing
Electrical Connections
MAINTENANCE
Filters
Cleaning
Recirculation
Light Replacement
OPERATING
The Push Button Controls
CCC Make Up Air Conversion
PARTS & WARRANTY
20 - 21
22 - 23
5 - 11
12 - 17
18 - 19

- 5 -
safety first
IMPORTANT SAFETY INSTRUCTIONS
FOR RESIDENTIAL USE ONLY
READ AND SAVE THESE INSTRUCTIONS
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING.
IMPORTANT: Save these Instructions for the Local Electrical Inspectors use.
INSTALLER: Please leave these Instructions with this unit for the owner.
OWNER: Please retain these instructions for future reference.
Take care when using cleaning agents or detergents.
Suitable for use in household cooking area.
WARNING - To reduce the risk of fire or electric shock, do not use this fan with any
Solid-State Speed Control Device.
CAUTION - To reduce risk of fire and to properly exhaust air, be sure to duct air out-
side – Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl
spaces, or garages.
CAUTION - For Residential Kitchen ventilating use only. Do not use to exhaust haz-
ardous or explosive materials and vapors.
CAUTION - To avoid motor bearing damage and noisy and/or unbalanced impellers,
keep drywall spray, construction dust, etc. off power unit.
CAUTION - Please read specification label on product for further information and
requirements.
WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
A. Use this unit only in the manner intended by the manufacturer. If you have questions,
contact the manufacturer.
B. Before servicing or cleaning unit, switch power off at service panel and lock the ser-
vice disconnecting means to prevent power from being switched on accidentally.
When the service disconnecting means cannot be locked, securely fasten a promi-
nent warning device, such as a tag, to the service panel.
WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
A. Never leave surface units unattended at high settings. Boilovers cause smoking and

- 6 -
greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
B. Always turn hood ON when cooking with high heat.
C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on
fan or filter.
D. Use proper pan size. Always use cookware appropriate for the size of the surface
element.
E. Keep fan, filters and grease laden surface clean.
F. Use high range setting on range only when necessary. Heat oil slowly on low to me-
dium setting.
G. Don’t leave range unattended when cooking.
H. Always use cookware and utensils appropriate for the type and amount off food be-
ing prepared.
WARNING – TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE
TOP GREASE FIRE, OBSERVE THE FOLLOWING:
A. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off
the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately,
EVACUATE AND CALL THE FIRE DEPARTMENT.
B. NEVER PICK UP A FLAMING PAN – You may be burned.
C. DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion
will result.
D. Use an extinguisher ONLY if:
1. You know you have a Class ABC extinguisher, and you already know how to operate it.
2. The fire is small and contained in the area where it started.
3. The fire department is being called.
4. You can fight the fire with your back to an exit.
aBased on “kitchen firesafety tips” published by NFPA.
Proper maintenance of the Range Hood will assure proper performance of the unit.
INSTALLATION INSTRUCTIONS
WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
A. Installation work and electrical wiring must be done by qualified person(s) in accord-
ance with all applicable codes and standards, including fire-rated construction.
B. Sufficient air is needed for proper combustion and exhausting of gases through the
flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heat-
ing equipment manufacturer’s guideline and safety standards such as those pub-
lished by the National Fire Protection Association (NFPA), and the American Society
for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local

- 7 -
code authorities.
C. When cutting or drilling into wall or ceiling, do not damage electrical wiring and
other hidden utilities.
D. Ducted fans must always be vented to the outdoors.
E. This unit must be grounded.
WARNING - TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
WARNING - UNDER CERTAIN CIRCUMSTANCES DOMESTIC APPLIANCES MAY BE
DANGEROUS.
A. Do not check filters with hood working.
B. Do not touch the lamps after a prolonged use of the appliance.
C. No food must be cooked flambè underneath the hood.
D. The use of an unprotected flame is dangerous for the filters and could cause fires.
E. Watch constantly while frying food in order to avoid cooking oil flare ups.
F. Before performing any maintenance operation, disconnect the hood from the
electrical service.
The manufacturers will not accept any responsibility for possible damages, because
of failure to observe the above instructions.

- 8 -
THIS HOOD IS DESIGNED TO USE A 6” ROUND DUCT -
IT MAY BE TRANSITIONED TO A 3-1/4” X 10” RECTANGULAR DUCT
NEVER REDUCE DUCT SIZE. UNDERSIZED DUCTING SEVERELY RESTRICTS AIR
FLOW AND HARMS PERFORMANCE.
(Example: the area of a 6” Duct is more than TWICE that of a 4” Duct)
KEEP DUCT RUNS AS SHORT AND STRAIGHT AS POSSIBLE.
AVOID USING FLEXIBLE METAL DUCTING IF RUN IS LONGER THAN 6’.
NEVER USE PLASTIC DUCTING.
USE SMOOTH BORE METAL DUCTING.
MINIMIZE THE NUMBER OF FITTINGS (see chart).
WHEN YOU MUST USE FITTINGS, TRY TO SEPARATE THEM WITH SECTIONS OF
3’ OR MORE OF STRAIGHT DUCT.
ALWAYS FOLLOW THE MANUFACTURER’S GUIDELINES FOR THE COOKING
EQUIPMENT YOU ARE VENTING.
IF MAKE UP AIR CONTROL DAMPERS ARE REQUIRED, POSITION THE SENSOR
IN A STRAIGHT RUN OF DUCT IDEALLY WITH 3’ OF STRAIGHT DUCT BETWEEN
EACH SIDE OF THE SENSOR AND A DUCT FITTING. REMEMBER TO INCLUDE
POWER AND CONTROL WIRING FOR THIS IN YOUR PLANS.
ADHERE TO ALL LOCAL BUILDING CODES AND ORDINANCES.
USE THE WORKSHEET THAT FOLLOWS TO HELP CALCULATE THE
TOTAL EQUIVILENT FEET OF YOUR DUCT RUN.
TOTAL EQUIVILENT FEET SHOULD BE LESS THAN 100’.
a few simple rules to plan your
ductwork
1
1
12
7
14
8
33
2
4
24
24
33

- 9 -
1
1
12
7
14
8
33
2
4
24
24
33
CAUSING AIR TO CHANGE DIRECTION CAUSES TURBULENCE AND RESTRICTS FLOW IN
A SYSTEM.
IF USING FLEXIBLE METAL DUCT - INCREASE ALL MULTIPLIERS BY 50% (12 BECOMES
18 - ETC.)
THIS EASY TO USE WORKSHEET IS FOR 600 CFM OR LESS.
UNDER “QTY USED” ENTER HOW OF EACH SECTION YOU WILL BE USING.
IN THE FIRST TWO ROWS - ENTER HOW MANY FEET OF EACH TYPE OF STRAIGHT DUCT
YOU WILL BE USING (I.E. FOR 20 FT ENTER 20, FOR 30FT ENTER 30).
ENTER THE NUMBER OF EACH TYPE OF TURN YOU ARE USING AND THE TYPE OF END CAP.
MULTIPLY ACROSS EACH ROW THE “MULTIPLIER” x “QTY USED” TO GET THE EQUIVALENT
FEET FOR THOSE COMPONENTS.
ADD UP ALL THE VALUES IN THE “EQUIVALENT FEET” COLUMN.
DUCT PIECE DESCRIPTION MULTIPLIER QTY USED EQUIVALENT
FEET
1’ of 6” Round Duct
1’ of 3 1/4“ x 10” Rect. Duct
6” 90 Degree Elbow
6” 45 Degree Elbow
3 1/4” x 10” 90 Degree
3 1/4” x 10” 45 Degree
3 1/4” x 10” Side 90 Degree
3 1/4” x 10” x 6” Round
3 1/4” x 10” x 6” 90 Degree
6” Round Wall Cap w Damper
3 1/4” x 10” Wall Cap w Damper
6” Round Roof Cap
TOTAL EQUIVALENT FEET SHOULD BE LESS THAN 100
estimating total equivalent feet in
a duct

- 10 -
VENTEDRECIRCULATION
WALL EXHAUST ROOF EXHAUST
GRID EXHAUST
RECIRCULATION
EXHAUST MUST BE RE-
TURNED TO THE SPACE
typical installation examples
12-15/16" 11-3/16"
23-5/8"

- 11 -
12-15/16" 11-3/16"
23-5/8"
 Front of hood  Side of hood
 Top of hood
dimensions
MODEL A
XOBI36SC 36”
XOBI42SC 42”

- 12 -
27”to32”
RECOMMENDED
MOUNTING HEIGHT
ABOVE GAS AND
ELECTRIC COOKTOPS
highs and lows
All range hoods have a recommended range of installation height over the cooking
surface.
It is important to install the hood at the proper mounting height. Hoods mounted too
low could result in heat damage and fire hazard; while hoods mounted too high will
be hard to reach and will lose its performance and efficiency.

- 13 -
B
X
A
B
B
27”to32”
installation




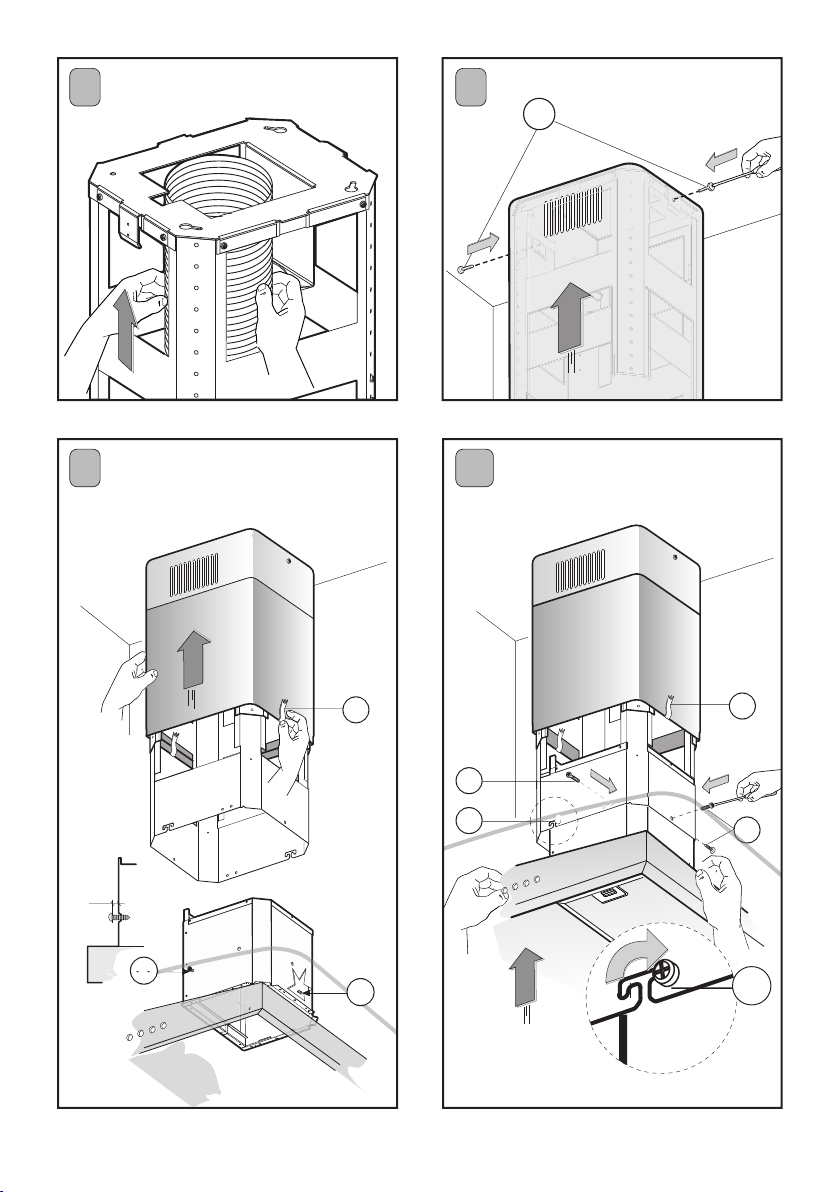

- Remove the structure from the packaging and
remove the 2 screws Ato separatethe upper
part from the lower part (Fig.1).
- Position hole template on the ceiling paying
attention that the arrow is positioned on the
same side as the appliance controls (Fig.2).
Make 4, Ø8 holes in the ceiling and drive in 3
screws without completely tightening them. Pay
attention not to insert the screw into the hole
marked with an Xon the hole template (the
screws and expansion plugs must be suitable
for the type of wall).
- Take the upper part of the structure B (Fig.3)
and insert the 3 slots onto the 3 screws that are
not completely tightened. Rotate slightly to t
(Fig.3). Drive in the fourth screw Xand tighten
the remaining 3 to allow denitive blocking of
the upper part ofstructure B.
- Take the lower part of the telescopic structure
Cand insert it into the upper structure B (Fig.4).
Adjust the height by referring to the amounts in-
dicated in (Fig.5) and block it usingthe 8 screws
Gthat are supplied (Fig.6).
- Fix the exible pipe to the prepared air eva-
cuation hole (Fig.7).
- Take the upper chimney piece and x it to the

- 14 -

 
G
G
G
C
B
B
C
C
X
A
B
X = C - (3-9/16"+A+d+B)
27"<d<32"
A
L
N
ON
O
L
Max 3 mm
O
O
structure using the 2 screws A (Fig.8). Join
the lower chimney piece with the upper one
and x it carefully using adhesive tape L
(Fig.9).
- Unscrew the 2 screws O, max 3 mm
(Fig.9). Insert the exhaust unit inside the
structure paying attention that the pre-
viously unscrewed screws O, hook into
the slots in the lower part as indicated in
(Fig.10). Drive in the 3 screws N(supplied)
and tighten the 2 screws O (Fig.10).
- Fix the air evacuation pipe H(not sup-
plied) onto the connection ange F as

- 15 -
 

G
G
G
C
B
B
C
C
X
A
B
X = C - (3-9/16"+A+d+B)
27"<d<32"
A
L
N
ON
O
L
Max 3 mm
O
O


- 16 -
L
P
H
F
 

shown in Fig.11.
- Remove adhesive tape Land rest the lower chimney piece above the cooker hood (Fig.12).
- If the cooker hood is supplied with a lower chimney piece that must be xed to the hood
body with screws, remove the anti-grease lters from the hood by acting on the relevant
handles. Then screw the lower chimney piece pipe to the inside of the hood, using screws P
(Fig.13). Relocate the lters in their seat.
IMPORTANT -The range hood must be secured to wall studs or use drywall anchors
capable of supporting 75 lbs.

- 17 -
electrical connection
A B
C D
1. Route the power cord to the junction box.
2. Using listed conduit fittings and connectors, connect the power supply to the box and
each line to the appropriate wire following this color convention:
BLACK = HOT LEG
WHITE = NEUTRAL
GREEN/YELLOW = GROUND
Polarity must be observed.
Unit must be properly grounded.
Use a double throw disconnect switch.
3. Replace the box cover
Replace the Anti-grease flters.
All wiring must be in compliance with national electrical code, ANSI/NFPA 70-1999
and all local codes and regulations.
ALift the electrical plant box.
BRemove the 3 fixed screws.
CPosition the electrical box so it is in the line with the holes of the previously removed
screws and tighten.
D

- 18 -
maintenance
Regular cleaning and maintenance is the key to long life and peak performance of any
equipment.
•Theanti-greaselter is used to trap any grease particles suspended in the air, therefore
is subject to saturation (the time it takes for the lter to become saturated depends on the
way in which the appliance is used). The greaseltersshould be cleaned frequently. Use a
warm detergent solution. Grease lters are a dishwasher safe.
- To prevent potential re hazards, the anti-
grease lters should be washed a minimum
of every 2 months (it is possible to use the
dishwasher for this task).
- After a few washes, the colour of the lters
may change. This does not mean they have to
be replaced. If the replacement and washing
instructions are not followed, the anti-grease
lters may present a re hazard.
CLEANING STAINLESS STEEL:
Do not use corrosive detergents, abrasive detergents or oven cleaners.
Do not use any product containing chlorine bleach or any product containing chloride.
Do not use steel wool or abrasive scrubbing pads which will scratch and damage surface.
Cleaning Stainless Steel Clean periodically with warm soapy water and clean cotton cloth or
micro fiber cloth. Always rub in the direction of the stainless steel grain. To remove heavier
grease build up use a liquid degreaser detergent. After cleaning use a non-abrasive stainless
steel polish/cleaners, to polish and buff out the stainless luster and grain.Always rub lightly, with
a clean cotton cloth or a micro fiber cloth and buff in the direction of the stainless steel grain.
Any painted surfaces should be cleaned with warm water and detergent only.

- 19 -
maintenance continued
XORFSQR
FOR UNITS USED IN RECIRCULATION MODE ONLY:
This refers to hoods which are not ducted outside but rely instead on carbon filter elements
to help purify the air before it is exhausted back into the room.
The carbon element filters gradually lose efficiency and cannot be cleaned or regenerated.
These must be replaced at least 4 times a year, more frequently if needed based on the
amount of use and style of cooking.

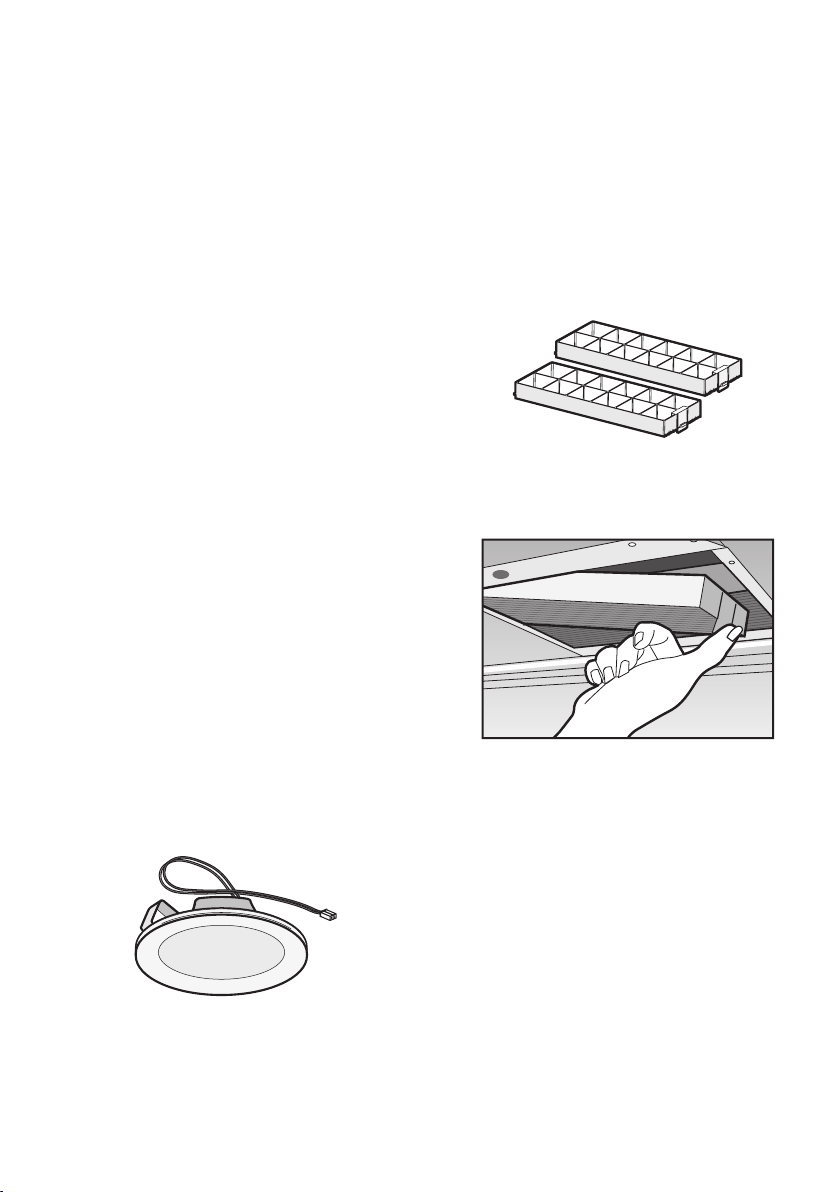

CHANGING THE CARBON FILTERS:
Changing the filters is easy.
To Reduce the Risk of Fire and Shock use only
conversion Kit Model XORFSQR(ACK00083) Filters.
The XORFSQR filters are sold in pairs.
To replace the filters, unlatch and remove the
Anti-Grease filters.
This will expose the blower.
Remove the old filter as shown in the figure and
install the new filter simply align and push into
place to lock.
LED LIGHT REPLACEMENT
The LED light modules are held in place by
spring clips which must be squeezed in be-
fore the lamp can be pushed down through
the fascia.
Unplug the plastic molex connector.
Plug in the new fixture and snap back into
place.
XOPSPK6602
(UL REFERENCE ACK00083)

- 20 -
BUTTON : LIGHT
BUTTON 0: OFF
BUTTON 1: SPEED I
BUTTON 2: SPEED II
BUTTON 3: SPEED III
BUTTON T: AUTOMATIC STOP TIMER - 15 minutes (*)
• The appliance has the Power Boost speed function: press BUTTON 3 for two seconds and
it will be activated for 10 minutes after which it will return to the previously set speed. When
the function is active the LED ashes. To interrupt it before the 10 minutes have expired press
BUTTON 3 again.
•By pressing BUTTON T for two seconds (with the hood switched o󰀨) the “cleanair” func-
tion is activated. This function switches the appliance on for ten minutes every hour at the
rst speed. As soon as this function is activated the motor starts up at the rst speed for ten
minutes. During this time BUTTON T and BUTTON 1 must ash at the same time.
After ten minutes the motor switches o󰀨 and the LED of BUTTON T remains switched on with
a xed light until the motor starts up again at the rst speed after fty minutes and BUTTON
T and BUTTON 1 start to ash again for ten minutes and so on.
By pressing any key for the exclusion of the hood light the hood will return immediately to its
normal functioning (e.g. if BUTTON 2 is pressed the “cleanair” function is deactivated and
the motor moves to the 2nd speed straight away. By pressing the BUTTON 0 the function is
deactivated).
(*) The “automatic stop timer” delays stopping of the hood, which will continue functioning for
15 minutes at the operating speed set at the time this function is activated.
•Activecarbon/greaseltersaturation:
- When button ashes at a frequency of 2 seconds, the grease lters must be cleaned.
- When button ashes at a frequency of 0.5 seconds, the carbon lters must be replaced.
After the clean lter has been replaced, the electronic memory must be reset by pressing
button for approximately 5 seconds, until the light on the button stops ashing.
Your XO range hood is controlled by these
electronic push buttons which illuminate when
activated.
easy to operate
Code Compliance Control
