Operation Manual
Mobile Metal Band Saw
61917
Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps, and technical data can differ insignificantly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.

https://www.XPOtool.com Item 61917 Page 2
The Tool Experts
05 2022-1
The information contained in this document may alter at any time without previous notice. It is prohibited
to copy or spread any parts of this document in any way without prior written allowance. All rights re-
served.
The WilTec Wildanger Technik GmbH cannot be held accountable for any possible mistakes in this
operating manual, nor in the diagrams and figures shown.
Even though, the WilTec Wildanger Technik GmbH has undergone biggest possible efforts to ensure
that the operating manual is complete, faultless, and up to date, mistakes cannot be entirely avoided.
If you should find a mistake or wish to make a suggestion for improvement, we look forward to hearing
from you.
Send an e-mail to:
[email protected]
or use our contact form:
https://www.wiltec.de/contacts/
The most recent version of this manual in various languages can be found in our online shop via:
https://www.wiltec.de/docsearch
Our postal address is:
WilTec Wildanger Technik GmbH
Königsbenden 12
52249 Eschweiler
Germany
To return orders for exchange, repair, or other purposes, please use the following address. Attention!
To allow for a smooth execution of your complaint or return, it is important to contact our customer
service team before returning the goods.
Returns Department
WilTec Wildanger Technik GmbH
Königsbenden 28
52249 Eschweiler
E-mail: [e-mail]
Tel: [phone]
Fax: [phone]

https://www.XPOtool.com Item 61917 Page 3
The Tool Experts
05 2022-1
Introduction
Thank you for purchasing this quality product. To minimize the risk of injury we urge that our clients
take some basic safety precautions when using this device. Please read the operation instruc-
tions carefully and make sure you have understood its content.
Keep these operation instructions safe.
When unpacking the machine, make sure that it is in perfect condition and the package contains the
parts described; in case of any damages or missing parts, do not work with the product and immediately
contact the manufacturer or an authorised service partner.
•The purpose of this manual is to provide necessary information for competent safe use of the
device.
•This information is the result of continuous, systematic data processing and technical tests rec-
orded and validated by the manufacturer in accordance with internal procedures to ensure
safety and quality of information: EN89/392, EN60204–1, CEI110–8, IEC801, EN202–2, EN418,
prEN614–1.
•The following information is intended exclusively for specialised users, capable of interacting
with the product with the utmost safety for people, the machine, and environment. Any user
should be able to interpret basic diagnostics of problems and malfunctions and perform simple
checks and maintenance in full compliance with the instructions given in the following pages.
They must comply with common health and safety regulations including the mentioned ones
within this manual.
•The document does not examine in depth the topics of disassembly and extraordinary mainte-
nance, as these operations must always be carried out by the manufacturer or authorised ser-
vice partner only.
•For a proper use of the product, it is essential to ensure that the manual remains legible and
well preserved for future reference. If having any question, always contact an authorised service
partner before working with the machine again.
•Before any intervention to the machine or its parts, the instructions within this manual have to
be read very carefully.
•If the machine is used by more than one operator, each one must adhere to the following in-
structions.
•The manufacturer and its service partners decline any responsibility for damage to persons,
things, or the machine itself arising from its incorrect use resulting from not following the safety
instructions stated within this manual.
•This instructions manual must be stored in a safe and accessible place for future reference.
General precautions
•Always make sure that the required safety and operating standards are respected taking note
of environmental conditions like temperature, humidity, lighting, vibrations, suspended dust and,
general appropriateness of the working area.
•The saw may only work in areas where there is no risk of explosion or fire.
•Before using the device, make sure that the surface where the machine will be placed is flat,
sufficiently sturdy, and ergonomic. Due to this, we recommend the use of a workbench.
•Always make sure that the workpiece is tightly clamped before starting to work with the machine.
Otherwise, there is a risk of injury. The user must make sure that no dangerous situations may
arise.
•Do not remove or damage the information plates on the machine. The information contained
must be always kept recognisable and legible.
•The use of non-original spare parts or any kind of slight modification to the machine will exempt
the manufacturer or seller from any responsibility regarding the warranty.
•It is strictly forbidden to modify safety equipment or devices of the machine.
•Resulting waste throughout the working process must be disposed of in compliance to current
regulations.

https://www.XPOtool.com Item 61917 Page 4
The Tool Experts
05 2022-1
•Any maintenance operations, except of those specifically described within this manual, must
only be carried out by the manufacturer or an authorised service partner.
Equipment
The mobile belt saw is supplied ready to use, packed in a cardboard box, and protected by a sheet of
cardboard. The packaging material must be disposed of according to current environmental protection
regulations. The machine is initially supplied with the instruction manual.
Note:
•The belt saw has been designed and manufactured for bench use. The metal parts being cut
may have a maximum diameter or thickness of 105 mm.
•Any other use is excluded by the manufacturer who shall be exempt from any liability for damage
to people, animals, or the machine itself caused by improper use.
•Do not run the machine for a longer period when no parts must be cut.
•Do not cut hardened or cemented steel parts.
Machine
Identification
•The essential information for identifying the product includes:
◦Manufacturer,
◦Serial number,
◦Model,
◦Year of manufacture,
◦Voltage (V),
◦Power (kW),
◦Frequency (㎐),
◦Amperage (A),
◦Weight (㎏).
•The EC approval plate is located as shown in fig. 2, ref. A. It is strictly forbidden to remove or
damage the plates. Immediately contact the manufacturer or an authorised service partner if
this should happen.
•For any information and/or technical explanations regarding the machine, always indicate:
◦Model,
◦Serial number,
◦Item number (of seller),
◦Order number.
Description
•The portable bench saw consists of a fixed bench, pivoting head (including a screw lock for
angle sawing), speed regulator, piece clamp, and operator tool.
•The machine may be used for dry cutting (from 0° to 45° left) of materials compatible with the
specifications listed below always in compliance with environmental conditions and limitations
recommended by the manufacturer as well as current health and safety regulations.
CAUTION: The description specifies the use for which this product has been designed and built. Any
other use or failure to comply with the technical parameters listed below may lead to hazardous situation
including the risk of injury to people and property.

https://www.XPOtool.com Item 61917 Page 5
The Tool Experts
05 2022-1

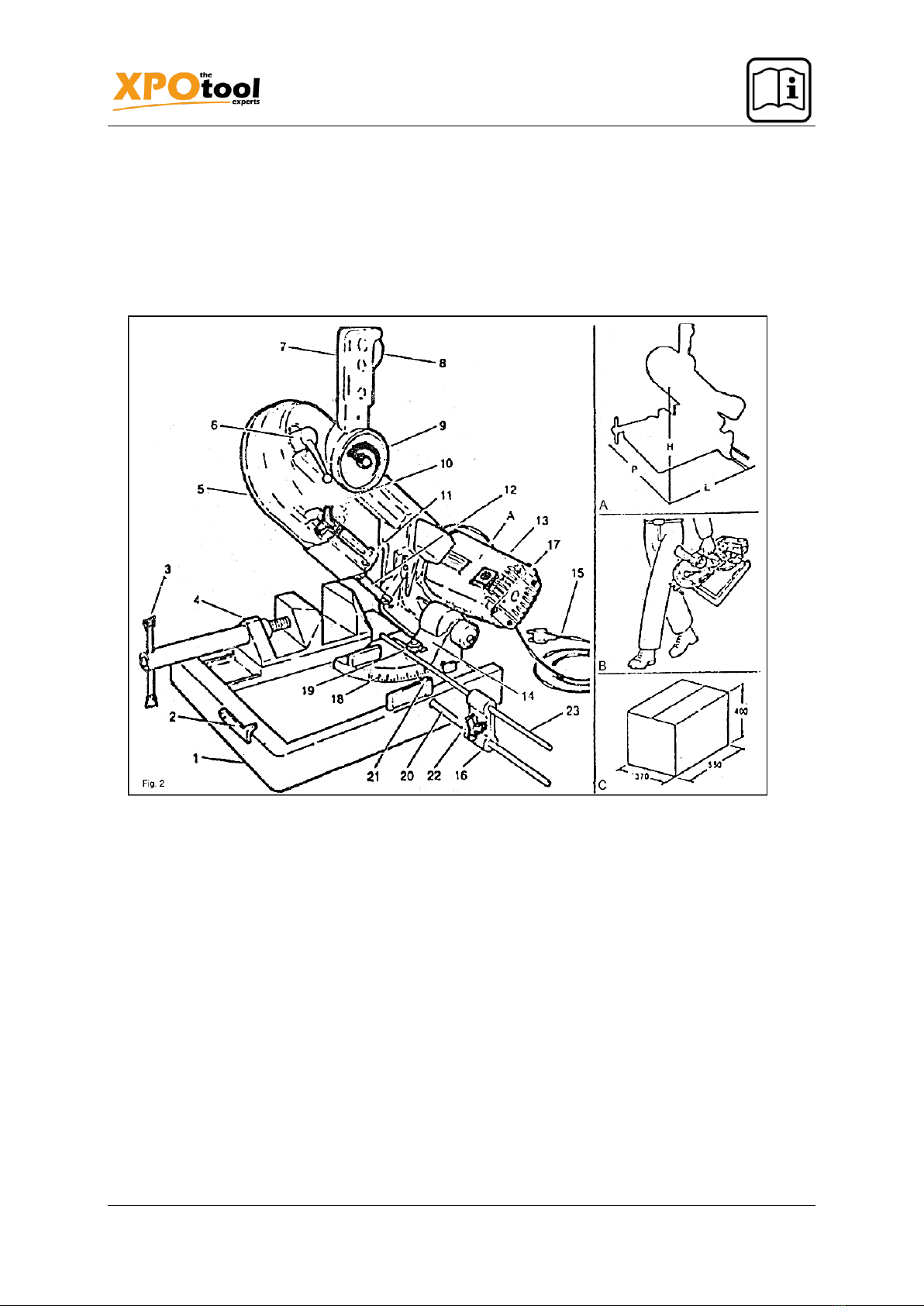

Main components (see “Figures and illustrations” below)
№
Name
№
Name
1
Base
9
Cutting speed regulator
2
Transport locking
10
Blade guide lock lever
3
Clamp crank
11
Blade guide
4
Pierce clamp
12
Belt saw
5
Machine body
13
Electric motor
6
Saw tension cover
14
90° rotation unit
7
Grip
15
Power cord
8
On/off switch
16
Piece holder
Technical specifications
Sizes
Total size (L×B×H) (㎜)
620 × 530 x 580
Saw band (㎜)
1140 × 13 × 0.65
Saw blade (teeth⁄inch)
14
Input voltage (V)
220
Frequency (㎐)
50
Current (A)
5
Power (W)
1500
Isolation class
2
Velocity (continuously variable) (m⁄min)
20–70
Max. cutting depth (㎜)
105
Cutting capacity (㎜)
round
100 (with 90°), 55 (with 45°)
square
100 × 105 (with 90°), 55 × 60 (with 45°)
Weight (㎏)
18
Technical characteristics
•Blade drive pulleys: on bearings
•Transmission: treated, tempered steel gears
•Switch with safety device
•Steel clamp
•Automatic blade stretcher
•Cutting capacity: profiled material
Lifting and moving
The saw may be lifted, carried, and moved by hand in compliance with the instructions below:
•Fasten the blade arm in its end position using the mechanical lock provided (Fig. 2, ref. 2).
•Make sure that it is properly fastened, grasp the centre of the arm (Fig. 2B), and lift it carefully.

https://www.XPOtool.com Item 61917 Page 6
The Tool Experts
05 2022-1
Caution: The machine must only be lifted and carried when it is free of materials or working pieces
always making sure that it has been disconnected from all power sources. In any case, always comply
with current health and safety regulations.
Commissioning
First steps
It is essential to determine size measurements and placement prior to installation to ensure safe place-
ment, running, and possible emergency actions within the surrounding area. These conditions should
be respected beginning with the preliminary stages before cutting begins.
1. Place the machine on a bench of adequate size and sturdiness (4 threaded holes provided
under the base allow the machine to be fastened securely in place).
2. Move the safety lever (2).
3. Lift the machine using the grip. In this position, it should not come down. If this is not the case,
slightly tighten the screw (17) that works directly on the clutch inside the rotation and lifting unit.
4. Make sure that the machine is aligned with the graded scale (18) according to the chosen cutting
angle.
5. Make sure that the nut (19) is tight.
Note: Before plugging the machine in, make sure that the line voltage corresponds to the voltage indi-
cated on the machine.
6. Mount the piece holder (20), tightening it by means of the headless screws (21).
7. Loosen the knob (22).
8. Slide the rod (23) to define the desired cutting length.
9. Tighten the knob (22) securely.
10. Set the cutting speed using the regulator (9); set the blade advancement based on the material
to be cut.
Cutting speed
Material
Speed (m⁄min)
Stainless steel
20–50
Copper, aluminium, and their alloys
40–60
Steel, etc.
50–70
Insert the piece to be cut in the clamp and tighten the clamp lever securely. Only start working when the
working piece cannot move anymore.
Adjusting the blade guide
1. Loosen the lever (24).
2. Slide the blade guide (25) which also serves as protection until the saw (3) is as much covered
as possible, based on the size of the part to be cut.
Operator position
•The placement of the machine in relation to the operator position must allow observing the re-
sults of the operation to maintain safety.

https://www.XPOtool.com Item 61917 Page 7
The Tool Experts
05 2022-1
•During this stage, make sure that the start button (8) and speed regulator (9) are easily acces-
sible and that there is sufficient visibility and lighting on the tool, the surrounding area, and the
base.
Notes:
•It is strictly forbidden to place and/or use the saw when environmental conditions may cause a
fire or an explosion.
•It is forbidden to use the machine for a purpose other than that intended by the manufacturer.
•Make sure that operating the saw does not create dangerous situations for persons and/or prop-
erty.
•If any malfunction is encountered, the machine must be stopped immediately and the reason
and extent of the malfunction be checked. A damaged machine must be repaired before being
taken into operation again. Contact the manufacturer or an authorised service partner if neces-
sary.
Starting
Release the safety switch by turning the (orange) lock down (8), then press the button, and begin cutting
using even pressure.
Caution: The first time it is started, the machine will be fairly noisy, due to the normal breaking in stage
of the transmission gears. This noise will disappear after approximately 8 working hours. In any case,
the measurable noise level is equal to and not greater than 85 dB (A).
It is absolutely forbidden
•to lubricate the blade (saw) immediately before/during/after cutting;
•to work without the blade guide installed and positioned properly;
•to work without the rear guard;
•to hold the piece to be cut by hand.
The manufacturer shall not be held liable for damage of any type or nature caused by irrational use
of the machine. Failure to observe the safety rules indicated in this manual as well as changes or any
modification to the machine (whether they be slight) will invalidate all warranty.
Maintenance
Replacing the saw
It is essential to wear protective gloves when changing the blade of the tool:
1. Remove the corner plate (27) from the mobile blade guide.
2. Remove the protective guard (28).
3. Turn the lever (29) towards the position “–”.
4. Remove the blade (30).
5. Insert the new blade taking care to observe the cutting direction and placing it between the blade
guide rollers and between the rubber pulleys (31).
6. Turn the lever (29) towards the position “+”.
7. When the lever (29) reaches the end of its stroke, the blade will automatically position itself for
cutting when the motor begins to turn.
8. Replace the guard (28) and plate (27) of the mobile blade guide.
Note: During the first 4–6 cuts (after replacing the blade), only perform slight cutting pressures to in-
crease the duration and effectiveness of the blade thereafter.
After each working shift
Carefully clean all parts of the machine to remove shavings and cutting residue.

https://www.XPOtool.com Item 61917 Page 8
The Tool Experts
05 2022-1
Periodically
•Check the length of the electric motor brushes and make sure they are efficient. If they are less
than 6 mm long, they must be replaced with original new ones.
•The gear transmission requires no maintenance since it runs on long life lubricants.
Figures and illustrations

https://www.XPOtool.com Item 61917 Page 9
The Tool Experts
05 2022-1

https://www.XPOtool.com Item 61917 Page 10
The Tool Experts
05 2022-1
Disposal regulations
EU guidelines regarding the disposal of scrap electric appliances (WEEE, 2012/19/EU) were imple-
mented in the law related to electrical and electronic equipment and appliances.
All WilTec electric devices that fall under the WEEE regulations are labelled with the crossed-out
wheeled waste bin logo. This logo indicates that this electric equipment must not be disposed with the
domestic waste.
The company WilTec Technik GmbH has been registered in the German registry EAR under the WEEE-
registration number DE45283704.
Disposal of used electrical and electronic appliances
(intended for use in the countries of the European Un-
ion and other European countries with a separate col-
lection system for these appliances).
The logo on the article or on its packaging points out
that this article must not be treated as normal house-
hold waste but must be disposed to a recycling collec-
tion point for electronic and electrical waste equipment.
By contributing to the correct disposal of this article you
protect the environment and the health of your fellow
men. Environment and health are threatened by inap-
propriate disposal.
Material recycling helps reduce the consumption of raw materials.
Additional information on recycling this article can be provided by your local community, municipal waste
disposal facilities, or the store where you purchased the article.
Address:
WilTec Wildanger Technik GmbH
Königsbenden 12 / 28
D-52249 Eschweiler
Important notice:
The reprint or reproduction, even of excerpts, and any commercial use, even in part, of this instruction
manual require the written permission of WilTec Wildanger Technik GmbH.
