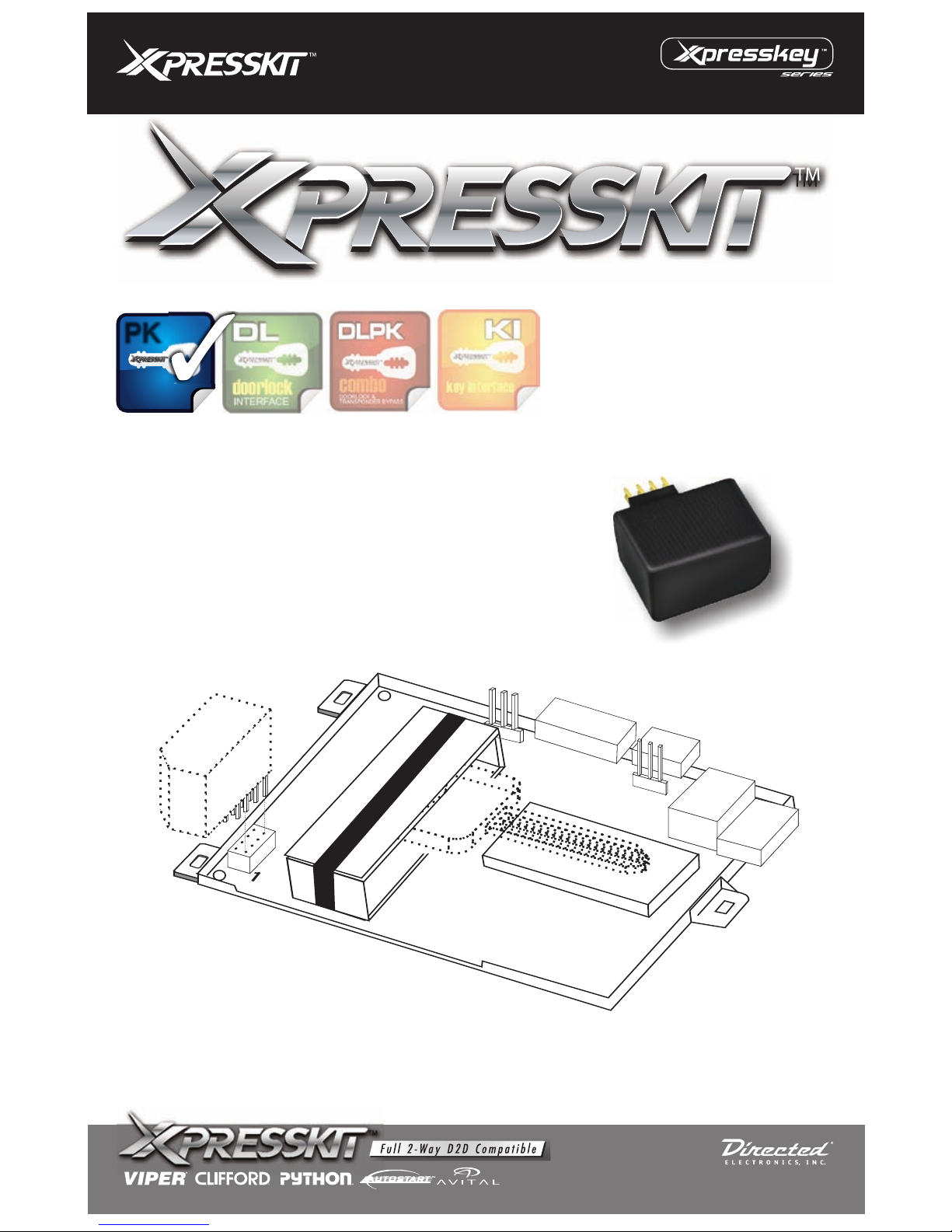

Xpresskit TBXKEY User manual

MODEL: TBXKEY
INSTALLATION GUIDE
transponder
PK
BYPASS
4
8
MODEL: TBXKEY Rev.: 20091214
Universal Transponder Bypass
© 2009 Directed Electronics. All rights reserved.

IMPORTANT IF NOT USING XPRESSKEY:
Before installing, inform the customer that one of the vehicle's coded keys must be used in the installation and installed
permanently in the unit. If a new key is purchased at the dealer, make sure to code the new key to the factory
immobilizer or have the dealer do this. In many vehicles, the new key must be coded at the dealer.
IMPORTANT:
It is also the installer's responsibility to inform the customer of the following: If they wish to have additional keys
programmed to the vehicle's immobilizer system, certain vehicle manufacturers require that all programmed keys be
reprogrammed at the time the new key is added. In this case, it would be necessary to remove the already programmed
key or XPRESSKEY from the TBXKEY module to reprogram it.
AVAILABLE XPRESSKEYS
Bypass for most Mitsubishi models from 2004 to 2008.
(* Kit includes RF ring - Dealer scan tool required for programming)
XKEYCH
XKEYMIT3
Sentry key bypass for most Chrysler vehicles
built prior to 2004. (* Kit includes RF ring)
Used in D2D (Data to Data) only
(Green XPRESSKEY)
(Red XPRESSKEY)
Bypass for most Chrysler vehicles built after to 2004 as well
as GM vehicles equipped with the Pk3+. (* Kit includes RF ring)
XKEYCHGM
(Black XPRESSKEY)
RF immobilizer bypass for Kia Amanti from 2004 to 2007.
Also compatible with 2007 to 2008 Hyundai and KIA vehicles.
(* Kit includes RF ring - Dealer scan tool required for programming)
Universal XKEY pod with RF loop and 2 part resin that can be used
with any pre-programmed transponder pellet. (Transponder NOT included)
XKEYUB
(Blue XPRESSKEY)
XKEYKIA2
(Yellow XPRESSKEY)
† Chrysler, Jeep, Dodge, Mitsubishi, GM, Hyundai and KIA are registered trademarks and property of their respective companies.
MODEL: TBXKEY Rev.: 20091214
Universal Transponder Bypass
© 2009 Directed Electronics. All rights reserved.

(-)
/(+)
I/O
status Specific wire connection location
Connect
Location Activation / Functionality
Chassis ground
Connect to ground when running (status) output of RCS.
Constant (+) 12 Volt Source
(+)
(-) Power source
Input
Input
(-)
Input RCS*
*RCS: Remote Car Starter
RCS*
RCS*
Ground source
Bypasskit activation (override)
Wire
Color
Red
Blue
Black
PIN#
1
4
2
6 PIN Harness
Standard Installation (D2D will only work with XKEY)
Advanced installation options
(-)
/(+)
I/O
STATUS Specific wire connection location
Connect
Location Activation / Functionality
To vehicle’s negative keysense output
To vehicle’s positive keysense output
To vehicle’s primary ignition wire
(+)
(+)
Input
Input
(-)
Input Vehicle
Vehicle
Vehicle
Wires
Color
Brown
Violet
Green
PIN#
5
3
6
6 PIN Harness
The KEYSENSE inputs are an optional (-/+) shut
off circuit designed to prevent the vehicle from
detecting two transponder keys at the same time.
Latching Input (optionnal)
By connecting the Brown wire from TBXKEY to
the ignition wire in the vehicle, TBXKEY will stay
active the entire time the vehicle is running.
MODEL: TBXKEY Rev.: 20091214
Universal Transponder Bypass
© 2009 Directed Electronics. All rights reserved.

PIN 5 Green
PIN 1 Black Chassis Ground
PIN 6 Brown
PIN 4 Blue GWR (From RCS)
PIN 2 Red (+) 12 Volt Constant
PIN 3 Violet
#Part: D2D
D2D connector
4
8
remove the
jumper.
Jumper position
when using
XKEY OEM Key
4
1
8
5
1. Open the module and place
one of the vehicles coded
key through the center of the
black receiver ring as shown.
2. Reassemble the to
secure the key inside.
module
1. Open the module and place
the Xpresskey in the 8 pins
connector as shown.
2. Reassemble the .module
Key winding selections
Coil turns around factory transponder
key in TBXKEY module
If used with an XKEY, remove the jumper.
18 windings60 windings
(default)
Option A
Install OEM key
(Not compatible with D2D)
Option B
Install XpressKey
Install the loop antenna
according to the correct
diagram on the next page.
The 60 coil winding position is more sensitive to picking up
the RFID of the key in the box than the 18 winding position.
18 winding: For most
American and Asian vehicles.
60 winding: Required for
most European vehicles.
*D2D mode requires an XKEY.
When using
MODEL: TBXKEY Rev.: 20091214
Universal Transponder Bypass
© 2009 Directed Electronics. All rights reserved.

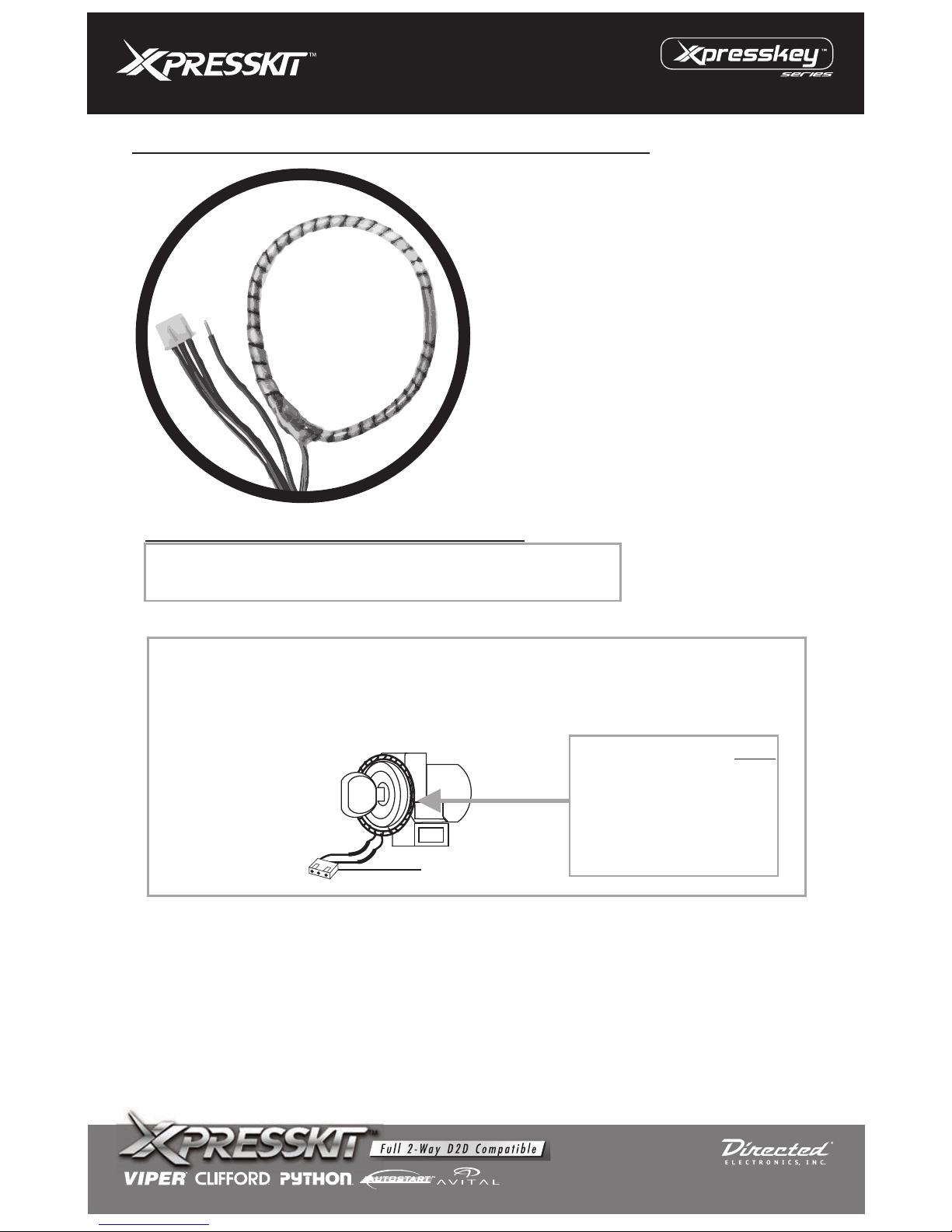

Standard installation of antenna loop
Disassemble the steering column shroud and locate
the factory transponder ring's antenna.
NOTE: Some vehicles may require other methods to access the factory transponder ring antenna wires.
Install loop antenna
Installing the loop antenna
1. P ound the vehicle's ignition cylinder as shown.
2. Plug the antenna loop connector into the TBXKEY control module and secure the other
unused wire.
lace the included loop antenna ring ar
Note
Move antenna loop as close
to the front of ignition
cylinder (factory receiver
ring) as possible. Test before
closing installation & after
replacing the shroud (cover).
Unused
18 WIRE LOOP ANTENNA
INCLUDED 18-WIRE
PRE-FORMED LOOP
(SEE INSTALLATION BELOW)
This installation method will only work with immobilizer systems that have a two wire factory
antenna harness. This alternate interface method is not guaranteed to work with all immobilizer
systems due to differences in transponder systems but one of the best choice for European
vehicles. It is meant to provide the installer with an alternative interface method for most two-wire
transponder ring systems.
Alternative installation of antenna loop
See next page for connection details of alternative installation.
MODEL: TBXKEY Rev.: 20091214
Universal Transponder Bypass
© 2009 Directed Electronics. All rights reserved.

Factory
Transceiver
Module
Disassemble the steering column shroud and locate the factory transponder ring's
antenna wires. The two wires are usually located in a tube routing from the transponder
ring to the factory transceiver module.
When loop antenna is installed
#Part: D2D
D2D connector
Wire to Wire: Plug
the 6-pin power plug
into the module.
Data to Data:
Connect the
D2D cable to
the system.
*D2D mode
requires
an XKEY.
Alternative installation of antenna loop (i.e.: VW, Audi, BMW, ...)
Pin 1 - Black
Pin 1 - Black
Pin 2 - Black with silver stripes
Pin 2 - Black with silver stripes
Pin 3 - Black with silver texts
Pin 3 - Black with silver texts
Pin 1
1
3
Step 1 Step 2
NOTE: Some vehicles may require other methods to access the factory transponder ring antenna wires.
CONNECT 18 WIRE LOOP ANTENNA
cut Pin 3
Pin 2
Cut the original loop antenna wires.
1. Locate and split open the factory transponder ring tube and
cut one of the two wires in half. Strip part of second wire.
2. Connect pin 1 wire to the factory transponder car side of the
cut wire.
3. Connect pin 2 to the key side of the cut wire.
4. Connect pin 3 to the uncut wire.
Step 3
Plug the three (3) pin
loop antenna connector
into the module.
Factory
Transceiver
Module
1.
2. Connect the PIN 3 (Black with silver texts) and PIN 1 (Black)
wires to the factory transponder ring side of the cut wire. (PIN
1 normally closes input wire of module)
3. Connect the factory transceiver module side of the cut wire to
module PIN 2 (Black with silver stripes) wire.
Locate and split open the factory transponder ring tube and
cut one of the two wires in half. Strip part of second wire.
OR
MODEL: TBXKEY Rev.: 20091214
Universal Transponder Bypass
© 2009 Directed Electronics. All rights reserved.

MODEL: TBXKEY Rev.: 20091214
Universal Transponder Bypass
© 2009 Directed Electronics. All rights reserved.

LIMITED ONE-YEAR CONSUMER WARRANTY
For a period of ONE YEAR from the date of purchase of a Directed Electronics remote start or security
product,DirectedElectronics.(“DIRECTED”)promisestotheoriginalpurchaser,torepairorreplacewith
a comparable reconditioned piece, the security or remote start accessory piece (hereinafter the “Part”),
which proves to be defective in workmanship or material under normal use, provided the following
conditions are met: the Part was purchased from an authorized DIRECTED dealer; and the Part is
returned to DIRECTED, postage prepaid, along with a clear, legible copy of the receipt or bill of sale
bearing the following information: consumer’s name, address, telephone number, the authorized
licenseddealer’snameandcompleteproductandPartdescription.
This warranty is nontransferable and is automatically void if the Part has been modified or used in a
manner contrary to its intended purpose or the Part has been damaged by accident, unreasonable use,
neglect, improper service, installation or other causes not arising out of defect in materials or
construction.
TOTHEMAXIMUMEXTENTALLOWEDBYLAW,ALLWARRANTIES,INCLUDINGBUTNOTLIMITED
TO EXPRESS WARRANTY, IMPLIED WARRANTY, WARRANTY OF MERCHANTABILITY, FITNESS
FOR PARTICULAR PURPOSE AND WARRANTY OF NON INFRINGEMENT OF INTELLECTUAL
PROPERTY, ARE EXPRESSLY EXCLUDED; AND DIRECTED NEITHER ASSUMES NOR
AUTHORIZES ANY PERSON OR ENTITY TO ASSUME FOR IT ANY DUTY, OBLIGATION OR
LIABILITY IN CONNECTION WITH ITS PRODUCTS. DIRECTED HEREBY DISCLAIMS AND HAS
ABSOLUTELY NO LIABILITY FORANYAND ALLACTS OF THIRD PARTIES INCLUDING DEALERS
OR INSTALLERS. IN THE EVENT OF A CLAIM OR A DISPUTE INVOLVING DIRECTED OR ITS
SUBSIDIARY, THE PROPER VENUE SHALL BE SAN DIEGO COUNTY IN THE STATE OF
CALIFORNIA. CALIFORNIA STATE LAWS AND APPLICABLE FEDERAL LAWS SHALLAPPLY AND
GOVERN THE DISPUTE. THE MAXIMUM RECOVERY UNDER ANY CLAIM AGAINST DIRECTED
SHALLBESTRICTLYLIMITEDTOTHEAUTHORIZEDDIRECTEDDEALER’SPURCHASEPRICEOF
THE PART. DIRECTED SHALL NOT BE RESPONSIBLE FOR ANY DAMAGES WHATSOEVER,
INCLUDING BUT NOT LIMITED TO, ANY CONSEQUENTIAL DAMAGES, INCIDENTAL DAMAGES,
DAMAGES FOR THE LOSS OF TIME, LOSS OF EARNINGS, COMMERCIAL LOSS, LOSS OF
ECONOMIC OPPORTUNITY AND THE LIKE. NOTWITHSTANDING THE ABOVE, THE
MANUFACTURER DOES OFFER A LIMITED WARRANTY TO REPLACE OR REPAIR AT
DIRECTED’SOPTIONTHEPARTASDESCRIBEDABOVE.
Some states do not allow limitations on how long an implied warranty will last or the exclusion or
limitation of incidental or consequential damages. This warranty gives you specific legal rights and
you may also have other rights that vary from State to State. DIRECTED does not and has not
authorized any person or entity to create for it any other obligation, promise, duty or obligation in
connection with this Part.920-0007 07-06
PROTECTED BY U.S. PATENTS:5,719,551;6,011,460B1*;6,243,004B1; 6,249,216 B1; 6,275,147B1;6,297,731B1; 6,346,876B1; 6,392,534B1; 6,529,124B2; 6,696,927B2; 6,756,885B1; 6,756,886 B2;
6,771,167B1; 6,812,829B1; 6,924,750B1; 7,010,402B1; 7,015,830B1; 7,031,826B1; 7,046,126 B1; 7,061,137B1; 7,068,153B1; 7,205,679B1; CDN. PATENT:2,320,248; 2,414,991; 2 , 4 1 5 , 0 1 1 ;
2,415,023;2,415,027; 2,415,038; 2,415,041; 2,420,947; 2,426,670; 2,454,089EUROPEAN PATENT:1,053,128PAT. PENDING:2,291,306; MADE IN CANADA
This Interface kit / Data Bus Interface part has been tested on the listed vehicles. Other vehicles will be
added to the select vehicle list upon completion of compatibility testing. Visit website for latest vehicle
applicationguide. DISCLAIMER:Underno circumstancesshallthe manufacturerorthedistributorsof the
bypass kit / data bus interface part(s) be held liable for any consequential damages sustained in
connectionwiththepart(s)installation.Themanufacturerandit’sdistributorswillnot,norwilltheyauthorize
any representative or any other individual to assume obligation or liability in relation to the interface kit /
databus interface part(s) otherthanitsreplacement.N.B.:Under no circumstances shall themanufacturer
and distributors of this product be liable for consequential damages sustained in connection with this
product and neither assumes nor authorizes any representative or other person to assume for it any
obligationorliabilityotherthanthereplacementofthisproductonly.
