xsto SCL170A User manual

www.xsto.net
OPERATION MANUAL
POWERED STAIR
CLIMBER
HANDLER
SCL170A

1
User manual
1 Symbols and Safety Instructions.....................................................................3
2 Description..........................................................................................................5
2.1 The structure...........................................................................................5
2.2 Technical Data ........................................................................................5
2.3 Application...............................................................................................5
2.4 Technical parameters.............................................................................6
2.5 Dimension................................................................................................9
2.6 Standard Accessories..........................................................................12
2.7 Optional Accessories ...........................................................................12
3 Installation Instruction.....................................................................................13
4 Functions Description .....................................................................................14
4.1 Control Panel and Wire Handle Controller Operation Instructions.
.......................................................................................................................15
4.2 Point Touch Switch on adjustable handle.........................................17
4.3 Loading Board ......................................................................................18
4.4 Battery Charging ..................................................................................19
4.5 SCL170 Starting ...................................................................................19
4.6 Climbing Upstairs .................................................................................21
4.7 Going Downstairs.................................................................................22
4.9 Loading board automatic tracking goods stacking..........................24

2
5 Routine Inspection and Issue Handling .......................................................26
5.1 Routine Inspection and Issue Handling ............................................26
6 Operation ..........................................................................................................27
6.1 Loading Goods .....................................................................................27
6.2 Operation On Flat Ground ..................................................................28
7 Storage & Transportation ...............................................................................30
8 Maintenance.....................................................................................................30
8.1 Notice for routine maintenance ..........................................................30
8.2 Replacement for Vulnerable Parts & Battery ...................................32
9 Recycling ..........................................................................................................36
10 Malfunction and Troubleshooting................................................................38
11 Warranty and Responsibility ........................................................................39
11.1 Warranty ..............................................................................................39
11.2 Responsibility......................................................................................40

3
1 Symbols and Safety Instructions
WARNING ------ May cause serious injuries or even death!
CAUTION ------ May cause slight injury!
NOTE ------ May cause machine damage!
➢Read the user manual and pay attention to the warning and
safety instructions before operation.
➢Check the electric functions, battery capacity and SCL170A
wheels before operation.
➢Keep the SCL170A above 0℃for at least one hour before
operation.
➢Read the technical parameters carefully. Do not overload.
➢Only the trained person with physical and mental health is
allowed to operate SCL170A.
➢Anti-slip shoes are required. It must be operated bytwo hands.
Practice using the climber without load and at the low speed.
➢Only for carriage of cargo, not for person. Safety strap must
be used to secure the cargo.
➢Do not put the hand under the loading board or touch any
rotating part.
➢Do not use the SCL170A in rainy day, moist and slippery

4
condition, as well as on the snow or ice, which may react
against the brake, causing side-slip or other potential risks.
➢Do not use if the SCL170A tires are deflated or damaged.
➢Do not use on the road with obstacles or on the slippery one.
➢Do not use SCL170A on an escalator or a rotating conveyor
belt.
➢If the drive unit is stuck, turn off SCL170A immediately.
➢Turn off the power when transporting and obey the relative
laws.
➢Keep the battery plug-in contacts dry. Protect the charger and
the charging cable from oils, diluents and sharps
➢Store it in dry condition. High-pressure cleaner is forbidden to
clean the machine.
➢Please repair only by XSTO CO.,LTD. authorized agency
➢Outer factor such as sunshine may lead to surface heat. Far
away from inflammable.
➢The SCL170A may interfere induced electromagnetic field of
electronic equipment (such as security system of department
store).
➢Only the accessories provided by XSTO CO.,LTD. can be
used.

5
2 Description

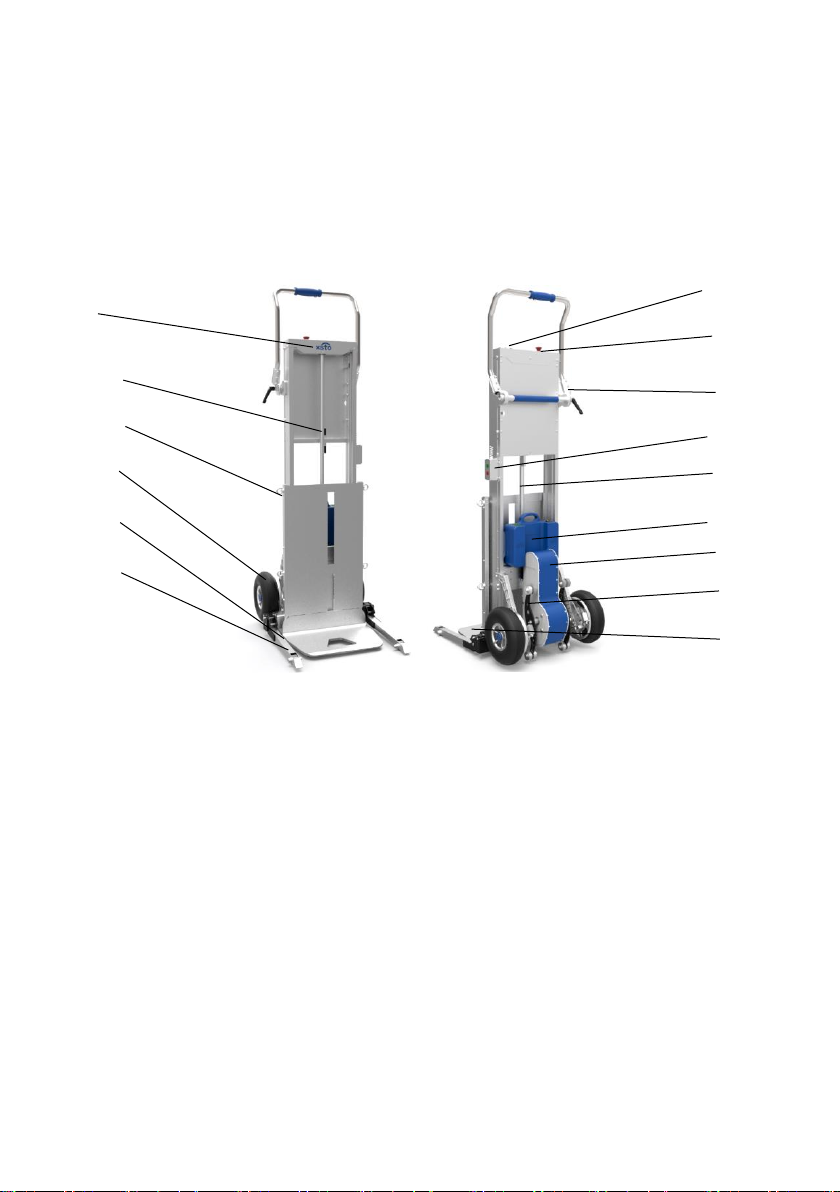

2.1 The structure
1: Top Cover 2:Sensor 3: Loading Board Support 4: Solid Tire 5:
Rotating Support Leg 6: Directional Wheel 7: Control Panel 8:
8:Emergency stop switch 9:Control Handle 10:Wire Handle Controller 11:
Ball Screw Shaft 12: Portable Lithium Battery13: Motor Shell 14: Climbing
S Arm 15: Aluminum Alloy Loading Board
2.2 Technical Data
This manual is suitable for SCL170A series ONLY.
2.3 Application
15
10
3
5
7
2
8
11
12
13
1
4
9
14
6

6
The SCL series is a multi-functional material handling equipment
that integrates climbing, lifting and handling. It can be applied in
the fields of logistics, express delivery, furniture and home
appliances moving, as well as factories, offices, residential
buildings, outdoor steps and other places where stair-climbing or
lifting is required. It can realize one-stop handling of goods from
storage to application.
2.4 Technical parameters
Model
SCL170A
Size
Height: 1390 mm
Width: 585 mm
Length: 650 mm
Weight
Main Device: 54.8 kg
Battery pack: 3.2 kg
Rated Climbing Load Weight
170 kg（loading board center）
Rated Lifting Load Weight
170 kg（loading board center）
Lifting Stroke
1000 mm

7
Maximum Rise of
Loading Board
1025 mm
Load-free Ascending Speed
20s/m
Load-free Descending Speed
20s/m
Rated Load Ascending Speed
34 s/m
Rated Load Descending Speed
19 s/m
Rated Load Climbing Speed
slow speed: 24 steps/min
fast speed: 34 steps/min
Battery
48V/10Ah (lithium battery pack)
DC Motor
48V 400W(climbing);
48V 120W(lifting)
Lifting Times
（Fully charged）
320-370 times
Climbing Capacity
（Fully charged）
52-117 floors or 936-1873 steps
Noise Level
<70dB
Temperature for
Storing/Operating
-5℃+35℃ /0℃+40℃

8
Storing/operating temperature
of battery
-5℃+35℃ /0℃+40℃
Serial Number
See the Nameplate
Protection Level
IP54

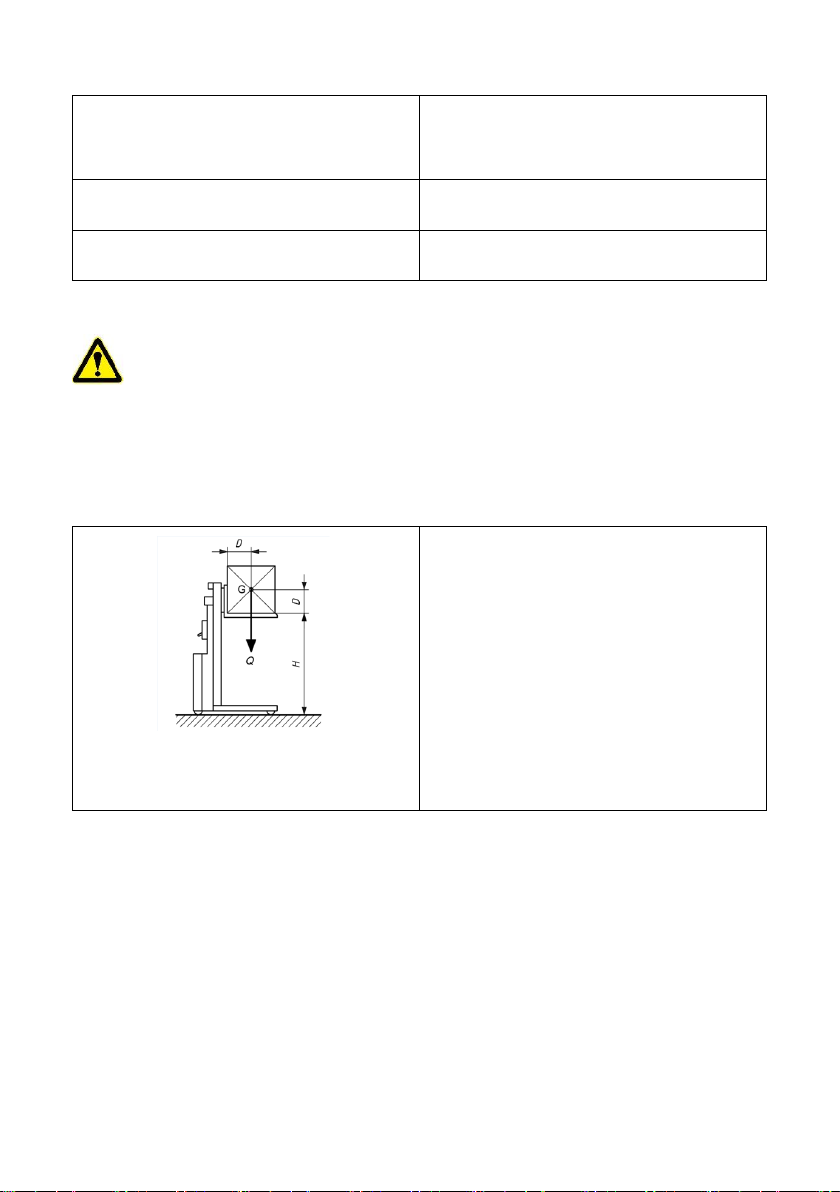

NOTICE ------ Rated working condition description:
If the weight of the cargo exceeds the range of rated working condition,
the load should be reduced, otherwise the equipment will be damaged
or tipped.
H (rated rising height): 1000mm
G (gravity of cargo)
D (distance of gravity’s center of
standard load): 180mm:
Q (rated capacity): climbing170KG
Lifting 170KG

9

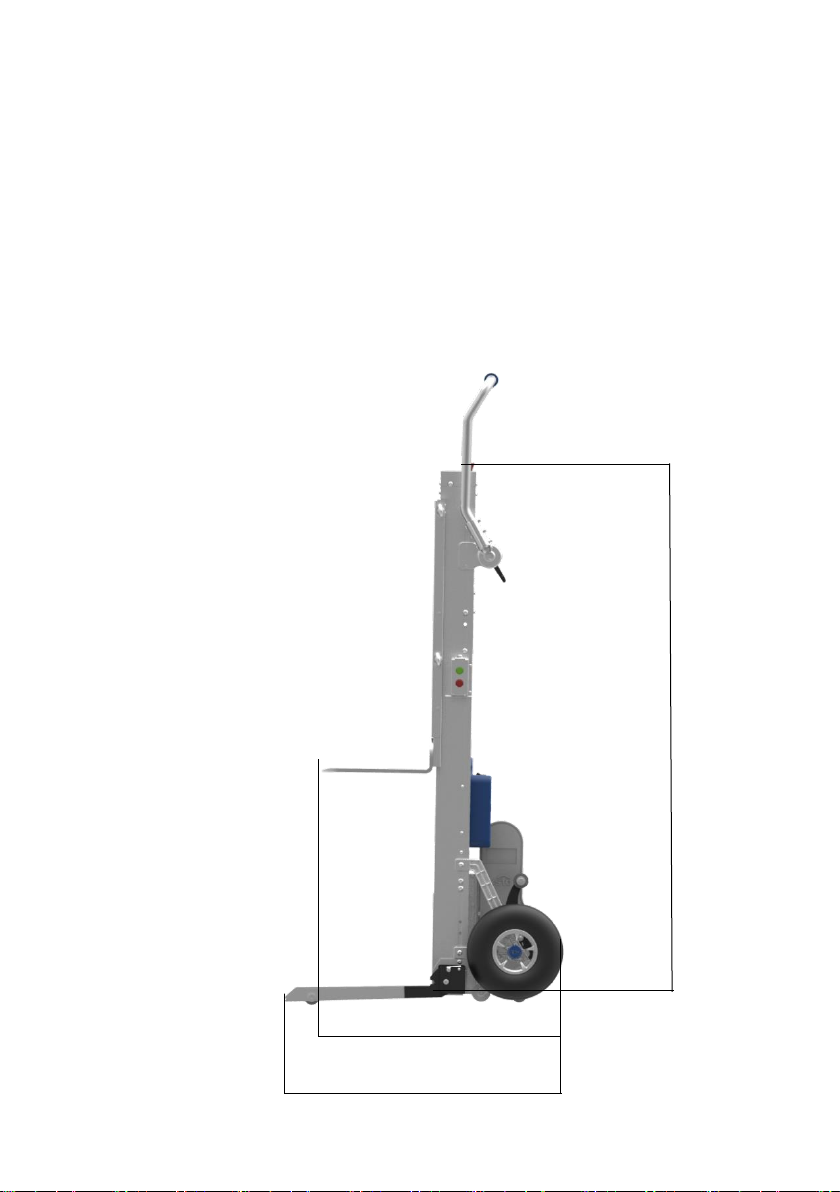

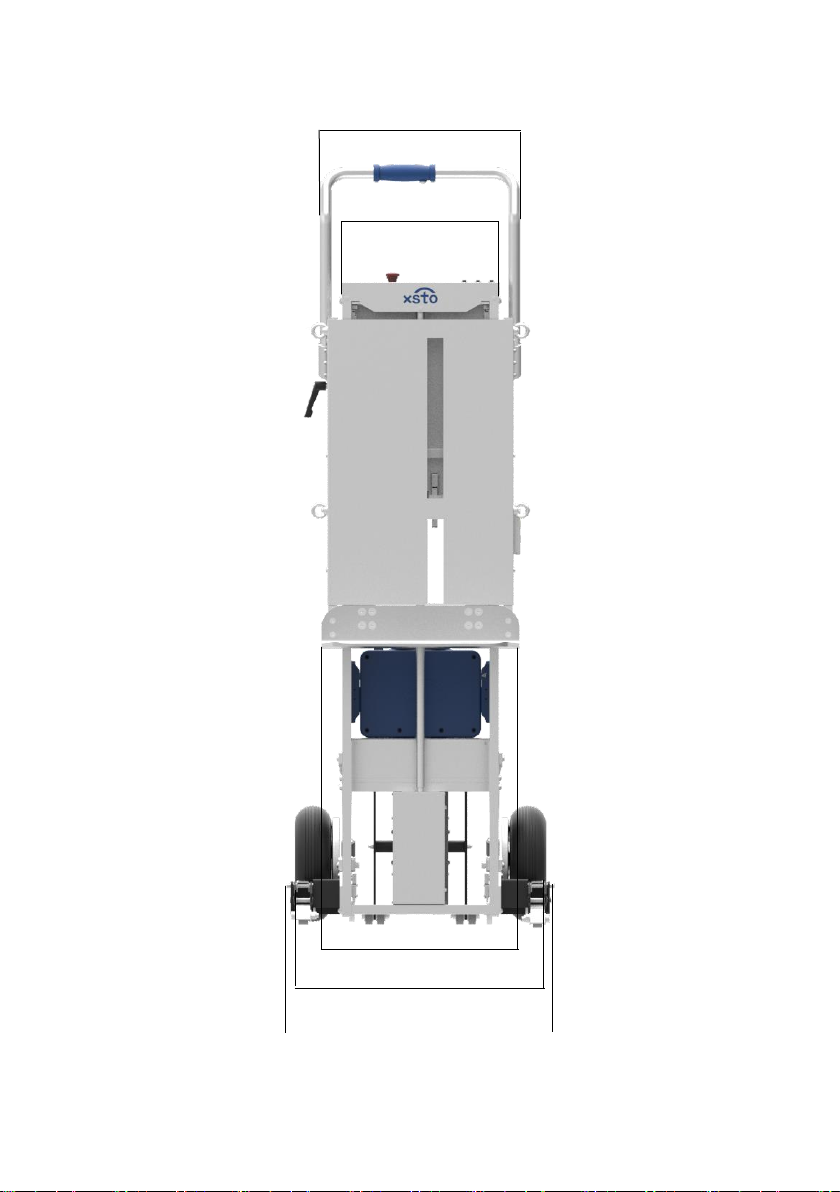

2.5 Dimension
1390
650
730

10
unit：mm

11
340
434
535
430
580

12
unit：mm

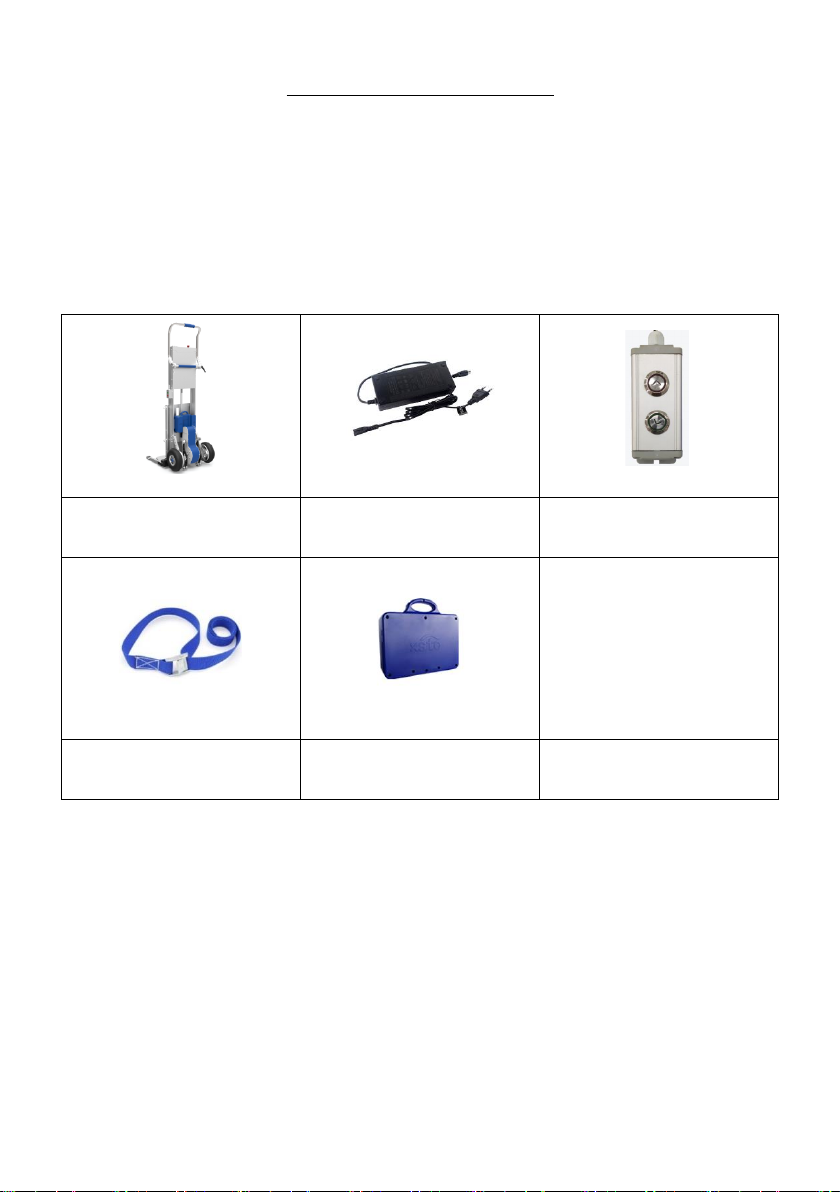

2.6 Standard Accessories

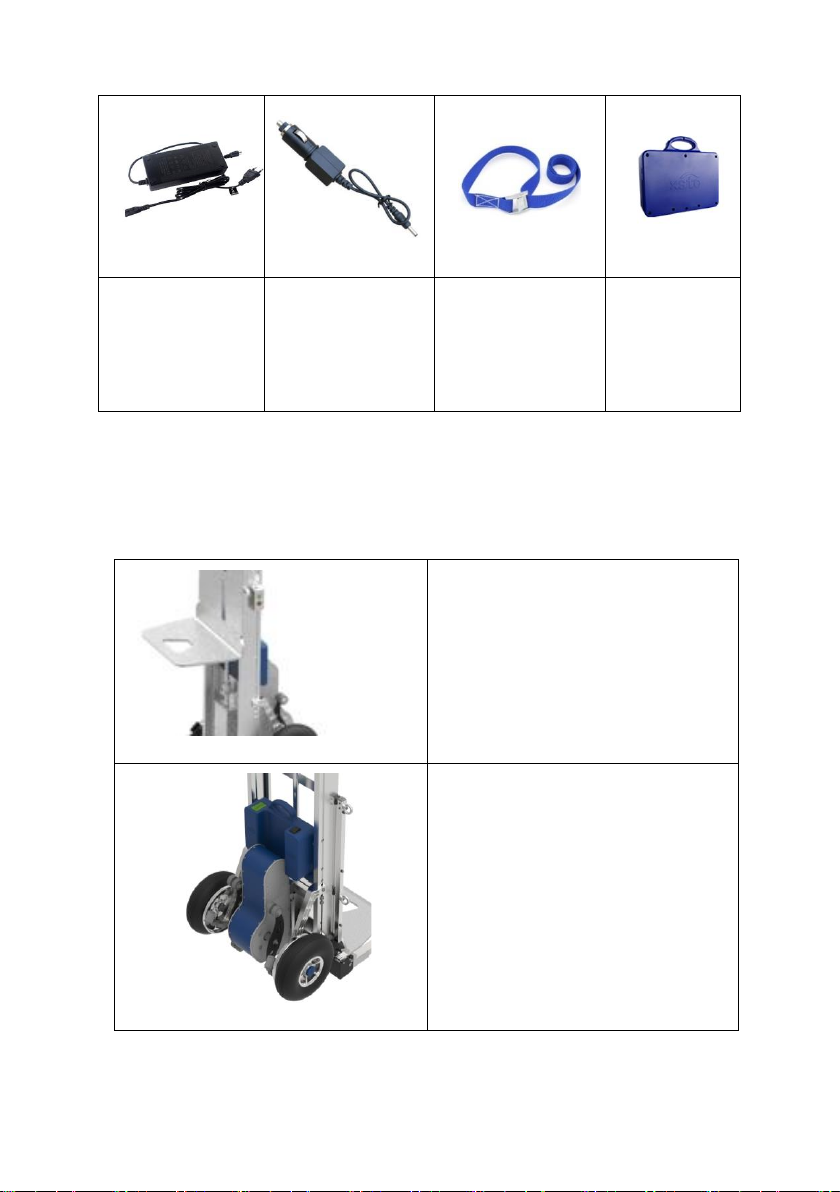

2.7 Optional Accessories
①Main Body
②Charger
③Wire handle controller
④Safety strap
⑤Lithium battery pack

13
①
Quick charger
②
Car charging
converter
③
Safety strap
④
Lithium
Battery pack
3 Installation Instruction
1. Use M8x20 Hexagon socket
head cap screws to mount the
loading board or other loading
components.
2. Insert the battery into the
corresponding battery socket.

14
NOTE——Make sure that each screw is tightened to
avoid loosening. If you find any issue during the installation,
please contact the manufacturer or local distributor
immediately.
4 Functions Description
CAUTION------ Please put the SCL170A in the condition of
above 0℃with no ice before initial operation
CAUTION------ Please test and operate the SCL170A with
no load first, and please use the SCL170A with load after
confirming no abnormal situation
CAUTION------ The continuous operating time rule of the motor
50% working rule of the climbing motor [Continuous Operating
Hours/(Continuous Operating Hours + Continuous rest
hours)≤50%],Rated load of 70% or above, the maximum continuous
running time is less than 10 minutes. Rated load of less than 70%,
the maximum continuous running time is less than 30 minutes.
Motor of lifting,65% working time [Continuous Operating

15
Hours/(Continuous Operating Hours + Continuous rest
hours)≤65%],Rated load of 70% or above, the maximum continuous
running time is less than 20 minutes. Rated load of less than 70%,
the maximum continuous running time is less than 40 minutes.
4.1 Control Panel and Wire Handle Controller Operation
Instructions.

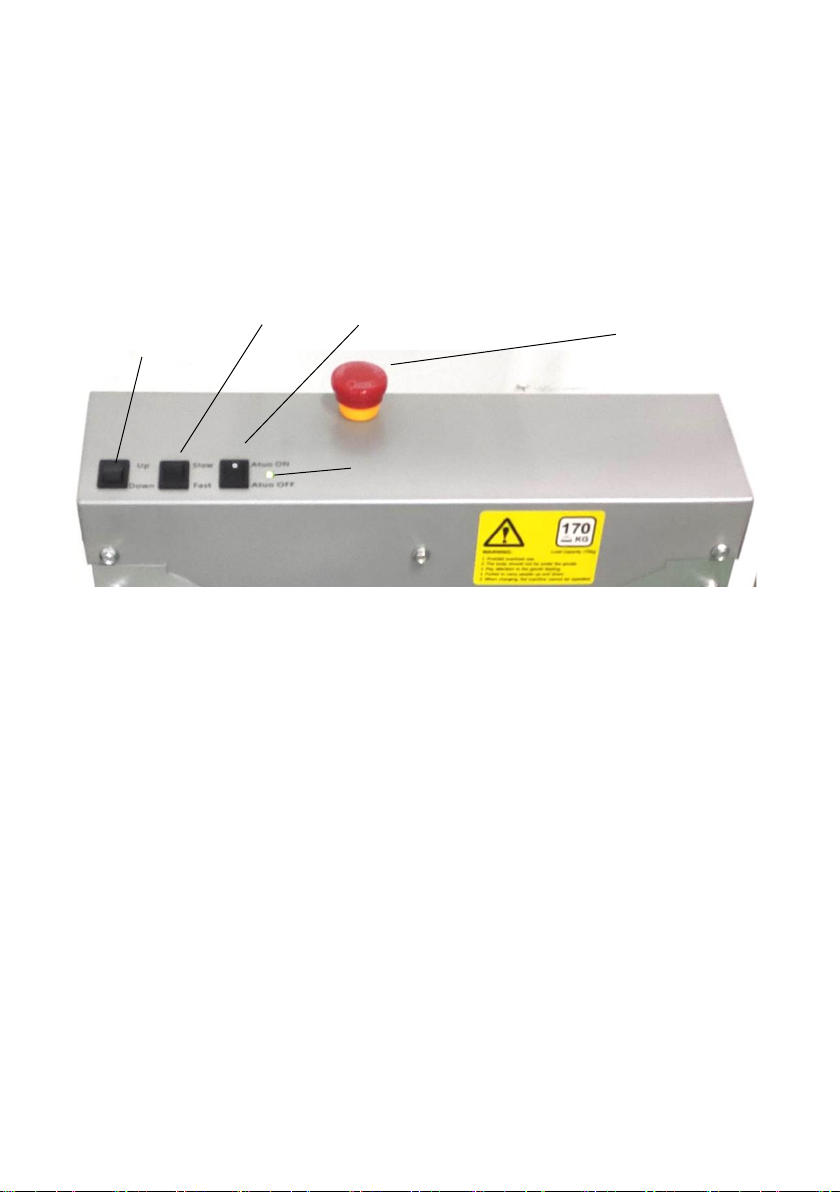

There are 3 switches on the top of the control panel, showing 3
different control modes: up stair /down stair; slow speed/fast
speed(Note:The lifting mode is only at high speed, and the
adjustment is invalid.); Auto ON/Auto OFF.
When “Auto ON”, it means to start the auto lifting mode. On
this mode, the loading board will automatically follows the height
of cargo stacking to rise or fall, reducing the labor intensity of the
operator to stoop to put the cargo on the workbench; when “Auto
OFF”, the auto lifting mode that the loading board automatically
follows the cargo stacking to adjust will be turned off.

16
When the SCL170A needs to stop immediately in case of
emergency, press the Emergency Stop Switch; Before resetting,
the battery power must be restarted to ensure safety;when reset,
rotate the switch.
The operation of the wire handle controller is used to operate the
lifting mode separately. Press to move and release to stop. When
the lifting function of the control box is started, the climbing
function on the panel is temporarily closed to ensure the safe and
stable operation of the machine.
Slow/Fast
Up/Down
Auto ON/Auto OFF
Emergency Stop Switch
LED

17
4.2 Point Touch Switch on adjustable handle
After selecting the control panel and
corresponding function, you can use
the point touch switch on adjustable
handle to control the equipment to lift
up and down or control the
equipment to go upstairs and
downstairs. Press the switch to
operate and loose to stop.
Point
switch
Down
Up

18
4.3 Loading Board
Move the cargo on the loading board and
fix it with the safety strap.
CAUTION------ When using the
loading board to lift cargo, please ensure
the gravity center of the cargo is within
2/3 of the loading board, or the equipment
may be tipped. Any part of the body and
any consumable items are not allowed to
put under the loading board.
WARNING------ Because the
loading board can move up and down, it
is forbidden to extend the cargo part or
body part between the supporting plate
bracket and the screw rod, so as to
prevent the cargo from being damaged or
cause casualties.
