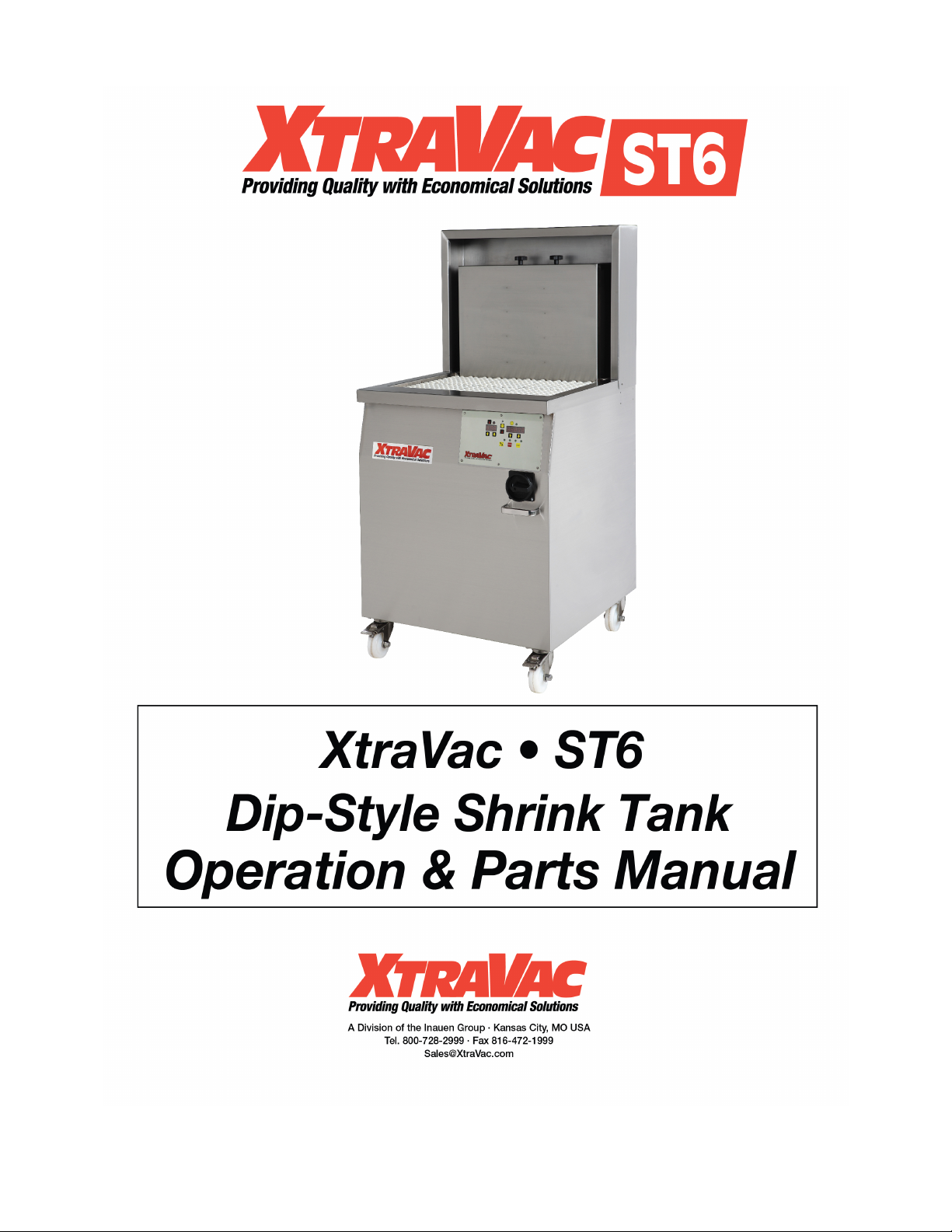

XtraVac ST6 Shrink Tank Operation and Parts Manual
XtraVac Packaging Machines 419 E. 11th Ave North Kansas City, MO 64116 USA
ST6 Shrink Tank [phone] [email protected]
1

XtraVac ST6 Shrink Tank Operation and Parts Manual
XtraVac Packaging Machines 419 E. 11th Ave North Kansas City, MO 64116 USA
ST6 Shrink Tank [phone] [email protected]
2
XtraVac ST6
Shrink Tank Machine
1. Power requirement:
Voltage: Look at the nameplate
Current: Look at the nameplate
Frequency: 50/60Hz
Phase: 3Ø
1. Maker sure the power is correct and the normal rated power is sufficient,
so you could connect the power to the machine.
2. Fill the water to the maximum level（please refer the line between the
arrow marks at two sides of machine’s body）

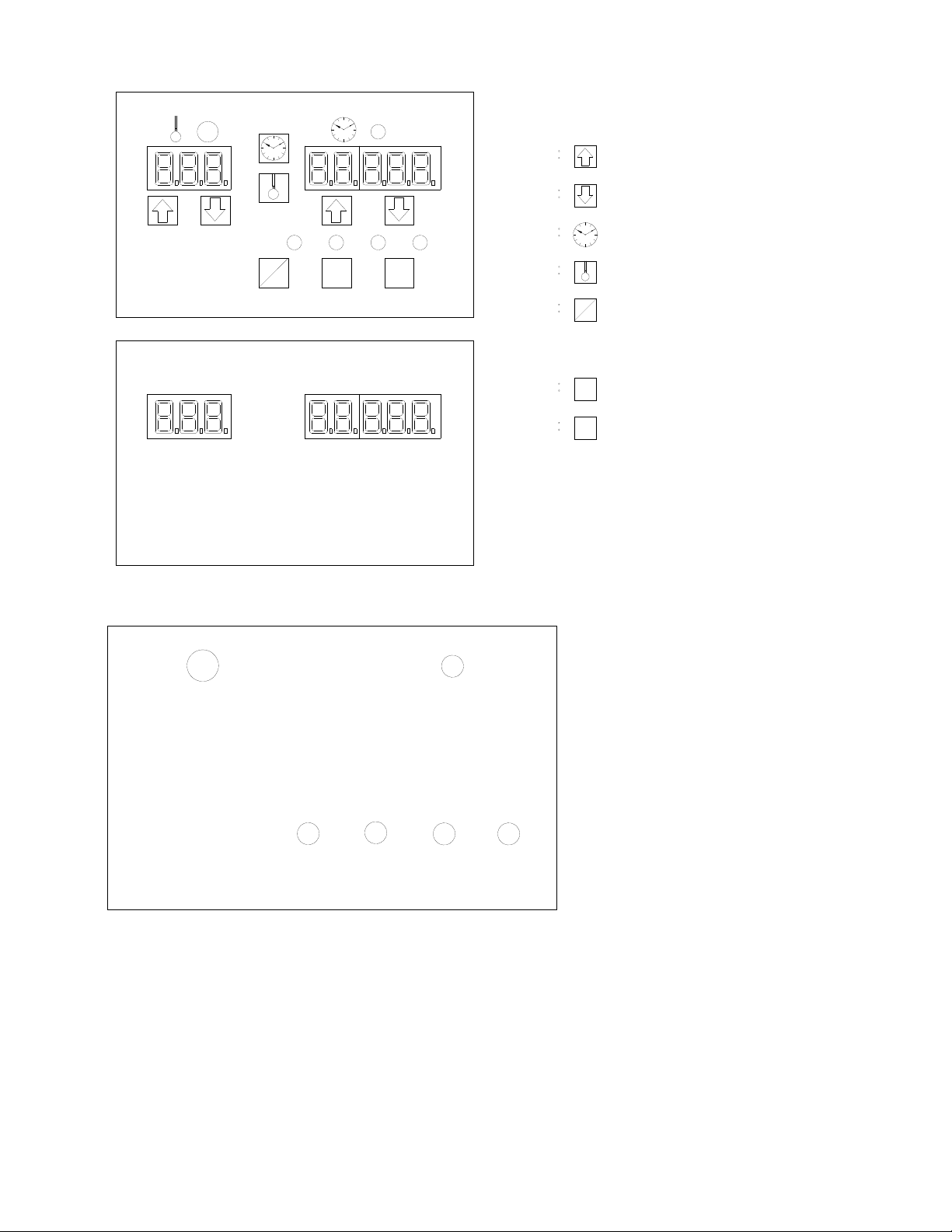

3. Function description of the pushbuttons on the panel

XtraVac ST6 Shrink Tank Operation and Parts Manual
XtraVac Packaging Machines 419 E. 11th Ave North Kansas City, MO 64116 USA
ST6 Shrink Tank [phone] [email protected]
3
P
SASTOP START
4.8.1
TEMP
DISPLAY
4.8.2
PROGRAM /TIME
DISPLAY
4.1 INCREASING KEY
4.2 REDUCING KEY
PROGRAM / TIME DISPLAY
4.3
4.4 TEMP. SETTING KEY
SEMI / AUTO KEY
(TO PRESS IT WHEN MACHINE
RUNS IN AUTO MODE)
4.5
4.6 SEMI MODE : STOP KEY
START KEY
4.7
A
S
STOP
START
MAINTENANCE
LIGHT
HEATING
LIGHT
SEMI
LIGHT
AUTO
LIGHT
STOP
LIGHT
START
LIGHT
4.8: Description of the Display
4.8.1: Temperature Display
4.8.1.1: Description of Temp. Display:

XtraVac ST6 Shrink Tank Operation and Parts Manual
XtraVac Packaging Machines 419 E. 11th Ave North Kansas City, MO 64116 USA
ST6 Shrink Tank [phone] [email protected]
4
(1) ts: Temp. Setting: It is preset 85℃
(2) td: Temp. Difference setting: it is preset 1℃
(3) AH: High Temp. Alarm setting: it is preset 99℃
(4) AL: Low Temp. Alarm setting: it is preset 40℃
(5) Ht: High temp. Alarm Time Setting: it is preset 1minute.
(6) Lt: Low temp. Alarm Time Setting: it is preset 5 minutes.
(7) tA: Temp. Adjustment: it is preset 0
4.8.2: Program and Time Display:
The left display is for program and the right display for time (unit:
second)
4.8.2.1: Description of Program display:
Program:
(1) 01: the platform stops at top position time in Auto mode.
(2) 02: the platform stops at bottom position time in Auto mode.
(3) 03: the platform stops at the bottom position time in Semi mode.
5. Operation description of the PC Board
5.1: Temp. setting :press the key in 3 sec.，temp. display shows ts，
then press the key once again (to release it once press immediately), the
display showed the set temp., then you could adjust the keys and
to input the needed temp.

XtraVac ST6 Shrink Tank Operation and Parts Manual
XtraVac Packaging Machines 419 E. 11th Ave North Kansas City, MO 64116 USA
ST6 Shrink Tank [phone] [email protected]
5
5.2: Time setting key : 5 partitions display，the 2 left partitions
display is for program and the 3 right partitions display are for time (unit:
second)
Operation：Press the key in 3 seconds，the display twinkles one
time, and you could adjust the keys of for input the needed
time. To press the key of for changing the program. (to release it
once press immediately)
5.3：After 30 seconds of the temp. and program time setting, it would keep
into the memory of the program automatically.
6. When you finish the work and would like to clean the tank, please turn off
the power (No.2) and take off the platform fixing screw(No.1-1、1-2), take
off the platform from the machine. (Please watch out the water inside the
tank is boiling hot)
7. Please do not touch the heaters (No.5-1、5-2、5-3) when cleaning. After
washing please drain off the water from the water out hole (No.8) at behind
the machine.
8. After drain off the water, please put the platform (No.1) to the machine for
the next working.

XtraVac ST6 Shrink Tank Operation and Parts Manual
XtraVac Packaging Machines 419 E. 11th Ave North Kansas City, MO 64116 USA
ST6 Shrink Tank [phone] [email protected]
6
Error Codes
AH : temperature max
AL : temperature min
Ht : temperature max duration
Lt : temperature min duration
E1H : thermocouple broken or current temperature above AH
E1L : thermocouple broken or current temperature below AL
EAH : if E1H keep displaying without reset til duration time of Ht.
EAL : if E1L keep displaying without reset til duration time of Lt.
EOL : cycle time alarm
Example : I set AH at 80 , AL at 50 , Ht at 3 , Lt at 2 ,
If current temperature 85 , then screen will display E1H , if E1H keep displaying more
than 3 mins , the screen will then display EAH
If current temperature 45 , then screen will display E1L , if E1L keep displaying more than
2 mins , then screen will then display EAL

XtraVac ST6 Shrink Tank Operation and Parts Manual
XtraVac Packaging Machines 419 E. 11th Ave North Kansas City, MO 64116 USA
ST6 Shrink Tank [phone] [email protected]
7
How to clear the EOL when the cycle time is reached to the setting time.
For example: it set 1002 cycles on this PC Board. So the machine would stop when it runs to 1002 cycles
and the display would appear EOL.
1. EOLisontheleftdisplay.
It means the Motors needs to be changed the Lubricating Oil, since the machine runs to 1002 cycles
that we set on the PC Board.
2. ToPresstheIncreasingKeytocleartheoriginalsettingtime.
TherightdisplaywouldappearCLr.
Thenthemachinecouldworkagain.

XtraVac ST6 Shrink Tank Operation and Parts Manual
XtraVac Packaging Machines 419 E. 11th Ave North Kansas City, MO 64116 USA
ST6 Shrink Tank [phone] [email protected]
8
3. Ifyouwouldliketochangethecycletimes.Plsdothefollowing:
TopresstheTimeSettingKey4timesandthentopresstheIncreasingKey
ontheleftandrightdisplaytoresetthetimesforchangingthelubricantoil.
Afterfinishingthecyclestimesetting,plsputtheTimePressingKeyagaintocompletethesetup.
4. 
For example this display means the cycle time is 3,201,002.
In fact you could set the cycle time very big numbers, so the machine would be not stopped when
operation often.
Pls press this Temp. setting
key for the number dot moves
forward to the next number
when the right number is 9.
for example the display is 2.9
and increase the top pressing
key to the number is 9.9 and
moves the dot to the next
position to 1.99 and then 9.99
and then 1.999…etc.

XtraVac ST6 Shrink Tank Operation and Parts Manual
XtraVac Packaging Machines 419 E. 11th Ave North Kansas City, MO 64116 USA
ST6 Shrink Tank [phone] [email protected]
9
START
STOP
A
S
P
6.POWER LINE
7.WATER IN
8.WATER OUT
9.WATER OVERFLOW
10.TEMP SENSER
11.LIFT AND DOWN AXLE
12.MOTOR
13.LIMIT SWITCH
14.PRESSURE SWITCH
1.PLATFORM
1-1.PLATFORM DISMANTLE SCREW
1-2.PLATFORM DISMANTLE SCREW
2.MAIN SWITCH
3.MAIN SWITCH PROTECT HANDLE
4.CONTROL PANEL
5-1.HEATER
5-2.HEATER
5-3.HEATER

XtraVac ST6 Shrink Tank Operation and Parts Manual
XtraVac Packaging Machines 419 E. 11th Ave North Kansas City, MO 64116 USA
ST6 Shrink Tank [phone] [email protected]
10
XtraVac ST6 – A
Spare Parts List
NO. Description Part Number
1 Handle XVT464470
2 Spring Washer XVT72931
3 Hex. Screw XVT76760
4 Knob XVT73757
5 Hex. Nut XVT77271
6 Hex. Nut XVT77271
7 Roller XVT73756
8 Shaft XVT77273
9 Inner Hex. Screw XVT70988
10 Spring Washer XVT460653
11 Flat Washer XVT460654
12 Insert Bearing XVT73758
13 Hex. Screw XVT77274
14 Spring Washer XVT70985

XtraVac ST6 Shrink Tank Operation and Parts Manual
XtraVac Packaging Machines 419 E. 11th Ave North Kansas City, MO 64116 USA
ST6 Shrink Tank [phone] [email protected]
11

XtraVac ST6 Shrink Tank Operation and Parts Manual
XtraVac Packaging Machines 419 E. 11th Ave North Kansas City, MO 64116 USA
ST6 Shrink Tank [phone] [email protected]
12

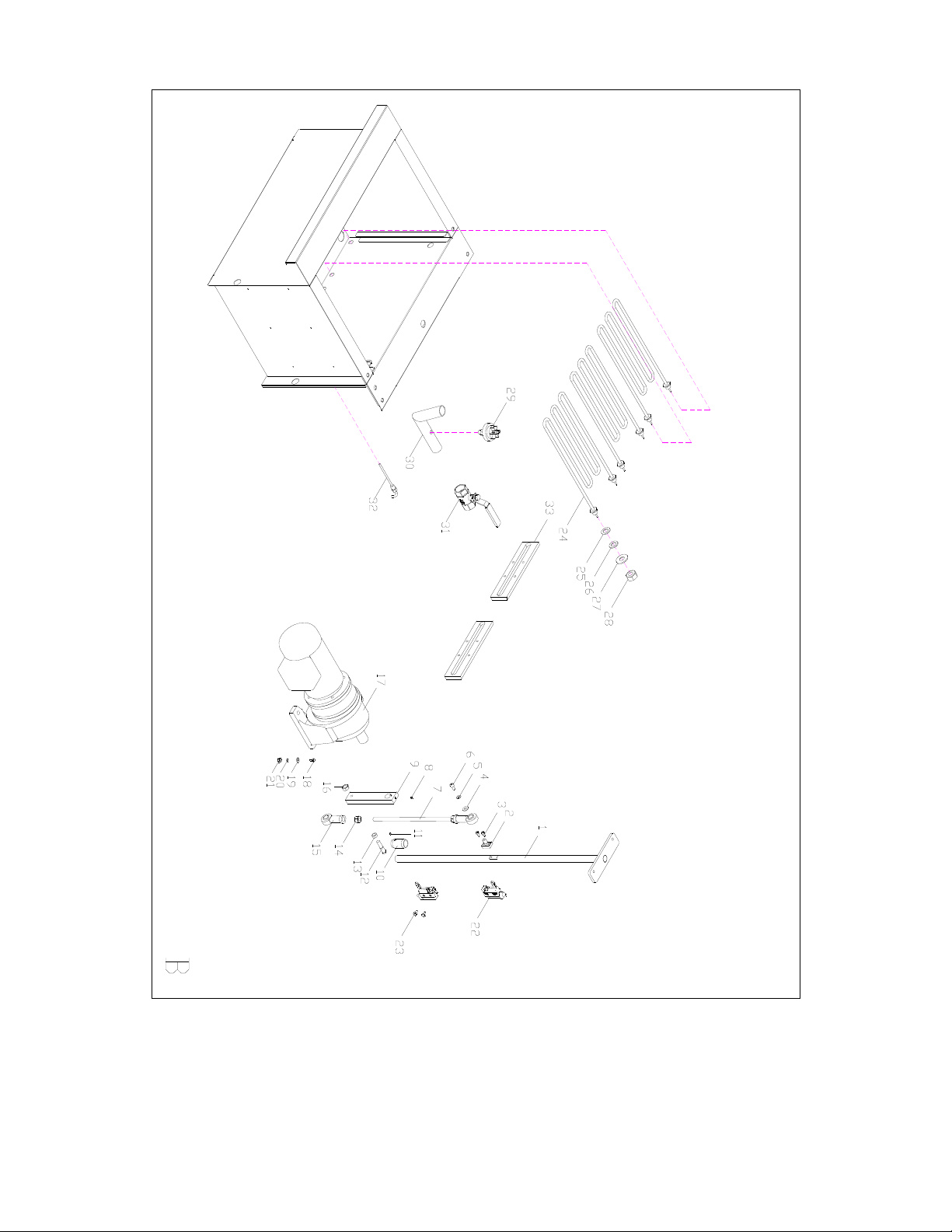

XtraVac ST6 – B
Spare Parts List
NO. Description P a r t N u m b e r NO. Description Part Number
1 Lifting Shaft XVT77300 25 Rock Wool XVT77310
2 Connecting Block XVT77301 26 Rock Wool XVT77310
3 Inner Hex. Screw XVT77275 27 Flat Washer XVT77311
4 Flat Washer XVT77276 28 Hex. Nut XVT77312
5 Spring Washer XVT70985 29 Pressure Switch XVT467706
6 Inner Hex. Screw XVT77277 30 Water pipe XVT99099
7 Shaft XVT77302 31 Ball valve XVT92230
8 Hex. S-headless Bolt XVT77303 32 Temperature staff XVT84936
9 Crank XVT77304 33 Bakelite plate Block XVT88527
10 Limit Switch XVT77305
11 Hex. S-headless Bolt XVT77303
12 Fixing Screw XVT77306
13 Sleeve XVT77307
14 Hex. Nut XVT70831
15 Bearing RBH-12 XVT467707
16 Hex. Nut XVT71285
17 Reducer XV467710
18 Hex. Screw XVT77309
19 Flat Washer XVT460651
20 Spring Washer XVT72931
21 Hex. Nut XVT467850
22 Limit Switch XVT467705
23 Round Head Screw XVT77278
24 Heater XVT467708

XtraVac ST6 Shrink Tank Operation and Parts Manual
XtraVac Packaging Machines 419 E. 11th Ave North Kansas City, MO 64116 USA
ST6 Shrink Tank [phone] [email protected]
13
XtraVac ST6 – C

XtraVac ST6 Shrink Tank Operation and Parts Manual
XtraVac Packaging Machines 419 E. 11th Ave North Kansas City, MO 64116 USA
ST6 Shrink Tank [phone] [email protected]
14
Spare Parts List
NO. Description Part Number
1 Round Head Screw XVT458060
2 Front Panel XVT76117
3 PC Board XVT76116
4 Main Switch XVT73759
5 Hex. Screw XVT75412
6 Spring Washer XVT70985
7 Handle XVT77313
8 Stainless Steel Plate XVT469351

XtraVac ST6 Shrink Tank Operation and Parts Manual
XtraVac Packaging Machines 419 E. 11th Ave North Kansas City, MO 64116 USA
ST6 Shrink Tank [phone] [email protected]
15

XtraVac ST6 Shrink Tank Operation and Parts Manual
XtraVac Packaging Machines 419 E. 11th Ave North Kansas City, MO 64116 USA
ST6 Shrink Tank [phone] [email protected]
16
XtraVac ST6 – D
Spare Parts List
Description
Part Number
1 Control box XVT464041
2 Gland XVT466372
3 Contactor XVT46480
4 Contactor XVT468607
5 No fuse breaker XVT71327
6 Overload Relay XVT71328
7 Terminal block (green) XVT99447
8 Terminal block XVT70983
9 Fuse holder XVT71015
10 Fuse 2A XVT71287
11 Fuse holder 1P XVT71329
12 Fuse 2A XVT99449
13 Fuse holder 32A XVT99448
14 Fuse 32A XVT87260
15 Control box cover XVT467521

XtraVac ST6 Shrink Tank Operation and Parts Manual
XtraVac Packaging Machines 419 E. 11th Ave North Kansas City, MO 64116 USA
ST6 Shrink Tank [phone] [email protected]
17

XtraVac ST6 Shrink Tank Operation and Parts Manual
XtraVac Packaging Machines 419 E. 11th Ave North Kansas City, MO 64116 USA
ST6 Shrink Tank [phone] [email protected]
18
STANDARD CHECKED
PROCESSED
NAMEDATE
Power circuit diagram PAGE
JAW FENG
MACHINERY CO., LTD.
E D
C
B
A
E
D
C
B
A
L1 L2 L3
LS1:TOP SENSOR LS2:BOTTON SENSOR
MC1:CONTACTOR OF TEMPERATURE MC2:CONTACTOR OF MOTOR
L N
M
MC2MC1
AC
RL Y3 RL RL
Y2 Y1
S1G
WHITE
BLACK
temperature senor
2
MC1
4
TR-Y
MC2
1
pressure switch
CF-01
GD C
56
75
NO
NO
LS1
LS2
TR-Y
Heater
3
FUSE
32A
SWITCH 64A
NO FUSE BREAKER
40A FUSE
2A
