Xtrend HD digital satellite receiver User manual

1
The gateway for Smart Linux TV User Manual
Contents
(A) Safety Instructions .................................................................................................................................................... 4
(B) Packaging Contents ................................................................................................................................................. 6
(C) Product Descriptions ............................................................................................................................................... 7
(D) Conditional Access ..................................................................................................................................................... 9
(E) Remote Control ....................................................................................................................................................... 10
(F) Main Features ........................................................................................................................................................... 13
(G) Technical Data ........................................................................................................................................................... 14
I. Installation of STB .................................................................................................................................................. 15
1. Connecting Satellite Cables.............................................................................................................15
2. Connecting the TV (and VCR)..........................................................................................................16
3. Connecting Power ............................................................................................................................17
4. Power ON/OFF.................................................................................................................................18
II. First Time Installation (using Wizard) ............................................................................................................ 19
Step 1. Language Selection.......................................................................................................................19
Step 2. Configuring Satellite Connection.................................................................................................19
Step 3. Configuring Tuner A......................................................................................................................20
Step 4. Configuring Tuner B......................................................................................................................22
Step 5. Parental Control Option.................................................................................................................23
III. Basic Operations ...................................................................................................................................................... 24
1. Switching Channel............................................................................................................................24
2. Volume Control ................................................................................................................................24
3. Selecting Audio Track......................................................................................................................25

2
User Manual
The gateway for Smart Linux TV
4. Subtitle..............................................................................................................................................25
5. Teletext .............................................................................................................................................26
6. Program Information (Infobar).........................................................................................................27
7. Channel List (Channel Selection Menu)...........................................................................................28
8. Electronic Program Guide (Eventview)............................................................................................30
9. Media Player.....................................................................................................................................32
10. Sleep Timer.......................................................................................................................................33
IV. System Configuration ........................................................................................................................................... 34
1. Main Menu........................................................................................................................................34
2. System Setup....................................................................................................................................35
2-1. Service Searching ............................................................................................................................. 35
A. Tuner Configuration ............................................................................................................... 35
B. Automatic Scan of Services ................................................................................................ 36
C. Manual Scan of Services ...................................................................................................... 37
2-2. System Configuration ..................................................................................................................... 39
A. A/V Settings ............................................................................................................................... 39
B. Language Selection ................................................................................................................ 41
C. Customization ........................................................................................................................... 41
D. Selecting Time Zone .............................................................................................................. 42
E. Hard Disk Setup ....................................................................................................................... 43
F. Front Display Setup ................................................................................................................ 44
G. Network Setup .......................................................................................................................... 45
H. Skin ................................................................................................................................................ 47
2-3. Checking CAM ................................................................................................................................... 48
2-4. Parental Control ................................................................................................................................ 48
2-5. Factory Reset ...................................................................................................................................... 52
2-6. Checking H/W & S/W Information .......................................................................................... 53

3
The gateway for Smart Linux TV User Manual
A. Service Information ................................................................................................................ 53
B. System Information ................................................................................................................ 54
V. Copyright - GNU GPL .......................................................................................................................................... 55
VI. Menu Structure ....................................................................................................................................................... 59
VII. Troubleshooting ...................................................................................................................................................... 60
VIII. Universal Remote Control ..................................................................................................................... 61
1. Setup method....................................................................................................................................61
1-1. Initial Settings .................................................................................................................................... 61
A. Device Default: STB ................................................................................................................ 61
B. Remote Control Default Setting Code .......................................................................... 61
1-2. Settings method ............................................................................................................................... 61
A. 3-DIGIT Setup Method ......................................................................................................... 61
B. Auto Search (CH+, CH-) Setup method ....................................................................... 61
1-3. Setup Code Read Out (Number Call) ..................................................................................... 62
1-4. Factory Reset ...................................................................................................................................... 62
2. TV Brand/Code List ..........................................................................................................................63
IX. Service.......................................................................................................................................................................82
X. Glossary ...................................................................................................................................................................... 82

4
User Manual
The gateway for Smart Linux TV
(A) Safety Instructions
STB has been designed and manufactured in compliance with EU consumer safety requirements (CE). Please
read the following safety precautions carefully.
1. Connecting Power
●This product operates only in the range of AC 100V~250V and 50Hz/60Hz. Please check first your power
supply to see if it fits this range.
●Please be noted that you need to disconnect from the mains before you start any maintenance or
installation procedures.
●Make sure that the power cord is placed in a position where it is easy to unplug it from the mains in an
emergency.
2. Overloading
●Do not overload a wall outlet, extension cord or adapter as this may cause electrical fire or shock.
3. Liquid
●This product is not water-proof and should not be exposed to dripping, splashing, or any type of liquid.
●No objects filled with liquid such as base shall be placed on the product.
●Please do not clean the product with wet cloth, which may cause a short circuit.
●No wet objects should be placed near the product.
4. Ventilation
●Allow a sufficient space between the product and other objects to make sure air ventilation of the product.
●Do not block the top or rear of the product with an object, which will close the ventilation holes and lead to
a high temperature of the system. This may cause a failure of the product.
●Do not stack other electronic devices on top of the product.
●Do not insert any kind of pointed objects like screw, gimlet, etc. into the ventilation holes of the product.
This will damage the product.
5. Connecting the Satellite Cable
●Disconnect the power of the product before you connect the satellite cable to the product. Otherwise, it
may cause damage to the LNB.
6. Grounding
●The LNB must be earthed to the system earth for the satellite dish.
7. Location
●Place the product indoor.
●Do not expose the product to rain, sun or lightening.

5
The gateway for Smart Linux TV User Manual
●Do not place the product near any heat appliances as a radiator.
●Ensure that there is more than 10 cm distance from any electrical devices & wall.
8. Lightening, Storm or Not In Use
●Unplug the product and disconnect the antenna cable during a thunderstorm or lightening, especially when
left unattended and unused for a long period of time. This will prevent possible damages from power
surges or lightening.
9. Replacement of Parts
●Unauthorized part replacements, especially by one who is not a qualified technician may result in damage
to the product.
●Ensure that when part replacements are necessary qualified technicians perform the task using the
components specified by the manufacturer.
10.Hard Disk Drive
●Do not move the product or turn the power off suddenly while the Hard Disk Drive (HDD) is still running.
This may result in damage to the HDD and thus the system.
●The company shall not be liable for any corruption of data on the HDD caused by careless use or misuse
of users.
11.Battery
●There is danger of explosion if batteries are incorrectly replaced.
●Replace batteries only with the same or equivalent type.
‘WEEE’ Symbol instructions
This product should not be disposed with other house hold wastes at the end of its working life.
Please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of
material resources. This will help prevent harm to the environment or human health from uncontrolled waste
disposal.
Dolby Digital: Manufactured under license from Dolby Laboratories. ‘Dolby’ and the ‘double-D’ symbol are
trademarks of Dolby Laboratories.
MP3: MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson

6
User Manual
The gateway for Smart Linux TV
(B) Packaging Contents
Please check all package contents before using your product.
●STB
●Remote Control
●Batteries
●HDMI cable
●Loop-through cable
●User Manual

7
The gateway for Smart Linux TV User Manual
(C) Product Descriptions
Front Panel
①
①①
① Display : Displays the current menu information. 12 character dot matrix VFD.
②
②②
② ~
~~
~③
③③
③ VOL▲/ VOL▼: Volume control
④
④④
④ OK : Select
⑤
⑤⑤
⑤ ~⑥
⑥⑥
⑥CH▼/ CH▲: Switches channel
⑦
⑦⑦
⑦ Menu : Shows main menu
⑧
⑧⑧
⑧ Cancel : Cancel the menu
⑨
⑨⑨
⑨ CI Module slot
⑩
⑩⑩
⑩ Smartcard reader slot
⑪
⑪⑪
⑪ USB: Connect a USB storage device

8
User Manual
The gateway for Smart Linux TV
Rear Panel
①
①①
① TUNER 1 / TUNER 2 : Two satellite cables can be connected.
②
②②
② S/PDIF : Connects to a digital audio system using S/PDIF cable.
③
③③
③ Video output : Connects to TV using RCA cable.
④
④④
④ Audio output : Connects to TV using RCA cable.
⑤
⑤⑤
⑤ Component (YPbPr) : Connects to TV using a component cable.
⑥
⑥⑥
⑥ SCART : Two SCART connectors are provided for TV and/or VCR using SCART cables.
⑦
⑦⑦
⑦ HDMI : Connects to TV using a HDMI cable for both audio and video signals.
⑧
⑧⑧
⑧ e-SATA : Connects the external HDD using e-SATA cable.
⑨
⑨⑨
⑨ Ethernet : Connects the PC or another set top box of ET.
⑩
⑩⑩
⑩ USB : Connects the USB memory stick or external HDD.
⑪
⑪⑪
⑪ RS-232 : RS-232 data port is provided.
⑫
⑫⑫
⑫ Power Inlet : Connects the detachable power cord.
⑬
⑬⑬
⑬ On/Off Switch : Powers on/off.

9
The gateway for Smart Linux TV User Manual
(D) Conditional Access
Amongst the channels that are scanned via STB, some channels can be properly tuned in only with the
corresponding Smartcard. STB provides two Smartcard Reader slots and users need to purchase those
Smartcards that are required for viewing such subscription based services.
Insertion of Smartcard
① Open the door on the right side.
② Insert Smartcard as in the following instruction.
③ Make sure that the Smartcard remain inserted while viewing.
Insertion of CAM (Conditional Access Module)
There are several Conditional Access Systems (CAS) that STB supports. To be able to watch channels that are
encrypted in such CAS as Nagravision, NDS, Irdeto, Viaccess, etc, users need to purchase a CAM that is
corresponding to each CAS, as well as Smartcard to decrypt those encrypted channels.
① Insert a Smartcard into the CAM as in the below picture.
② Once the Smartcard inserted into the CAM, insert the CAM into the CI slot.
③ Make sure that the CAM remain inserted while viewing.

10
User Manual
The gateway for Smart Linux TV

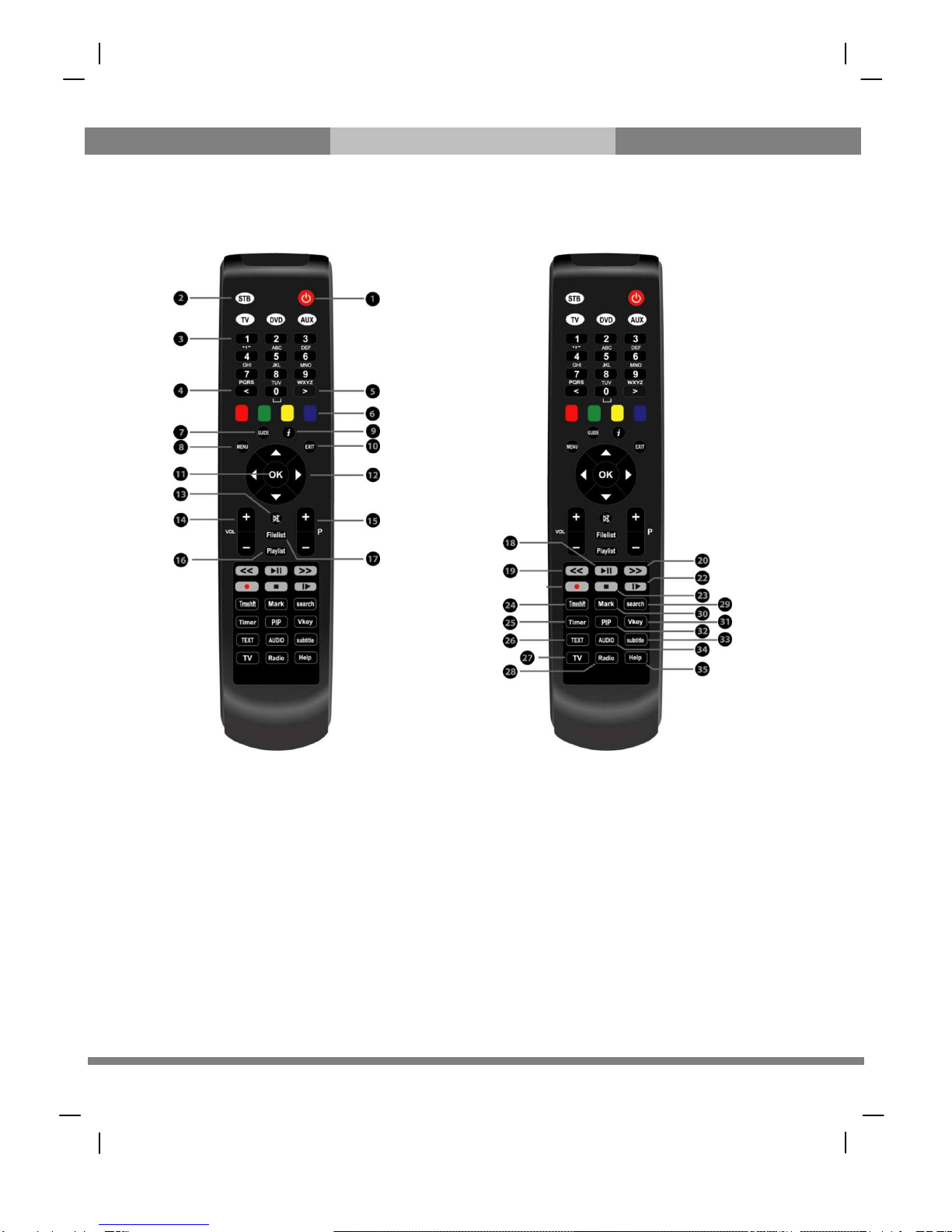

(E) Remote Control
○
,1 Power : To switch the receiver in and out of stand-by mode.
○
,2 STB, TV, DVD, AUX :
• STB - To switch the remote control to receiver mode.
• TV - To switch the remote control to Television mode.
• DVD - To switch the remote control to DVD mode to operate your DVD player.
• AUX - To switch the remote control to operate your audio system.
○
,3 Numeric Keys : Enters a service number for service change or to specify values for menu options.
○
,4 < : Navigates left on the menu options.
○
,5 > : Navigates right on the menu options.
○
,6 Color Keys : Each key is assigned a specific function that may be different in each menu.
• Red - mainly used for REC, Cancel, etc.
• Green - mainly used for OK
• Yellow
• Blue
○
,7 GUIDE : Displays the Electronic Program Guide (EPG) information if provided.

11
The gateway for Smart Linux TV User Manual
○
,8 MENU : Displays the main menu.
○
,9 Information : Displays the service information box. It is also used to display more information about a
program.
○
,10 EXIT : Exits the current menu option into the live mode, or switches one step back of the menu.
○
,11 OK : Confirms the selected menu option.
○
,12 Navigation Keys : Navigates Up/Down and Left/Right on the menu options. Up/down keys are used to call
up the channel list.
○
,13 Mute : Mutes the audio.
○
,14 VOL +/- : Adjusts the audio volume.
○
,15 P +/- : Navigates through the scanned channel list
○
,16 Playlist : Displays channel list during viewing mode.
○
,17 Filelist : Displays the list stored on HDD if any.
○
,18 ▶
▶▶
▶ll : Play and Pause
○
,19 << : Fast Rewind
Fast rewinds at up to 128 times faster than the normal speed
(x2/4/8/16/32/64/128)
○
,20 >> : Fast Forward
Fast forwards at up to 128 times faster than the normal speed
(x2/4/8/16/32/64/128)
○
,22 I▶
▶▶
▶ : Used to start slow motion playback. Subsequent presses change the playback speed.
○
,23 Stop : Stops playing and goes to the live mode.
○
,24 Timeshift : Used to start Timeshift function.
○
,25 Timer : Sets sleep timer
○
,26 TEXT : Displays the teletext information of the current channel, if the channel provides teletext data.
○
,27 TV : Displays the TV channel list.
○
,28 Radio : Displays the Radio channel list.
○
,29 Search : Used to start channel search.
○
,30 Mark : Used to jump to next bookmark position.
○
,31 Vkey : Changes video resolution.
○
,32 PIP : Used to picture-in-picture mode.
○
,33 Subtitle : Displays the subtitle of the current channel if the channel provides subtitle.
○
,34 Audio: Displays the audio track option to choose (e.g. AC3, Stereo)
○
,35 Help : Displays major important operation methods of STB. This provides users with a quick guide of using
STB.
NOTE: When Teletext is activated, this key is also used when toggling between the Teletext page and the live
mode.

12
User Manual
The gateway for Smart Linux TV

13
The gateway for Smart Linux TV User Manual
(F) Main Features
● 400 MHz MIPS Processor
● Linux Operating System
● Media Player
● Downloadable Plug-ins supported
● 2 x Smartcard Readers
● 2 x Common Interface
● MPEG2 / H.264 Hardware Decoding
● DVB-S2 Twin Tuners
● 12 character Dot Matrix VFD
● 128MB NAND Flash / 512MB DDR Memory
● External SATA supported
● 10/100MB Ethernet Interface
● 3 x USB 2.0
● RS-232
● HDMI
● YPbPr
● Composite Video (RGB)
● 2 x SCART
● S/PDIF for digital bit stream out (optical)
● EPG supported
● Automatic & Manual Service Scan supported
● Multiple LNB control (DiSEqC) supported
● Skin change supported
● Stable SMPS integrated

14
User Manual
The gateway for Smart Linux TV
(G) Technical Data
STB Technical Specifications
Front Panel
Display 12-digit Dot Matrix VFD display with status icons
displaying channel names and program information
Smartcard reader slot 2
Common Interface 2
USB 1 x USB 2.0
Buttons 8 (Power, Volume Up/Down, OK, Channel Up/Down,
Menu, Cancel)
Rear Panel
Power Switch 1
Sat-IF input/output 2 x F-type socket
Connection TV/VCR 2 x Scart socket
Video output(analogue) 3 x RCA (YPbPr)/1 x RCA (Composite)
Video/audio output (digital) 1 x HDMI
Audio output (analogue) 2 x RCA
Audio output (digital) Standard optical (S/PDIF)
USB 2 x USB 2.0
eSATA 1
Ethernet 1
RS-232 1
Power Mains voltage 95~250/50~60 V/Hz
Power consumption
(Max./typ. operation/stand-by) 65/35/1 W
RF RF range 950~2,150 MHz
Modulation, FEC, de-multiplexer DVB-S/DVB-S2 standard
Video
Video resolution CCIR 601 (720x576 lines), 576p, 720p, 1080i, 1080p@30
Video decoding MPEG-2, MPEG-4 compatible
Input data rate 2~45 MSymb/s
S/N > 53 dB
Decoding
Decoding AC 3, MPEG-4 (AAC-HE), MPEG-1, Layer 1, 2 and 3
Sampling rate 32/4.1/48 kHz
S/N > 65 dB
LNB LNB supply(horiz./vert.) 14/18 ; Max. 400mA
Control signal 22kHz ; ToneBurst ; DiSEqCTM1.0/1.1/1.2
General Dimensions (W x H x D) 380 x 60 x 240 mm
Weight (without HDD) App. 3kg

15
The gateway for Smart Linux TV User Manual
I. Installation of STB
This chapter will guide you through the whole installation process of STB. Please read each section carefully to
make sure that the system runs properly.
1. Connecting Satellite Cables
STB is integrated with twin satellite tuners, and one of the first steps is to connect satellite cable(s) to STB in order
to gain optimal signal quality. You can either choose one of the following connection methods depending on the
equipment you have.
A. Two Separate Satellite Cables
In case you have two separate satellite cables providing different broadcast signals, you can configure
TUNER 1 Input and TUNER 2 Input independently.
B. Internal Loop-through
In case you have only one satellite cable, connect the cable to TUNER 1 Input.

16
User Manual
The gateway for Smart Linux TV
2. Connecting the TV (and VCR)
STB provides a variety of audio/video connection methods.
A. Connecting TV via HDMI Cable
For the sake of the best picture quality, especially for digital TV, HDMI connection is recommended. Most
HDTVs have HDMI connectors to ensure the highest picture quality. In the rear panel of STB one HDMI
connector is available for this purpose. Connect your TV to STB using a HDMI cable as follows.
B. Connecting TV via Component Cable
The secondly recommend TV connection for digital TV is via component cable (YPbPr). However, unlike
the HDMI connection which delivers audio and video signal at the same time, YPbPr connection requires
additional audio connection either via RCA cable (Stereo L/R) or S/PDIF as follows.
NOTE: When you have an A/V receiver with S/PDIF digital audio input, this connection is recommended to
enjoy the best audio quality, especially for the Dolby Digital sound.

17
The gateway for Smart Linux TV User Manual
C. Connecting TV via RCA (Video) Cable
STB provides Composite video connection as well. Composite cable has normally three connectors at
the both end; one Video (Yellow) and two Audio (White/Red). Connect your TV to STB as follows:
D. Connecting TV (and VCR) SCART Cable
In case your TV is analogue TV, SCART cable is the most common method. Connect your TV to STB
using SCART cable as follows
3. Connecting Power
A power code is provided as one of the basic accessories of STB.
● Connect the power cord to the connector at the rear panel of STB.
● Connect the power cord to a power outlet.
● Turn on the power switch at the rear panel.
NOTE: AC input condition
● Nominal Voltage Range: 100~240 VAC
● Maximum Voltage Range: 90~264 VAC
● Nominal Frequency: 50/60 Hz
● Maximum Frequency Range: 47~63 Hz

18
User Manual
The gateway for Smart Linux TV
4. Power ON/OFF
[ : Press or Press ‘Standby/Reset’]
There are several ways to turn your STB ON or OFF
●Complete Power Shutdown
There is a Power Switch in the rear panel and once it is ON, you do not need to turn it on or off each time. It takes
a longer time to boot the system if you turned it off by this switch.
●Standby Mode
POWER key is normally used to turn the power of STB on or off. If you press POWER, it instantly switches your
STB off or on. In this mode, the system is not completely shutdown and thus it takes a shorter time to turn it on and
off.
●Deep Standby Mode
Deep Standby is used to reduce the standby power consumption. STB is designed to be energy efficient and to
guarantee the power consumption to be under 1W in the deep standby mode.

19
The gateway for Smart Linux TV User Manual
II. First Time Installation (using Wizard)
When you turn on STB for the first time after purchase, an installation wizard will begin step by step.
Step 1. Language Selection
STB provides various languages and here you can
choose the main language for your STB. Use
UP/DOWN key to scroll up and down to find the
language you want.
Step 2. Configuring Satellite Connection
From now on you need to configure the satellite connection. You have two options:
● Use wizard to setup basic features
● Exit wizard
You are strongly recommended to use wizard as it is designed to guide you through the configuration process.
NOTE: ‘OK’ key is used for confirmation and turns to the next step. Pressing ‘EXIT’ key to return to the
previous page.

20
User Manual
The gateway for Smart Linux TV
Step 3. Configuring Tuner A
Using LEFT/RIGHT key, you can choose one of the following Configuration Modes:
●Not configured.
●Simple
●Loop-through to: mode to make the TUNER 1 be internally connected to the TUNER 2.
●Equal to: mode to use the same configuration as that of Tuner B.
●Advanced: for an advanced user configuration.
If you choose Simple configuration mode, the following picture will appear.
