XTZ EDGE A2-300 User manual

1
MANUAL
Bedienungsanleitung

2
Table of Content
Introduction 4
Safety Instructions 4
Quick Setup 4
Placing the unit 5
AC Power (220V / 110V) 5
Connections (Noise issues) 5
Inputs & Outputs 6
Practice of sound 9
Operating EDGE A2-300 11
Connecting the speakers 12
Bi-amping 13
19” rack mounting 14
Technical Specications 18
XTZ Values
Our basic philosophy is to recreate a balanced and natural sound with an optimum relation between price, performance
and quality. This enables you to listen to your favorite music or movie with full joy and experience the sound like it was
intended by the producer.
Our concept:
• Extensive development for advanced products.
• Cost-effective manufacturing & sales strategy.
• Meticulous quality controls.
• Reduction of intermediaries.
Website: www.xtz.se / www.xtzsound.eu
XTZ Group AB
Gamla Nissastigen 17
31441 Torup / Sweden
Phone: [phone]
Mail: [email protected]
English

3
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including ampliers)
that produce heat.
9. Do not defeat the safety purpose of the grounding type plug.
The grounding plug has two blades and a third grounding
prong. The third prong is provided for your safety. If the pro-
vided plug does not t into your outlet, consult an electrician
for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11. Only use attachments/accessories specied by the
manufacturer.
See marking
on the bottom
of the product.
12. Use only with cart, stand, tripod, bracket, or table specied by
the manufacturer, or sold with the apparatus. When a cart is
used, use caution when moving the cart/apparatus combina-
tion to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused
for long periods of time.
14. Refer all servicing to qualied service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the ap-
paratus has been exposed to rain or moisture, does not oper-
ate normally, or has been dropped.
15. The appliance coupler is used as the disconnect device and
shall remain readily operable.
Important Safety Instructions
The exclamation point, within an equilateral triangle, is intended to alert the user to the presence
of important operating and maintenance (servicing) instructions in the literature accompanying
the product.
The lightning ash with arrowhead symbol within an equilateral triangle is intended to alert the
user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may
be of sufcient magnitude to constitute a risk of electrical shock to persons.
WARNING! To reduce the risk of re or electric shock, do not ex-
pose this apparatus to rain or moisture.
WARNING! This apparatus shall not be exposed to dripping or
splashing, and no objects lled with liquids, such as vases, shall be
placed on the apparatus.
WARNING! This apparatus shall be connected to a MAINS socket
outlet with a protective earthing connection.
DANGER! No user serviceable parts inside. Service is to be
performed only by XTZ.

4
Introduction We would like to thank you for buying a product of the XTZ EDGE series. The electrical design of the EDGE
series o󰀨ers the ultimate sound reproduction. In order to utilize your new device in the best possible way,
please read this manual carefully before using it for the rst time. It often takes some e󰀨ort and patience to
make a HiFi system sound its best. If you don´t have any previous experience from this kind of installations,
please feel free to contact our free of charge support and we will help you. (See Support on the last page
of this manual)
- Series name - Power Amplier - Power level
-Two channels
Safety instructions Switch o󰀨 your amplier before connecting the speakers. Make sure that the speaker cables are tightened
and have a strong connection to the speaker terminal and amplier terminal.
Make sure that the electronics are not exposed to direct sunlight or strong articial light. Listening
to high sound pressure levels over a longer period of time may harm your hearing. To avoid hearing
damage do not listen to high sound levels over a longer period of time.
Quick Setup The initial set-up of a XTZ product is relatively easy. Please take your time reading the guidelines and more
detailed instructions on the following pages of this manual after completing the rst four steps as listed
below.
1 Connect your speakers to the SPEAKER-OUTPUT terminals of the EDGE A2-300.
2 Connect your Preamplier’s PRE OUT to the EDGE A2-300 rear panel’s INPUT port.
3 Make sure to set your Pre-amplier’s volume level to minimum.
4 Connect the AC cord to the EDGE A2-300 AC Power input and then plug into an AC outlet.
5 Set the switches in the CONTROL section on the backside of the EDGE A2-300 as you wish. If the device
is used in „AUTO ON“ Mode, it will detect any incoming signal and automatically switch from STANDBY to
ON. If used in „ALWAYS ON“ Mode, the device will always be in ON Mode.
6 Switch the POWER switch on the rear panel to the “ON” setting in order to turn the EDGE A2-300 to stand-
by mode. The Standby LED indicator embedded around the bezel of the STANDBY button will illuminate
red in case you use the device in „AUTO ON“ Mode and green in case you use it in „ALWAYS ON“ Mode
English

5
Introduction We would like to thank you for buying a product of the XTZ EDGE series. The electrical design of the EDGE
series o󰀨ers the ultimate sound reproduction. In order to utilize your new device in the best possible way,
please read this manual carefully before using it for the rst time. It often takes some e󰀨ort and patience to
make a HiFi system sound its best. If you don´t have any previous experience from this kind of installations,
please feel free to contact our free of charge support and we will help you. (See Support on the last page
of this manual)
- Series name - Power Amplier - Power level
-Two channels
Safety instructions Switch o󰀨 your amplier before connecting the speakers. Make sure that the speaker cables are tightened
and have a strong connection to the speaker terminal and amplier terminal.
Make sure that the electronics are not exposed to direct sunlight or strong articial light. Listening
to high sound pressure levels over a longer period of time may harm your hearing. To avoid hearing
damage do not listen to high sound levels over a longer period of time.
Quick Setup The initial set-up of a XTZ product is relatively easy. Please take your time reading the guidelines and more
detailed instructions on the following pages of this manual after completing the rst four steps as listed
below.
1 Connect your speakers to the SPEAKER-OUTPUT terminals of the EDGE A2-300.
2 Connect your Preamplier’s PRE OUT to the EDGE A2-300 rear panel’s INPUT port.
3 Make sure to set your Pre-amplier’s volume level to minimum.
4 Connect the AC cord to the EDGE A2-300 AC Power input and then plug into an AC outlet.
5 Set the switches in the CONTROL section on the backside of the EDGE A2-300 as you wish. If the device
is used in „AUTO ON“ Mode, it will detect any incoming signal and automatically switch from STANDBY to
ON. If used in „ALWAYS ON“ Mode, the device will always be in ON Mode.
6 Switch the POWER switch on the rear panel to the “ON” setting in order to turn the EDGE A2-300 to stand-
by mode. The Standby LED indicator embedded around the bezel of the STANDBY button will illuminate
red in case you use the device in „AUTO ON“ Mode and green in case you use it in „ALWAYS ON“ Mode
Placing the unit Allow adequate ventilation. Do not place the unit on a soft surface like a carpet. Do not place it in an enclosed
position such a bookcase or cabinet that may impede the air-ow through the ventilation slots.
AC Power
(220V / 110V)
To power the unit, connect the supplied power cord to the unit and a standard AC power outlet. The unit itself
recognizes the prevailing voltage so you don‘t need to adjust it to your local voltage level. In standby mode
the EDGE A2-300 consumes less than 0,3W.
Connections
(Noise issues)
To ensure a safe management of the amplier and speakers, always only connect and disconnect
signal cables and speaker cables when the amplier is shut o󰀨 with the main switch on the back side.
Always use signal and speaker cables as short as possible and of good quality. Long
signal cables of poor quality works as antennas, and might in some cases create noise.
Always connect using the correct phase, from the plus (+) pole on the amplier to the plus (+) pole on the
loudspeaker and respectively for the minus (-) pole.
Earth ground is often used to reduce noise from electrical interference from outside the casing, however in
some cases several electrical devices which are connected to the same grounding grid can create loops that
pick up interference i.e. ground loops. There are a couple of ways to x this problem:
• Use the same power strip / power outlet for the interfering equipment.
• Use short as possible signal cables of high quality to minimize resistance and impedance.
Trademarks ICEpower is a registered trademark of ICEpower a/s
XTZ is a trademark of XTZ Group AB
Cleaning the
product
Switch o󰀨 all components of your system when cleaning any of the components. Clean surfaces with a soft
dry cloth only.

6
English
Inputs & Outputs

7
INPUT
- L RCA input for the Left amplification channel.
- R RCA input for the Right amplification channel.
- GAIN Potentiometer for trimming the input amplification gain.
Power
- AC Power inlet AC Power input and FUSE compartment.
- Fuse Do only replace with “T4AH 250V” rated fuse.
- Power Switch Main power switch (toggle).
OUTPUT
- L Plus (+) Pole and Minus (-) Pole output connector for Left channel.
- R Plus (+) Pole and Minus (-) Pole output connector for Right channel.
STEREO & MONO
- STEREO Left and Right channel are separated.
- MONO Left and Right channel are summed up.
Signal Sense
- AUTO ON The amplifier powers on when a signal is present and goes into standby
mode when there is no signal anymore.
- ALWAYS ON The amplifier is always turned on and will not switch to standby
mode.

8
English
Front LED
- RED Amplifier is in Standby mode, waiting for a signal to power up
- GREEN The amplifier is ON

9
The following points contains common information on loudspeaker placement and installation. These are
general rules, so there are exceptions.
How do i achieve
the best sound?
No matter how good the equipment is, in the wrong listening environment it will inevitably sound bad. There
are some basic rules concerning a proper loudspeaker installation:
Reections Carpets, curtains and soft furniture absorb mid range and high frequency sounds, and this is normally
preferable. Big empty areas, on the contrary, reect the sound which might lead to a blurry and unprecise
sound. Apart from coloring the sound, also the perspective of the sound will deteriorate. Reections in the
room can roughly be compared to the reections that cause ghost pictures on a TV screen.
Amplication of
bass frequencies
A loudspeaker that is placed near a wall, ceiling or oor will amplify lower frequencies in a sometimes not
desirable way (since it may lead to an indistinct sound reproduction). This amplication becomes even more
obvious if the loudspeaker is placed near a corner. Thus, for a sound as clear as possible, the loudspeaker
should be placed at least 30 cm (about 12 inch) away from the wall.
Some constructions are designed to be placed close to a wall.
Furniture Be aware that furniture may vibrate creating bad sound at loud bass levels.
Room dimension Quadratic rooms or rooms where the length is exactly twice as long as the width should be avoided, since
they may create unwanted resonances.
Cables Try to keep the cables as short as possible. By its electrical parameters, a long cable will have a bigger
inuence on the sound than a short one. It may also work as an antenna picking up various signals that may
become a constant noise. Make sure that all connections are clean and free from oxidation. All connections
should be mechanically stable, both power, signal and loudspeaker cables. Signal cables should be separated
from other cables.
Practice of sound / Installation and placement tips

10
English
Speaker
Placement

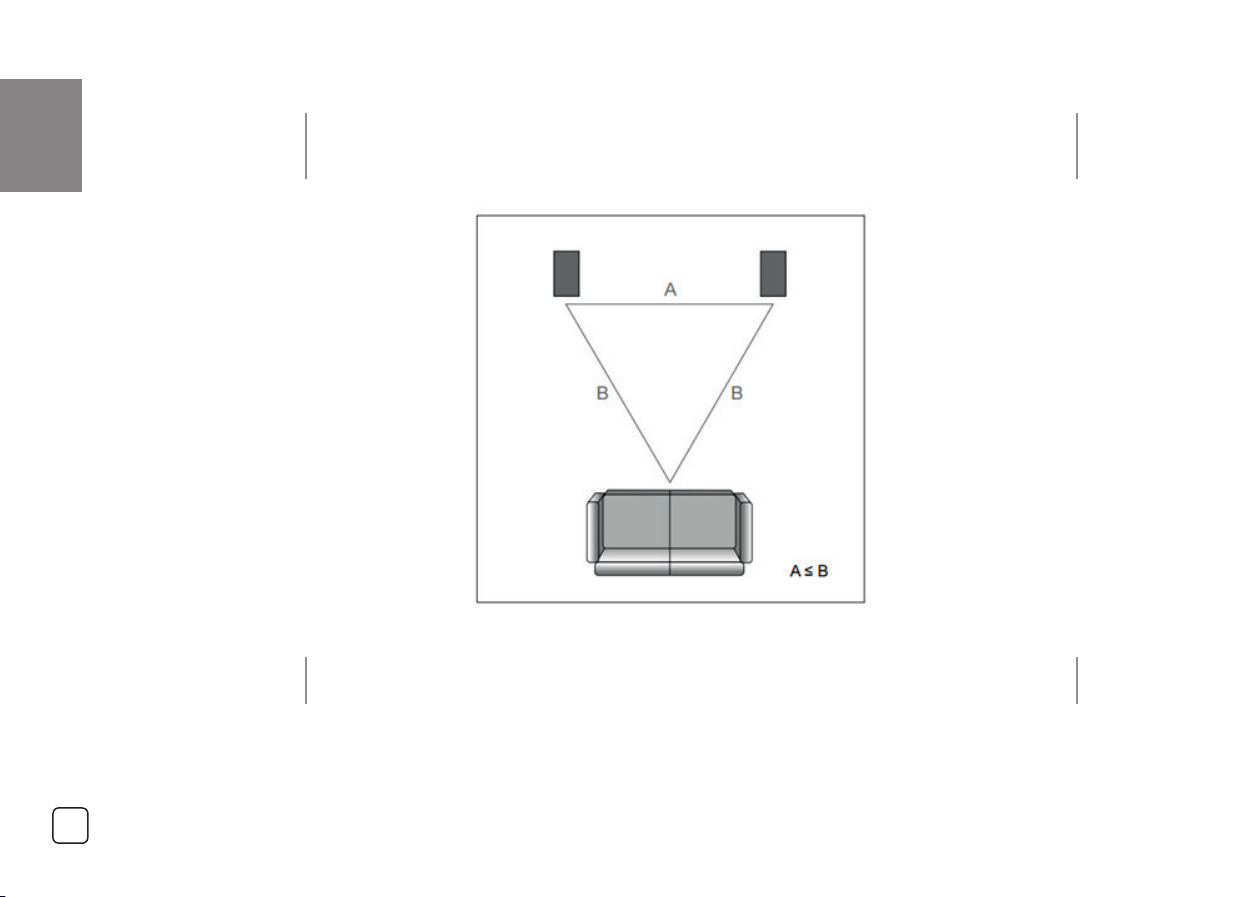

To achieve the best results the front speakers should be placed symmetrically in front of the listener. The
distance between the front speakers should be about 80% of the distance to the listener. In other words, the
recommended angle between the front speakers is 45°.
Finally Please remember that good sound is a matter of taste, so you have to experiment to obtain your favorite
one. We wish you best of pleasure.

11
Speaker
Placement
To achieve the best results the front speakers should be placed symmetrically in front of the listener. The
distance between the front speakers should be about 80% of the distance to the listener. In other words, the
recommended angle between the front speakers is 45°.
Finally Please remember that good sound is a matter of taste, so you have to experiment to obtain your favorite
one. We wish you best of pleasure.
The EDGE A2-300 is designed to deliver high performance with easy management.
Auto On When the unit is set to “Auto On” mode, the amplier requires a constant signal to stay on. In absence of a
signal the amplier switches to standby mode in ~ 8 minutes.
Standby In standby mode the whole unit consumes less than 0,3W which surpasses the requirements of the “one watt
imitative 2013” by IEA “International Energy Agency “. The amplier powers on when a signal is present and
goes into standby mode when there is no signal anymore.
Front LED Red LED: Device is in standby mode and waiting for a signal to turn on.
Green LED: Device is on
Adjustable Gain • You may use the adjustable gain for other sources than regular pre-ampliers like mobile phones, media
players etc. in order to adjust for their output level.
• The adjustable gain is also a good way to balance the volume of di󰀨erent ways/drivers when using the
unit for Bi-Amping.
• Using the adjustable gain will limit the maximum power output of the device and thus protect your
speakers from possible damage when playing loud. This feature can be used as a maximum volume lock.
Stereo / Mono In mono mode, the input Signals at the left and right RCA Input are accumulated and both Output channels
will reproduce this accumulated Signal. In case only one Input channel is used, the Signal from that channel
will be distributed to both Output channels.
e.g.
- Use the stereo mode when using the amplier in a regular stereo system.
- Use the mono mode when using the amplier for Bi-Amping with a single speaker.
Operating EDGE A2-300

12
Audio source
Regular Stereo System
Connecting the speakers

13
Audio source
Warning!
Link/bridge
on speaker
must be removed.
Warning!
Link/bridge
on speaker
must be removed.
Bi-Amping

14
English
19” Rack mounting
To mount a single A2-300, you will need:
• 1 short left bracket
• 1 long right bracket.
(These brackets are sold separately)

15
To mount a single A2-300, you will need:
• 1 short left bracket
• 1 long right bracket.
(These brackets are sold separately)
Short Left Bracket Long Right Bracket

16
English

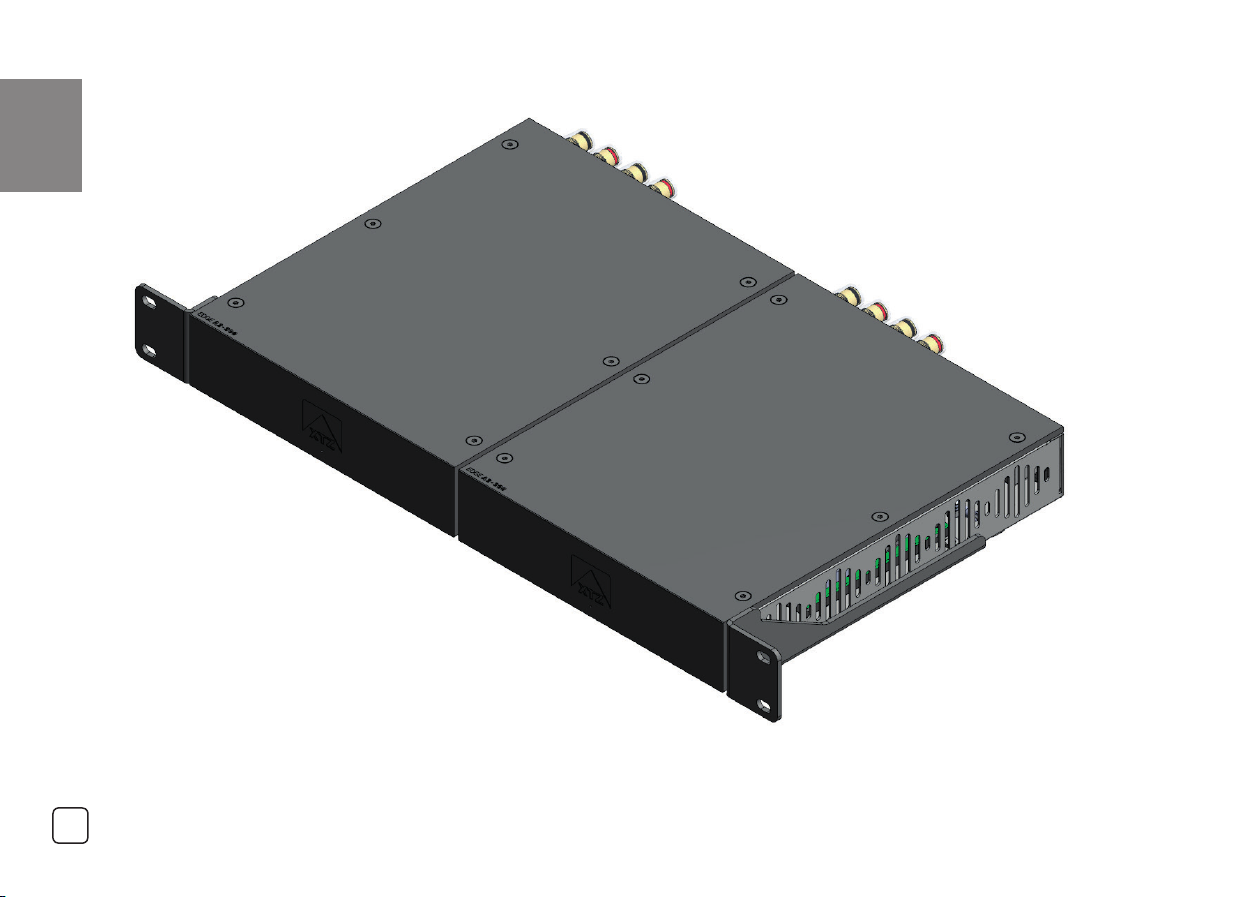

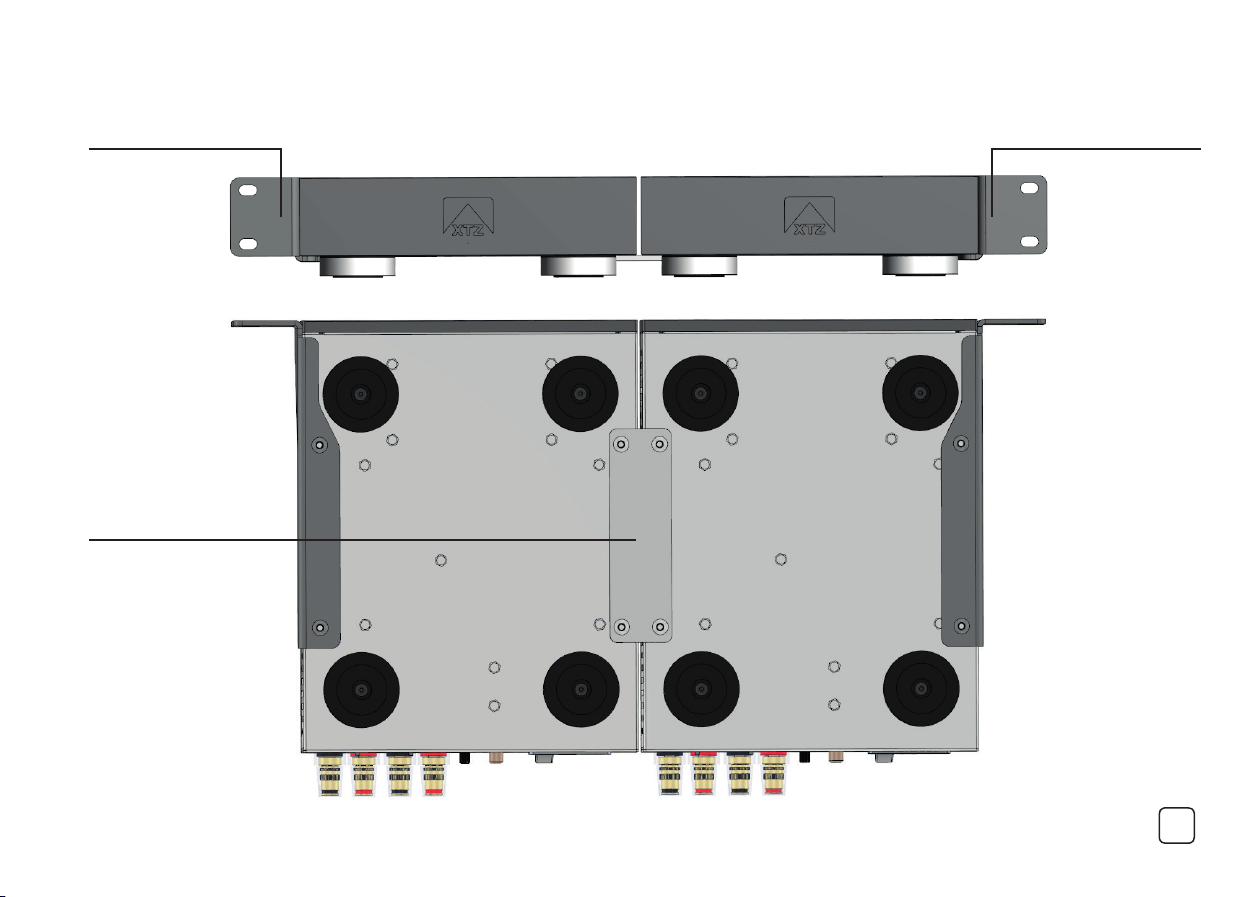

To mount two A2-300, you will need:
• 1 short left bracket
• 1 short right bracket
• 1 middle bracket
(These brackets are sold separately)

17
Short Left Bracket Short Right Bracket
Middle Bracket
To mount two A2-300, you will need:
• 1 short left bracket
• 1 short right bracket
• 1 middle bracket
(These brackets are sold separately)

18
Technical Specications
EDGE A2-300
Amplication type
Power
Frequency response
Damping Factor
Dynamic range
Standby Power Consumption
Idle Power Consumption
Auto On
Standby mode timer
Inputs
Input impedance
Outputs
Output impedance
Dimensions (WxDxH)
Weight
ICEpower®- triple loop feedback CLASS D
2 x 460 W (1% THD, 2.7 Ω)
2 x 300 W (1% THD, 4 Ω)
2 x 150 W (1% THD, 8 Ω)
2 x 380 W (10% THD, 4 Ω)
2 x 190 W (10% THD, 8 Ω)
5 Hz – 70 kHz (- 3 dB ref.)
>1500 (8 Ω, 20 - 500 Hz)
113 dB S/N, (A-weighted at 300 W, 4 Ω)
0.27 W
6.80 W
3 mV trigger level
~ 8 min
High Quality RCA Connections
38 kΩ
High Quality Copper binding posts (CMC®)
50 mΩ
200 x 285 x 58(*70) mm | 7.9 x 11.2 x 2.3(*2.8) inches (*with feet)
2,3 kg | 5 lbs
English

19
Short Right 19” Bracket
EAN: 7340030420229
Article: 20058
Long Right 19” Bracket
EAN: 7340030420243
Article: 20060
Middle 19” Bracket
EAN: 7340030420236
Article: 20059
Short Left 19” Bracket
EAN: 7340030420212
Article: 20057
Accessories

20
Deutsch
XTZ Philosophie
Unser grundlegendes Ziel ist die natürliche und harmonische Ton-Wiedergabe mit optimalem Verhältnis aus Preis, Leistung
und Qualität. So können Sie Ihre Lieblingsmusik oder Ihren Lieblingslm voller Freude genießen und genau so erleben, wie
es vom Produzenten angedacht war.
Unser Konzept:
- Akribische Entwicklung für optimale Produkteigenschaften
- Kostengünstige Produktion und Vertriebsstrategie
- Sorgfältige Qualitätskontrollen
- Reduktion von Zwischenhändlern
Website: www.xtz-deutschland.de
XTZ-Deutschland
Neudorfstraße 19
76316 Malsch / Deutschland
Tel.: [phone]
Mail: [email protected]
Inhaltsverzeichnis
Einführung 22
Sicherheitshinweise 22
Quick Setup 22
Positionierung 23
Stromanschluss (220V / 110V) 23
Verbindungen (Störungsquellen) 23
Eingänge & Ausgänge 24
Praktische Hinweise zur Akustik 27
Betriebshinweise EDGE A2-300 29
Anschluss der Lautsprecher 30
Bi-amping 31
19” rack mounting 32
Technische Spezikationen 36
