Yaber YR500 User manual
Italiano
01 - 14
15 - 23
24 - 32
33 - 42
43 - 50
51 - 57
EN 01 02 03 04 05 06 07 08 09 10 11 12 13 14
15 16 17 18 19 20 21 22 23
24 25 26 27 28 29 30 31 32
33 34 35 36 37 38 39 40 41 42
43 44 45 46 47 48 49 50
51 52 53 54 55 56 57

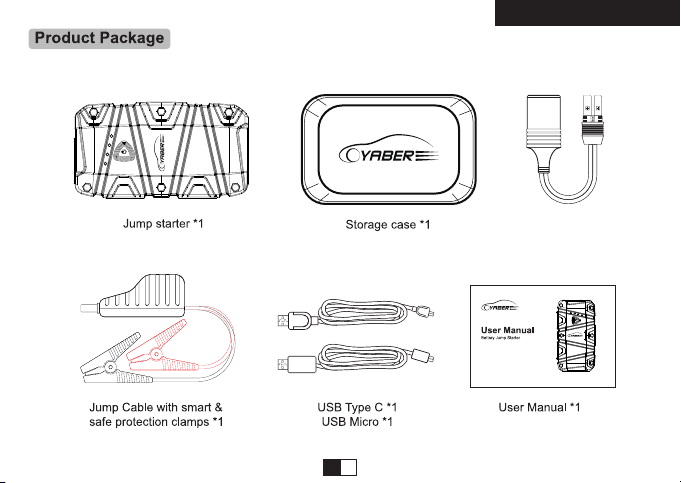

EC-5 Cigarette
Lighter Adaptor
EN
01 02 03 04 05 06 07 08 09 10 11 12 13 14
15 16 17 18 19 20 21 22 23
24 25 26 27 28 29 30 31 32
33 34 35 36 37 38 39 40 41 42
43 44 45 46 47 48 49 50
51 52 53 54 55 56 57
EN
01 02 03 04 05 06 07 08 09 10 11 12 13 14
15 16 17 18 19 20 21 22 23
24 25 26 27 28 29 30 31 32
33 34 35 36 37 38 39 40 41 42
43 44 45 46 47 48 49 50
51 52 53 54 55 56 57

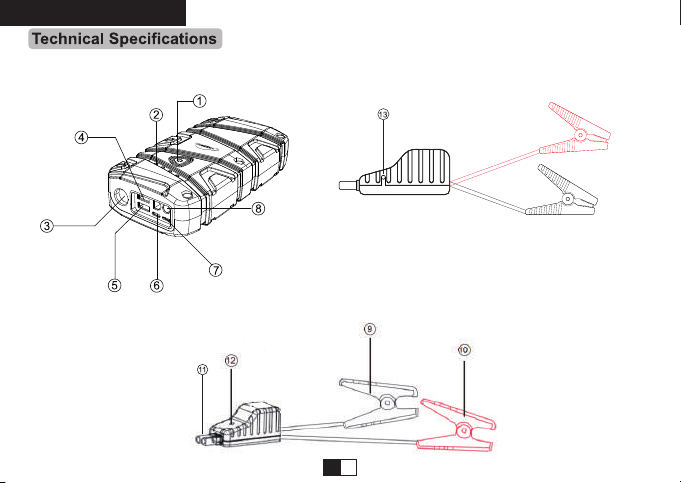

Jump Starting Port Insert the plug into the jump starting port
Force Starter Button You need to press this button if the car battery voltage too low13
Charge the stater with Type C
EN
01 02 03 04 05 06 07 08 09 10 11 12 13 14
15 16 17 18 19 20 21 22 23
24 25 26 27 28 29 30 31 32
33 34 35 36 37 38 39 40 41 42
43 44 45 46 47 48 49 50
51 52 53 54 55 56 57
EN
01 02 03 04 05 06 07 08 09 10 11 12 13 14
15 16 17 18 19 20 21 22 23
24 25 26 27 28 29 30 31 32
33 34 35 36 37 38 39 40 41 42
43 44 45 46 47 48 49 50
51 52 53 54 55 56 57
（not included）
The use step of the flashlight
1: Long press the power button for 3-5S to open/close the flashlight mode.
2: By further pressing the button in this mode, you switch between operating modes "SOS","Stroboscope" and
"Permanent light".
2
EN
01 02 03 04 05 06 07 08 09 10 11 12 13 14
15 16 17 18 19 20 21 22 23
24 25 26 27 28 29 30 31 32
33 34 35 36 37 38 39 40 41 42
43 44 45 46 47 48 49 50
51 52 53 54 55 56 57

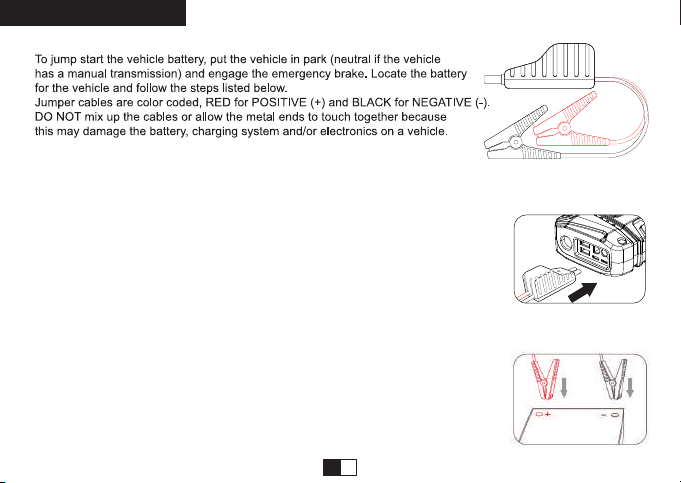

Step 1: Insert the plug of the smart battery clamp completely into the jump starter.
If the green and red light indicators on the battery clamp are flashing alternately,
you are safe to move on to the next step.
Note:
This prodcut is for 12V car only. Check to make sure that 3 to 4 indicator lights are illuminated(battery level is above
50%) before you use it to jump start your car.
Step 2: Connect the red clamp to the positive terminal(+) of the car battery and connect the black clamp to the
negative terminal(-) of the car battery. If the green and red light indicators on the battery clamp are flashing
alternately, you are safe to move on to the next step.
However, if the red indicator light is on:
1.The battery clamp may be connected in reverse. If so, you need to disconnect
the battery clamp from the vehicle and the jump starter.
2.Adjust the clamps for maximum contact with the battery terminals
EN
01 02 03 04 05 06 07 08 09 10 11 12 13 14
15 16 17 18 19 20 21 22 23
24 25 26 27 28 29 30 31 32
33 34 35 36 37 38 39 40 41 42
43 44 45 46 47 48 49 50
51 52 53 54 55 56 57
Step 3-a: Start your car.
If you failed to start your car, you need to disconnect the battery clamp from the vehicle and the jump starter.
Wait for at least 30 seconds, then try again.If you failed to start your car after 2 attempts, you can use the force start
function. See step 3-b.
Step 3-b(optional): Force start function. First please make sure that the clamps are connected to the correct polarity
battery terminal. Then, press and hold the force start button for 3 seconds.
When the indicator light of the smart clamp is solid green, you need to start the vehicle within 30s.
Step 4: Once your car is started, remove the battery clamp from the car-battery and the jump starter within 30
seconds.
EN
01 02 03 04 05 06 07 08 09 10 11 12 13 14
15 16 17 18 19 20 21 22 23
24 25 26 27 28 29 30 31 32
33 34 35 36 37 38 39 40 41 42
43 44 45 46 47 48 49 50
51 52 53 54 55 56 57
In any of the following situations, the smart clamp turns protection on.
LED Indicator
The red/green led will flash
The green light is always on
The red light is always on with
long audio alarm
The red light flashes with short
audio alarm
The red light is always on with
long audio alarm
The red light is always on with
short audio alarm
The voltage of the starter is too low
-- try to replace the startup power supply or charge it in time
Situations
Ready to work
Work status
1.battery clamp is reversely connected
-- check whether the clip is reversely connected
2.the clamp is short- circuited
-- check whether two clamps together connect or connect both cable
clamps to the same piece of metal
Back charge protection, the voltage of the car battery is higher than 12.6v
-- No jump starter needed, the car battery is enough to start your car
The temperature of the clamp exceeds 65(+/ -5)degrees
-- remove the clamp untill the red green led flash
EN
01 02 03 04 05 06 07 08 09 10 11 12 13 14
15 16 17 18 19 20 21 22 23
24 25 26 27 28 29 30 31 32
33 34 35 36 37 38 39 40 41 42
43 44 45 46 47 48 49 50
51 52 53 54 55 56 57
Model
Micro Input
USB-C input
Output1
Output 2
Dimensions (L * W * H)
Overload / Discharge Fuse
Working Temperature
Backflow protection
Short circuit fuse protection
Reverse polarity protection
YR500
DC 5V / 2A
5V / 2A
5V/3A, 9V/2A, 12V/1.5A Max, USB 3.0
5V/3A, 9V/2A, 12V/1.5A Max, USB 3.0
185*99*45mm
≦13v ± 0.3v
65 ℃± 5 ℃
≧(12.6v ± 0.3v)
√
√
Details
EN
01 02 03 04 05 06 07 08 09 10 11 12 13 14
15 16 17 18 19 20 21 22 23
24 25 26 27 28 29 30 31 32
33 34 35 36 37 38 39 40 41 42
43 44 45 46 47 48 49 50
51 52 53 54 55 56 57
EN
01 02 03 04 05 06 07 08 09 10 11 12 13 14
15 16 17 18 19 20 21 22 23
24 25 26 27 28 29 30 31 32
33 34 35 36 37 38 39 40 41 42
43 44 45 46 47 48 49 50
51 52 53 54 55 56 57
74

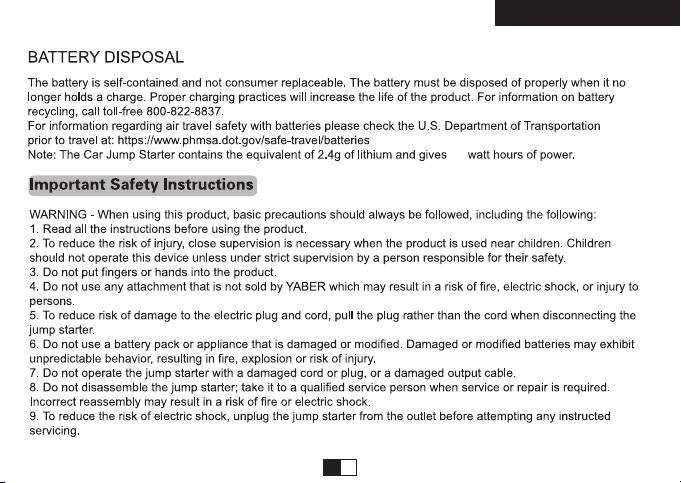

EN
01 02 03 04 05 06 07 08 09 10 11 12 13 14
15 16 17 18 19 20 21 22 23
24 25 26 27 28 29 30 31 32
33 34 35 36 37 38 39 40 41 42
43 44 45 46 47 48 49 50
51 52 53 54 55 56 57

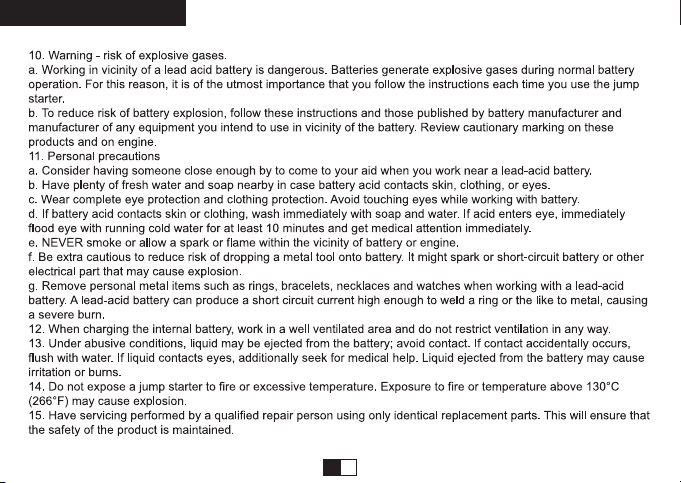

EN
01 02 03 04 05 06 07 08 09 10 11 12 13 14
15 16 17 18 19 20 21 22 23
24 25 26 27 28 29 30 31 32
33 34 35 36 37 38 39 40 41 42
43 44 45 46 47 48 49 50
51 52 53 54 55 56 57

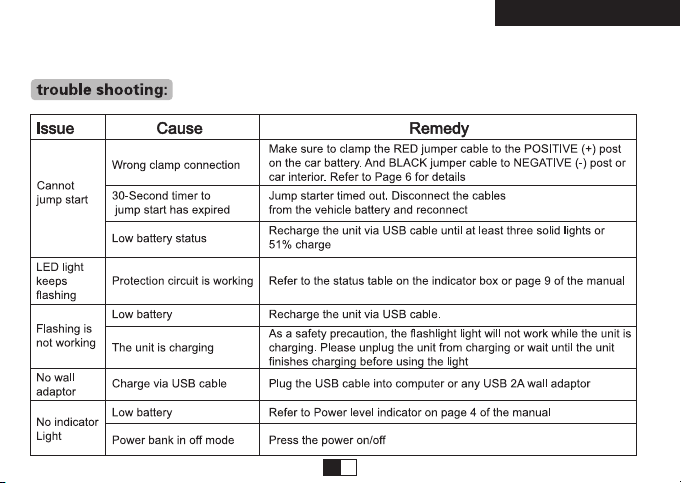

16. Attach output cables to a battery and chassis as indicated below. Never allow the output clamps to touch one another.
17. Dropping, hitting or other excessive amounts of force to the jumo starter may damage the unit (external and
internal), which may result in loss of operation, electrical fire or cause other serious damage.
EN
01 02 03 04 05 06 07 08 09 10 11 12 13 14
15 16 17 18 19 20 21 22 23
24 25 26 27 28 29 30 31 32
33 34 35 36 37 38 39 40 41 42
43 44 45 46 47 48 49 50
51 52 53 54 55 56 57
Warranty
Our company provides customers with warranty of 24 months from the date of purchase.
Contact us
For any inquiries or comments concerning our products, please send an email to [email protected], and we will
respond to you as soon as possible.
DE
01 02 03 04 05 06 07 08 09 10 11 12 13 14
15 16 17 18 19 20 21 22 23
24 25 26 27 28 29 30 31 32
33 34 35 36 37 38 39 40 41 42
43 44 45 46 47 48 49 50
51 52 53 54 55 56 57
,

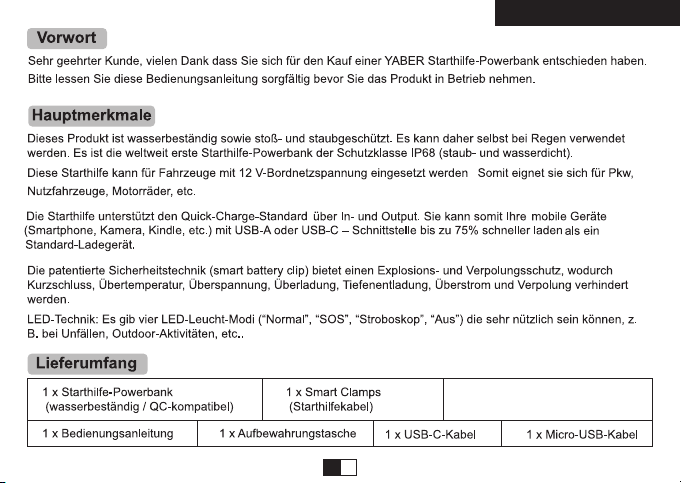

1 x EC-5 Adapter für
Zigarettenanzünder
DE
01 02 03 04 05 06 07 08 09 10 11 12 13 14
15 16 17 18 19 20 21 22 23
24 25 26 27 28 29 30 31 32
33 34 35 36 37 38 39 40 41 42
43 44 45 46 47 48 49 50
51 52 53 54 55 56 57
DE
01 02 03 04 05 06 07 08 09 10 11 12 13 14
15 16 17 18 19 20 21 22 23
24 25 26 27 28 29 30 31 32
33 34 35 36 37 38 39 40 41 42
43 44 45 46 47 48 49 50
51 52 53 54 55 56 57

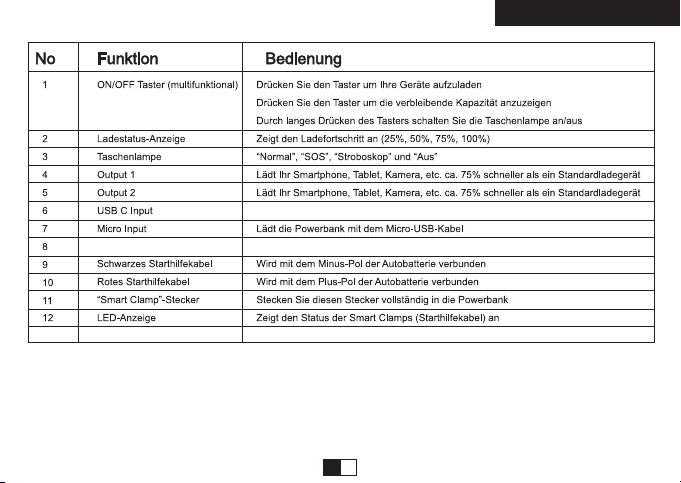

Auto- Starthilfe - Port Stecken Sie den Stecker in dem Auto-Starthilfe-Port
13 Tiefenentladungs-Taster Drücken Sie diesen Taster wenn die Batteriespannung (Autobatterie)zu niedrig ist
Lädt die Powerbank mit dem Typ C Kabel
DE
01 02 03 04 05 06 07 08 09 10 11 12 13 14
15 16 17 18 19 20 21 22 23
24 25 26 27 28 29 30 31 32
33 34 35 36 37 38 39 40 41 42
43 44 45 46 47 48 49 50
51 52 53 54 55 56 57

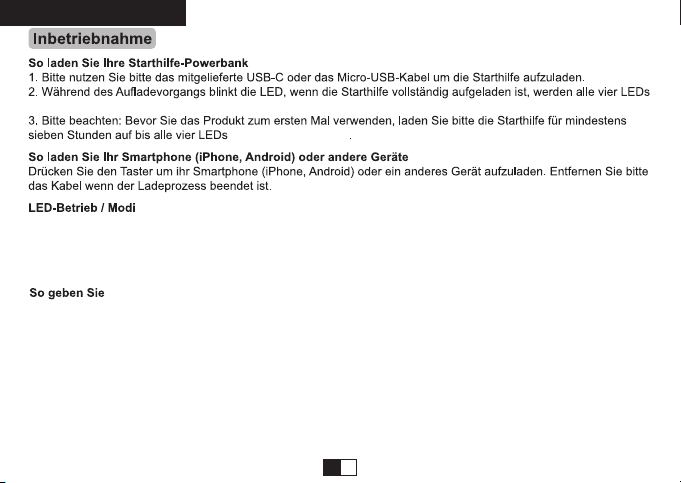

leuchten, nicht blinken
Drücken Sie die ON-OFF Taste lang um die LED Leuchtung an-/ auszushalten.
Durch weiteres kurzes Drücken des Tasters in diesem Modus wechseln Sie zwischen Betriebsarten “ SOS”,
“Stroboskop” und” Permanentlicht”
leuchten.
Starten Sie das Auto mit Starthilfe
Hinweis:
》Das Produkt ist nur für 12V Fahrzeuge geeignet.
》Stellen Sie sicher, dass 3 bis 4 Anzeigeleuchten leuchten( der Batterieladestand liegt über 50%), bevor Sie damit Ihr
